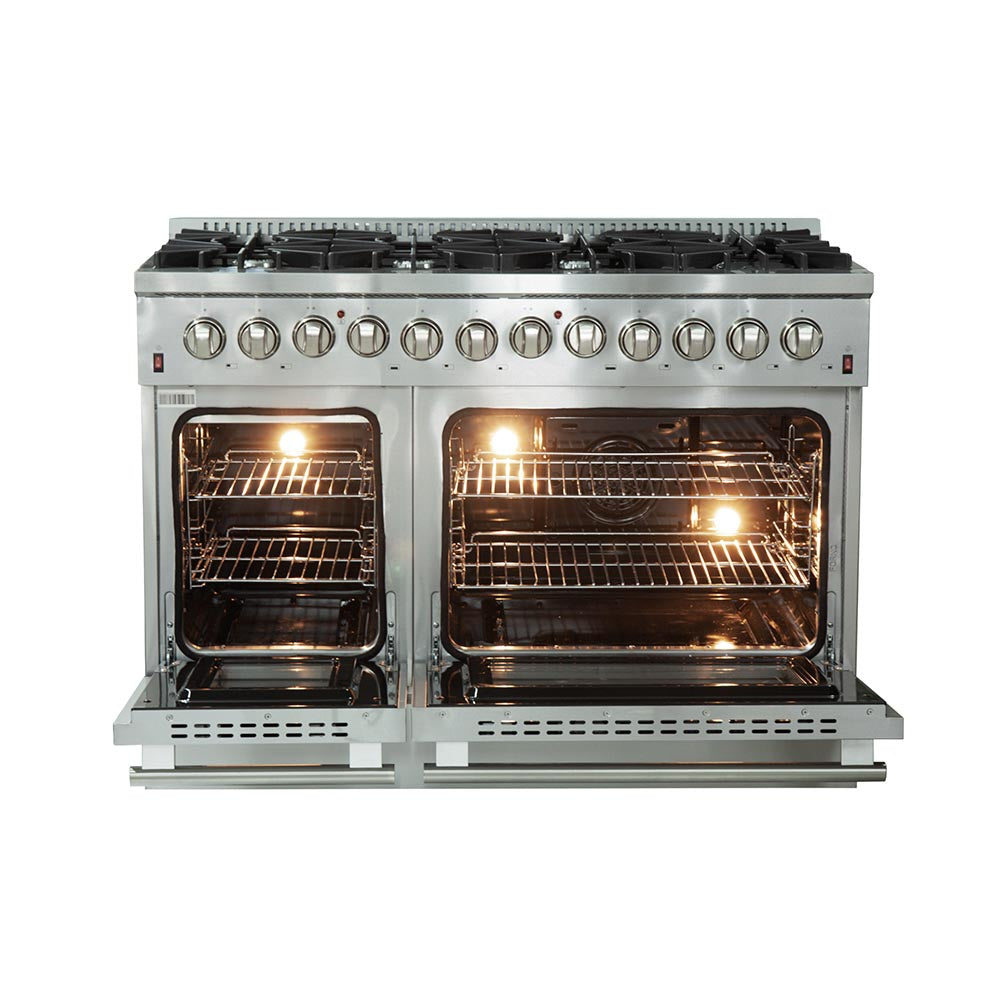

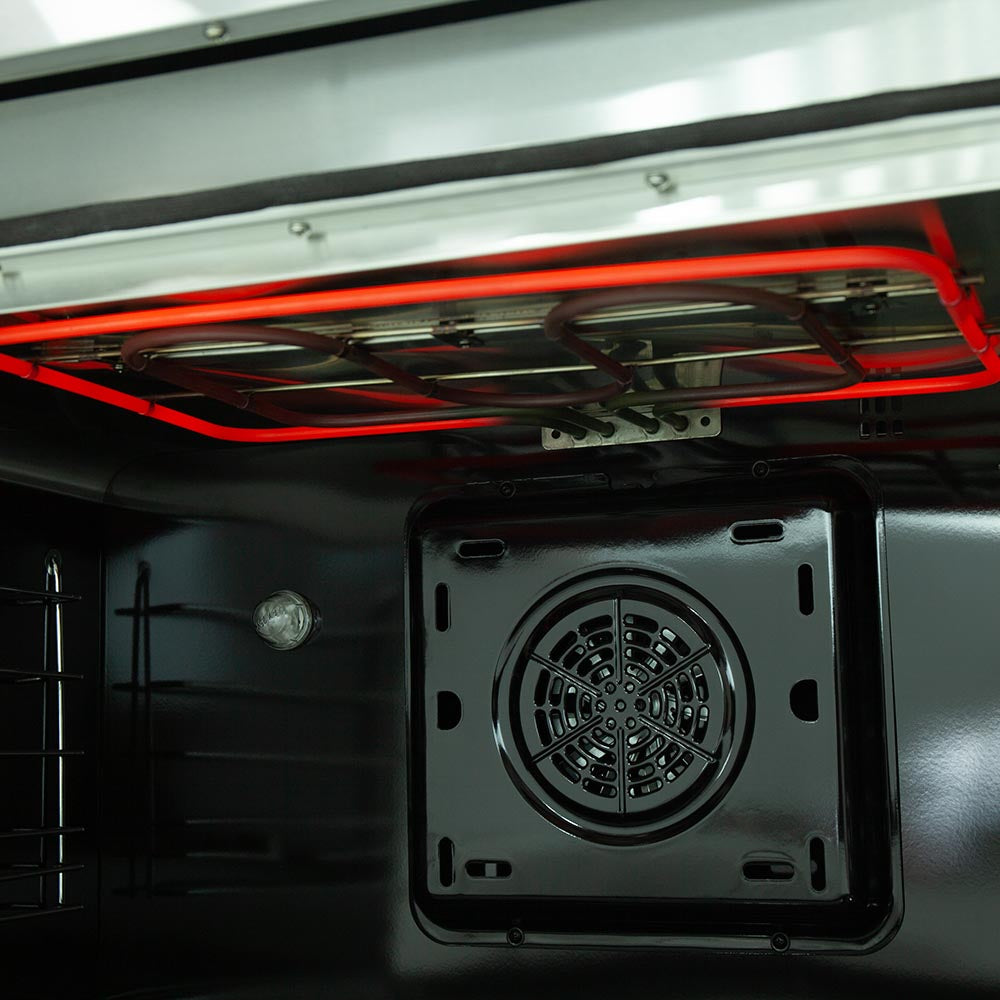

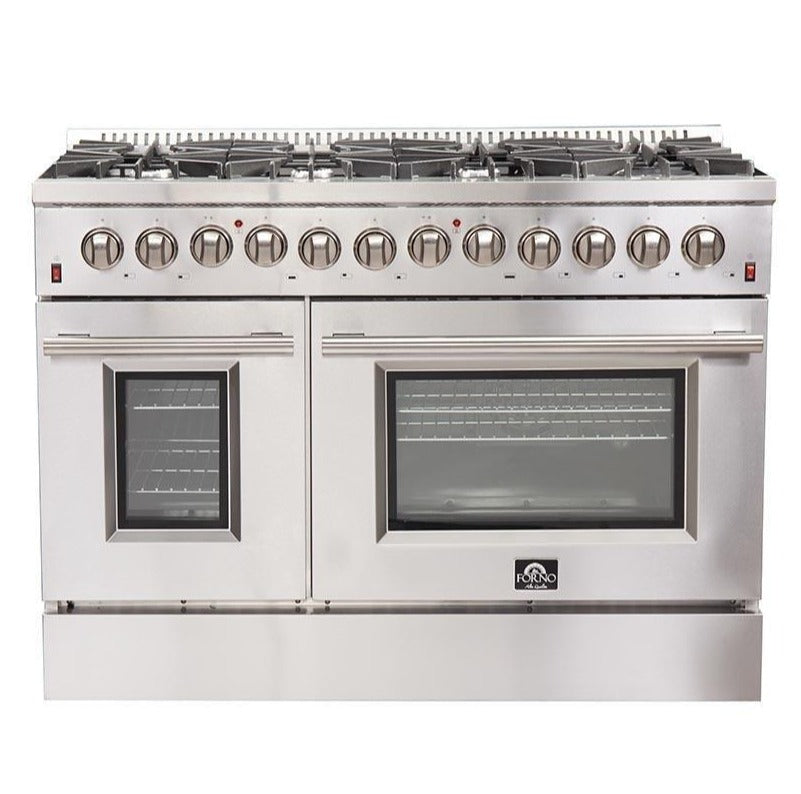

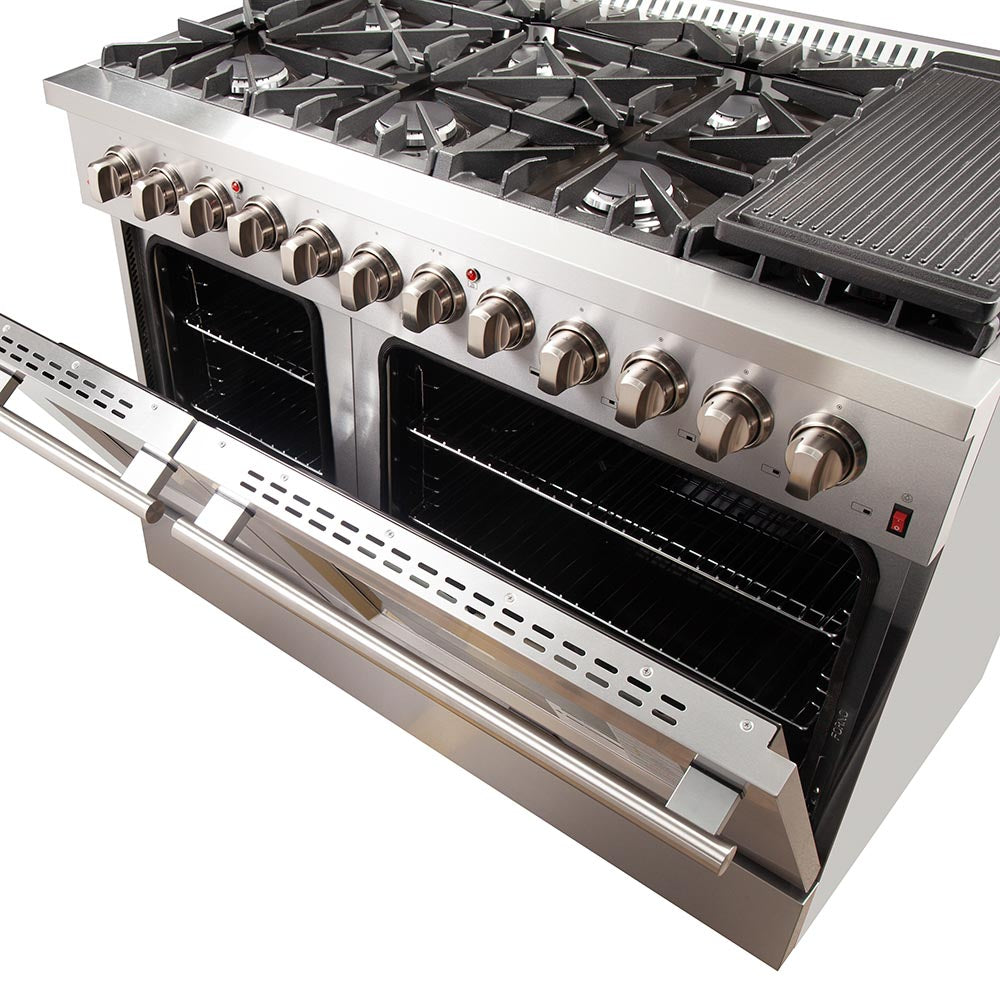

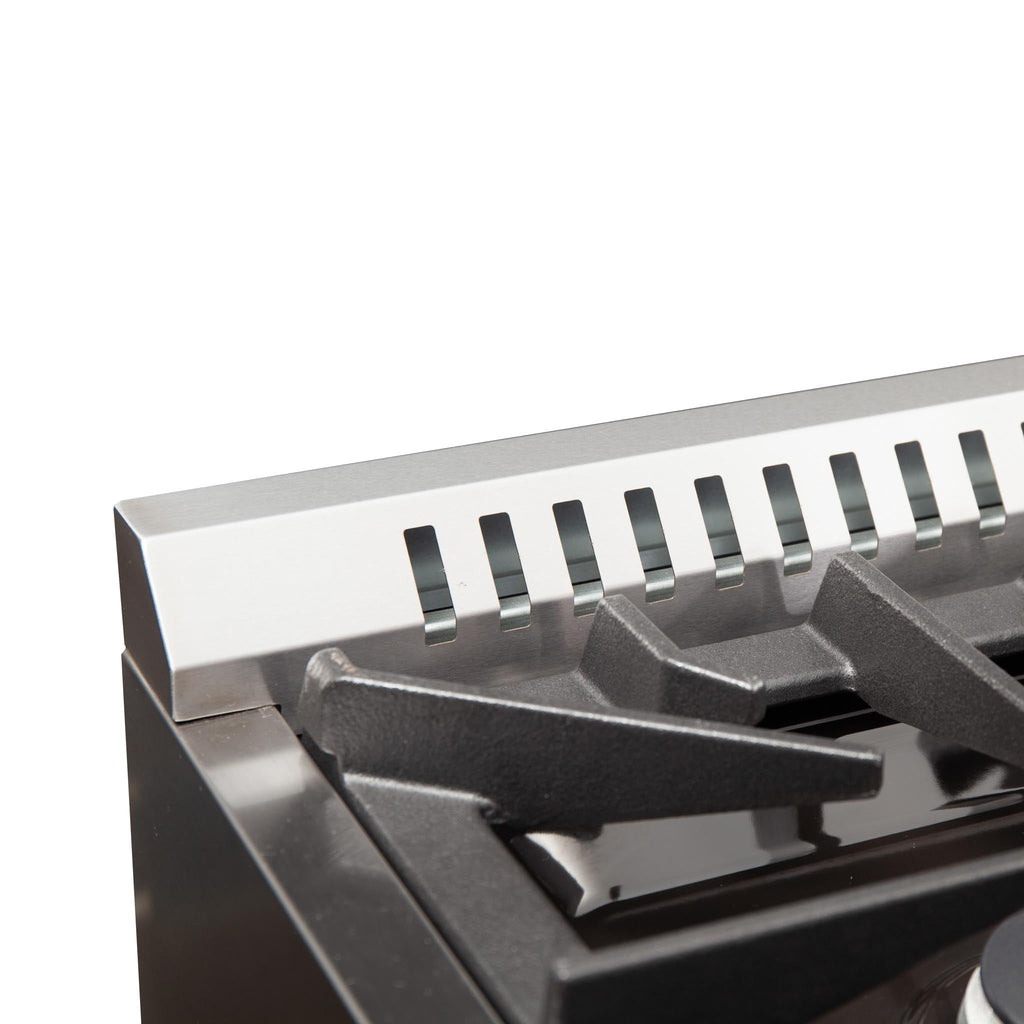

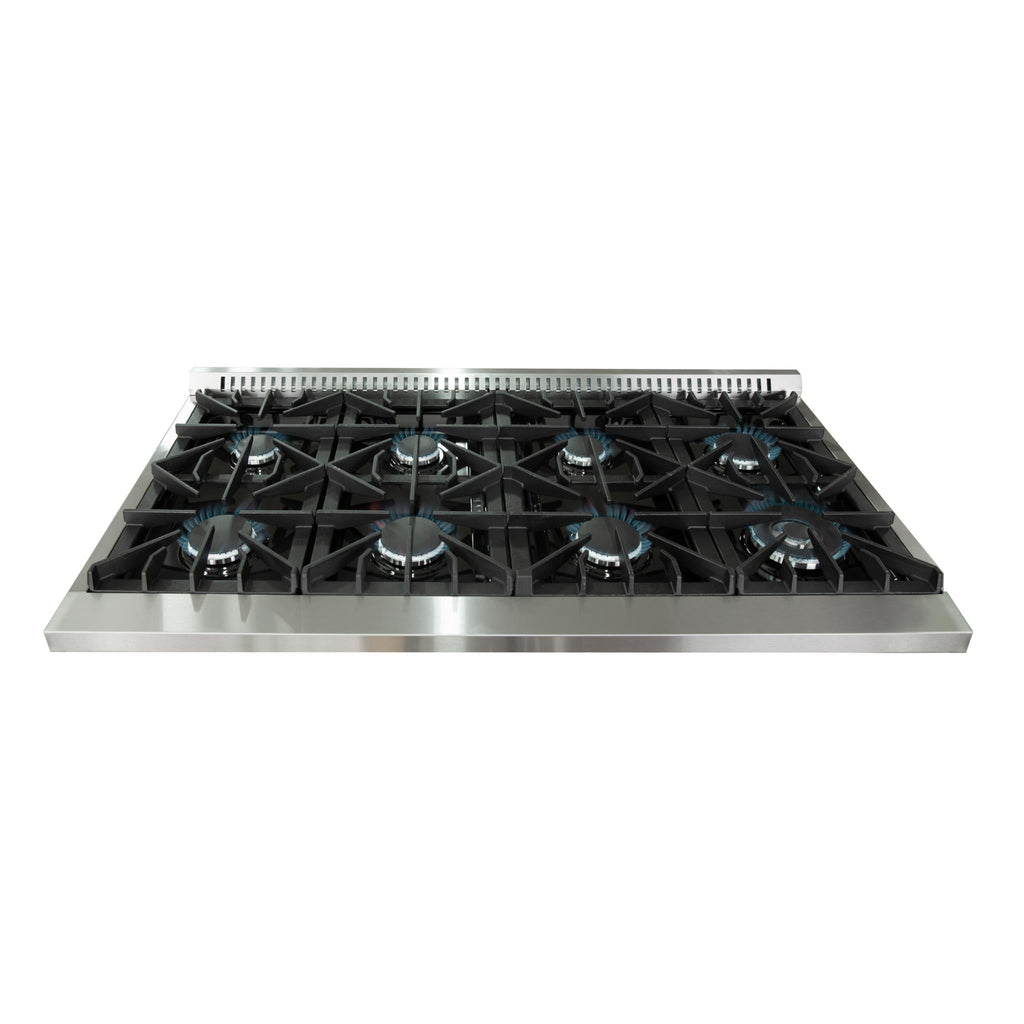

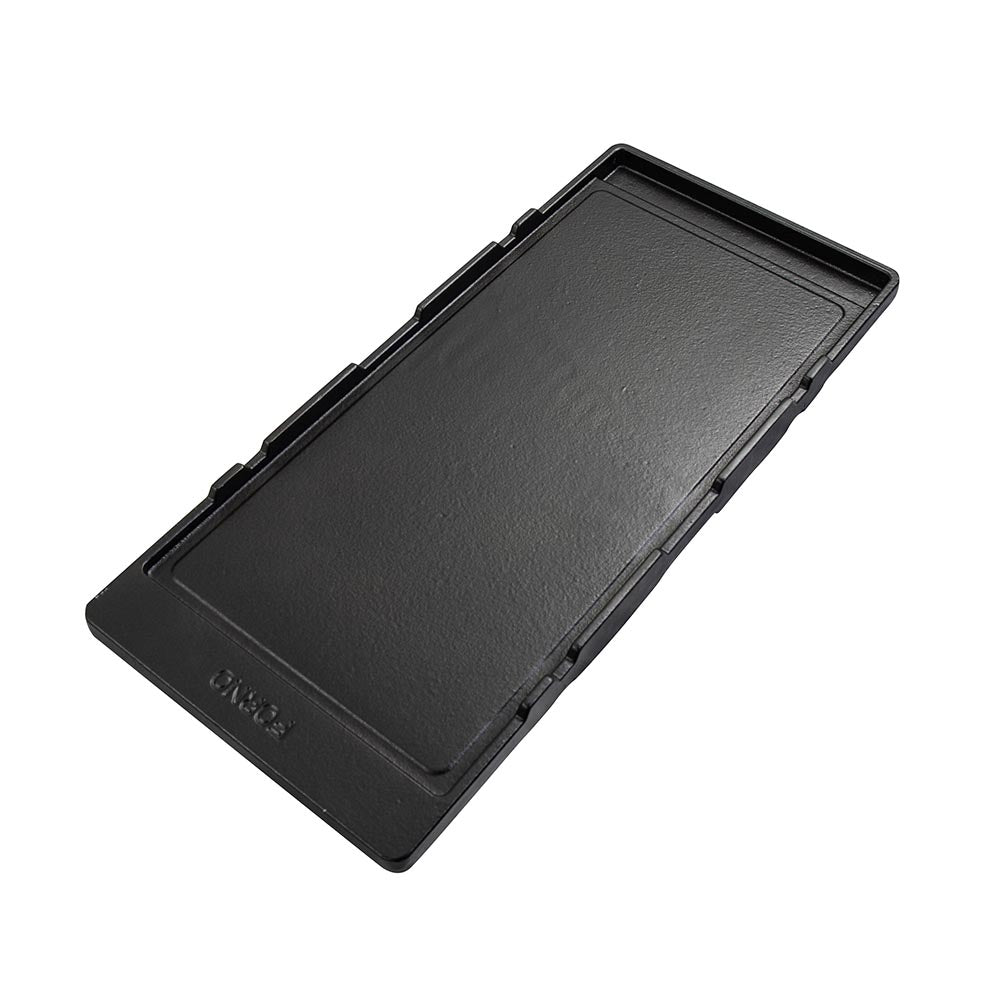

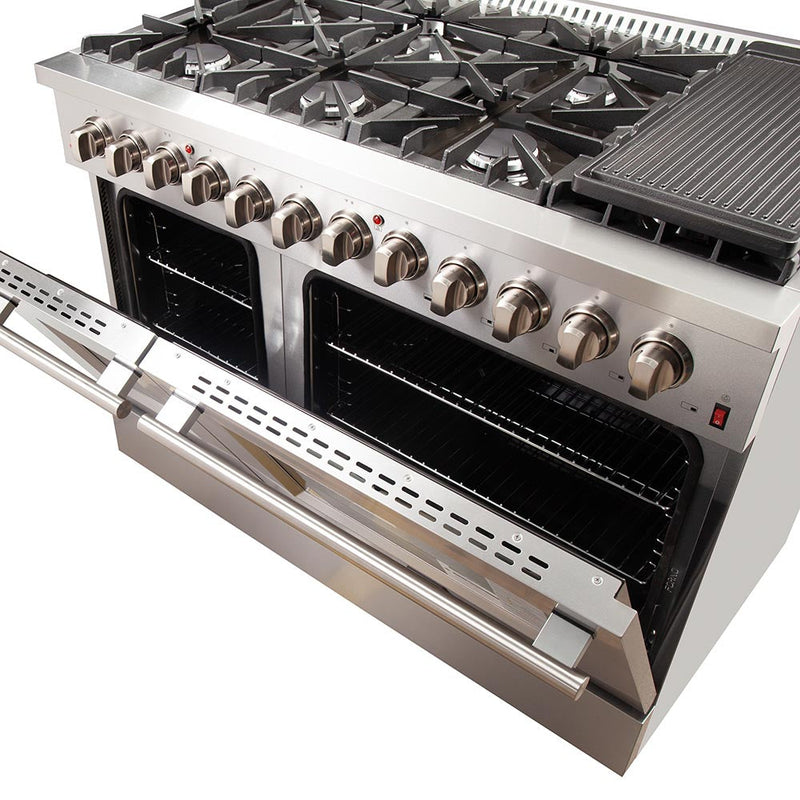

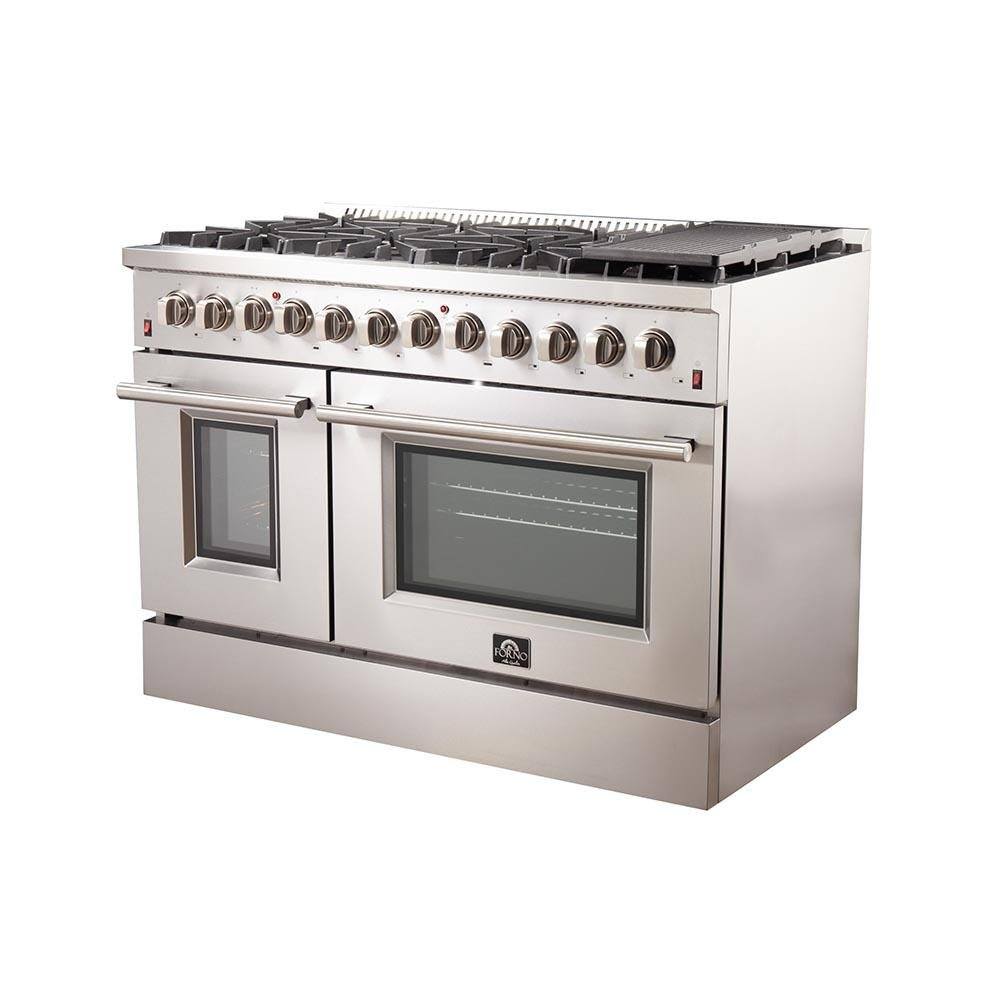

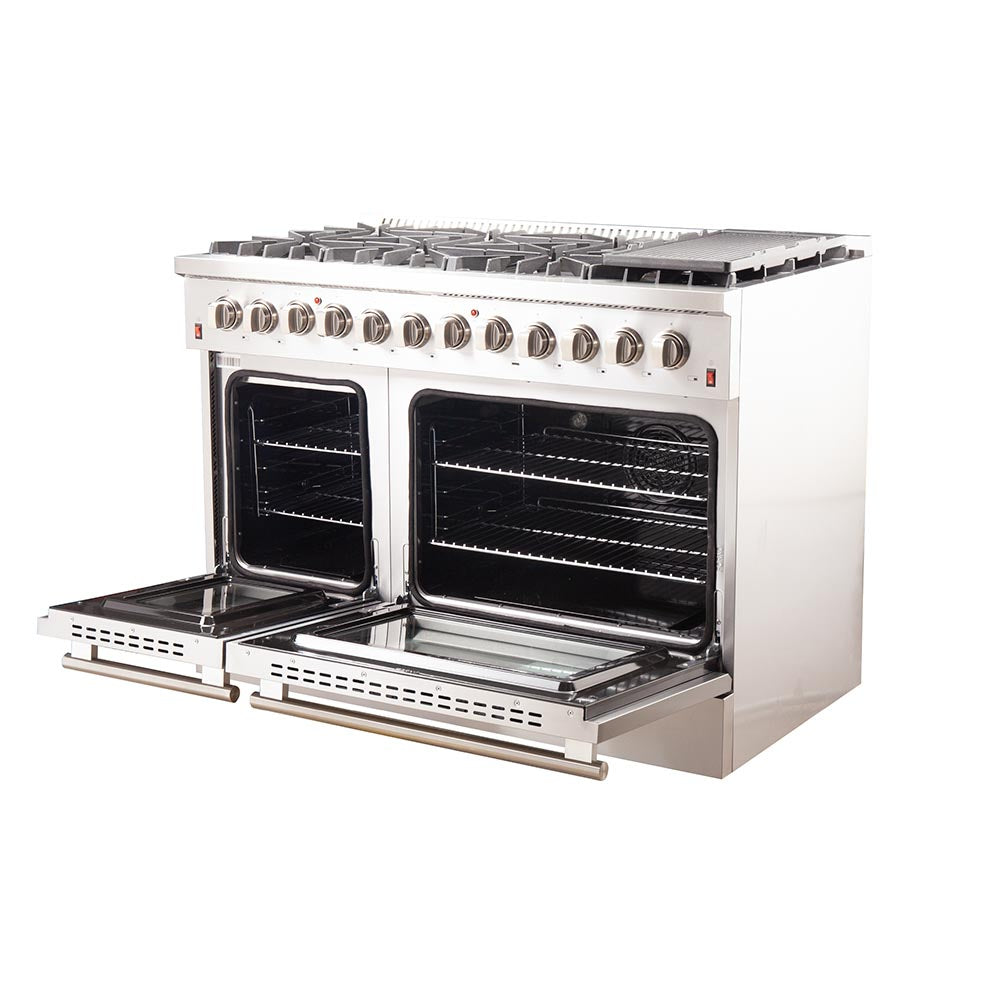

The 48” Galiano Dual Fuel Range brings professional styling and quality into your home kitchen with its durable stainless-steel design. Cooktop has 8 sealed burners with a total stove top output of 107,000 BTU. This unit is ready to handle all your pots and pans with ease over it’s continuous cast-iron grate design. The cumulative capacity 6.58 cu. ft. double ovens with a total output of 9,800 Watts are encased in a black enameled interiors. Right oven is fitted with a true convection fan. Thermostat and regulator ensures to achieve fast, precision and consistent oven cooking along for easy viewing are 3-layer glass oven door windows on both ovens, Included are 4 electroplated oven racks, reversible griddle, and LP conversion kit. Housed in a high-grade stainless steel body and zinc coated metal knobs and bezels, this unit sports a stylish look that is built to last. All Forno products are backed by an iron clad 2-year warranty for your satisfaction. Skip the high price tags without sacrificing quality and performance. Lower the cost of living with Forno.
| Weight and Dimensions |
|
|
Overall Dimensions
|
48” W x 28” D x 38” H |
|
Oven Door Open 90º
|
|
|
Right Oven Interior Dimensions
|
24.92'' W x 18.7" D x16'' H |
|
Left Oven Interior Dimensions
|
13.03” W x 18.7” D x 16” H |
|
Overall Weight
|
388 lbs |
|
Depth with Oven Door Open 90º
|
44.25" |
|
Electrical |
|
|
Amperage
|
30 A |
|
Volts
|
240 V |
|
Wattage
|
9700 W |
|
Oven 1 inside Broil Wattage
|
1,000 W |
|
Oven 1 Outside Broil Wattage
|
1800 W |
|
Oven 1 Bake Wattage
|
2000 W |
|
Oven 1 True Convection Wattage
|
1500 W |
| Oven 2 Outside Broil Wattage | 1700 W |
| Oven 2 Bake Wattage | 1700 W |
|
Power Cord Length
|
5' |
|

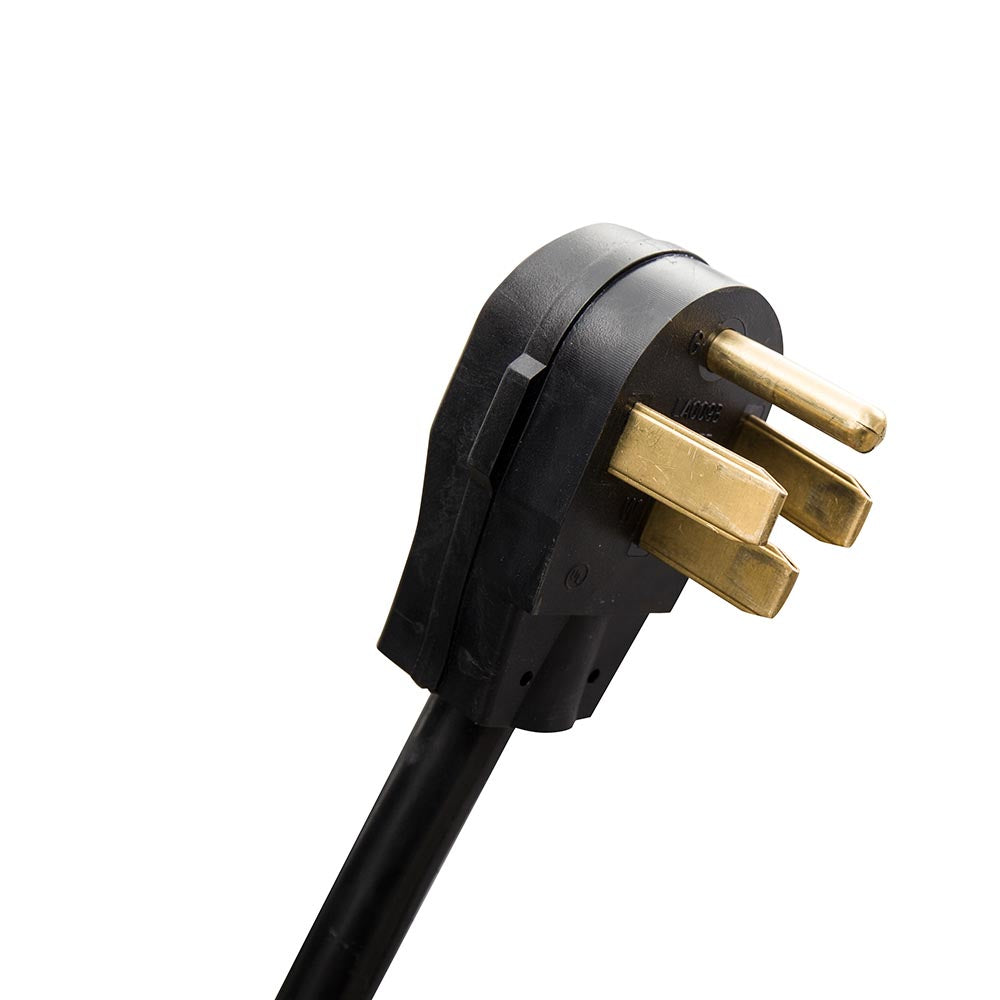

Receptacle Type
|
4-Prong Grounded |
|
Cooktop |
|

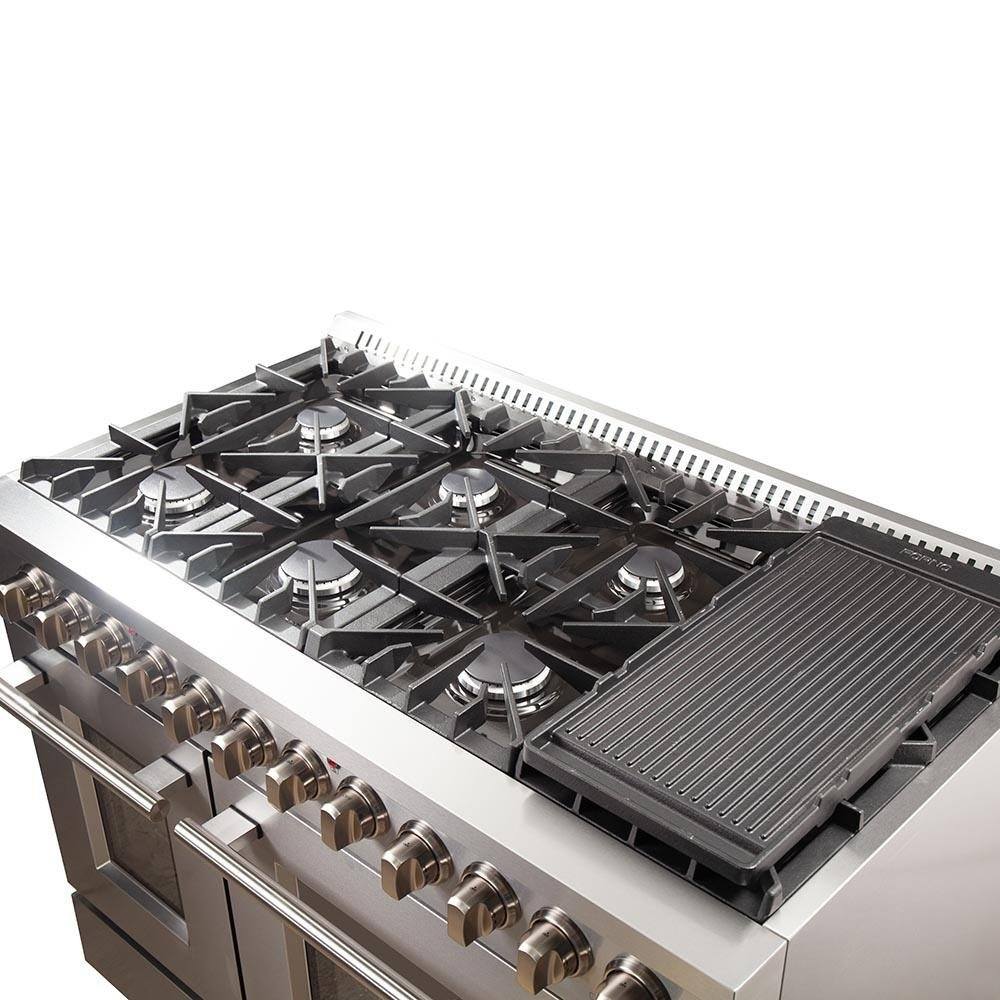

| Overall Burners BTU | 107,000 |
| Front Right Burner BTU | 1000 to 20,000 |
| Front Right Center Burner BTU | 15,000 |
| Front Left Center BTU | 15,000 |
| Front Left Burner BTU | 15,000 |
| Rear Right Burner BTU | 15,000 |
| Rear Right Center Burner BTU | 9,000 |
| Rear Left Center Burner BTU | 9,000 |
| Rear Left Burner BTU | 9,000 |

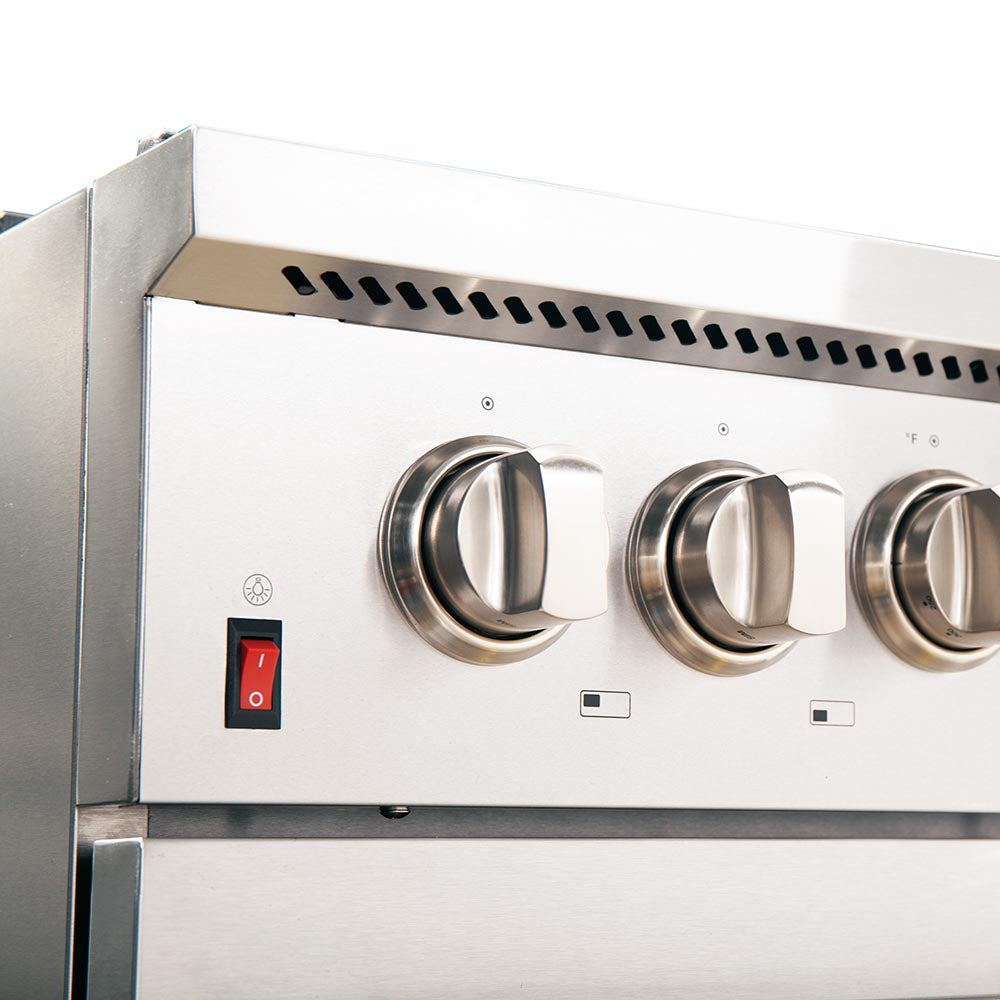

| Number of Knob |
12 |
| Switches |
1 + 1 |
|
Oven |
|
| Overall Oven Capacity | 6.58 Cubic Feet |
|
Right Oven Capacity |
4.32 Cubic Feet |
| Left Oven Capacity | Left Oven Capacity |
| Convection Fan | Yes |
|
Certifications |
|
| ETL Listed | Yes |
|
Details |
|
| Product Type | Freestanding |
| Color/Finish | Stainless Steel |
| Fuel Type | Gas & Electric |
| Gas Type | Natural Gas |
| Gas Heat Configuration | Sealed Burner |
| Number of Burners | 8 |
| Cooktop Surface | Continuous Cast Iron Grates |
| Cooktop Cavity |
Recessed Enamel |
| Number of Ovens | 2 |
| Number of Racks | 2 |
| Number of Rack Positions |
2 x 6 |
| Broiler | Electric |
| Bake Element | Electric |
| Cleaning Type | Manual |
| Cooking Process | True Convection |
| Interior Light | 2 |
| Control Type | Knob |
| Control Location | Front |
| LP Gas Convertible | Yes |
| Black Enamel Oven Interior | Yes |
| LP Conversion Kit Included | |
| Temperature Gauge | No |
| Timer | No |
| Clock | No |
| Primary Material | Metal |
| Door Panel Material | Stainless Steel |
| Control Panel Material |
Stainless Steel |
| Kick Plate Material | Stainless Steel |
| Side Panel Material | Stainless Steel |
| Supplier Intended and Approved Use | Residential Use |
| Country of Origin | China |
| Warranty Type |
2 Years |
| Warranty Length |
2 Years |
| Warranty on Parts |
2 Years |
| Warranty on Labor |
2 Years |

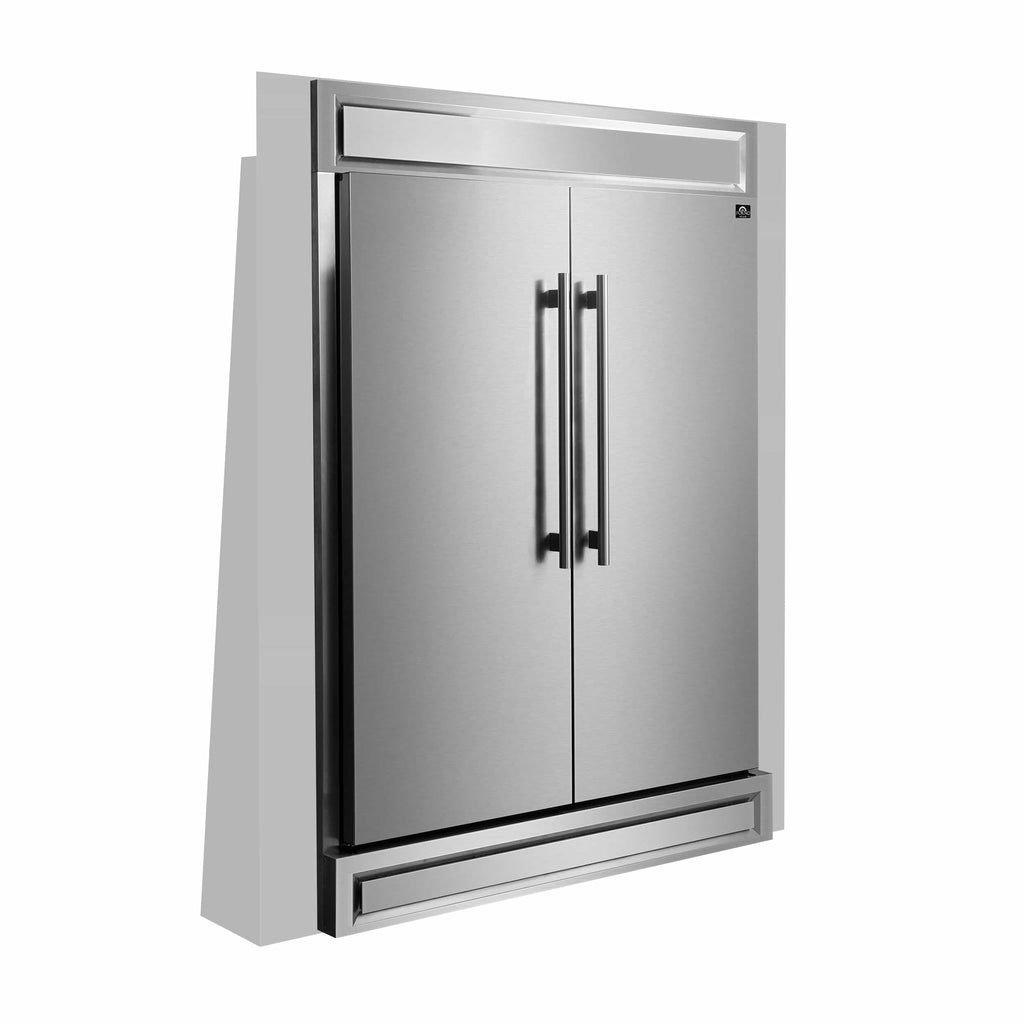

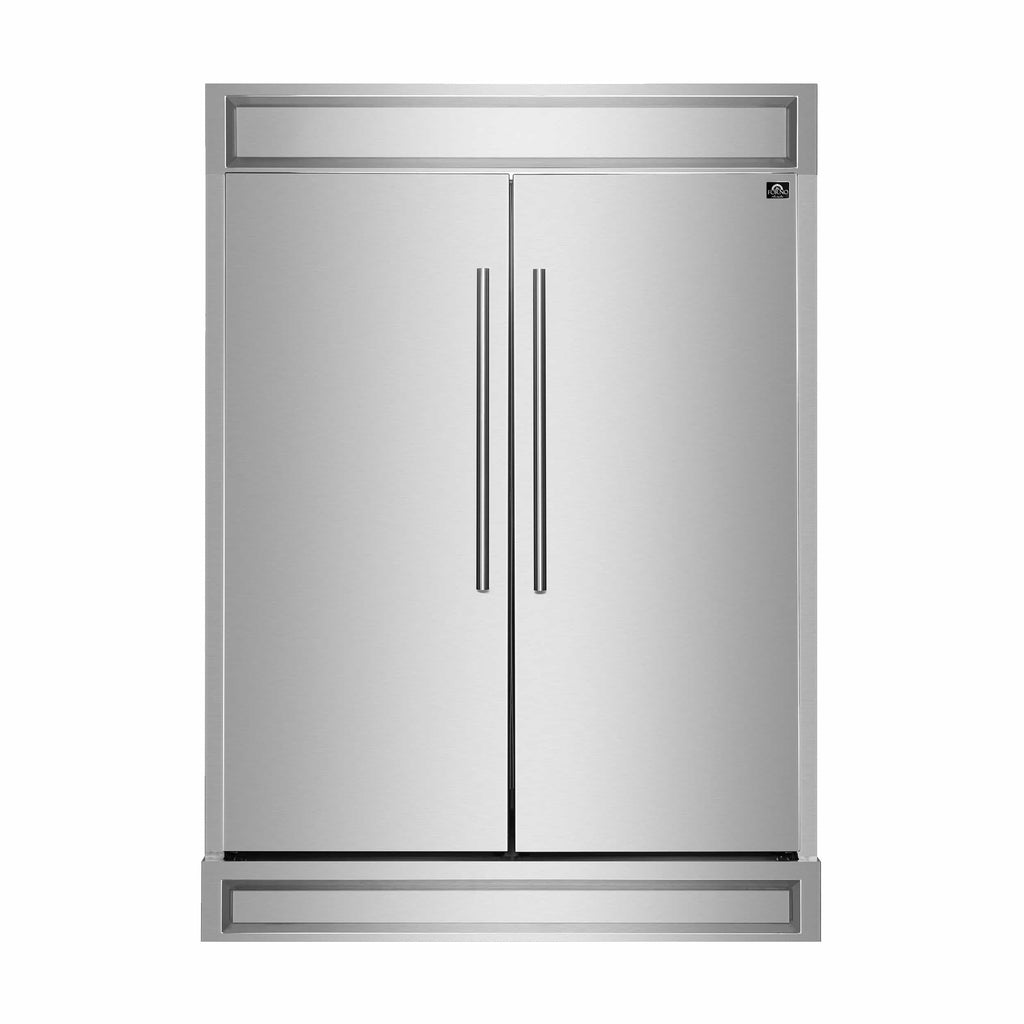

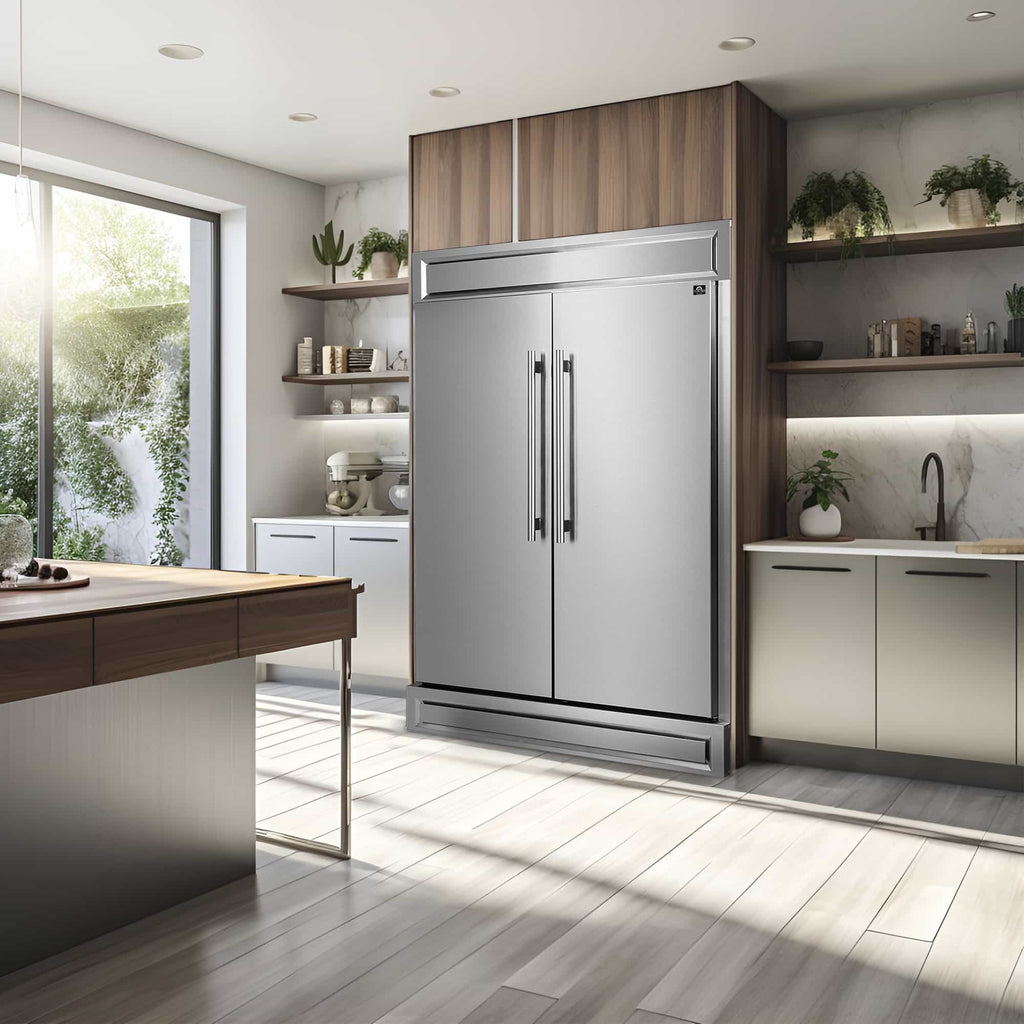

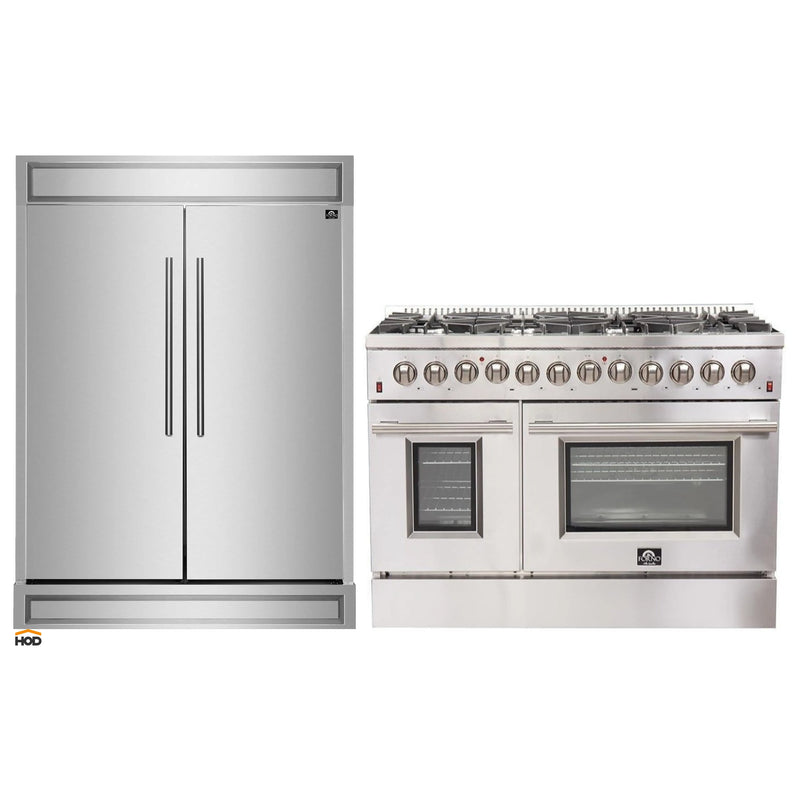

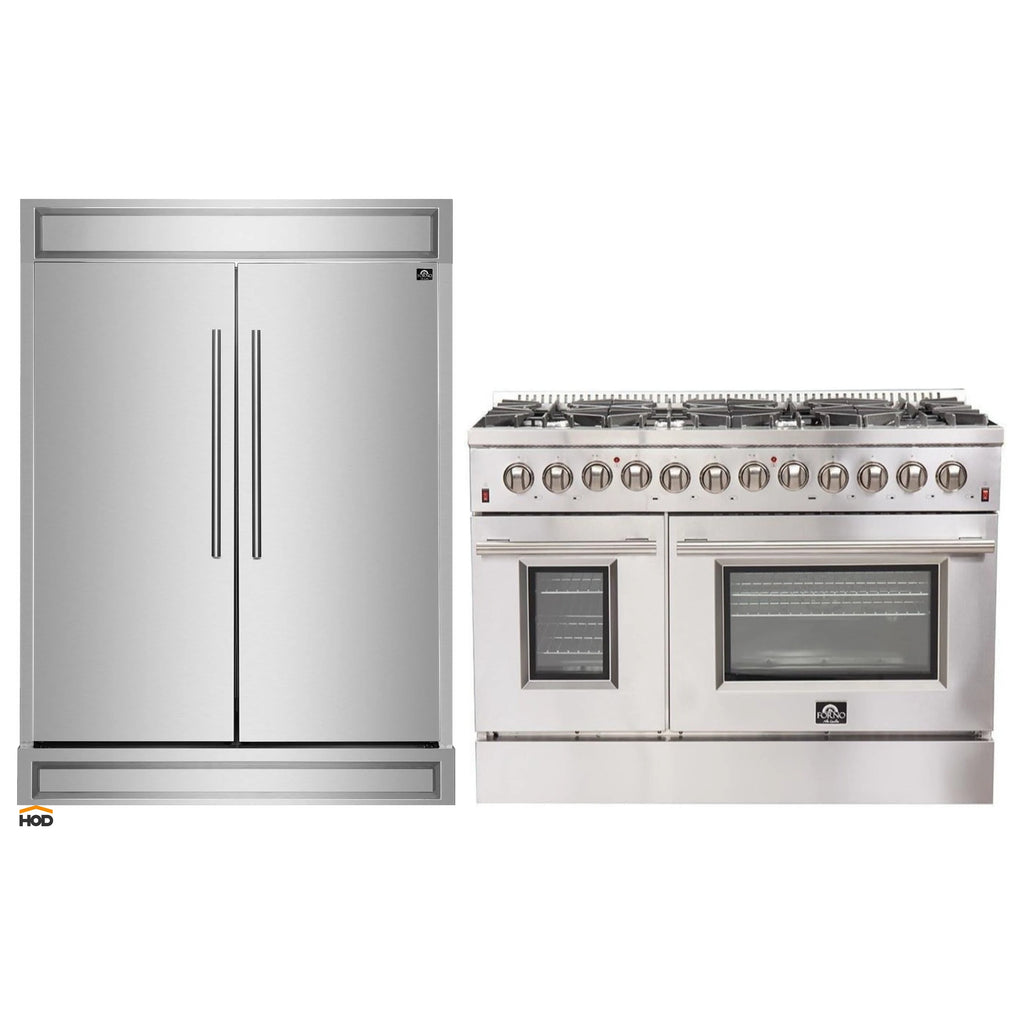

Introducing the FORNO Maderno 60" Wide 27.2 cu.ft. Refrigerator Freezer Built-in Combo with Decorative Grill Trim – a perfect fusion of style and convenience. This refrigerator freezer offers customizable cooling with its convertible function, adapting effortlessly to your specific needs while eliminating the need for tedious defrosting thanks to total no frost technology.

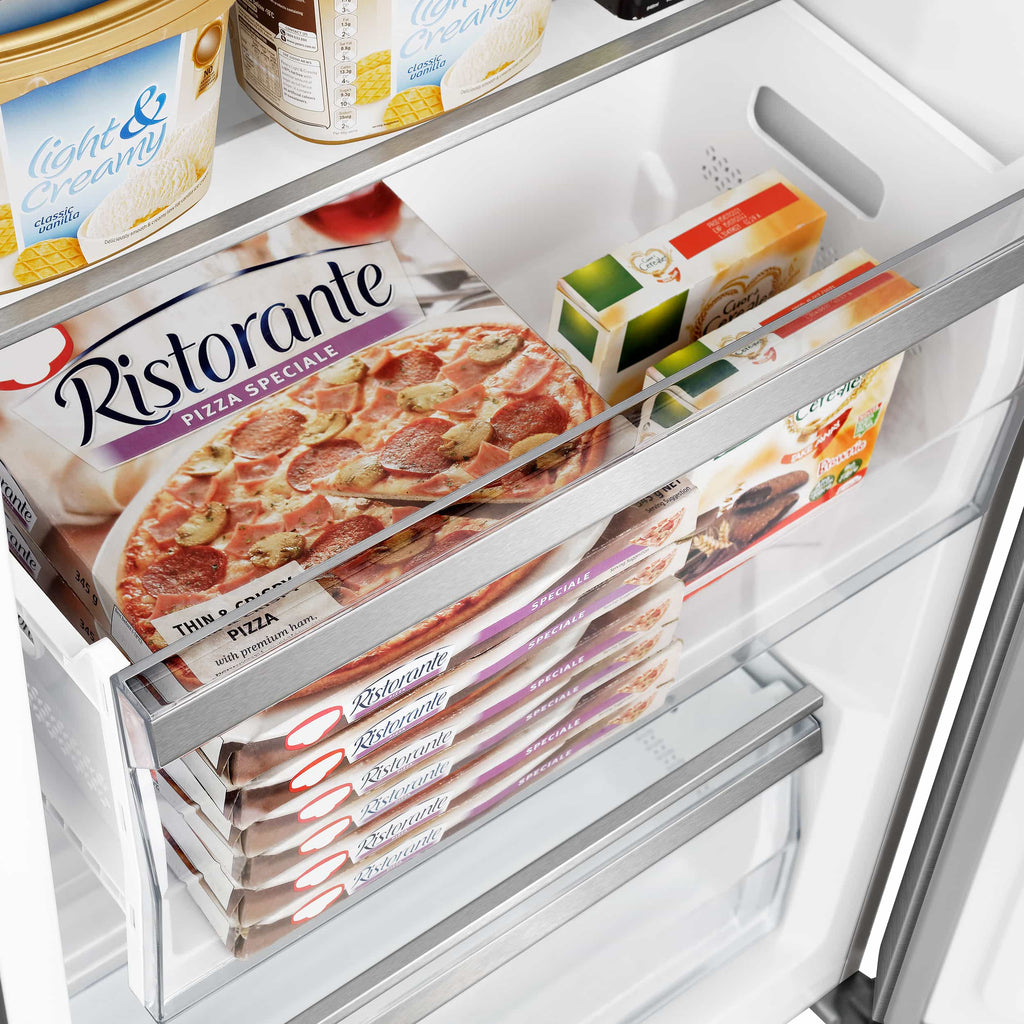

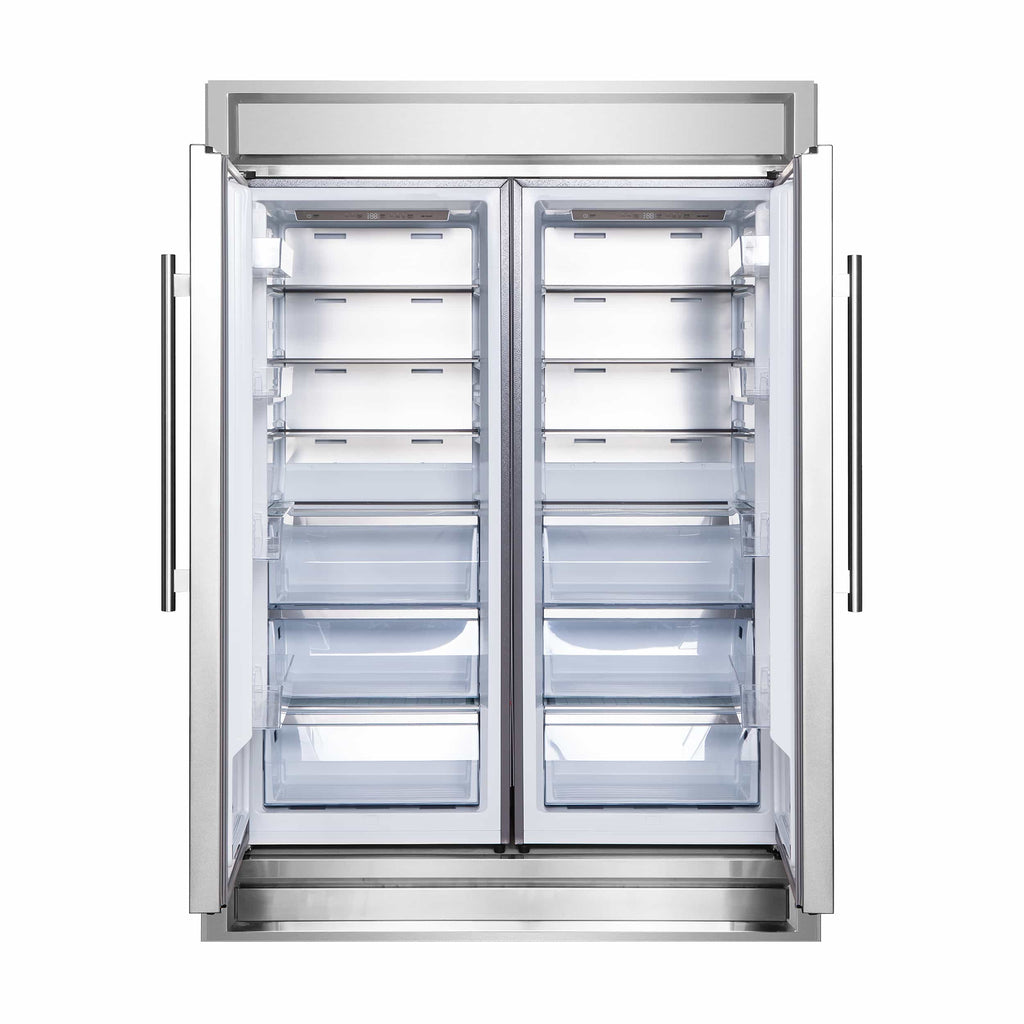

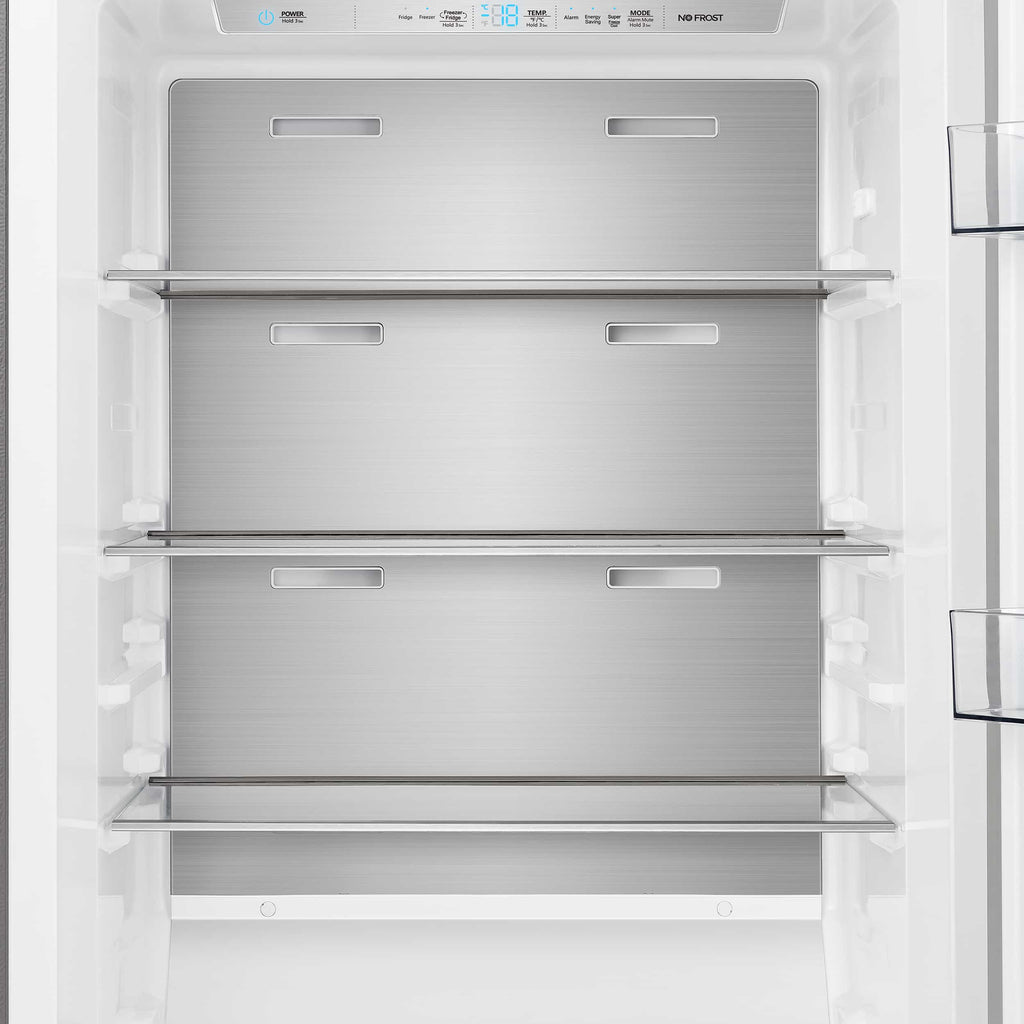

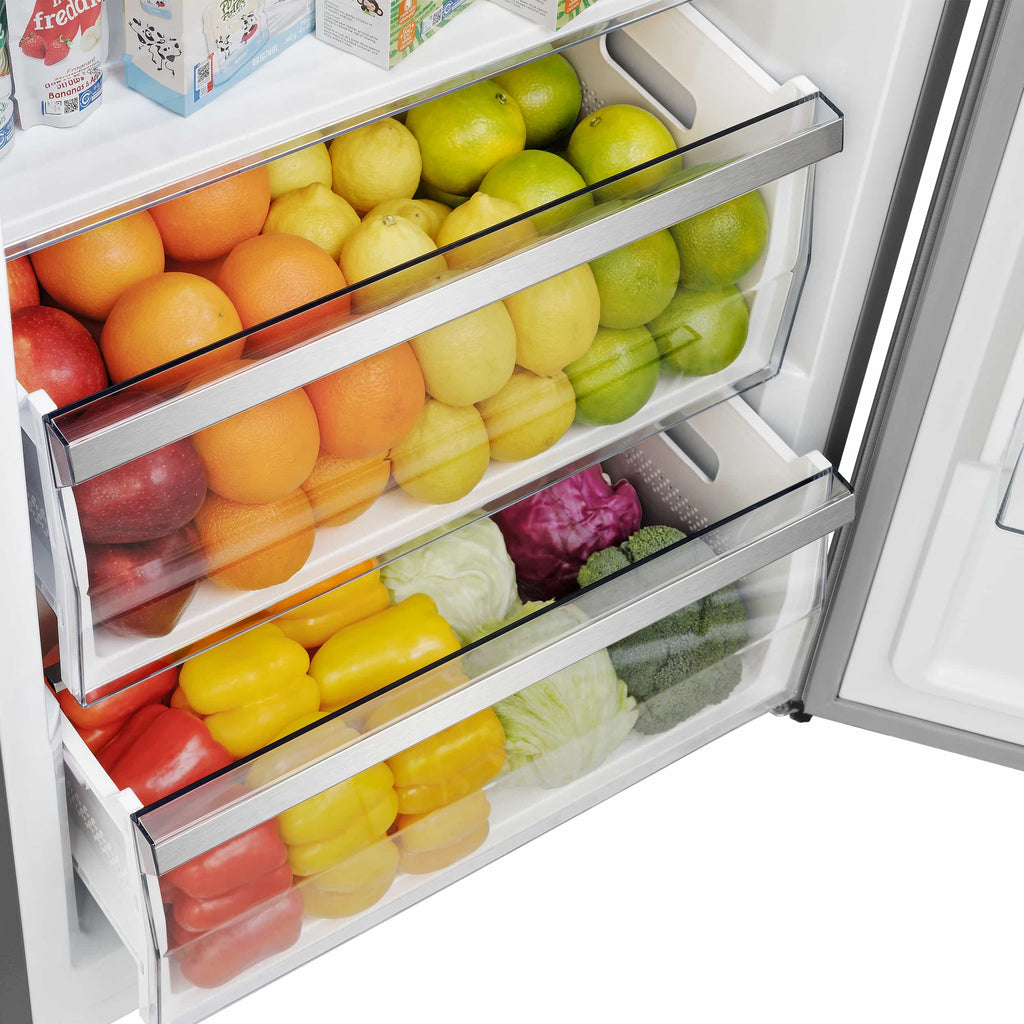

Aesthetics meet functionality with a side-by-side door design that seamlessly integrates into your kitchen layout. Elegant glass shelves with silver trim and practical plastic door balconies not only enhance the overall appeal but also offer efficient storage solutions. With the ℉/℃ Transform Ease feature, you can switch between Fahrenheit and Celsius effortlessly. Brilliant LED lighting illuminates the interior, making it a joy to locate your desired items. Six glass shelves and six plastic drawers with silver trim provide flexible storage options, catering to your everyday routine.
This refrigerator comes in three pieces:

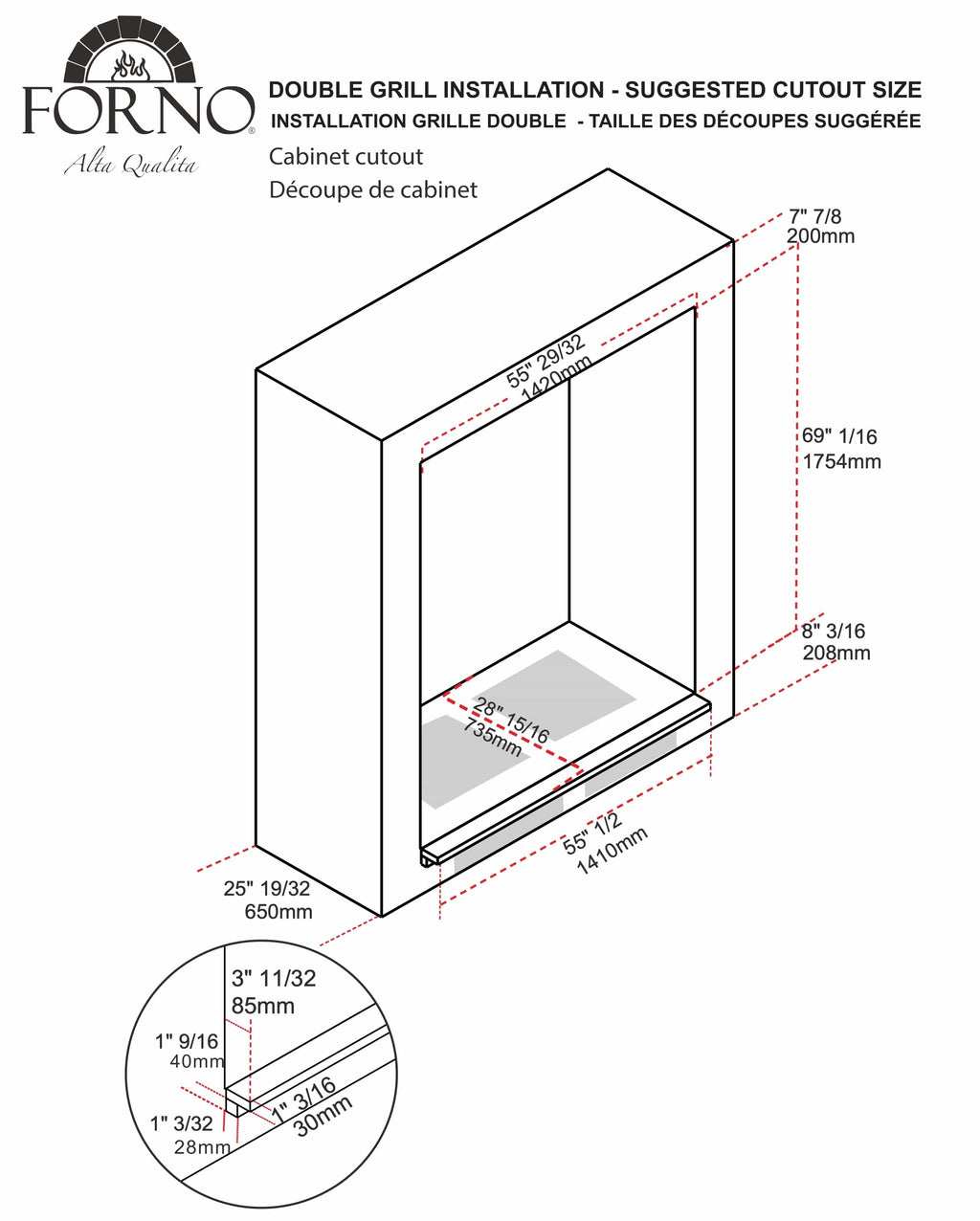

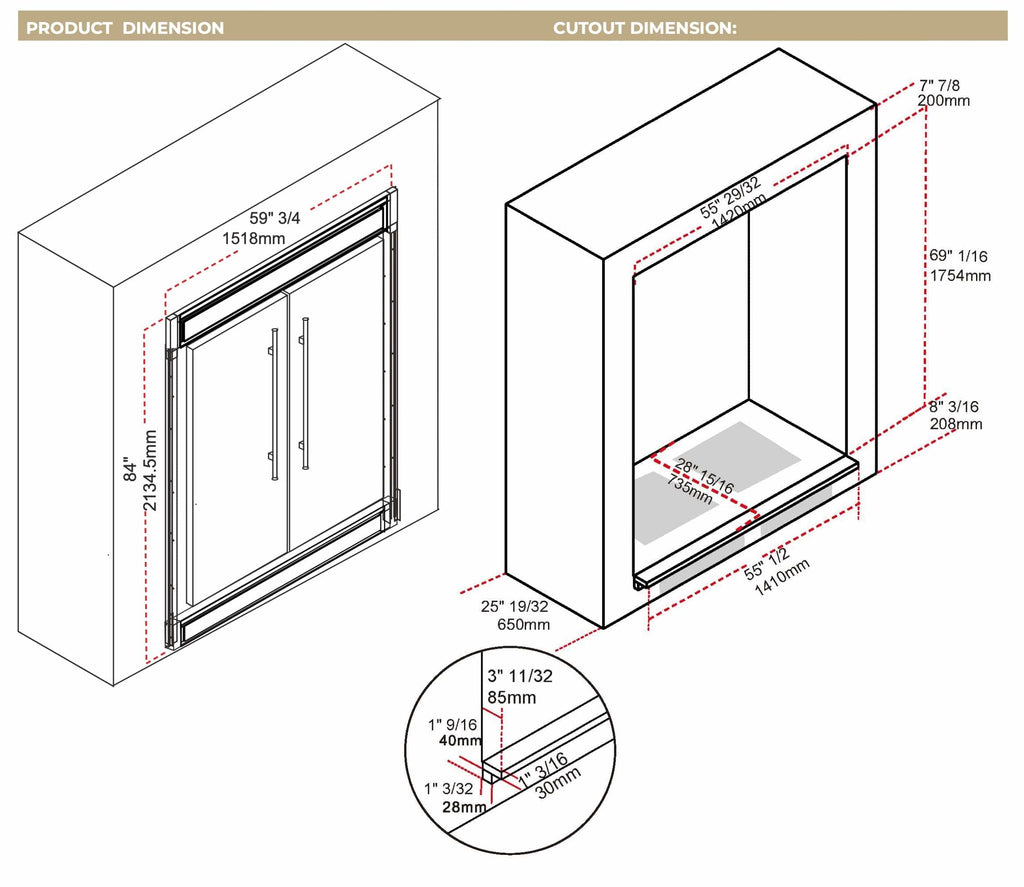

*Installation requires a base to be built for the refrigerator - please see cut-out sheet for more details
| Weight and Dimensions | |

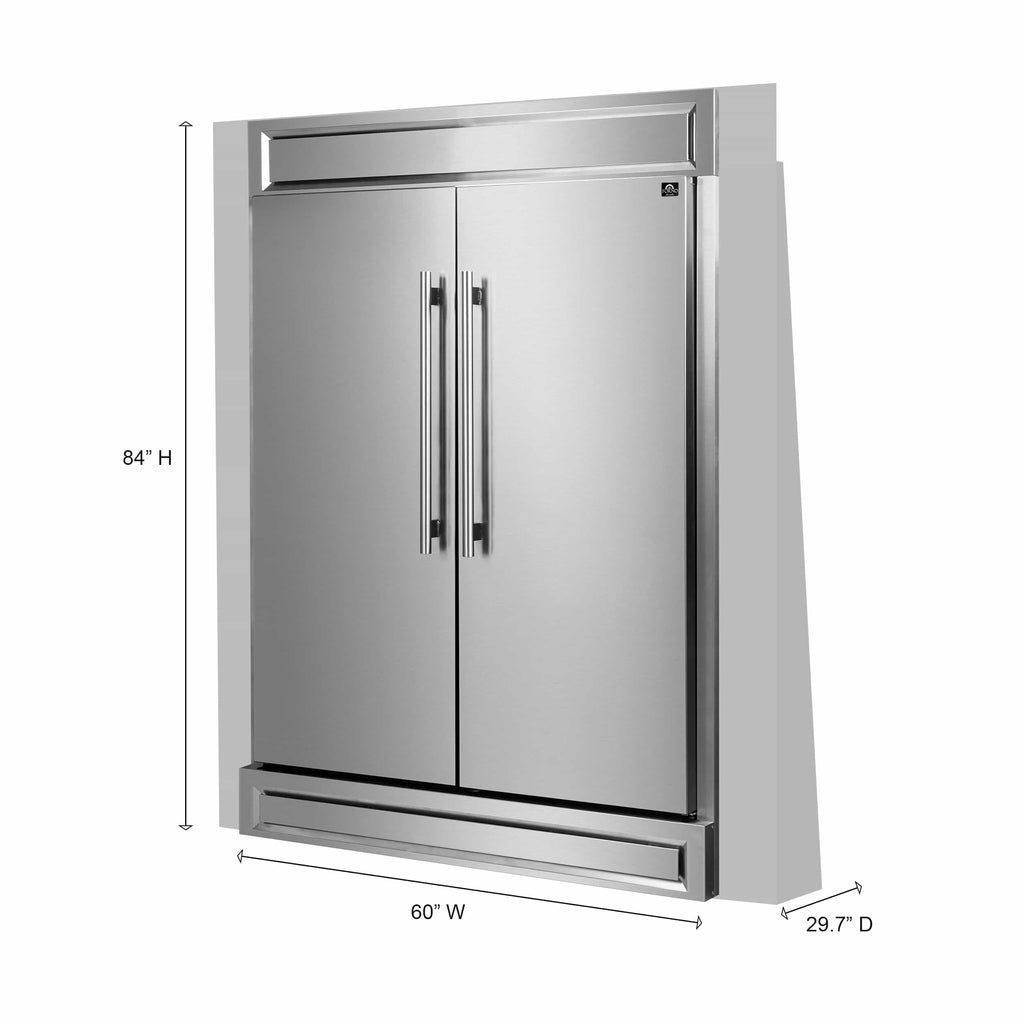

| Product Dimensions |
59.76" W X 29.7" D X 84" H |
| Weight |
330 lbs |
| Technical Specs | |
| Amperage | 15 |
| Volts | 115V |
| Frequency | 60Hz |
| Power Cord Length | 5.58 Feet |
| Receptacle Type | 2 x Elbow NEMA 5-15 |
| Inverter Compressor | Yes |
| Refrigerant Type | R600a |
| Energy Efficiency Class | E-Star |
| Certification | UL Listed |
| Features | |

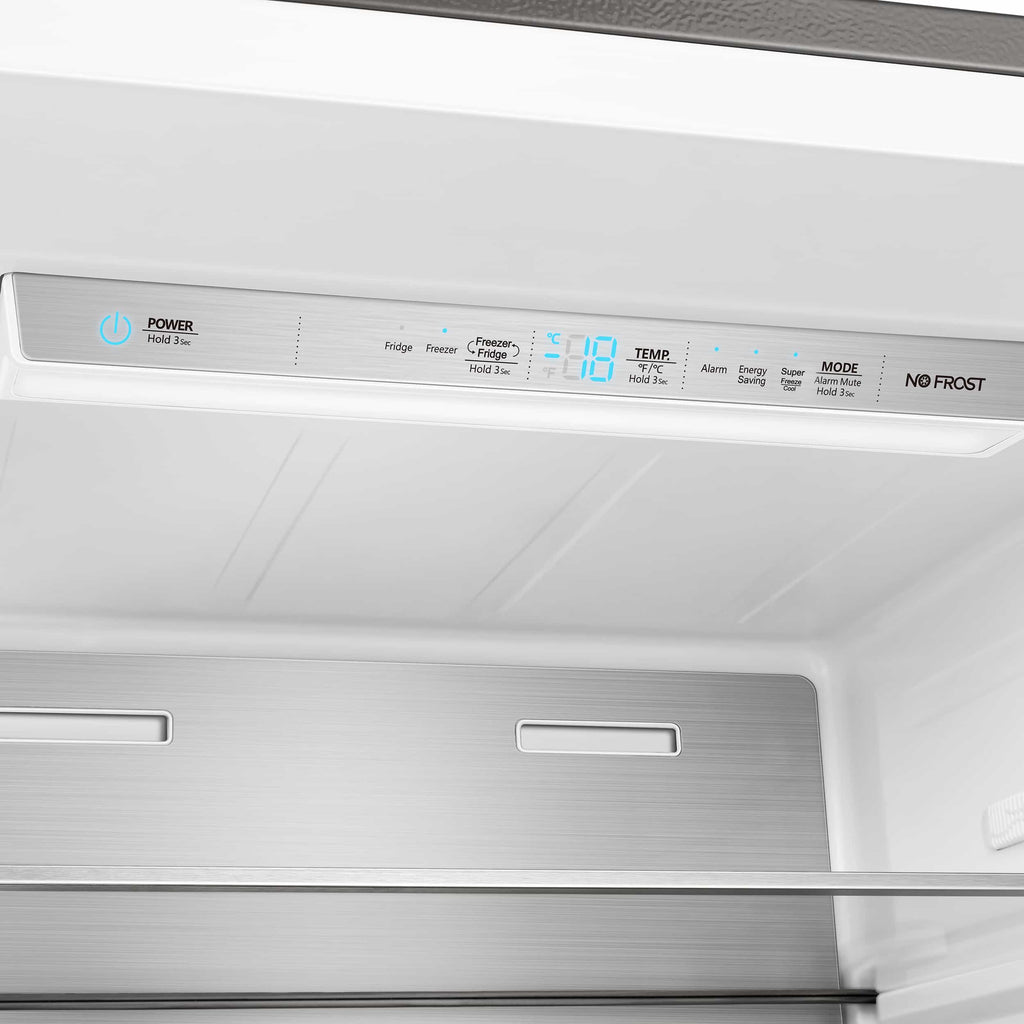

| Control Type | Internal Touch Control |
| Air Flow | Multi Air Flow |
| Defrost Type | Automatic |
| Sabbath Mode | No |
| Vacation Mode / E-Saver | Yes |
| Super Cool | Yes |
| Super Freeze | Yes |
| Door Alarm | Yes |
| Lighting Type | LED |
| Leak Proof Shelves | No |
| Shelf Material | Glass with Silver Trim |
| Drawers Material | Plastic with Silver Trim |
| Door Bins Material | Plastic |
| Door Bins Color | Clear |
| Leveling Legs | Yes |
| Ice Maker | No |
| Appearance | |
| Advertised Unit Width | 60" |
| Unit Style | Side-By-Side |
| Counter-Depth | Yes |
| Converting Fridge/Freezer | Yes |
| Build Type | Built-In |
| Door Color | Stainless-Steel |
| Door Material | VCM Door Panel |
| Finger Print Resistant | Yes |
| Reversible Doors | No |
| Handle Color | Stainless steel |
| Case Material | Metal |
| Case Color | Light Gray |
| Primary Material | White HIPS |
| Refrigerant Compartment | |
| Refrigerator Capacity | 13.6 Cu.ft. |
| Interior Dimensions (In.) | 21.58W X 19.96D X 59.84H |
| Temperature Range (oF) | 36°F - 46°F |
| # of Fresh Food Shelves | 4 |
| Adjustable Shelves | 1 |
| # of Refrigerator Drawers | 3 |
| Standard Door Bins | 2 |
| Half Gallon Bins | 2 |
| Gallon Bins | No |
| Freezer Compartment | |
| Freezer Capacity | 13.6 Cu.ft. |
| Interior Dimensions (In.) | 21.58W X 19.96D X 59.84H |
| Temperature Range (oF) | - 11°F to 7°F |
| # of Freezer Shelves | 4 |
| Adjustable Shelves | 1 |
| # Freezer Drawers | 3 |
| Standard Door Bins | 2 |
| Half Gallon Bins | 2 |
| Gallon Bins | No |
