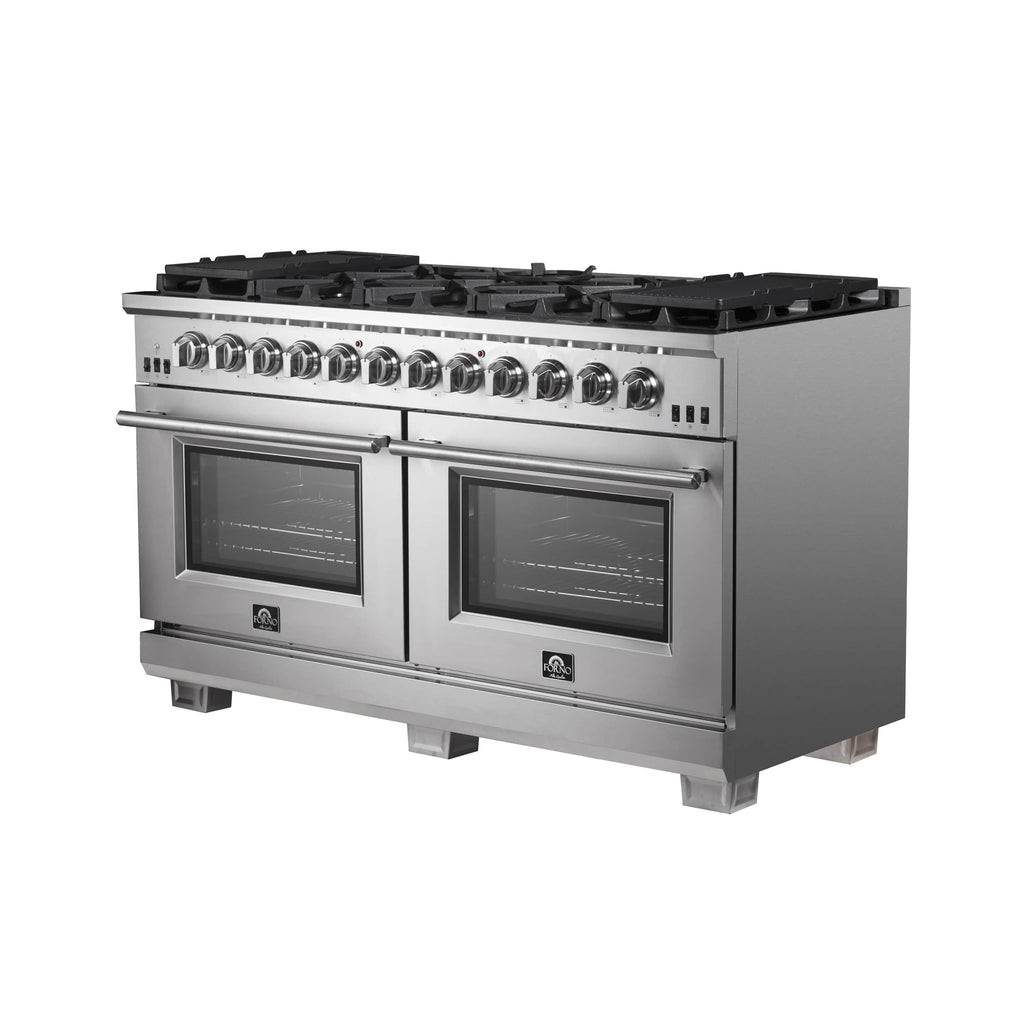

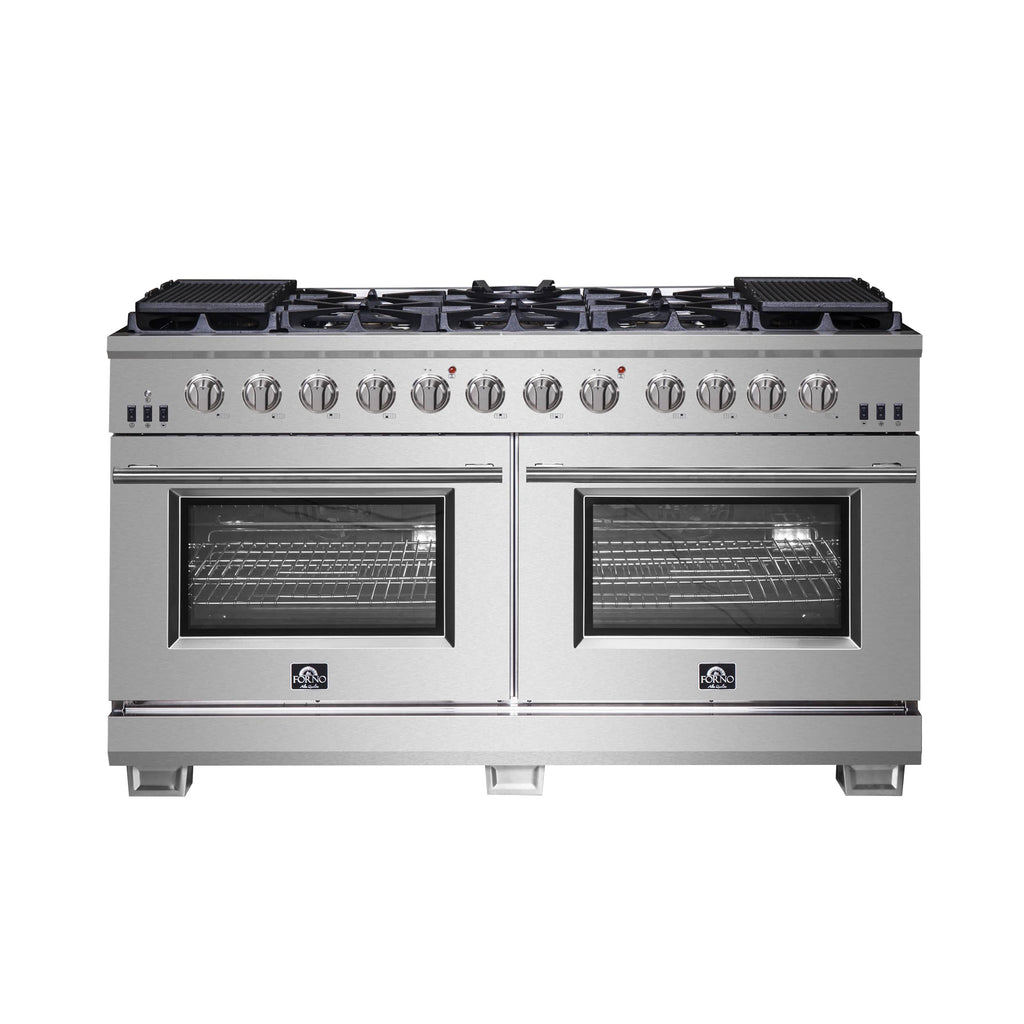

ALTA QUALITA 60" Pro-Style Gas Range with Convection Ovens and 10 Italian Dual Sealed Brass Burners Totaling 200,000 BTU

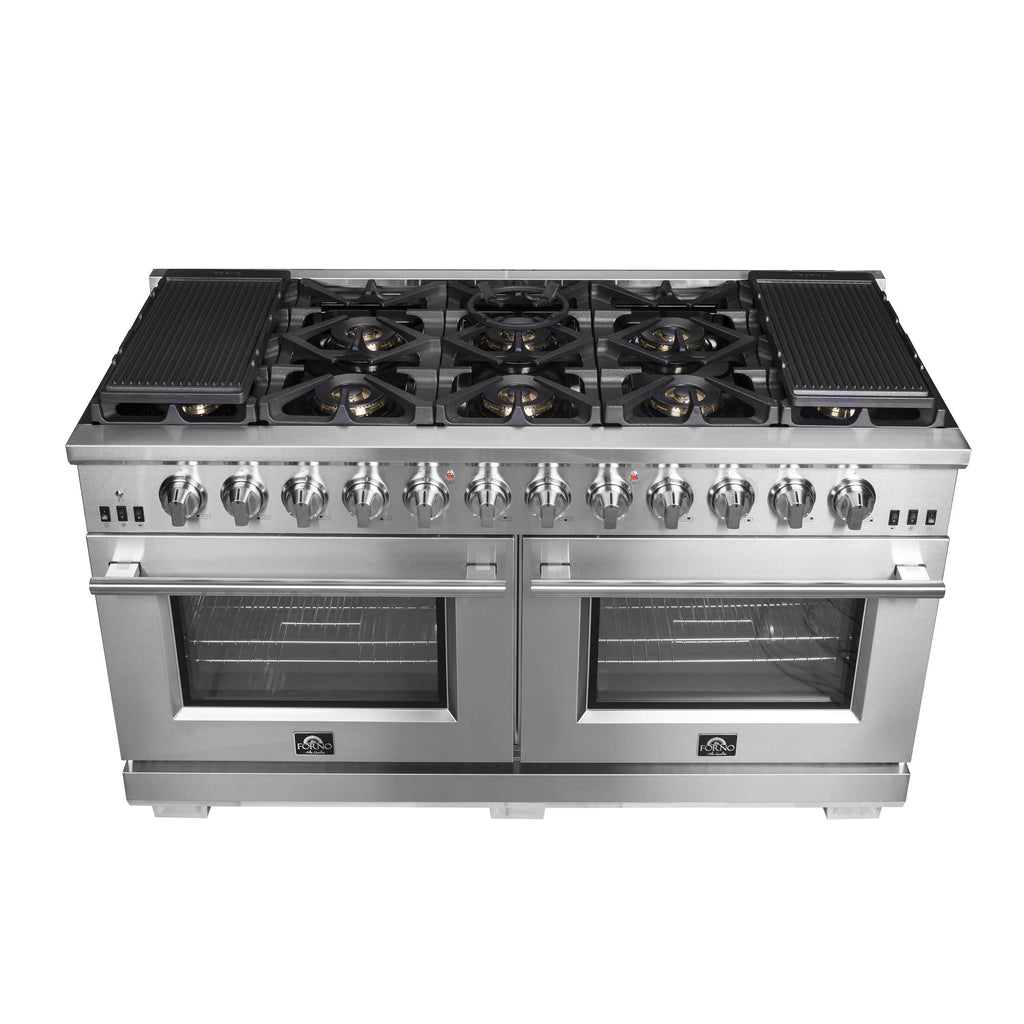

COOKTOP

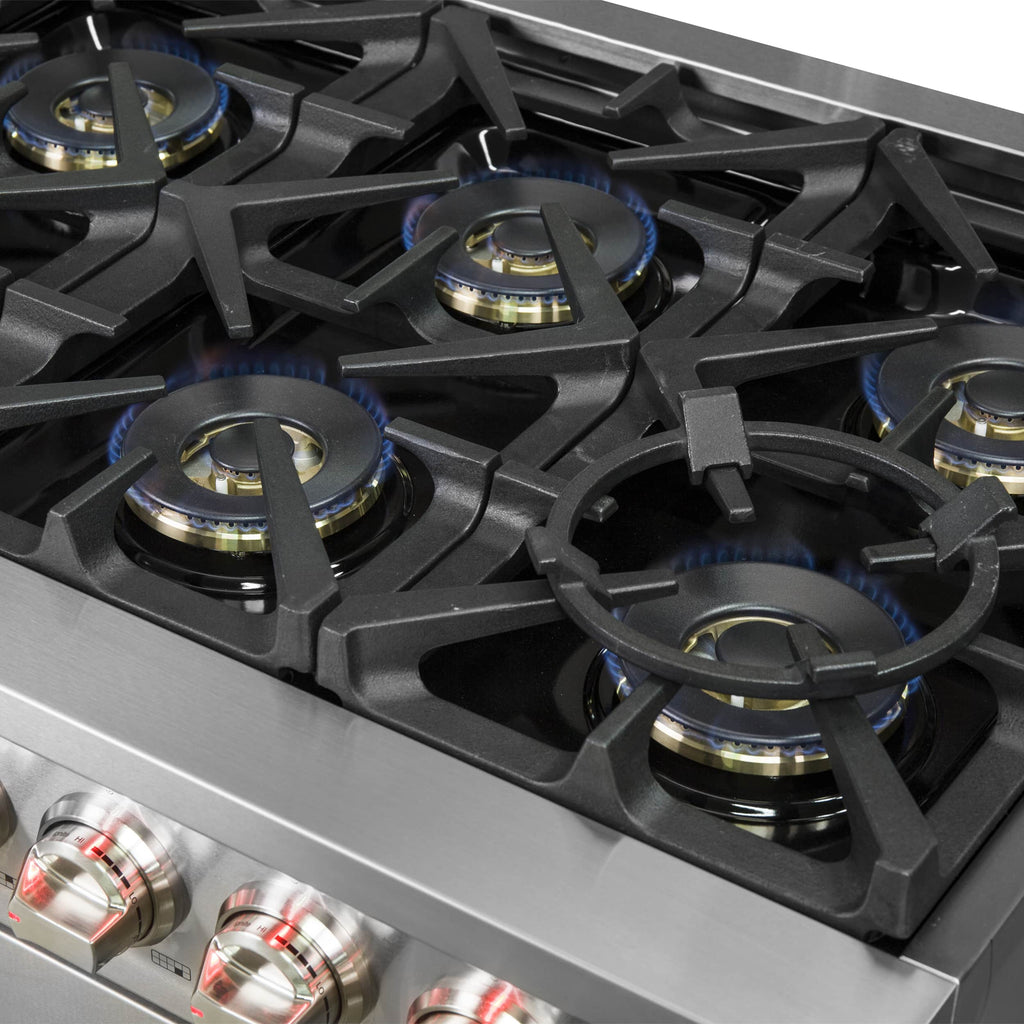

10 Dual Sealed Brass Burners
200,000 BTU Total Stove-Top Output
Deep Recessed Enamel
Heavy-Duty Continuous Cast Iron Grates

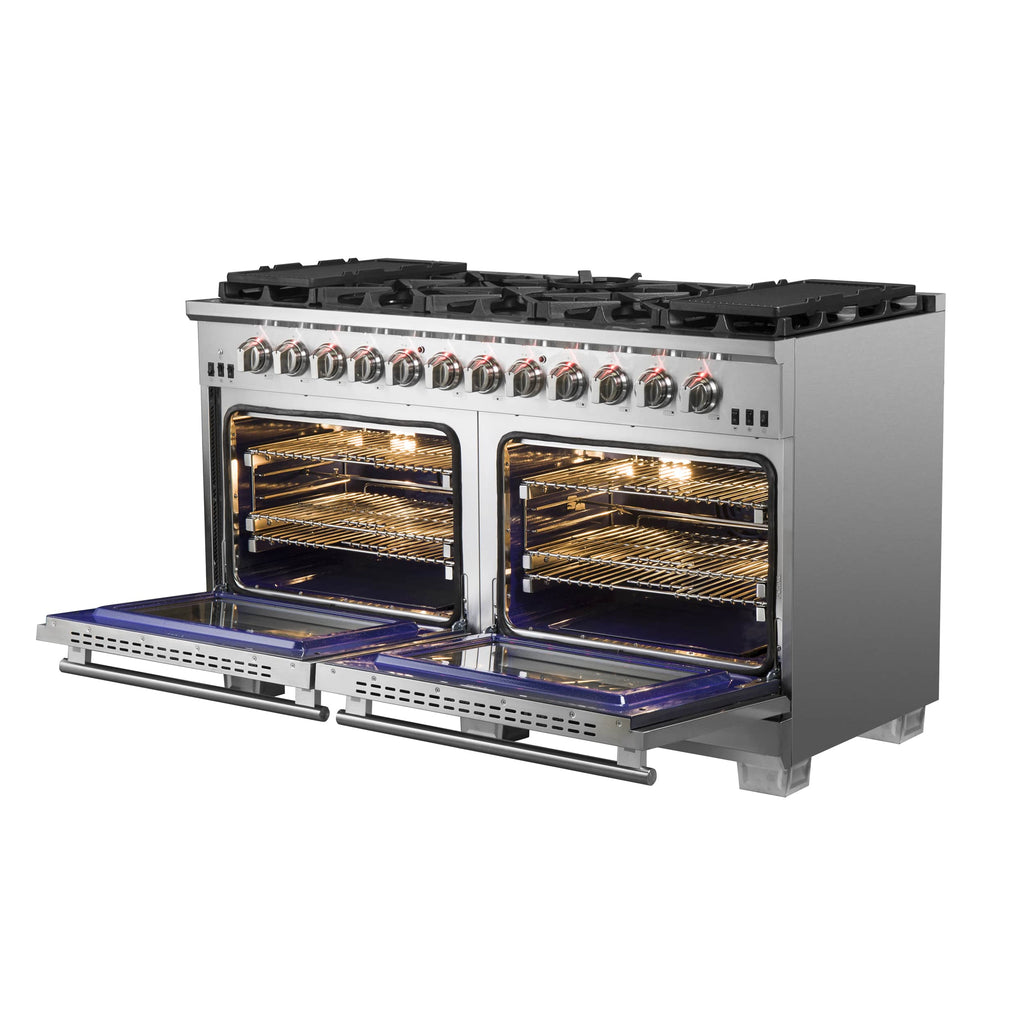

OVEN
8.64 cubic feet Overall Double Oven Capacity

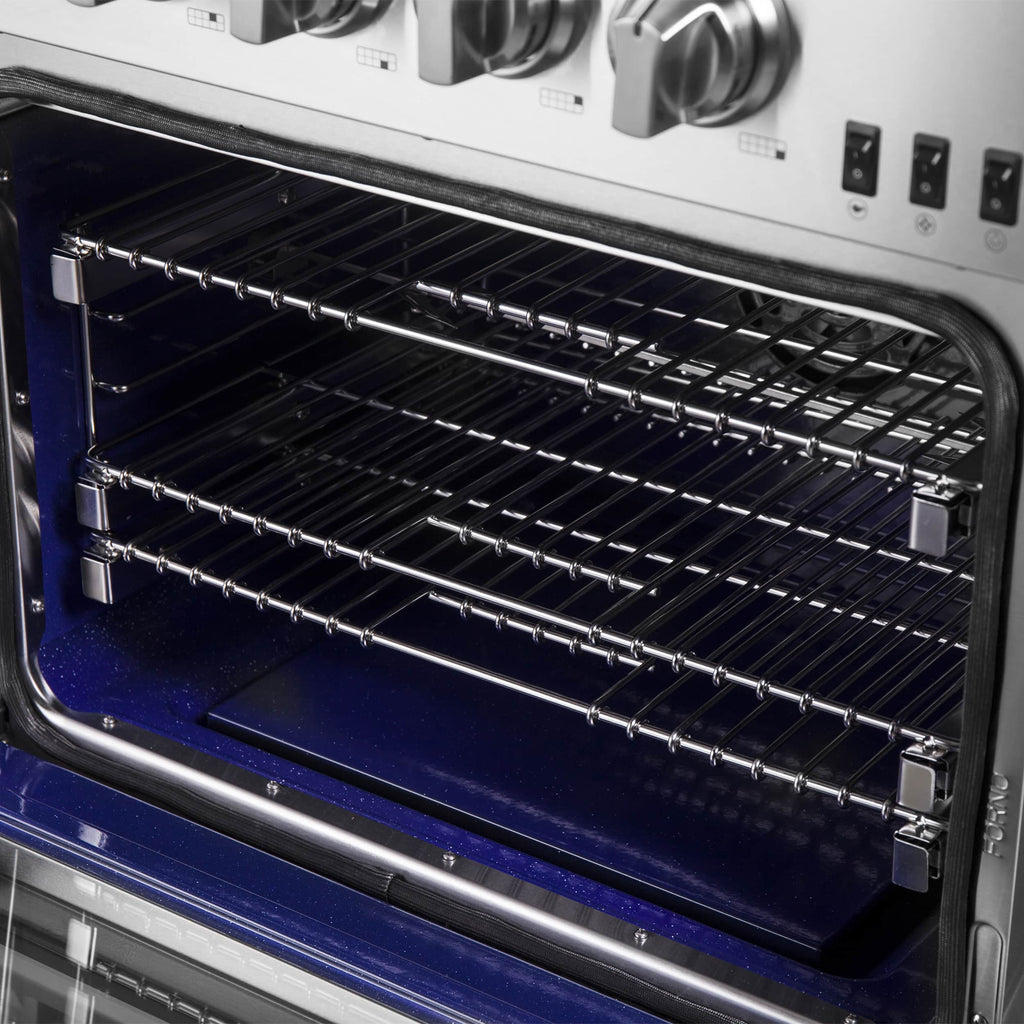

6 Telescopic Stainless-Steel Oven Racks
Blue Enamel Oven Interior

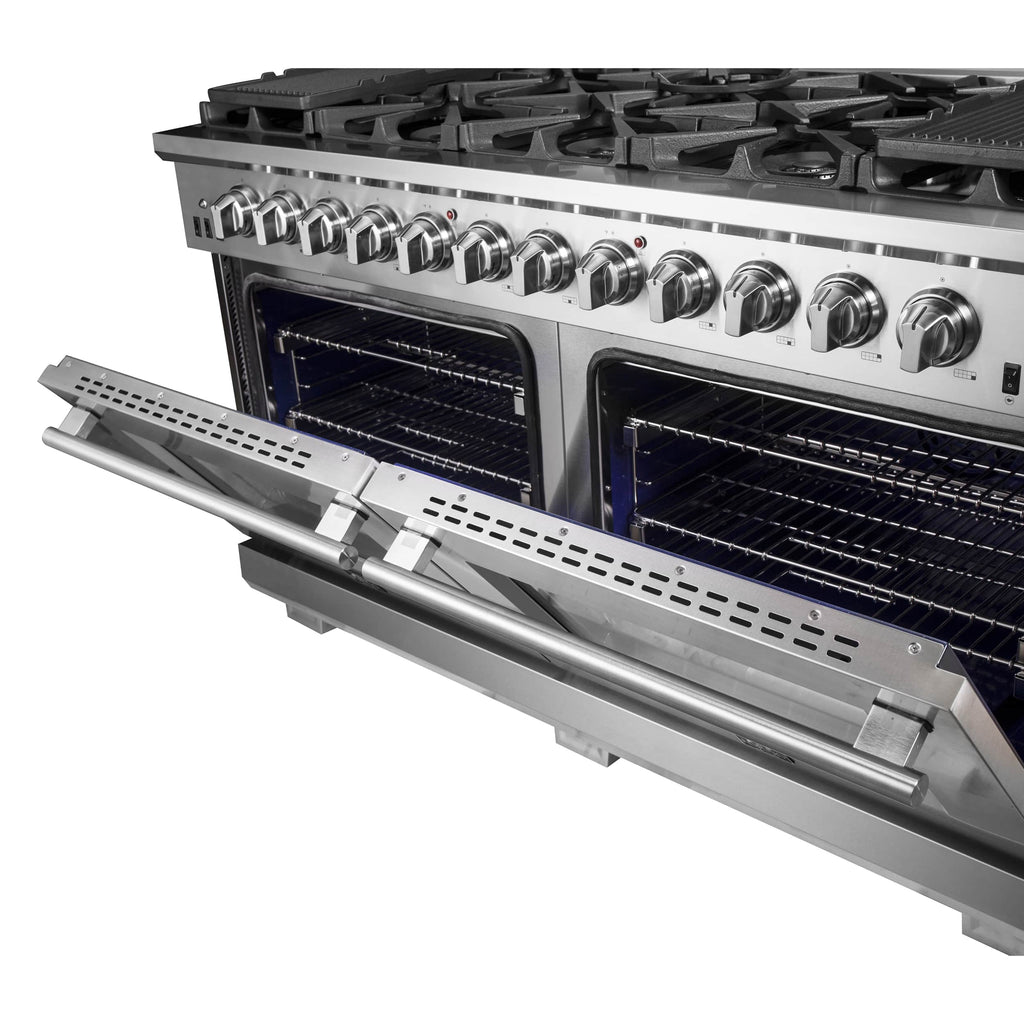

3-Layer Oven Door Window

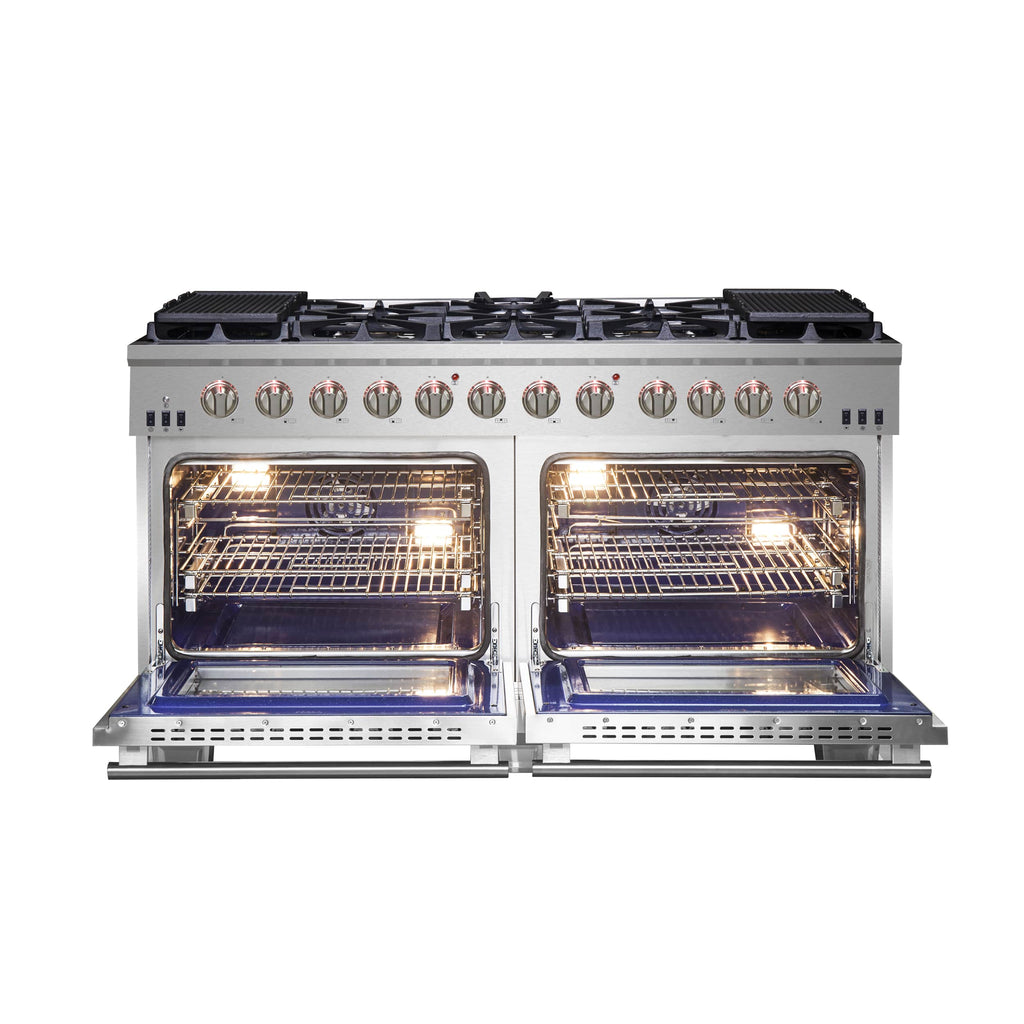

Halogen Oven Lights

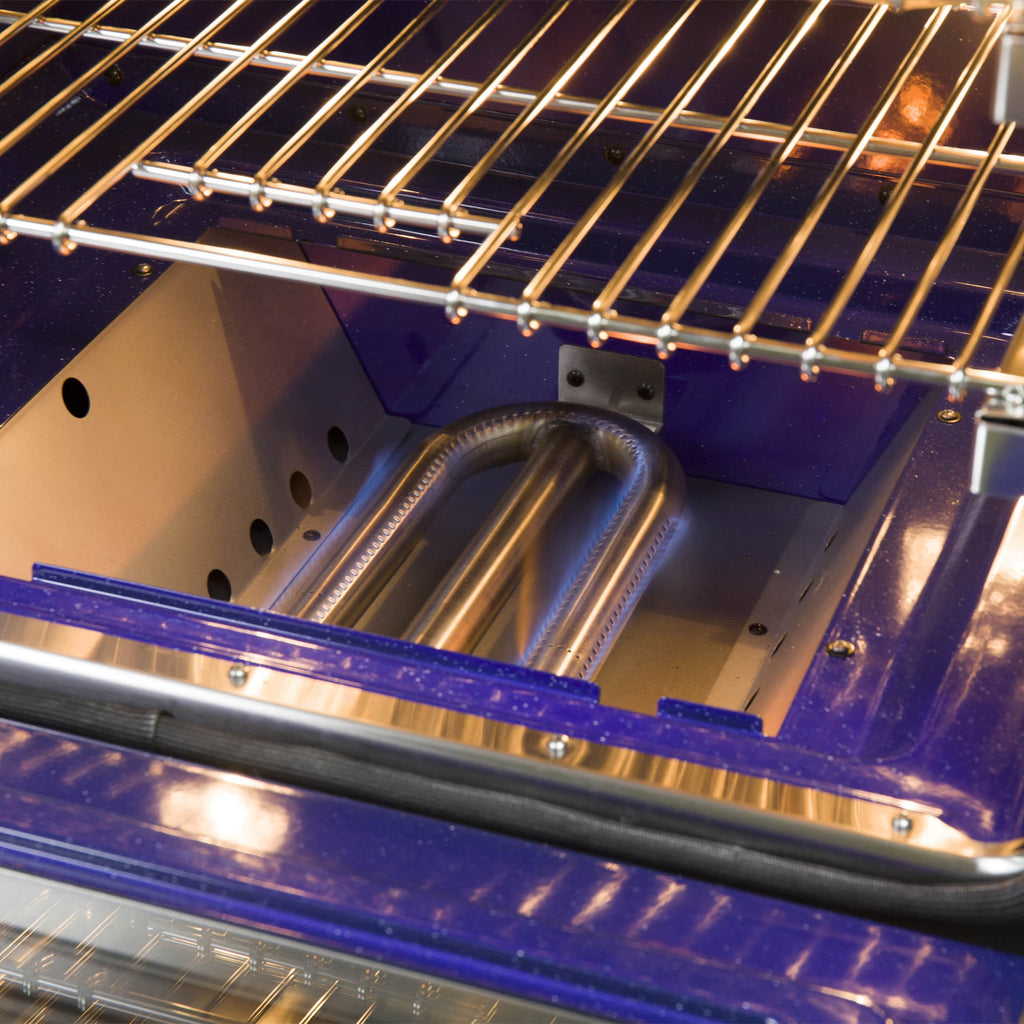

U Tube Auto-Ignition
Convection Fan Hot Air Circulation
FEATURES
Heavy-duty Food Grade 304 Stainless-Steel
Zinc Control Knobs
Red LED “Magic Eyes” Control Knob Illumination
Square Leg Covers
INCLUDES
Complete Rotisserie Kit includes Skewer & Forks
Griddle
Air Fryer
Concave Wok Ring
LP Conversion Kit
Power Cord
| Weight & Dimensions | |
|
Overall Dimensions
|
60”W x 37.4”H x 28”D
|
| Cutout Dimensions | 60.25”W x 28”D |
| Oven Door Open 90º | +28” |
| Right Oven Interior Dimensions | 24.92”W x 16″H x 18.7”D |
| Left Oven Interior Dimensions | 24.92”W x 16″H x 18.7”D |
| Overall Weight | 695.3 lbs |
| Electrical | |
| Amperage | 15A |
| Volts | 120V |
| Power Cord Length | 5' |
| Receptacle Type | 3-prong grounding-type |
| Certifications | |
| Certifications | Yes |
| Title 20 – California Regulation | Yes |
| Cooktop | |
| Overall Burners BTU | 200,000 |
| Front Right Burner BTU | 200,000 |
| Front Right Center Burner BTU | 20,000 |
| Front Center Burner BTU | 20,000 |
| Front Left Center Burner BTU | 20,000 |
| Front Left Burner BTU | 20,000 |
| Rear Right Burner BTU | 20,000 |
| Rear Right Center Burner BTU | 20,000 |
| Rear Center Burner BTU | 20,000 |
| Rear Left Center Burner BTU | 20,000 |
| Rear Left Burner BTU | 20,000 |
| Oven | |
| Overall Oven Capacity | 8.64 |
| Overall Broil Top BTU | 20,000 |
| Overall Bottom BTU | 44,000 |
| Right Oven Capacity | 4.32 |
| Right Broil Top BTU | 10,000 |
| Right Bottom BTU | 22,000 |
| Left Oven Capacity | 4.32 |
| Left Broil Top BTU | 10,000 |
| Left Bottom BTU | 22,000 |
| Convection Fan | Yes |
| Details | |
| Product Type | Freestanding Range |
| Color/Finish | Stainless Steel |
| Fuel Type | Gas |
| Gas Type | Natural Gas |
| Gas Heat Configuration | Sealed Burners |
| Number of Burners | 10 |
| Cooktop Surface | Deep Recessed Enamel |
| Number of Ovens | 2 |
| Number of Racks | 6 |
| Broiler | Gas |
| Bake Element | Gas |
| Cleaning Type | Normal |
| Interior Light | 4 |
| Control Type | Knob |
| Control Location | Front |
| Sealed Burners | Yes |
| LP Gas Convertible | Yes |
| Convection Oven | Yes |
| Continuous Cast Iron Grate | Yes |
| Pro-Style Handle | Yes |
| Halogen Oven Lights | Yes |
| Adjustable Legs | Yes |
| Stainless Steel Square Leg Covers | Yes |
| Smudge Resistant | Yes |
| Soft Door Close | Yes |
| Illuminated Zinc Knobs | Yes |
| Blue Enamel Oven Interior | Yes |
| Food Grade 304 Stainless Steel | Yes |
| Back Splash Guard Included | Yes |
| Griddle Include | Yes |
| LP Conversion Kit Included | Yes |
| Thermostat | Yes |
| Regulator | Yes |
| Safety valves | Yes |
| Temperature Gauge | No |
| Timer | No |
| Clock | No |
| Primary Material | 430 Stainless Steel |
| Supplier Intended and Approved Use | Residential Use Only |
| Country of Origin | China |

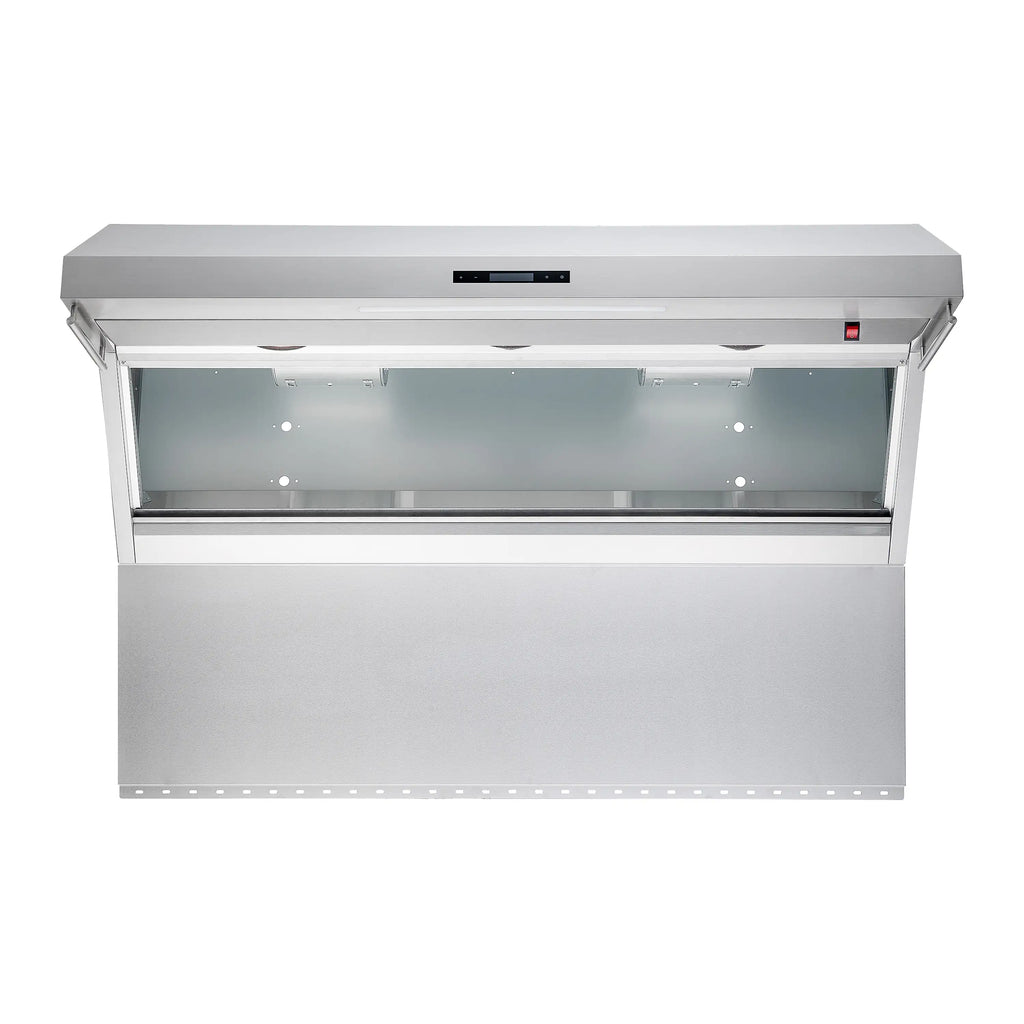

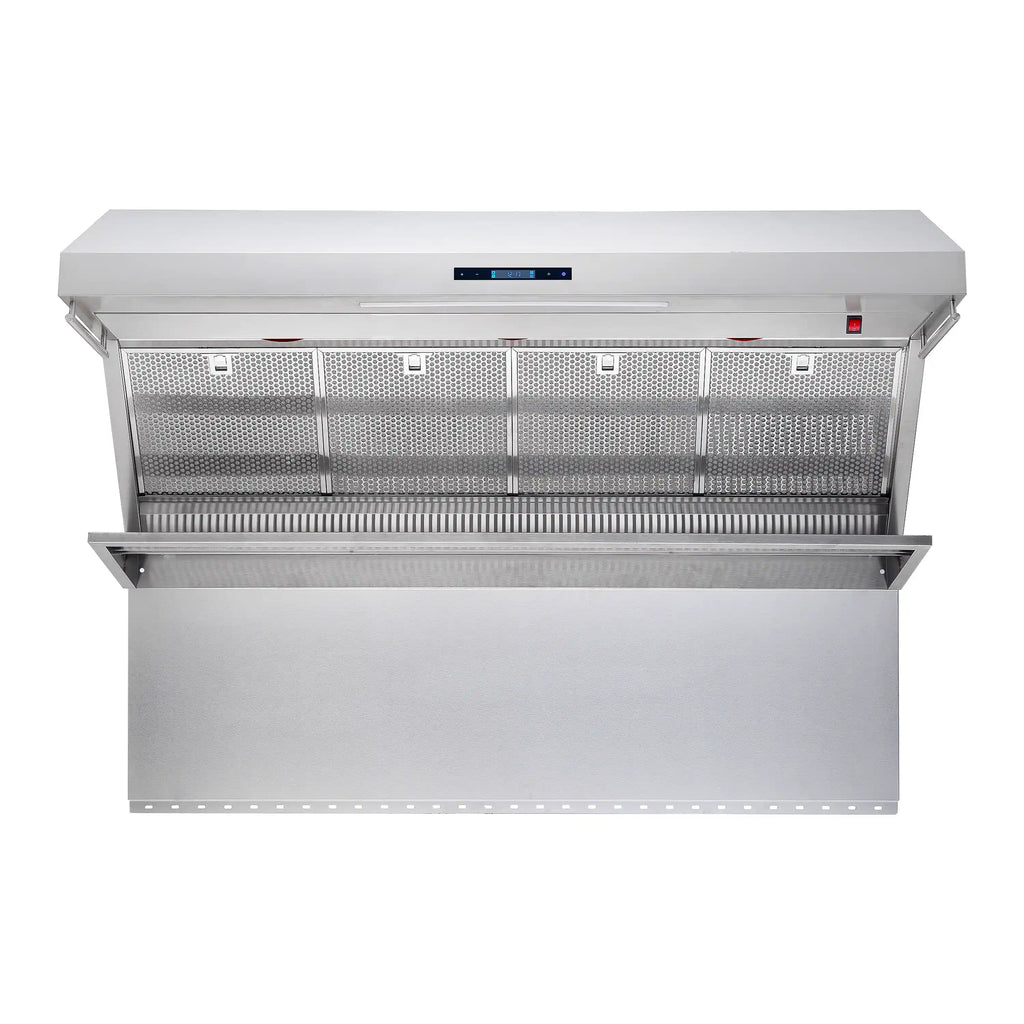

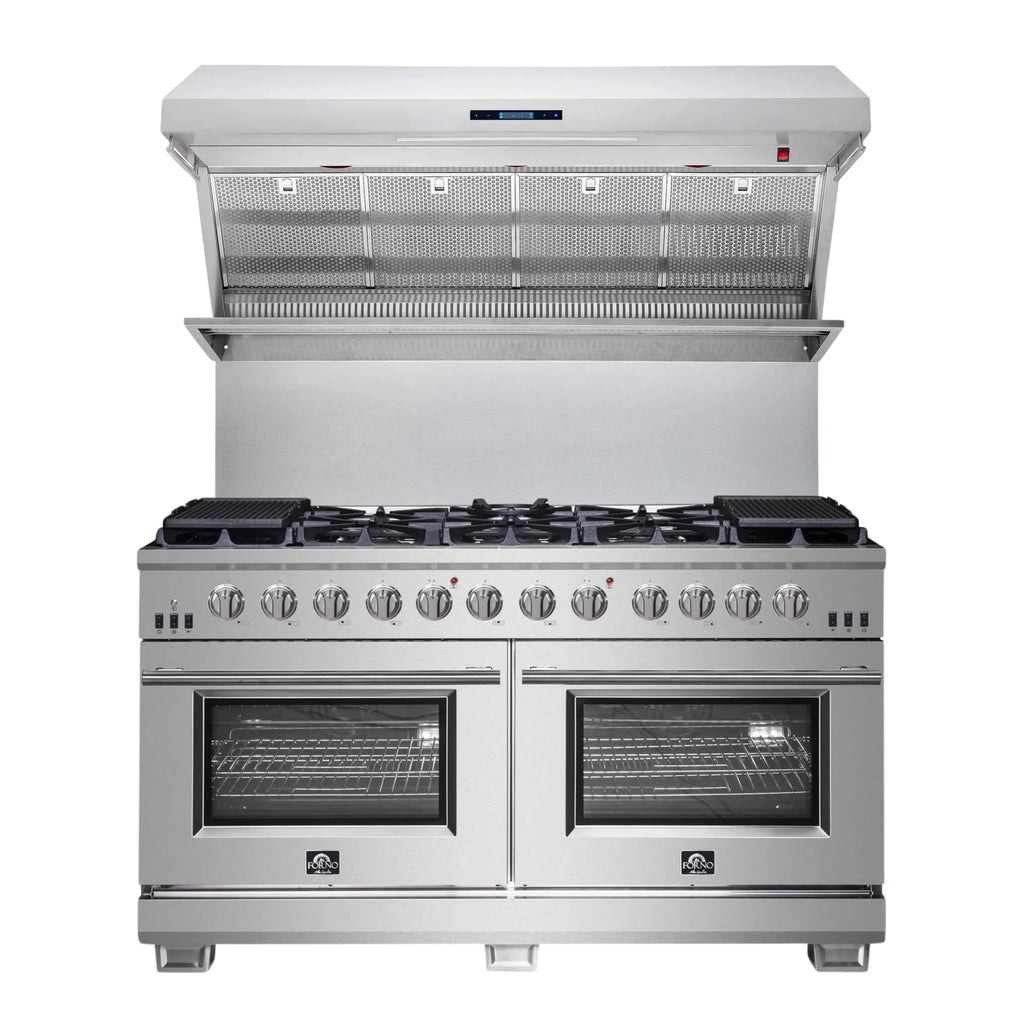

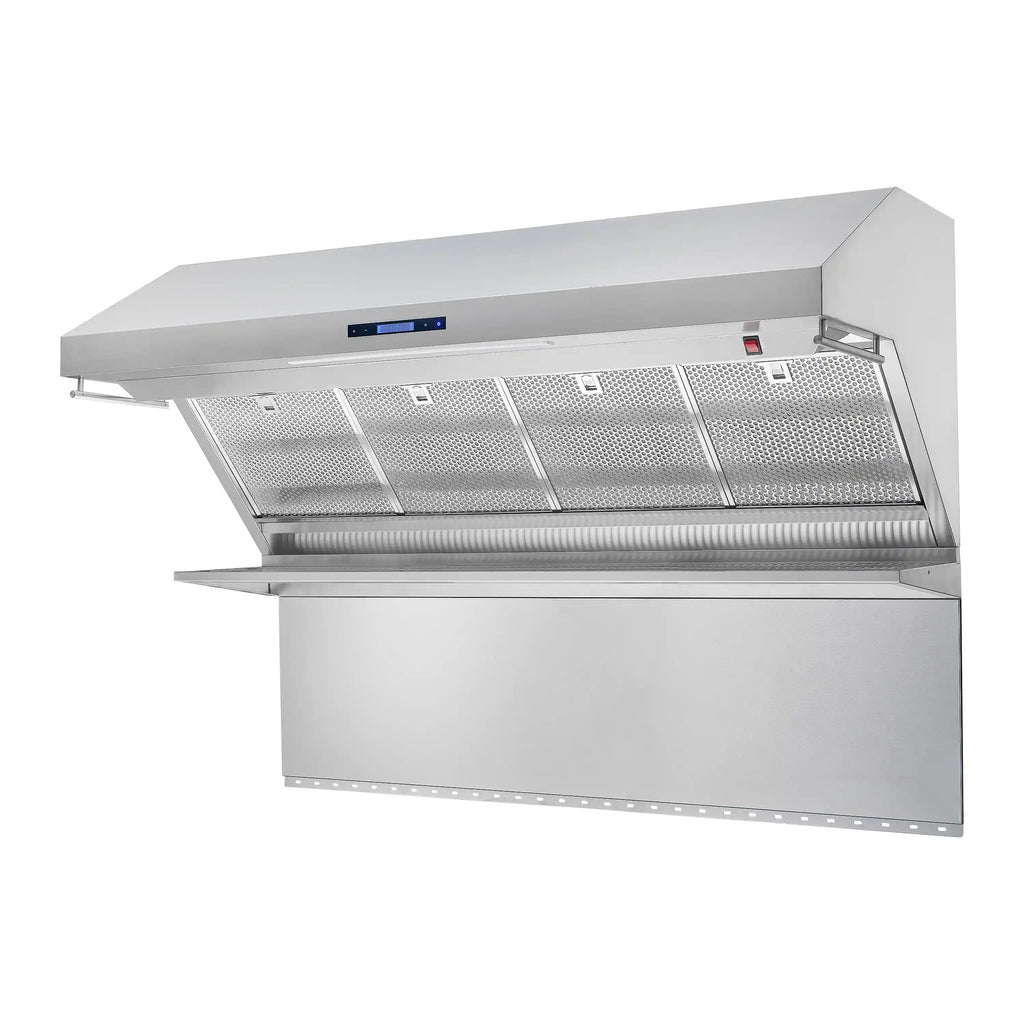

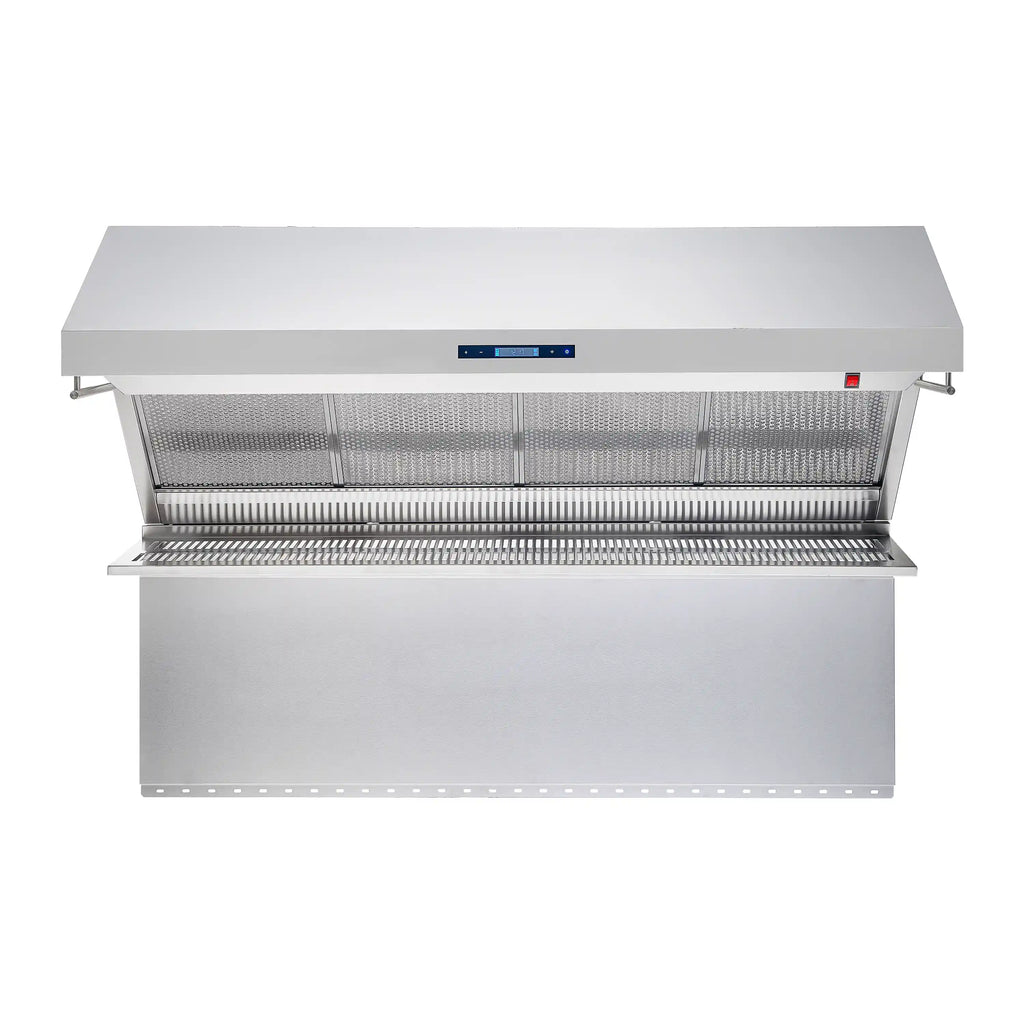

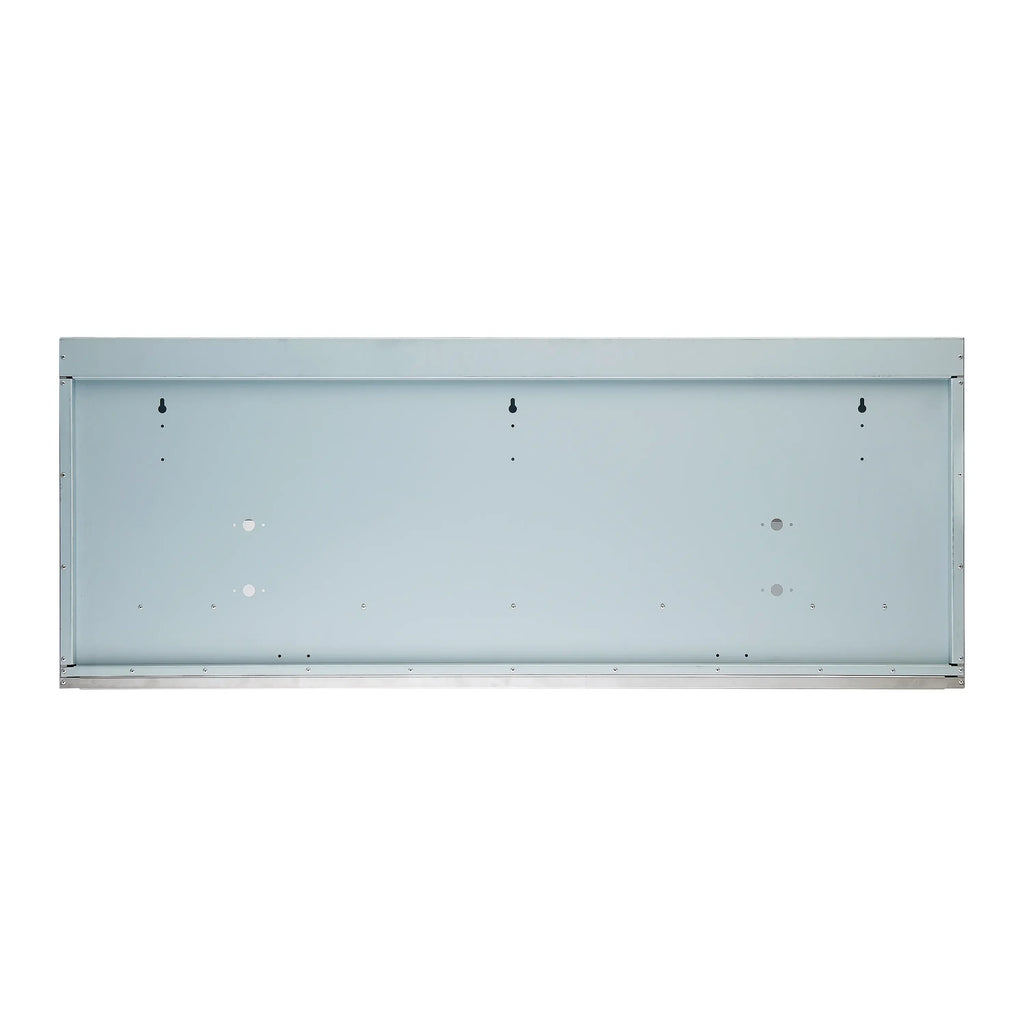

The Forno Savona 60-Inch Wall Mount Range Hood, embody lasting durability in an all-stainless steel design. Experience potent ventilation power of its dual 600 CFM motors (1200 CFM total). Equipped with hybrid filters, it efficiently reduces odors and ensures maximum filtration effectiveness, easily removable and dishwasher-safe for effortless cleaning. Adjust the fan speed to suit your cooking needs with versatile settings. Enjoy the convenience of an upper-level warming shelf, heated by three warming lights, to keep your dishes warm. The included backsplash not only adds a touch of elegance but also provides added protection for your kitchen walls. Dual utensil hangers offer easy access to your cooking tools or a stylish display option for your pans. Elevate your kitchen experience with the Savona 60-inch by Forno – where durability, efficiency, and convenience meet without hefty price tag. Lower the cost of living with Forno.
| Overall Product Width (IN) |
59.06''W x 25''D x 39.49''H |
| Adjustable Height |
Yes |
| Minimum Product Height (IN) |
"22.64 (Without warming shelf & backsplash)" |
| Minimum Height from Cooktop |
30 |
| Maximum CFM |
1200 |
| Minimum CFM |
550 |
| CFM speed 1 |
550 |
| CFM speed 2 |
750 |
| CFM speed 3 |
950 |
| CFM speed 4 |
1200 |
|
Air Flow Speed 1(m3/hour) |
935 |
|
Air Flow Speed 2(m3/hour) |
27-Jun |
|
Air Flow Speed 3 (m3/hour) |
1614 |
|
Air Flow Speed 4 |
|
| Mount Type |
Wall |
| Color/Finish |
Stainless Steel |

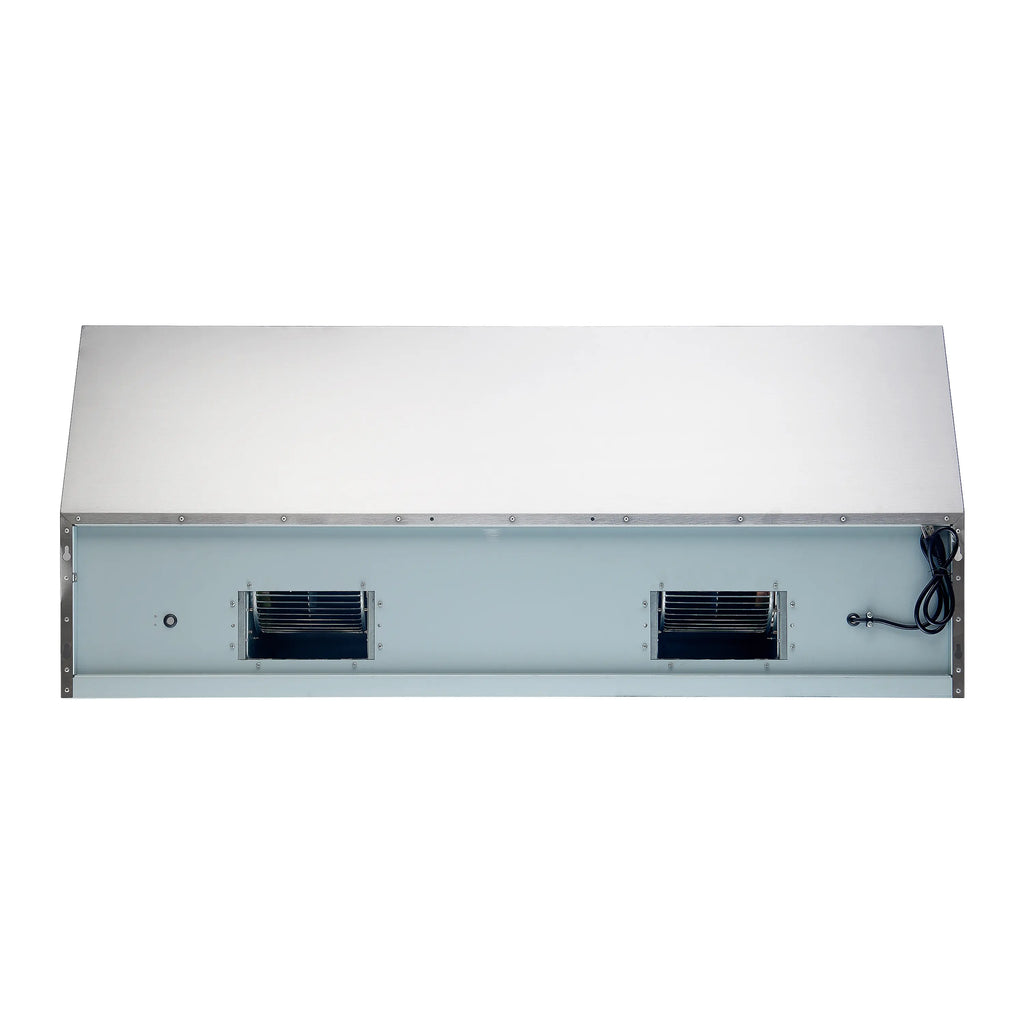

| Number of Blower(s) |
2 |
| Blower Material |
Metal |
| Number of exhaust Vent |
2 |
| Exhaust Vent Location |
Top |
| Vent Type |
Ducted |
| Charcoal Filters |
No |
| Vent Style |
External |
| Air Discharge Direction |
Vertically Upward |

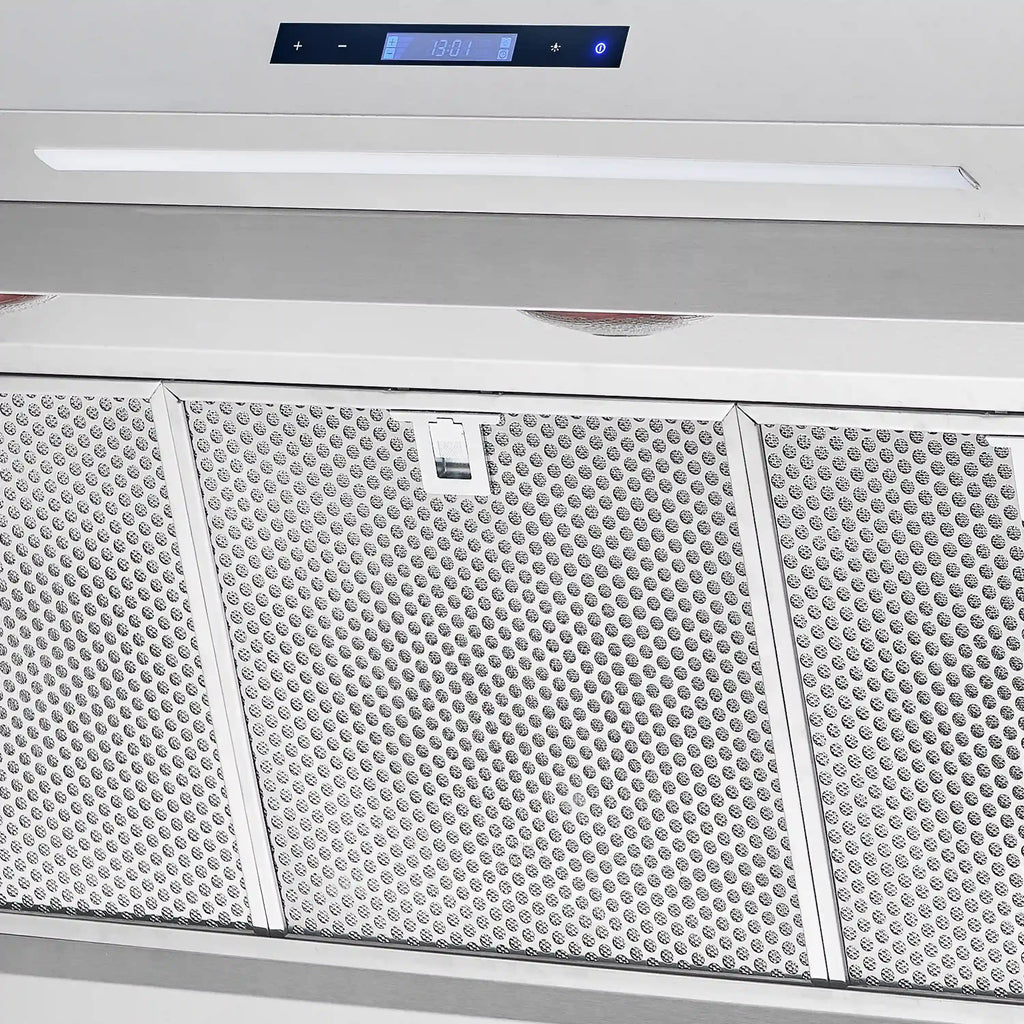

| Filter Type |
Hybrid |
| Filter Material |
Stainless Steel and Aluminum Mesh |
| Removable Grease Filter |
Yes |
| Washable Filter |
Yes |
| Dishwasher Safe Filters |
Yes |
| Damper |
Yes |
| Damper Type |
6-in Round |
| Duct Type |
6-in Round |

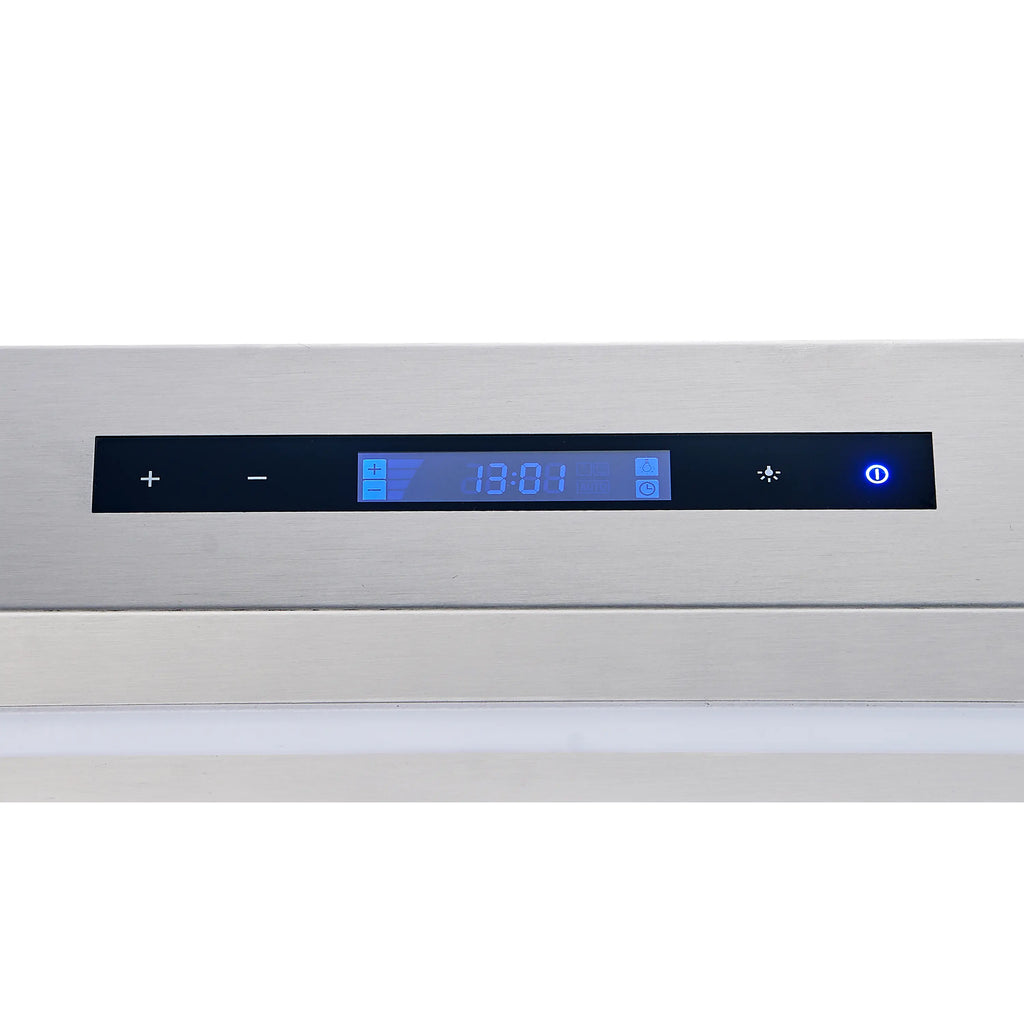

| Speed Control |
4 |
| Speed Control Type |
Touch |
| Heating Lamp Included |
Yes |
| Number of Heating Lamp |
3 |
| Warming selve included |
Yes |
| Backsplash Included |
Yes |
| Hardware Finish |
Stainless Steel |
| Primary Material |
Stainless Steel |
| Rangehood Chimney |
No |
| Chimney Extension Kit |
No |
| Chimney Short Kit |
No |
| Chimney Short Kit |
No |
| Crown Molding |
No |
| Reversible Blower |
No |
| Finger print Resistant |
No |
| Heat Sensors |
No |
| Power off Function |
Yes |
| Power-off Information |
15 Minutes |
| Remote Control |
No |
| Timer |
No |
| Clock |
Yes |
| Number of light settings |
1 |
| Number of Lights |
1 |
| Clean Filter Alert |
No |
| Range Hood Shape |
Square |
| Supplier Intended and Approved Use |
Residential Use |
| Maximum Sones |
16 |
| Minimum Sones |
2 |
| Sones Speed 1 |
2 |
| Sones Speed 2 |
6 |
| Sones Speed 3 |
11 |
| Sones Speed 4 |
16 |
| Maximum Decibel (dB) |
68 |
| Minimum Decibel (dB) |
48 |
