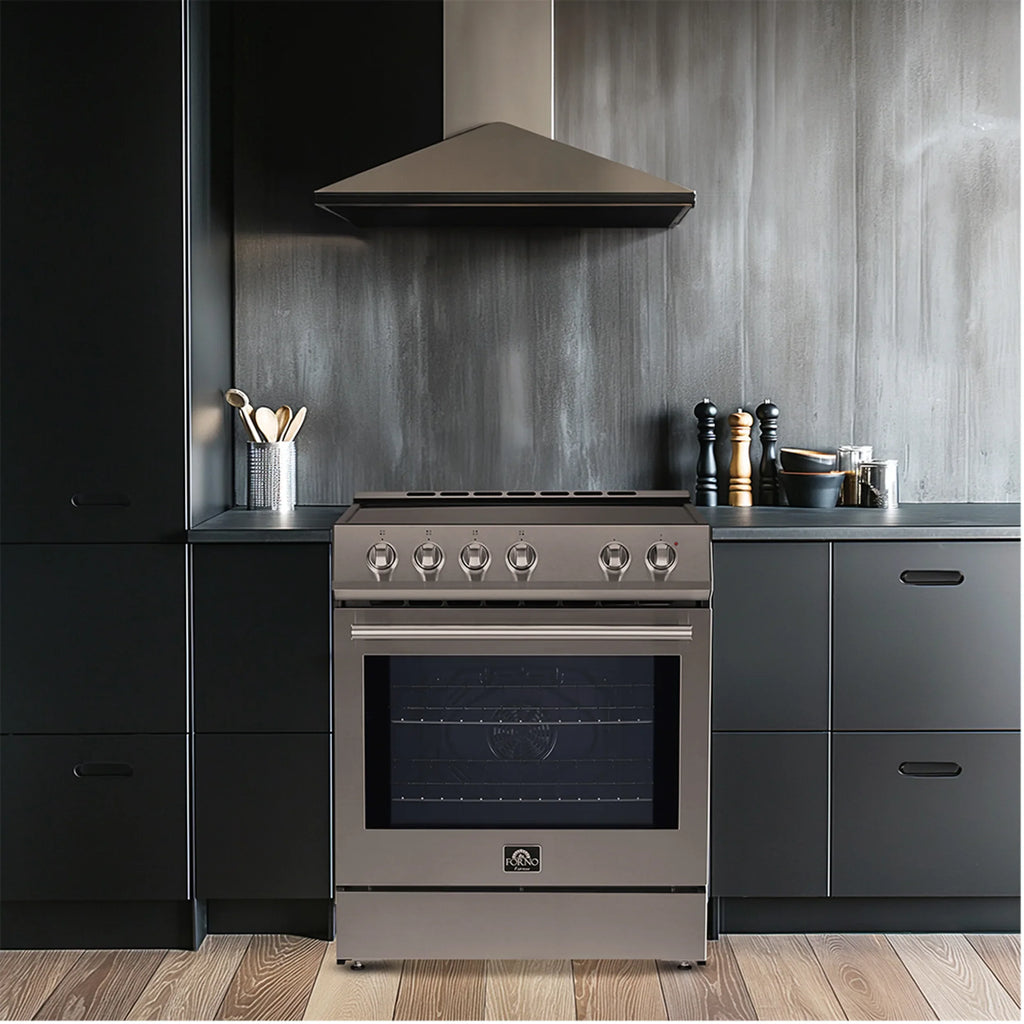

Introducing the Forno Leonardo Espresso 30" 5.0 cu. Ft. Stainless-Steel Electric Range, a kitchen game-changer. 4 Radiant Elements, and a 3,500-watt Convection Oven, it combines style with top-notch performance. Ceramic Glass ensures even heat distribution. The Hidden Bake Element simplifies maintenance by preventing spills and odors. Elevate your kitchen with this timeless, user-friendly range, marrying durability with sophistication. Cook with confidence, and embrace efficiency and style with every use.
| Dimensions | |
| Overall Height - Top to Bottom (in) | 38 |
| Overall Depth - Front to Back (in) |
27.95 |
| Interior Width - Side to Side (in) |
30 |
| Interior Height - Top to Bottom (in) |
19.6 |
| Interior Depth - Front to Back (in) |
17.7 |
| Depth with door open 90° (in) |
46.25 |
General |
|
| Product Type | Slide-in |
| Handle Color/Finish | Silver |
| Control Type |
Manual |
| Electric Heat Configuration |
Radiant |
| Filler Kit |
No |
| Power Cord Included |
Yes |
| LP Gas Convertible | No |
| Eligible for Replacement Parts |
Yes |
| Voltage (V) |
240 |
| Amperage (A) |
50 |
| Fuel type |
Electric |
| Cleaning Type |
Manual clean |
| Control Location |
Front |
| Ignition Type |
Electric |
| Plug-In |
Yes |
| Removable Backguard |
Yes |
| Primary Material | Steel |
| Eligible for Hardware Packs |
No |
Cooktop |
|
| Cooktop surface | Ceramic Glass |
| Burner Fuel | Electric |
| Front Left Center Element Watts (W) | 2200 |
| Front Right Element Watts (W) |
2500 |
| Front Left Element Watts (W) |
2200 |
| Rear Right Element Watts (W) |
1200 |
| Rear Left Element Watts (W) |
1200 |
| Hot Surface Indicator |
Yes |
| Number of Burners |
4 |
| Front Right Burner Diameter (in) |
10 |
| Front Left Burner Diameter (in) |
9 |
|
Rear Right Burner Diameter (in) |
6 |
|
Rear Left Burner Diameter (in) |
6 |
|
Oven(s) |
|
| Oven Fuel | Electric |
| Timer | No |
| Convection Type | Standard Convection |
| Broiler Location |
Oven |
| Bake Element | Yes |
| Bake Element Wattage (W) |
1500 |
| Number of Racks |
2 |
| Interior Light |
Yes |
| Convection Oven |
Yes |
| Broiler |
Yes |
| Broil Element Wattage (W) |
2000 |
| Hidden Bake Element |
Yes |
| Overall Oven Capacity (cu. ft.) |
5 |
| Sabbath Mode |
No |
| Warranty | |
| Product Warranty | Yes |
| Full or Limited Warranty |
Limited |
| Warranty Length |
2 Years |

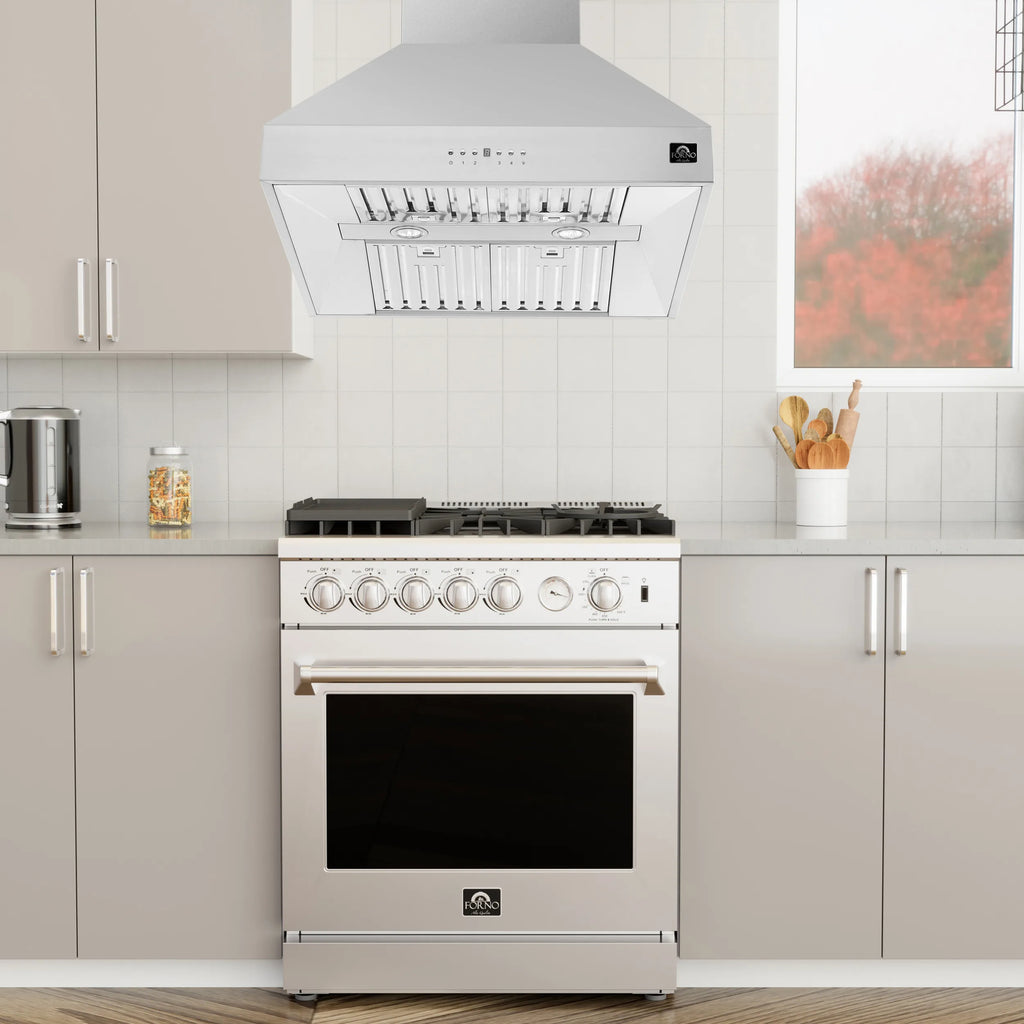

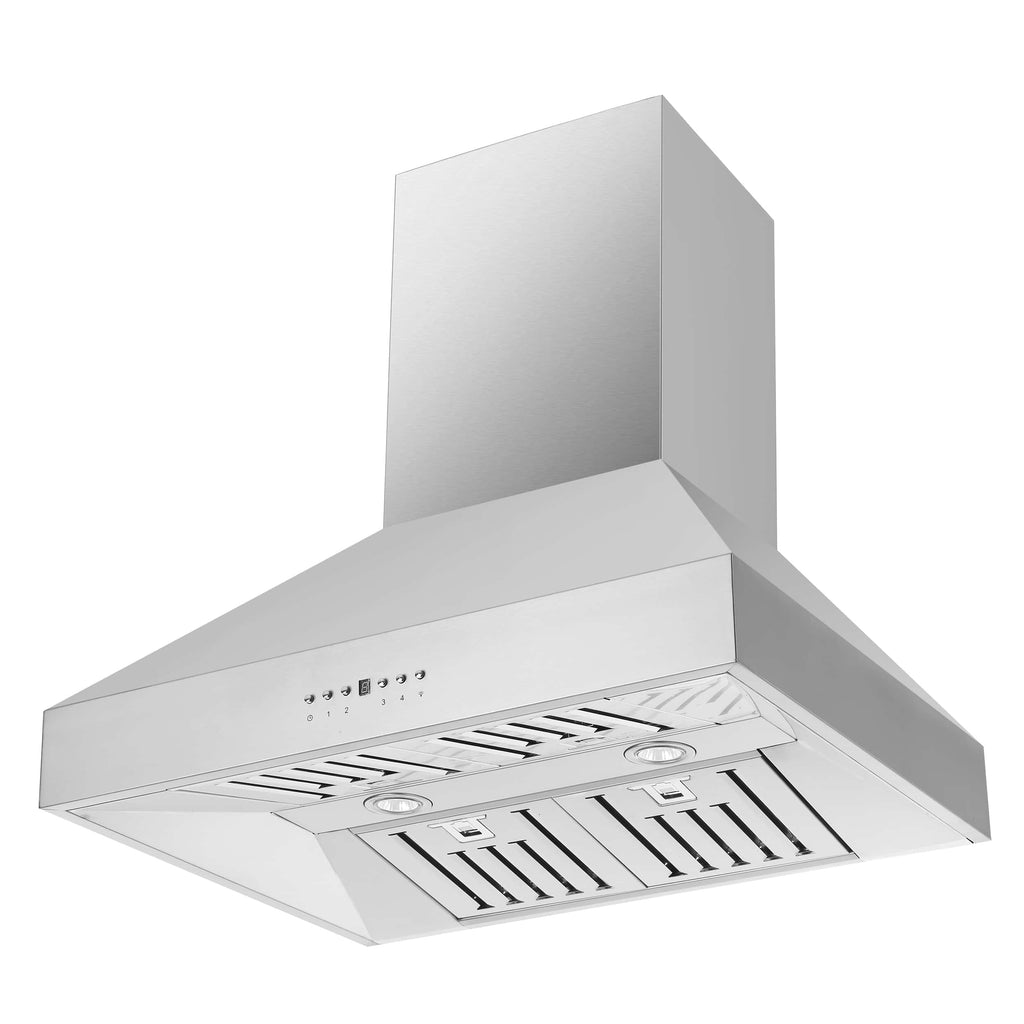

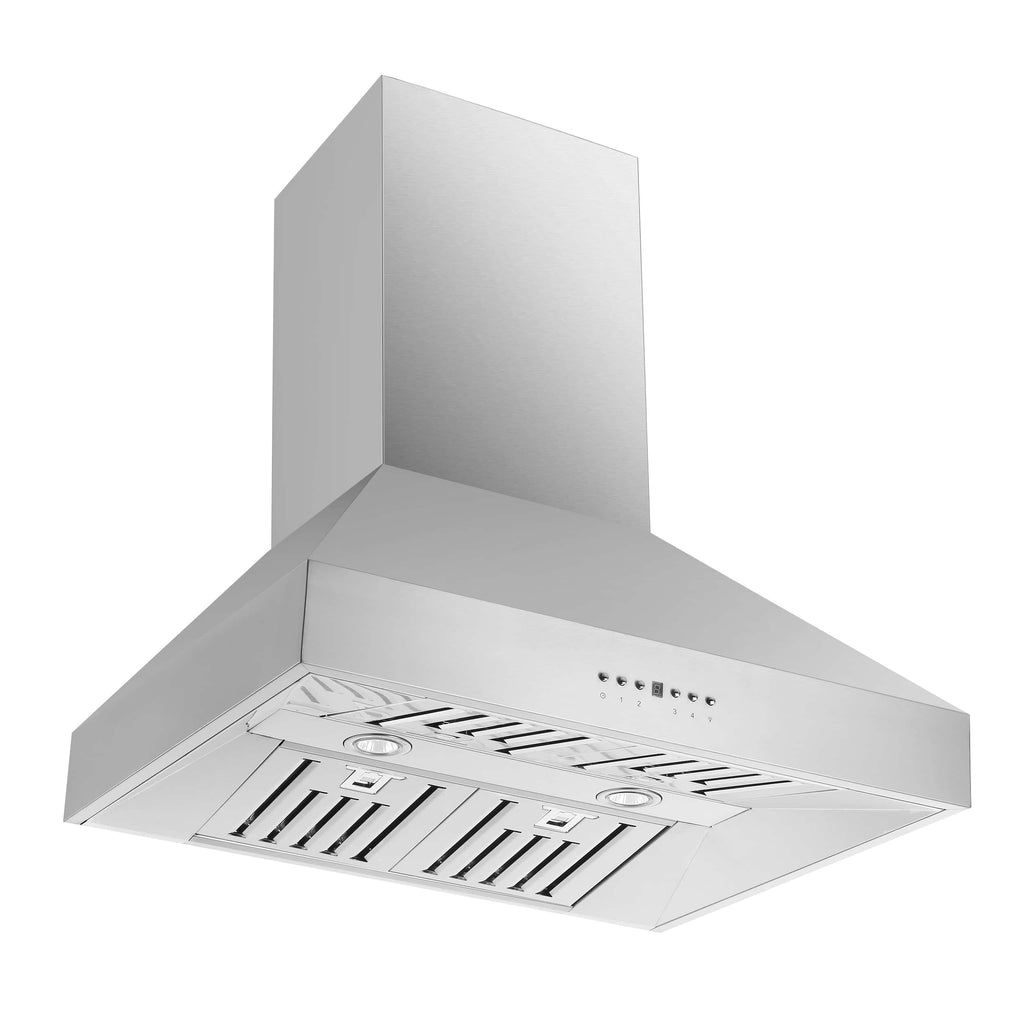

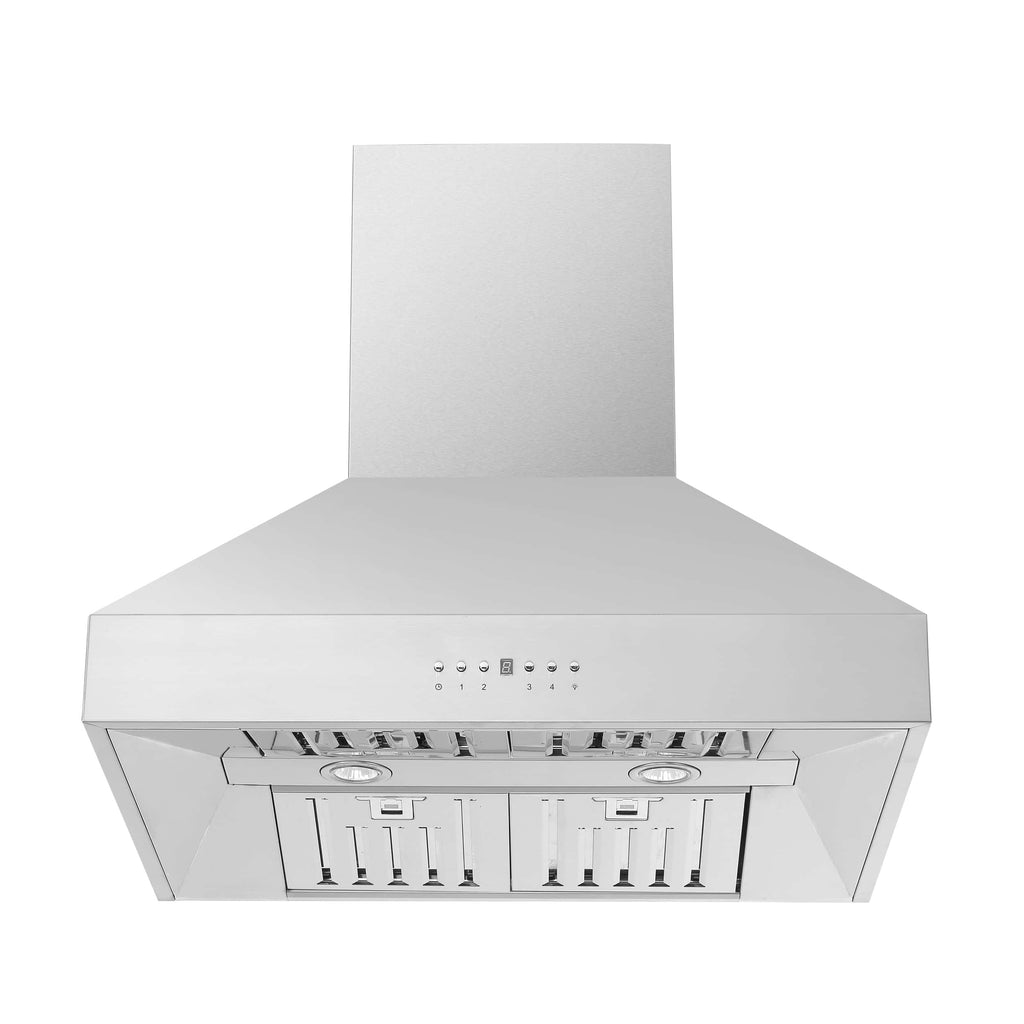

This 30 Inch Wall-Mounted Range Hood is designed for high-performance kitchen ventilation. With a powerful 600 CFM motor and 4-speed fan control, it removes smoke, grease, and cooking odors. Choose between external venting or ductless recirculating installation to suit your kitchen layout. The vertical upward air discharge ensures efficient airflow, while features like automatic shut-off, a built-in timer, and removable charcoal filters make it convenient to use and maintain. The included chimney extension kit and decorative crown molding allow for a custom, built-in look. Quiet operation at just 65 dB with built-in lighting for better visibility while cooking.
| Size | 30" |
| Dimensions | 29.5" W x 23.6" D x 44.5" |
| Weight | 57.3 lbs |
| Mount Type | Wall-Mount Hoods |
| Unit Color | Stainless Steel |
| Ventilation Type | Ducted |
| Electrical supply | 120V/60Hz |
| Circuit Breaker | 15 |
| Power connection | NEMA 5-15P Power Cord |
| Power Cord Length (in) | 47.24" |
| Power Cord Location | Top Right |
| Running Amp | 2.5 Amps |
| Certification | ETL Listed |
| Number of Blower(s) | 1 |
| Blower Material | Metal |
| Filter Type | Baffle |
| Filter Material | Stainless Steel |
| Number of Filters | 4 |
| Dishwasher Safe Filters | Yes |
| Control Type | Push Button |
| Number of Speed Levels | 4 |
| Warming selve | No |
| Heat Lamp | No |
| Handle | Yes 1x |
| Backsplash | No |
| Charcoal Filters | Yes |
| Light Type | LED GU10 |
| Rangehood Chimney | Yes |
| Chimney Extension Kit /Chimney Short Kit | Yes |
| Finger print Resistant | No |
| Heat Sensors | No |
| Automatic shut-off | Yes |
| Remote Control | No. |
| Delay Shut-Off | No |
| Auto Shut-Off Timer | Yes |
| Clock | No |
| CFM (cutbic feet per minute ) | Level 1 275 CFM Level 2 375 CFM Level 3 475 CFM Level 4 600 CFM |
| Air flow | Level 1 467 m3/hr Level 2 637 m3/hr Level 3 807 m3/hr Level 4 1020 m3/hr |
| RPM (Revolutions Per Minute on one motor only) | Level 1 880 RMP Level 2 1050 RMP Level 3 1350 RMP Level 4 1510 RMP |
| Noise Level at each speed | Level 1 44 dB Level 2 51 dB Level 3 58 dB Level 4 65 dB |
| Duct Shape | Round |
| Duct Size | 6" |
| Air Discharge Direction | Vertically Upward |
| Number of exhaust Vent | 1 |

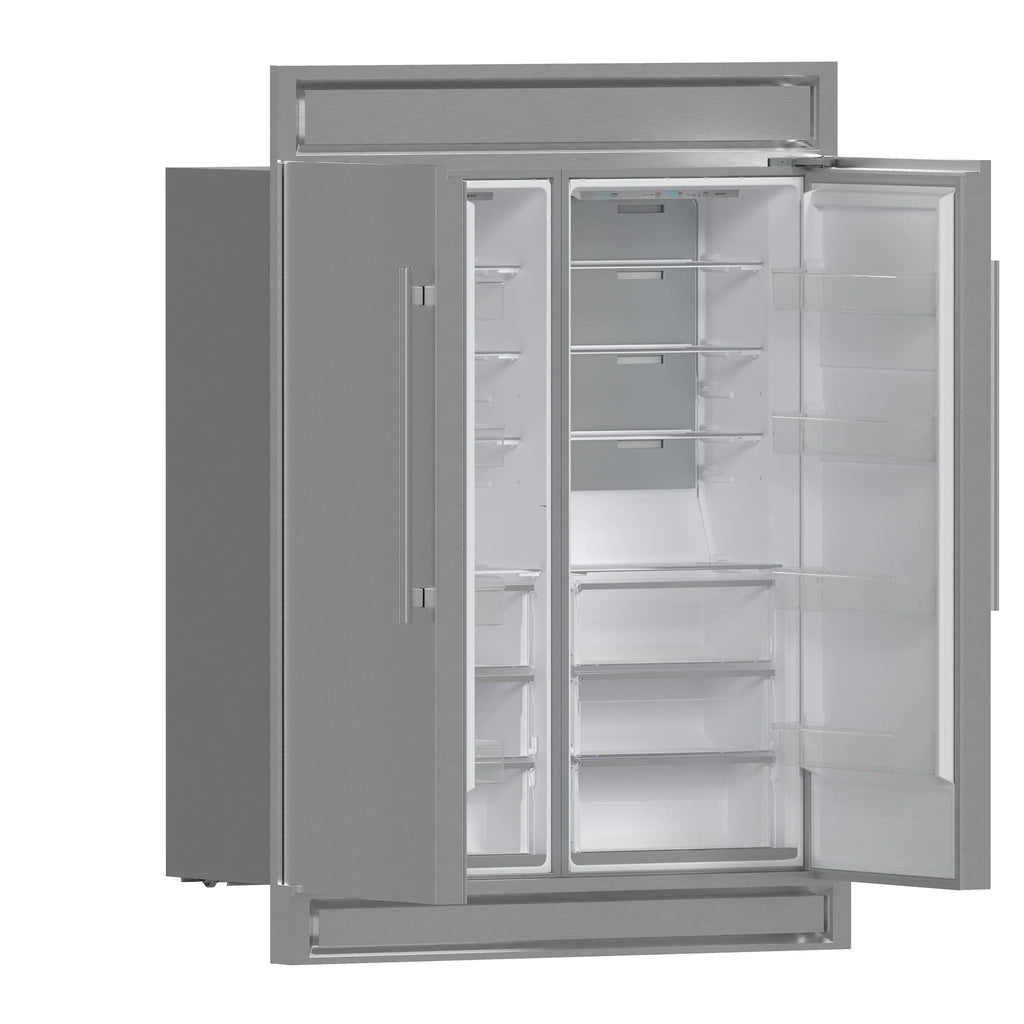

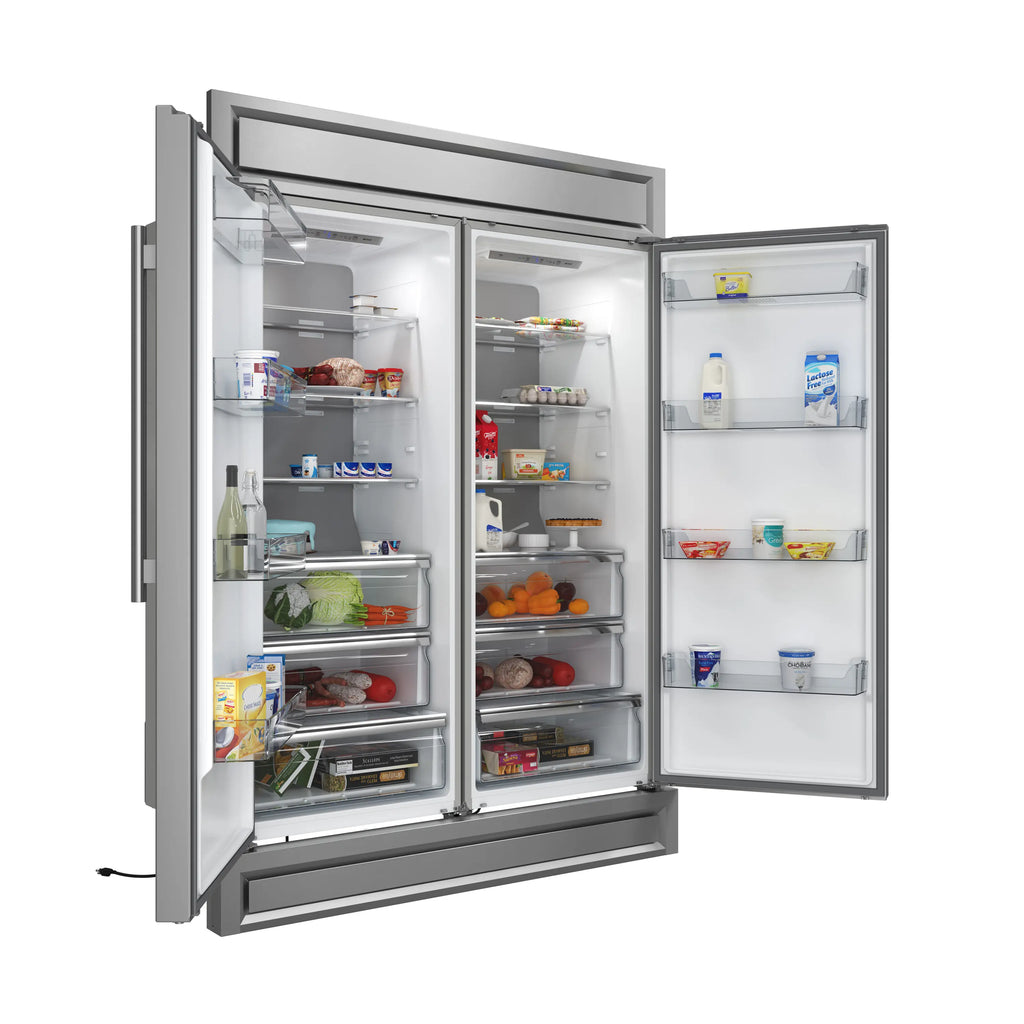

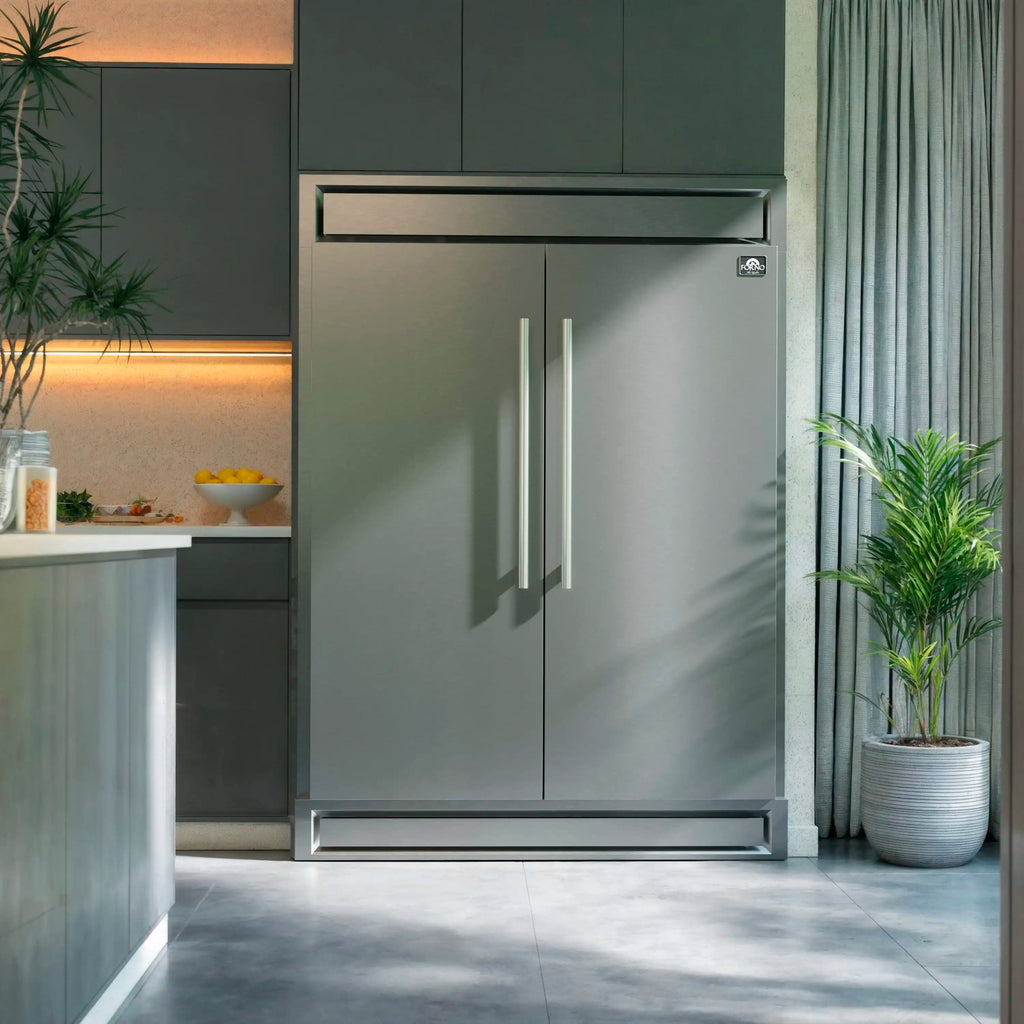

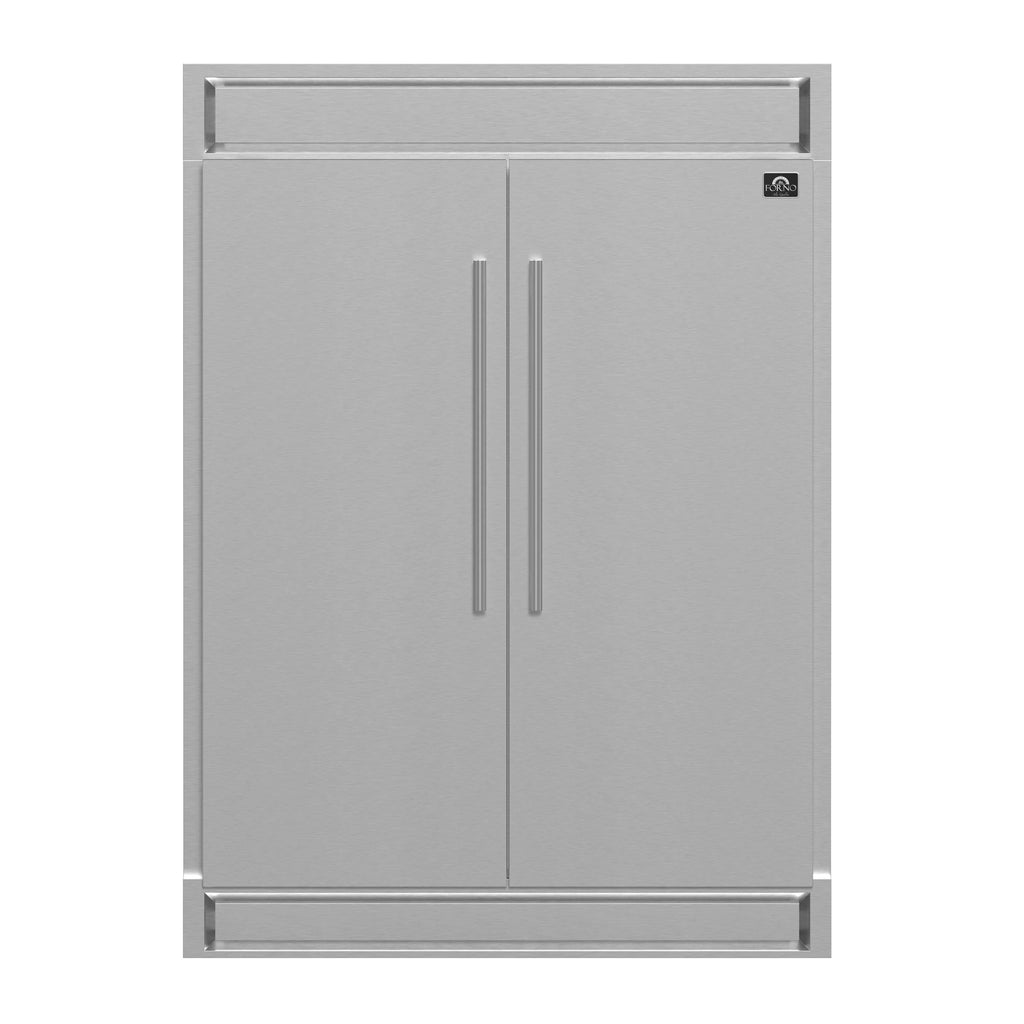

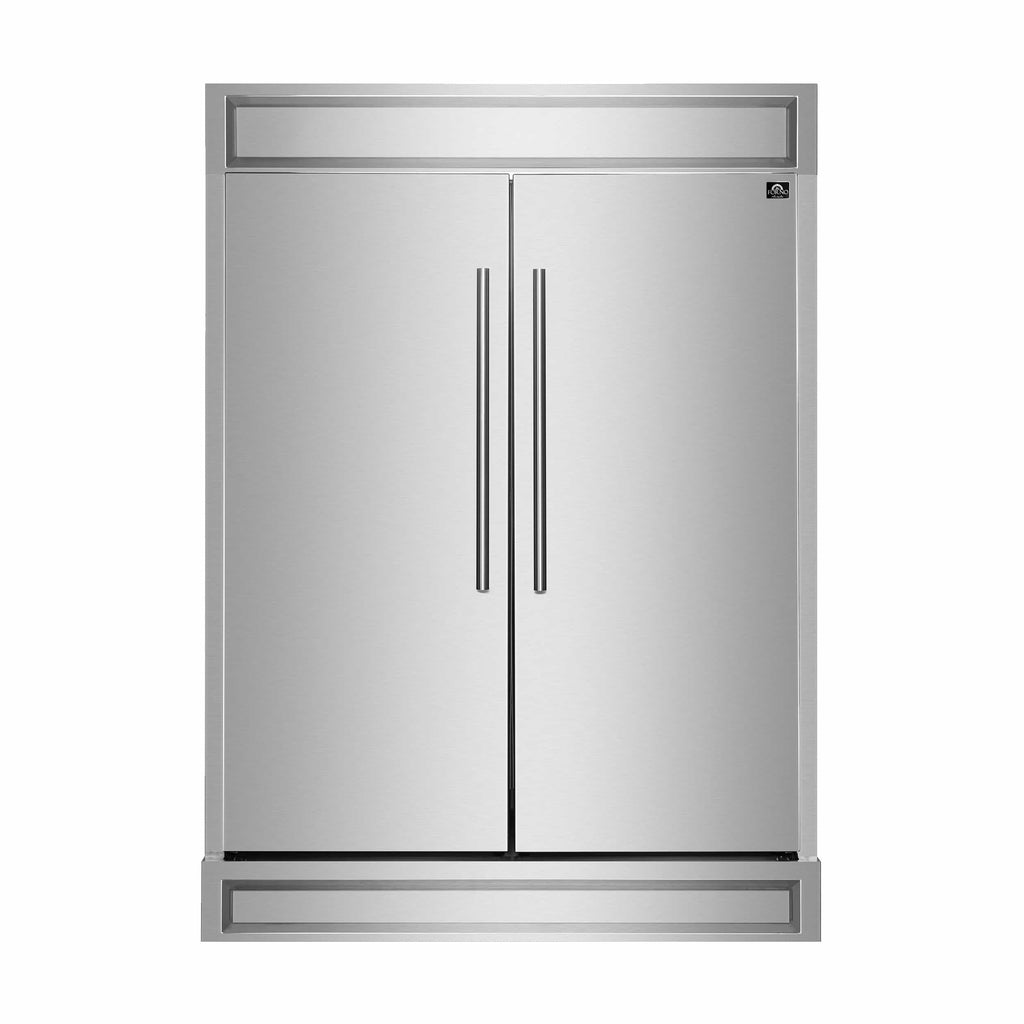

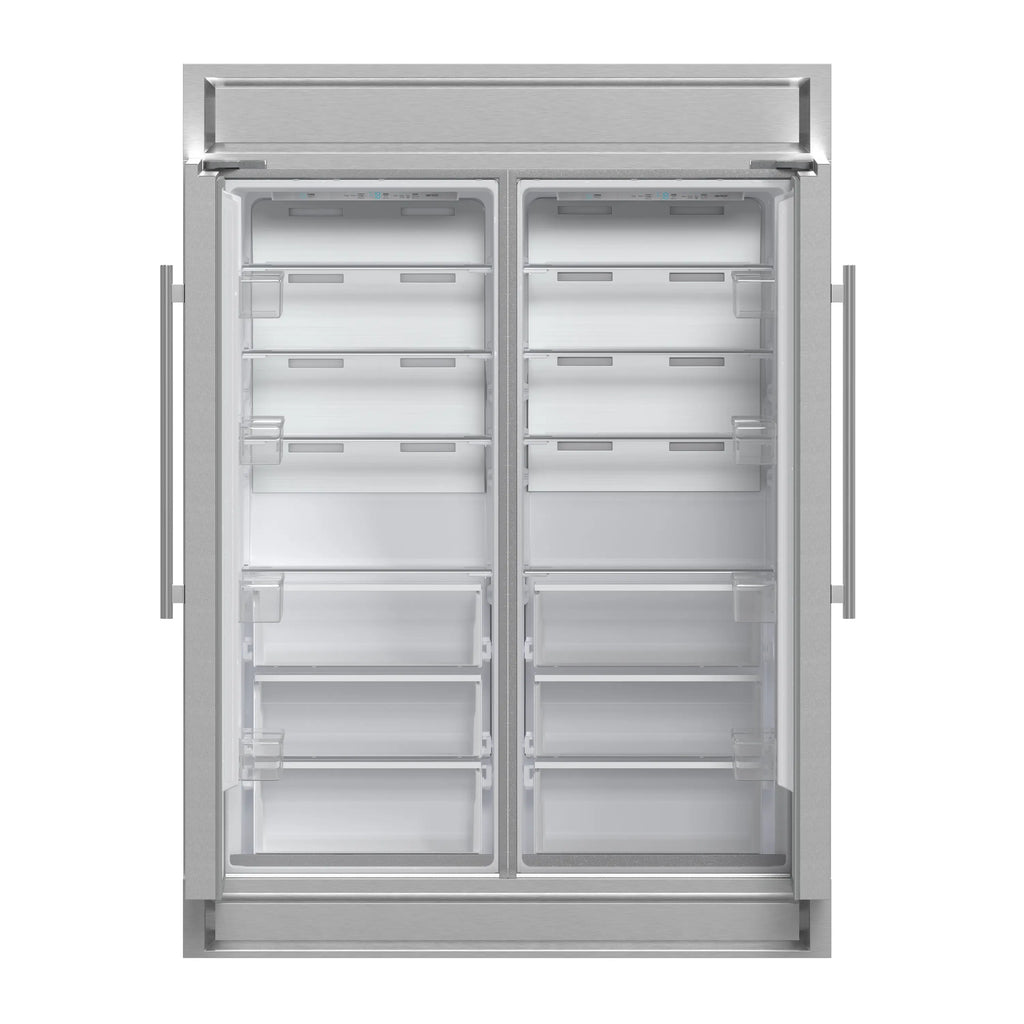

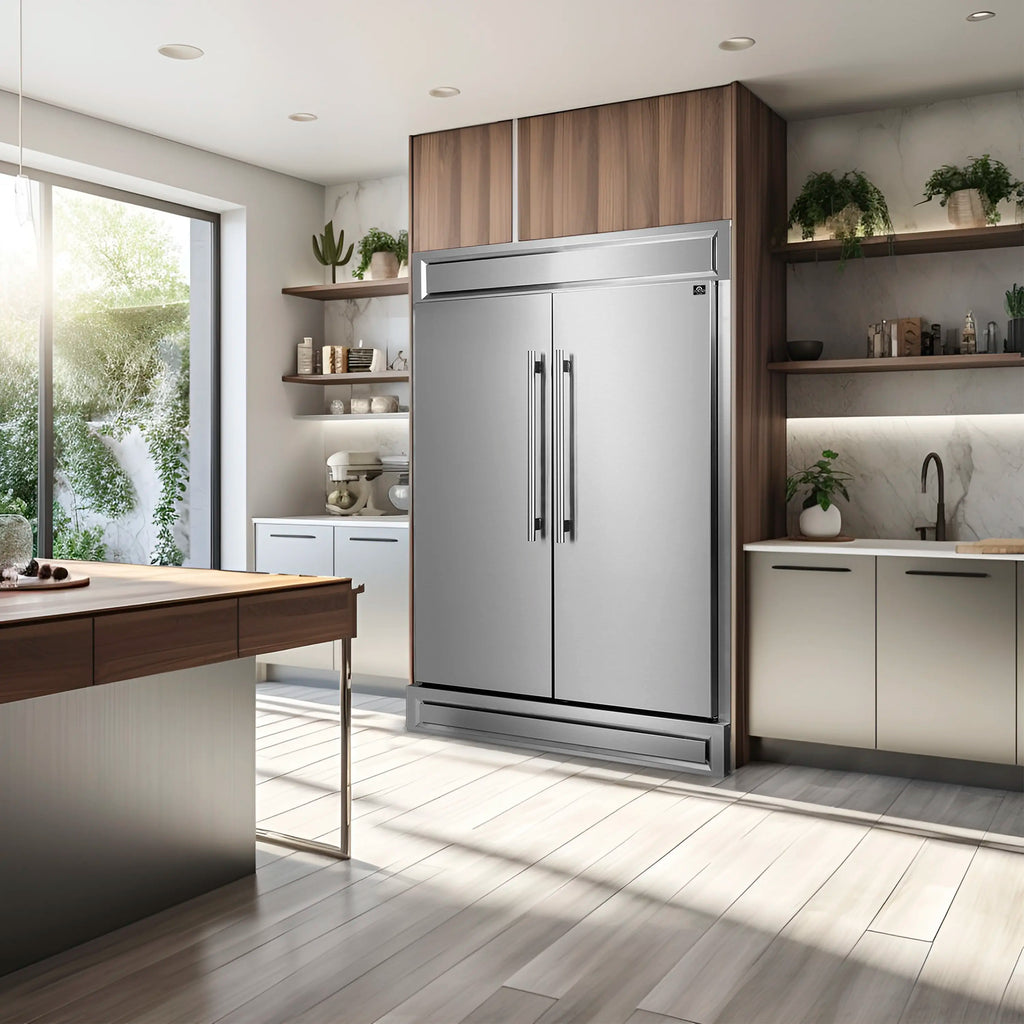

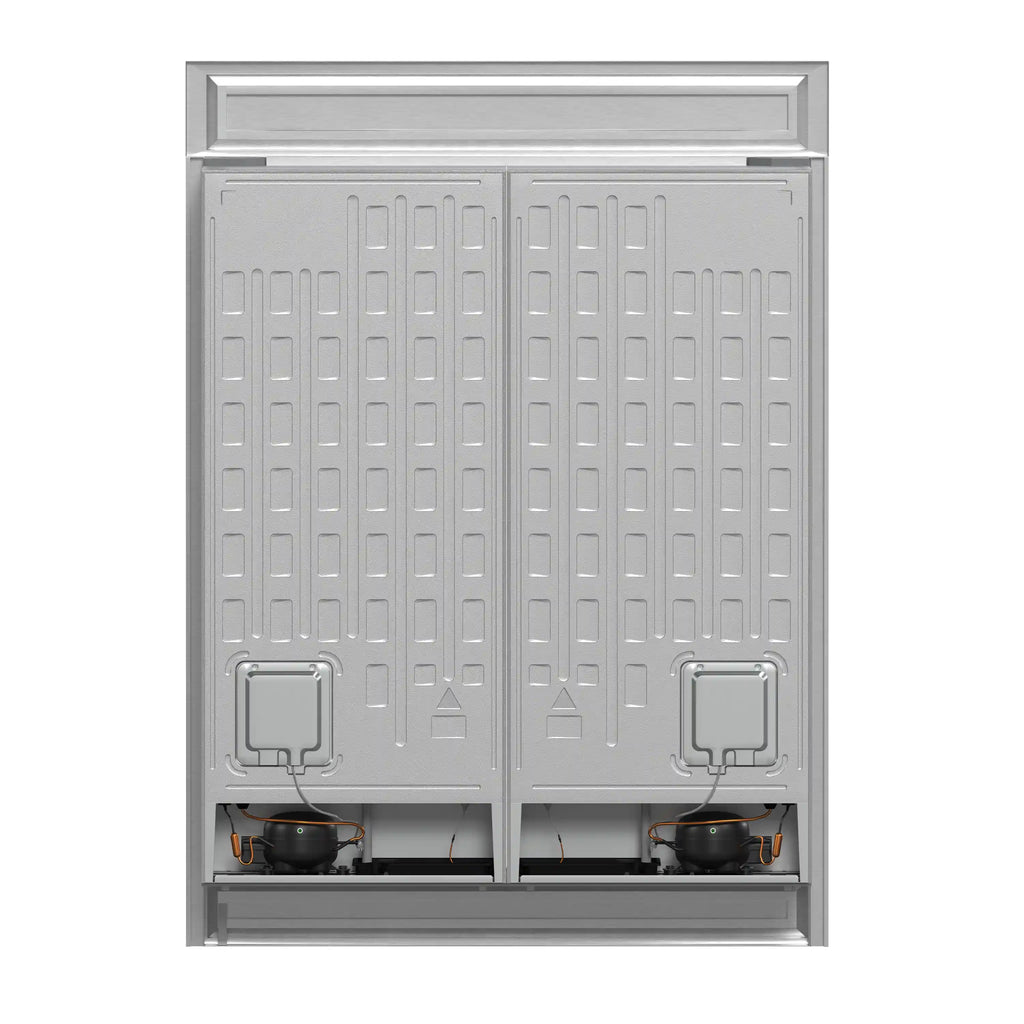

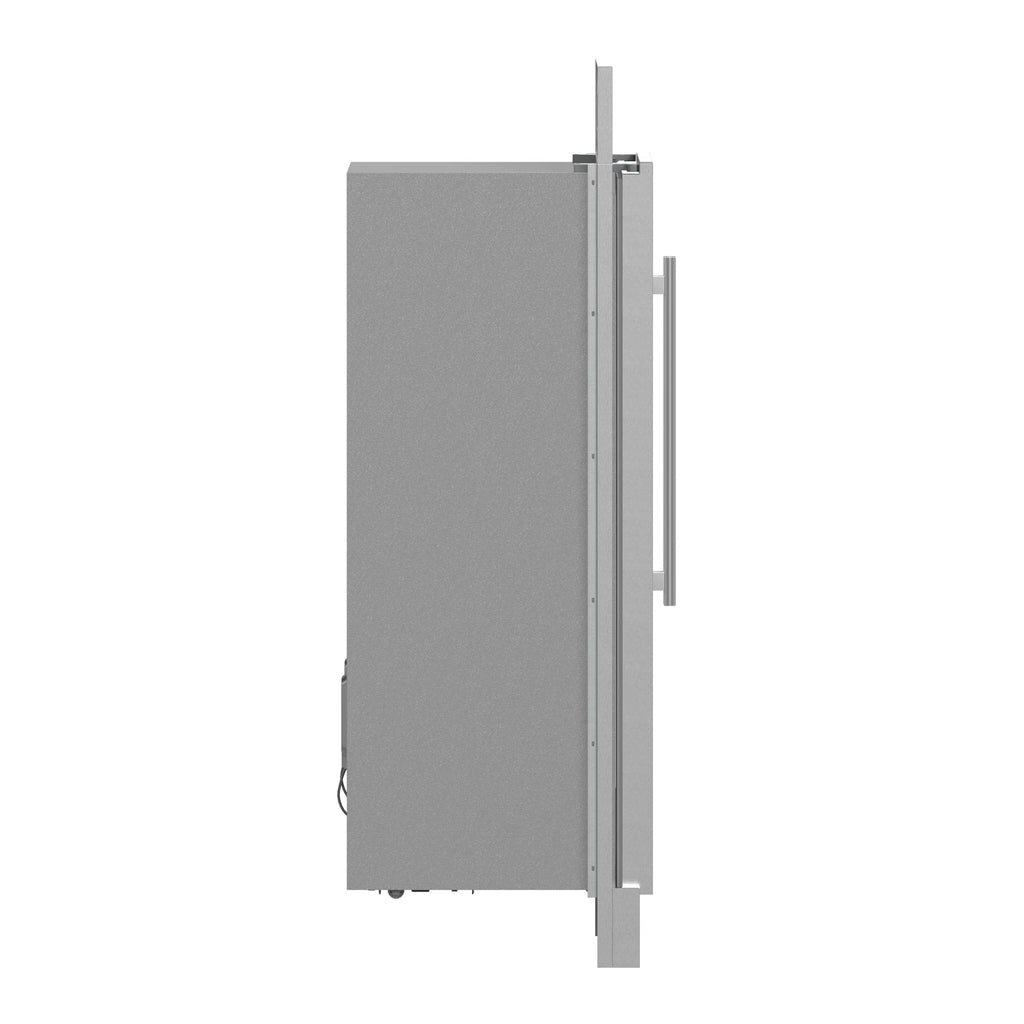

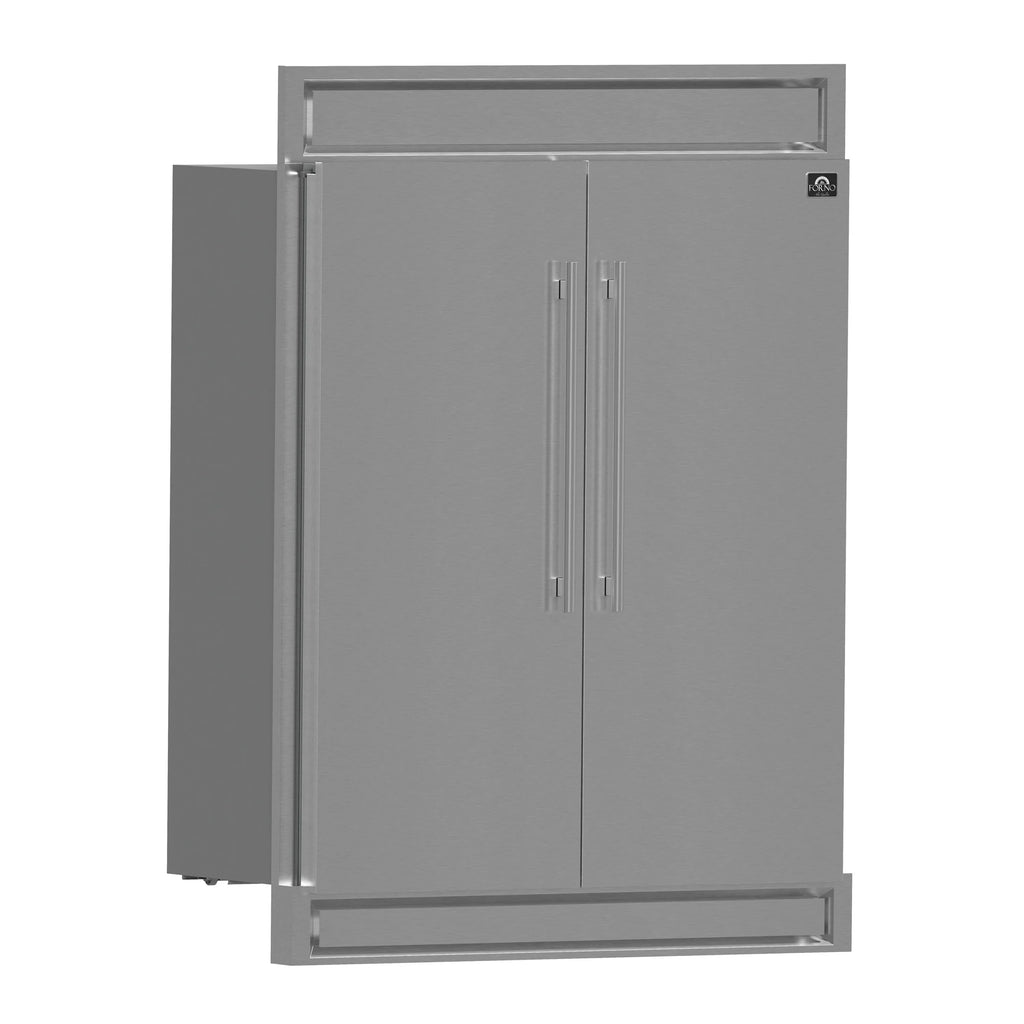

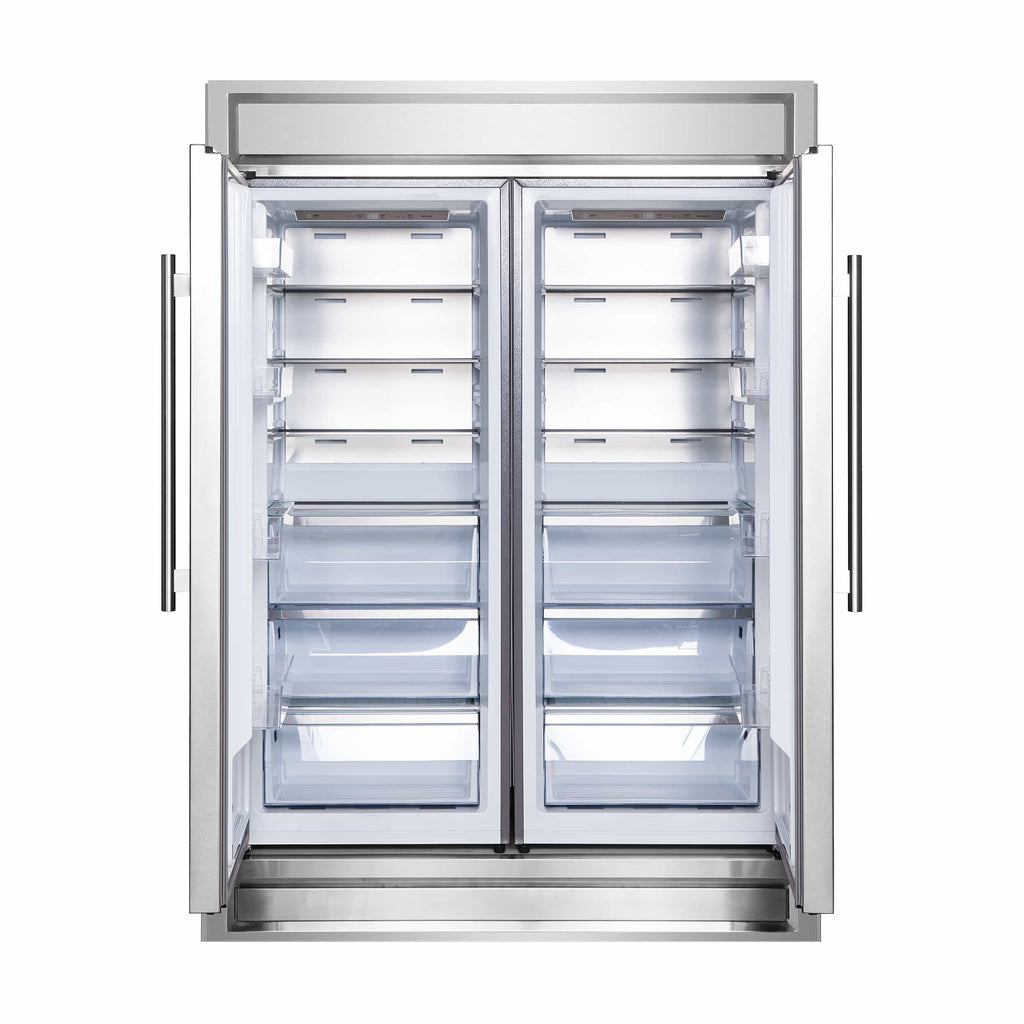

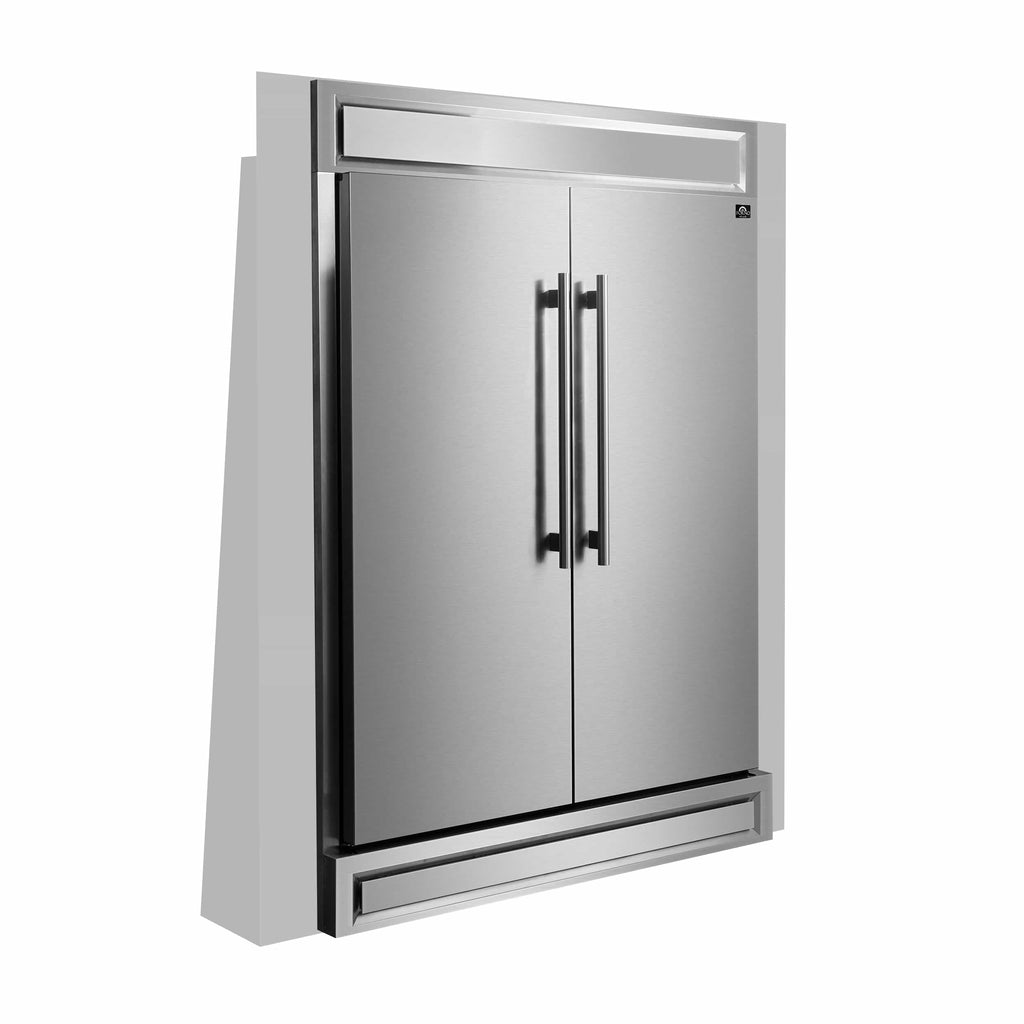

The Forno Maderno combines two 28 Inch refrigerators with decorative trim grille, extending to a 60 Inch width for a built-in appearance, harmoniously blending style with convenience. This combo offers ample storage space totaling 27.2 cu.ft. They feature customizable cooling with convertible function and total no frost technology, eliminating tedious defrosting.

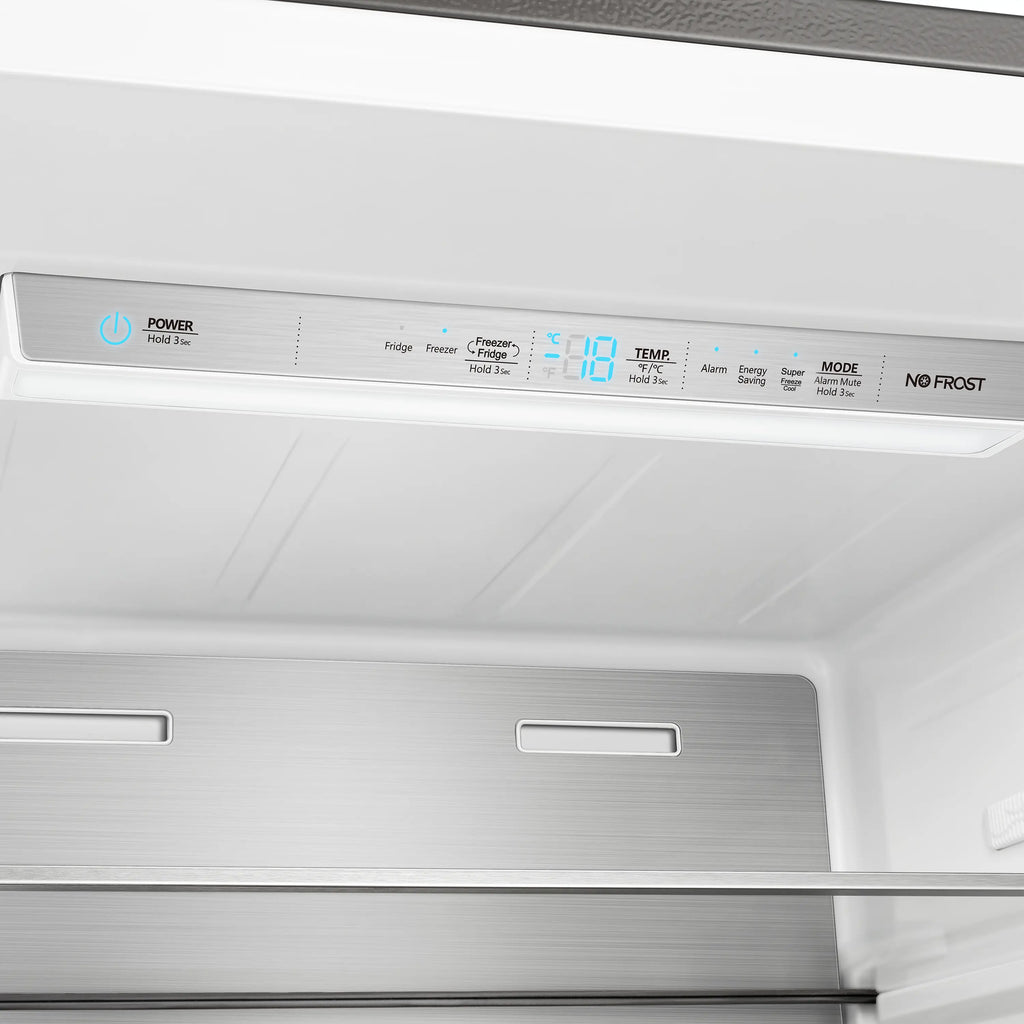

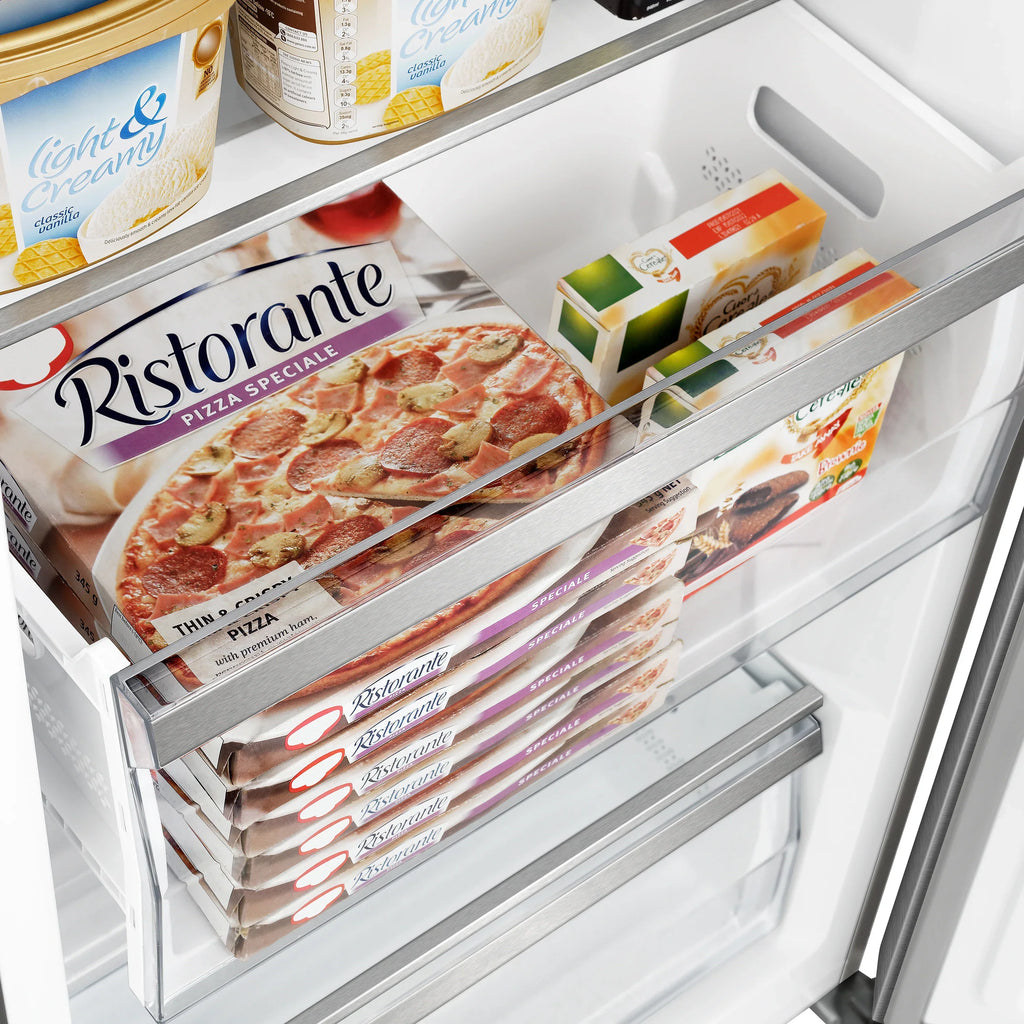

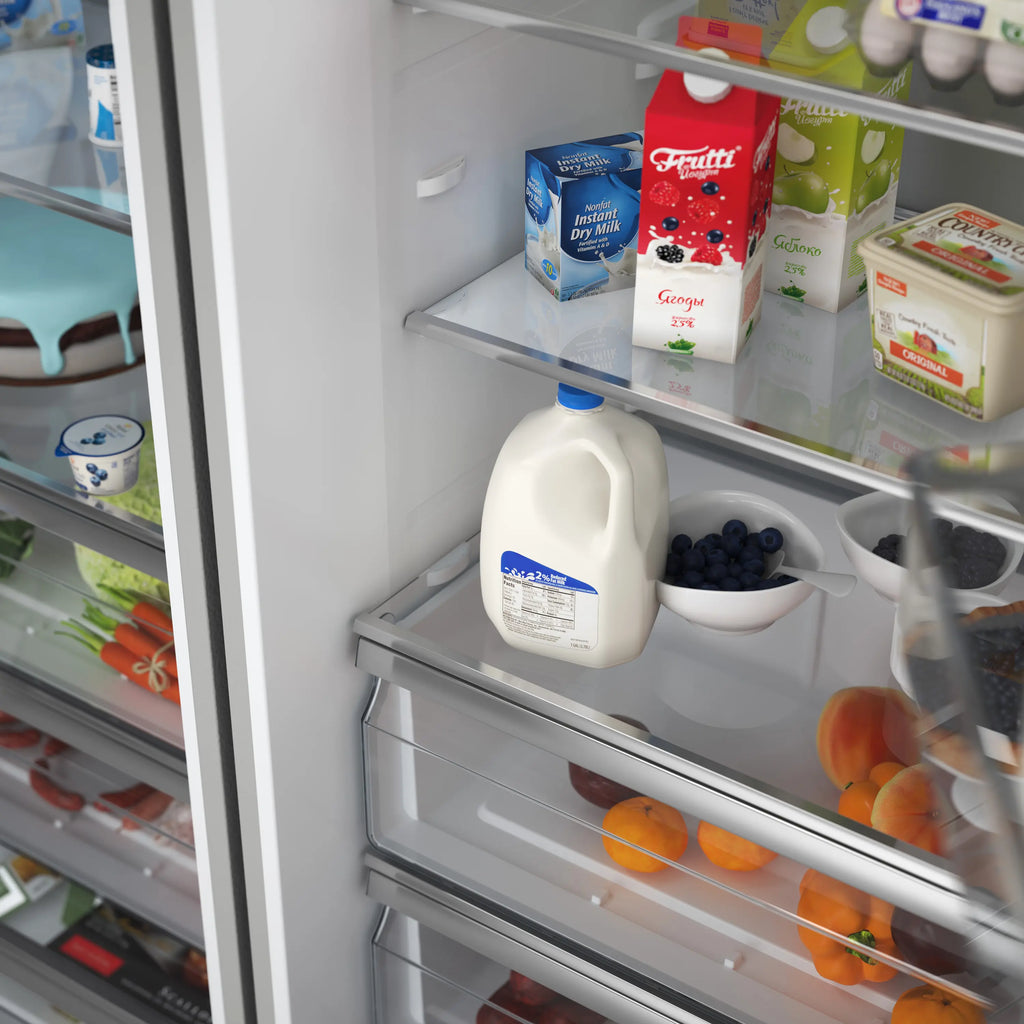

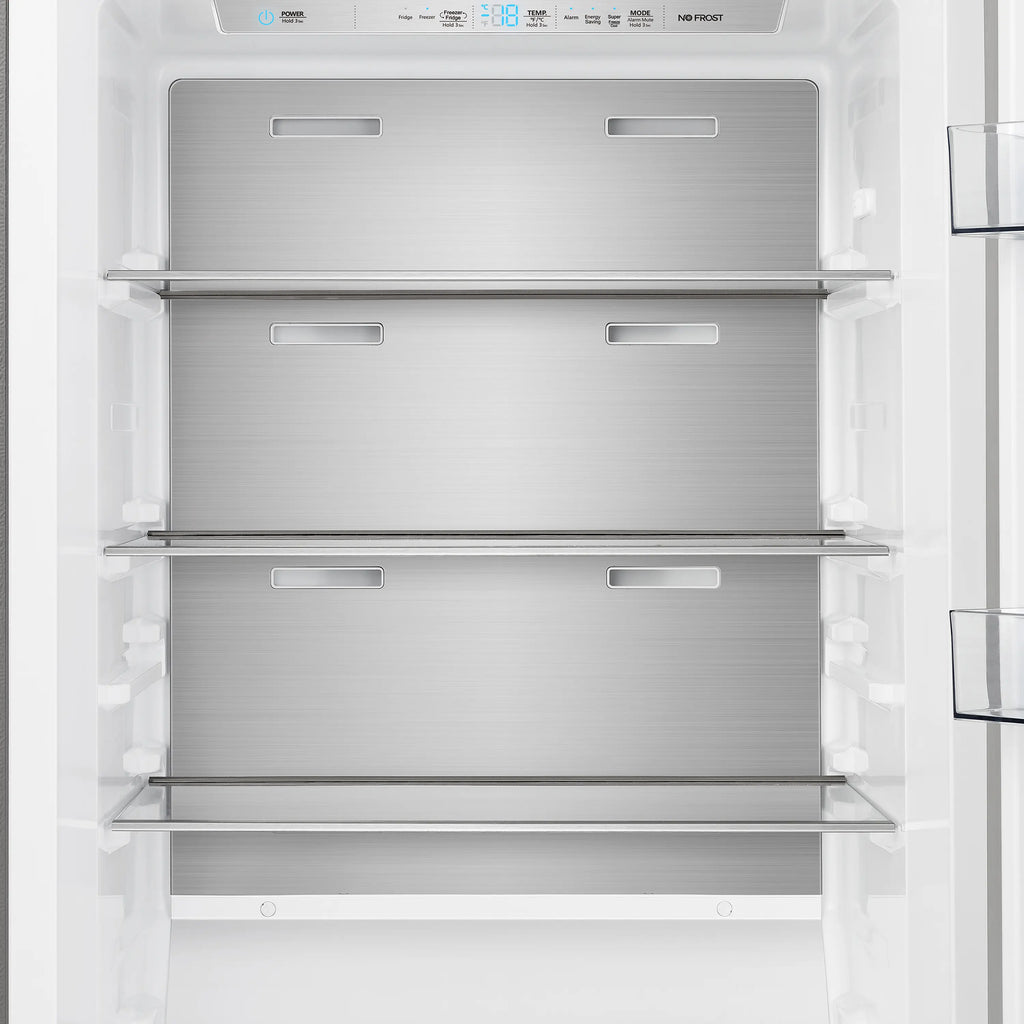

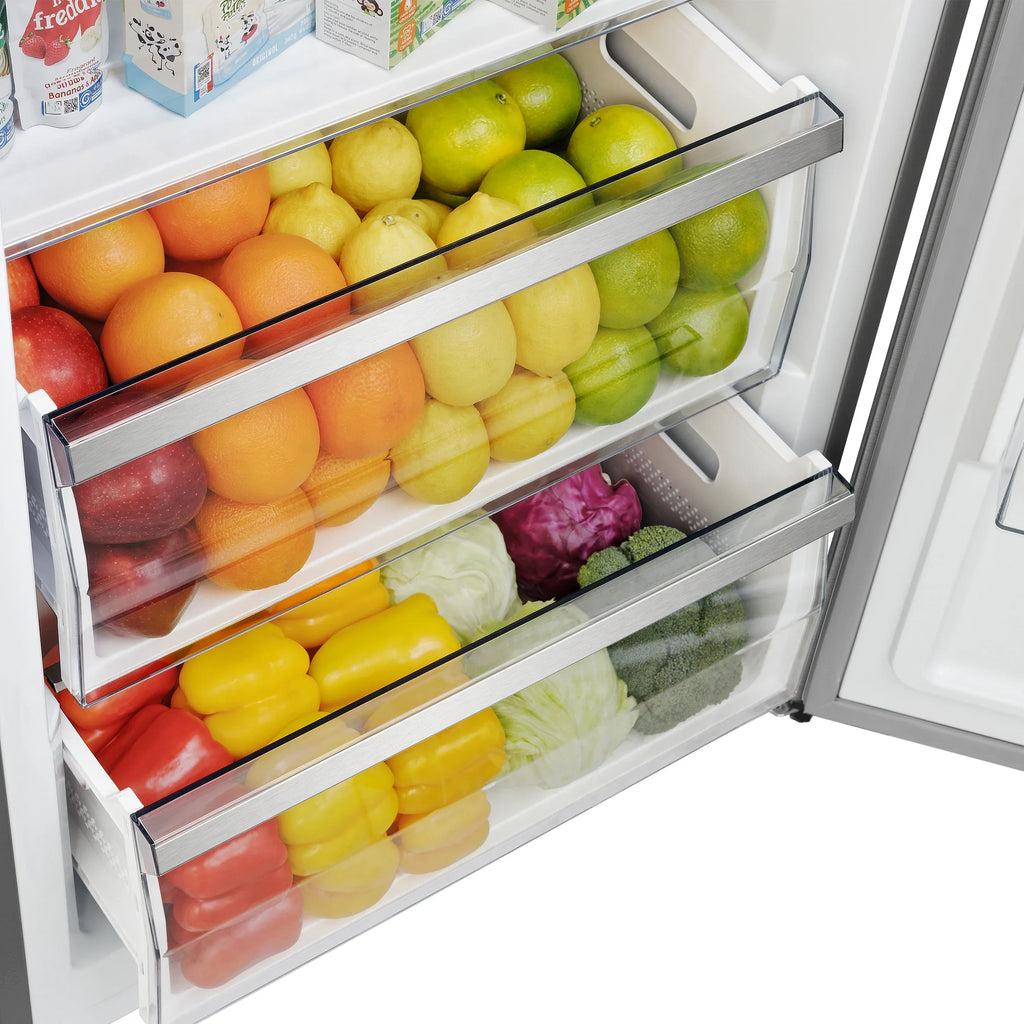

The side-by-side door design integrates seamlessly, while elegant glass shelves with silver trim and practical plastic door balconies enhance appeal and storage. Effortlessly switch between Fahrenheit and Celsius, aided by LED lighting for easy item location. Six glass shelves and six plastic drawers with silver trim provide flexible storage, and temperature settings are easily managed with the electronic touch control panel. The VCM door panel and metal back ensure durability, and the combo is T Climate Class certified with an E-star energy rating for sustainability.
This refrigerator comes in three pieces:
*Installation requires a base to be built for the refrigerator - please see cut-out sheet for more details
|
Overall Dimensions |
59.76" W X 29.7" D X 84" H |
| Cutout Dimensions | 55.9" W X 28.94" D X 69.06" H |
|
Product Overall Weight (lbs) |
330.00
|
|
Advertised Unit Width |
60” |
|
Unit Style |
Side-By-Side |
|
Counter-Depth |
Yes |
|
Converting Fridge/Freezer |
Yes |
|
Build Type |
Built-In |
|
Door Color |
Stainless-Steel |
|
Door Material |
VCM Door Panel |
|
Finger Print Resistant |
Yes |
|
Reversible Doors |
No |
|
Handle Color |
Stainless steel |
|
Case Material |
Metal |
|
Case Color |
Light Gray |
|
Primary Material |
White HIPS |
|
Control Type |
Internal Touch Control |
|
Air Flow |
Multi Air Flow |
|
Defrost Type |
Automatic |
|
Sabbath Mode |
No |
|
Vacation Mode / E-Saver |
Yes |
|
Super Cool |
Yes |
|
Super Freeze |
Yes |
|
Door Alarm |
No |
|
Leak Proof Shelves |
No |
|
Lighting Type |
LED |
|
Shelf Material |
Glass with Silver Trim |
|
Drawers Material |
Plastic with Silver Trim |
|
Door Bins Material |
Plastic |
|
Door Bins Color |
Clear |
|
Leveling Legs |
Yes |
|
Ice Maker |
No |

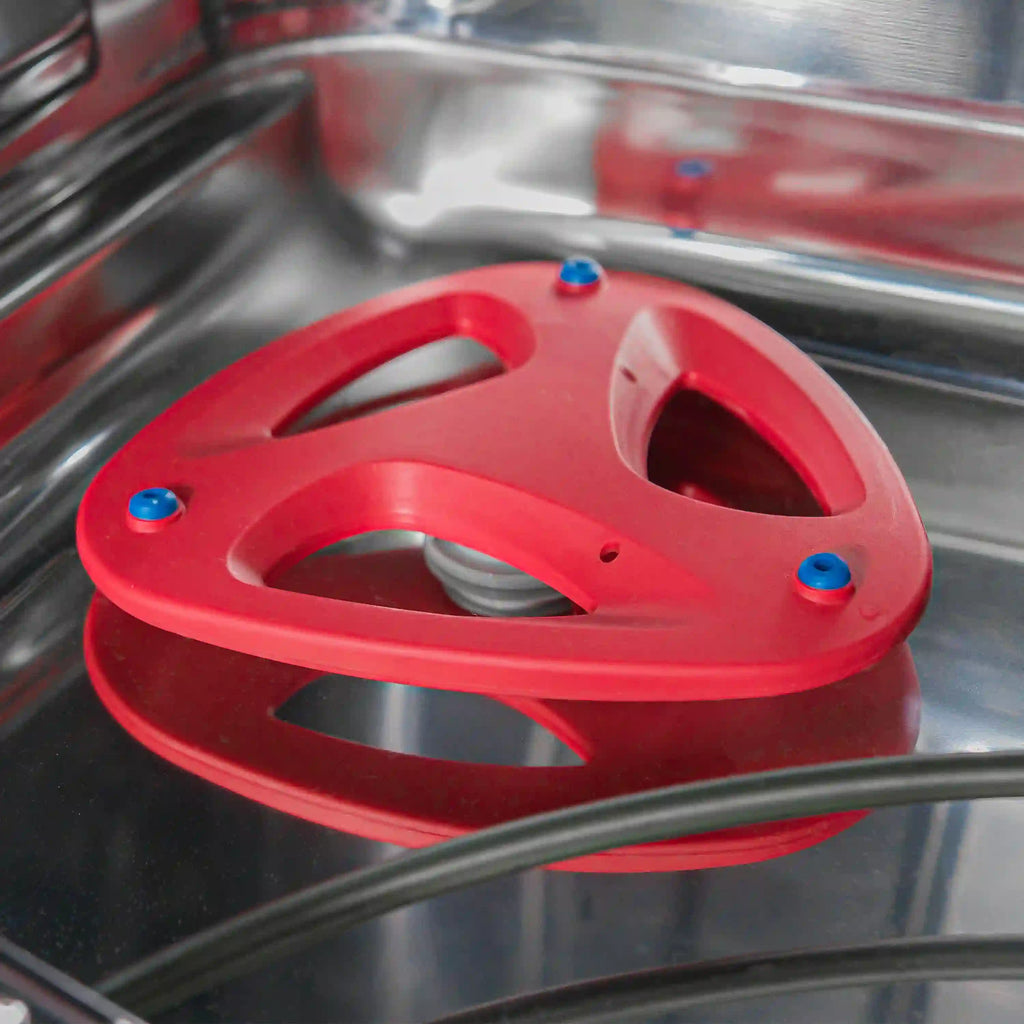

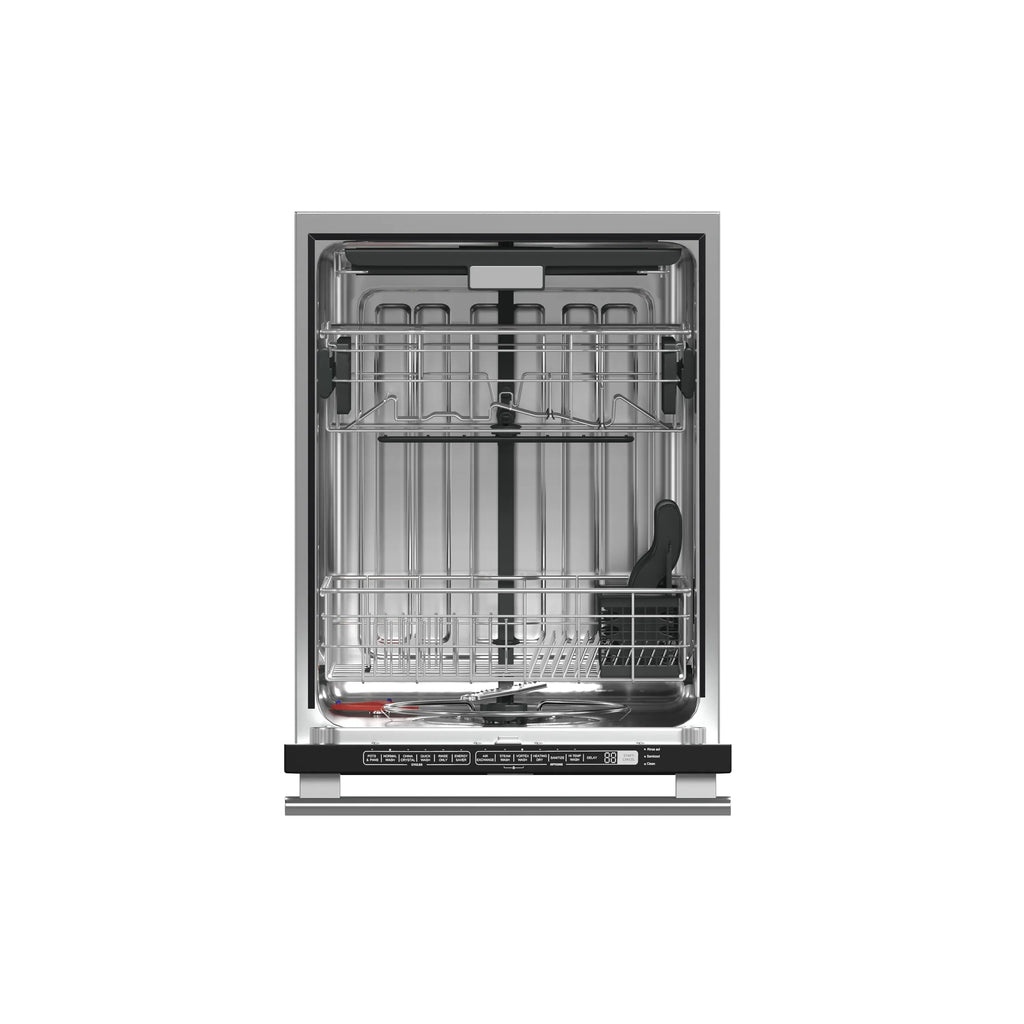

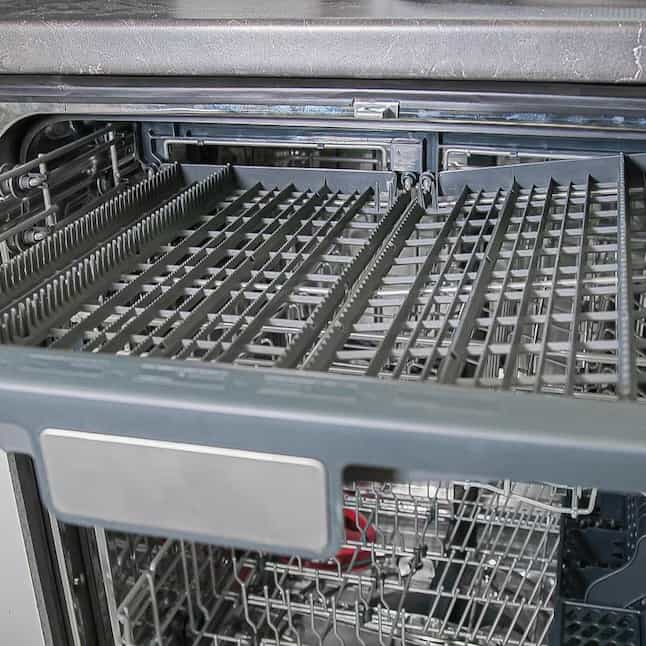

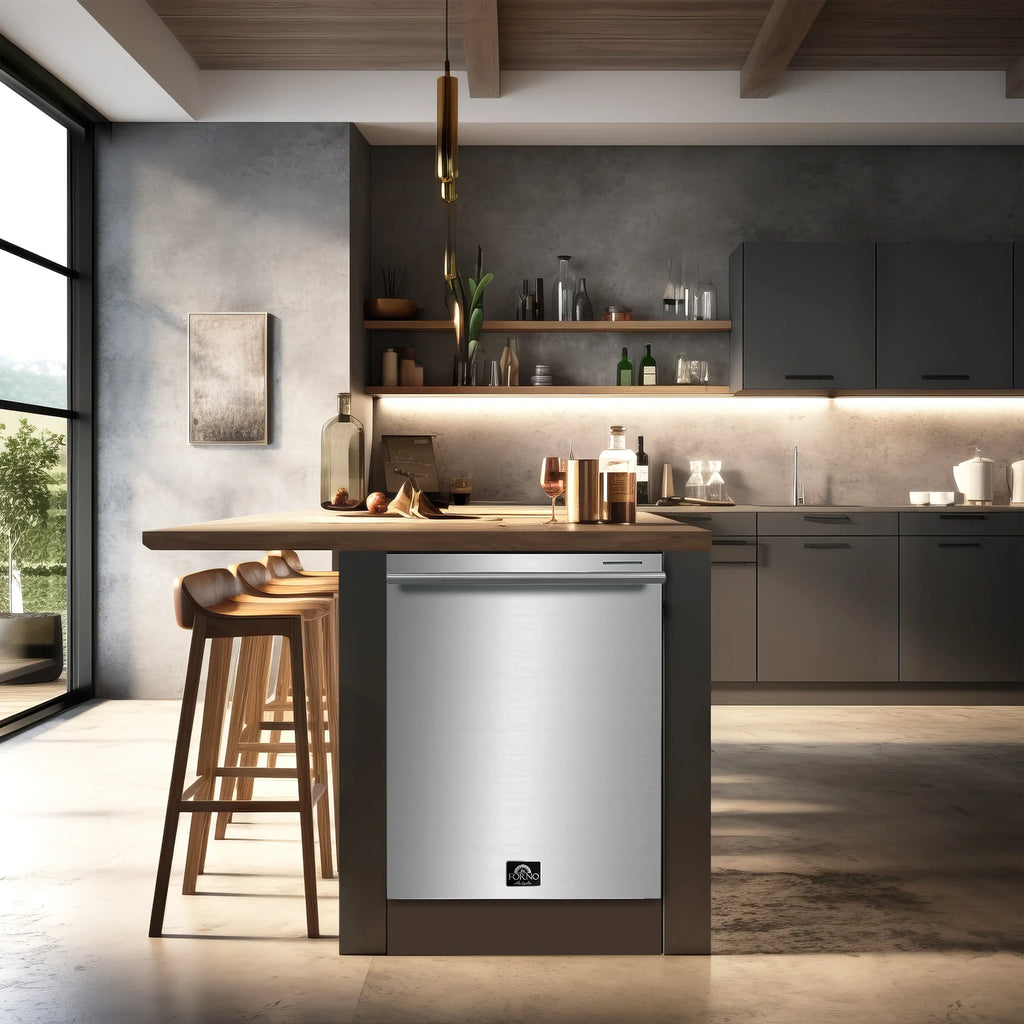

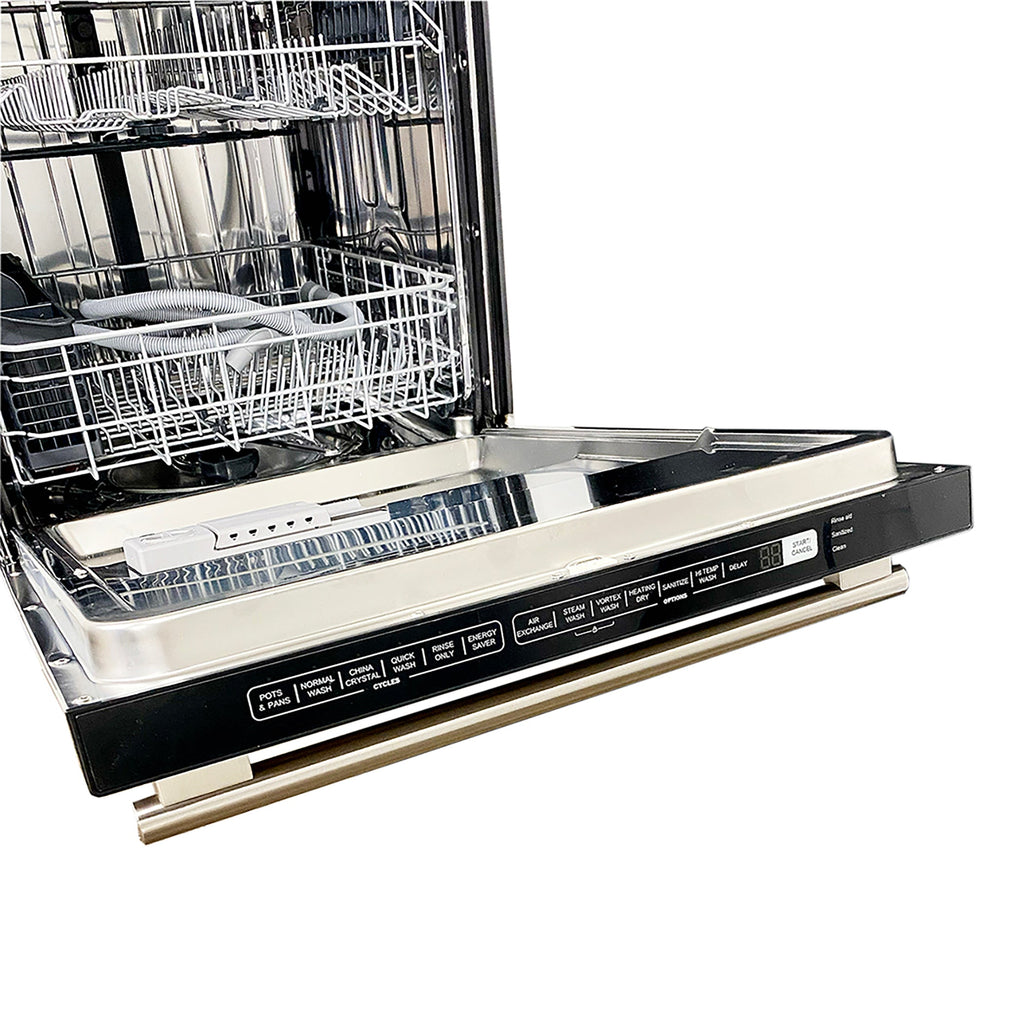

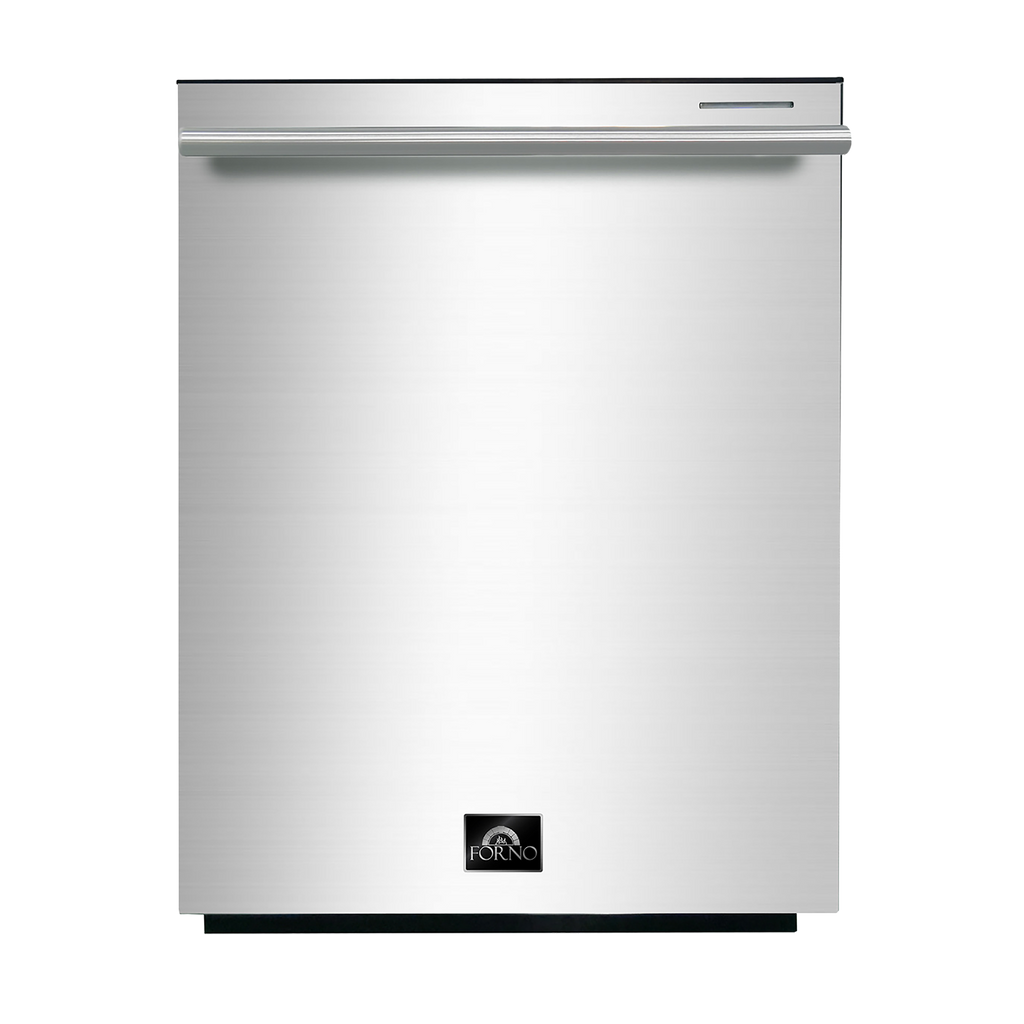

The Forno Pozzo 24-Inch tall-tub dishwasher, operating at a low noise level of 49 decibels for peaceful cleaning. Its stainless-steel front and pro-style handle offer durability and style. The dishwasher features a spacious stainless-steel tub with 3 baskets, providing ample loading flexibility for large dish capacity and utensils, with 3 racks and an additionnal silverware basket. With six wash programs and electronic controls featuring a sleek LED display, it offers efficient and customizable cleaning options. Energy Star certified for eco-friendly operation.
| Product Dimensions W x D x H (inches) | 23.85x26.54x33.74 |
| Cutout dimensions W x D x H (inch) | 24 x 24 x 34 |
| Product Overall Weight (lbs) | 93.20 |
| Color/Finish | Stainless Steel |
| Number of Racks | 3 |
| Racks Material | Nylon Coated Steel |
| Interior Light | No |
| Control Location | Top |
| Primary Material | Steel |
| Plug-in | No |
| CEE Tier Qualified | Not Rated |
| Energy Star Most Efficient | No |
| Estimated Annual Operating Cost (USD) | 24 |
| Filter Material | Stainless Steel |
| Minimum Product Height (IN) | 33.74 |
| Fingerprint-Resistant | No |
| Commercial Warranty | No |
| Warranty Type | Limited |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |
