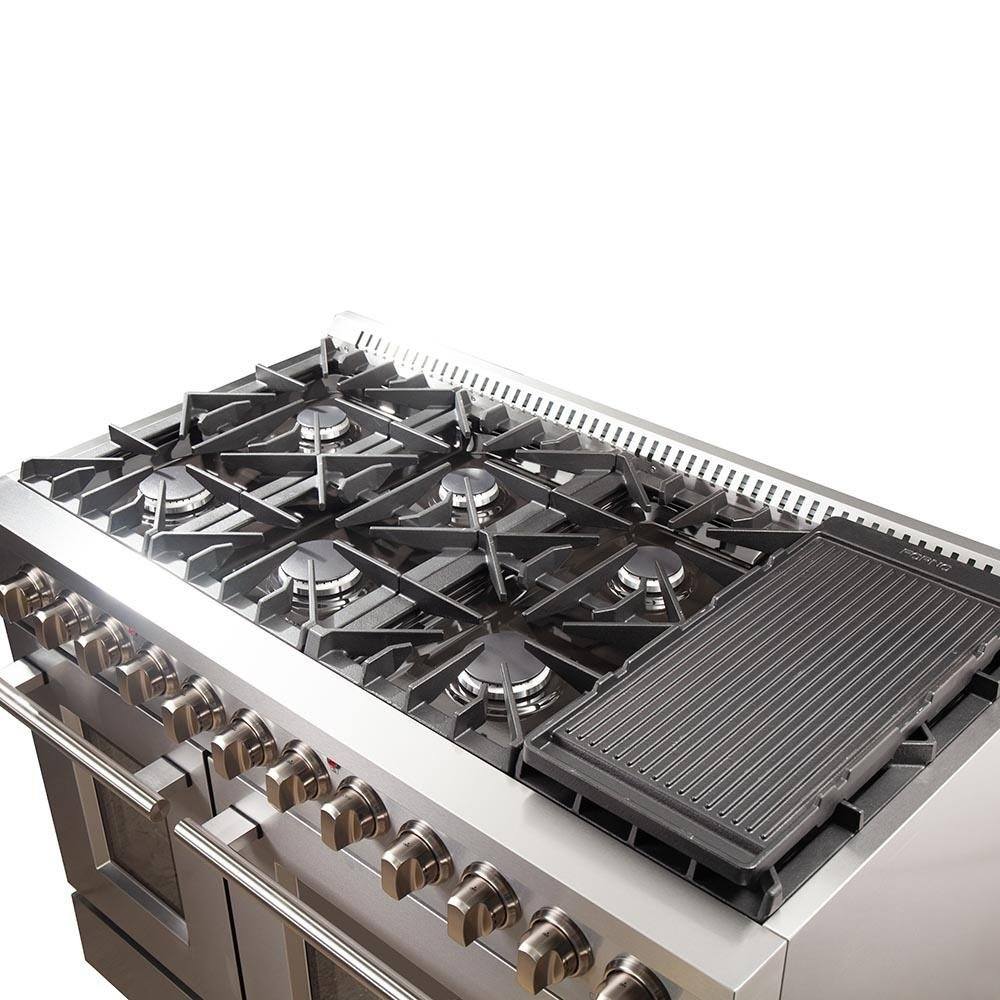

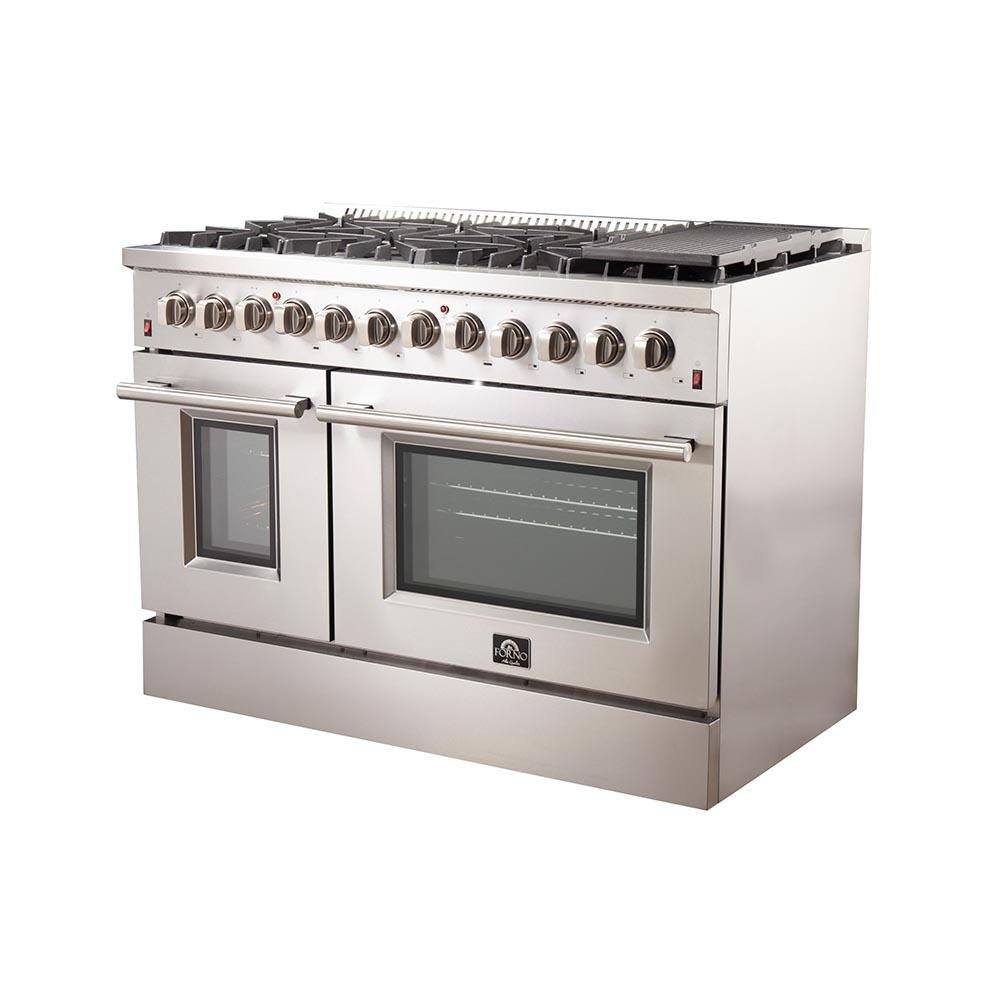

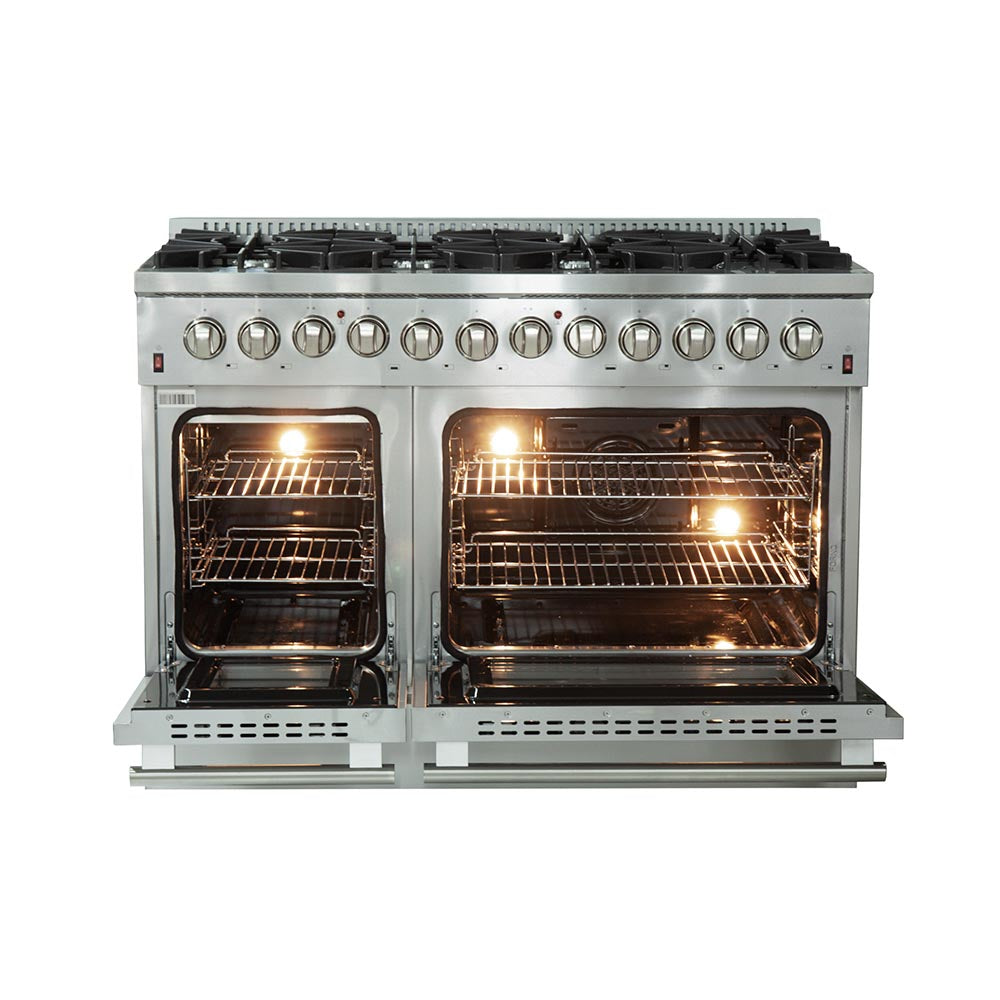

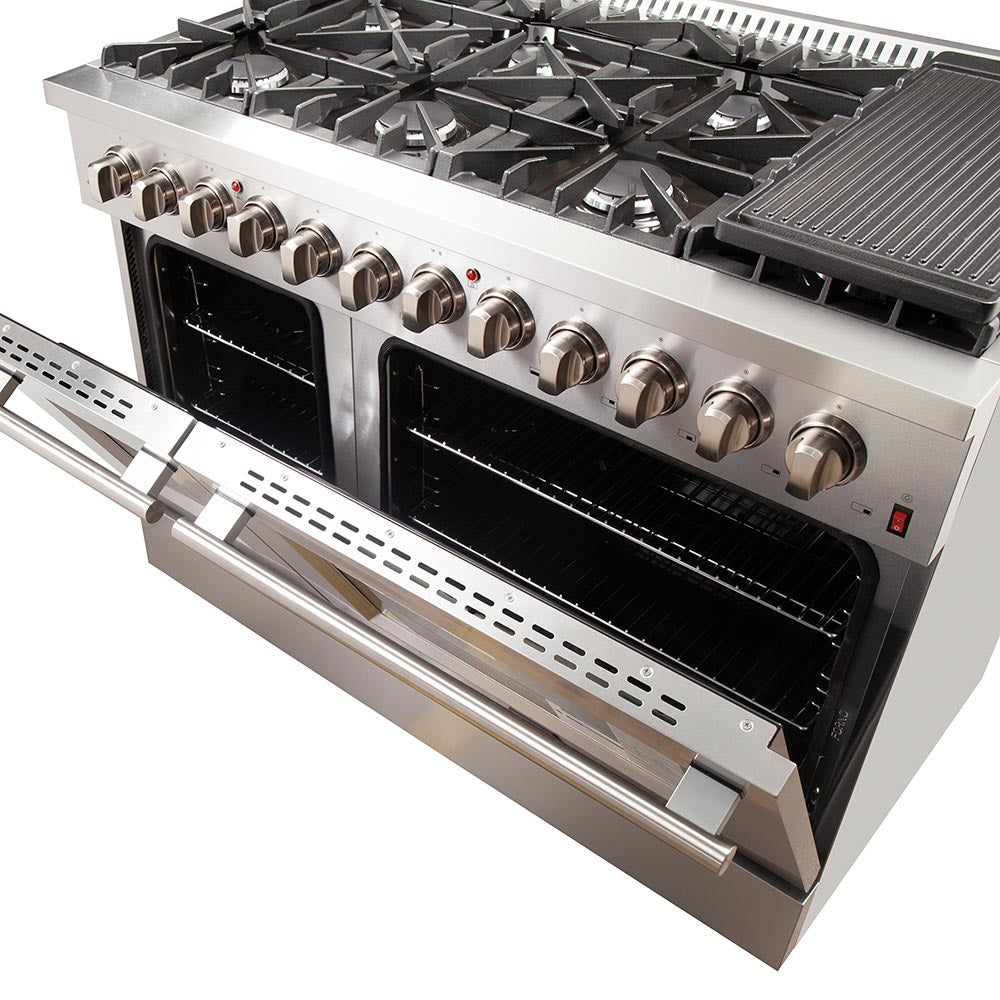

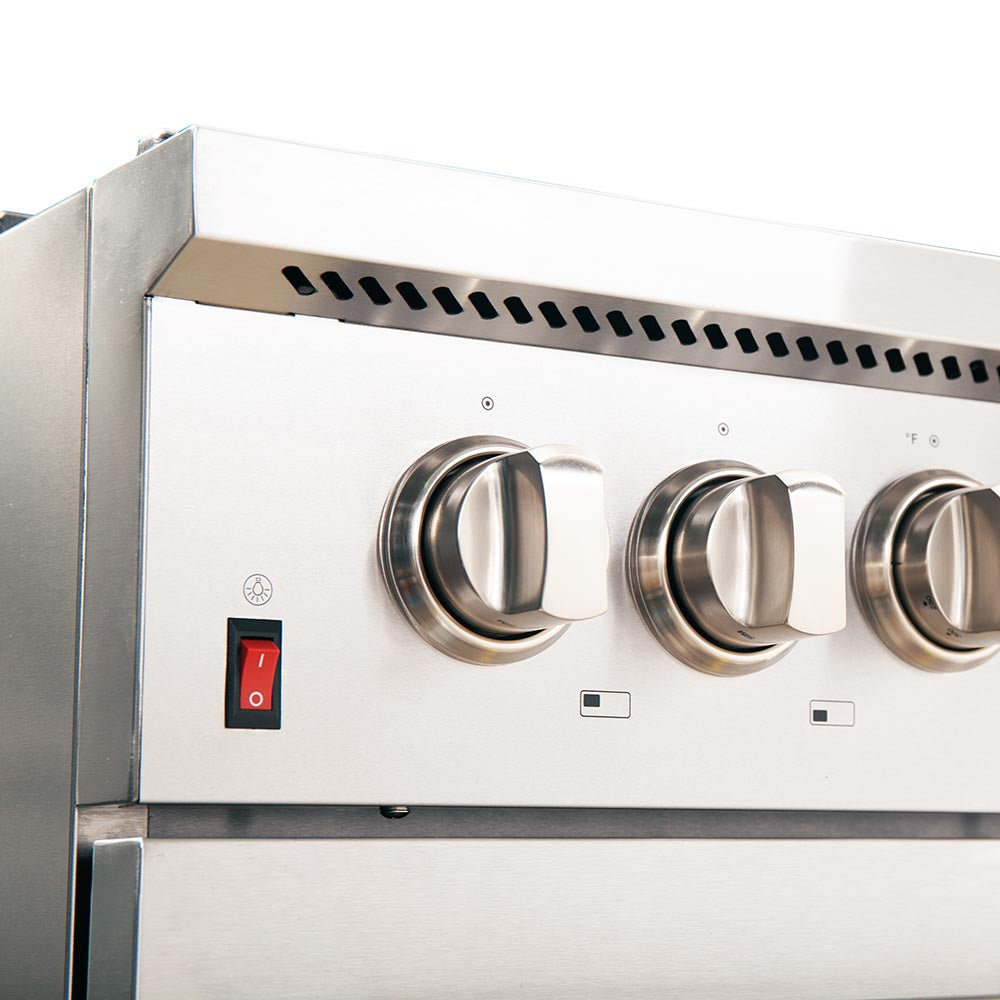

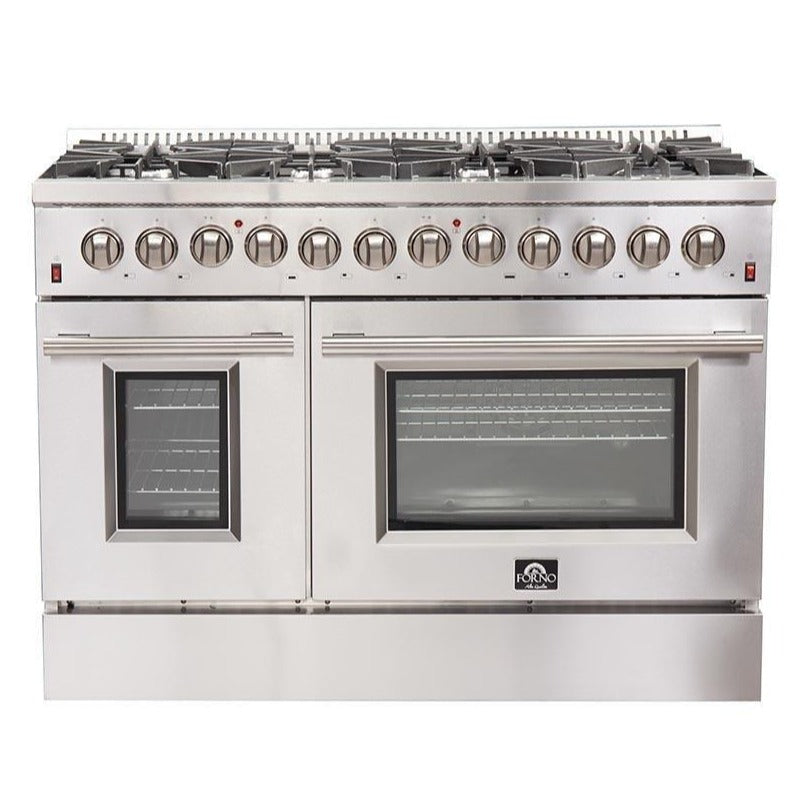

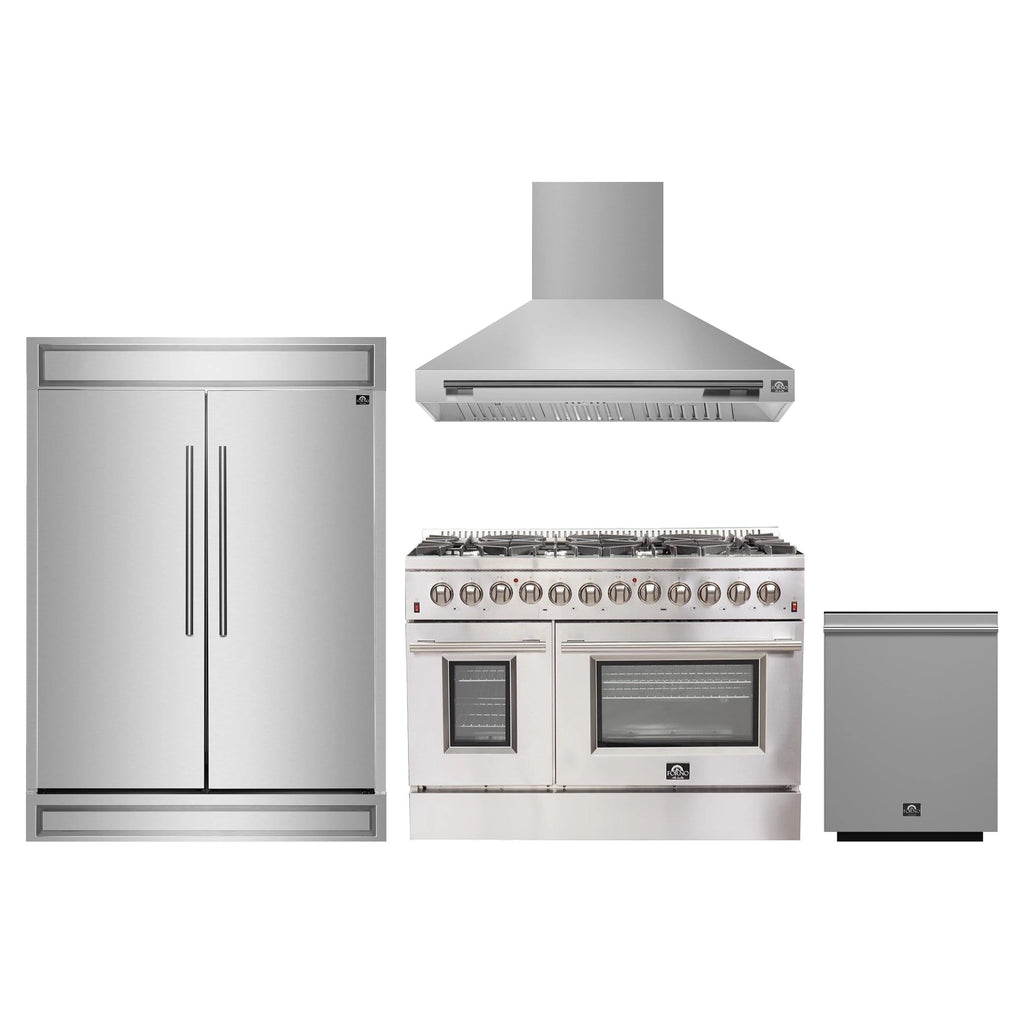

The 48” Galiano Dual Fuel Range brings professional styling and quality into your home kitchen with its durable stainless-steel design. Cooktop has 8 sealed burners with a total stove top output of 107,000 BTU. This unit is ready to handle all your pots and pans with ease over it’s continuous cast-iron grate design. The cumulative capacity 6.58 cu. ft. double ovens with a total output of 9,800 Watts are encased in a black enameled interiors. Right oven is fitted with a true convection fan. Thermostat and regulator ensures to achieve fast, precision and consistent oven cooking along for easy viewing are 3-layer glass oven door windows on both ovens, Included are 4 electroplated oven racks, reversible griddle, and LP conversion kit. Housed in a high-grade stainless steel body and zinc coated metal knobs and bezels, this unit sports a stylish look that is built to last. All Forno products are backed by an iron clad 2-year warranty for your satisfaction. Skip the high price tags without sacrificing quality and performance. Lower the cost of living with Forno.
| Weight and Dimensions |
|
|
Overall Dimensions
|
48” W x 28” D x 38” H |
|
Oven Door Open 90º
|
|
|
Right Oven Interior Dimensions
|
24.92'' W x 18.7" D x16'' H |
|
Left Oven Interior Dimensions
|
13.03” W x 18.7” D x 16” H |
|
Overall Weight
|
388 lbs |
|
Depth with Oven Door Open 90º
|
44.25" |
|
Electrical |
|
|
Amperage
|
30 A |
|
Volts
|
240 V |
|
Wattage
|
9700 W |
|
Oven 1 inside Broil Wattage
|
1,000 W |
|
Oven 1 Outside Broil Wattage
|
1800 W |
|
Oven 1 Bake Wattage
|
2000 W |
|
Oven 1 True Convection Wattage
|
1500 W |
| Oven 2 Outside Broil Wattage | 1700 W |
| Oven 2 Bake Wattage | 1700 W |
|
Power Cord Length
|
5' |
|
Receptacle Type
|
4-Prong Grounded |
|
Cooktop |
|
| Overall Burners BTU | 107,000 |
| Front Right Burner BTU | 1000 to 20,000 |
| Front Right Center Burner BTU | 15,000 |
| Front Left Center BTU | 15,000 |
| Front Left Burner BTU | 15,000 |
| Rear Right Burner BTU | 15,000 |
| Rear Right Center Burner BTU | 9,000 |
| Rear Left Center Burner BTU | 9,000 |
| Rear Left Burner BTU | 9,000 |
| Number of Knob |
12 |
| Switches |
1 + 1 |
|
Oven |
|
| Overall Oven Capacity | 6.58 Cubic Feet |
|
Right Oven Capacity |
4.32 Cubic Feet |
| Left Oven Capacity | Left Oven Capacity |
| Convection Fan | Yes |
|
Certifications |
|
| ETL Listed | Yes |
|
Details |
|
| Product Type | Freestanding |
| Color/Finish | Stainless Steel |
| Fuel Type | Gas & Electric |
| Gas Type | Natural Gas |
| Gas Heat Configuration | Sealed Burner |
| Number of Burners | 8 |

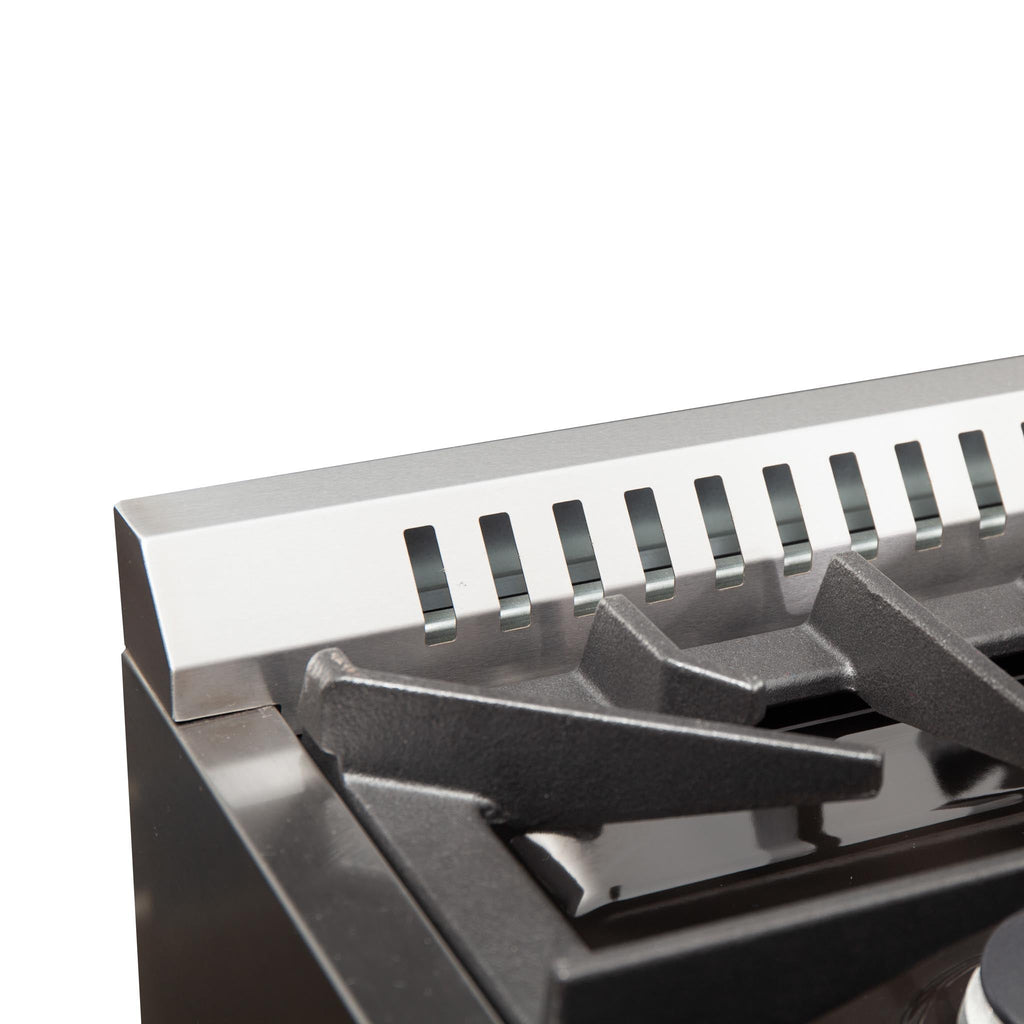

| Cooktop Surface | Continuous Cast Iron Grates |
| Cooktop Cavity |
Recessed Enamel |
| Number of Ovens | 2 |
| Number of Racks | 2 |
| Number of Rack Positions |
2 x 6 |
| Broiler | Electric |
| Bake Element | Electric |
| Cleaning Type | Manual |
| Cooking Process | True Convection |
| Interior Light | 2 |
| Control Type | Knob |
| Control Location | Front |
| LP Gas Convertible | Yes |
| Black Enamel Oven Interior | Yes |
| LP Conversion Kit Included | |
| Temperature Gauge | No |
| Timer | No |
| Clock | No |
| Primary Material | Metal |
| Door Panel Material | Stainless Steel |
| Control Panel Material |
Stainless Steel |
| Kick Plate Material | Stainless Steel |
| Side Panel Material | Stainless Steel |
| Supplier Intended and Approved Use | Residential Use |
| Country of Origin | China |
| Warranty Type |
2 Years |
| Warranty Length |
2 Years |
| Warranty on Parts |
2 Years |
| Warranty on Labor |
2 Years |
This 48 Inch Wall-Mounted Range Hood is designed for high-performance kitchen ventilation. With a powerful 1200 CFM motor and 4-speed fan control, it removes smoke, grease, and cooking odors. Choose between external venting or ductless recirculating installation to suit your kitchen layout. The vertical upward air discharge ensures efficient airflow, while features like automatic shut-off, a built-in timer, and removable charcoal filters make it convenient to use and maintain. The included chimney extension kit and decorative crown molding allow for a custom, built-in look. Quiet operation at just 68 dB with built-in lighting for better visibility while cooking.
| Size | 48" |
| Dimensions |
47.2" W x 23.6" D x 44.5" H |
| Cutout dimensions W x D x H (inch) |
48 x 11.6 x 44.5 |
| Weight | 86 lbs |
| Mount Type | Wall-Mount Hoods |
| Unit Color | Stainless Steel |
| Mount Type | Wall-Mount Hoods |
| Ventilation Type | Ducted |
| Electrical supply | 120V/60Hz |
| Circuit Breaker | 15 |
| Power connection | NEMA 5-15P Power Cord |
| Power Cord Length (in) | 47.24" |
| Power Cord Location | Top Right |
| Running Amp | 2.5 Amps |
| Certification | ETL Listed |
| Number of Blower(s) | 2 |
| Blower Material | Metal |
| Filter Type | Baffle |
| Filter Material | Stainless Steel |
| Number of Filters | 6 |
| Dishwasher Safe Filters | Yes |
| Control Type | Push Button |
| Number of Speed Levels | 4 |
| Warming selve | No |
| Heat Lamp | No |
| Handle | Yes 1x |
| Backsplash | No |
| Charcoal Filters | Yes |
| Light Type | LED GU10 |
| Rangehood Chimney | Yes |
| Chimney Extension Kit /Chimney Short Kit | Yes |
| Finger print Resistant | No |
| Heat Sensors | No |
| Automatic shut-off | Yes |
| Remote Control | No. |
| Delay Shut-Off | No |
| Auto Shut-Off Timer | Yes |
| Clock | No |
|
CFM (cutbic feet per minute ) |
Level 1 550 CFM Level 2 750 CFM Level 3 950 CFM Level 4 1200 CFM |
|
Air flow |
Level 1 935 m3/hr Level 2 1274 m3/hr Level 3 1614 m3/hr Level 4 2039 m3/hr |
|
RPM (Revolutions Per Minute on one motor only) |
Level 1 880 RMP Level 2 1050 RMP Level 3 1350 RMP Level 4 1510 RMP |
|
Noise Level at each speed |
Level 1 48 dB Level 2 53 dB Level 3 60 dB Level 4 68 dB |
| Duct Shape | Round |
| Duct Size | 10" |
| Air Discharge Direction | Vertically Upward |
| Number of exhaust Vent | 2 |

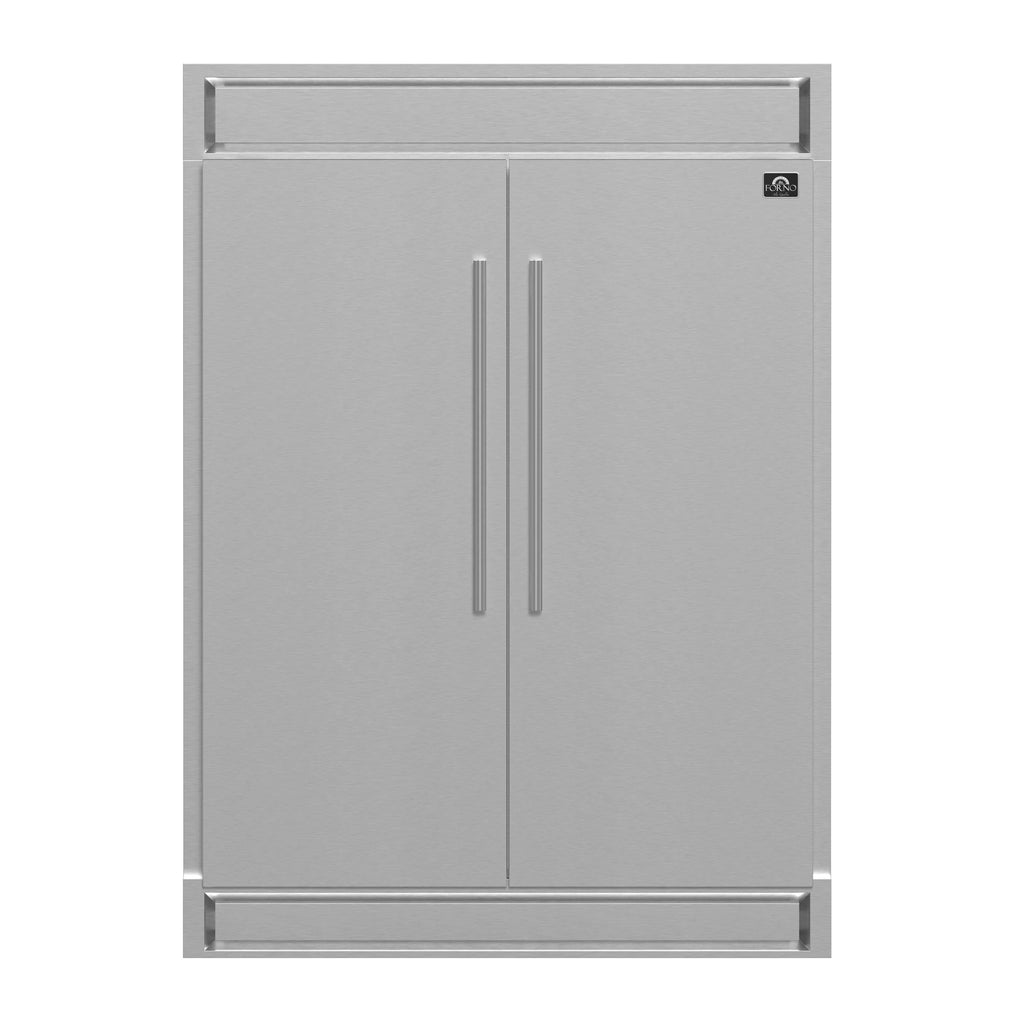

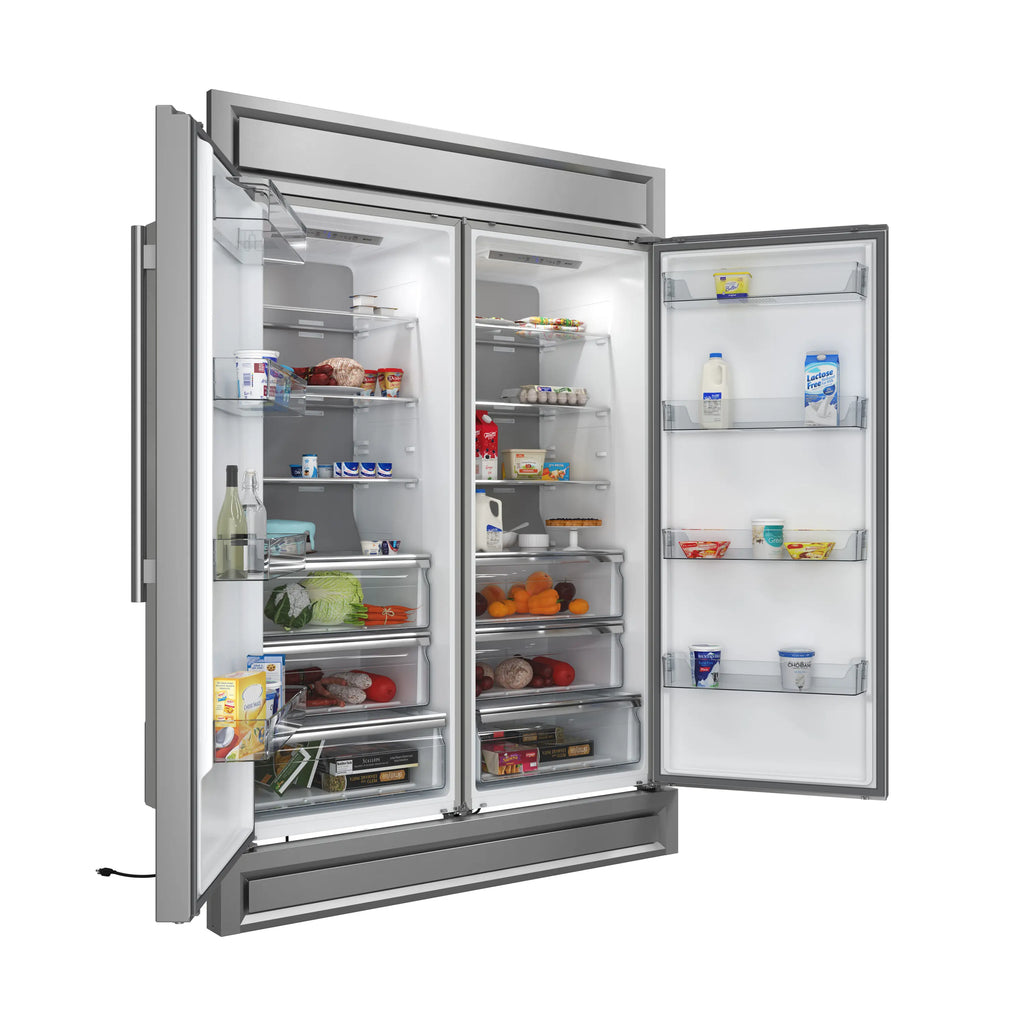

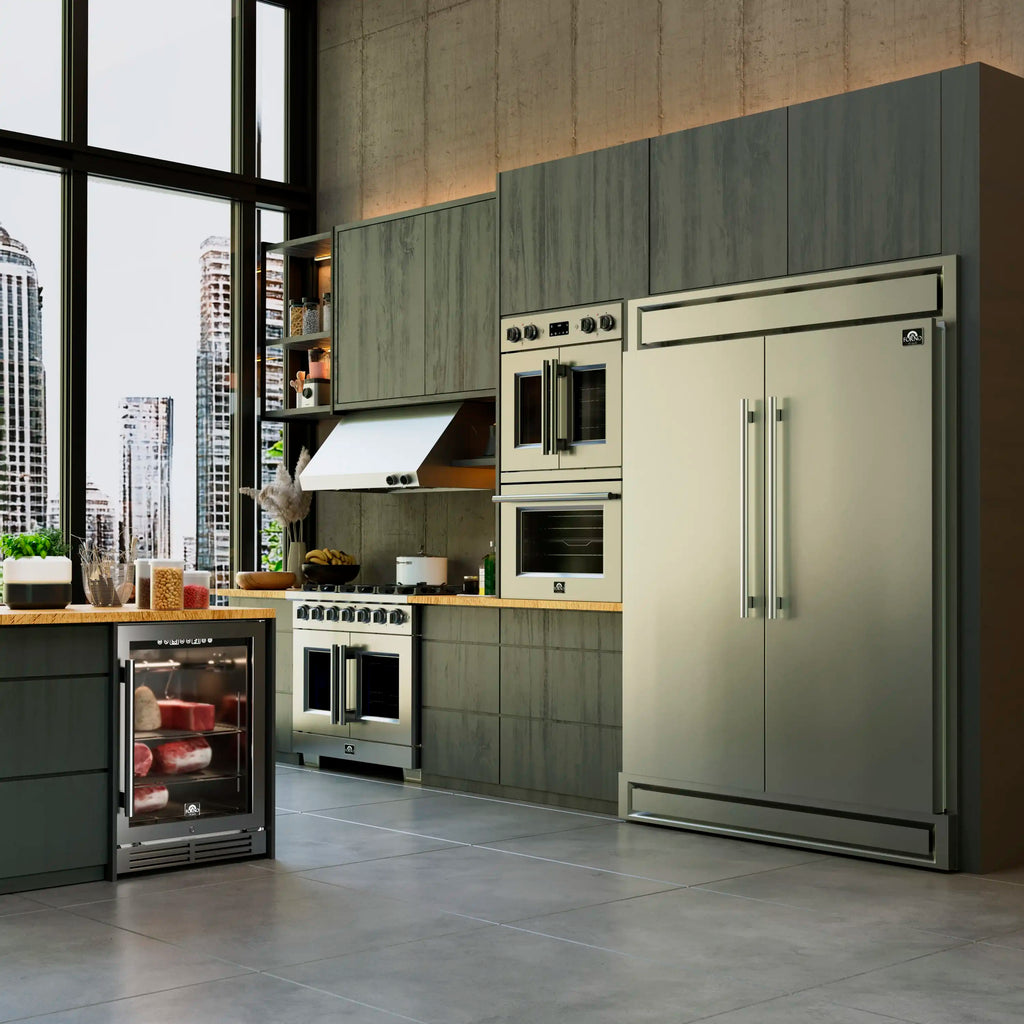

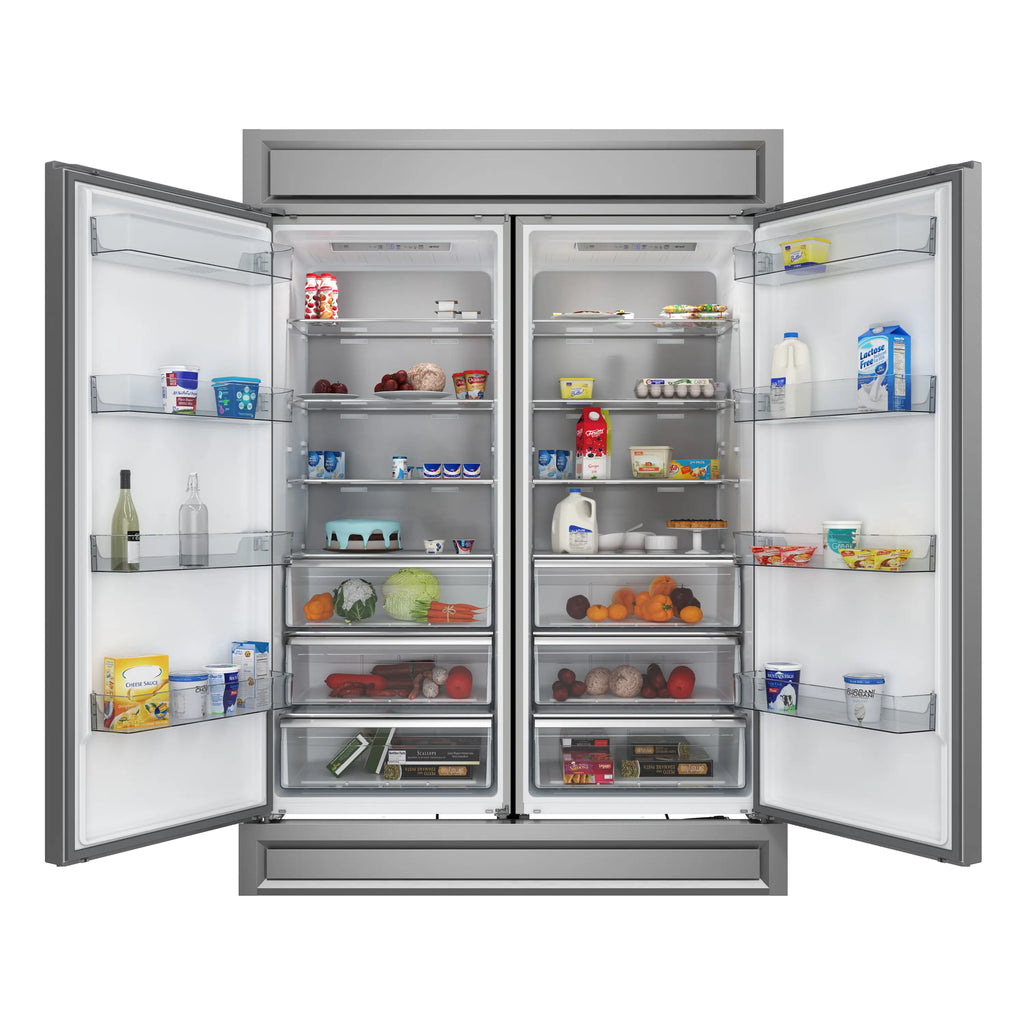

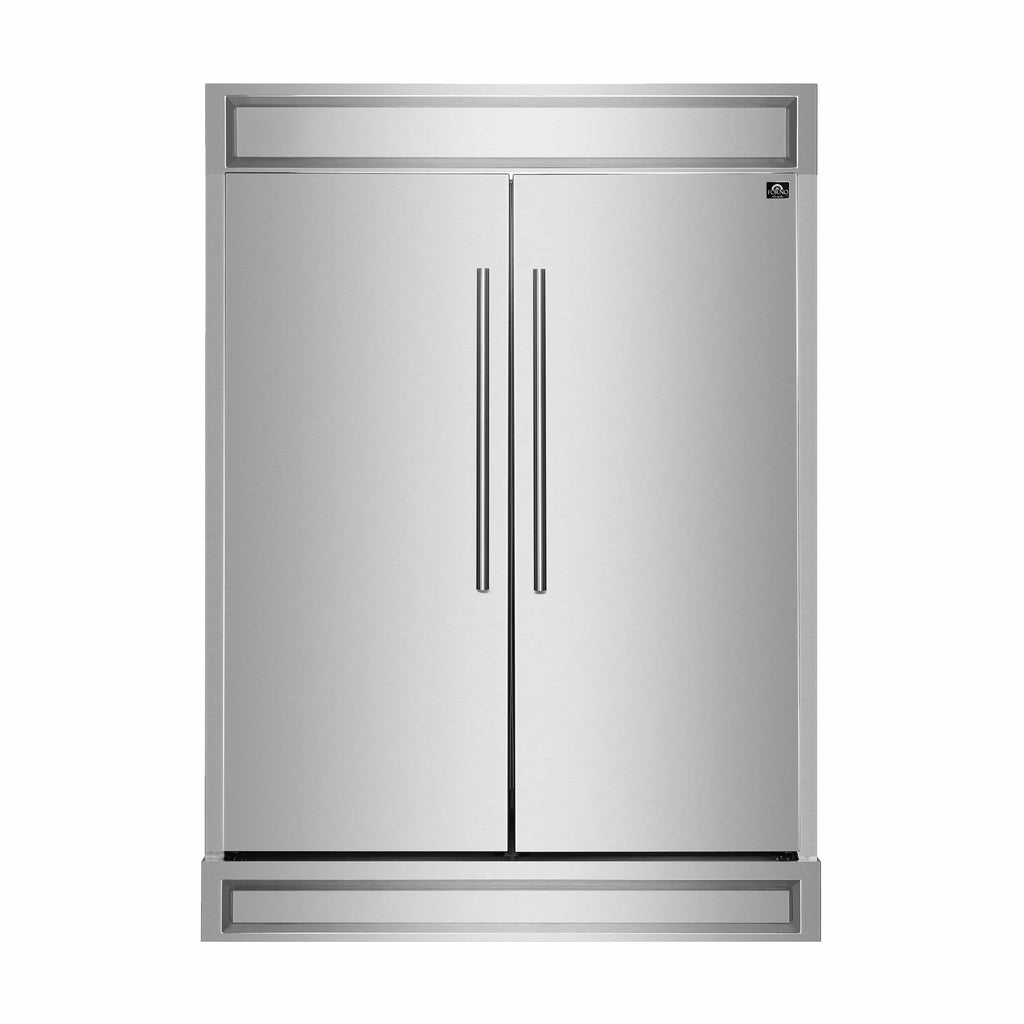

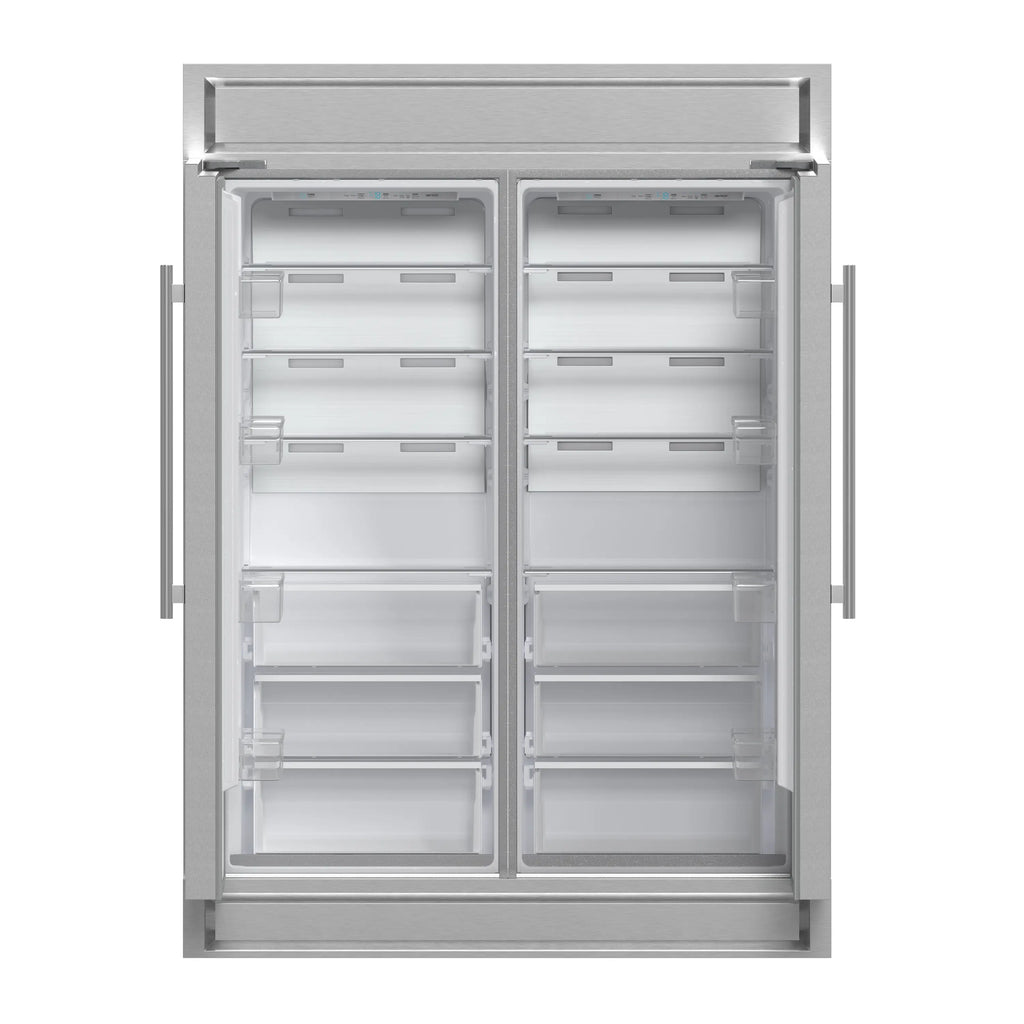

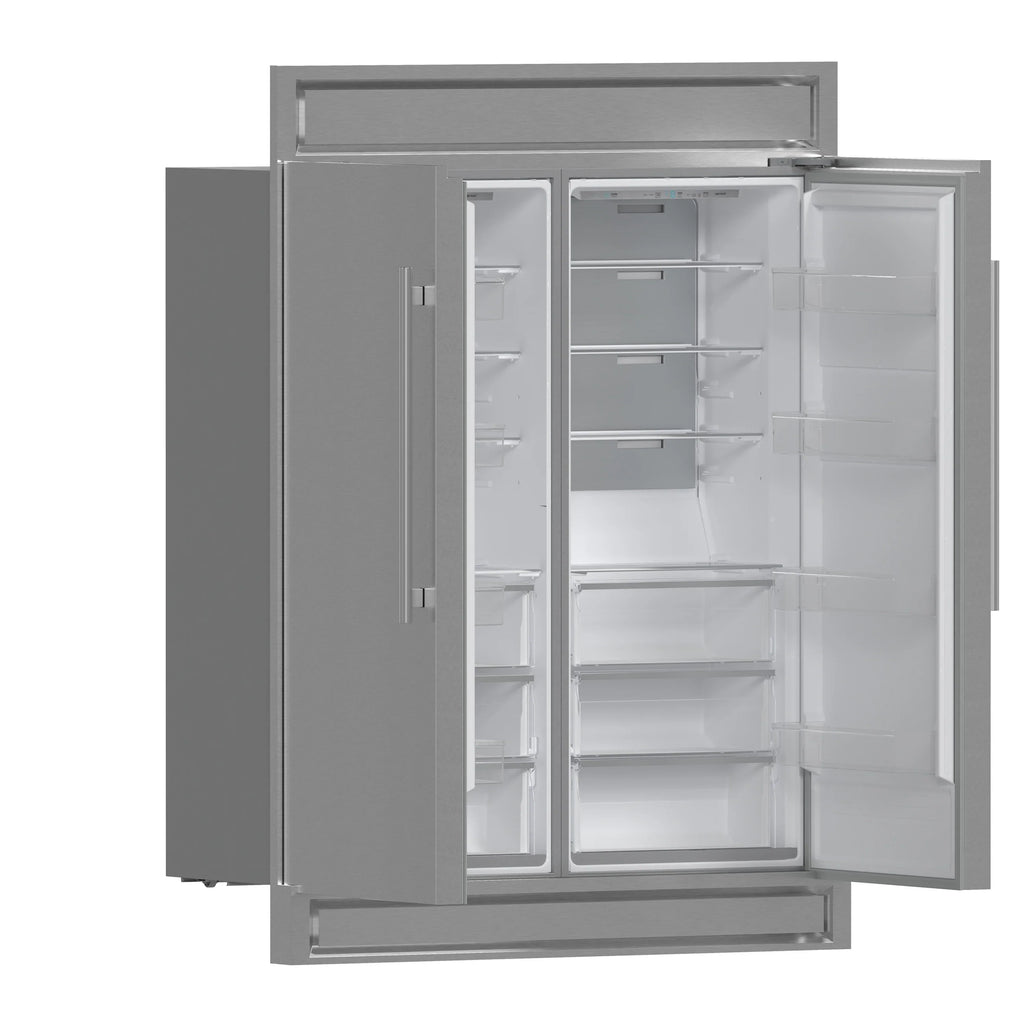

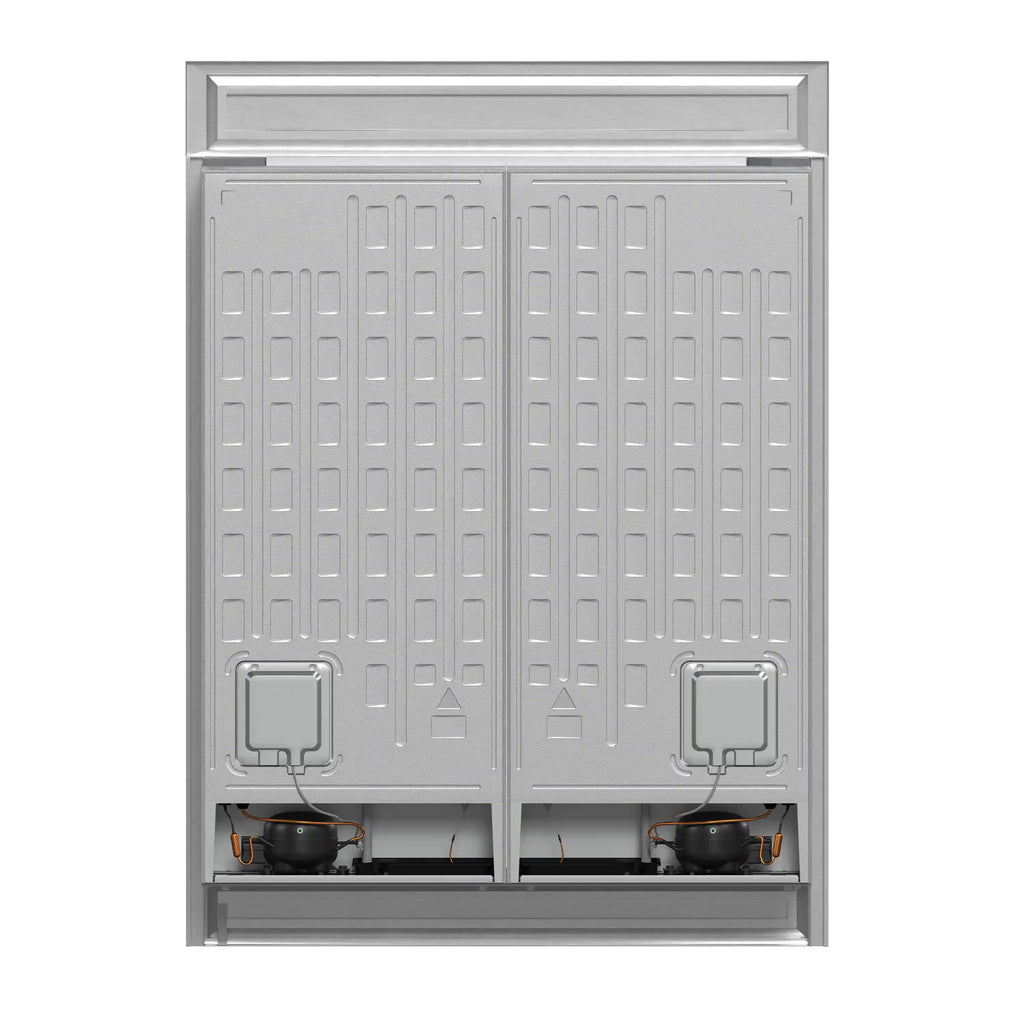

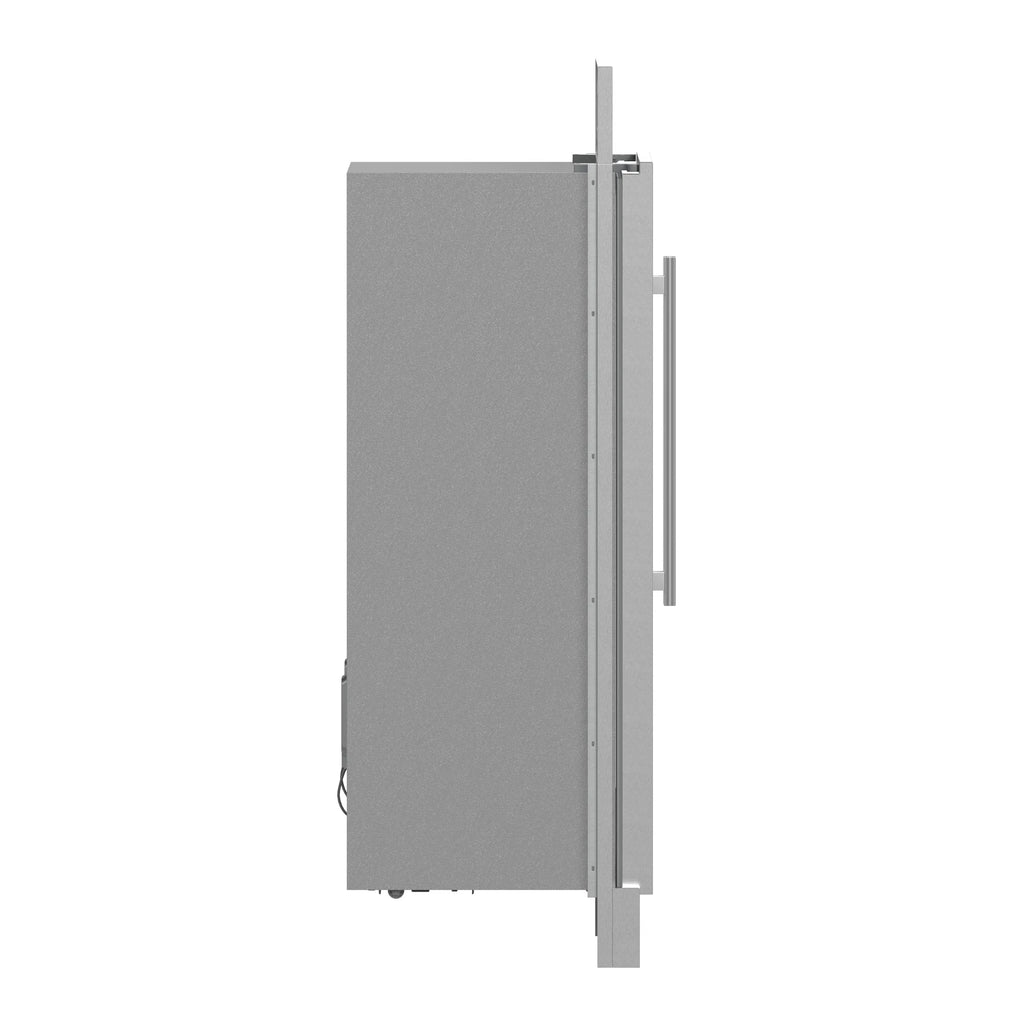

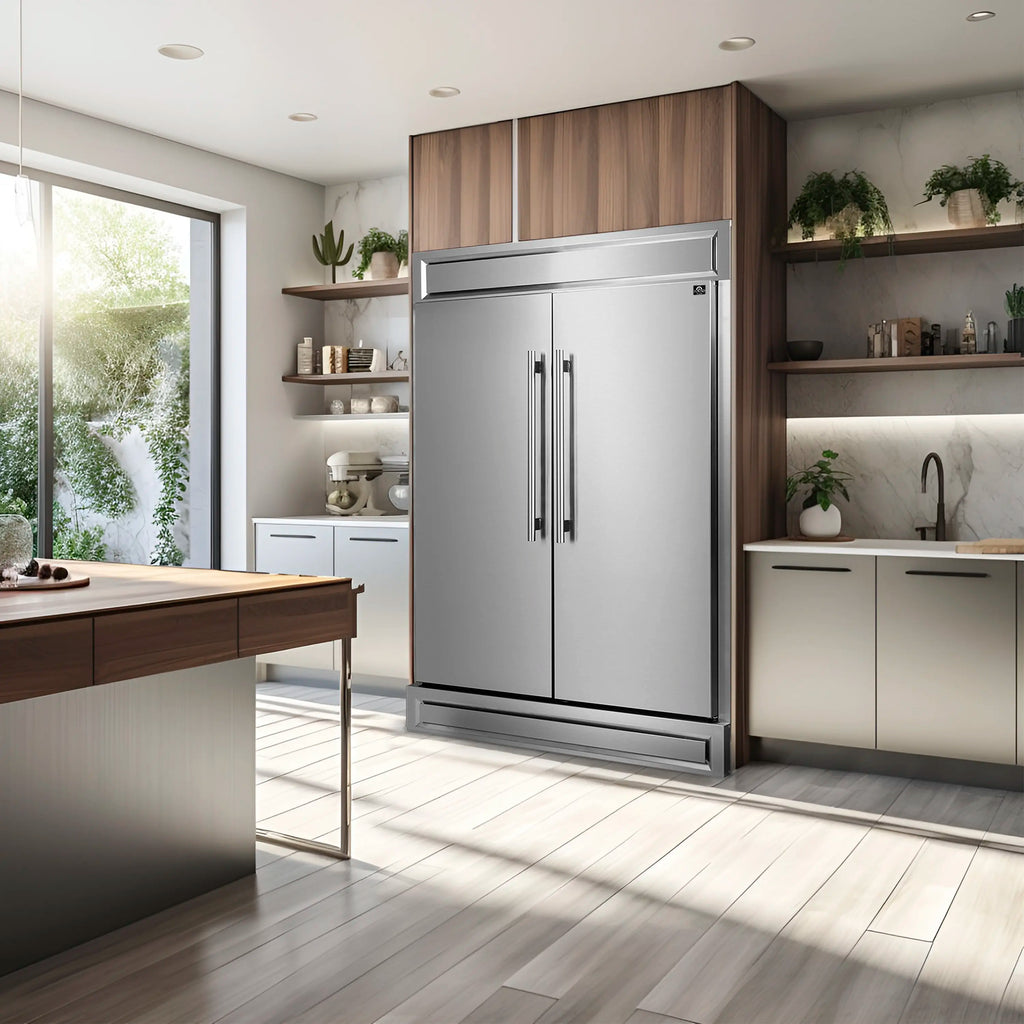

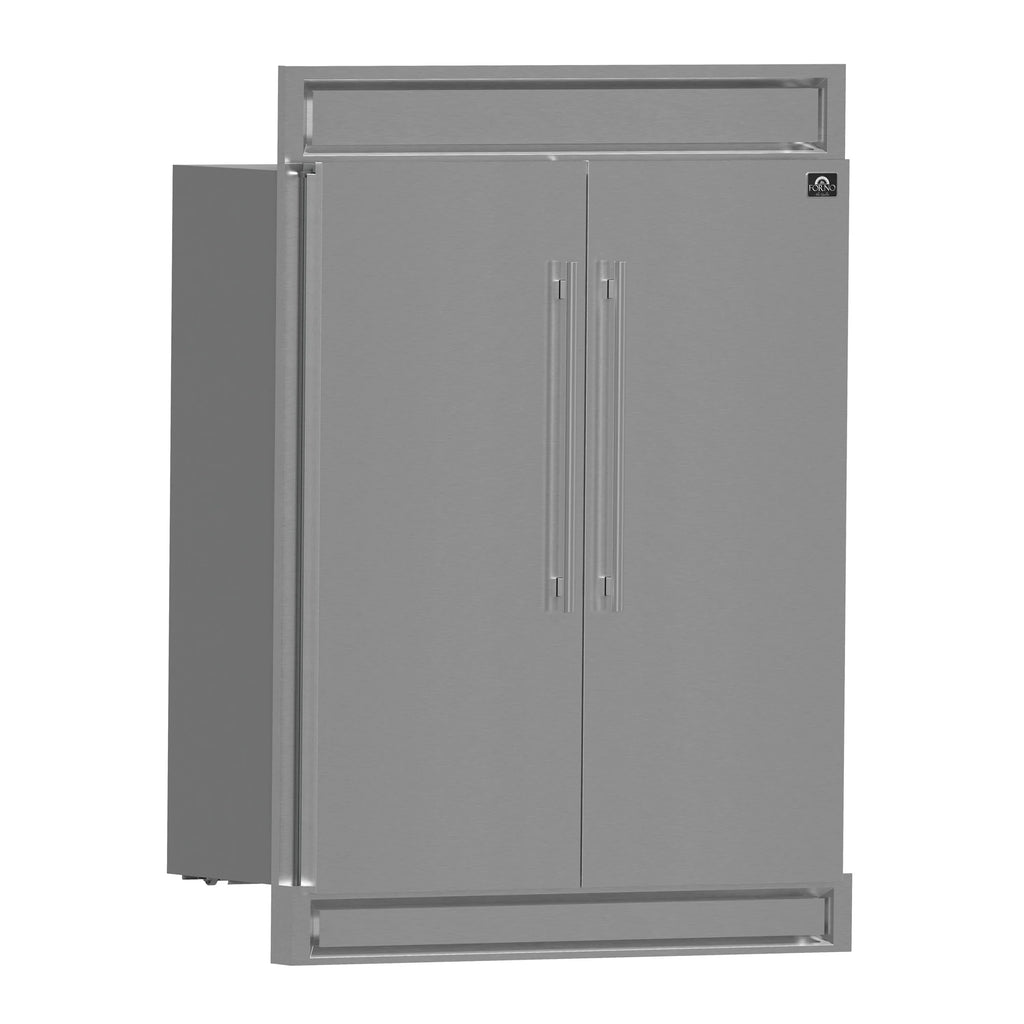

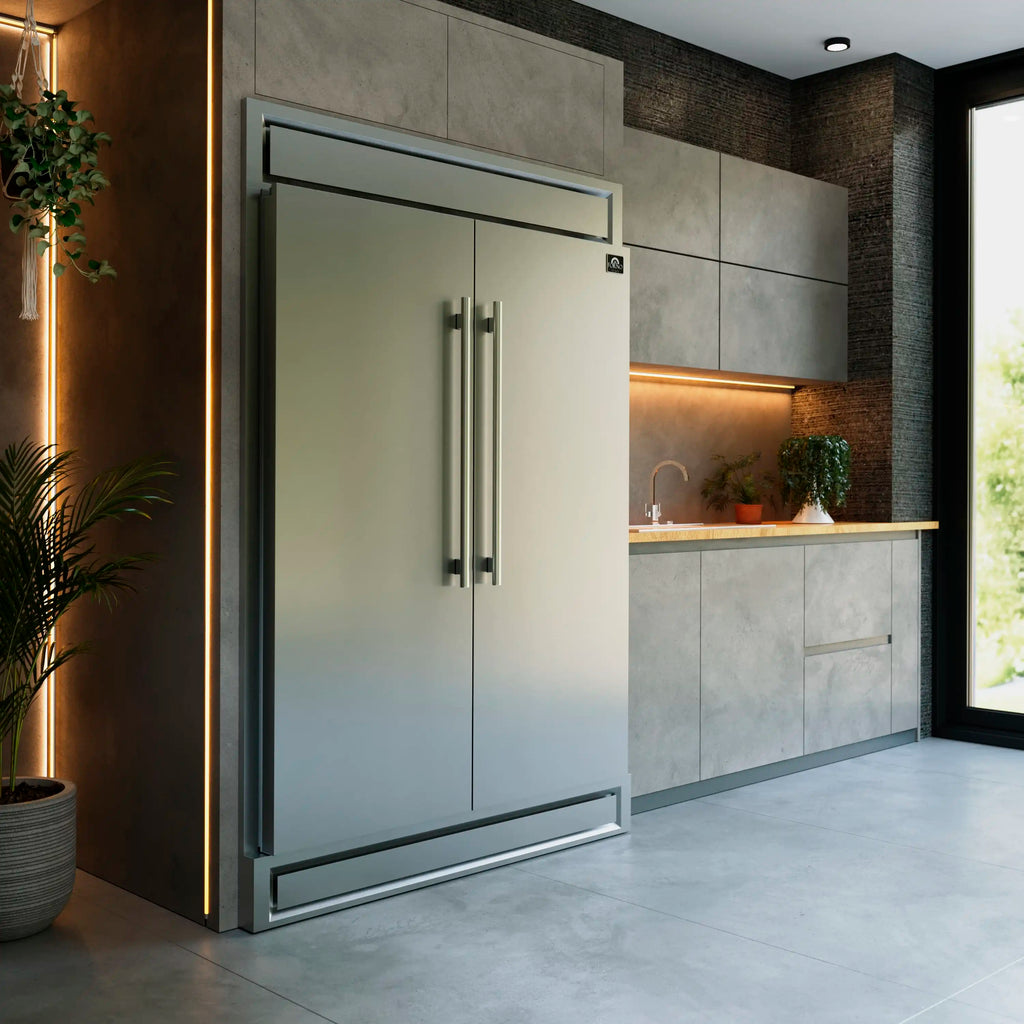

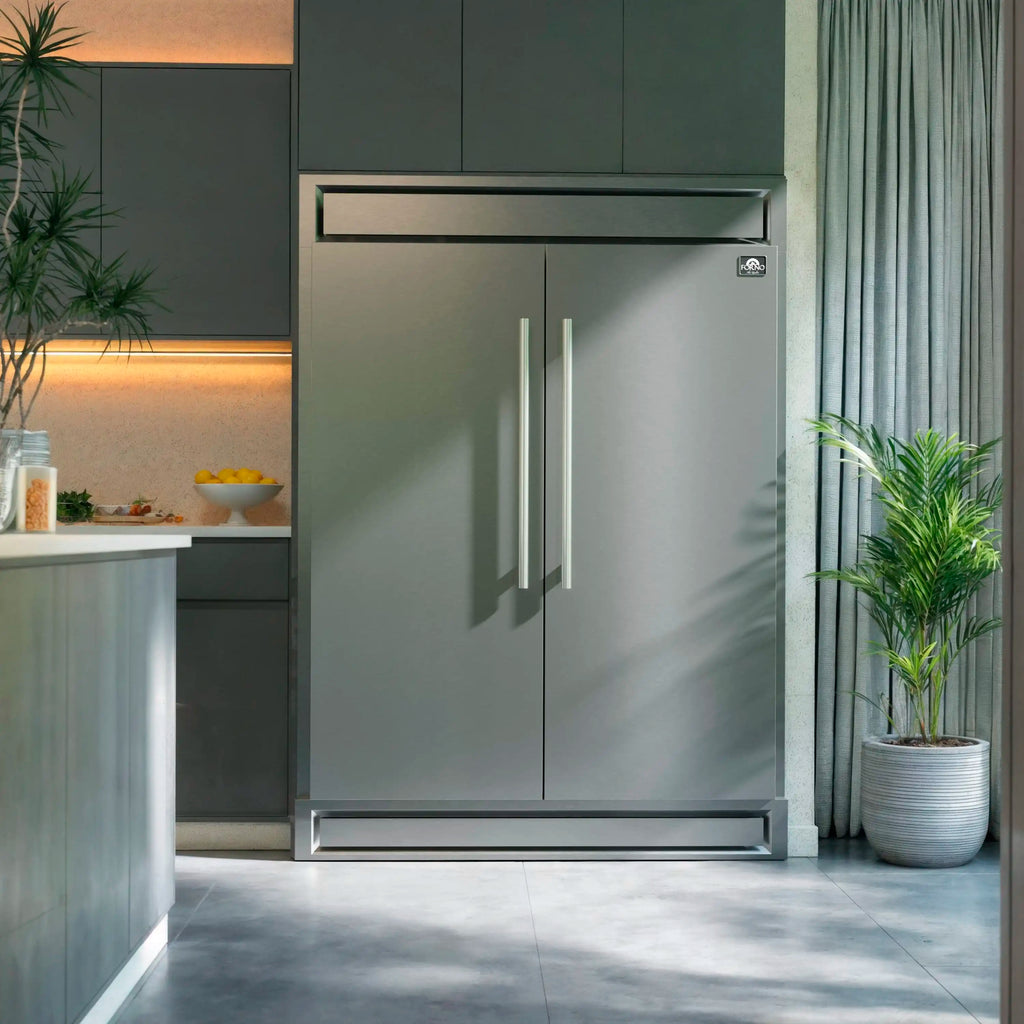

The Forno Maderno combines two 28 Inch refrigerators with decorative trim grille, extending to a 60 Inch width for a built-in appearance, harmoniously blending style with convenience. This combo offers ample storage space totaling 27.2 cu.ft. They feature customizable cooling with convertible function and total no frost technology, eliminating tedious defrosting.

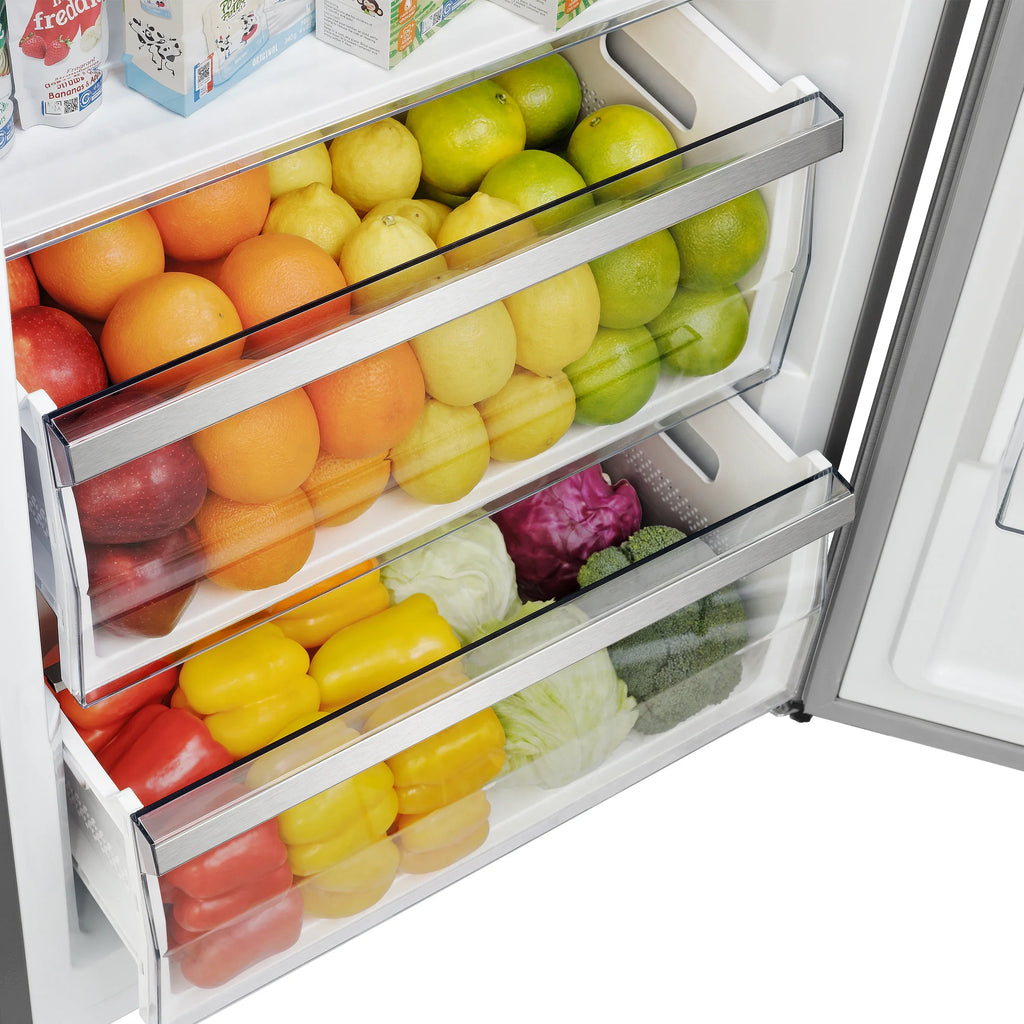

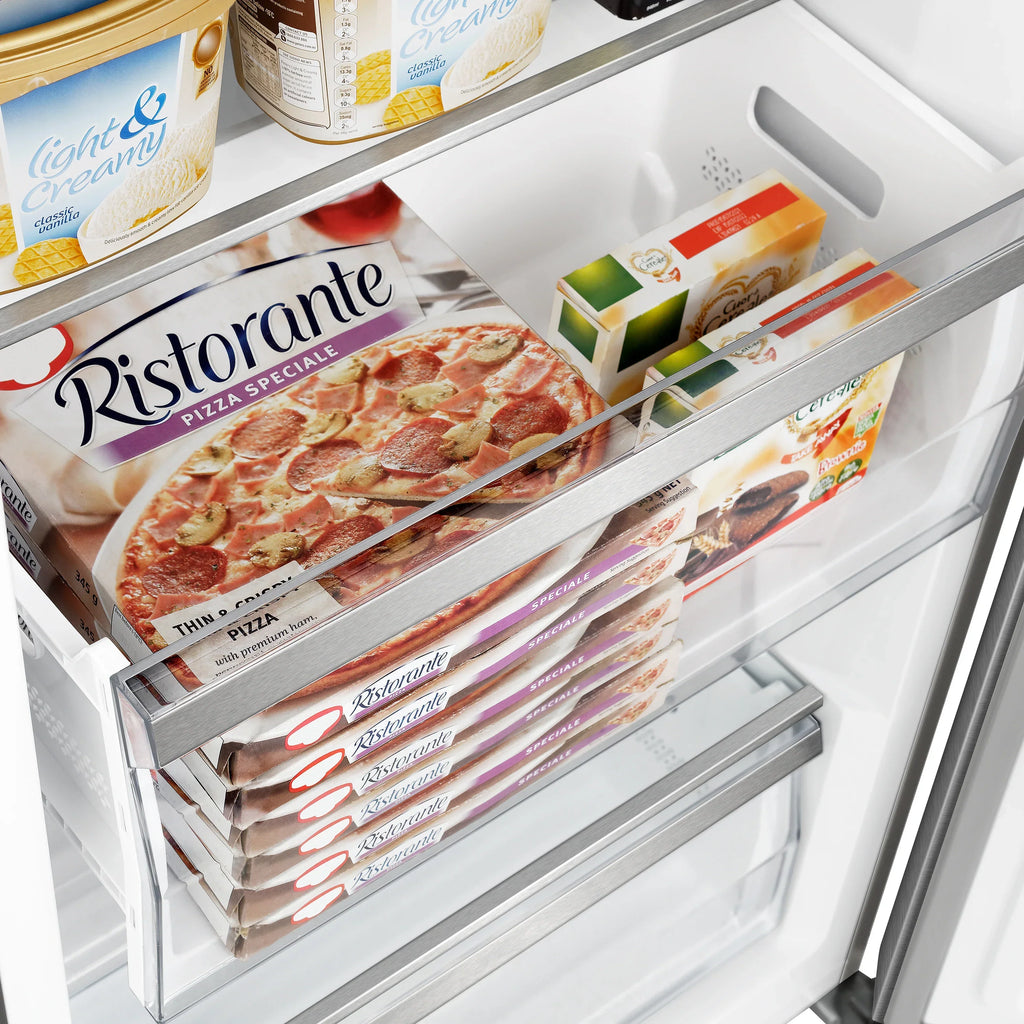

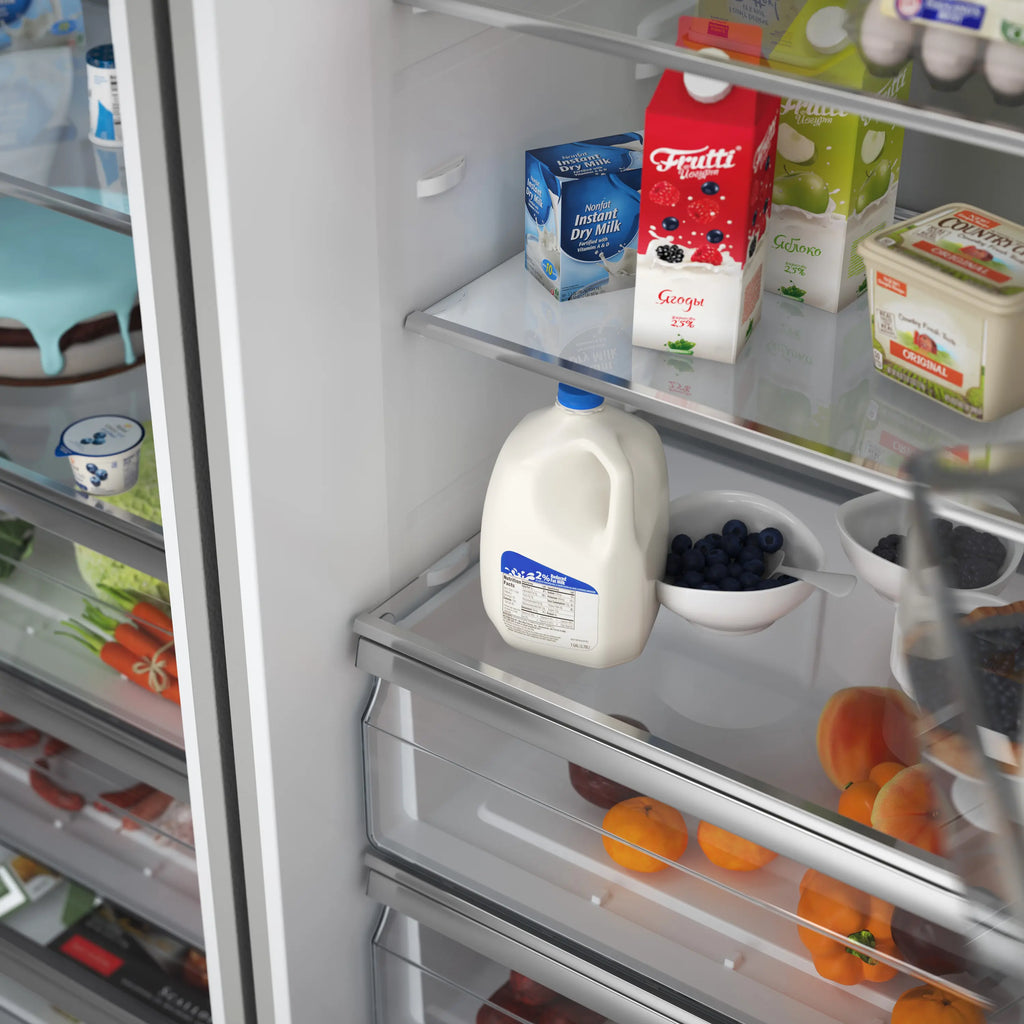

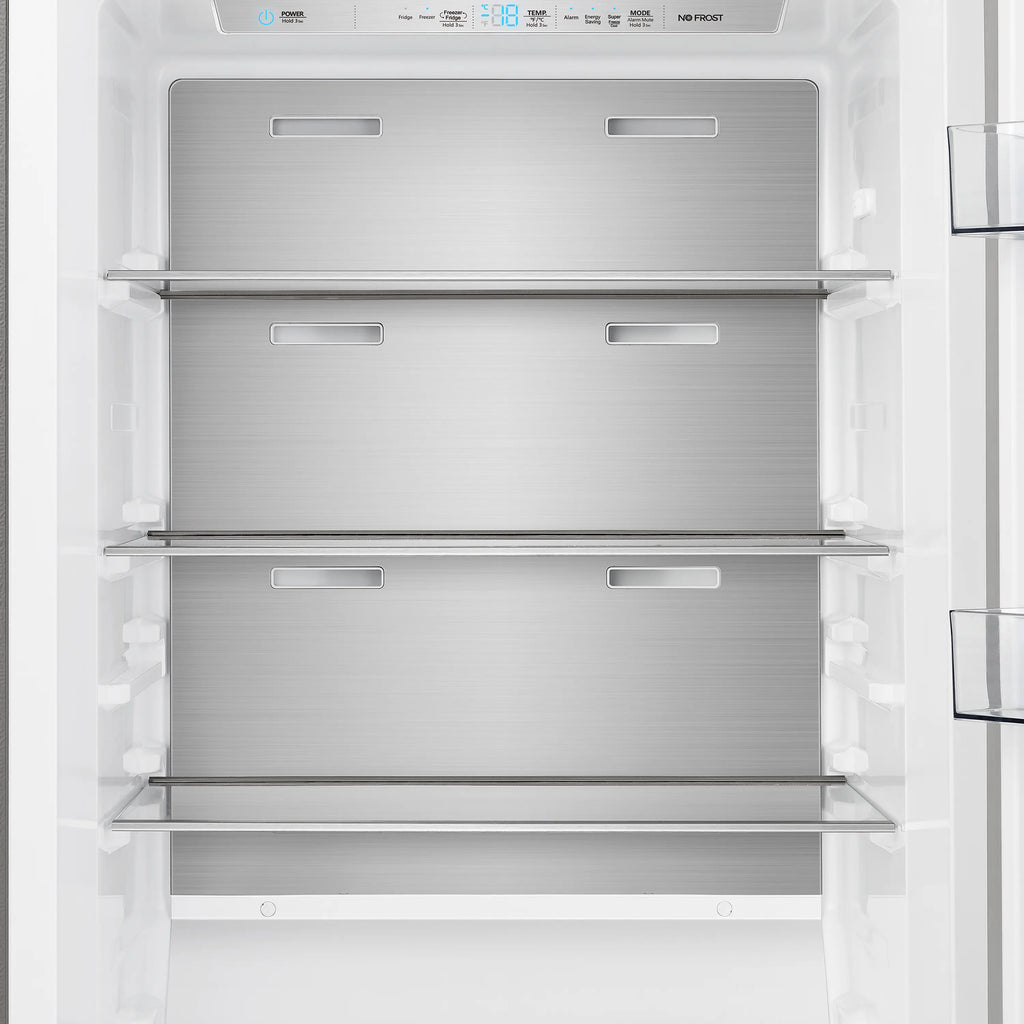

The side-by-side door design integrates seamlessly, while elegant glass shelves with silver trim and practical plastic door balconies enhance appeal and storage. Effortlessly switch between Fahrenheit and Celsius, aided by LED lighting for easy item location. Six glass shelves and six plastic drawers with silver trim provide flexible storage, and temperature settings are easily managed with the electronic touch control panel. The VCM door panel and metal back ensure durability, and the combo is T Climate Class certified with an E-star energy rating for sustainability.
This refrigerator comes in three pieces:
*Installation requires a base to be built for the refrigerator - please see cut-out sheet for more details
|

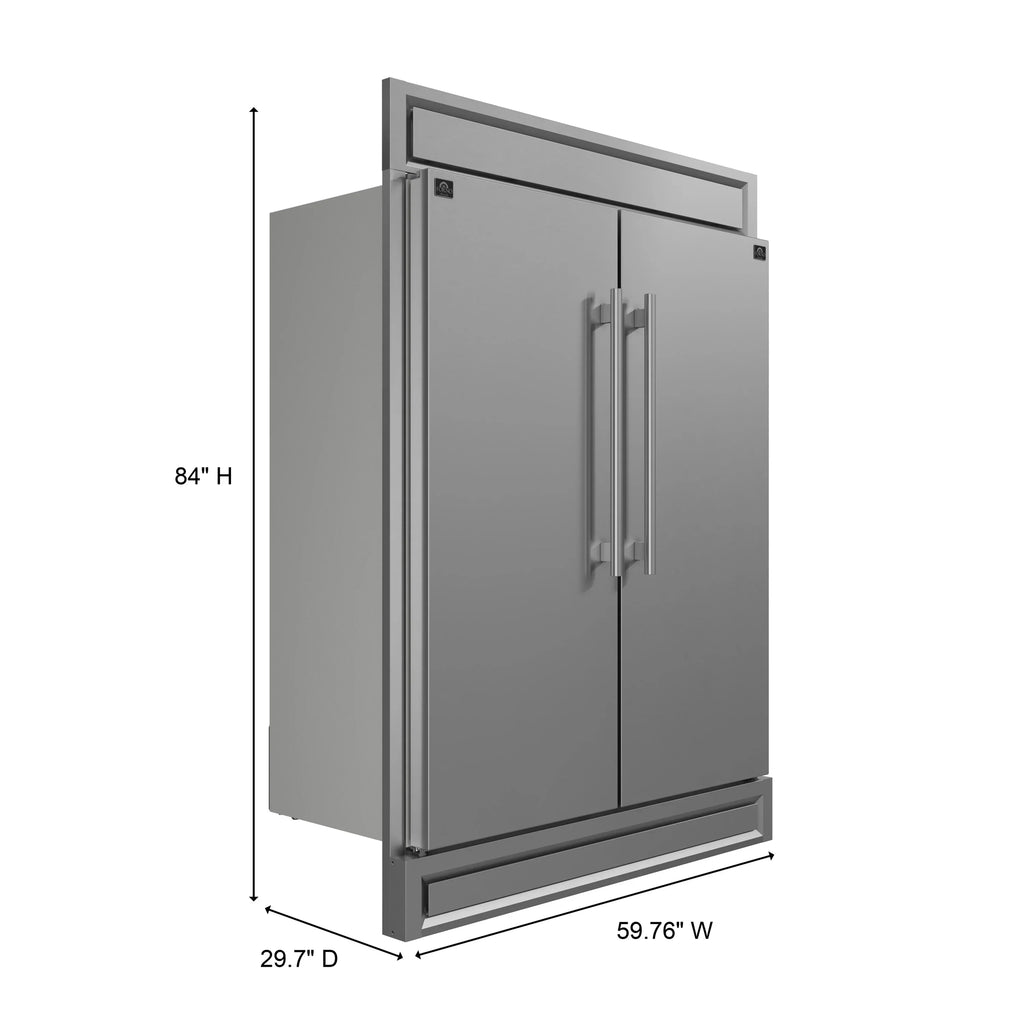

Overall Dimensions |
59.76" W X 29.7" D X 84" H |
| Cutout Dimensions | 55.9" W X 28.94" D X 69.06" H |
|
Product Overall Weight (lbs) |
330.00
|
|
Advertised Unit Width |
60” |
|
Unit Style |
Side-By-Side |
|
Counter-Depth |
Yes |
|
Converting Fridge/Freezer |
Yes |
|
Build Type |
Built-In |
|
Door Color |
Stainless-Steel |
|
Door Material |
VCM Door Panel |
|
Finger Print Resistant |
Yes |
|
Reversible Doors |
No |
|
Handle Color |
Stainless steel |
|
Case Material |
Metal |
|
Case Color |
Light Gray |
|
Primary Material |
White HIPS |
|
Control Type |
Internal Touch Control |
|
Air Flow |
Multi Air Flow |
|
Defrost Type |
Automatic |
|
Sabbath Mode |
No |
|
Vacation Mode / E-Saver |
Yes |
|
Super Cool |
Yes |
|
Super Freeze |
Yes |
|
Door Alarm |
No |
|
Leak Proof Shelves |
No |
|
Lighting Type |
LED |
|
Shelf Material |
Glass with Silver Trim |
|
Drawers Material |
Plastic with Silver Trim |
|
Door Bins Material |
Plastic |
|
Door Bins Color |
Clear |
|
Leveling Legs |
Yes |
|
Ice Maker |
No |

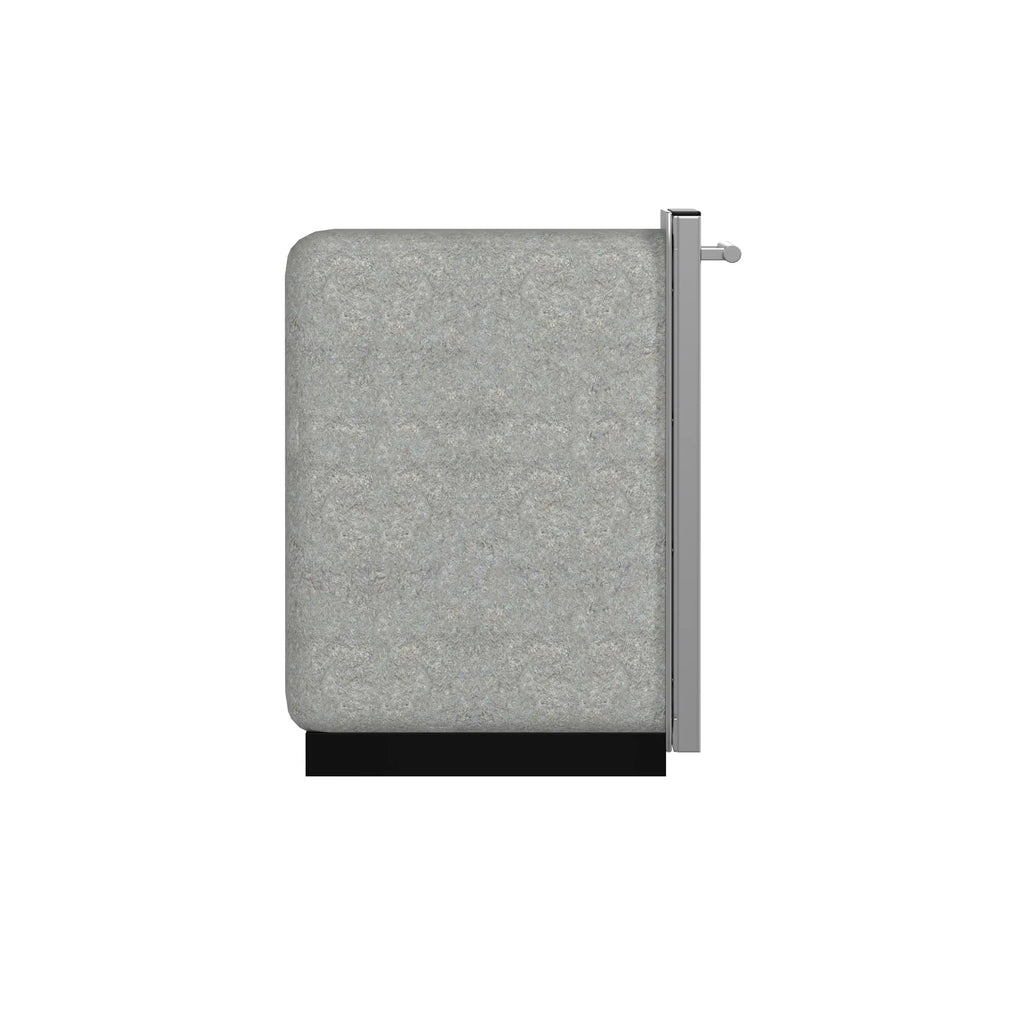

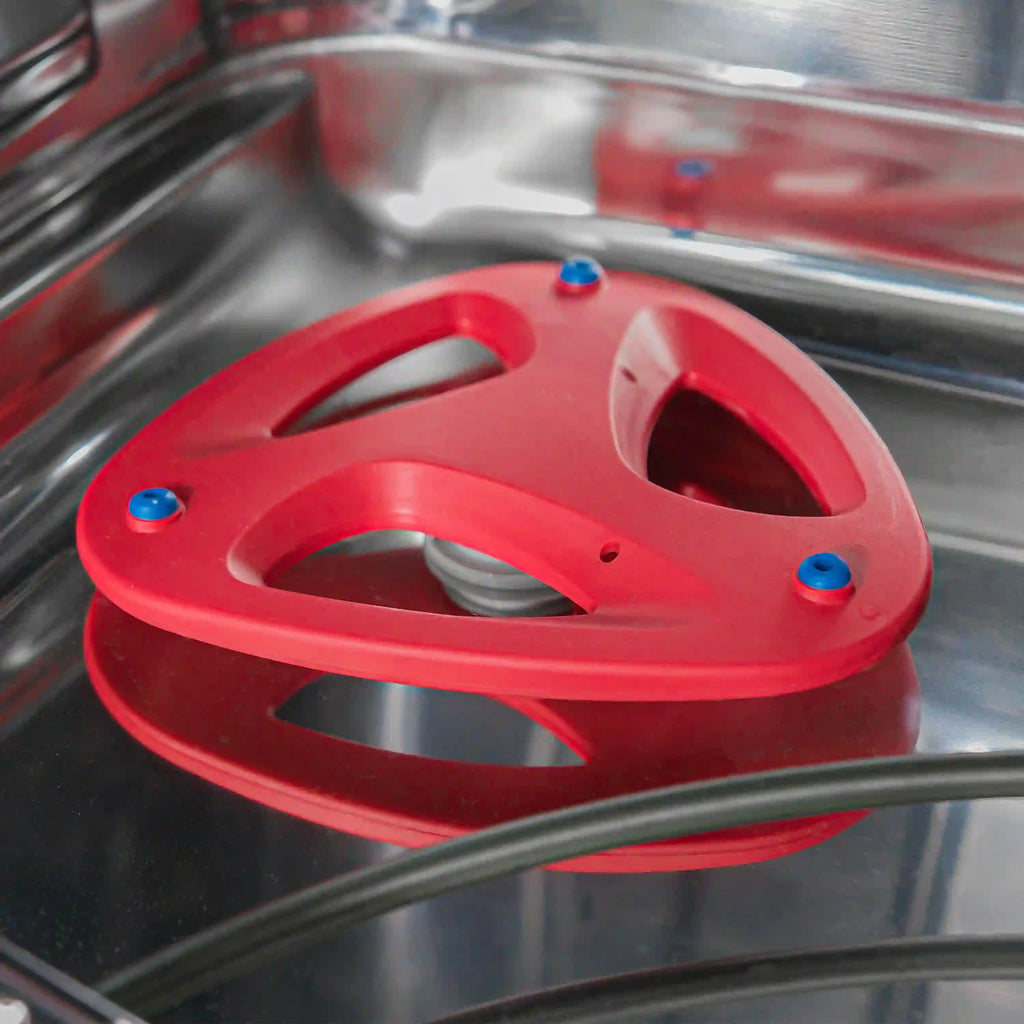

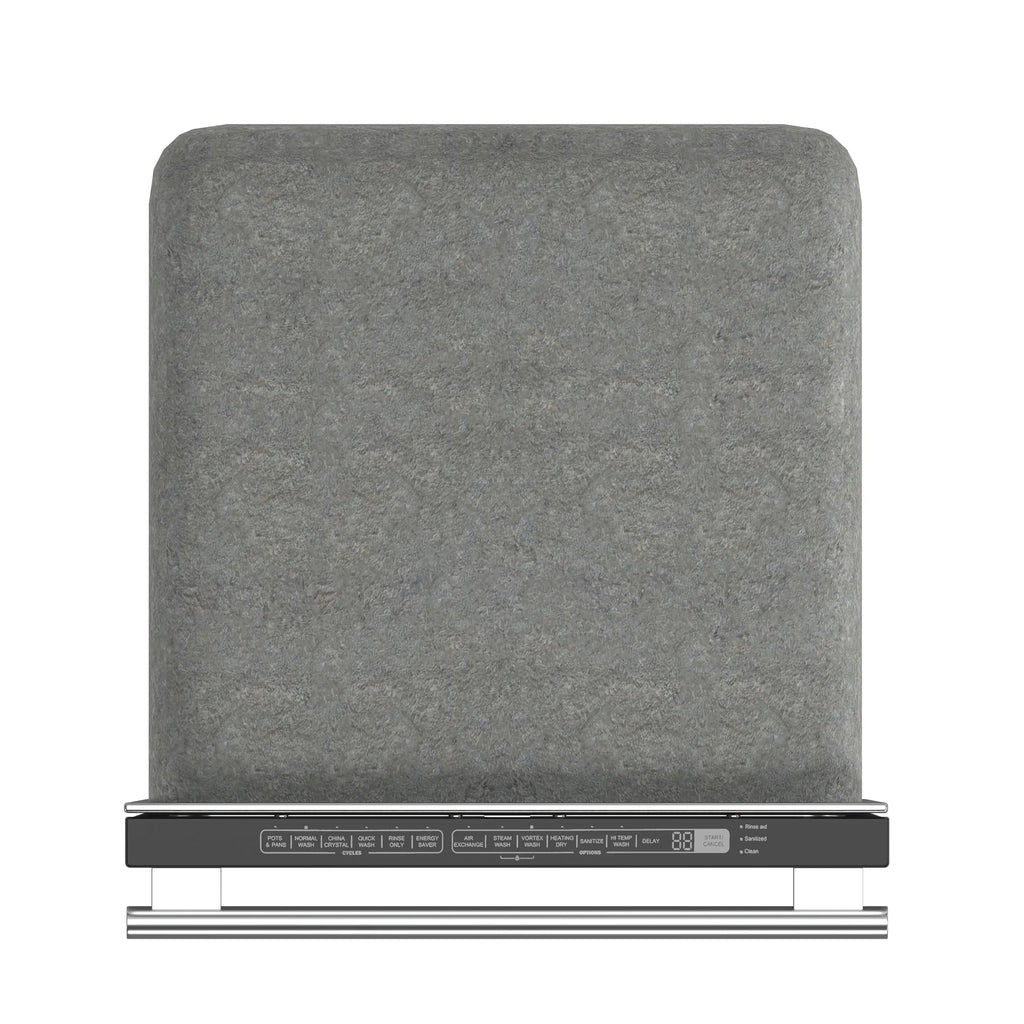

The Forno Pozzo 24-Inch tall-tub dishwasher, operating at a low noise level of 49 decibels for peaceful cleaning. Its stainless-steel front and pro-style handle offer durability and style. The dishwasher features a spacious stainless-steel tub with 3 baskets, providing ample loading flexibility for large dish capacity and utensils, with 3 racks and an additionnal silverware basket. With six wash programs and electronic controls featuring a sleek LED display, it offers efficient and customizable cleaning options. Energy Star certified for eco-friendly operation.
| Product Dimensions W x D x H (inches) | 23.85x26.54x33.74 |
| Cutout dimensions W x D x H (inch) | 24 x 24 x 34 |
| Product Overall Weight (lbs) | 93.20 |
| Color/Finish | Stainless Steel |
| Number of Racks | 3 |
| Racks Material | Nylon Coated Steel |
| Interior Light | No |
| Control Location | Top |
| Primary Material | Steel |
| Plug-in | No |
| CEE Tier Qualified | Not Rated |
| Energy Star Most Efficient | No |
| Estimated Annual Operating Cost (USD) | 24 |
| Filter Material | Stainless Steel |
| Minimum Product Height (IN) | 33.74 |
| Fingerprint-Resistant | No |
| Commercial Warranty | No |
| Warranty Type | Limited |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |
