Practical, powerful, and built for home chefs. The Hauslane WM-538 wall-mount range hood delivers strong 860 CFM suction with six fan speeds and easy touch-screen control. Power Control Technology™ lets you cap airflow to meet local requirements, while the optional remote control offers ADA-accessible operation. Enjoy energy-saving LED lights, dishwasher-safe baffle filters, and auto delay shut-off, all in a convertible design with an extendable chimney for flexible installation. Extendable chimney (CHE001) and charcoal filters (CFI001) sold separately.
| GENERAL | |
| Size | 30″ | 36″ |
| Style | Wall Mount |
| Cooking Style | Heavy-Duty |
| Colors | Black |
| AIRFLOW & PERFORMANCE | |
| Equivalent Airflow | 860 CFM |
| Laboratory Airflow | 450 CFM |
| Speed Selections | 6 Levels |
| Noise Level | 1.5 – 6.5 Sones |
| Recirculating | Yes (Charcoal Filters Required – CFI001, sold separately) |
| VENTING | |
| Top Venting | 6″ Round |
| Rear Venting | N/A |
| LIGHTING | |

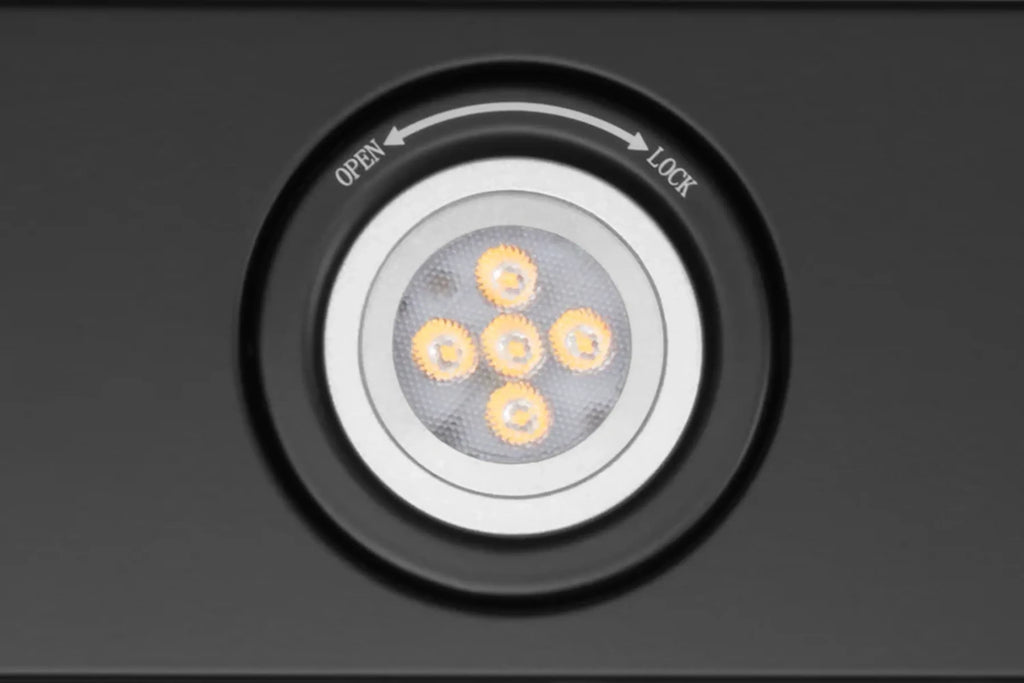

| Light Bulb | 3W LED (GU10 Base) |
| Light Color Temp. | Warm / 3000 Kelvin |
| Lumens | 200 |
| Light Intensity | 1 Level |
| CONTROLS & FUNCTIONS | |
| Control | Touch Panel (Buttonless) |
| Delay Function | Yes (Auto Delay Shut-Off) |
| Cleaning Function | N/A |
| ADA Compliant | Yes (Remote HLRC1 sold separately) |
| ELECTRICAL | |
| Motor | Single |
| Wattage | 288 W |
| Amperage | 2.4 A |
| Voltage | 120 V |
| Connection | Plug-In |
| DIMENSIONS & WEIGHT | |
| Dimensions – 30″ (W × D × H) | 29 3/8″ × 19″ × 25 1/2″ – 44″ |
| Gross Weight – 30″ | 38 lbs |
| Gross Weight – 36″ | 42 lbs |
| Net Weight – 30″ | 30.7 lbs |
| Net Weight – 36″ | 35 lbs |
| Ceiling Height (standard) | Min 85 1/2″ – Max 110″ |
| Distance from Cooktop (electric) | 24″ – 30″ |
| Distance from Cooktop (gas) | 30″ |
| WHAT'S INCLUDED | |

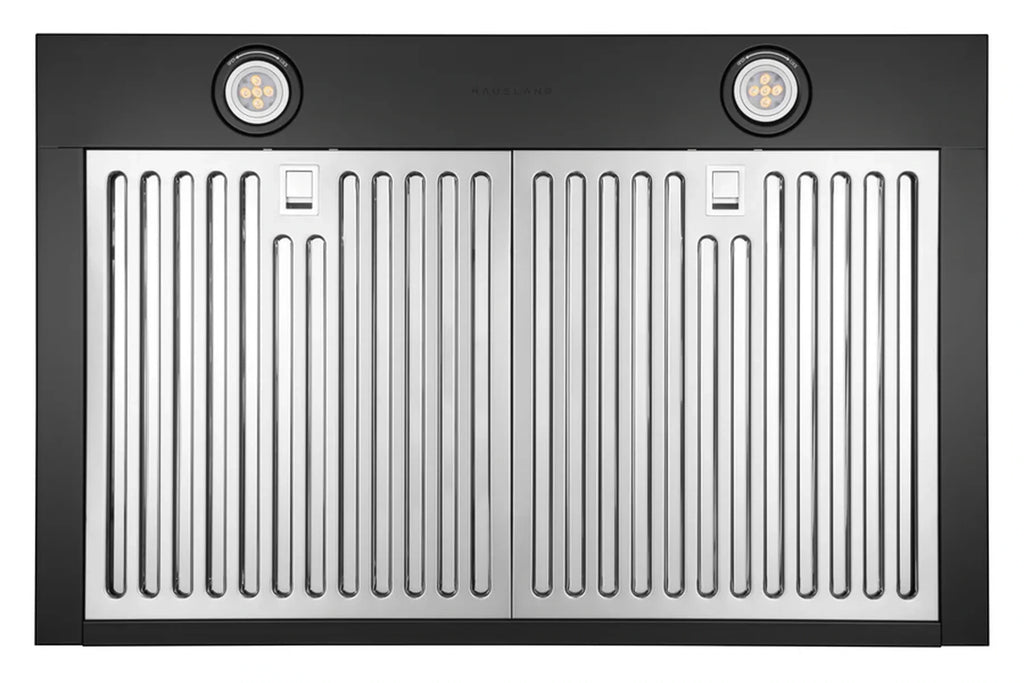

| Filters | Dishwasher-Safe Baffle Filters (2 for 30″ | 3 for 36″) |
| Chimney | Lower Chimney Cover (1), Upper Chimney Cover (1), Chimney Bracket (1) |
| Accessories | Microfiber Cloth (1), Aluminum Foil Tape (1), Top 6″ Round Exhaust Adapter (1) |
| WARRANTY | |
| Product Warranty | 2-Year Limited Warranty |
| Motor Warranty | Lifetime |
