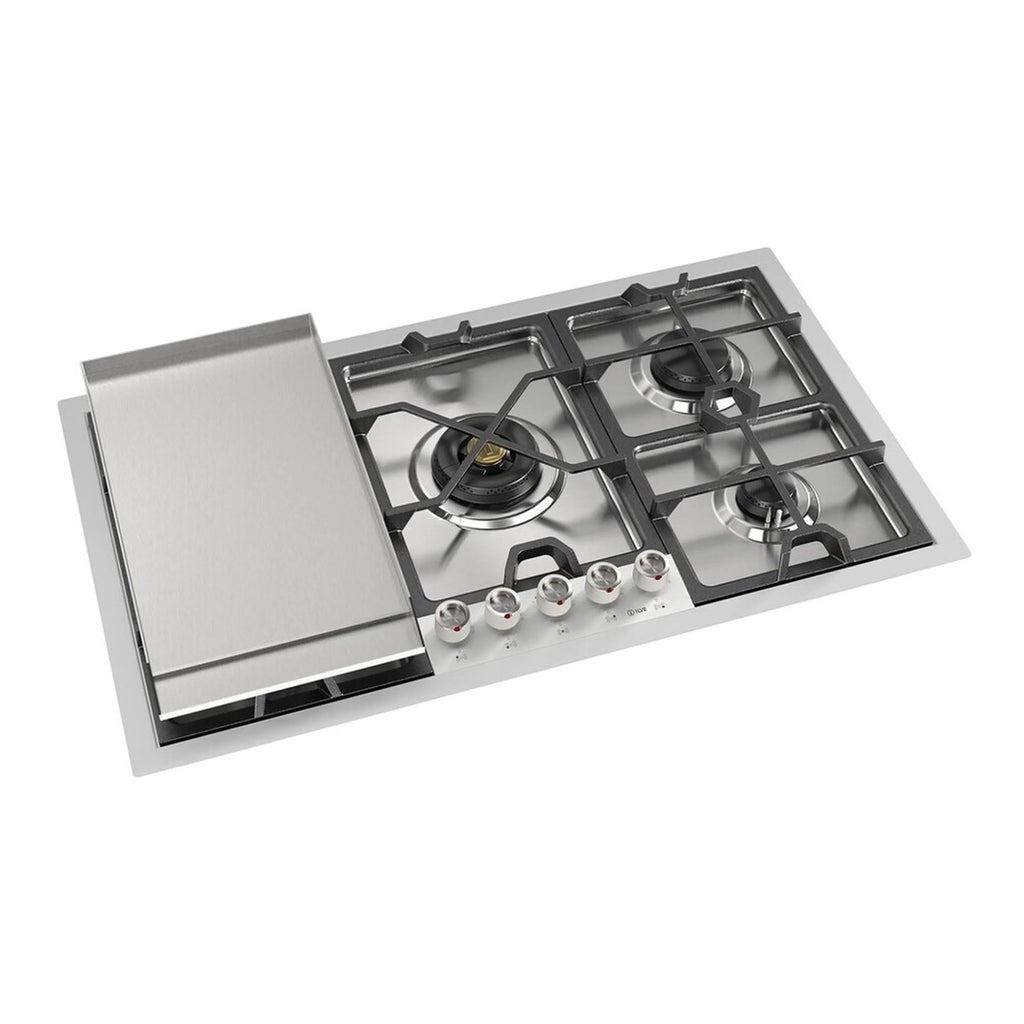

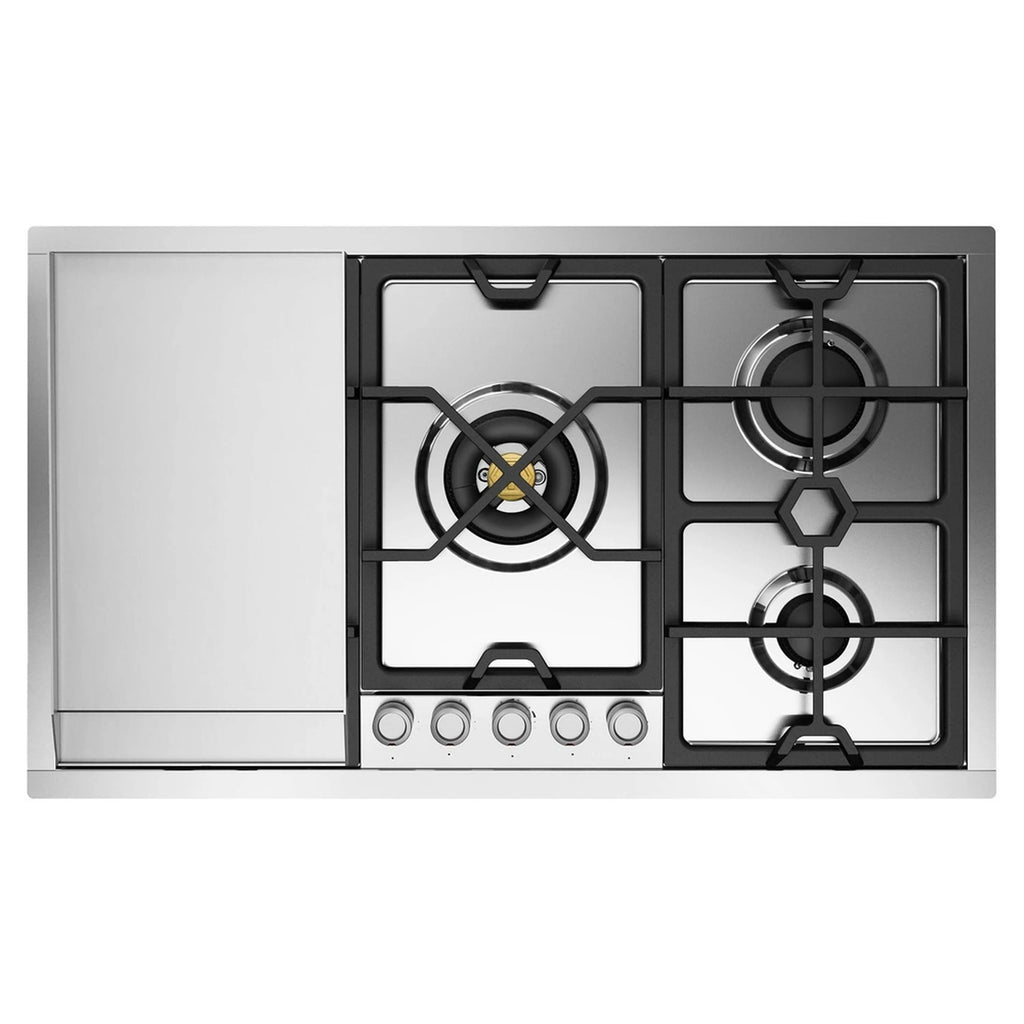

This 36-inch built-in gas cooktop from ILVE's Panoramagic line has five sealed burners (drop-in installation). It is finished in Stainless Steel. It carries the Panoramagic name ILVE first used on its 1960s range cooker.
This version is set up for liquid propane (LP). Ignition runs on a standard 120-volt supply.
| Specifications | |
|---|---|
| Brand | ILVE |
| Series | Panoramagic |
| Appearance | |
| Color | Stainless Steel |
| Color Family | Stainless Steel |
| Dimensions | |
| Exterior Width | 36" |
| Width | 35 7/8" |
| Depth | 20 7/8" |
| Height | 3 3/8" |
| Fuel Type | |
| Fuel Type | Gas |
| Gas Type | Liquid Propane |
| Style | |
| Type | Cooktop |
| Control Location | Front |
| Cooking Surface | |

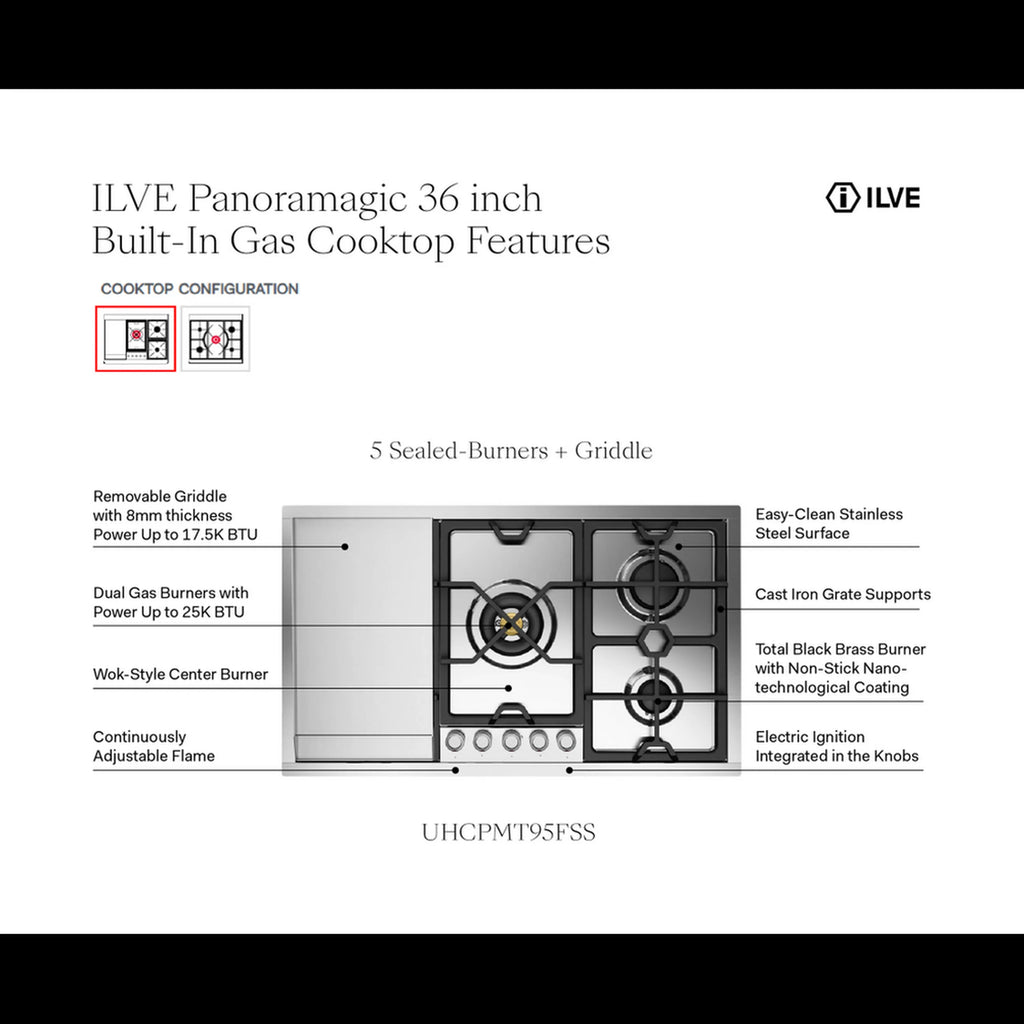

| Cooktop Configuration | 5 Sealed Burners + Griddle |
| Burner/Element Type | Sealed Burner |
| Number of Burners/Elements | 5 |
| Griddle | Yes |
| French Top | No |
| Burner/Element Output N1 | 7000 BTU |
| Burner/Element Output N2 | 10500 BTU |
| Burner/Element Output N3 | 10500 BTU |
| Burner/Element Output N4 | 10500 BTU |
| Burner/Element Output N5 | 22000 BTU |
| Technical Details | |
| Amps | 15 |
| Voltage | 120 Volts |
| Warranty | |
| Warranty | 2 Year Parts and Labor |
| Features | |
| Continuous Grates | Yes |
