Senville SENA-18HF/IF is a high-efficiency 18000 BTU floor mount ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.

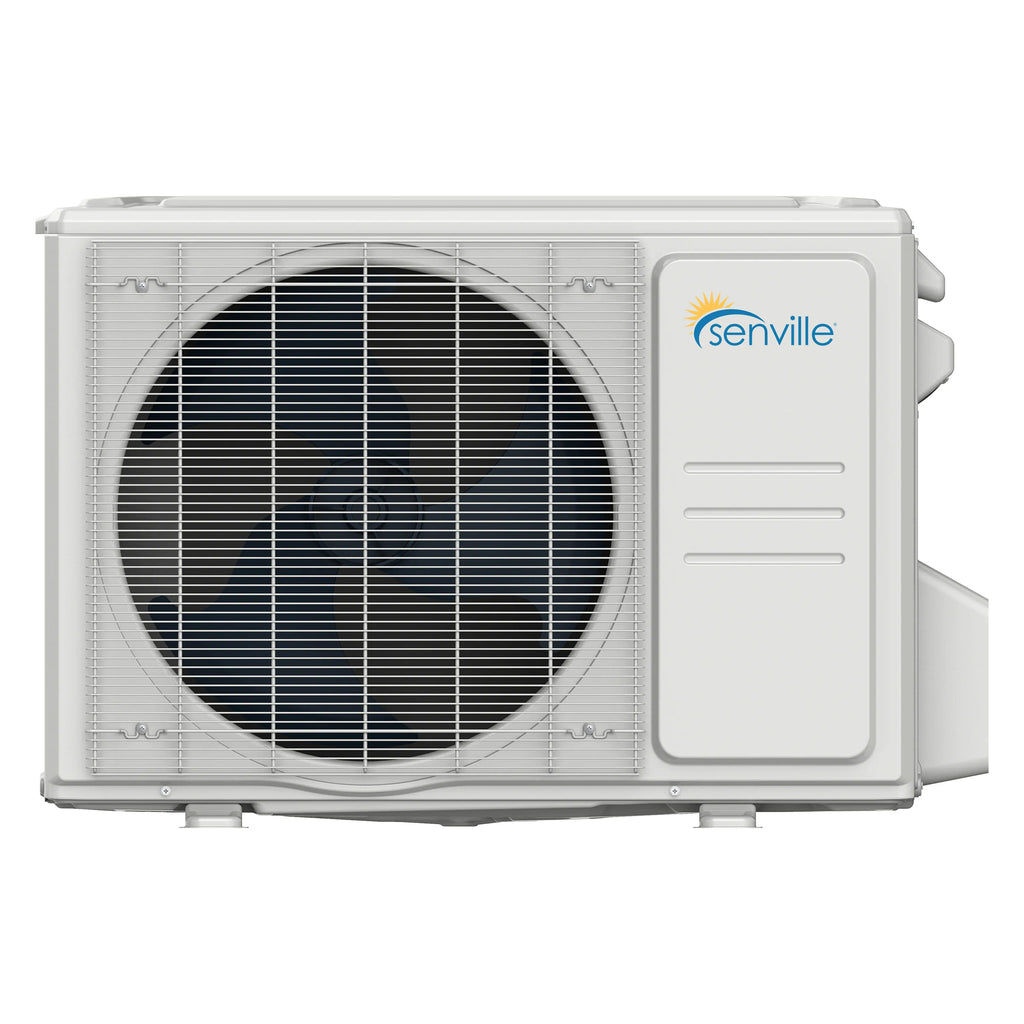

| Condenser | |
| Dimensions (WxDxH) (in.) | 35.04 x 13.46 x 26.50 |
| Weight | 99.87 Lbs |
| Air Flow (Max) CFM | 1765.8 |
| Noise Level dB | 58 |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Air Handler | |
| Dimensions (WxDxH) (in.) | 42.05 x 26.57 x 9.25 |
| Weight | 58.42 Lbs. |
| Air Flow (Turbo/H/M/L) CFM | 576.8 / 547.4 / 485.6 / 420.8 |
| Noise Level (Turbo/H/M/L) dB | 45 / 42.5 / 39.5 / 30.5 |
| Technical Specification | |
| Style | Floor Mount Ductless Mini Split AC With Heat Pump |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| SEER2 | 20.4 |
| EER2 | 12.5 |
| Cooling Capacity (BTU) | 17000 |
| Cooling Range (BTU) | 7400~19200 |
| Cooling Input Range (W) | 500~2300 |
| Cooling Current Range (A) | 2.5~7.4 |
| Heating Capacity (BTU) | 19000 |
| Heating Range (BTU) | 8300~20700 |
| Heating Input Range (W) | 525~1830 |
| Heating Current Range (A) | 2.8~8.0 |
| HSPF2-4 | 10.3 |
| HSPF2-5 | 8.2 |
| COP W/W | 3.07 |
| Minimum Circuit Ampacity (A) | 19 |
| Max. Fuse (A) | 20 |
| Moisture Removal (L/H) | 1.73 |
| Refrigerant Type / Charge oz | R454B / 55.38 |

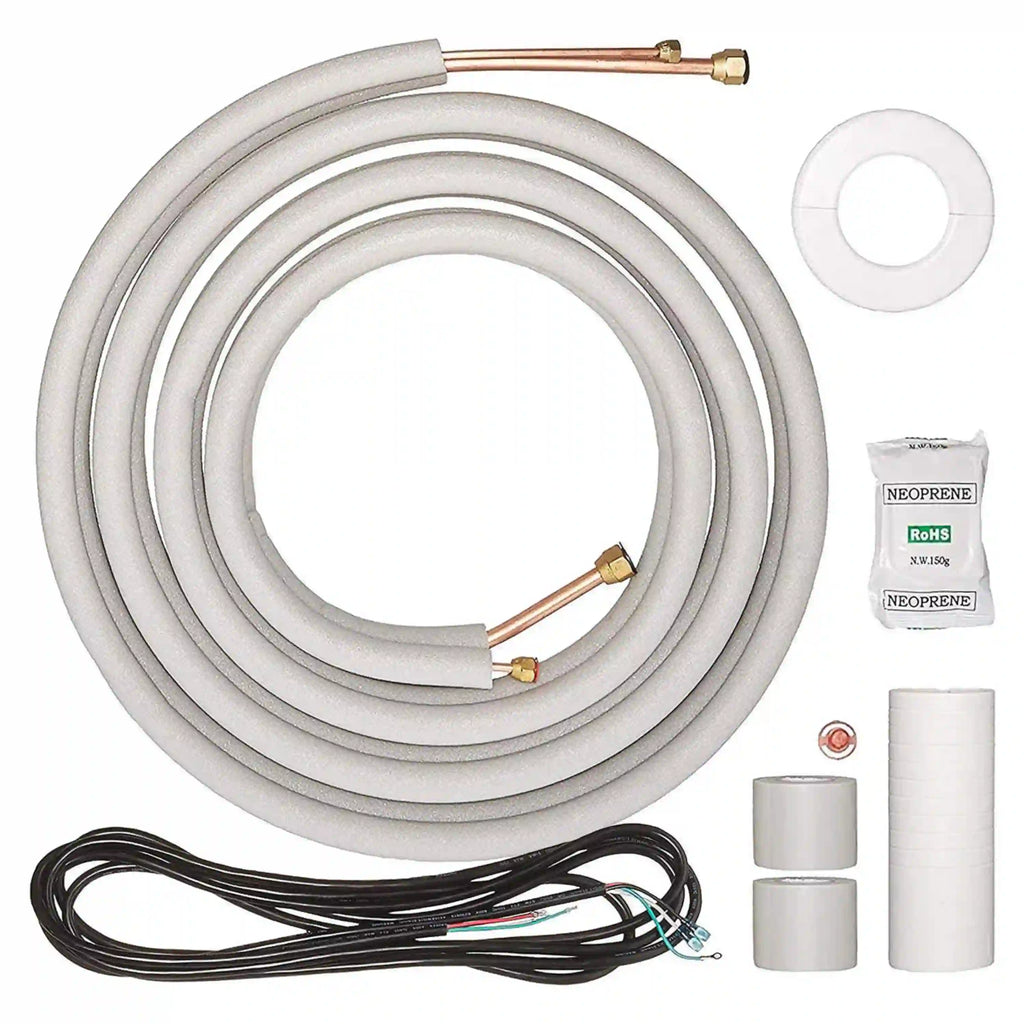

| Refrigerant Pre-charge | 25 Ft. |
| Connection Wiring | 14*4 AWG |

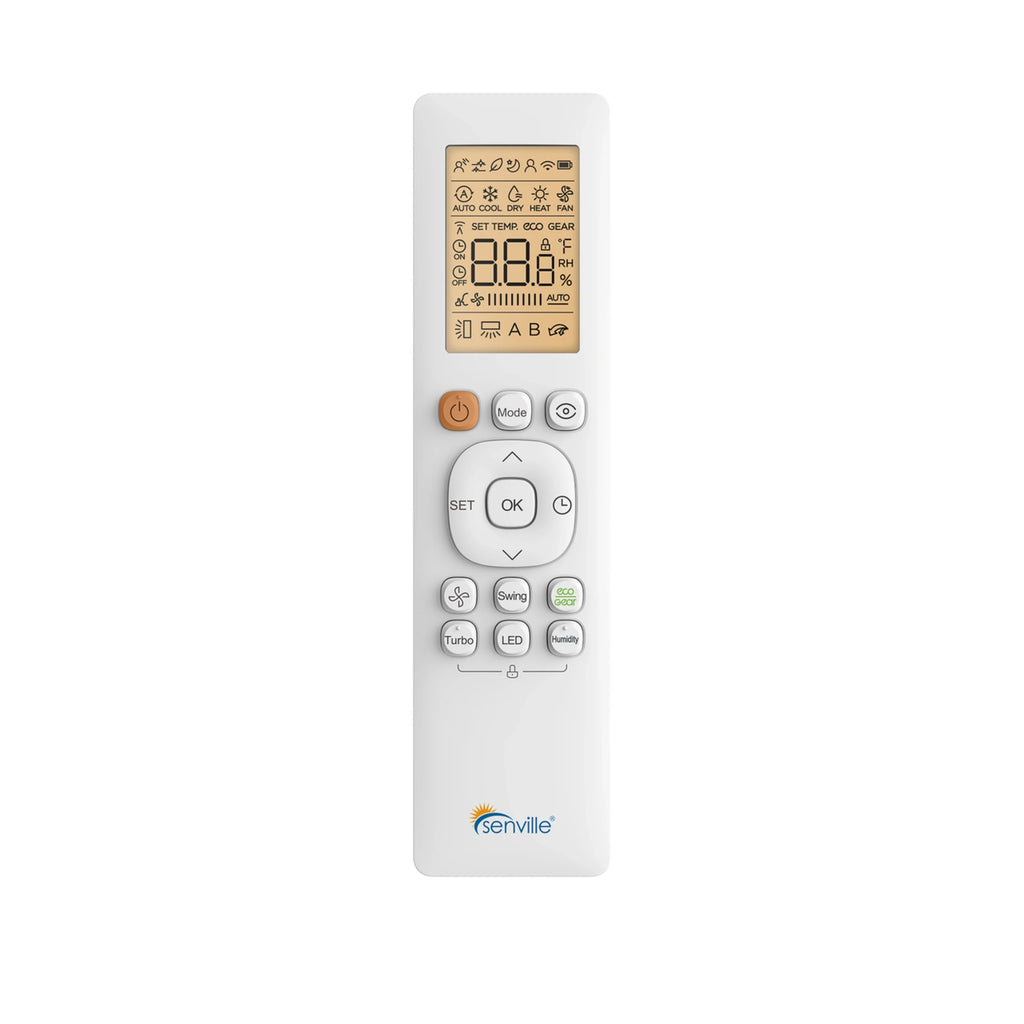

| Thermostat Type | Remote Control |
| Warranty | 10 Years Compressor / 5 Years Parts |
