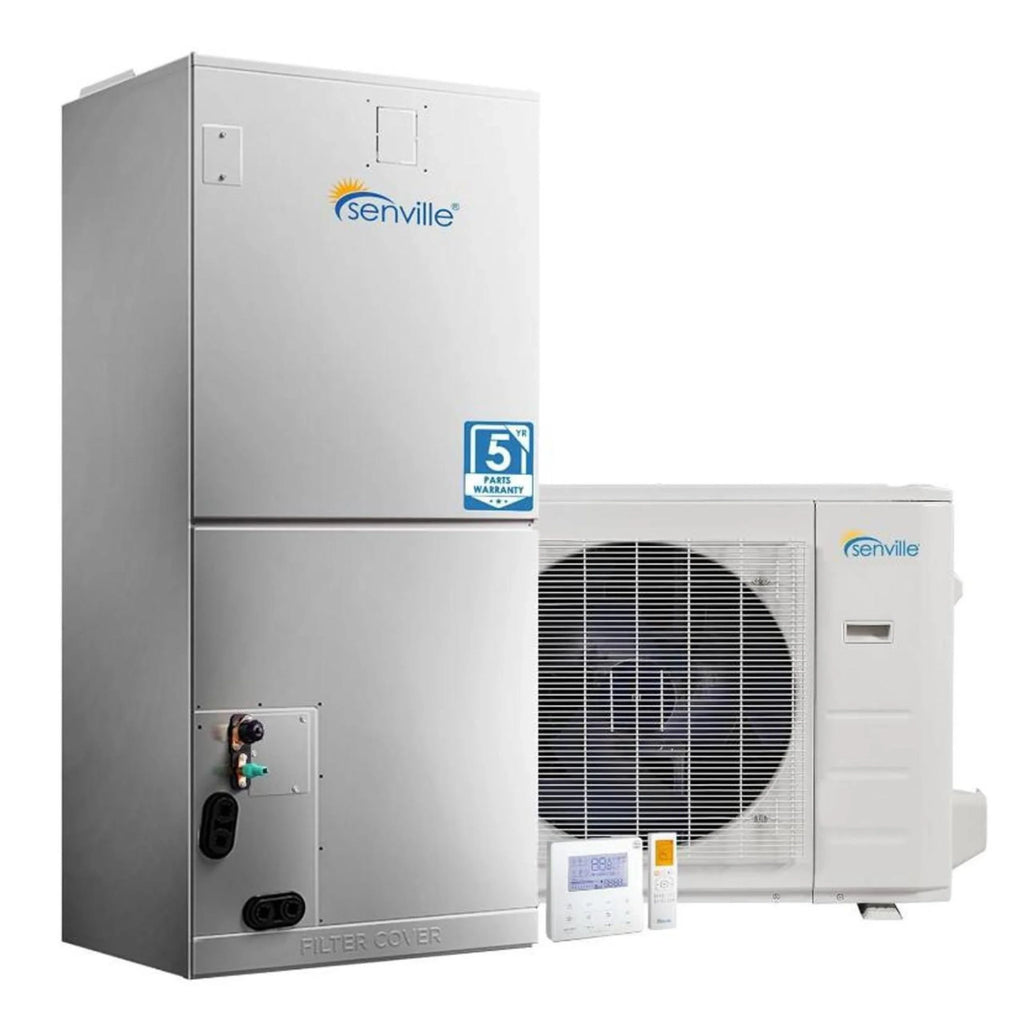

Upgrade your home’s HVAC system with the Senville SENDC-24HF, a powerful 24,000 BTU central air conditioner and heat pump system designed for year-round performance. Featuring advanced inverter technology, this ducted unit delivers exceptional energy efficiency, whisper-quiet operation, and reliable heating and cooling—even in extreme temperatures down to -30°C (-22°F).
Note: Professional installation is required for optimal performance and warranty validation.

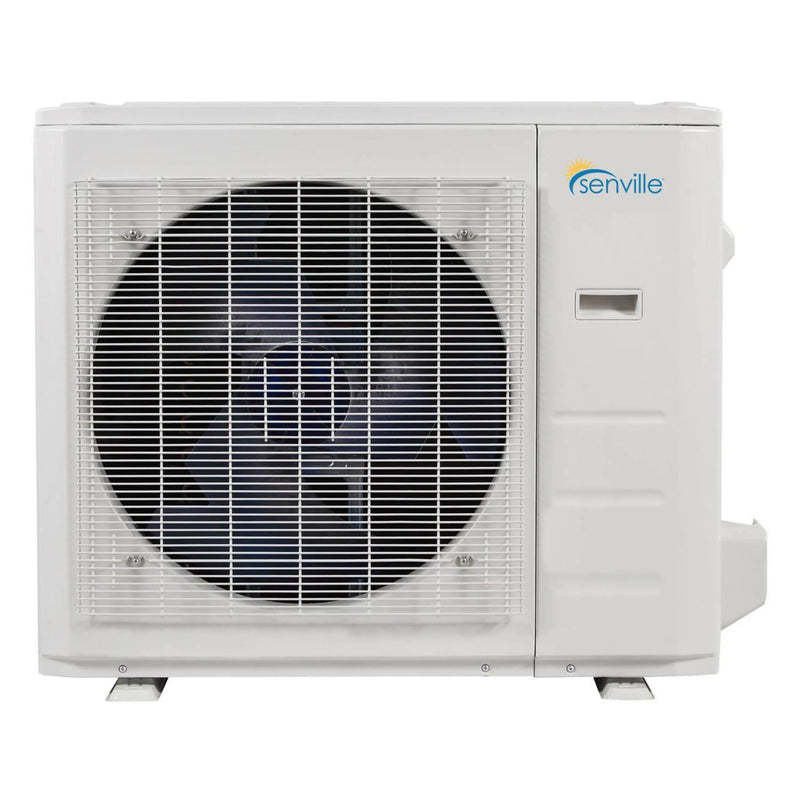

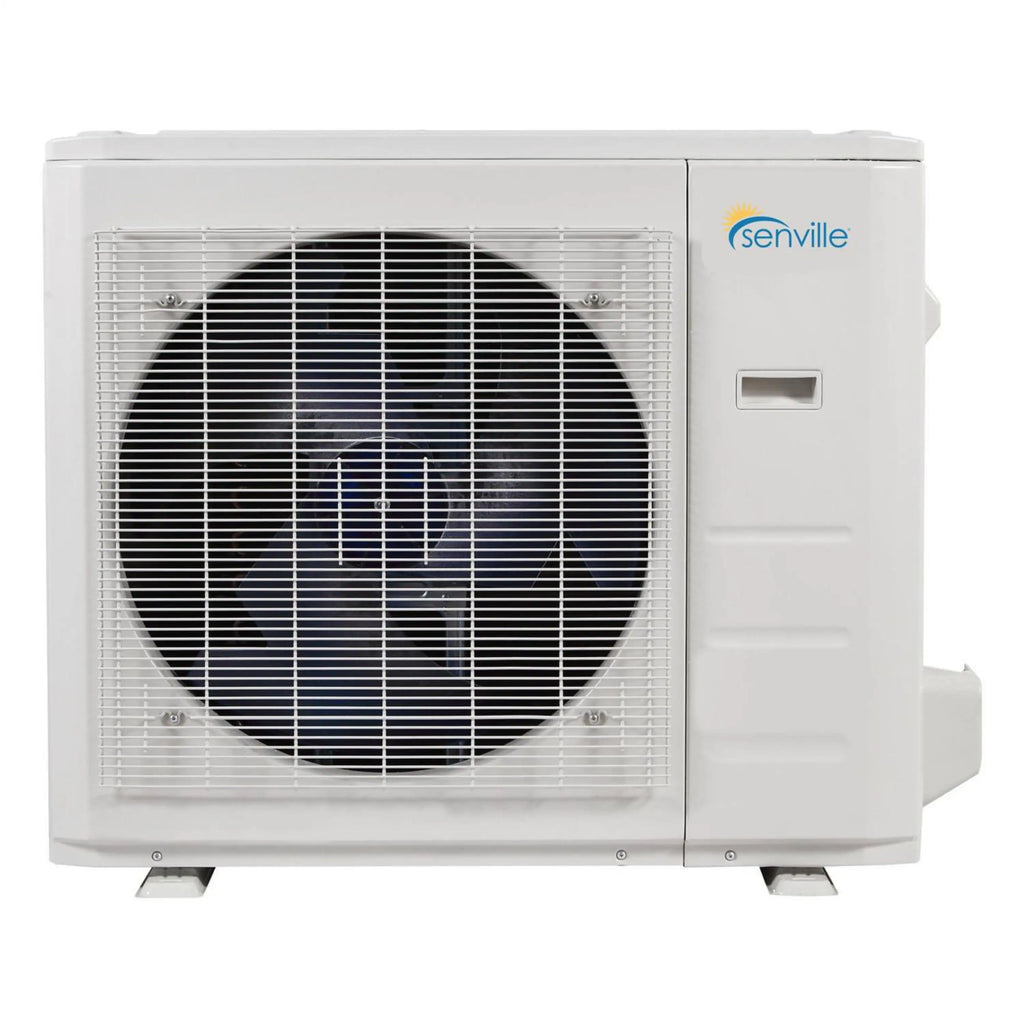

| Condenser | |
| Dimensions (WxDxH) (in.) | 37.48x16.14x31.89 |
| Weight (lbs.) | 136.69 |
| Noise Level dB | 62 |
| Air flow (Max) CFM | 3000 |

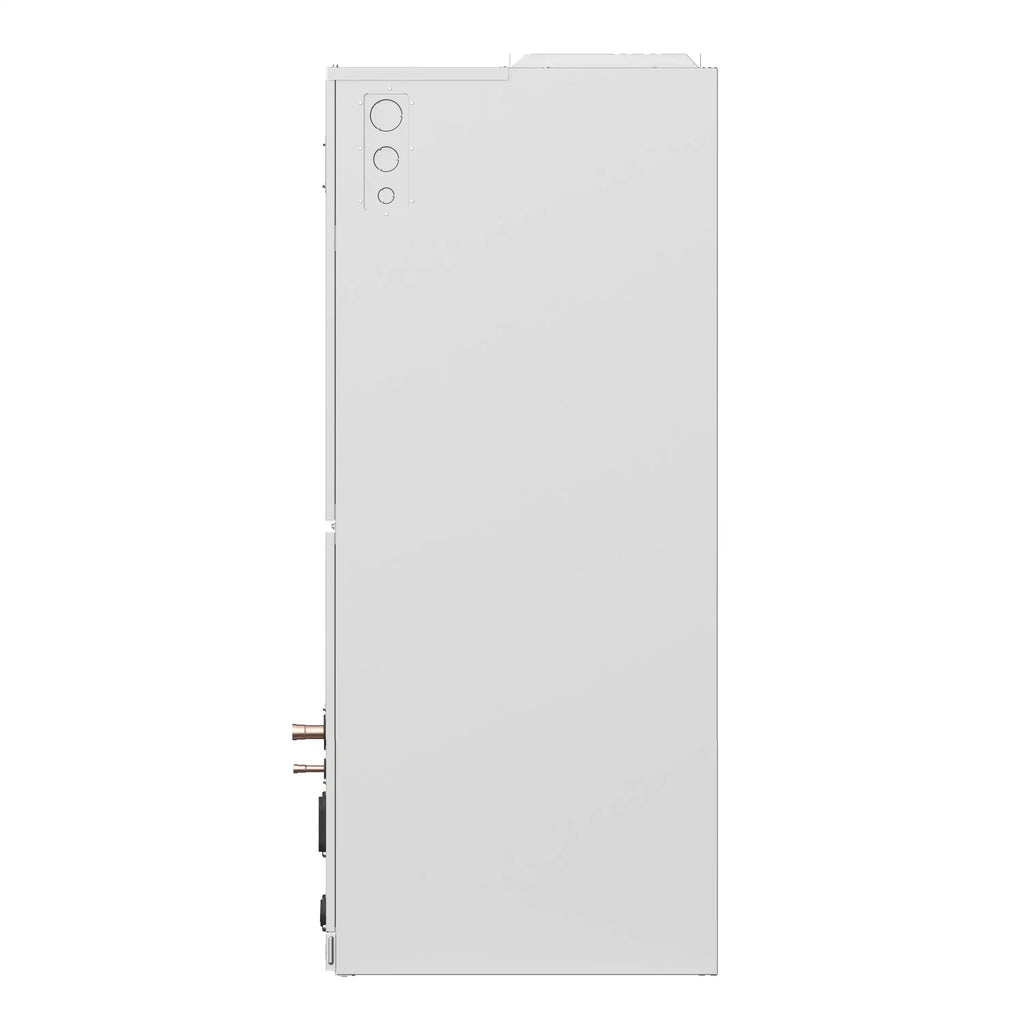

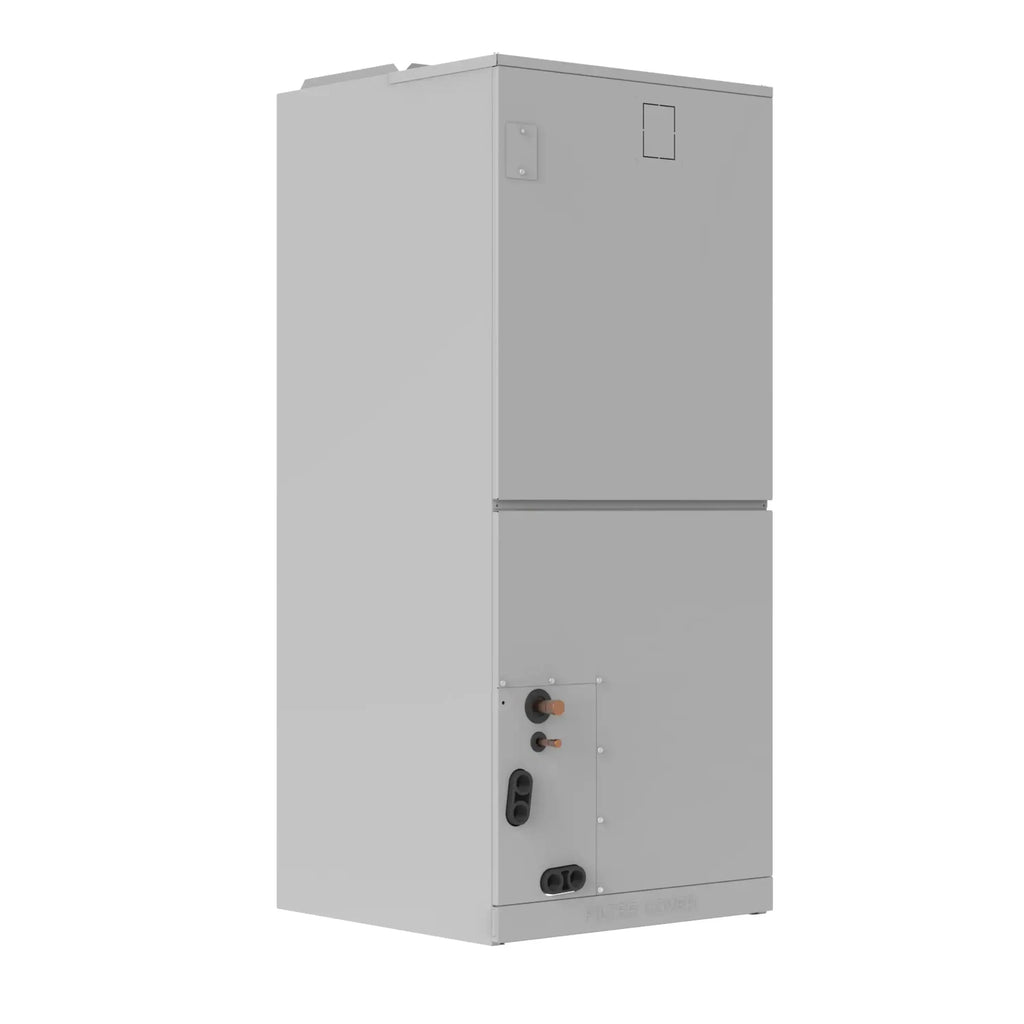

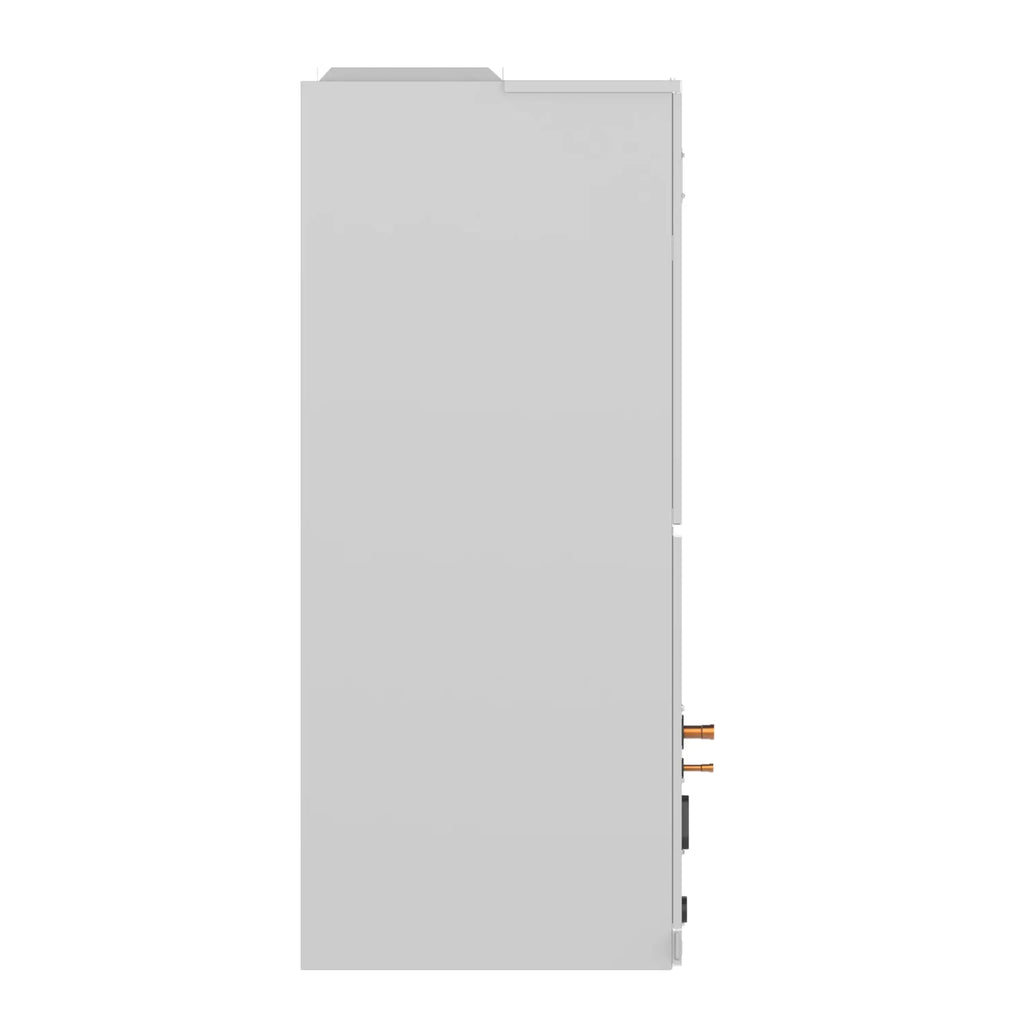

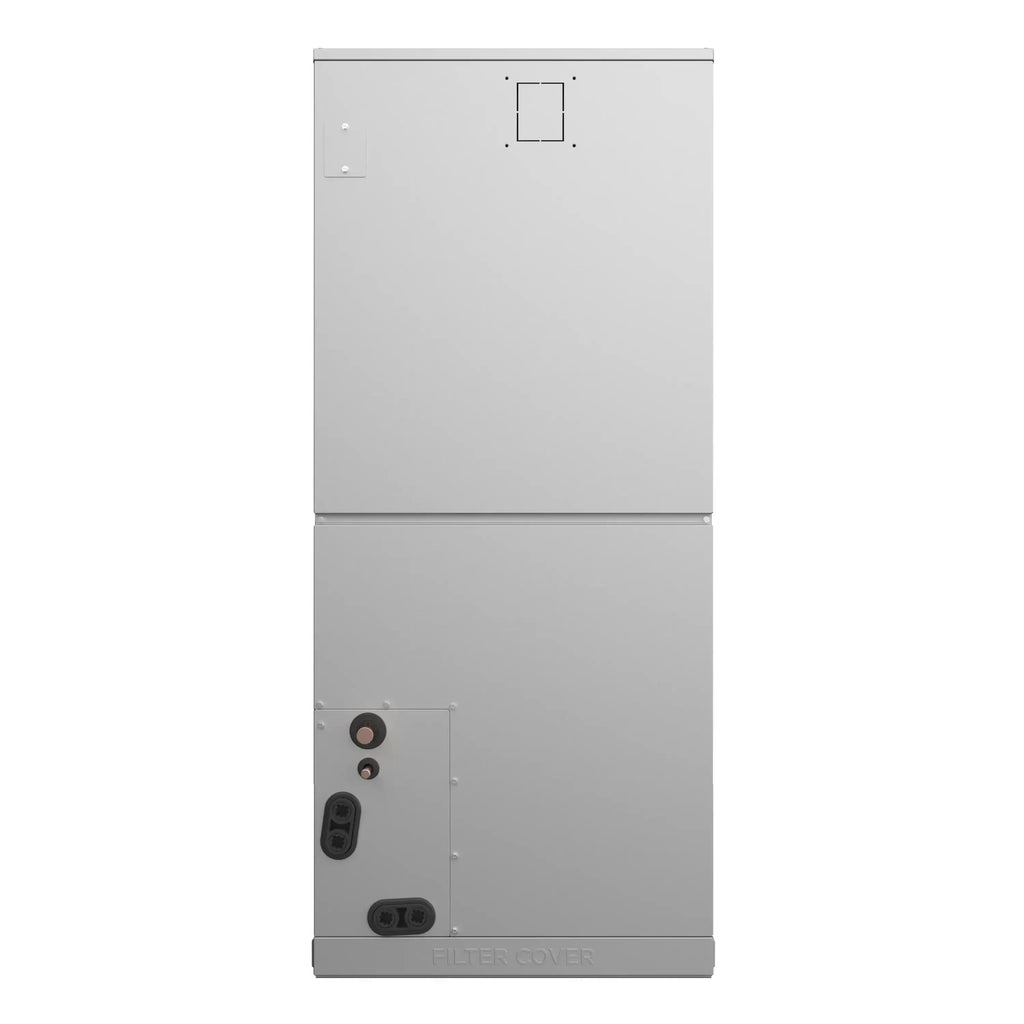

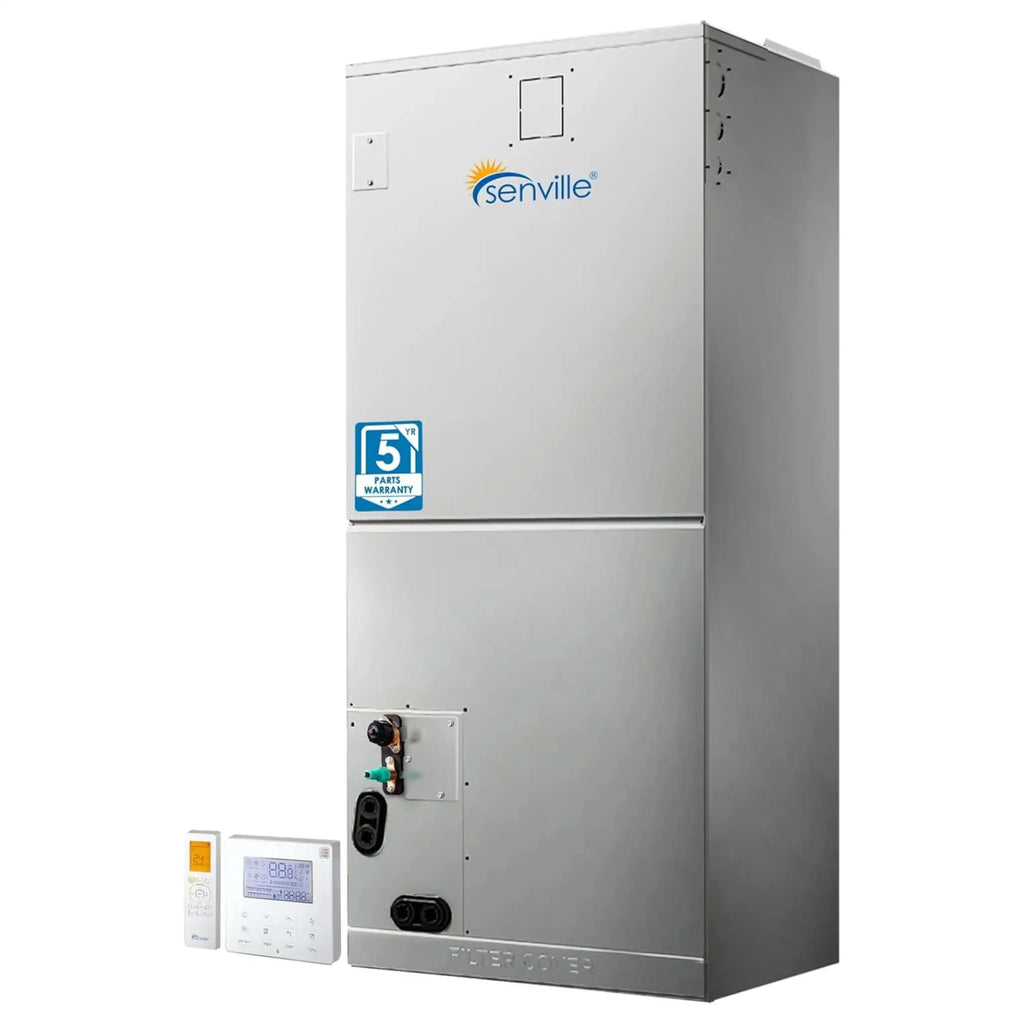

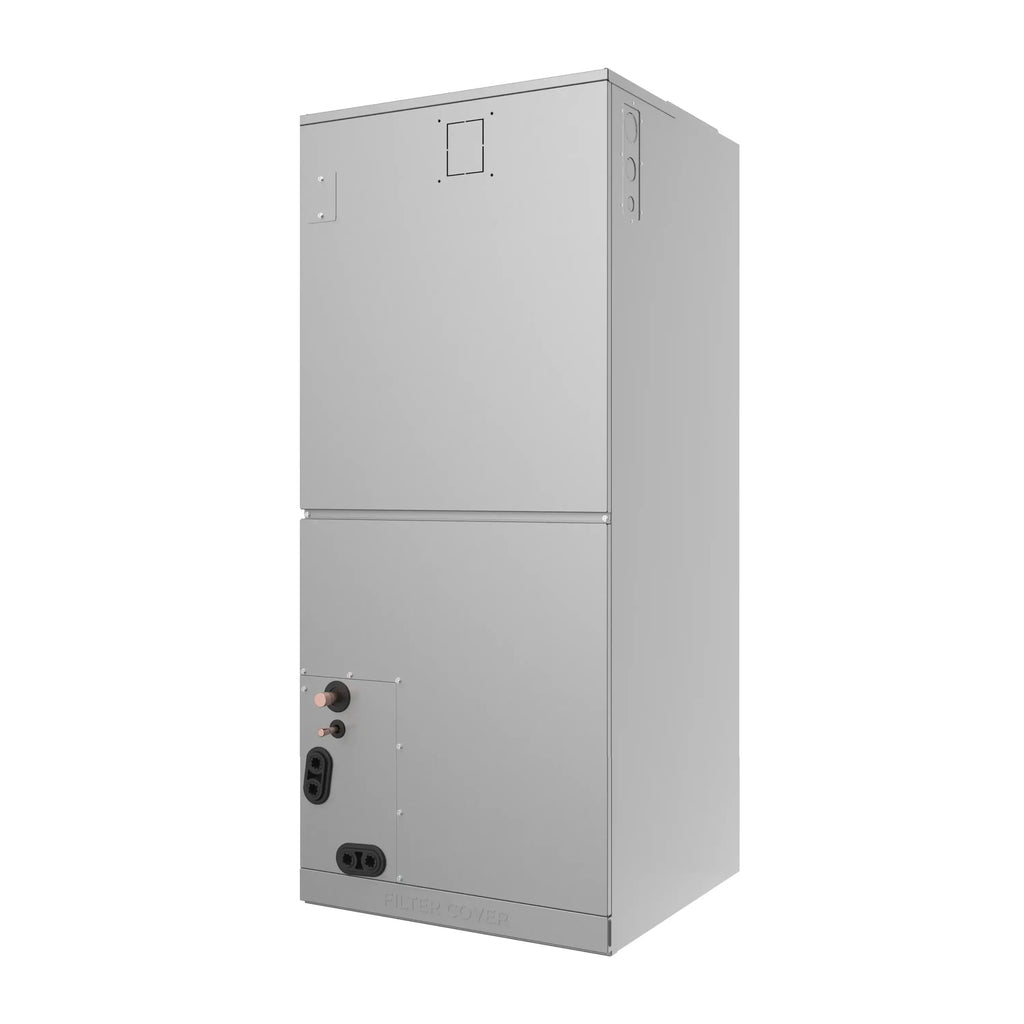

| Air Handler | |
| Dimensions (WxDxH) (in.) | 21.02x17.52x45 |
| Unit Weight (lbs.) | 47.9 |
| Air Flow (H/M/L) CFM | 823/758/694 |
| Noise Level (H/M/L) dB | 39/36/33 |
| Technical Specifications | |
| Style | Central Air Conditioner with Heat Pump |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| SEER2 | 18.3 |
| EER2 | 11.7 |
| Cooling (Range) | 64000~27000 |
| Input (W) | 2050 (740-2450) |
| Rated current A | 9.1 |
| Heating (Range) | 10100~31000 |
| Input (W) | 2100 (660-2900) |
| Rated Current (A) | 9.3 |
| HSPF2-4 | 10 |
| HSPF2-5 | 8 |
| COP W/W | 3.35 |
| Minimum Circuit Ampacity (A) | 20.5 |
| Max. Fuse (A) | 35 |
| Refrigerant Type | R410A / 102.32 Oz |
| Refrigerant Pre-charge | 25 Ft. |
| Connection Wiring | 14AWG*2 Stranded, Shielded |
| Thermostat Type | Wall Remote |
| Warranty | 10 Years Compressor / 5 Years Parts |
