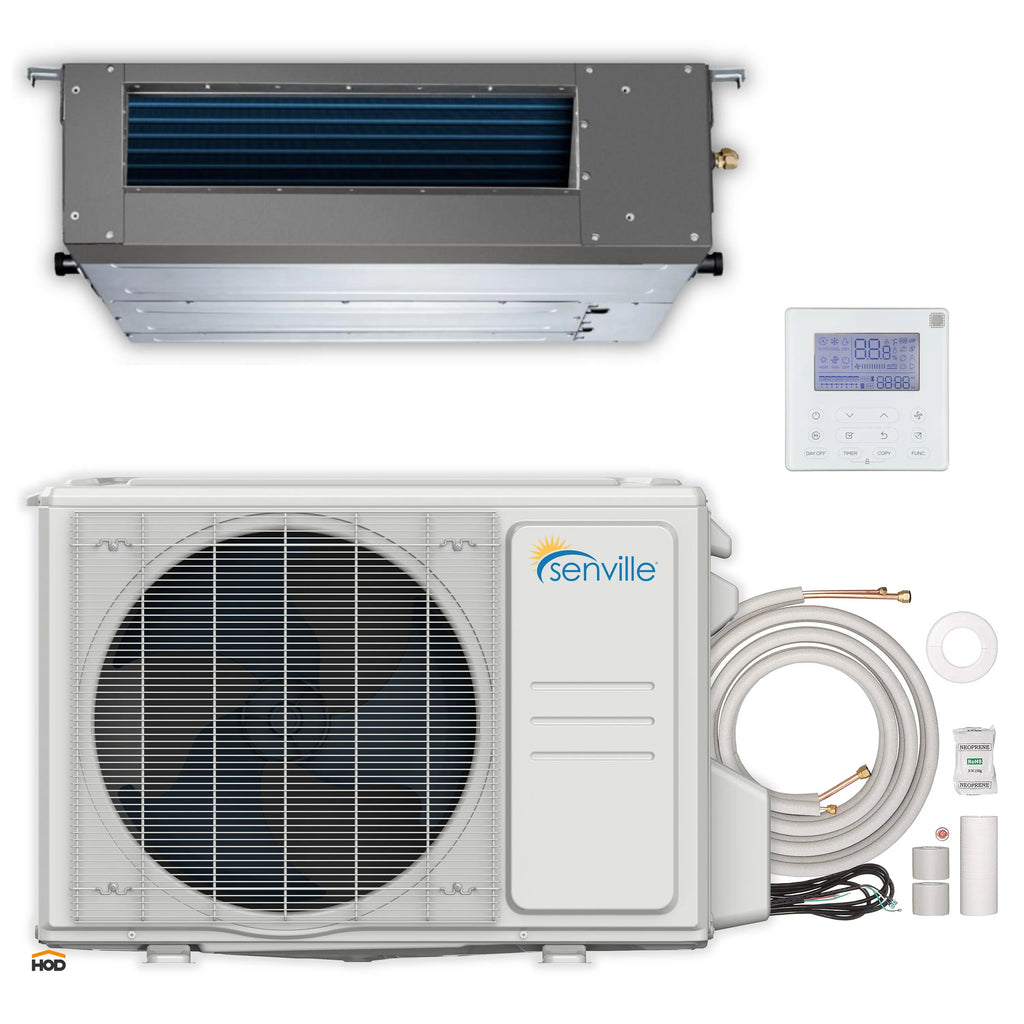

Senville SENA-24HF/ID is a high-efficiency 24000 BTU concealed duct mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.

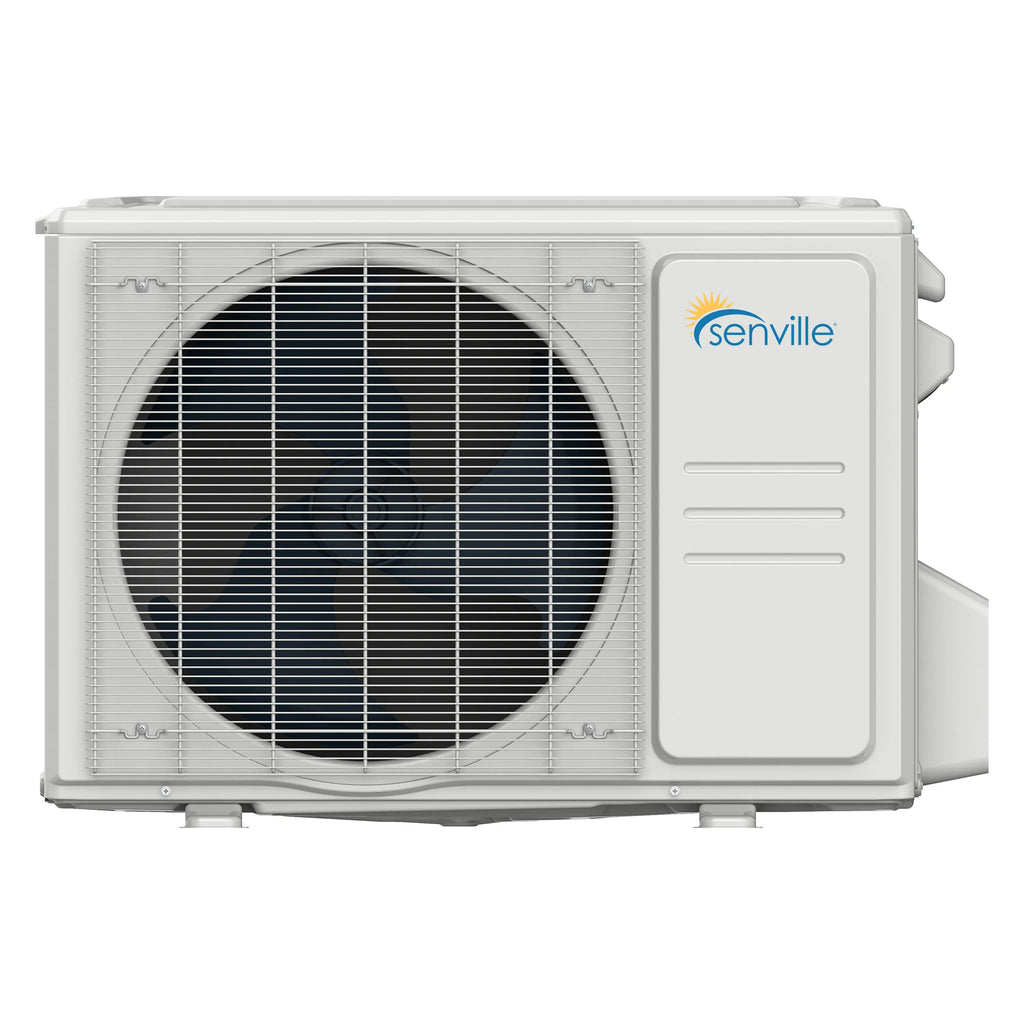

| Condenser | |
| Outdoor Dimensions (WxDxH) (in.) | 37.24 x 16.14 x 31.89 |
| Outdoor Weight | 130.29 Lbs |
| Outdoor Air Flow (Max) CFM | 2236.7 |
| Outdoor Noise Level dB | 61.5 |

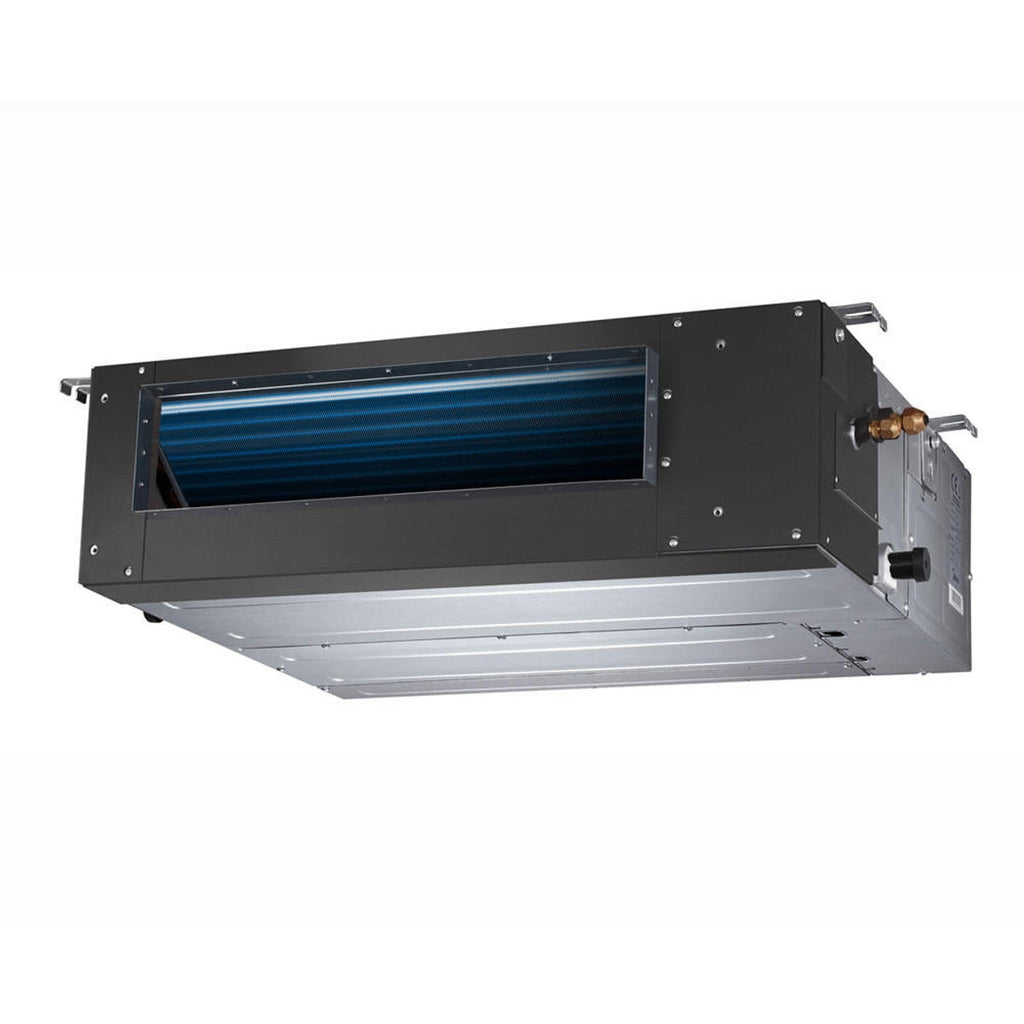

| Air Handler | |
| Indoor Dimensions (WxDxH) (in.) | 39.37 x 29.53 x 9.65 |
| Indoor Weight | 80.47 Lbs. |
| Indoor Air Flow (Turbo/H/M/L) CFM | 853.5 / 706.3 / 618.0 / 500.3 |
| Indoor Noise Level (H/M/L) dB | 40.0 / 37.0 / 35 / 29.5 |
| Technical Specification | |
| Style | Concealed Duct Mini Split AC With Heat Pump |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| SEER2 | 19 |
| EER2 | 12 |
| Cooling Capacity (BTU) | 24000 |
| Cooling Range (BTU) | 5000~28000 |
| Cooling Input Range (W) | 870~2410 |
| Cooling Current Range (A) | 4.~10.6 |
| Heating Capacity (BTU) | 26000 |
| Heating Range (BTU) | 7300~31400 |
| Heating Input Range (W) | 440~2480 |
| Heating Current Range (A) | 2.4~11 |
| HSPF2-4 | 11.7 |
| HSPF2-5 | 9.3 |
| COP W/W | 3.81 |
| Minimum Circuit Ampacity (A) | 25 |
| Max. Fuse (A) | 25 |
| Moisture Removal (L/H) | 2.03 |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Refrigerant Type / Charge oz | R454B / 63.49 |
| Refrigerant Pre-charge | 25 Ft. |
| Connection Wiring | 14*4 AWG |
| Thermostat Type | Remote Control |
| Warranty | 10 Years Compressor / 5 Years Parts |
