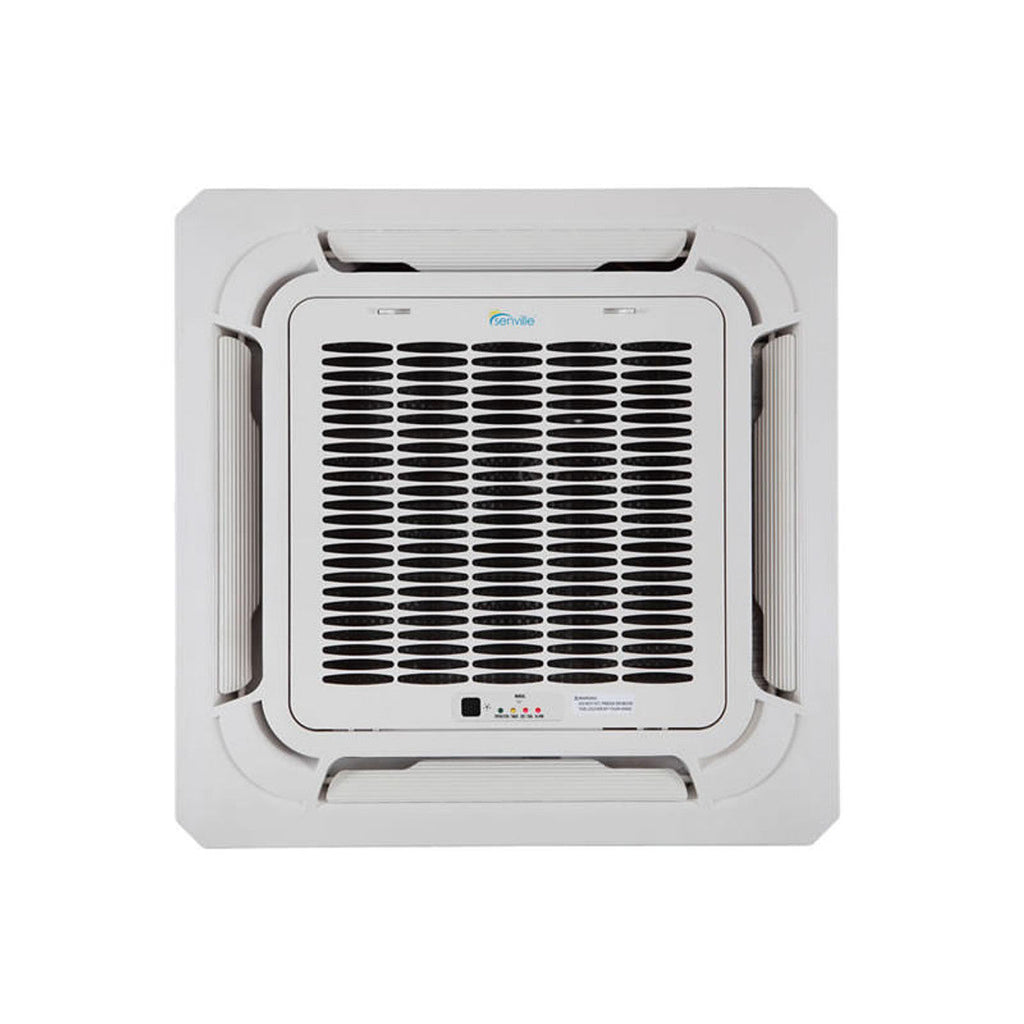

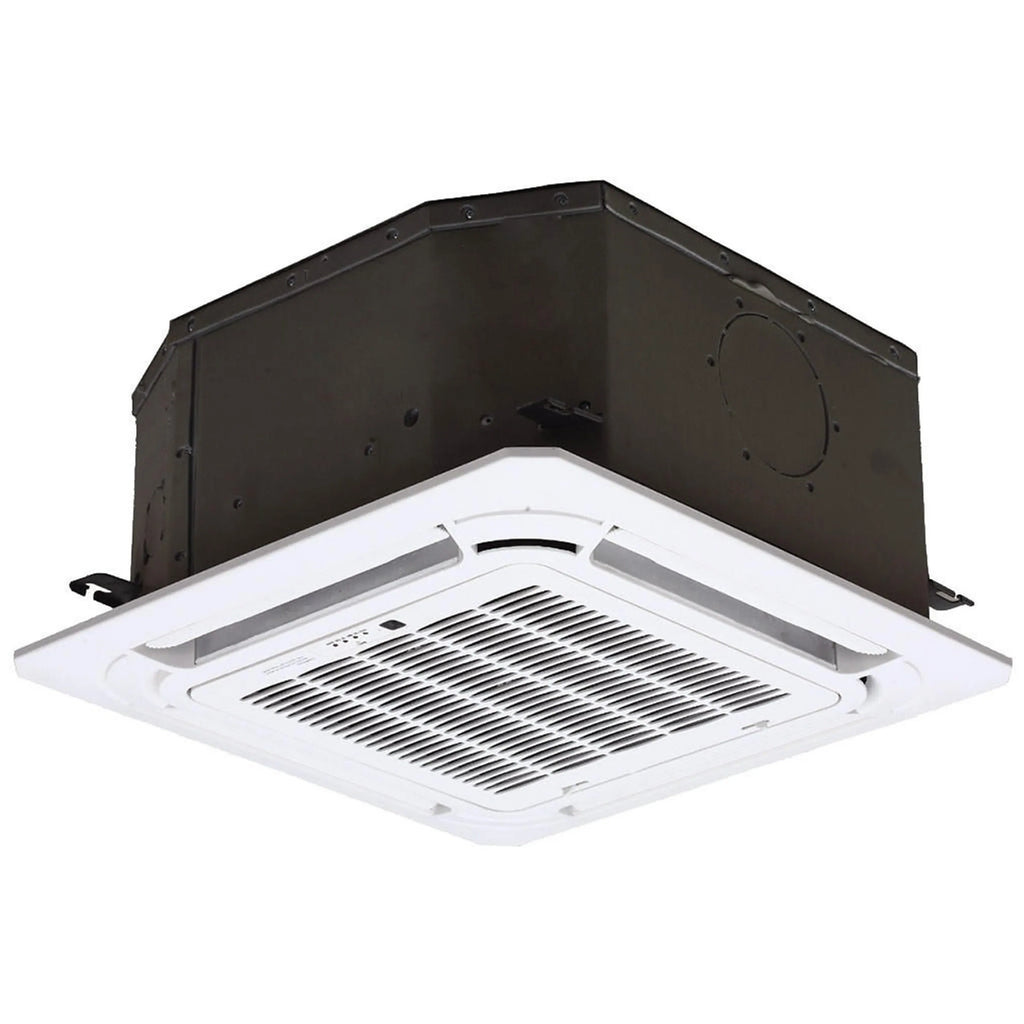

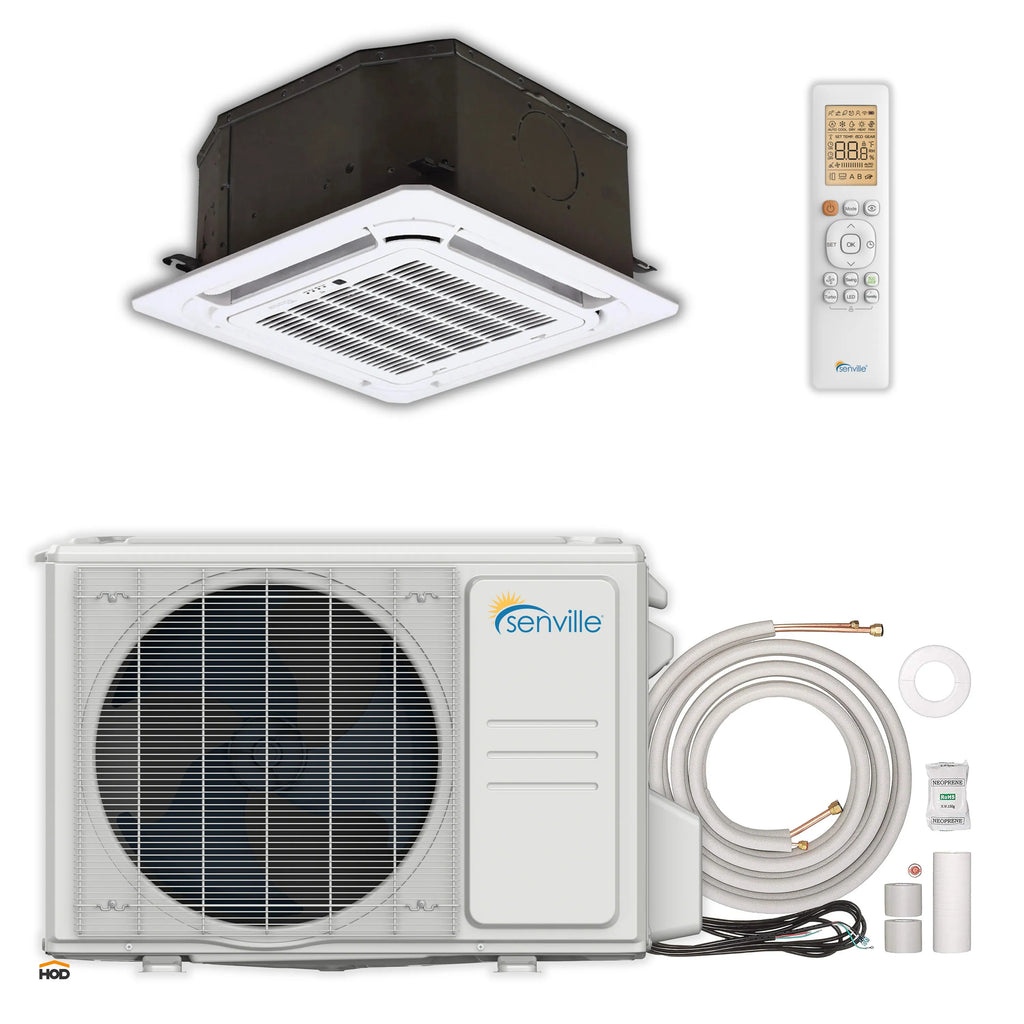

Senville SENA-24HF/IC is a high-efficiency 24000 BTU ceiling cassette ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.

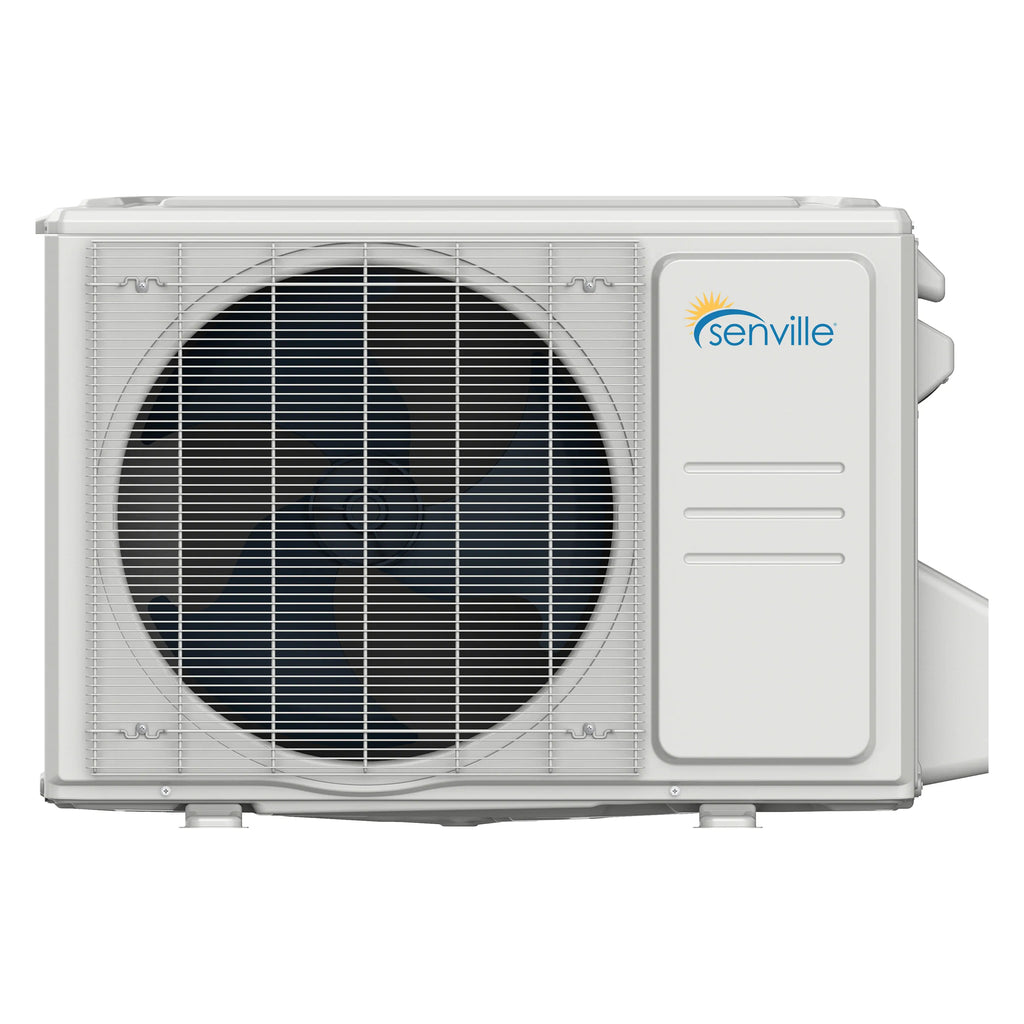

| Condenser | |
| Dimensions (WxDxH) (in.) | 37.24 x 16.14 x 31.89 |
| Weight | 130.29 Lbs |
| Air Flow (Max) CFM | 2236.7 |
| Noise Level dB | 61.5 |
| Air Handler | |
| Dimensions (WxDxH) (in.) | 32.68 x 32.68 x 8.07 |
| Weight | 47.18 Lbs. |
| Air Flow (Turbo/H/M/L) CFM | 765.2 / 706.3 / 635.7 / 547.4 |
| Noise Level (Turbo/H/M/L) dB | 48.5 / 45.0 / 42.5 / 33.5 |
| Technical Specification | |
| Style | Ceiling Cassette Mini Split AC With Heat Pump |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| SEER2 | 20.7 |
| EER2 | 12 |
| Cooling Capacity (BTU) | 23400 |
| Cooling Range (BTU) | 128000~26200 |
| Cooling Input Range (W) | 960~2300 |
| Cooling Current Range (A) | 4.3~10.1 |
| Heating Capacity (BTU) | 25000 |
| Heating Range (BTU) | 11500~30700 |
| Heating Input Range (W) | 695~2490 |
| Heating Current Range (A) | 3.8~10.9 |
| HSPF2-4 | 11.6 |
| HSPF2-5 | 9.2 |
| COP W/W | 3.54 |
| Minimum Circuit Ampacity (A) | 25 |
| Max. Fuse (A) | 25 |
| Moisture Removal (L/H) | 2.36 |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Refrigerant Type / Charge oz | R454B / 63.49 |
| Refrigerant Pre-charge | 25 Ft. |
| Connection Wiring | 14*4 AWG |

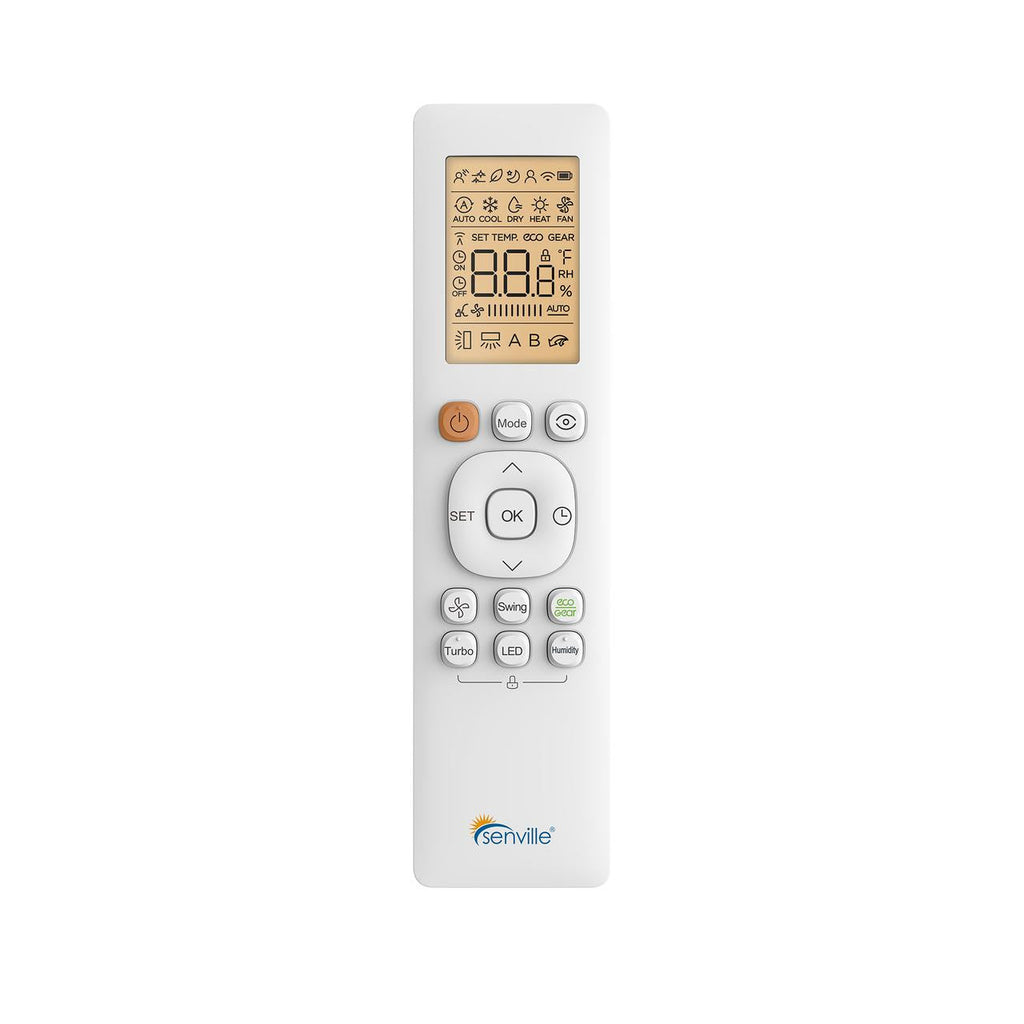

| Thermostat Type | Remote Control |
| Warranty | 10 Years Compressor / 5 Years Parts |
