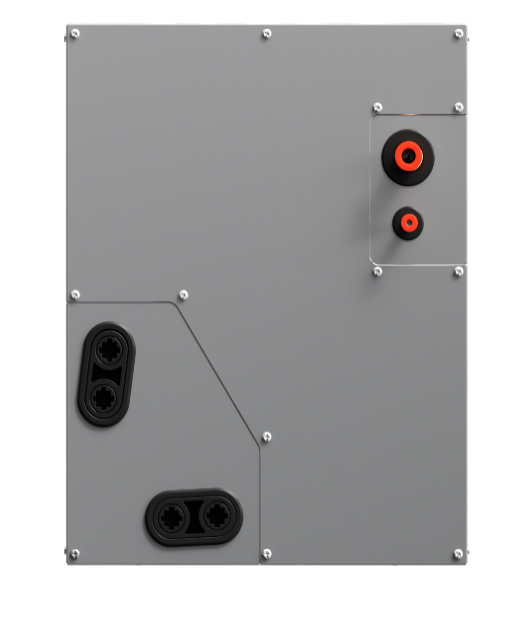

The A-Coil - SEND-36CO-C is built for flexibility and convenience, with multi-position installation (horizontal or vertical), a durable aluminum coil, and an advanced R454B refrigerant sensor. Designed for easy maintenance, it also supports multiple control options, including a WiFi-enabled wired controller or compatibility with third-party 24V thermostats.
| General Information | |
|---|---|
| Brand | Senville |
| Model Number | SENDC-36CO-C |
| Capacity | 36,000 BTU |
| Efficiency | |
| SEER2 | 15.8 |
| EER2 | 10.7 |
| HSPF2-4 | 9.4 |
| COP | 3.3 |
| Compressor & Refrigerant | |
| Compressor Type | Twin Rotary (EKPQ420D1UMUA) |
| Refrigerant | R454B |
| Electrical | |
| Indoor Power Supply | 24V, 1Ph, 60Hz |
| Indoor Unit | |
| Dimensions (WxDxH) (in.) | 21 x 21 x 24 |
| Package Dimensions (WxDxH) (in.) | 20.5 x 26.13 x 26.38 |
| Net Weight (lbs) | 64 |
| Gross Weight (lbs) | 74 |
| Outdoor Unit | |
| Air Flow (Max) CFM | 3,002 |
| Sound Level (dBA) | 64 |
| Dimensions (WxDxH) (in.) | 38.56 x 16.38 x 38.38 |
| Package Dimensions (WxDxH) (in.) | 45.06 x 19.69 x 42.5 |
| Net Weight (lbs) | 204 |
| Gross Weight (lbs) | 235 |
