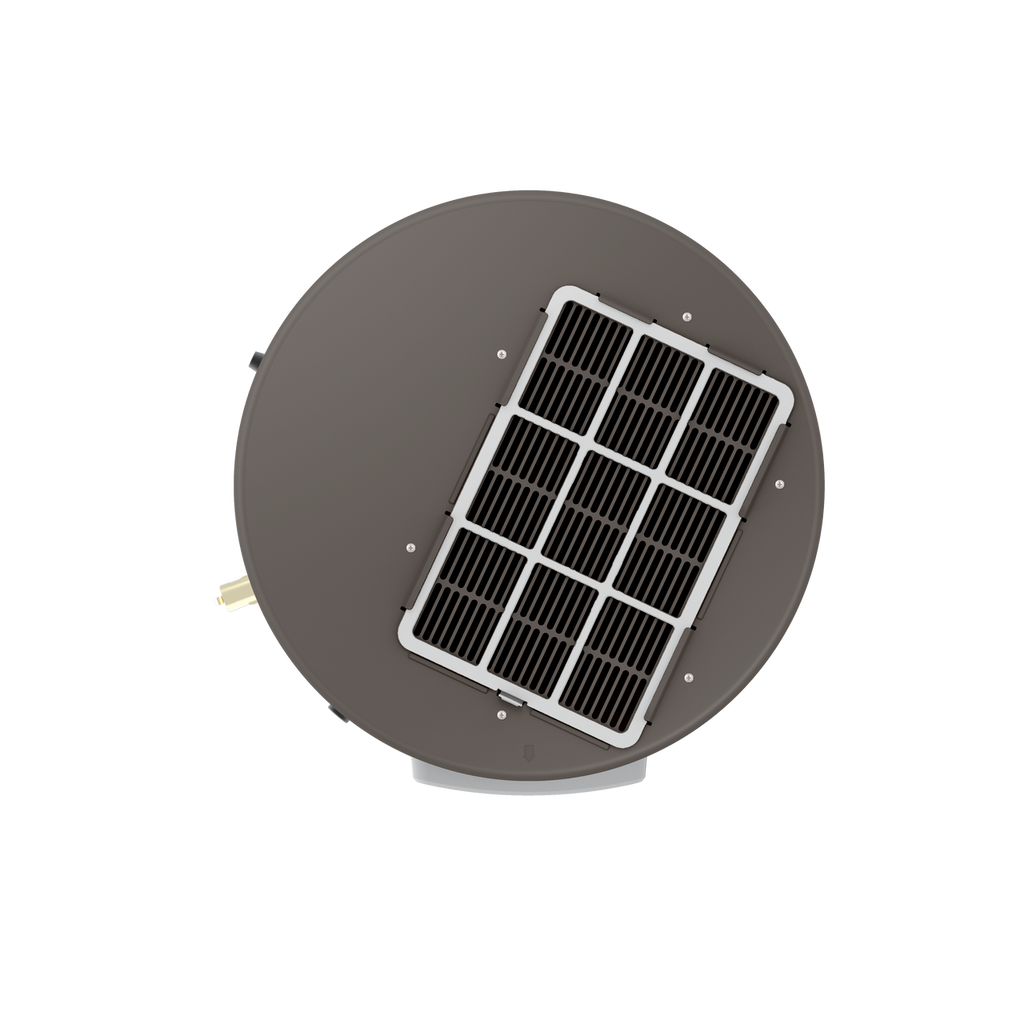

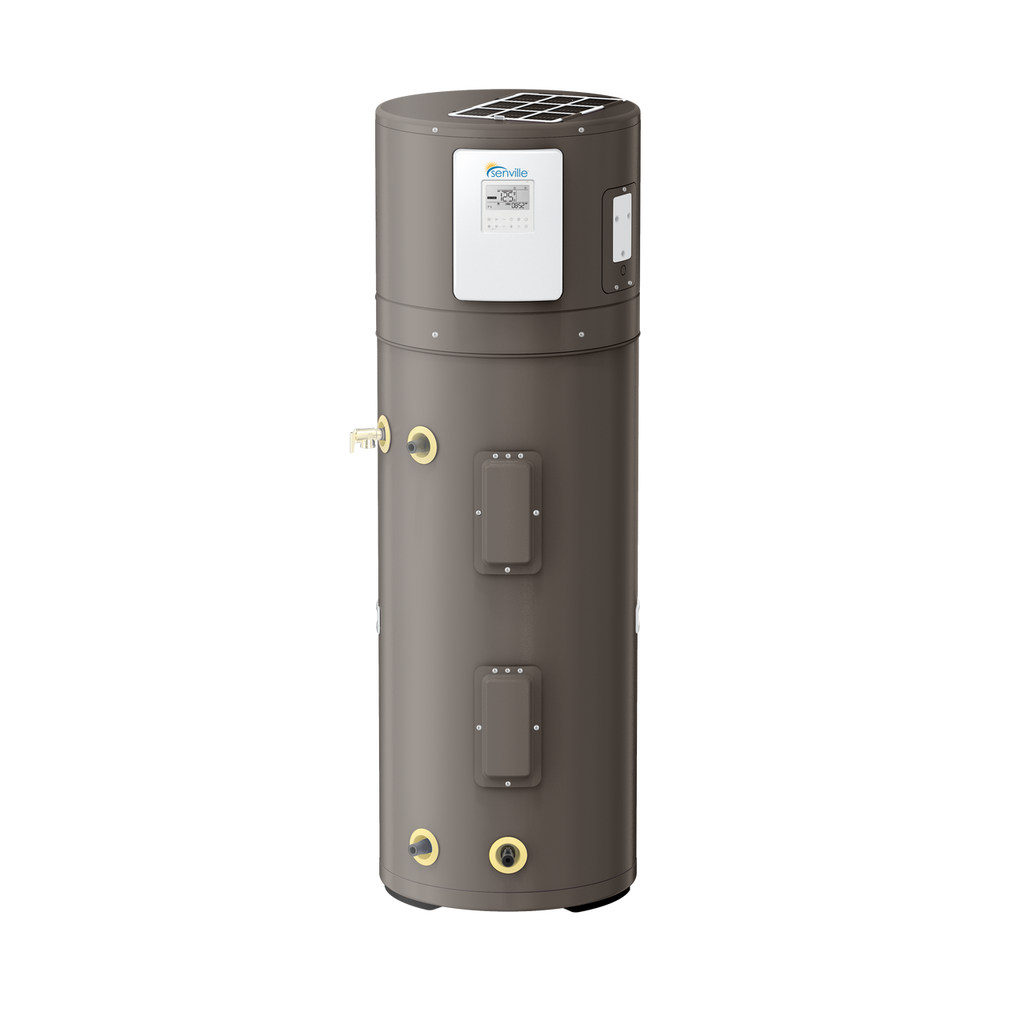

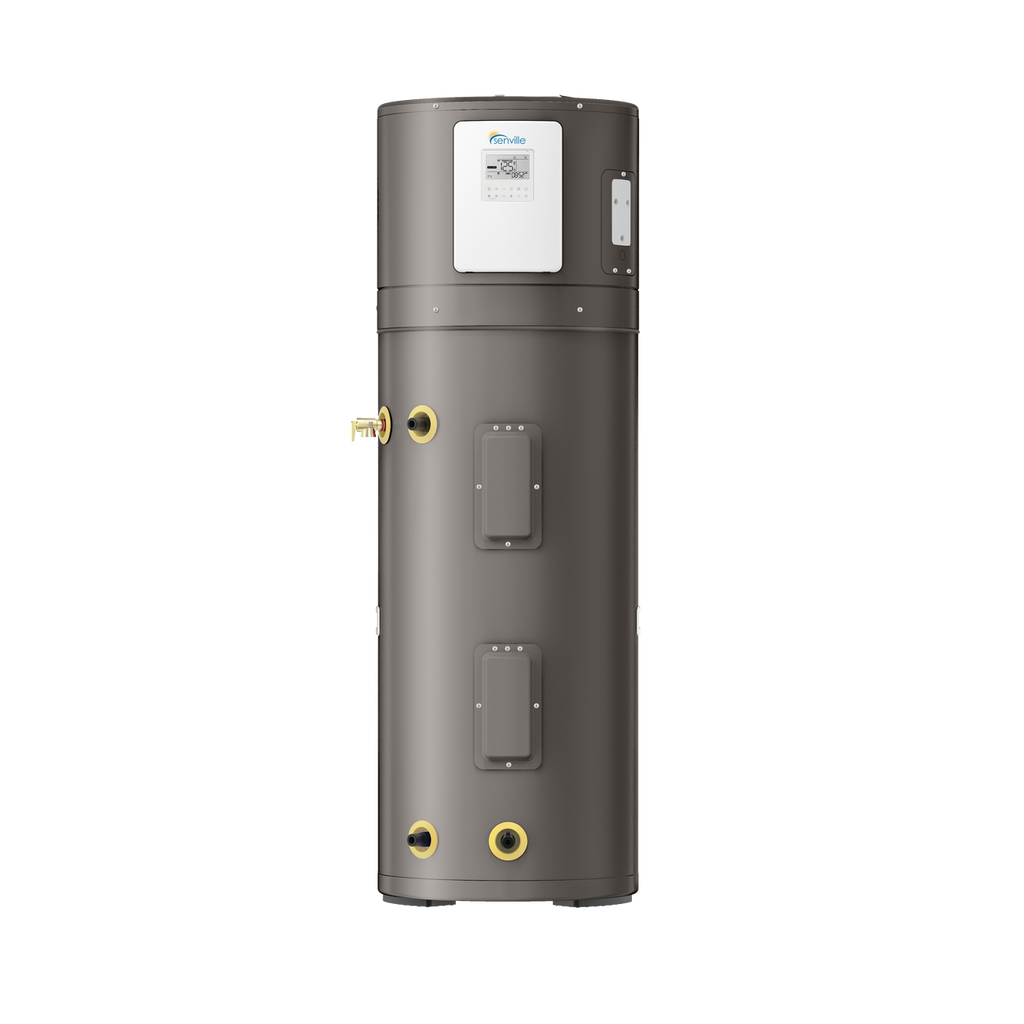

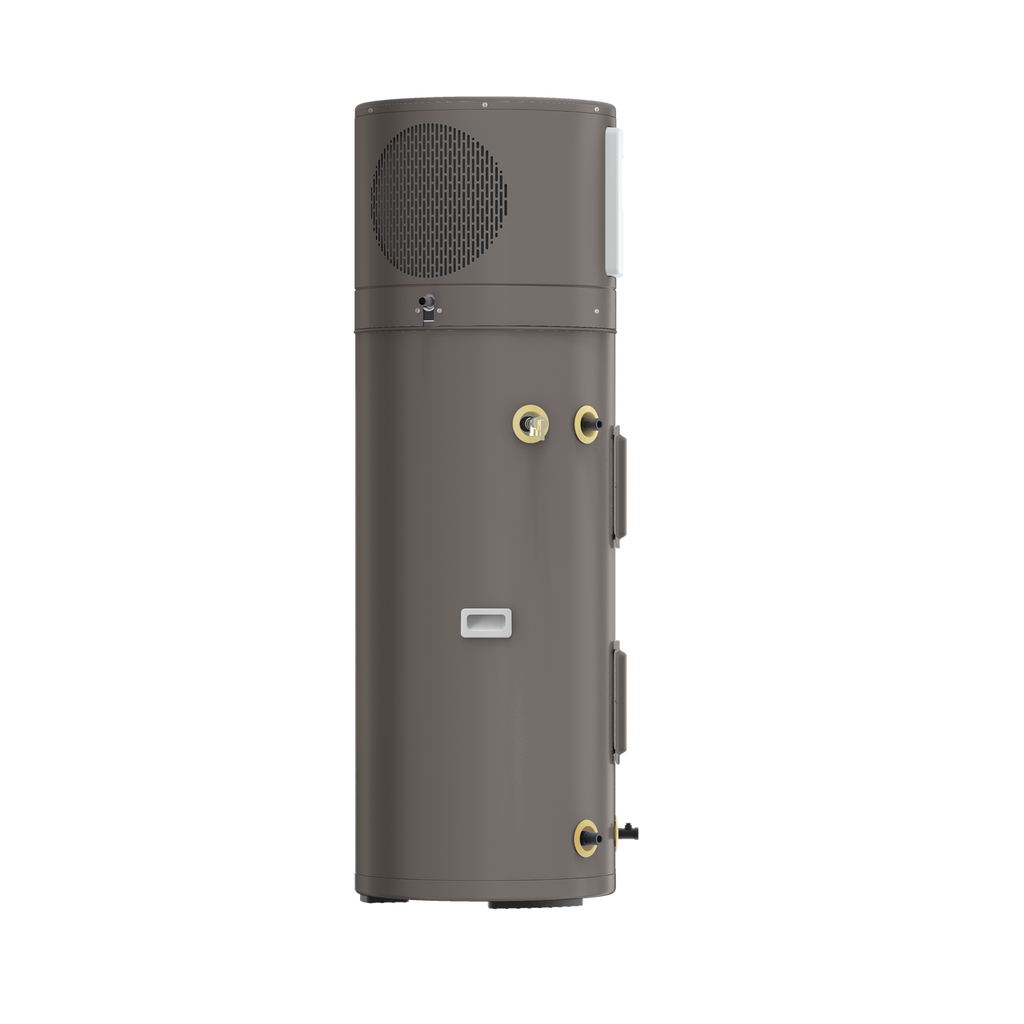

Discover the Senville SENWH-HP65, a 65-gallon heat pump water heater built for homes with higher hot-water demand. With an impressive UEF of 3.75 and a First Hour Rating (FHR) of 84 gallons, it delivers abundant hot water while significantly reducing your energy costs.
| General Information | |
|---|---|
| Brand | Senville |
| Model Number | SENWH-HP65 |
| Product Type | Heat Pump Water Heater |
| Capacity | |
| Tank Capacity | 65 gallons (61 gal nominal) |
| First Hour Rating (gal) | 84 |
| Recovery at ΔT=90°F | 27.5 GPH |
| Electrical | |
| Power Supply (V-Ph-Hz) | 240V, 1Ph, 60Hz (range 208-240V) |
| Minimum Circuit Ampacity (A) | 23.6A (208V) / 26.8A (240V) |
| Maximum Fuse (A) | 25A (208V) / 30A (240V) |
| Connection Wiring | 10 AWG × 3 |
| Efficiency | |
| UEF | 3.75 |
| Cold Climate Efficiency (CCE) | 3.0 |
| Heating Performance | |
| Upper/Lower Elements (W) | 4500 / 4500 (240V) |
| Compressor (W) / Total Input (W) | 1500 / 5500 |
| Water Outlet Temperature | 109-149°F |
| Operating Range | |
| Heat Pump Ambient Range | 37-109°F |
| Element Ambient Range | 5-115°F |
| Noise | |
| Sound Level | 49.5 dBA |
| Connections | |
| Water Connections / Drain | Inlet/Outlet 3/4 in · Drain hose 3/4 in |
| Refrigerant | |
| Refrigerant Type | R134a |
| Refrigerant Charge | 23.63 oz |
| Installation | |
| Installation Clearance | Back 0 in · Side 6 in · Top 20 in |
| Dimensions | |
| Dimensions (H × Ø) | 66.4 in × 24.25 in |
| Unit Weight | 243 lb |
| Warranty | |
| Warranty | 7-year parts / 10-year compressor |
