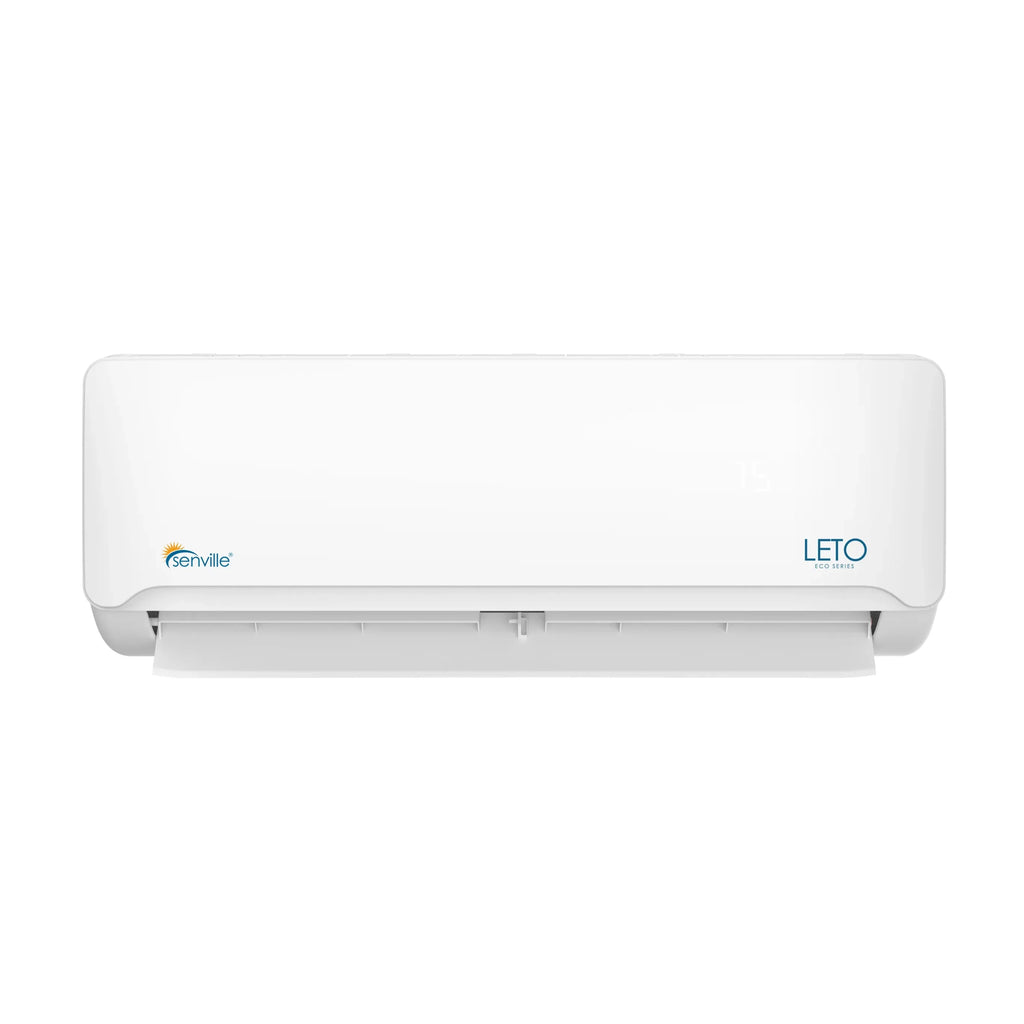

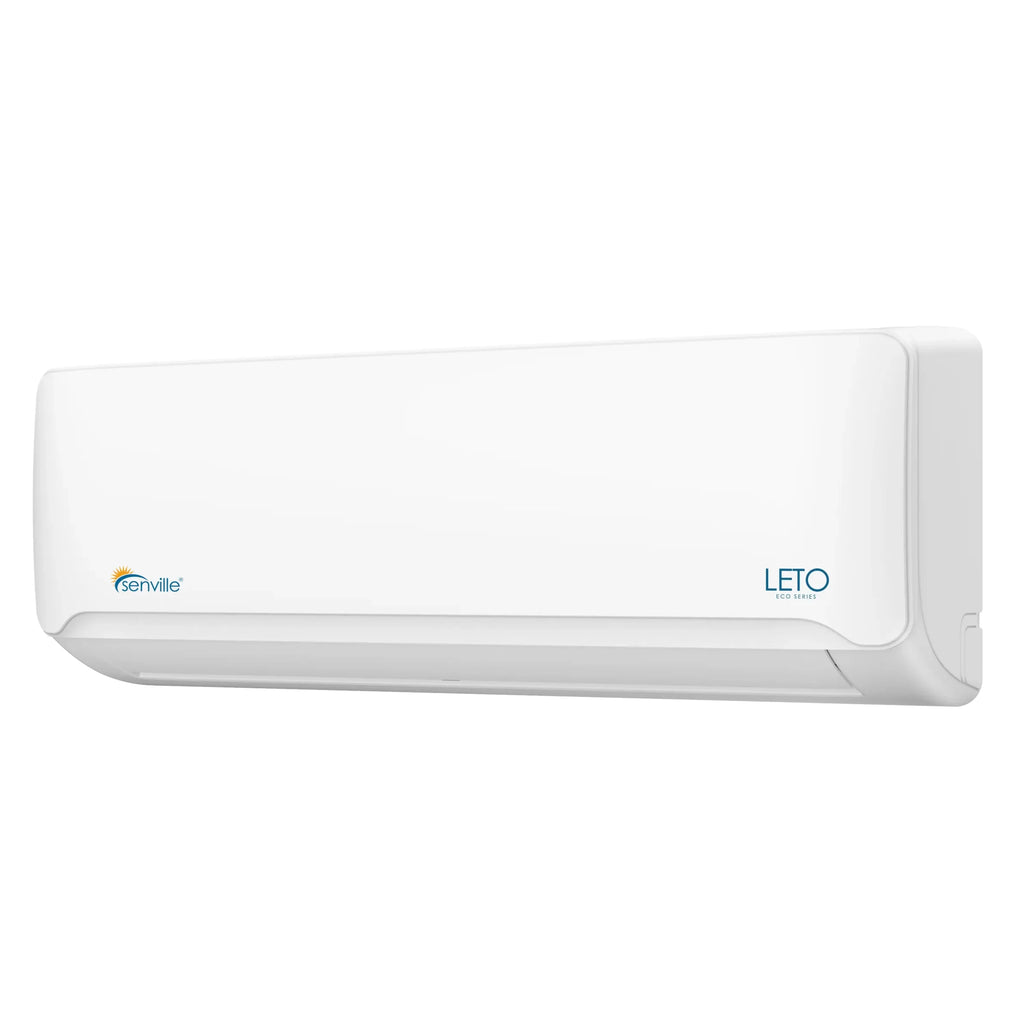

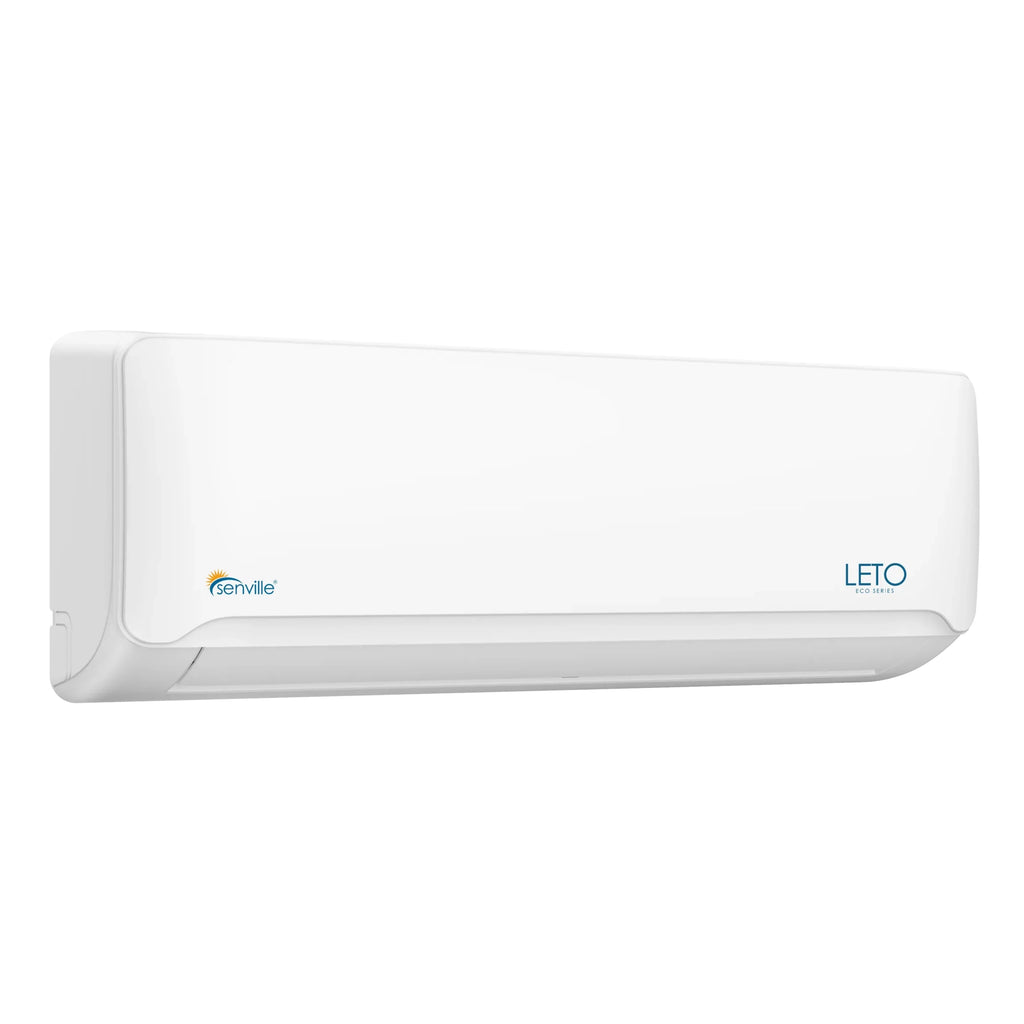

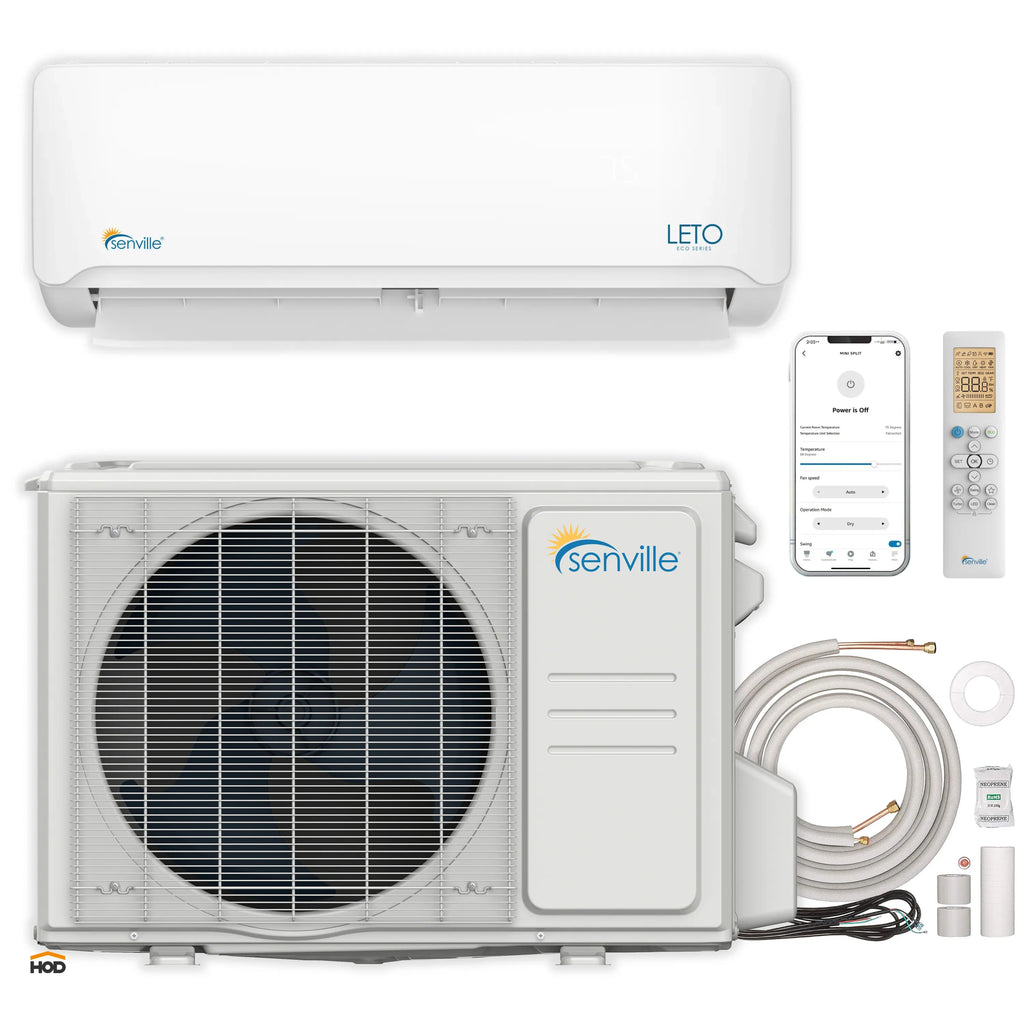

The Senville SENL-24CD-L is a 24000 BTU mini split air conditioner and heat pump that offers a versatile and affordable solution to cooling and heating your home or business.

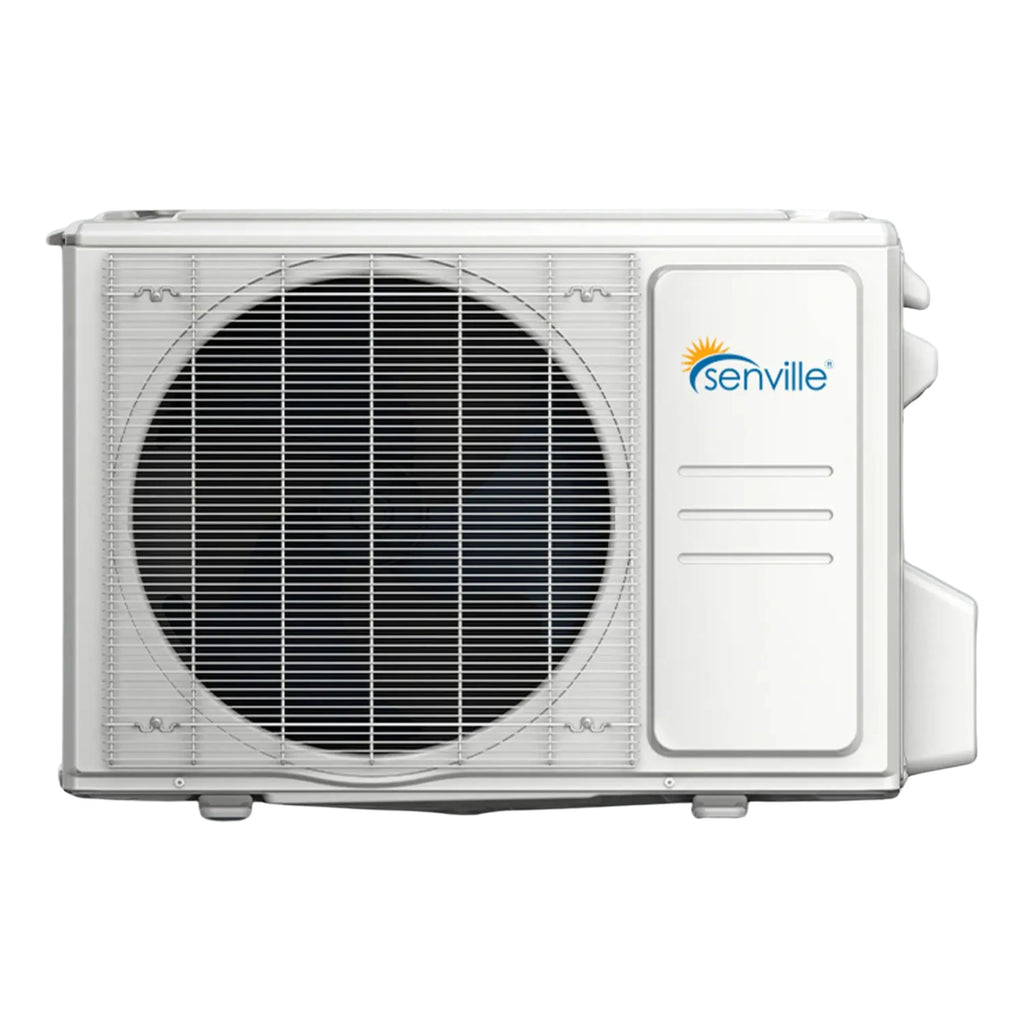

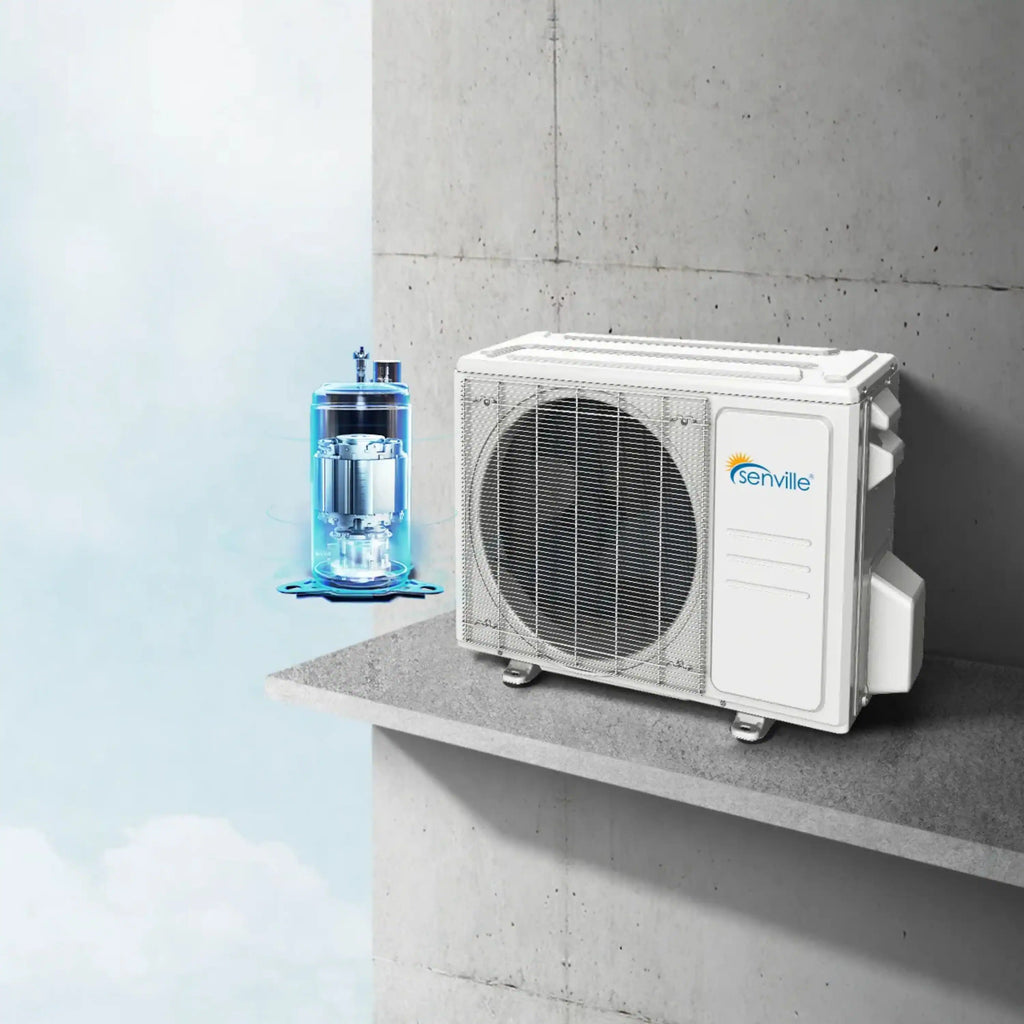

| Condenser | |
| Dimensions (WxDxH) (in.) | 35.04 x 13.46 x 26.50 |
| Weight | 94.58 lbs. |
| Air Flow (Max) CFM | 1764.7 |
| Noise Level dB | 59.5 |

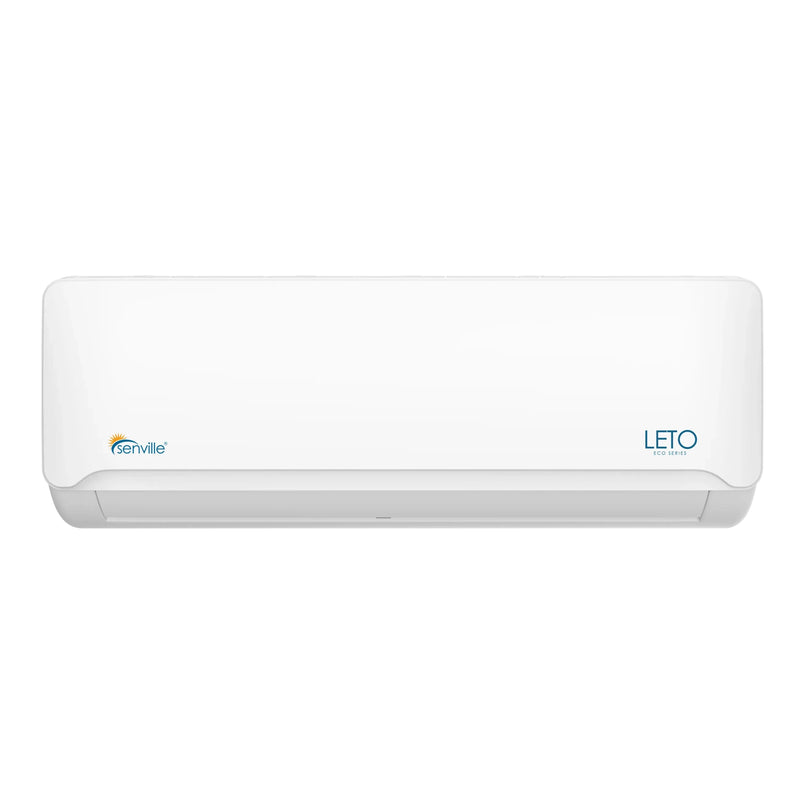

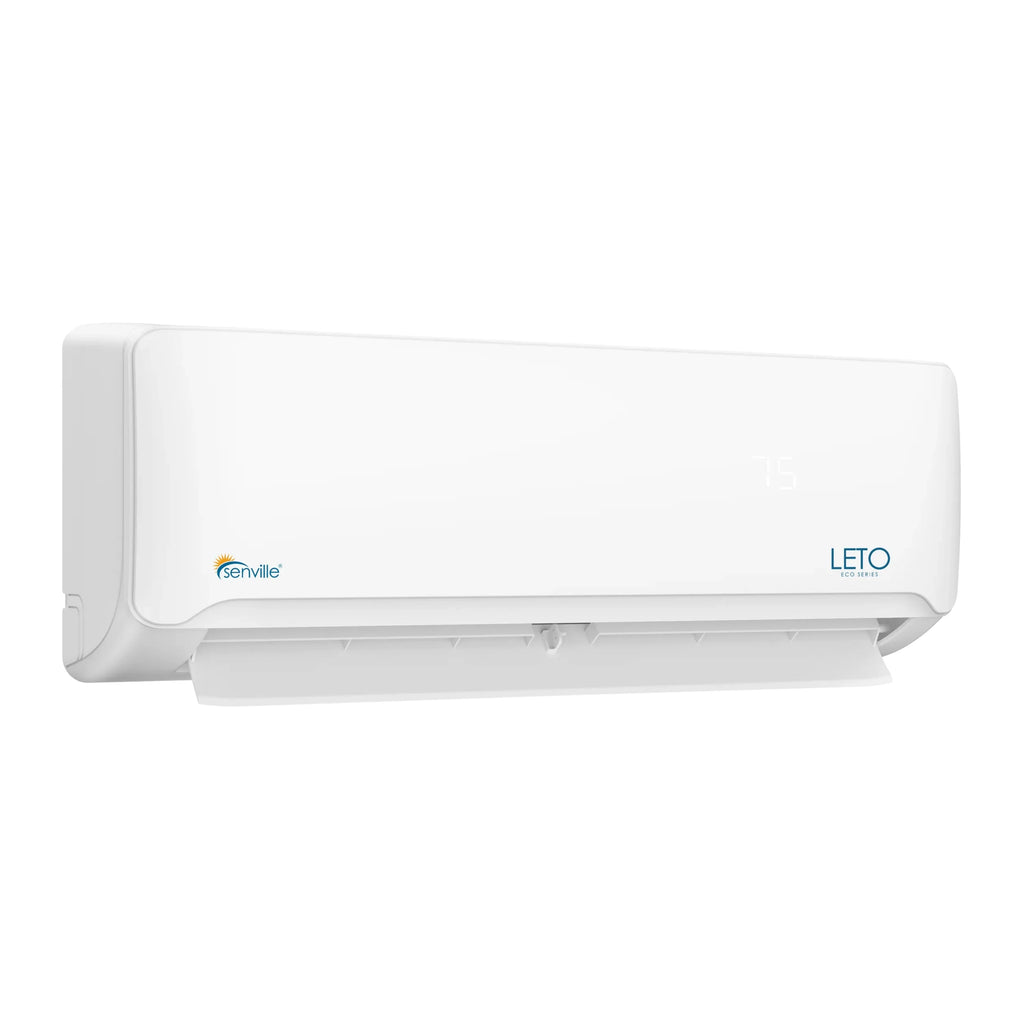

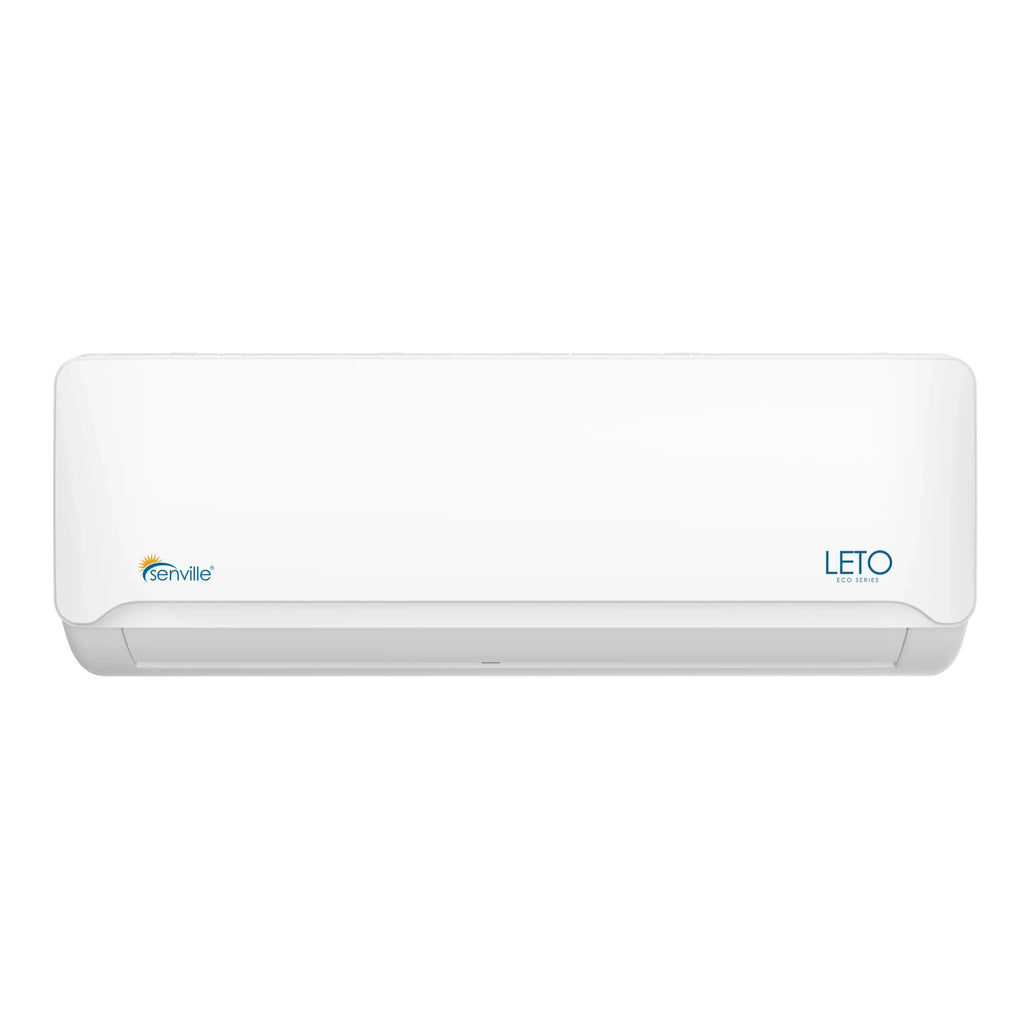

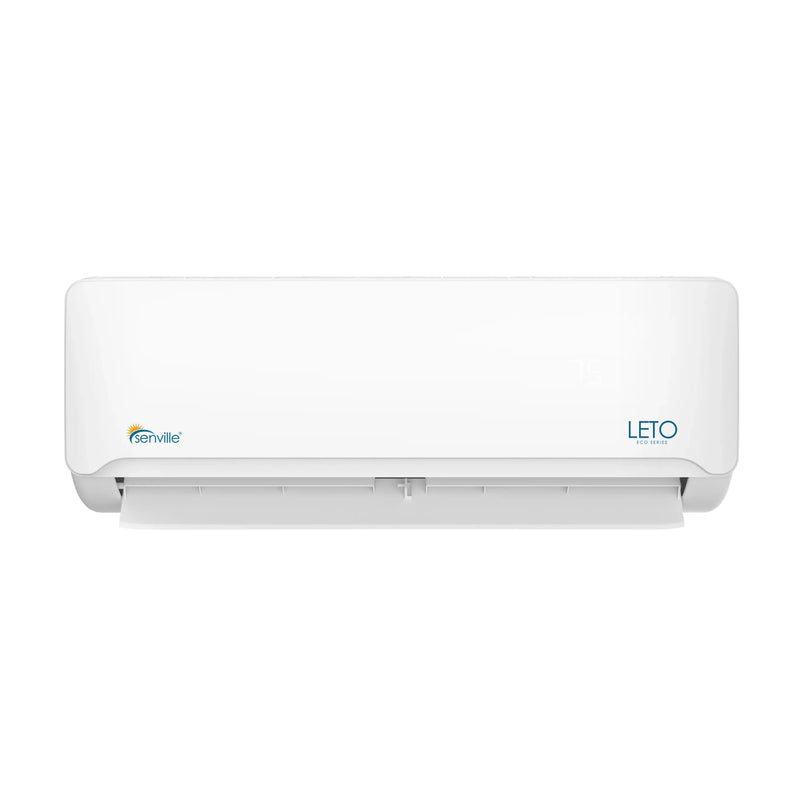

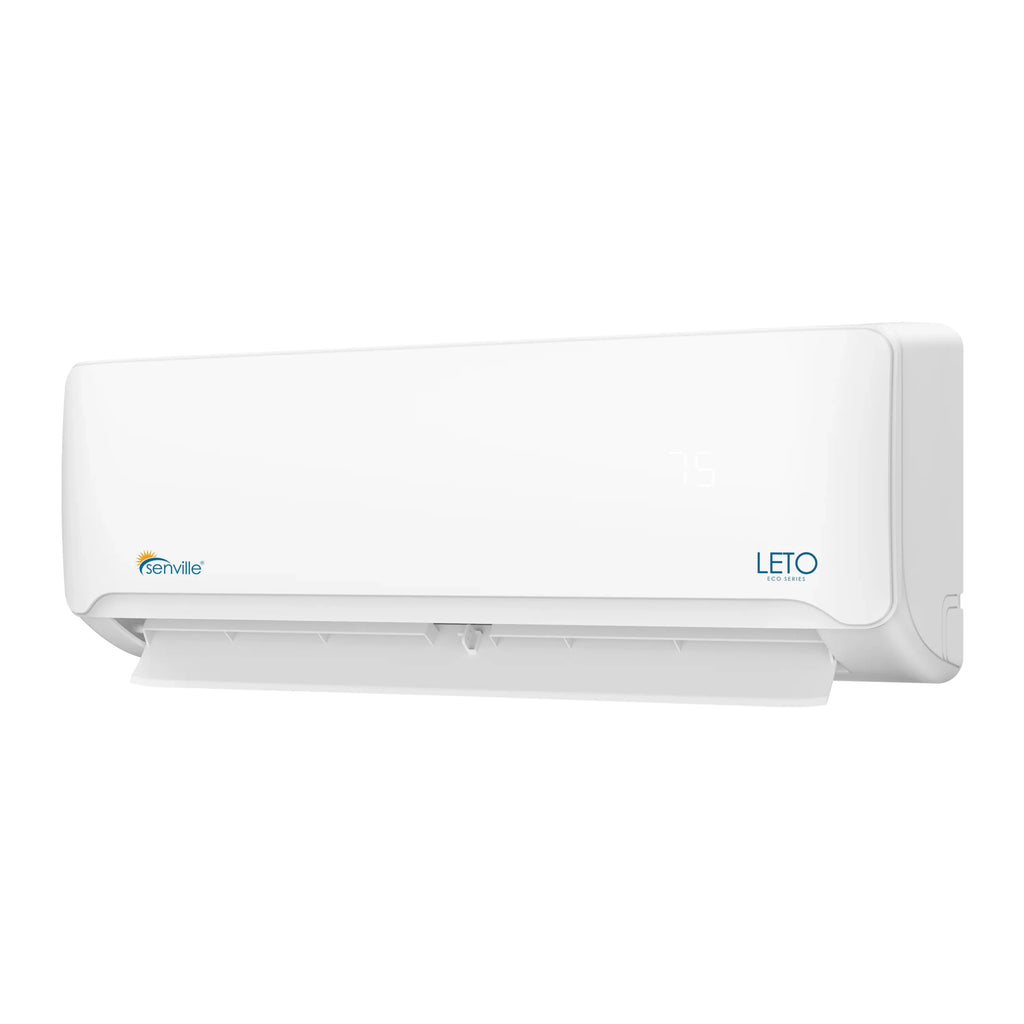

| Air Handler | |
| Dimensions (WxDxH) (in.) | 2.52 x 8.90 x 13.19 |
| Weight | 30.64 lbs. |
| Air Flow (Turbo/H/M/L) CFM | 729.9 / 529.7 / 400.2 / 329.6 |
| Noise Level (Turbo/H/M/L) dB | 56.5 / 50.5 / 44.5 / 34 |
| Technical Specifications | |
| SEER2 | 18.7 |
| EER2 | 10 |
| Style | Ductless Mini Split AC With Heat Pump |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| Cooling Capacity (BTU) | 24000 |
| Cooling Range (BTU) | 5500~24200 |
| Cooling Input Range (W) | 480~2590 |
| Cooling Current Range (A) | 2.1~11.3 |
| Heating Capacity (BTU) | 24000 |
| Heating Range (BTU) | 6300~27000 |
| Heating Input Range (W) | 410~2690 |
| Heating Current Range (A) | 2.2~11.8 |
| HSPF2-4 | 9.3 |
| HSPF2-5 | 7.3 |
| COP W/W | 3.31 |
| Minimum Circuit Ampacity (A) | 19 |
| Max. Fuse (A) | 20 |
| Moisture Removal (L/H) | 3 |
| Refrigerant Type | R454B |
| Refrigerant Pre-charge | 25 ft. |
| Connection Wiring | 14*4 AWG |

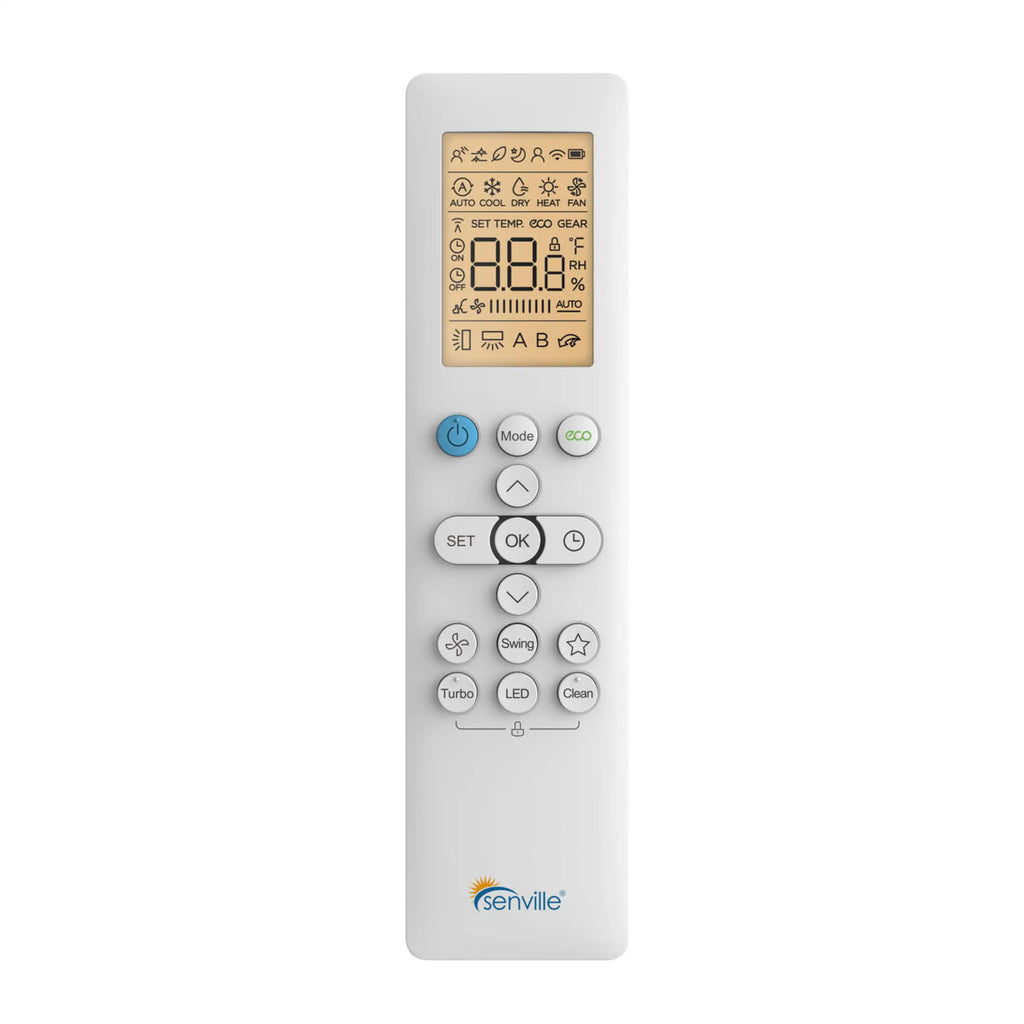

| Thermostat Type | Remote Control |

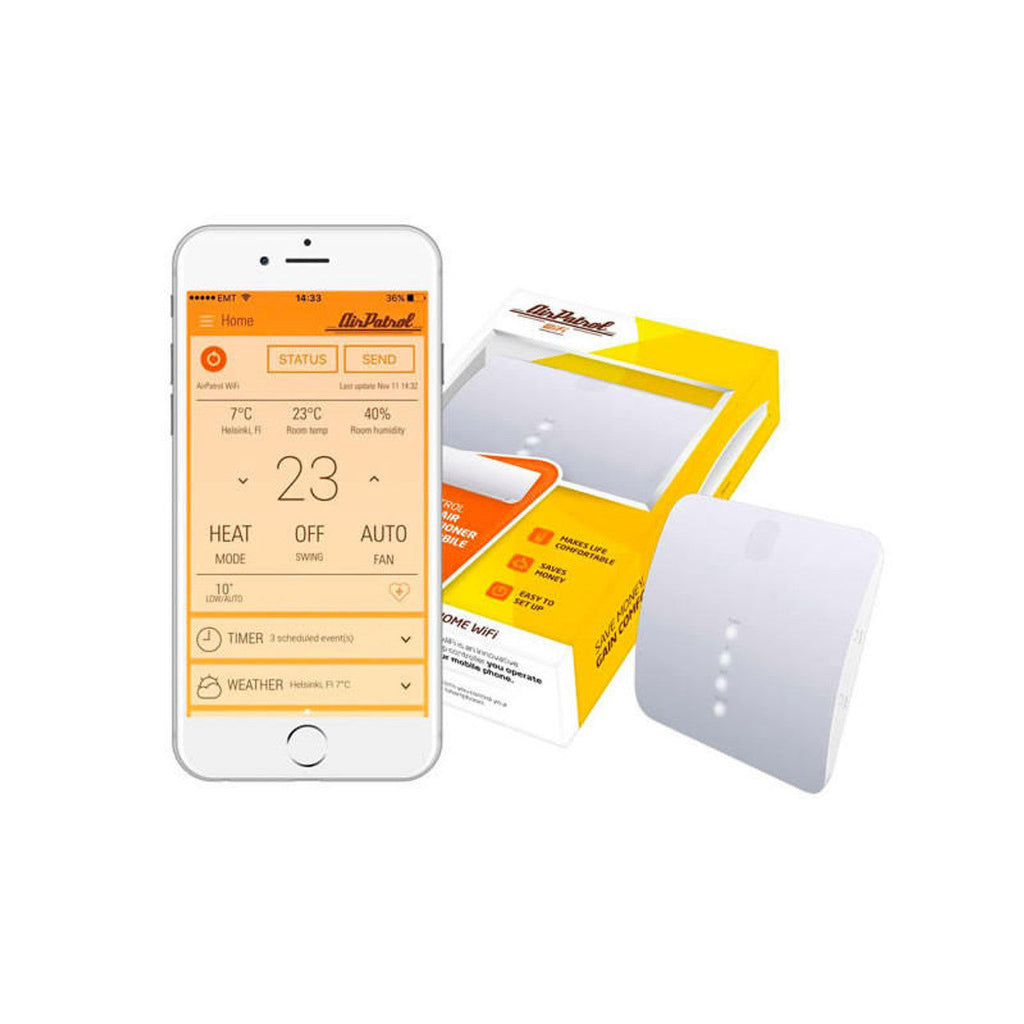

| Alexa | Enabled |
| Warranty | 5 Years Compressor / 5 Years Parts |
| Certification | ETL Certified/ AHRI Certified |
