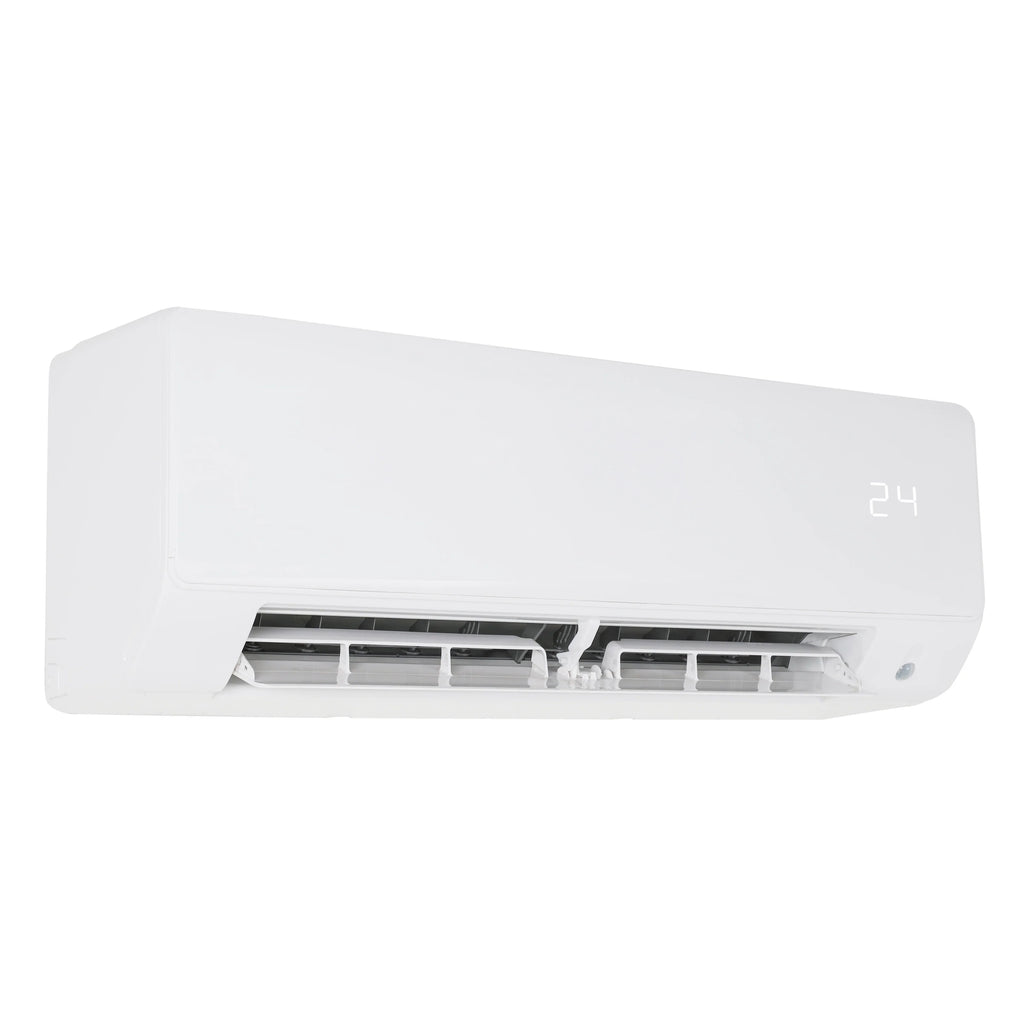

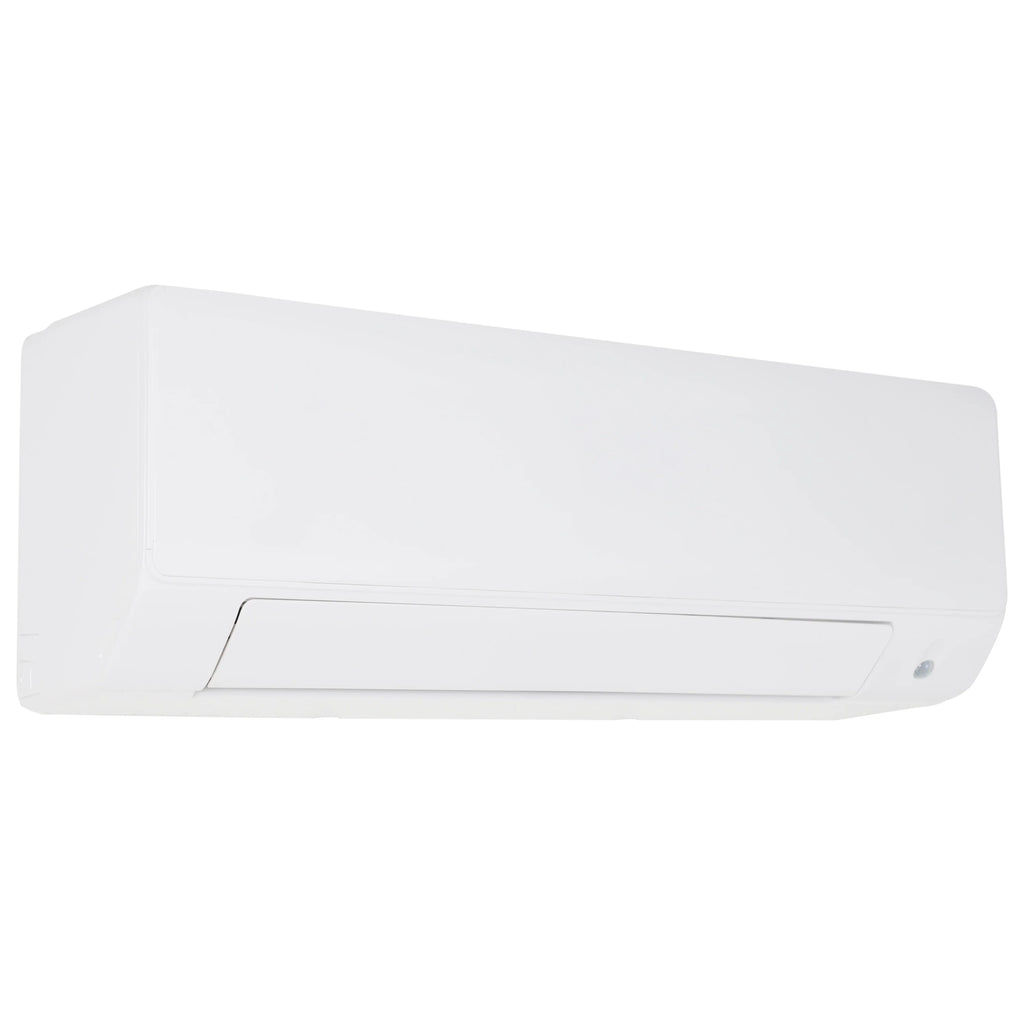

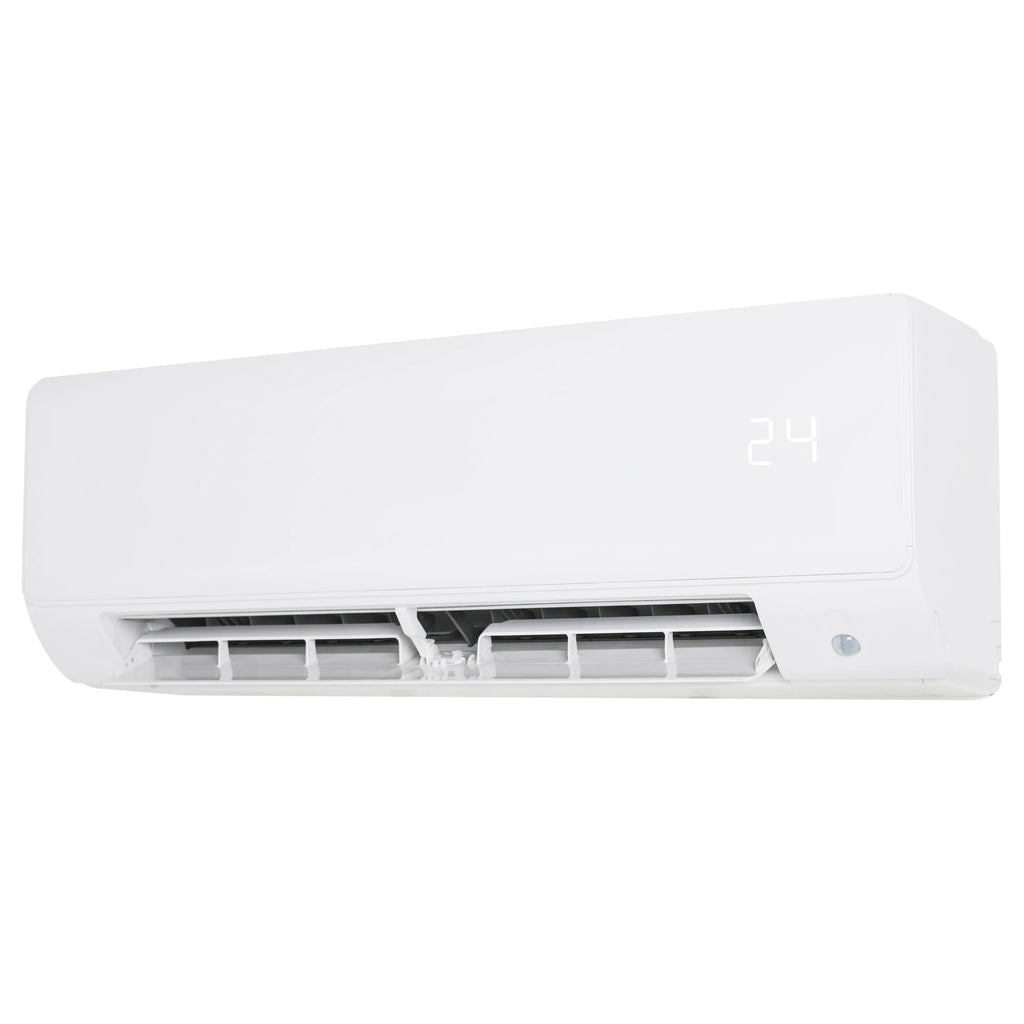

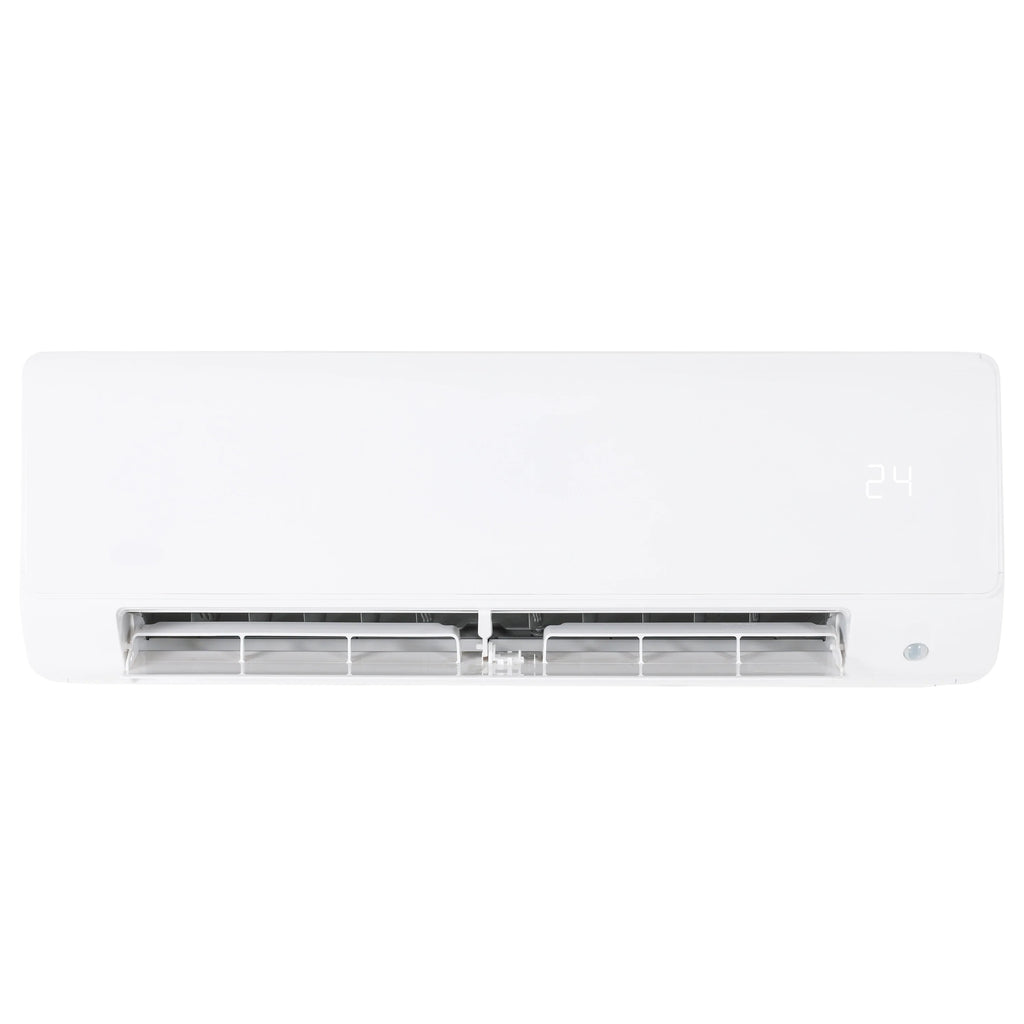

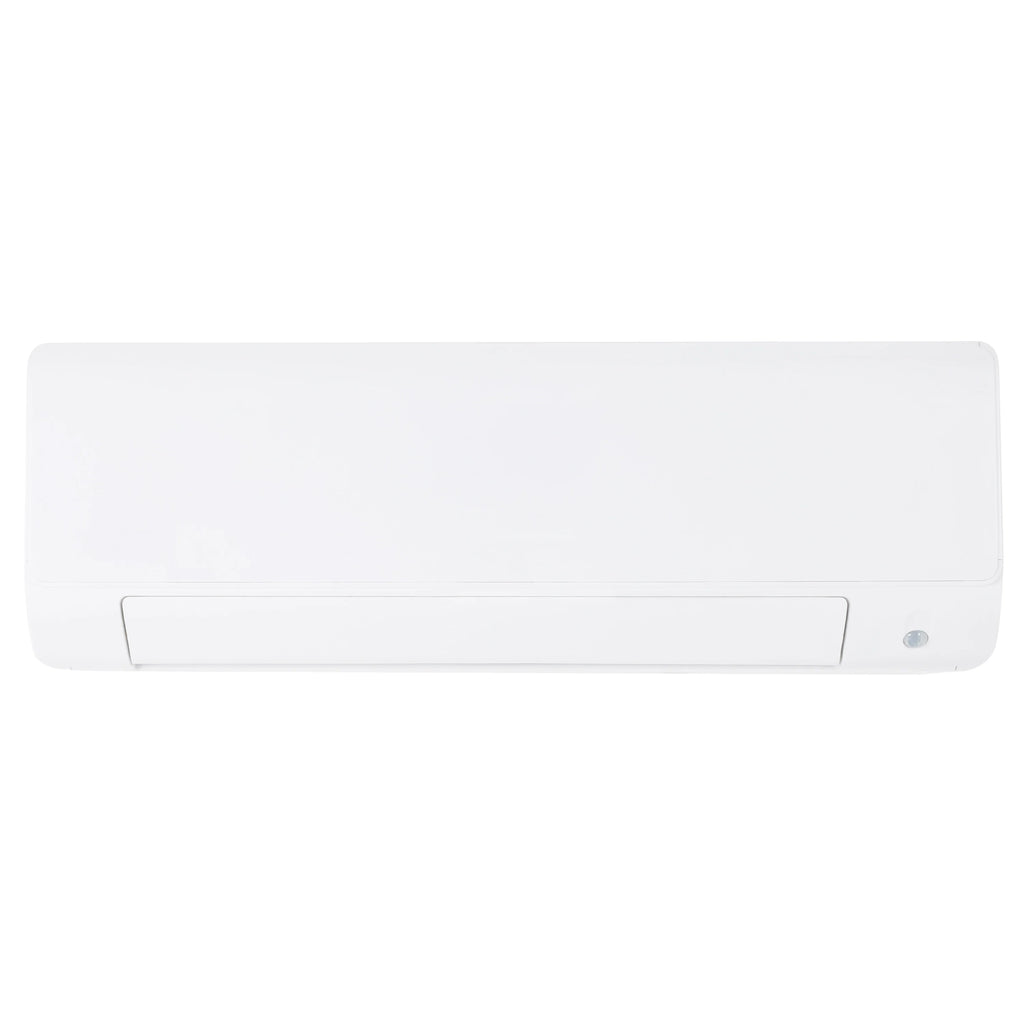

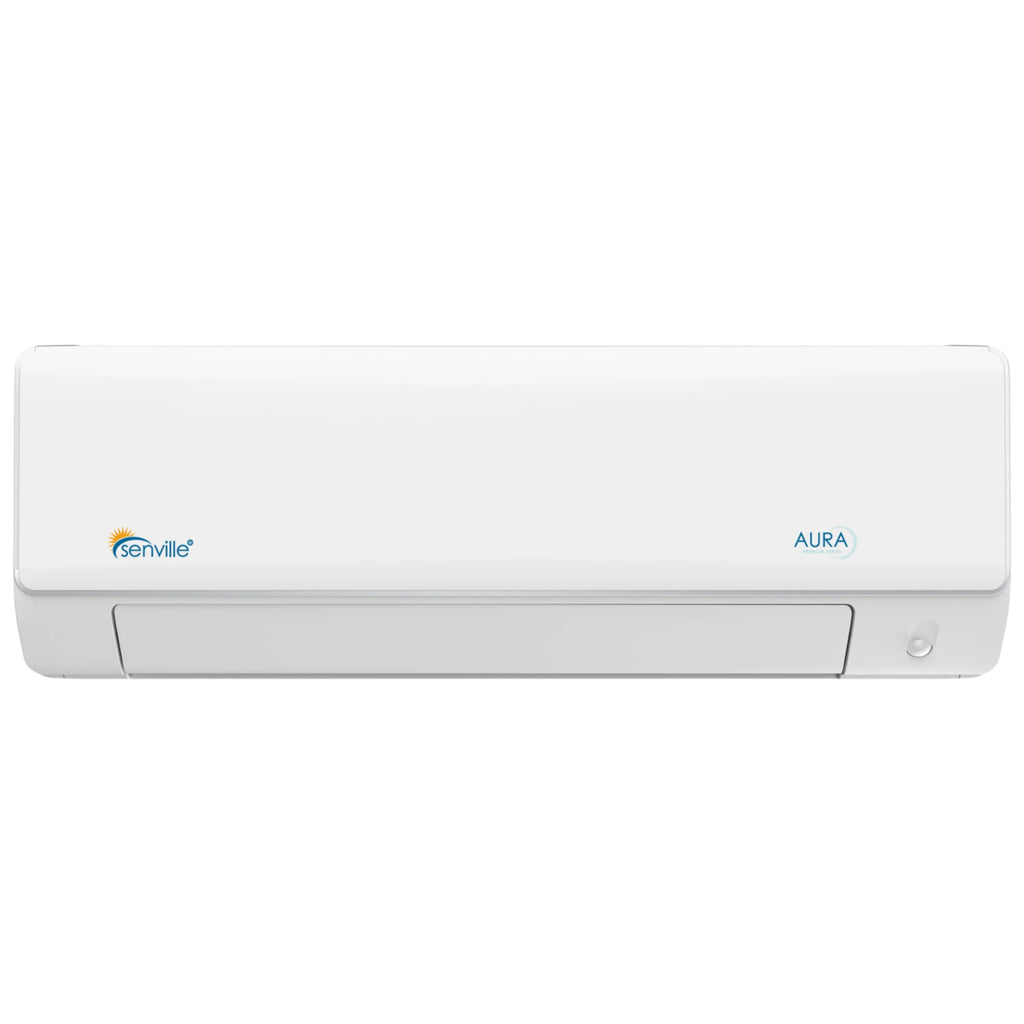

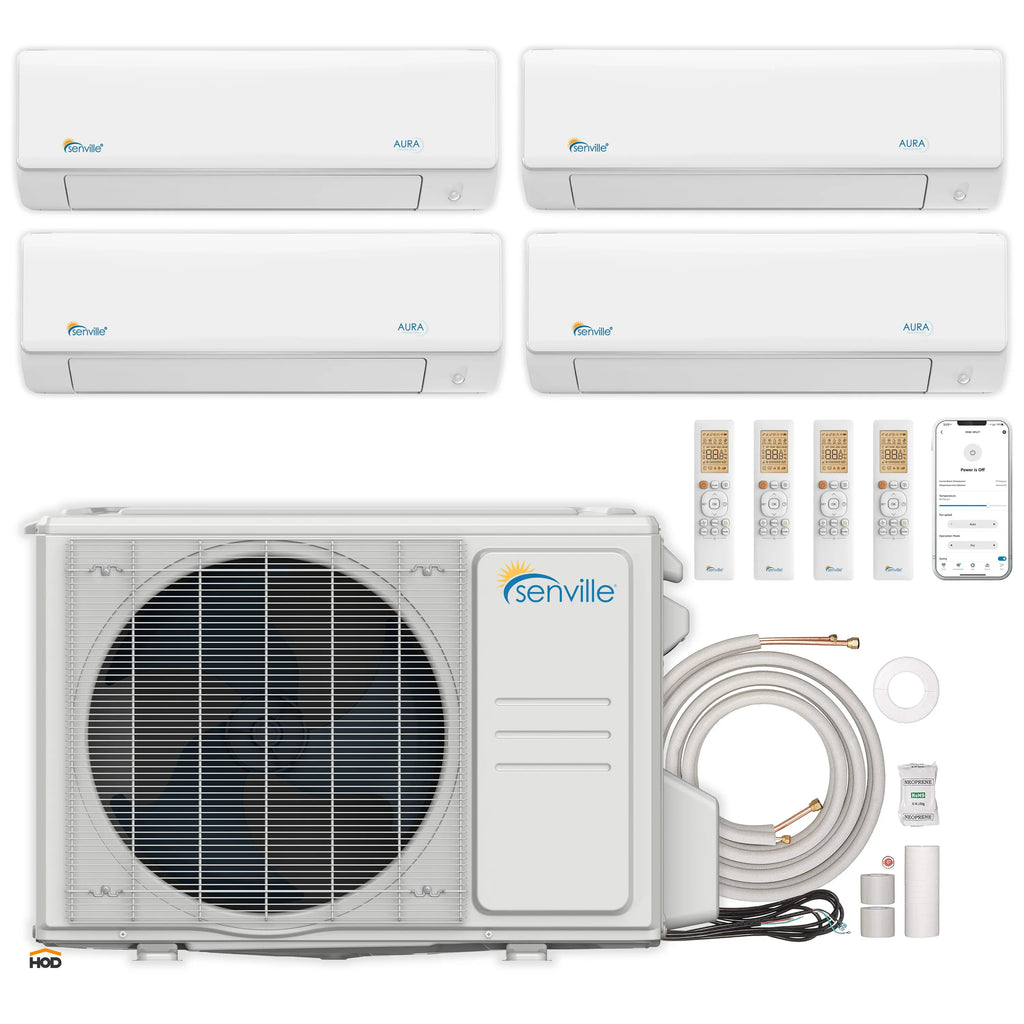

Senville SENA-36HF/Q is a high-efficiency 36,000 BTU quad-zone ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It provides reliable heating and cooling performance even in extreme climates and is ideal for larger multi-room applications.

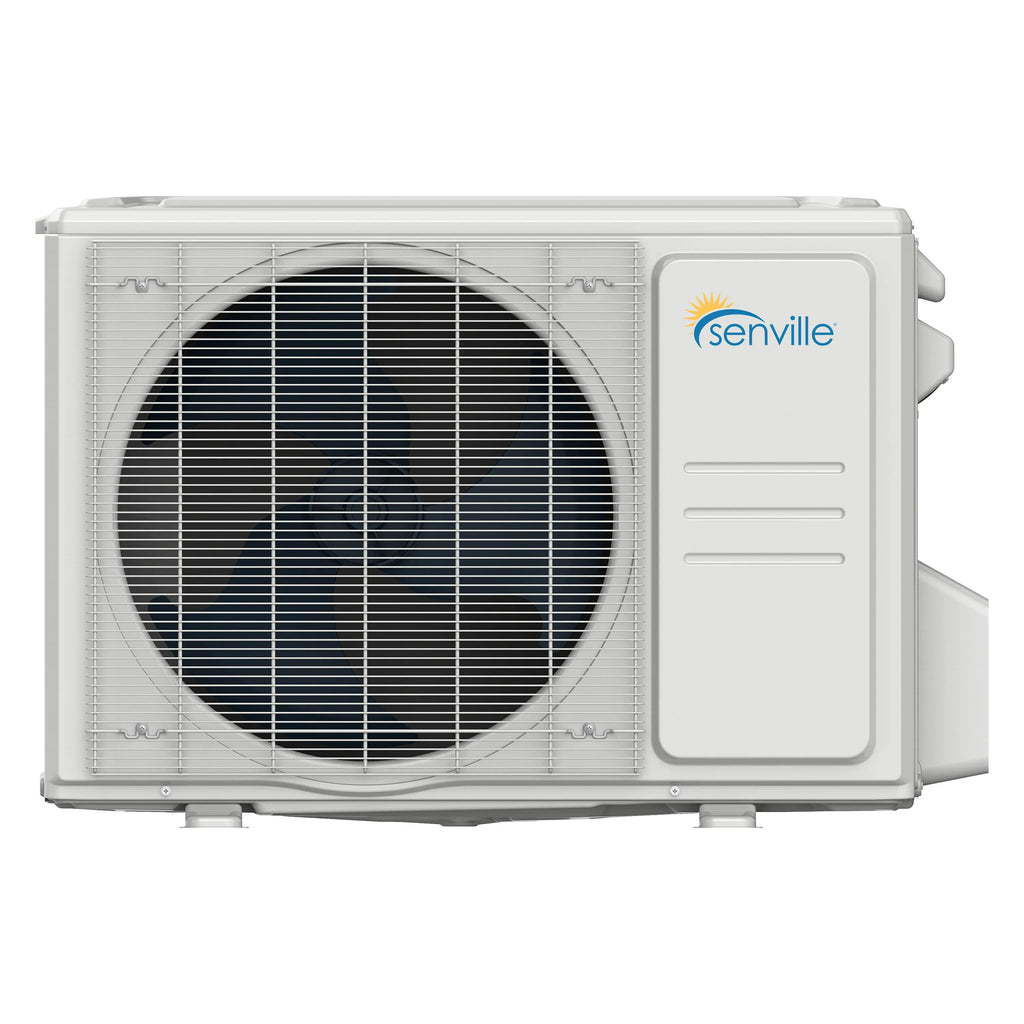

| Condenser | |
| Dimensions (WxDxH) (in.) | 38.58 x 16.34 x 38.39 |
| Weight | 211.86 Lbs |
| Air Flow (Max) CFM | 3037.2 |
| Noise Level dB | 65 |
| Technical Specifications | |
| Style | Ductless Mini Split AC With Heat Pump |
| Number of Zones | 4 |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187–253 |
| SEER2 | 23 |
| EER2 | 13 |
| Cooling Capacity (BTU) | 36,000 |
| Cooling Range (BTU) | 9,000~43,000 |
| Cooling Input Range (W) | 600~4000 |
| Cooling Current Range (A) | 5.2~17.8 |
| Heating Capacity (BTU) | 36,000 |
| Heating Range (BTU) | 10,000~44,000 |
| Heating Input Range (W) | 600~3750 |
| Heating Current Range (A) | 5.2~16.6 |
| HSPF2-4 | 10.7 |
| HSPF2-5 | 8.5 |
| COP W/W | 4 |
| Minimum Circuit Ampacity (A) | 37 |
| Max. Fuse (A) | 40 |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Refrigerant Type / Charge | R454B / 134.04 oz |

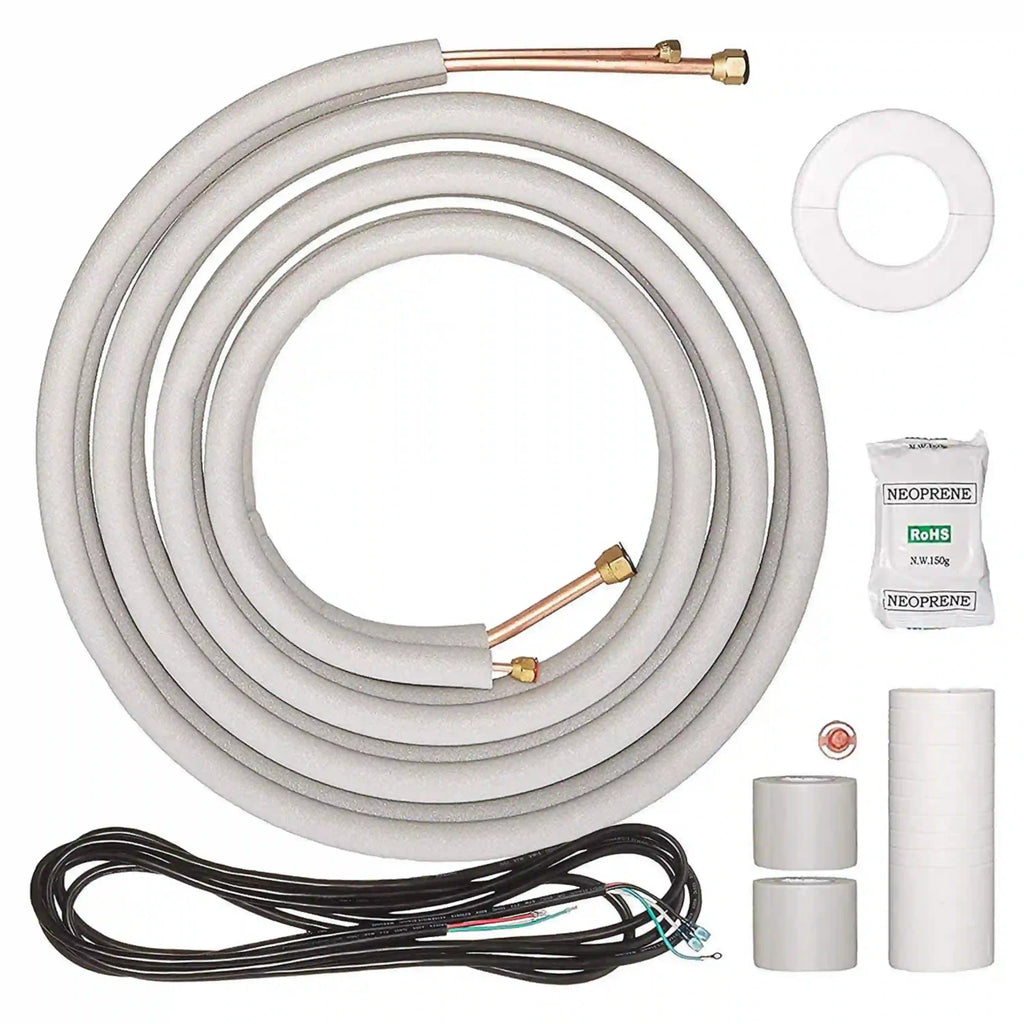

| Refrigerant Pre-charge | 100 Ft. |
| Warranty | 10 Years Compressor / 5 Years Parts |
