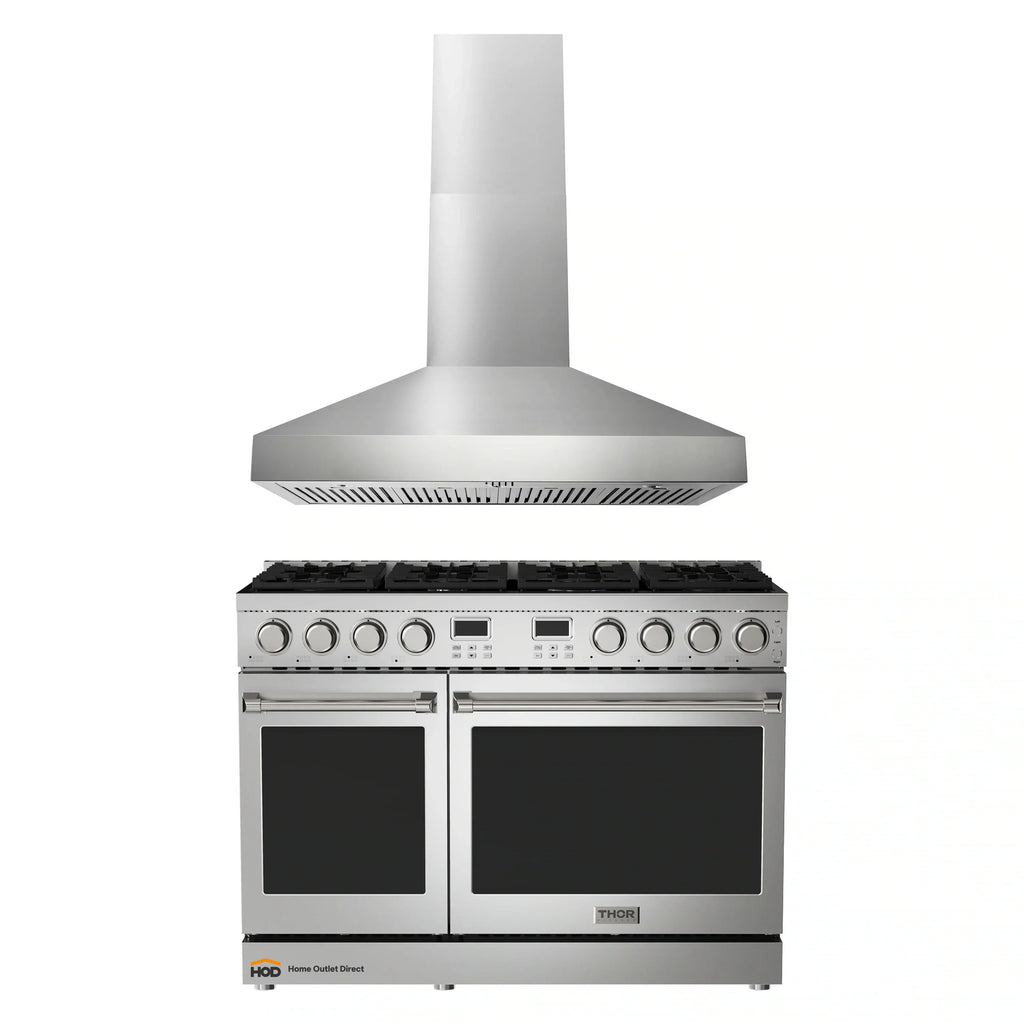

Upgrade your kitchen with the THOR Kitchen 48" Stainless Steel Range, a high-performance cooking appliance designed for precision, power, and convenience. Featuring a spacious 7.6 cu. ft. oven capacity, dual ovens, and eight sealed burners, this range ensures you have everything you need to create delicious meals with ease. Its sleek stainless steel design adds a modern touch to any kitchen while offering durability and functionality.
| Product Dimensions (WxDxH) | 47-7/8” x 26-1/2” x 37-1/8” |
| Adjustable Leg Sizes | 3” Max |
| Cutout Dimensions (WxDxH) | 48" x 24-3/4" x 36"-39" |
| Package Dimensions (WxDxH) | 51-3/8” x 30-1/8” x 45-2/7” |
| Net weight | 311 lbs |
| Gross weight | 377 lbs |
| Fuel Type | Natural Gas (ARG48) Liquid Propane (ARG48LP) |
| Installation Type | Freestanding |
| Burner Type | Sealed burners |
| Type of grate | Continuous |
| Amperage | 15A |
| Volts | 120V |
| Frequency | 60Hz |
| Control Type | Knob/Button |
| Plug Type | US 3-prong |
| Cord Length | 59” |
| Total Burners | 8 |
| [1] Front Left Burner | 18,000 BTU (Single) |
| [2] Front Left Center Burner | 12,000 BTU (Single) |
| [3] Front Right Center Burner | 22,000 BTU (Dual) |
| [4] Front Right Burner | 18,000 BTU (Single) |
| [5] Rear Left Burner | 9,500 BTU (Single) |
| [6] Rear Left Center Burner | 12,000 BTU (Single) |
| [7] Rear Right Center Burner | 12,000 BTU (Single) |
| [8] Rear Right Burner | 9,500 BTU (Single) |
| Oven Capacity | 4.8 cu.ft. +2.8 cu.ft. |
| Oven Features |
30” Oven: Bake, Broil, Conv bake, Conv Roast, Pizza, Keep Warm 18” Oven: Bake, Conv bake, Pizza, Keep Warm |
| Other Features | Clock, Timer, Adjust Temperature |
| Self Clean/ Air Fry | No |
| Bake Burner Power | 30” Oven: 22,000 BTU 18” Oven: 14,000 BTU |
| Broil Burner Power | 30” Oven: 13,500 BTU |
| Convection | Convection Fan |
| Oven Light | 1 in Each Oven |
| Oven Racks | 30” Oven:1 Standard, 1 Telescopic 18” Oven:1 Standard, 1 Telescopic |
| Oven Rack Material | Chrome Plated |
| Baking Sheet Size | 30” Oven: Fits 29” x 16” Baking sheet 18” Oven: Fits 16” x 12 1/2’’ Baking sheet |
| Oven Internal Height | 18" |
| Oven Internal Width | 30” Oven: 23-3/4’’ 18” Oven: 12-5/8’’ |
| Oven Internal Depth | 19-1/2’’ |
This liquid propane conversion kit only applies to the Thor Kitchen 48" Gas Range - ARG48 ONLY
A certified Technician should install this LP Kit.

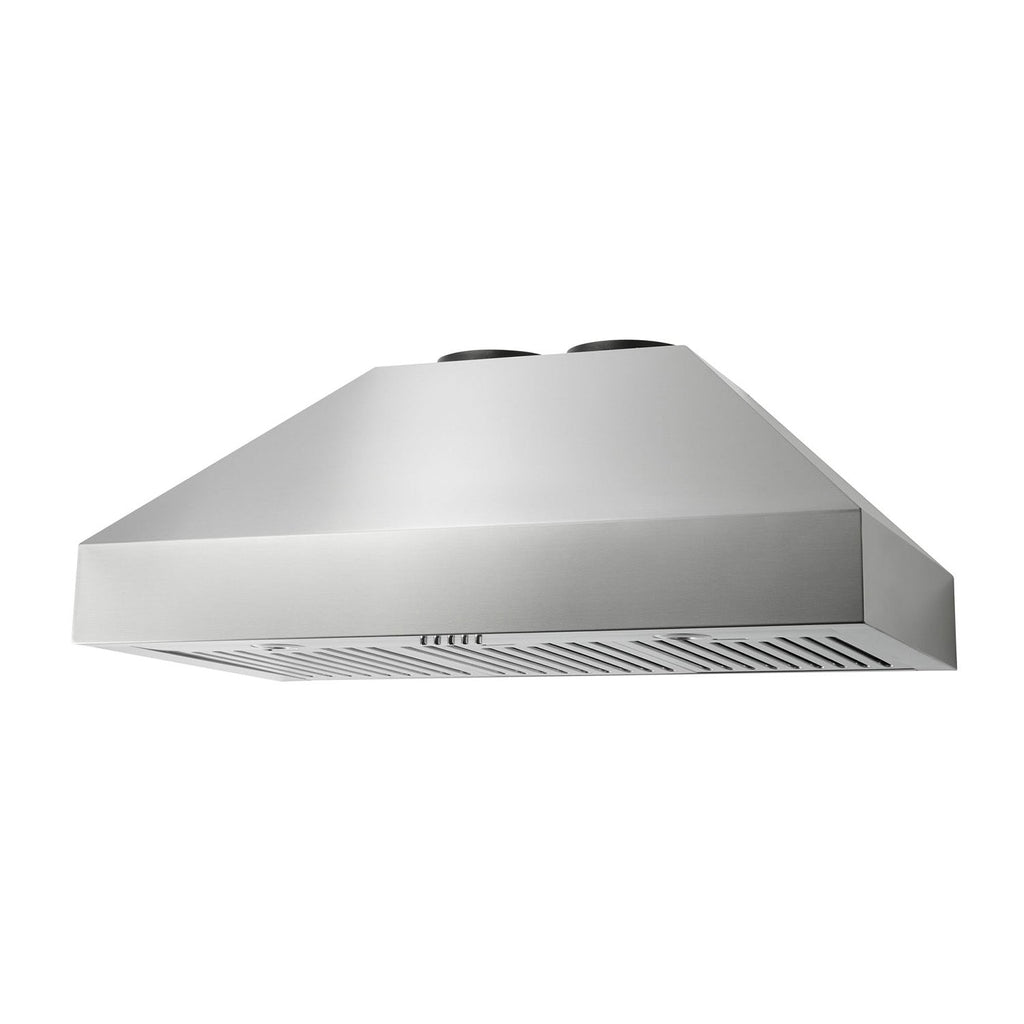

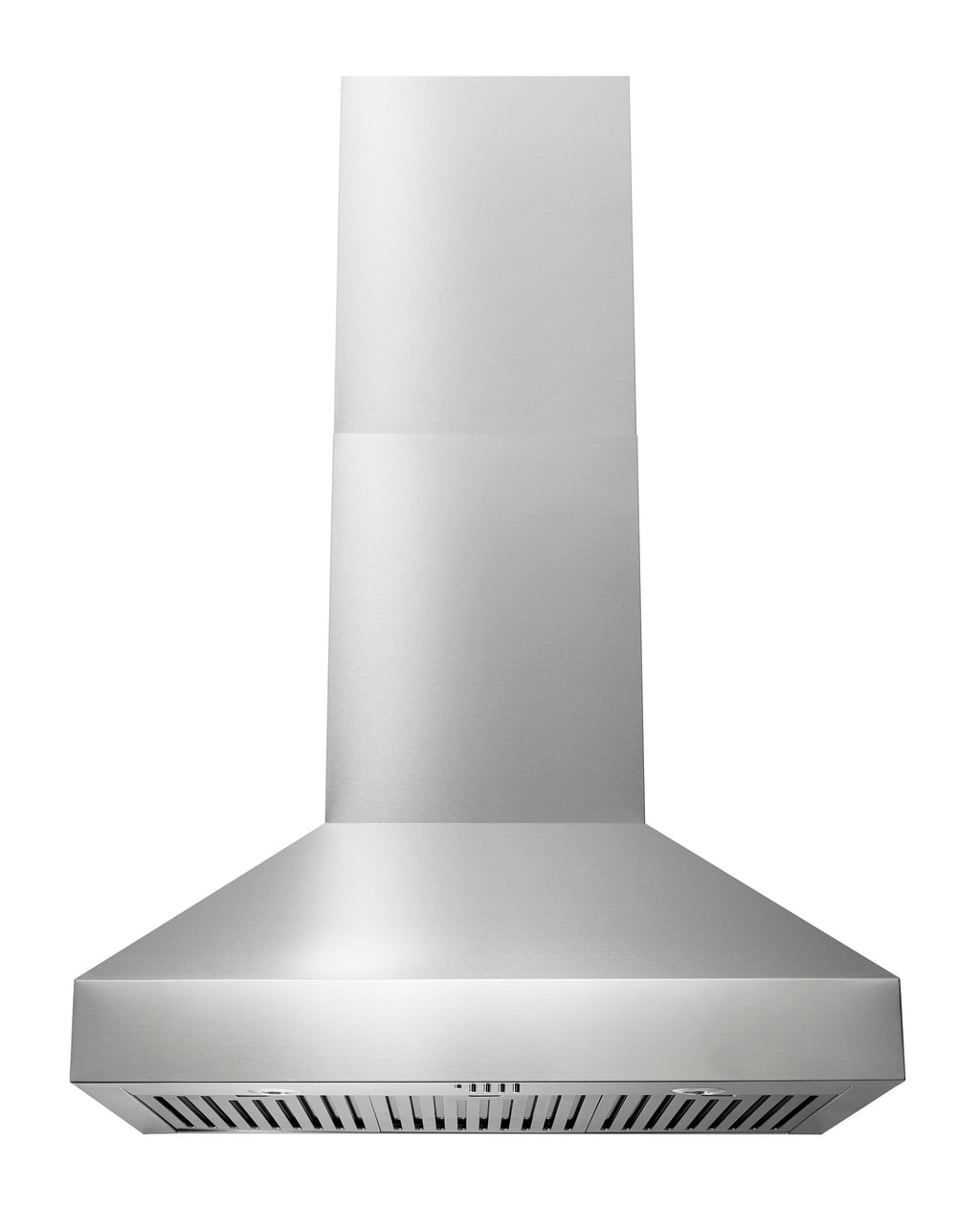

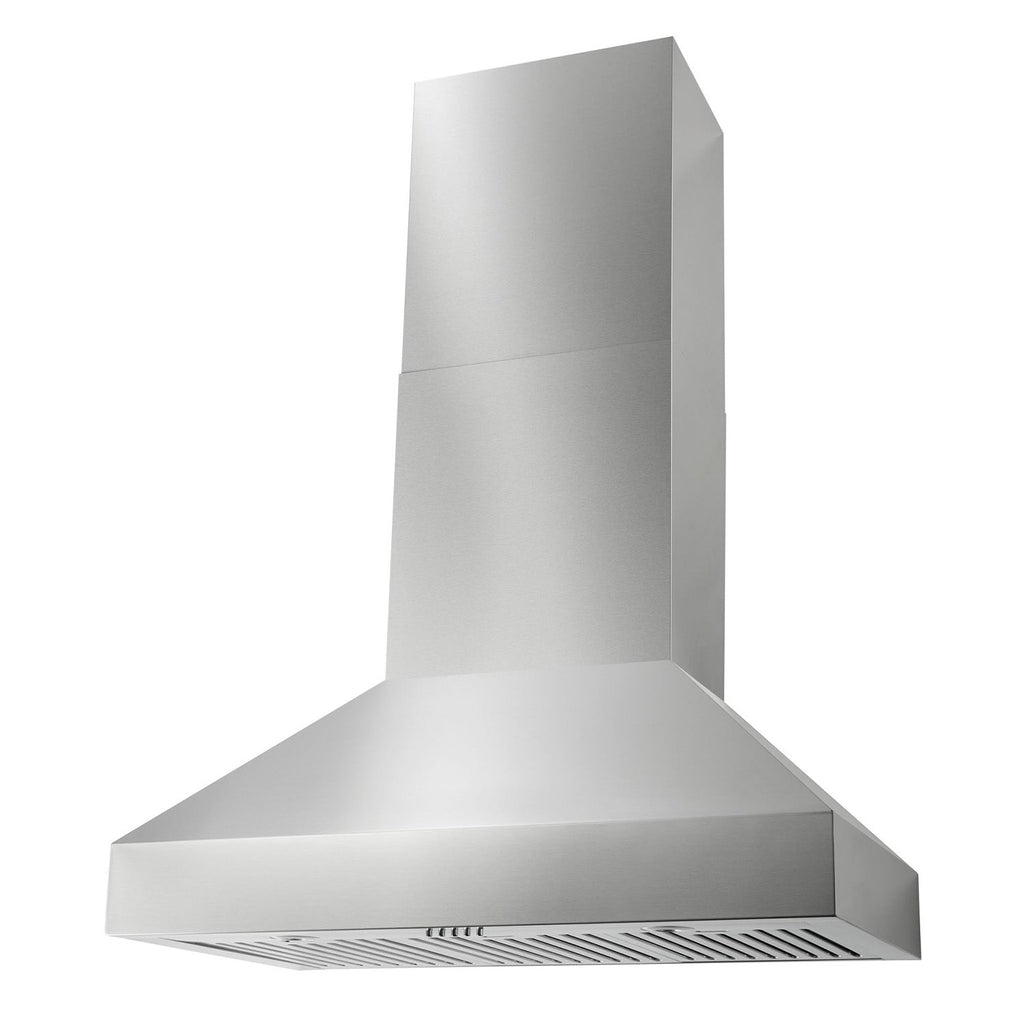

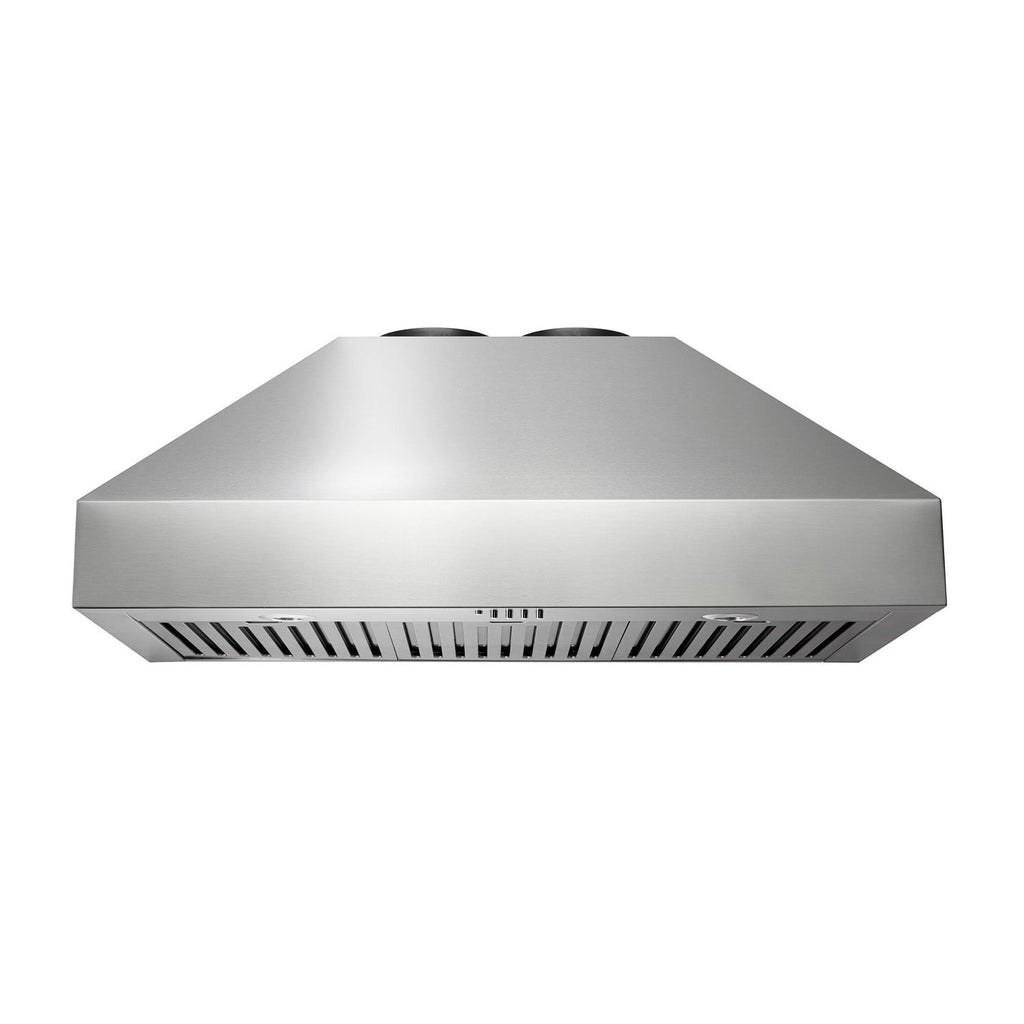

THOR Kitchen offers the power and performance of a premium professional appliance at a practical price. The 48 Inch Professional Wall Mount Pyramid Range Hood in Stainless Steel adds a sleek, modern look to your kitchen and is designed to eliminate odors, smoke and steam quietly and efficiently. Fish on the plate? Good. The lingering aroma of fish in every room? Not so good. #cooklikeagod
Powerful Suction - 1,000 CFM of suction handles the odors, smoke and steam from multiple pots, pans and burners
Quiet Operation at High Speed - Quiet operation keeps noise level at a maximum 65 decibels

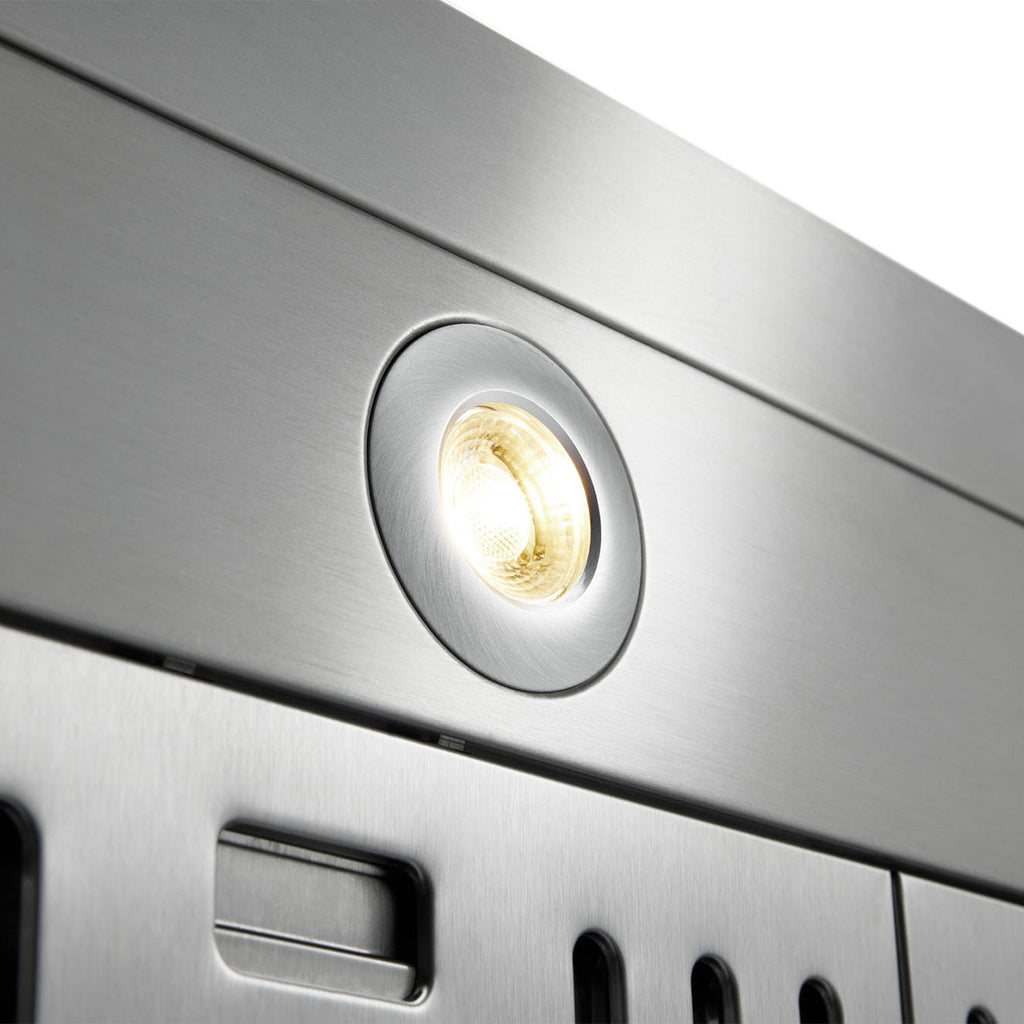

LED Lighting - 3 LED lights illuminate your cooking area and save energy
Convertible - Vent out or recirculating (ductless) option with carbon filters (not included)

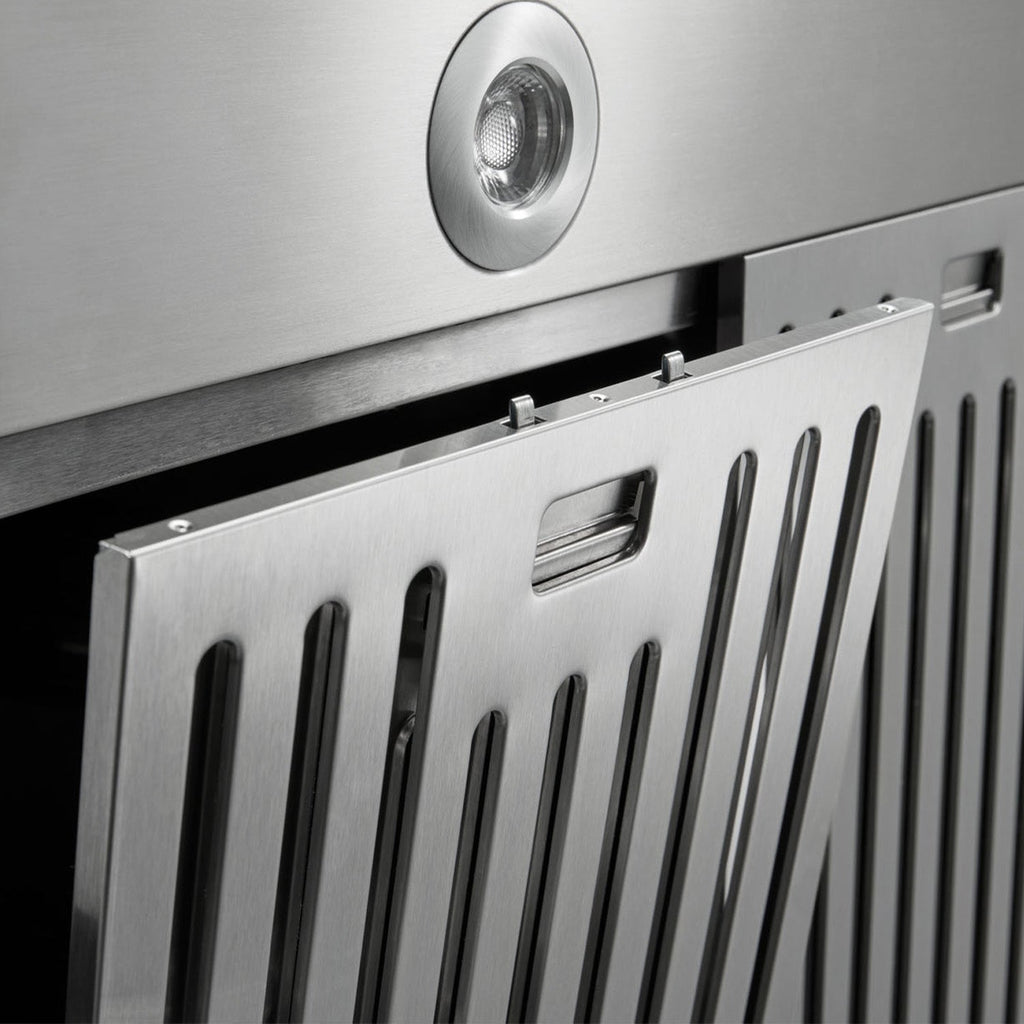

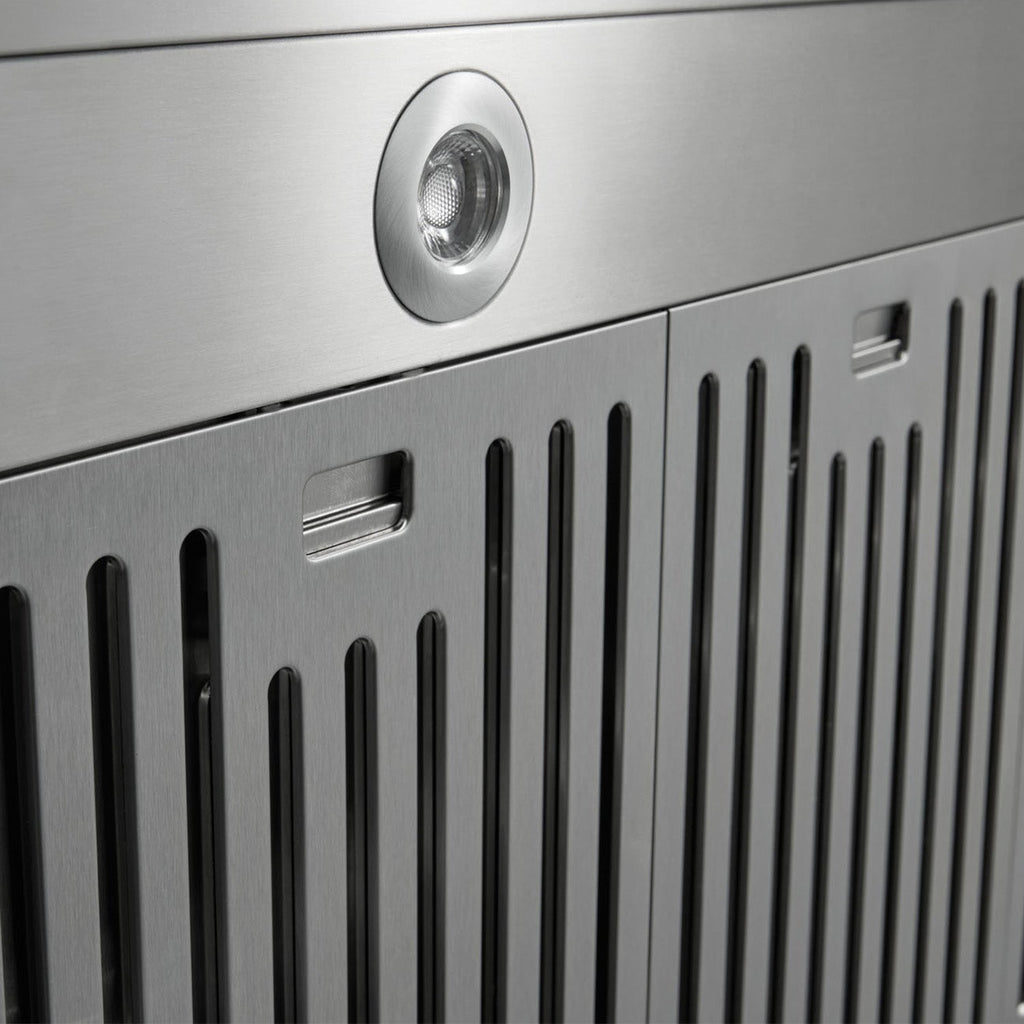

Commercial-style Baffle Filter - Large, commercial-style 430 grade stainless steel baffle filter maximizes air flow and grease filtering while the hood is in operation

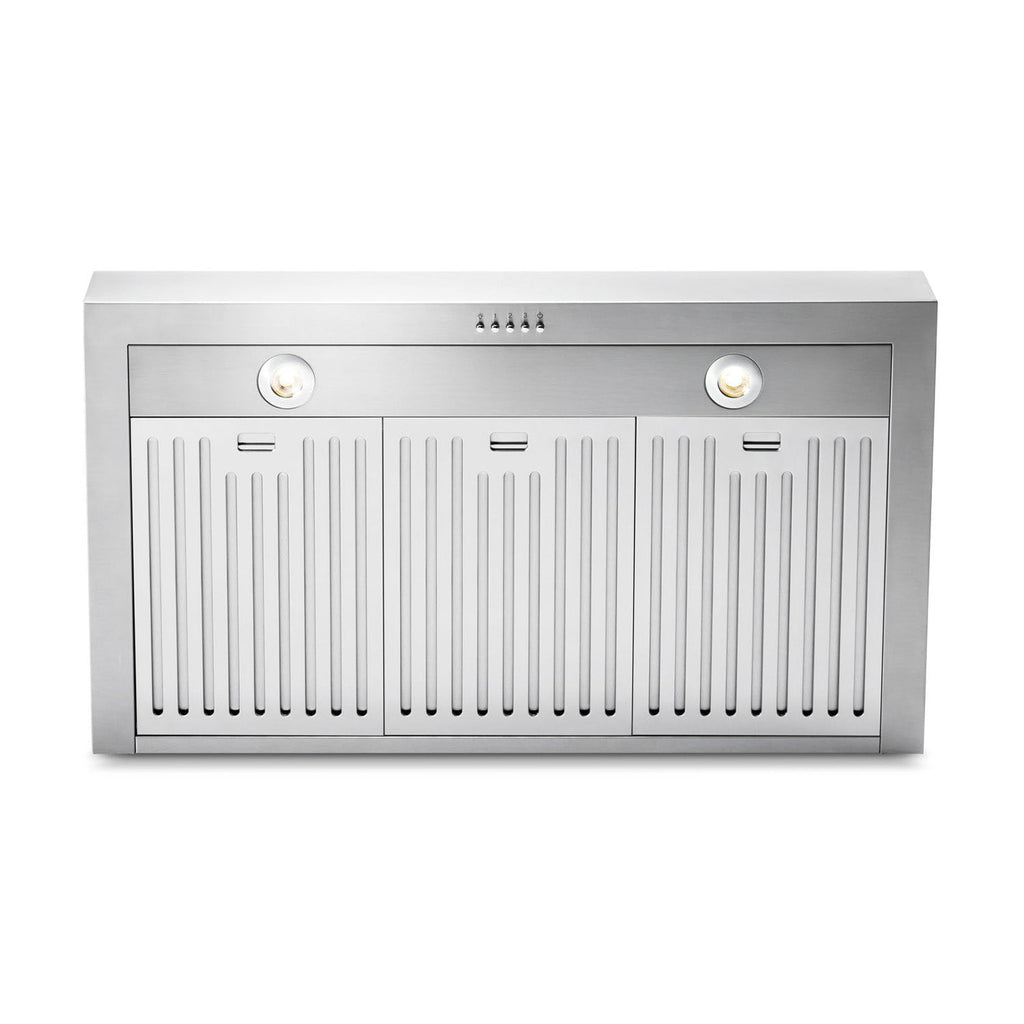

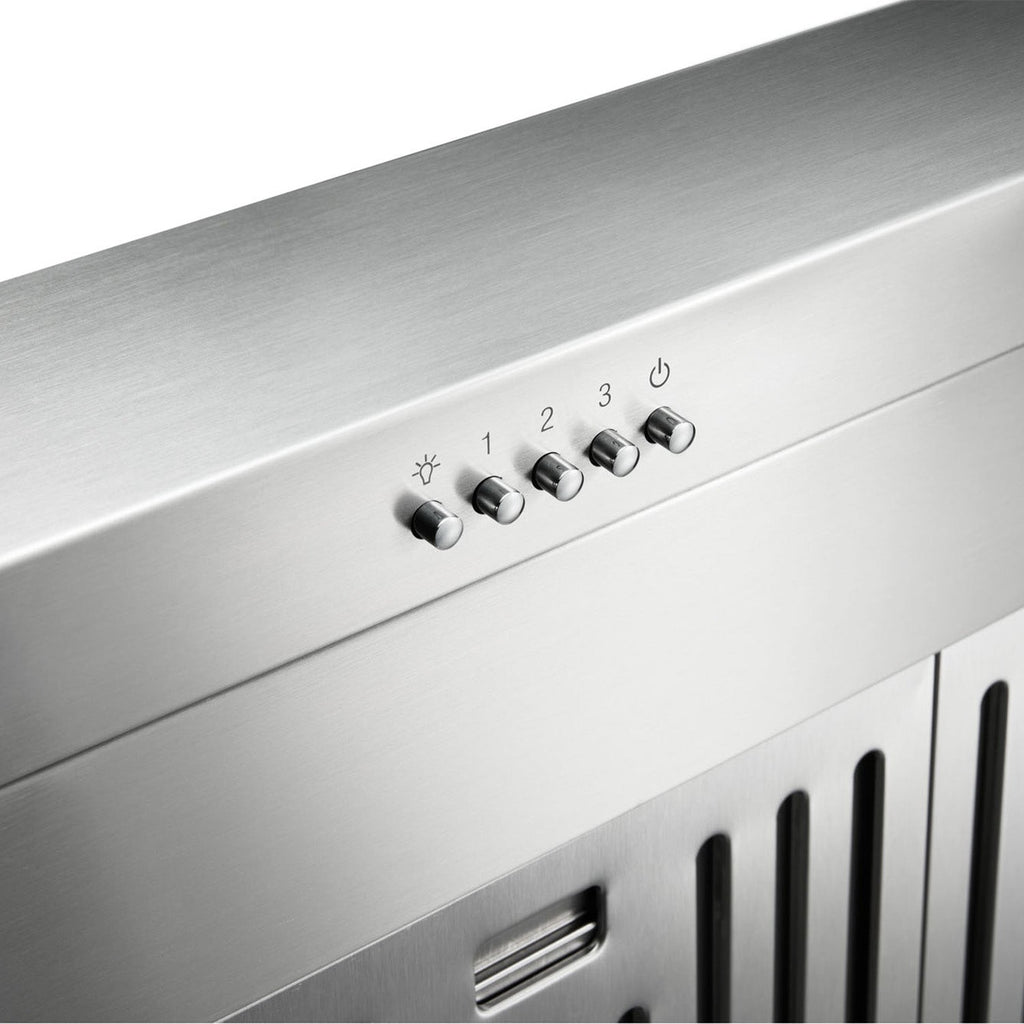

Push Button Controls - Easy-to-operate push button controls for power, fan and light
7-inch Round Duct Vent - 7-inch round duct vent for better ventilation, performance and efficiency
Stainless Steel Finish - Stainless steel finish offers modern design aesthetic and is built to withstand high heat, grease, oil and steam
Three Speed Settings - 3 fan speeds allow for easy adjustment between high (1000 CFM, 67 dB), medium (685 CFM, 59 dB) and low (530 CFM, 50 dB) suction

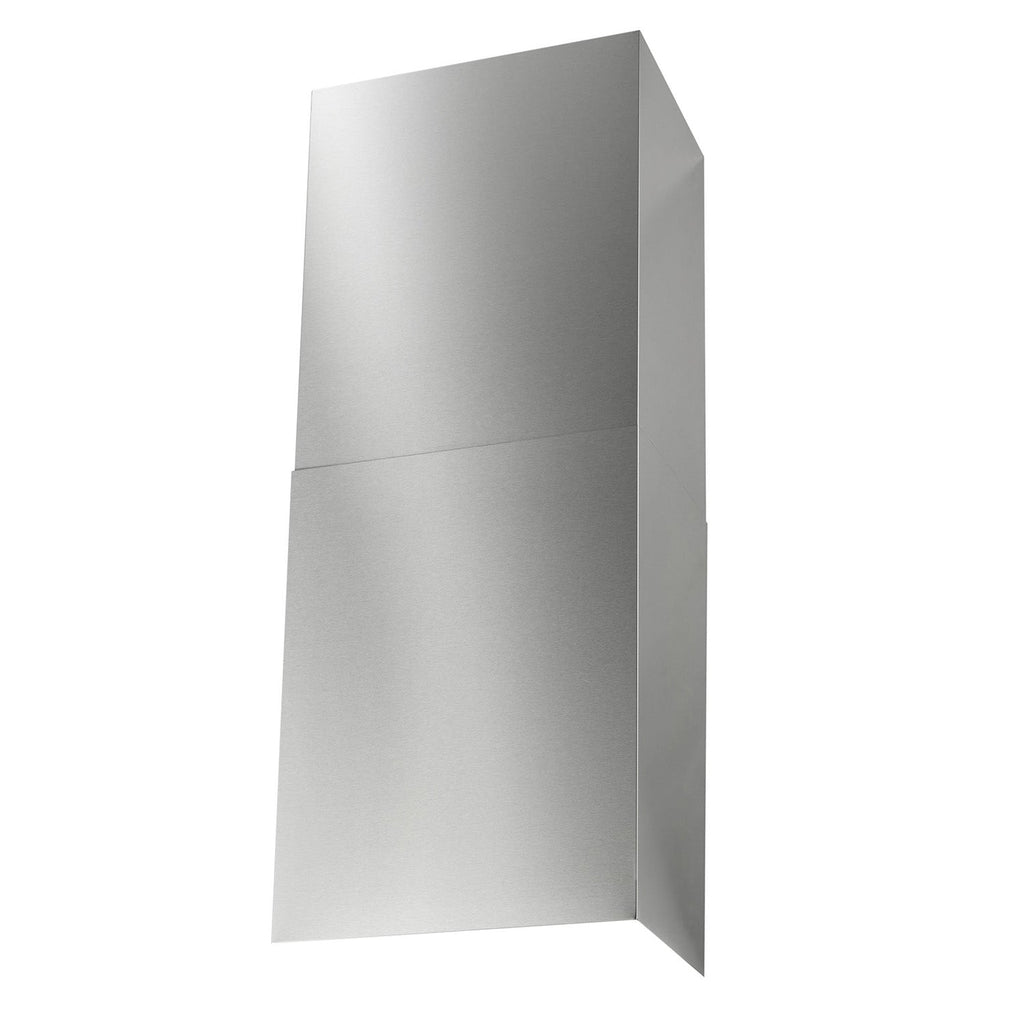

Duct Cover Included - The stainless steel duct cover matches the linear styling of the THOR Kitchen 48 Inch Professional Vent Hood and extends to a total height of 55 inches which accommodates up to a 10-foot ceiling
Options & Accessories (Sold Separately):
|
|

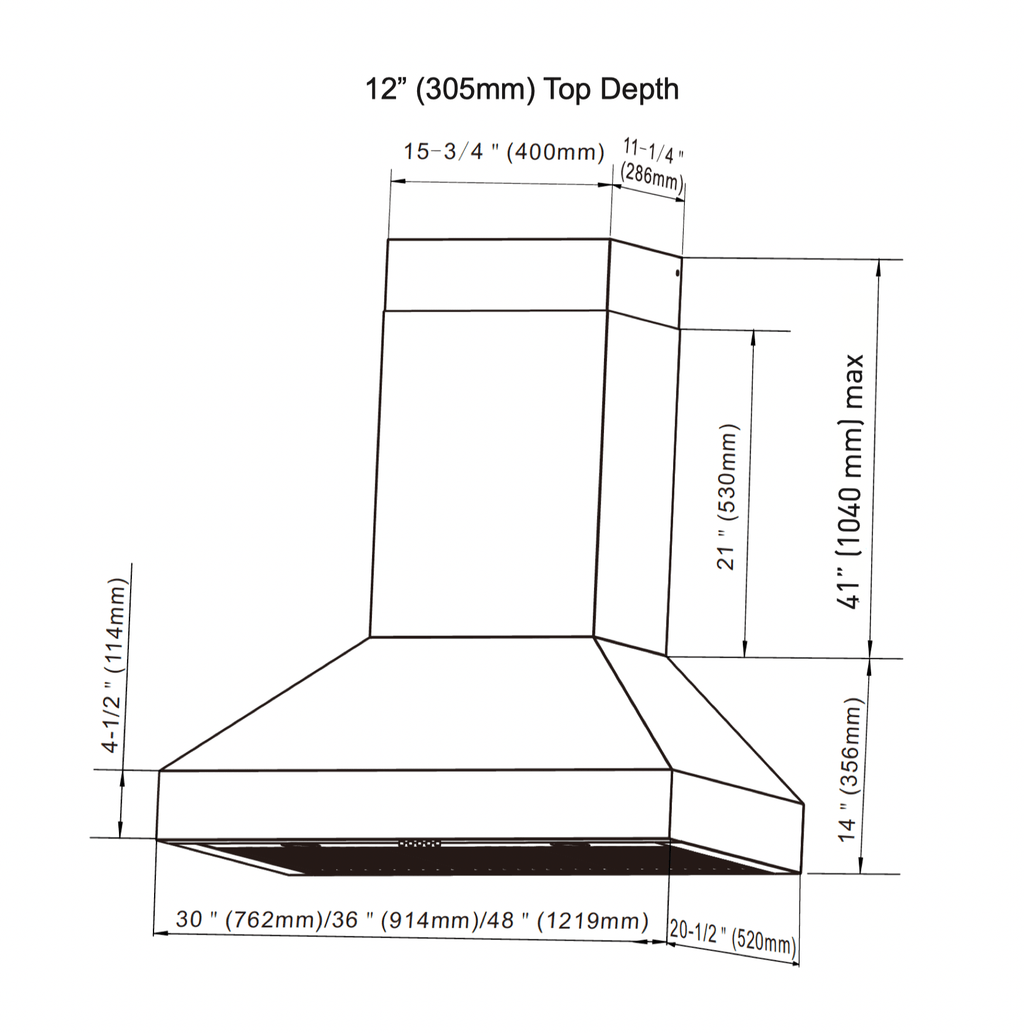

48” W x 14” H x 20 1/2” D |
| Ceiling Height | Fits up to 10' Ceilings |
|
Duct Width |
7" |
|
Duct Shape |
Round |
| Range Hood Size (in) | 48 |
| Duct Length (in | 59 |
| Duct Diameter (in) | 7 |
| Gross Weight (lb.) | 72 |
| Lighting | LED light x 3 |
| Frequency | 60 Hz |
| Filter type | 430SS Baffle filter x 4 |
| Control type | Keyboard Switch |
| Power/Amperage | 110v/ 3A |
| Blower type | DC Motor |
| Available Accessories | Duct Cover - The stainless steel duct cover matches the linear styling of the THOR Kitchen Professional 48 Inch Vent Hood and extends to a total height of 91 inches. |
| Color/Finish | Stainless steel |
| Installation Type | Wall Mount |
| BLOWER RATINGS | |
| Low | 460 CFM/ 49.5 Sones (DB) |
|
Medium |
650 CFM/ 58.5 Sones (DB) |
| High | 1000 CFM/ 66.5 Sones (DB) |
| Warranty | 24 Months Parts Only |
