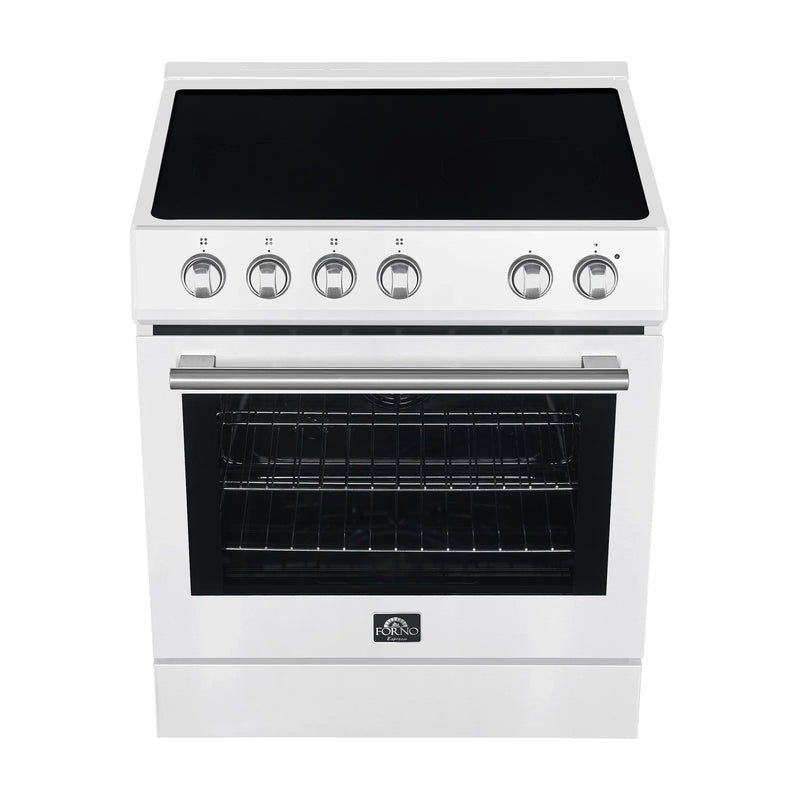

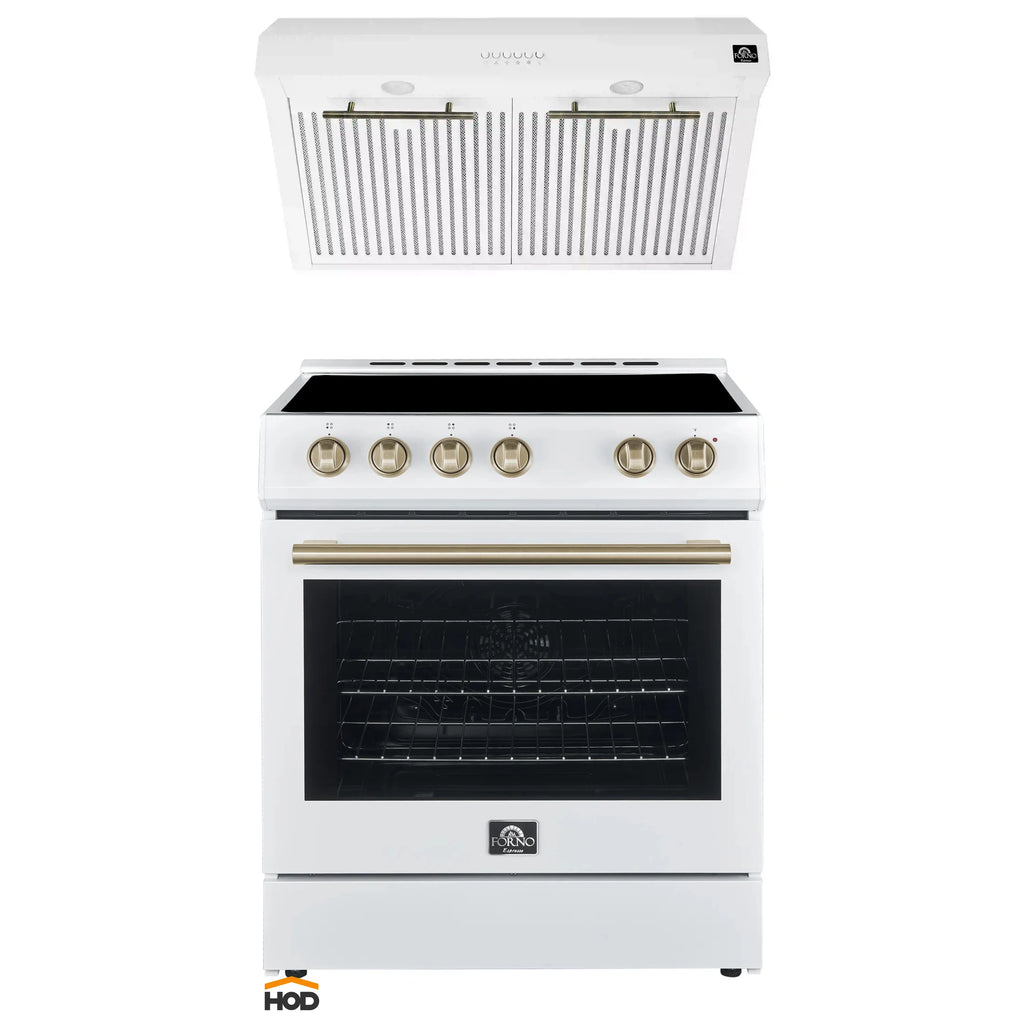

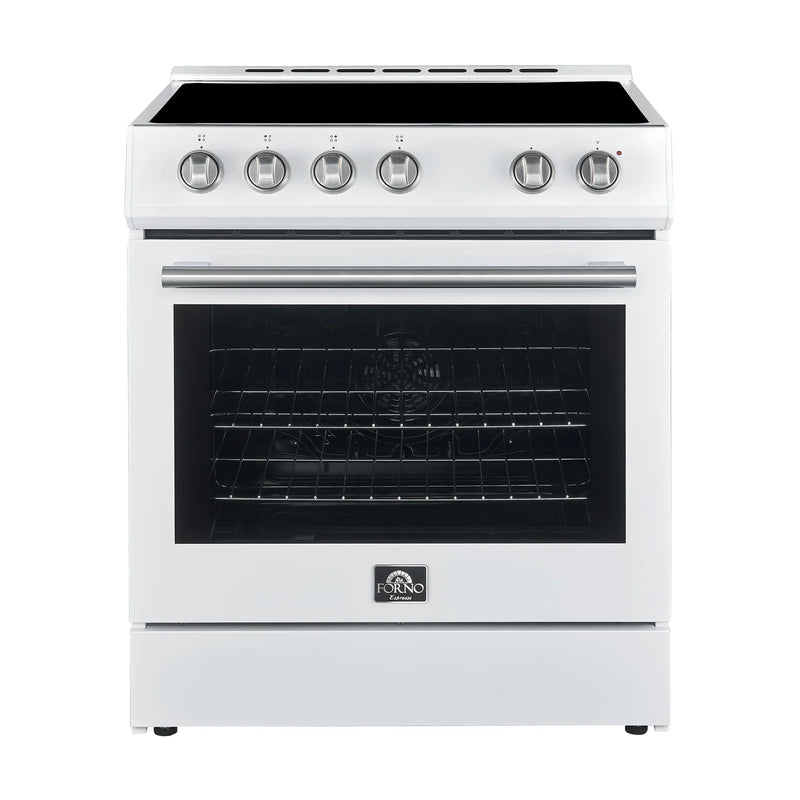

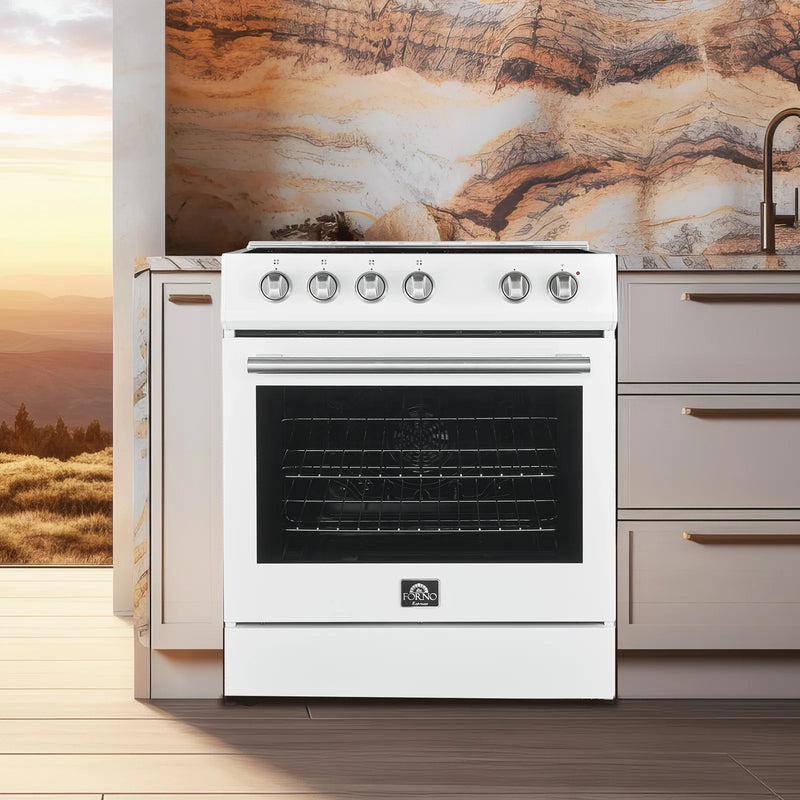

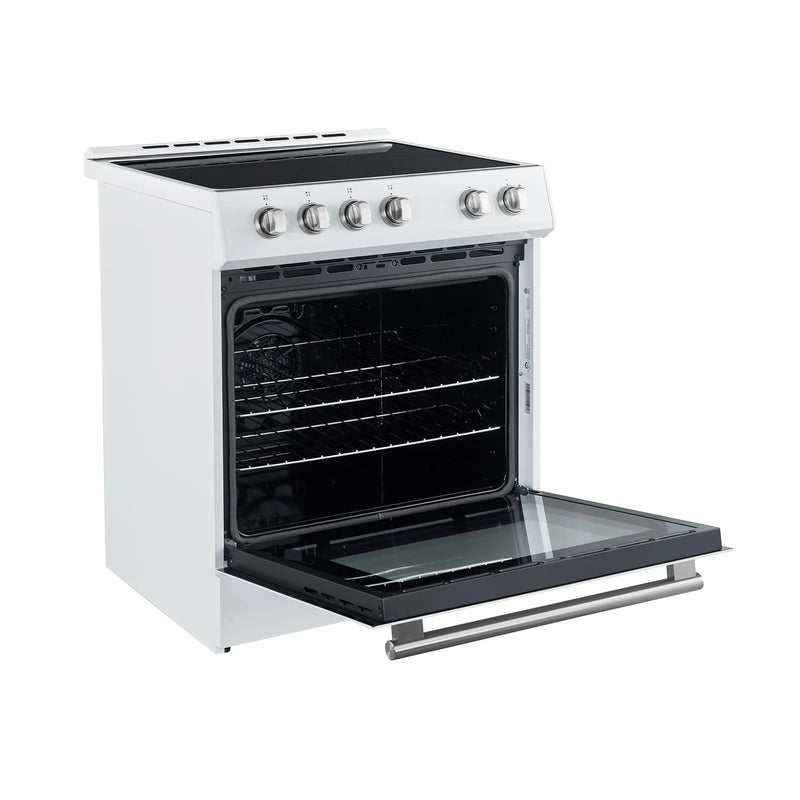

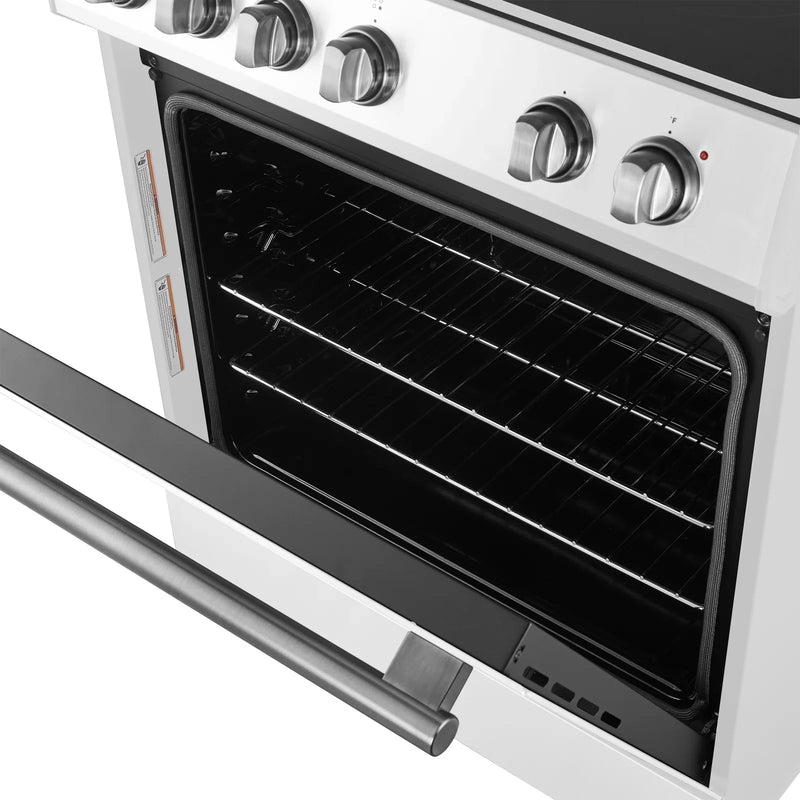

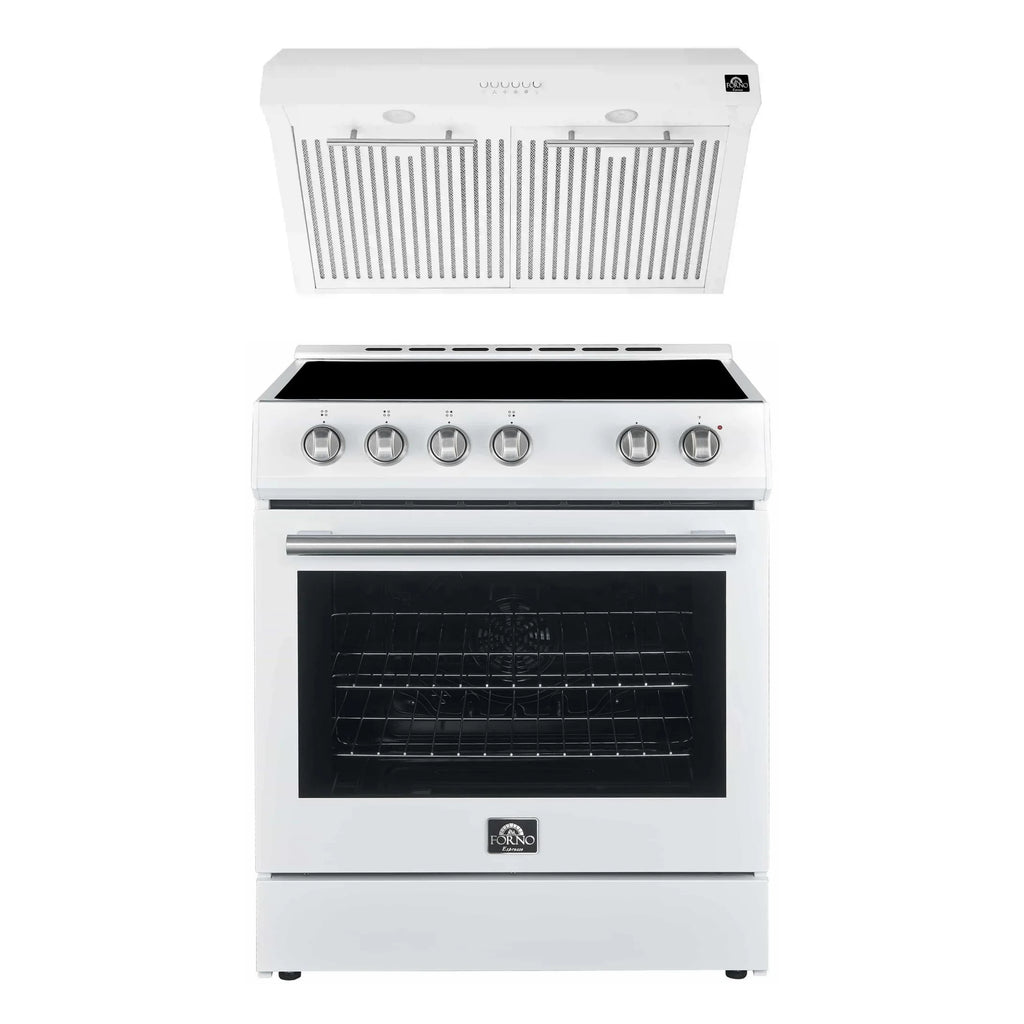

Introducing the Forno Leonardo Espresso 30" 5.0 cu. Ft. White Electric Range, a kitchen game-changer. With Antique Brass accents, 4 Radiant Elements, and a 5,500-watt Convection Oven, it combines style with top-notch performance. Antique Brass Knobs and Handles add a touch of elegance, while Ceramic Glass ensures even heat distribution. The Hidden Bake Element simplifies maintenance by preventing spills and odors. Elevate your kitchen with this timeless, user-friendly range, marrying durability with sophistication. Cook with confidence, and embrace efficiency and style with every use.
Please Note: This appliance includes both brass and stainless steel handles. Some assembly is required to install your desired finish.

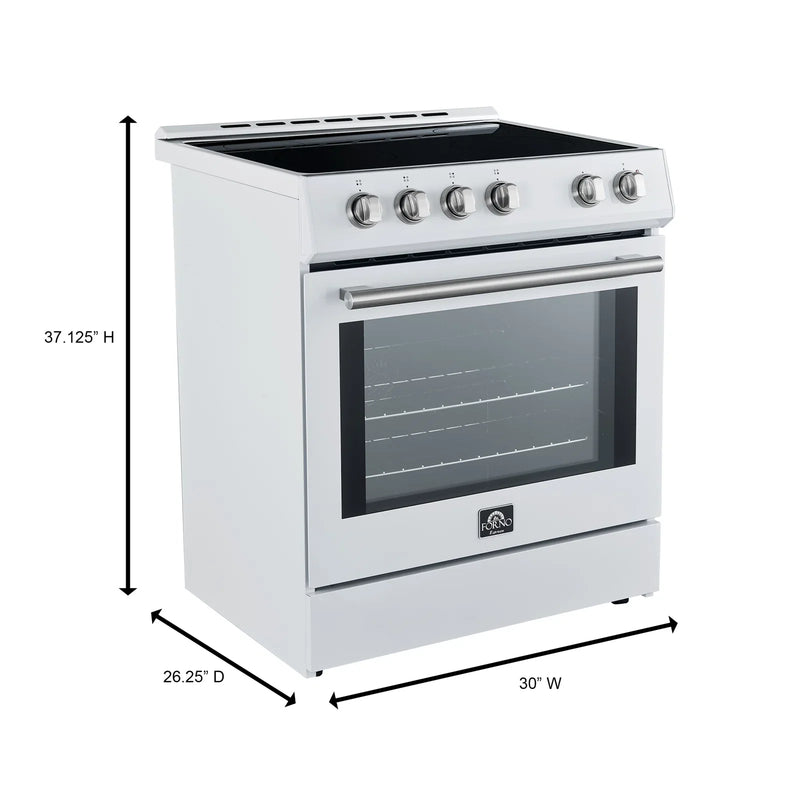

Dimensions | |
Overall Height - Top to Bottom (in) | 38 |
Overall Depth - Front to Back (in) |
27.95 |
Interior Width - Side to Side (in) |
24.6 |
Overall Width - Side to Side (in) | 30 |
Interior Height - Top to Bottom (in) |
19.6 |
Interior Depth - Front to Back (in) |
17.7 |
Depth with door open 90° (in) |
46.25 |
General |
|
Product Type | Slide-in |
Handle Color/Finish | Silver And Antique brass |
Control Type |
Manual |
Electric Heat Configuration |
Radiant |
Filler Kit |
No |
Power Cord Included |
Yes |
LP Gas Convertible | No |
Eligible for Replacement Parts |
Yes |
Voltage (V) |
240 |
Amperage (A) |
50 |
Fuel type |
Electric |
Cleaning Type |
Manual clean |
Control Location |
Front |
Ignition Type |
Electric |
Plug-In |
Yes |
Removable Backguard |
Yes |
Primary Material | Steel |
Eligible for Hardware Packs |
No |
Cooktop |
|

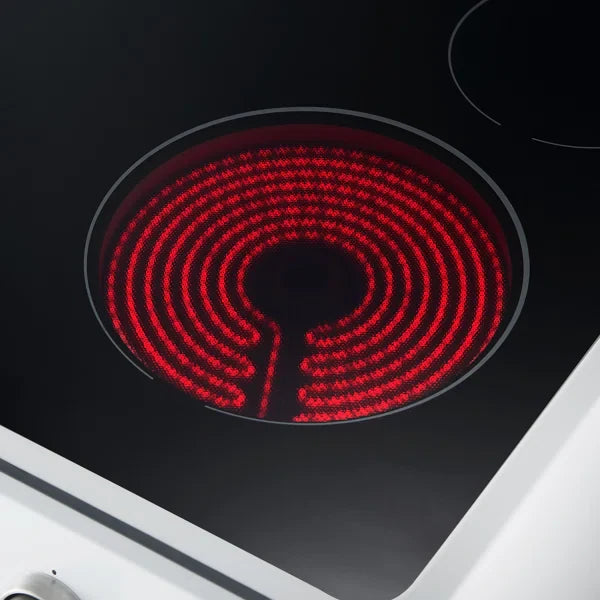

Cooktop surface | Ceramic Glass |
Burner Fuel | Electric |
Front Left Center Element Watts (W) | 2200 |
Front Right Element Watts (W) |
2500 |
Front Left Element Watts (W) |
2200 |
Rear Right Element Watts (W) |
1200 |
Rear Left Element Watts (W) |
1200 |
Hot Surface Indicator |
Yes |
Number of Burners |
4 |
Front Right Burner Diameter (in) |
10 |
Front Left Burner Diameter (in) |
9 |
Rear Right Burner Diameter (in) |
6 |
Rear Left Burner Diameter (in) |
6 |
Oven(s) |
|
Oven Fuel | Electric |
Timer | No |
Convection Type | Standard Convection |
Broiler Location |
Oven |
Bake Element | Yes |
Bake Element Wattage (W) |
1500 |
Number of Racks |
2 |
Interior Light |
Yes |

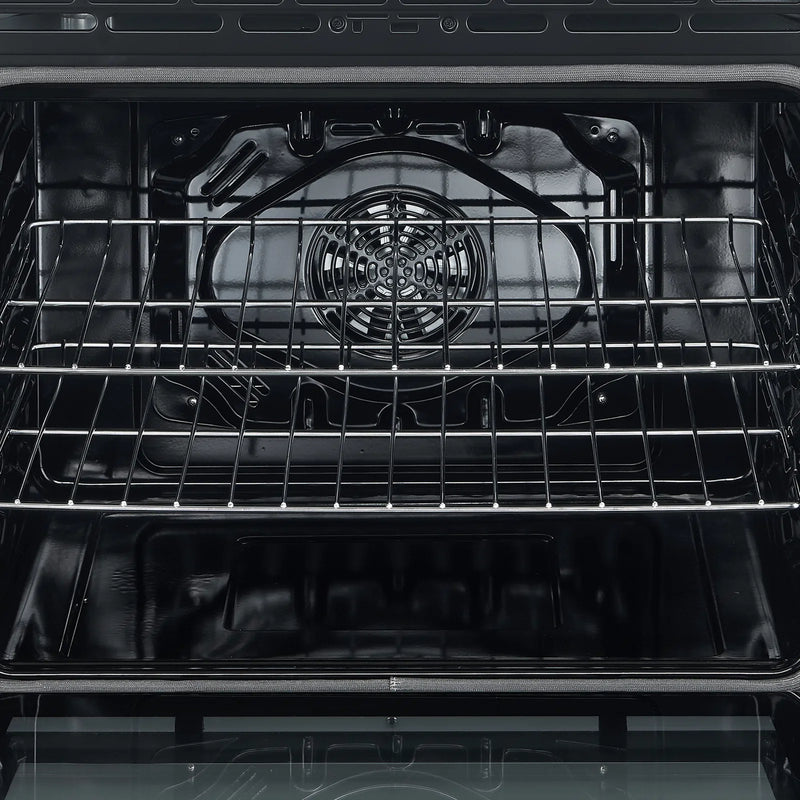

Convection Oven |
Yes |
Broiler |
Yes |
Broil Element Wattage (W) |
2000 |
Hidden Bake Element |
Yes |
Overall Oven Capacity (cu. ft.) |
5 |
Sabbath Mode |
No |
Warranty | |
Product Warranty | Yes |
Full or Limited Warranty |
Limited |
Warranty Length |
2 Years |

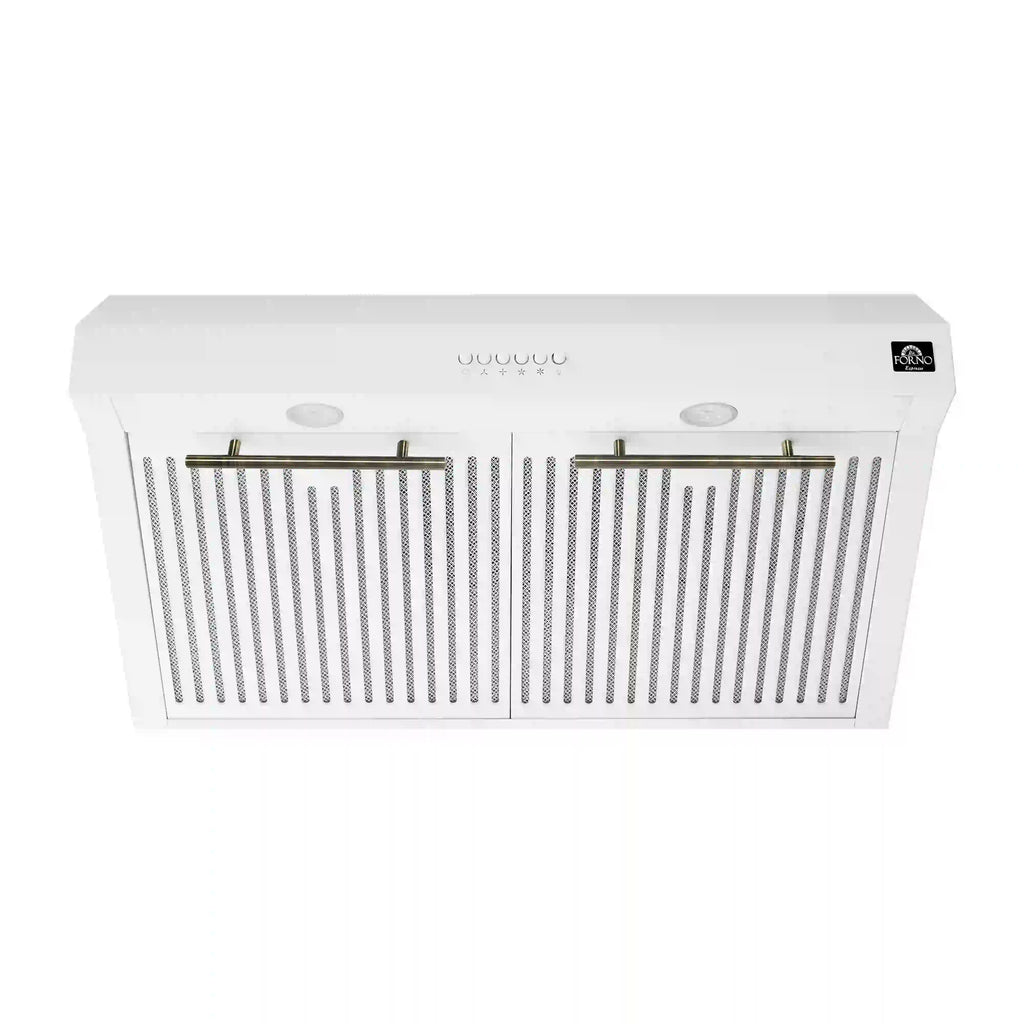

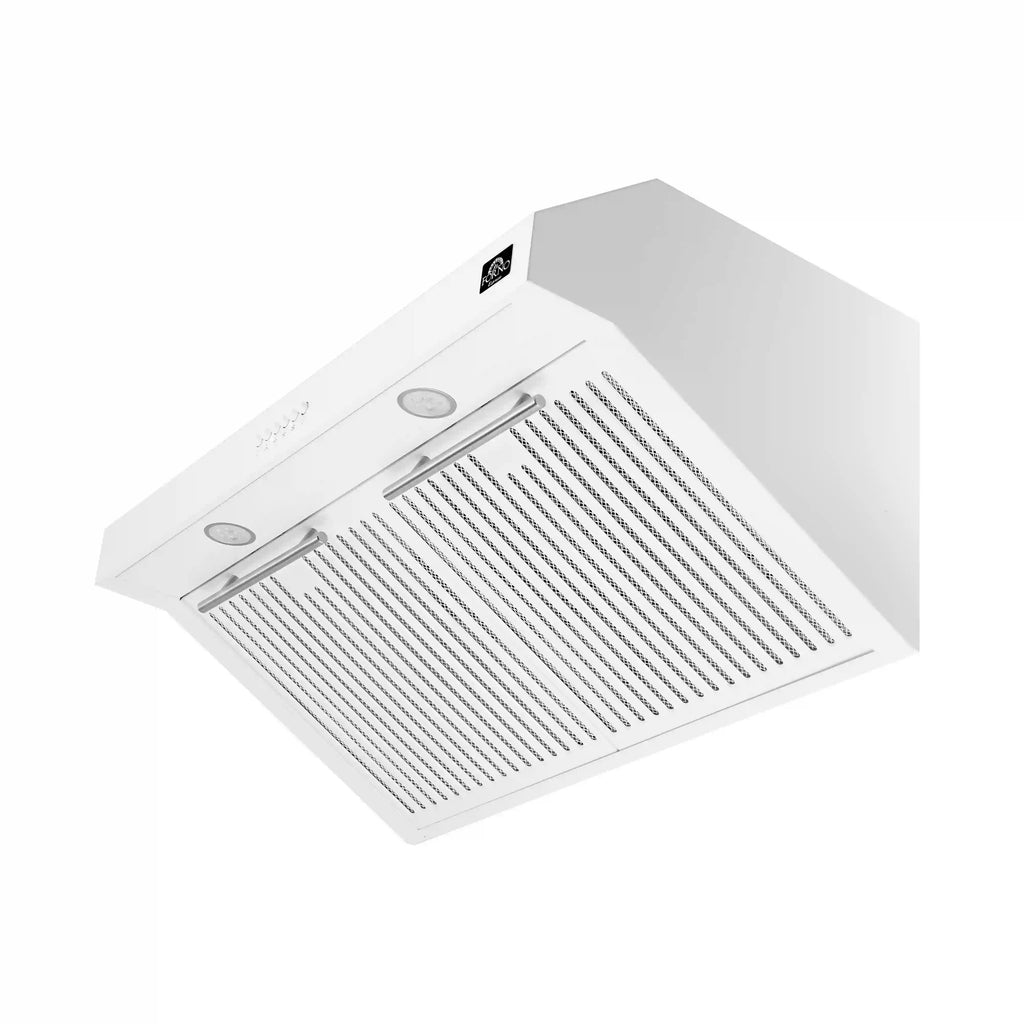

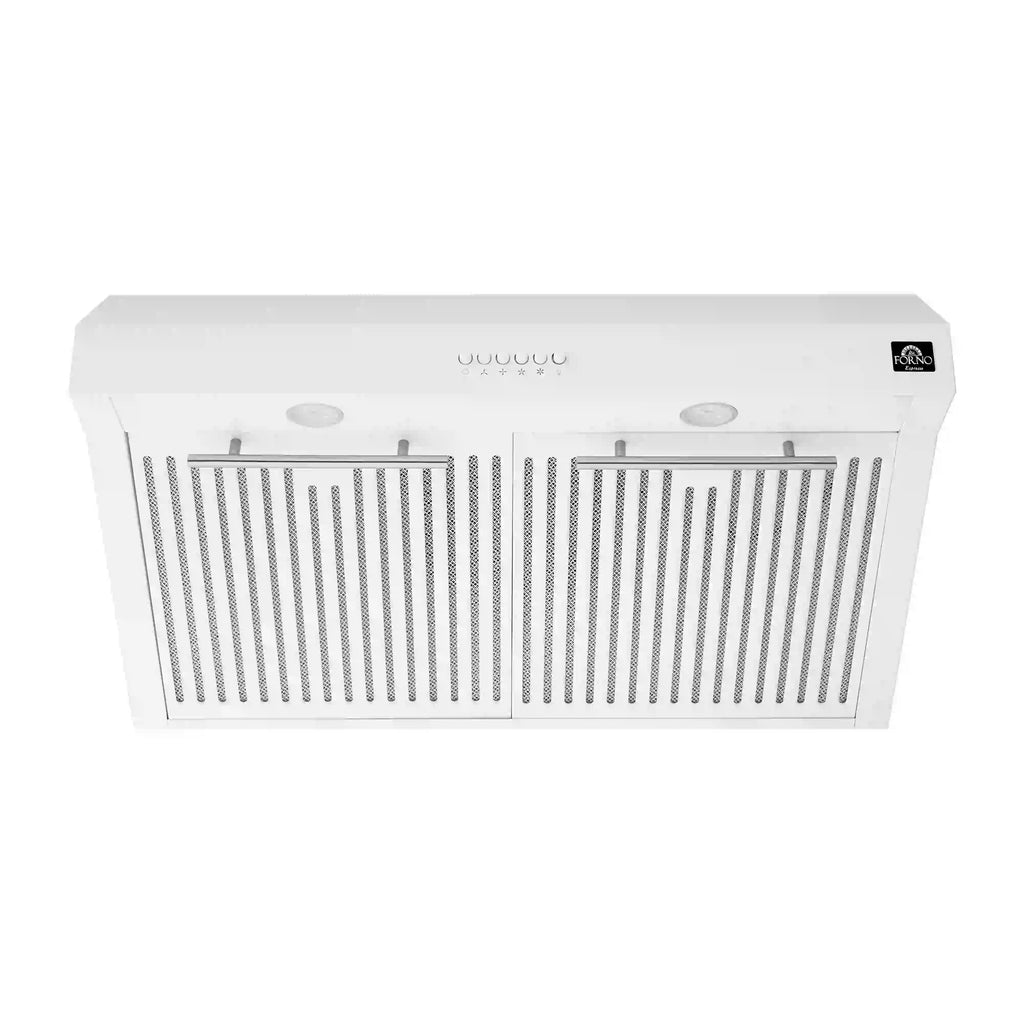

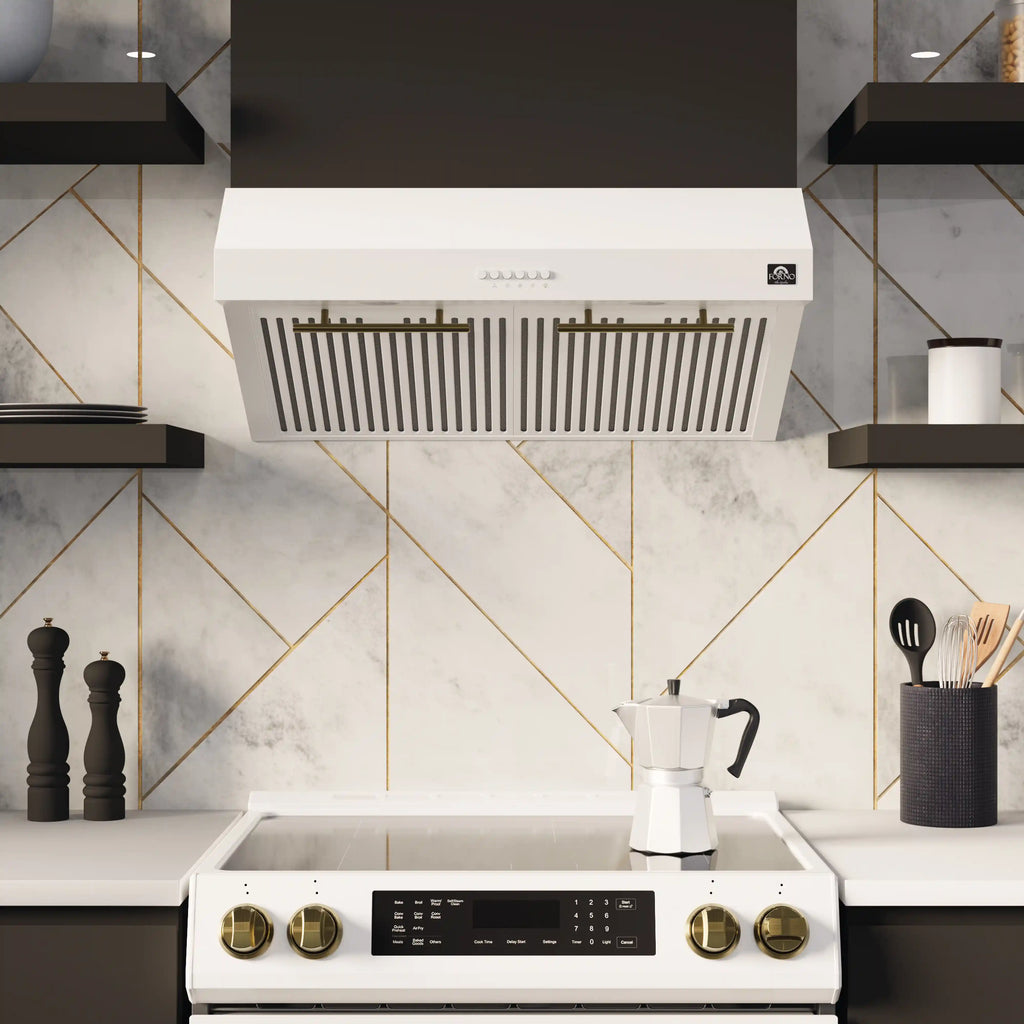

Forno presents the Bari 30” Espresso Range Hood, an exceptional under cabinet range hood that boasts an elegant stainless steel finish, adding a touch of sophistication to your kitchen space. With its powerful 420 CFM airflow, this range hood efficiently eliminates cooking odours, smoke, and airborne grease, ensuring a fresh and clean environment. The user-friendly 4 speed push button control allows you to adjust the ventilation settings effortlessly, providing optimal performance tailored to your needs. Illuminate your cooking area with two built-in LED surface lights, offering bright and even lighting for a delightful culinary experience. Equipped with a durable baffle and mesh filter, this range hood effectively traps grease and debris, ensuring easy maintenance and prolonging the lifespan of the appliance. Upgrade your kitchen with the versatile and high-performing under cabinet range hood from Forno, where style meets functionality.

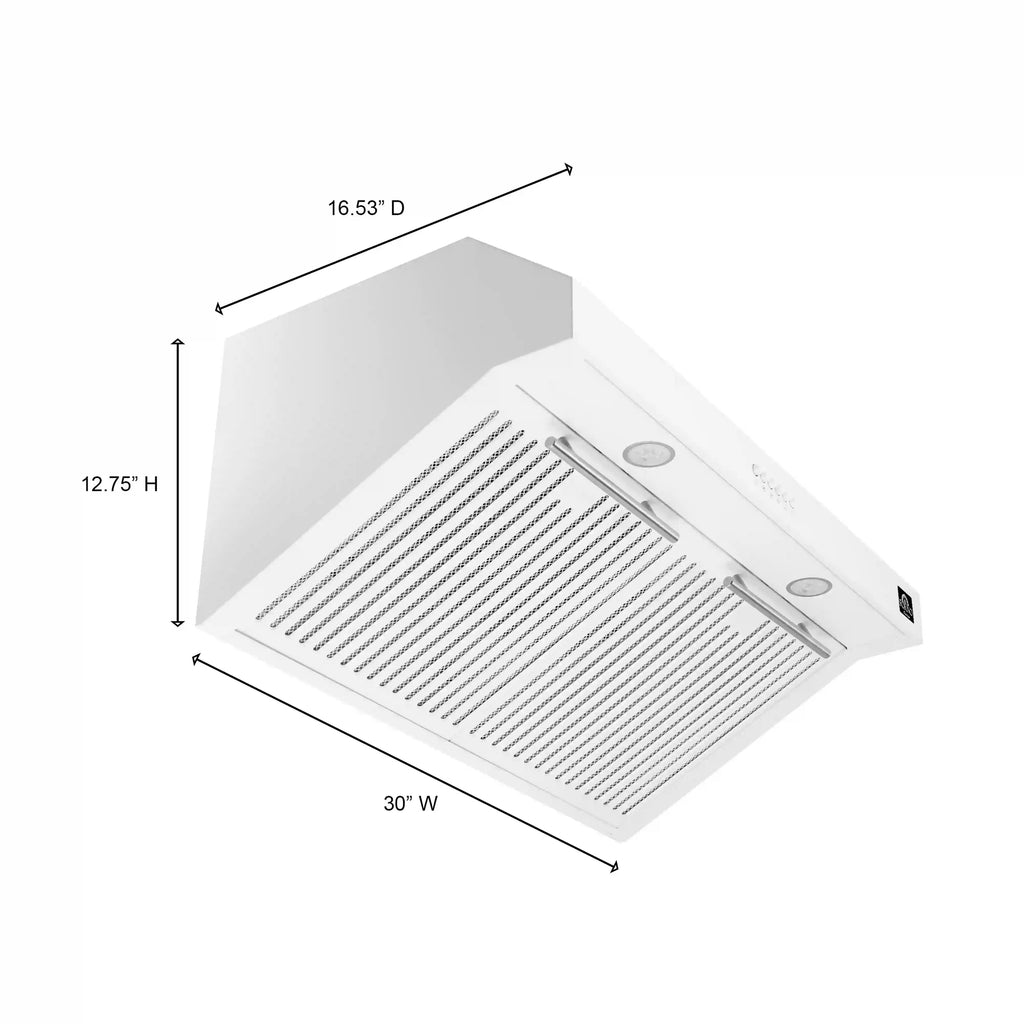

Weight & Dimensions | |
Overall Dimensions W x D x H (In) |
30 X 16.5 X 12.75 |
Minimum Height from Cooktop |
18 |
Maximum Height from Cooktop |
25 |
Cutout Dimensions W X D X H (In) |
29.8 X 12 x 12.75 |
Overall Weight |
21.18 |
Electrical Specs | |
Amperage |
2.6 |
Volts |
120 |
Wattage |
310 |
Power Source |
AC |
Lighting Type |
LED |
Bulb Type |
GU10 |
Bulb Wattage |
5 |
Lights Lumens |
600 |
Power Cord Included |
No |
Details | |
Mount Type
|
Under Cabinet
|
Color/Finish
|
Black
|

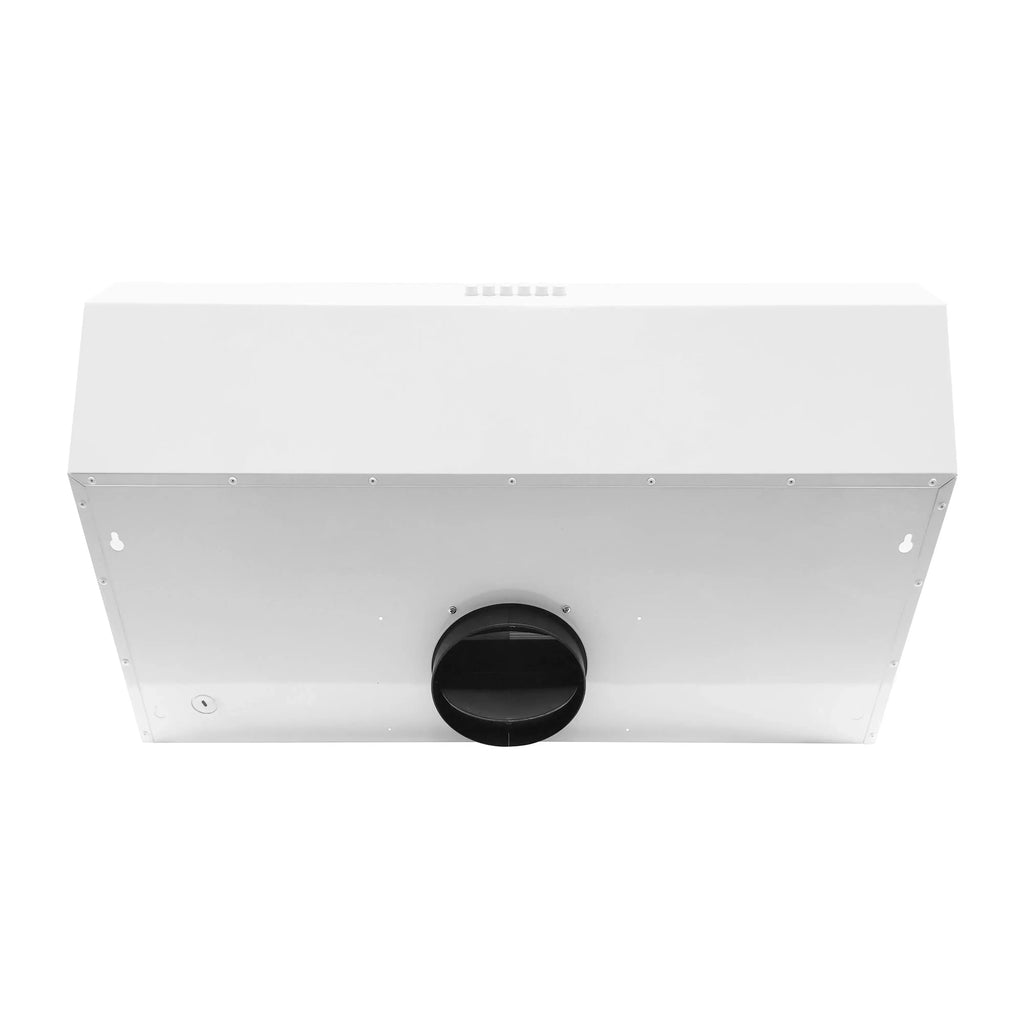

Duct Shape
|
6"" Round
|

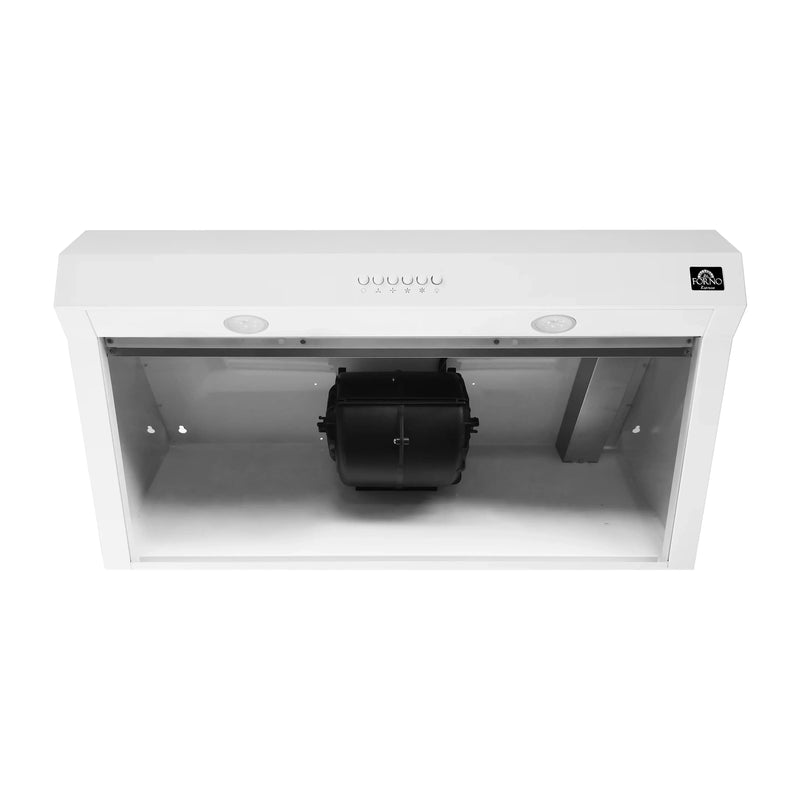

Blower Type |
PVC |
Air Discharge Direction |
Vertically Upward |
Exhaust Vent Location |
Roof / Wall |

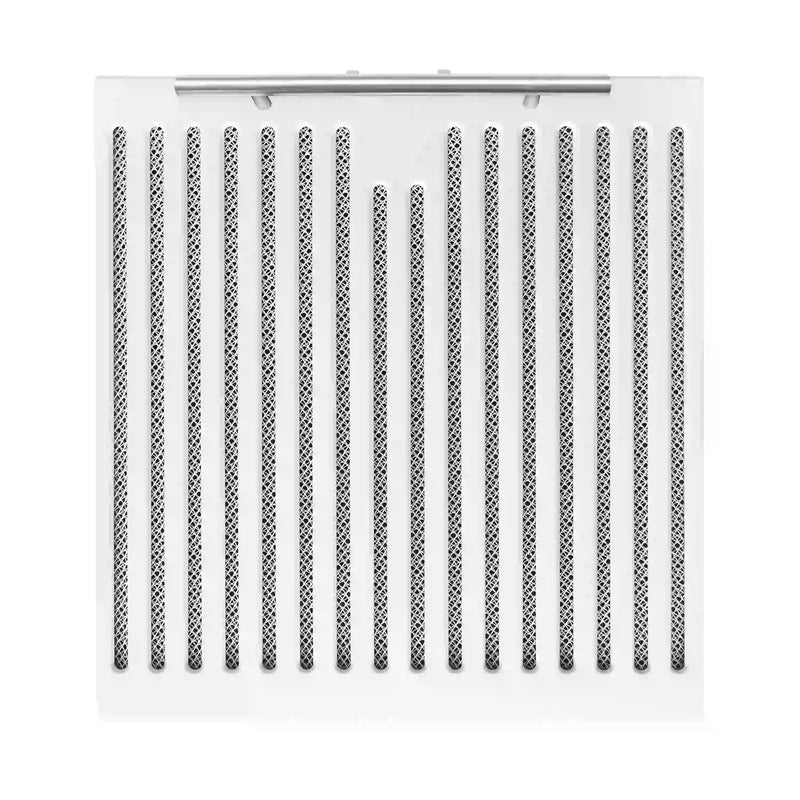

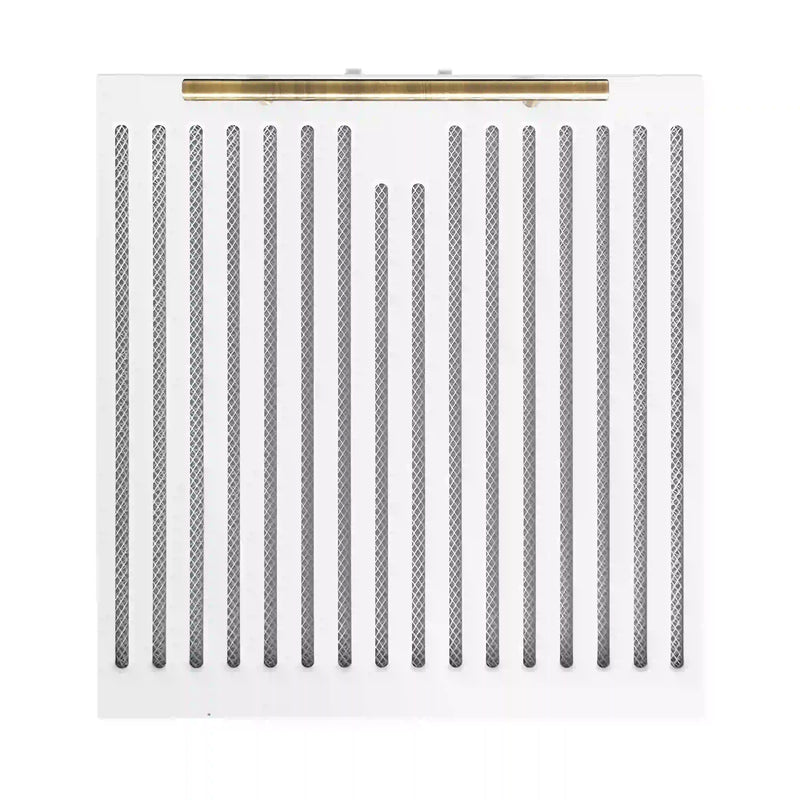

Filter Type |
Hybrid |
Filter Material |
Steel |
Washable Filter |
Yes |
Damper |
Yes |

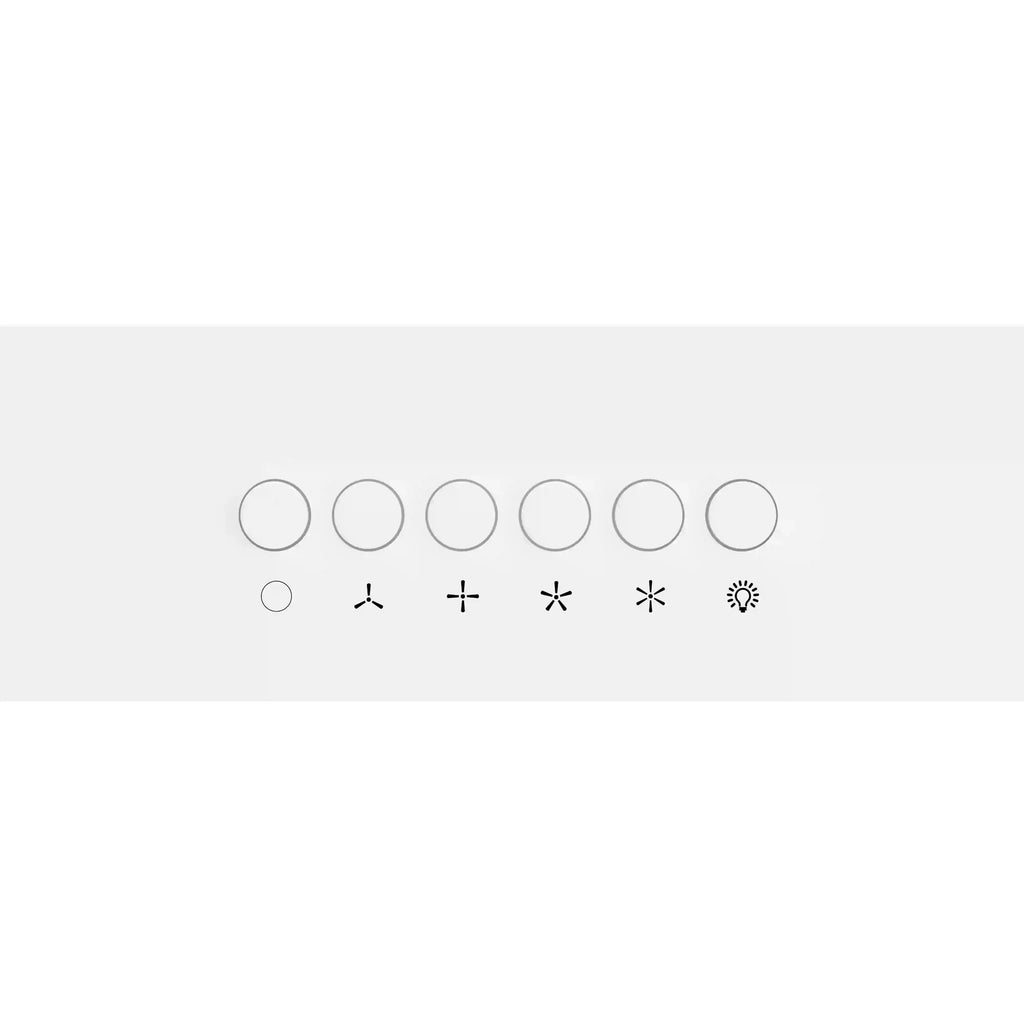

Speed Control |
4 |
Speed Control Type |
Push Button Control |
Hardware Finish |
White |
Primary Material |
Steel |
Rangehood Chimney |
No |
Chimney Short Kit |
No |
Glass Component |
No |
Crown Molding |
No |
Reversible Blower |
No |
Smudge Resistant |
No |
Heat Sensors |
No |
Delay Shut Off |
No |
Remote Control |
No |
Timer |
No |
Clean Filter Alert |
No |
Supplier Intended and Approved Use |
Residential Use |
CFM Specs |
|
Maximum CFM |
400 |
Minimum CFM |
220 |
CFM speed 1 |
220 |
CFM speed 2 |
305 |
CFM speed 3 |
346 |
CFM speed 4 |
400 |
Air Flow per Speed Level (m3/hour) |
|
Air Flow Speed 1 (m3/hour) |
370 |
Air Flow Speed 2 (m3/hour) |
518 |
Air Flow Speed 3 (m3/hour) |
588 |
Air Flow Speed 4 (m3/hour) |
672 |
RPM per Speed Level |
|
RPM Speed 1 |
900 |
RPM Speed 2 |
1310 |
RPM Speed 3 |
1450 |
RPM Speed 4 |
1650 |
Sones per Speed Level |
|
Maximum Sones |
14.5 |
Minimum Sones |
6.3 |
Sones Speed 1 |
6.3 |
Sones Speed 2 |
10.4 |
Sones Speed 3 |
12.2 |
Sones Speed 4 |
14.5 |
Decibels per Speed Level (dB) |
|
Maximum Decibel (dB) |
66.6 |
Minimum Decibel (dB) |
54.6 |
Decibel Speed 1 (dB) |
54.6 |
Decibel Speed 2 (dB) |
61.8 |
Decibel Speed 3 (dB) |
64.1 |
Decibel Speed 4 (dB) |
66.6 |
Certifications | |
ETL LIsted | Yes |
Warranty | |
Commercial Warranty |
No |
Warranty Type |
Limited |
Warranty Length |
2 Years |
Warranty on Parts |
2 Years |
Warranty on Labor |
2 Years |
