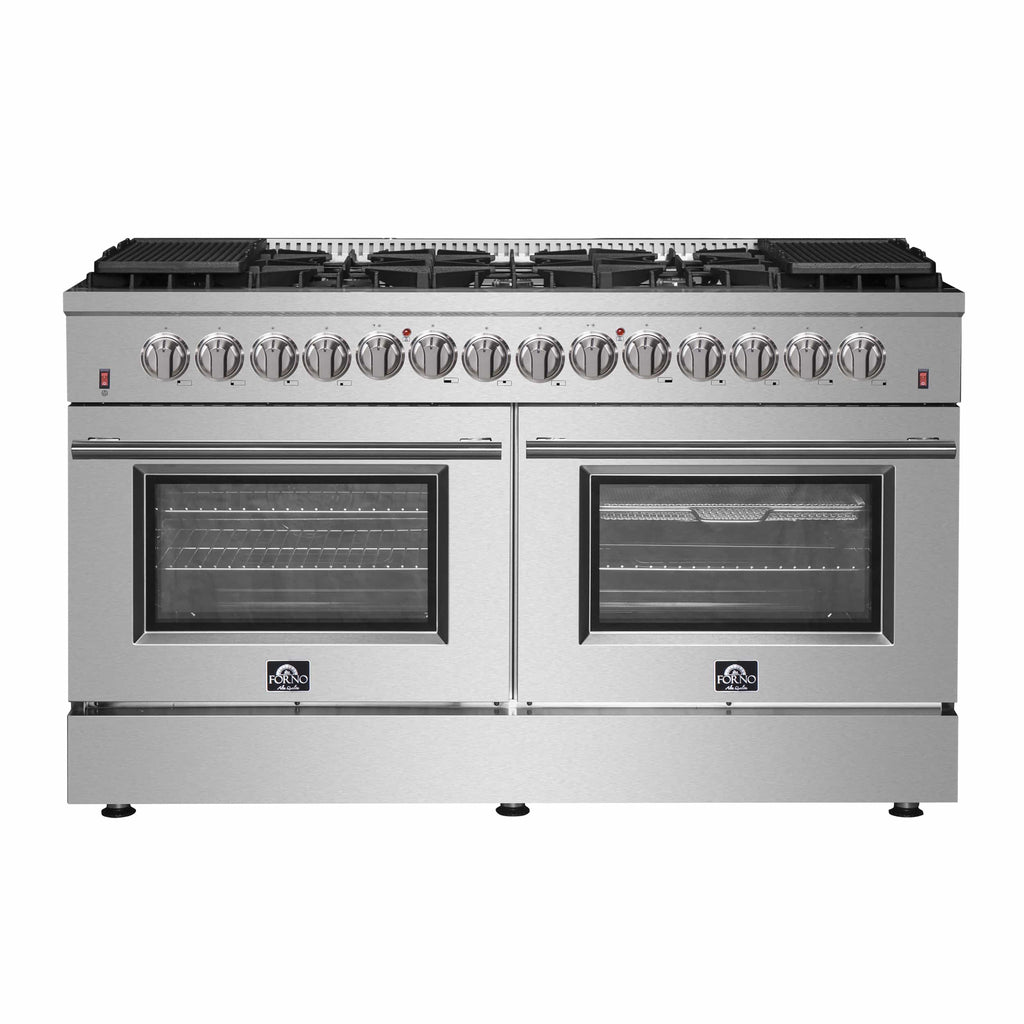

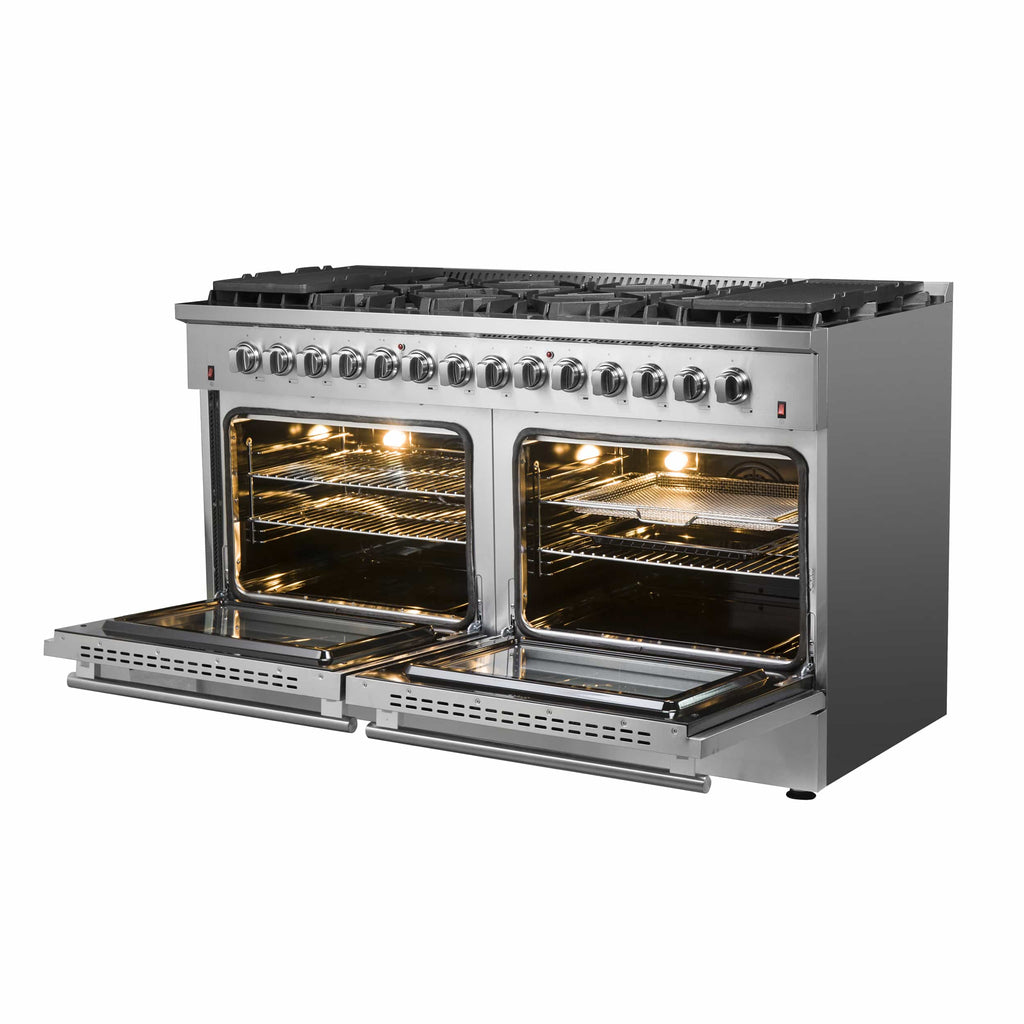

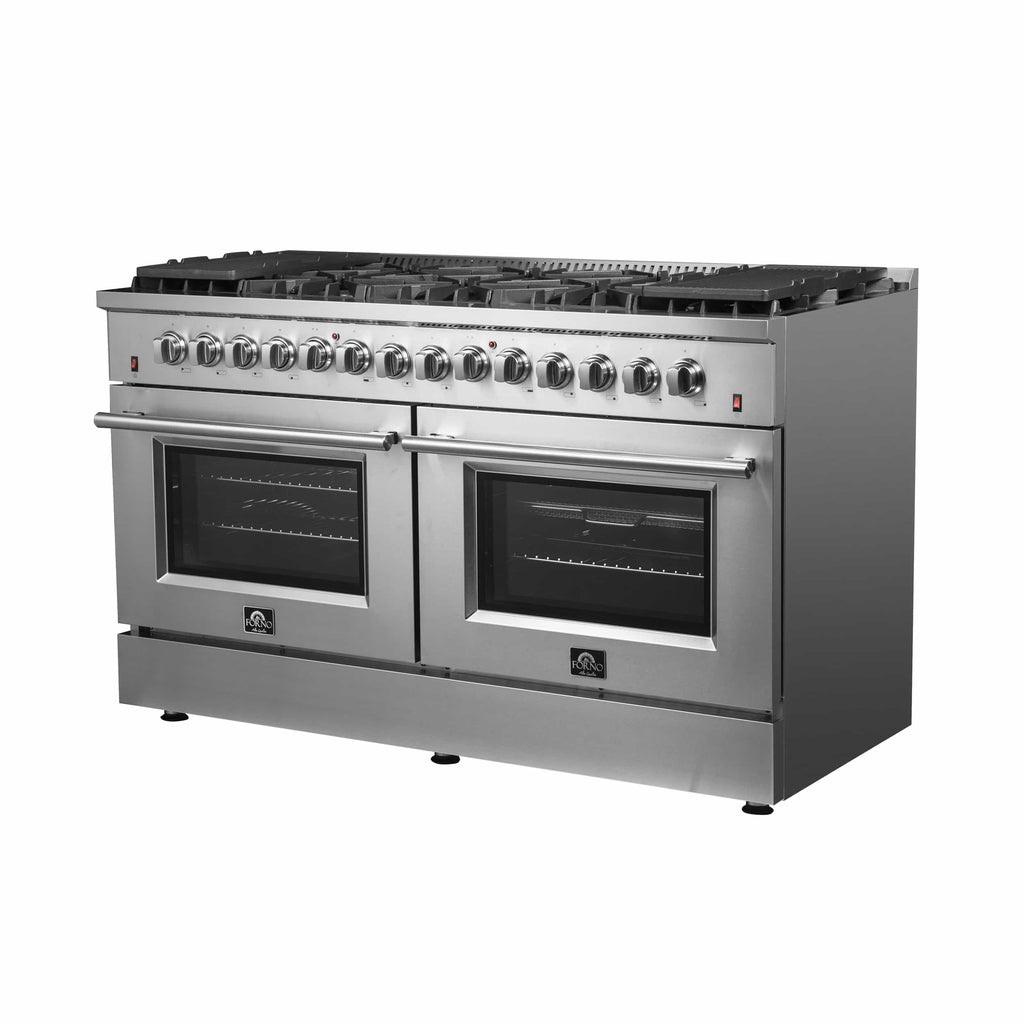

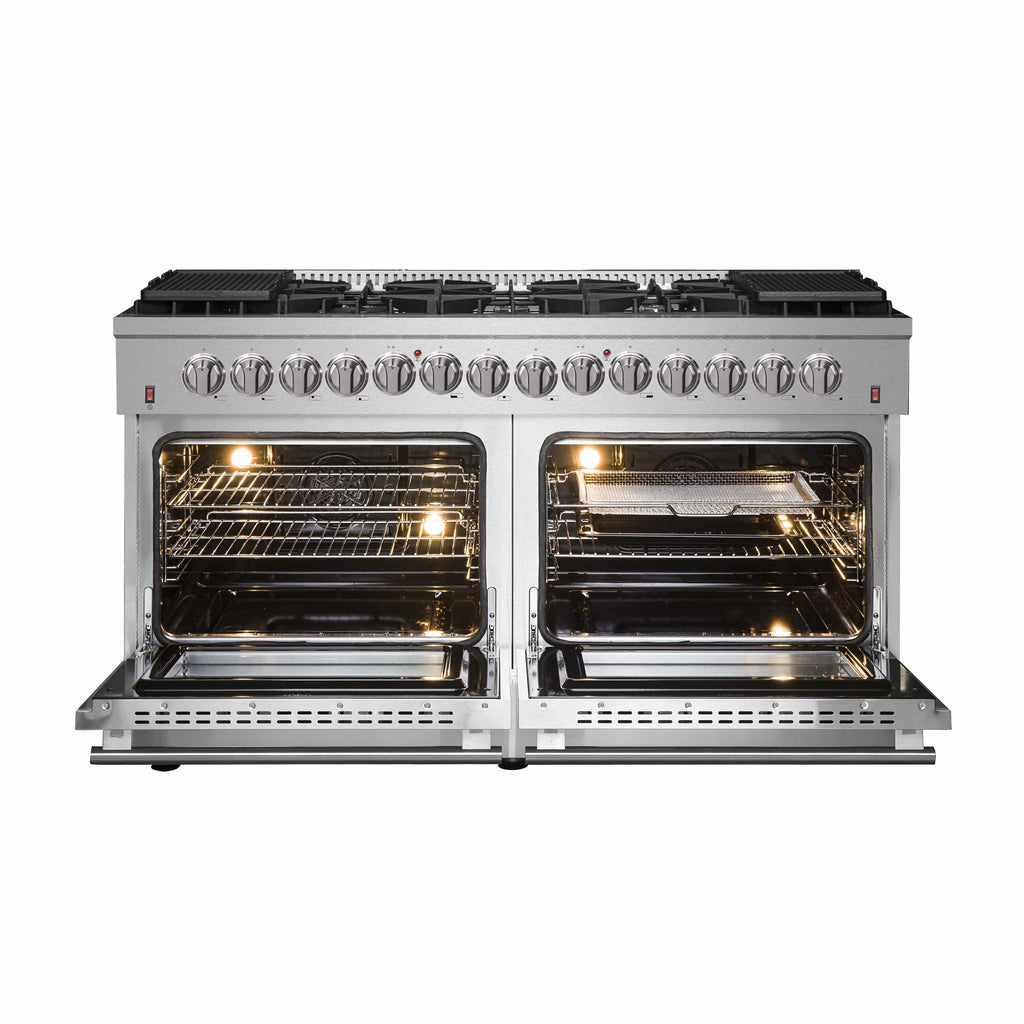

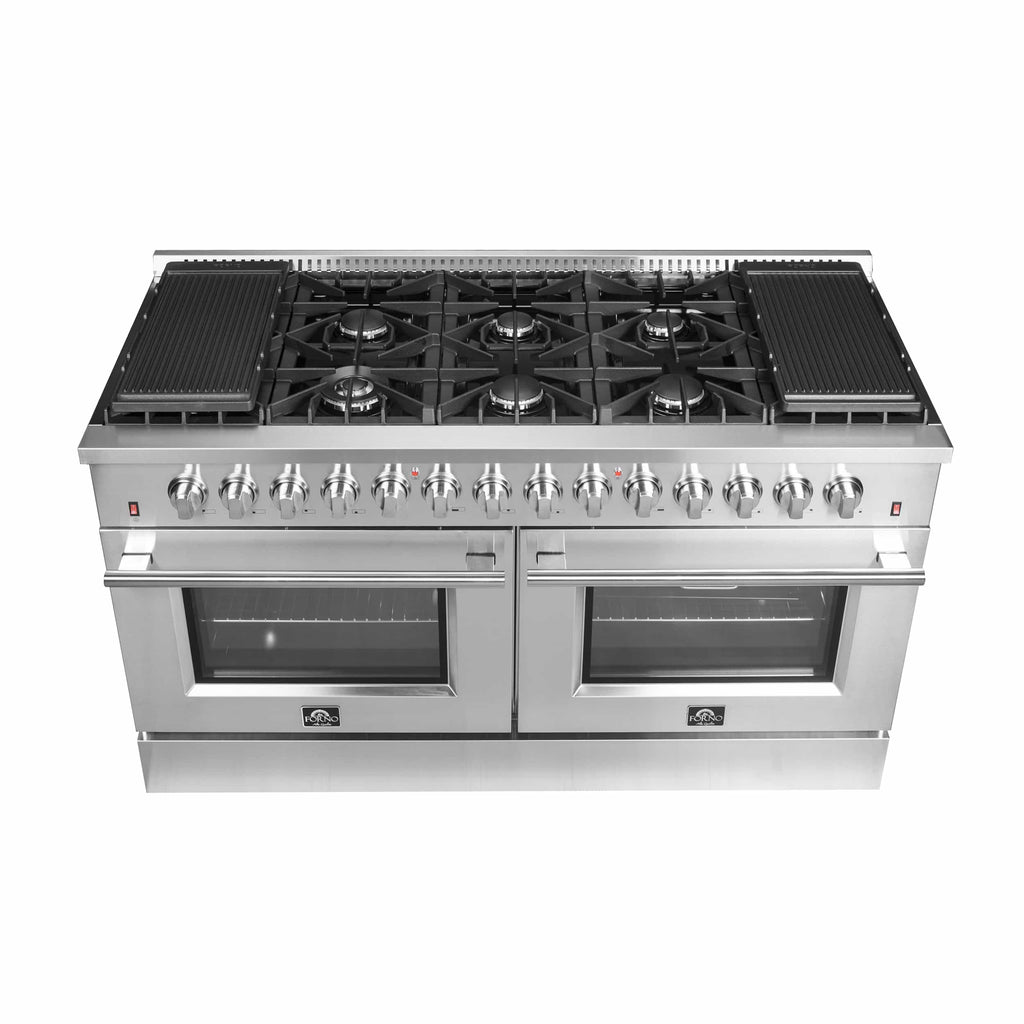

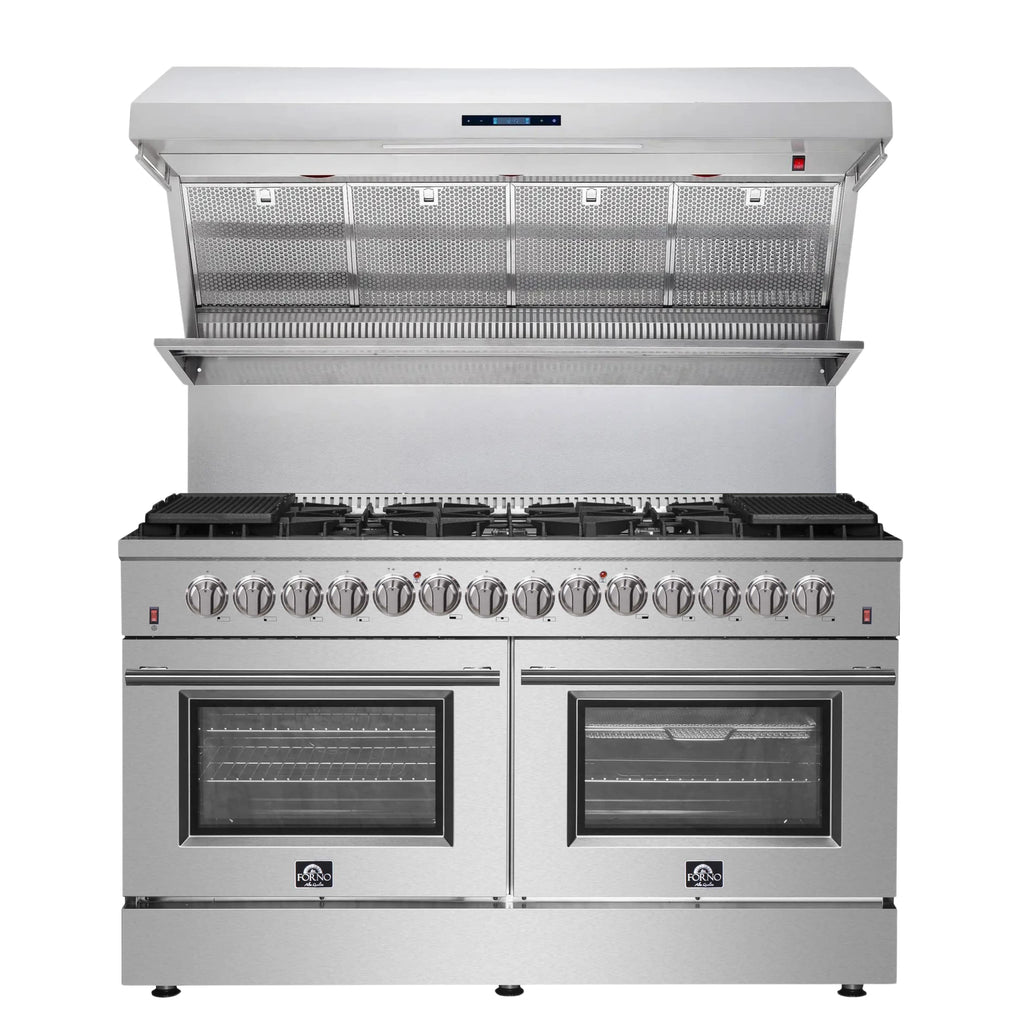

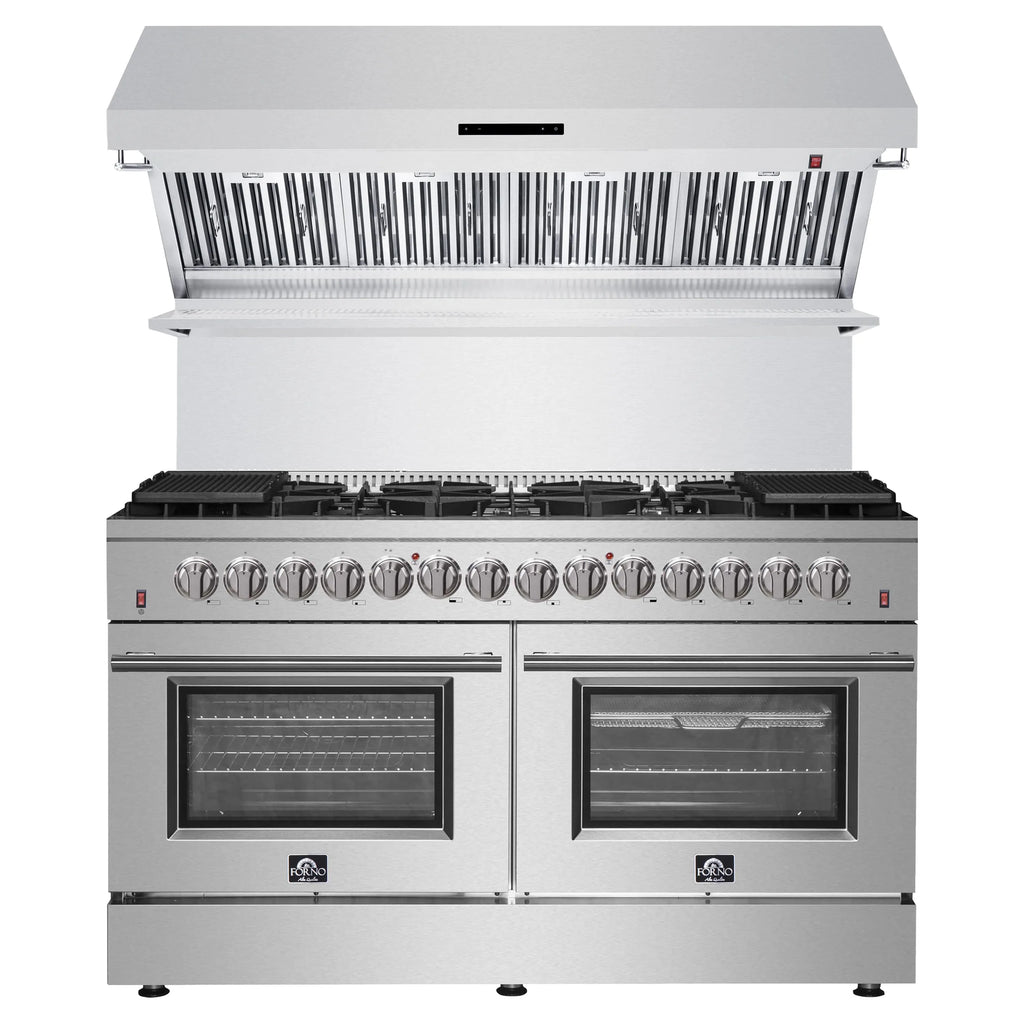

This 60" Dual Fuel Range by Forno offers a 10 Italian Burner cooktop and a 8.64 cu. ft. oven. The range also features cast-iron grates and convection fan. Available at Home Outlet Direct
COOKTOP:
OVEN:
FEATURES:
INCLUDES:
|
Weight & Dimensions |
|
| Overall Weight | 582.24 lbs |
| Overall Dimensions | 60”W x 37.4”H x 28”D |
| Cutout Dimensions | 60.25”W x 28”D |
| Oven Door Open 90º | +28” |
| Right Oven Interior Dimensions | 24.92”W x 16″H x 18.7”D |
| Left Oven Interior Dimensions | 24.92”W x 16″H x 18.7”D |
|
Electrical |
|
| Volts/Amperage | 240V / 40A |
| Wattage | 11,100W |
| Right Oven Broil Wattage inside | 1000W |
| Right Oven Bake Wattage | 2000W |
| Right Oven Outside Wattage | 1800W |
| Left Oven Broil Wattage inside | 1000W |
| Left Oven Bake Wattage | 2000W |
| Left Oven Outside Wattage | 1800W |
| Convection Fan Wattage | 1500W |
| Power Cord Length | 3.9′ |
| Receptacle Type | 4-prong grounding-type |
|
Certifications |
|
|
ETL Listed |
Yes |
|
Title 20 – California Regulation |
Yes |
|
Cooktop |
|
| Overall Burners BTU | 142,000 |
| Front Right Burner BTU | 20,000 |
| Front Right Center Burner BTU | 15,000 |
| Front Center Burner BTU | 15,000 |
| Front Left Center Burner BTU | 15,000 |
| Front Left Burner BTU | 20,000 |
| Rear Right Burner BTU | 9,000 |
| Rear Right Center Burner BTU | 15,000 |
| Front Center Burner BTU | 9,000 |
| Rear Left Center Burner BTU | 15,000 |
| Rear Left Burner BTU | 9,000 |
|
Oven |
|
| Overall Oven Capacity | 8.34 |
| Overall Broil Top BTU | N/A |
| Overall Bottom BTU | N/A |
| Right Oven Capacity | 4.32 |
| Right Broil Top BTU | N/A |
| Right Bottom BTU | N/A |
| Left Oven Capacity | 4.32 |
| Left Broil Top BTU | N/A |
| Left Bottom BTU | N/A |
|
Details |
|
|
Product Type
|
Freestanding Range
|
|
Color/Finish
|
Stainless Steel
|
|
Fuel Type
|
Gas & Electric
|
|
Gas Type
|
Natural Gas
|
| Gas Heat Configuration | Sealed Burners |
| Number of Burners | 10 |
| Cooktop Surface | Deep Recessed Enamel |
| Number of Ovens | 2 |

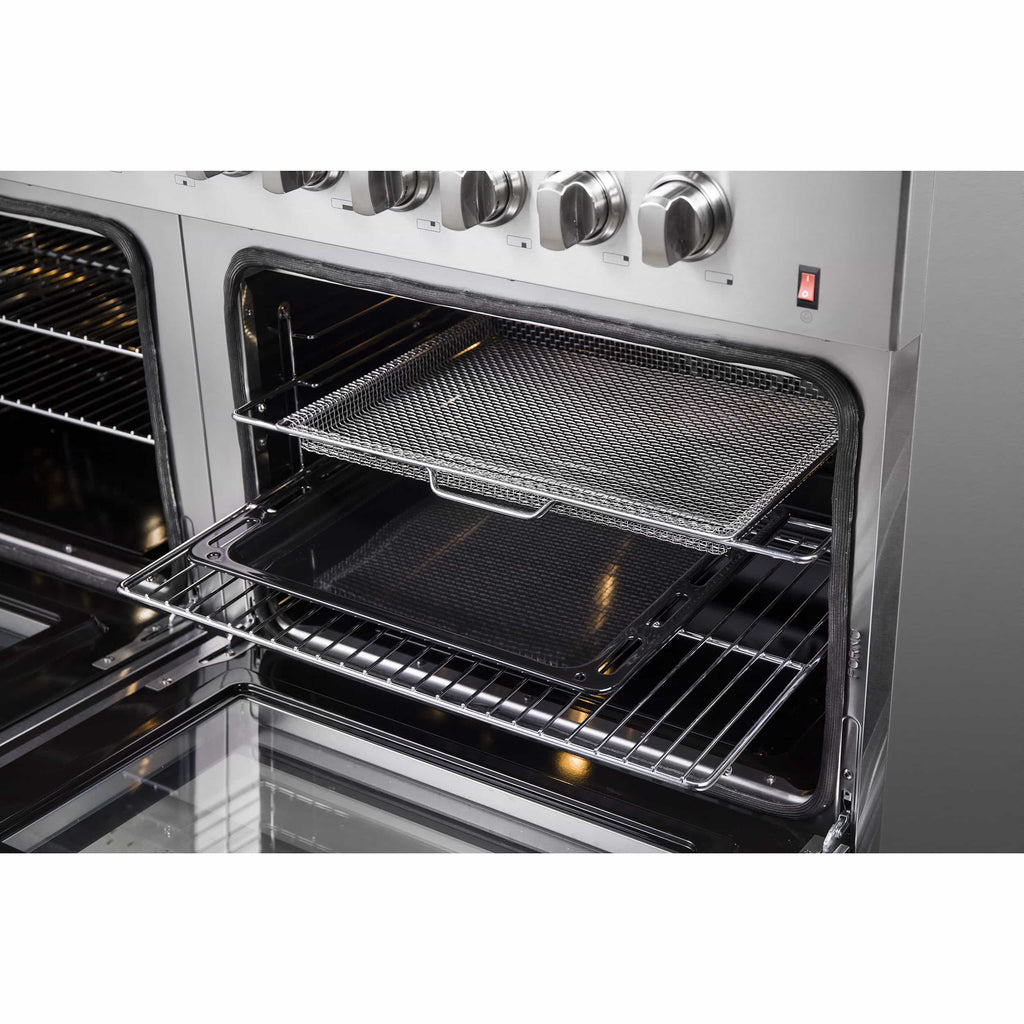

| Number of Racks | 4 |

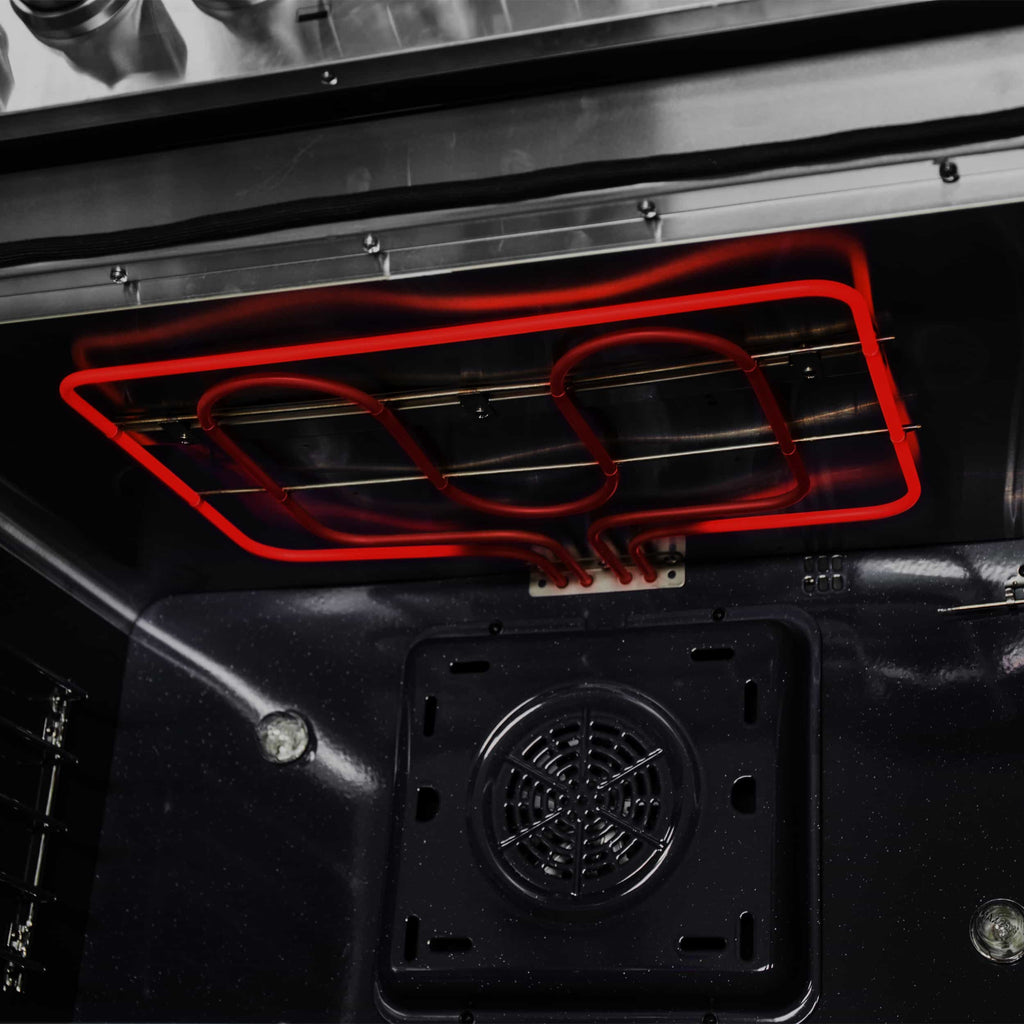

| Broiler | Electric |

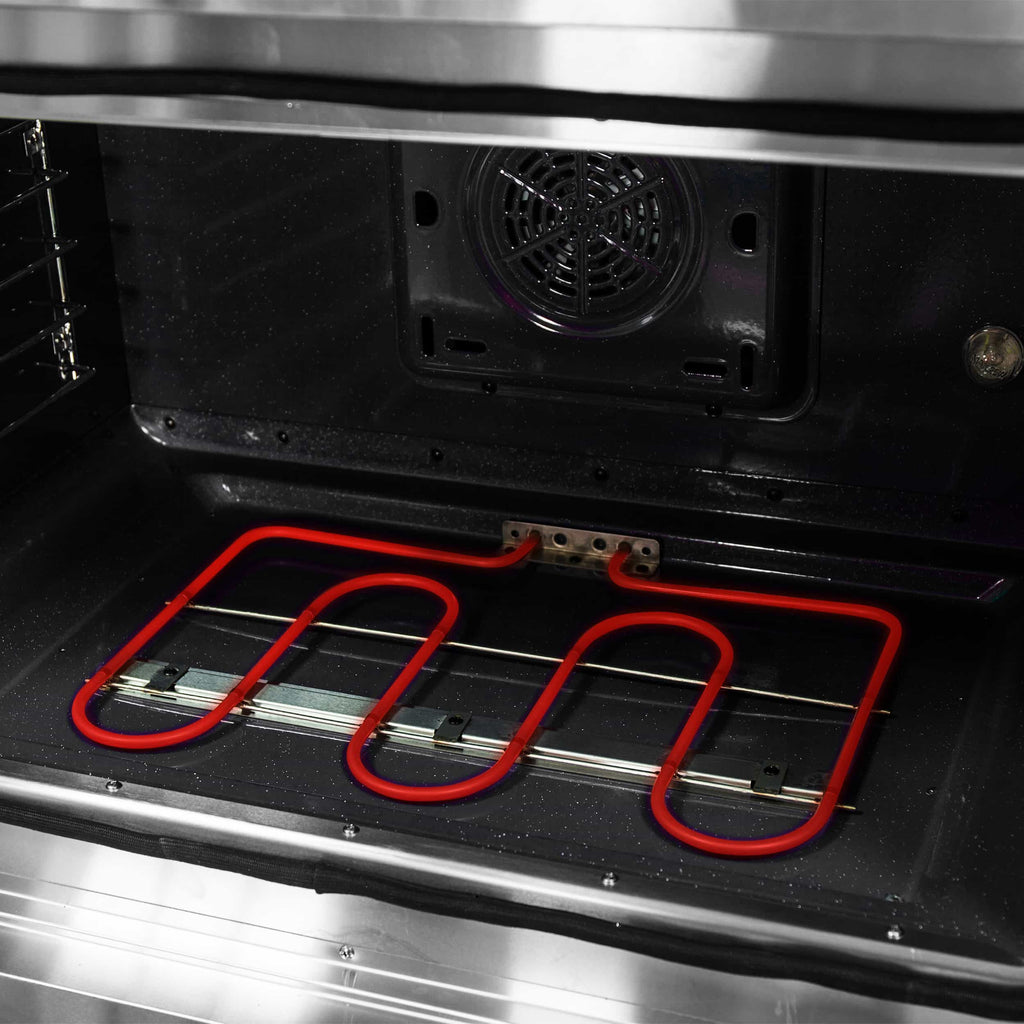

| Bake Element | Electric |
| Cleaning Type | Normal |
| Interior Light | 4 |
| Control Type | Knob |
| Control Location | Front |
| Sealed Burners | Yes |
| LP Gas Convertible | Yes |
| Convection Fan | Yes |
| Convection Oven | Yes |

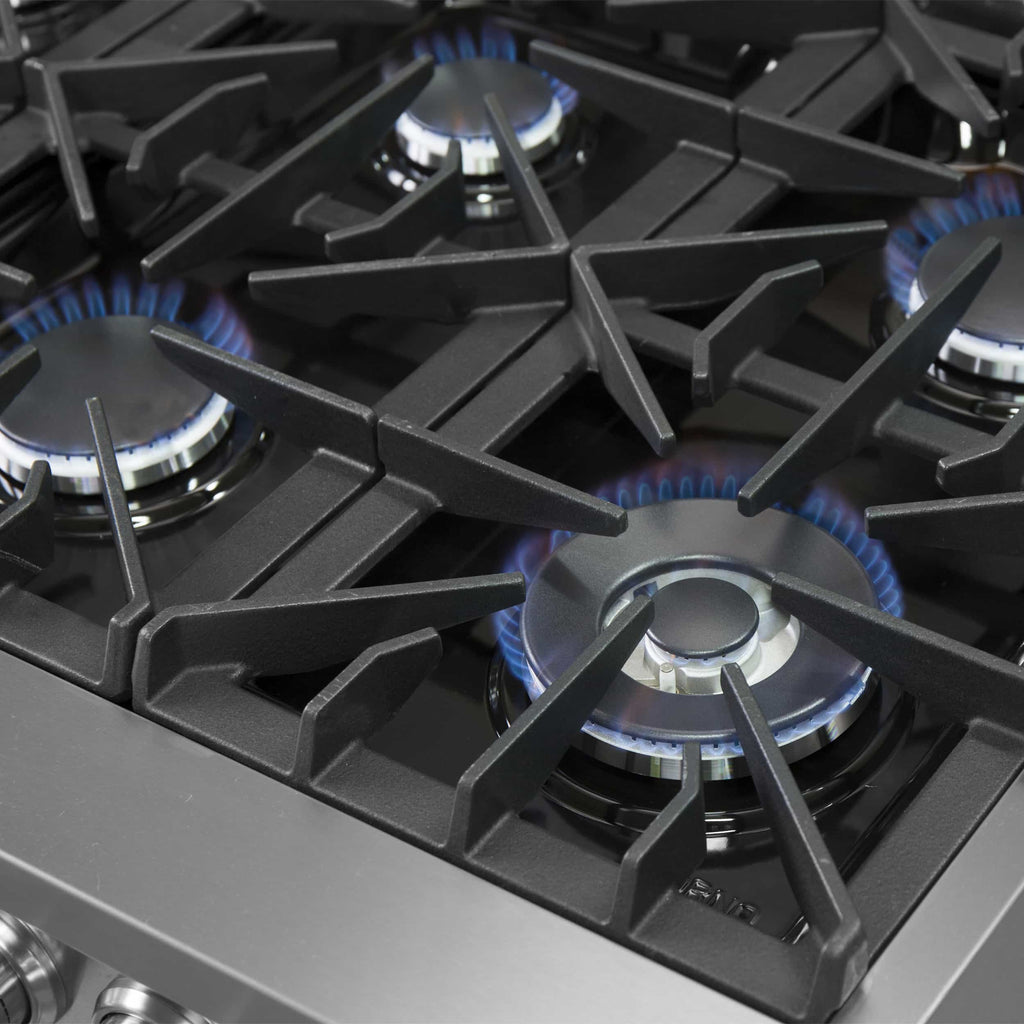

| Continuous Cast Iron Grate | Yes |
| Halogen Oven Lights | Yes |
| Pro-Style Handle | Yes |

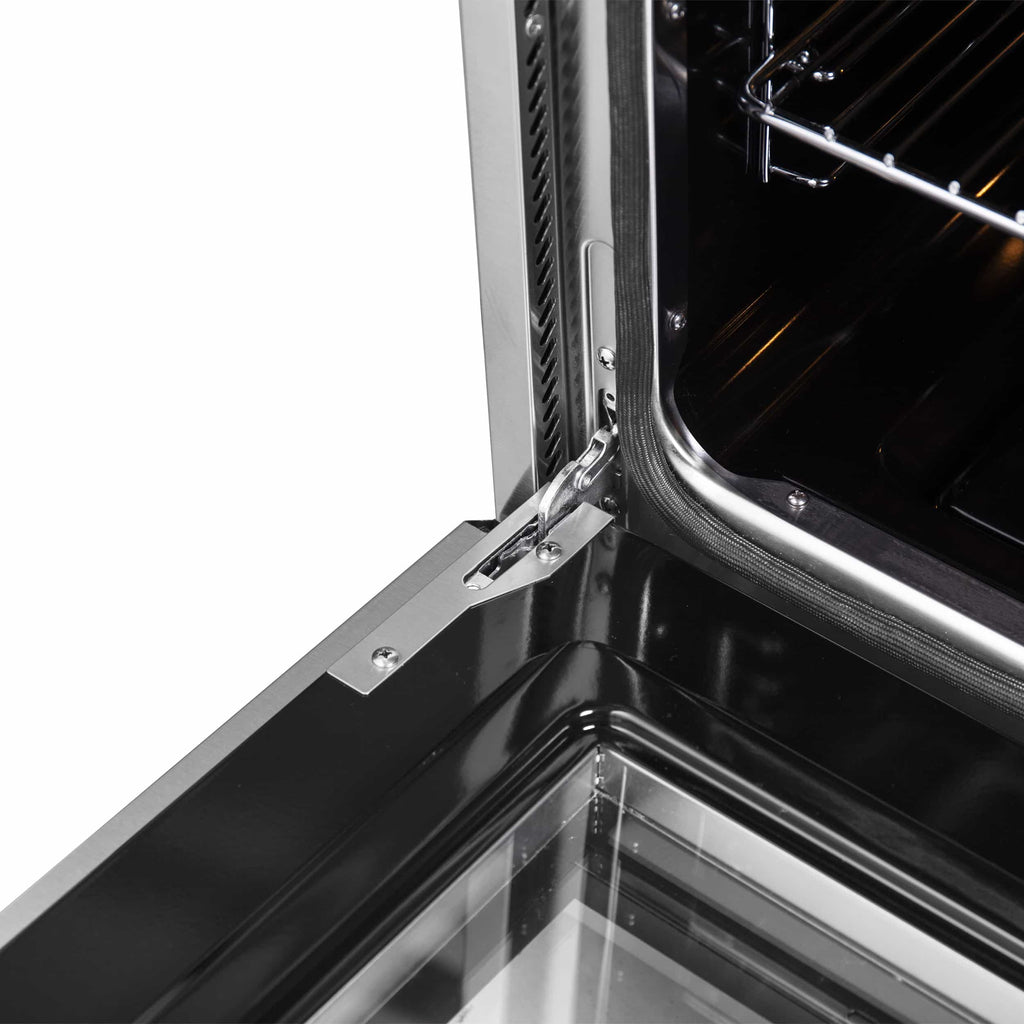

| Soft Door Close | Yes |
| Illuminated Zinc Knobs | No |
| Blue Enamel Oven Interior | No |
| Adjustable Legs | Yes |
| Stainless Steel Square Leg Covers | No |
| Smudge Resistant | Yes |
| Food Grade 430 Stainless Steel | Yes |
| Back Splash Guard Included | Yes |
| Griddle Include | Yes |
| LP Conversion Kit Included | Yes |
| Thermostat | Yes |
| Regulator | Yes |
| Safety valves | No |
| Temperature Gauge | No |
| Timer | No |
| Clock | No |
| Primary Material | 304 Stainless Steel |
| Supplier Intended and Approved Use | Residential Use Only |
| Country of Origin | China |

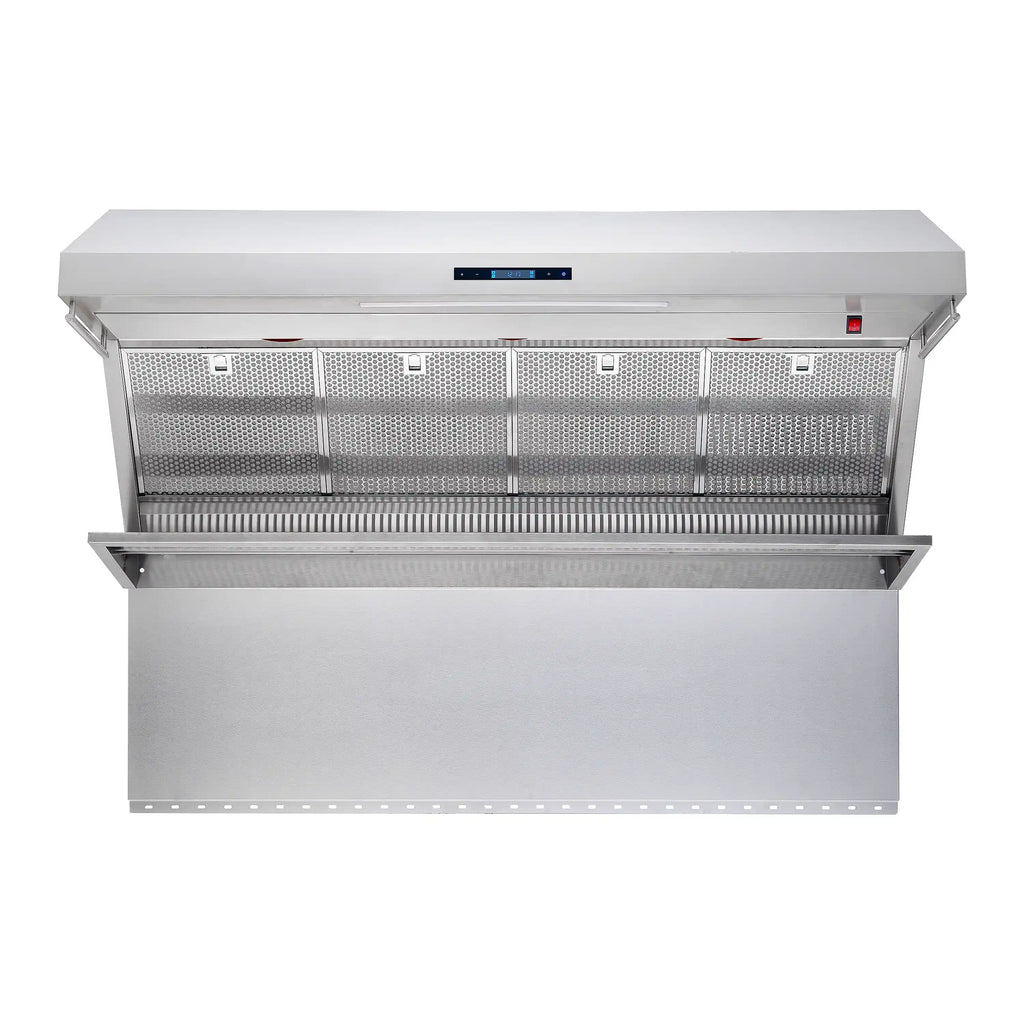

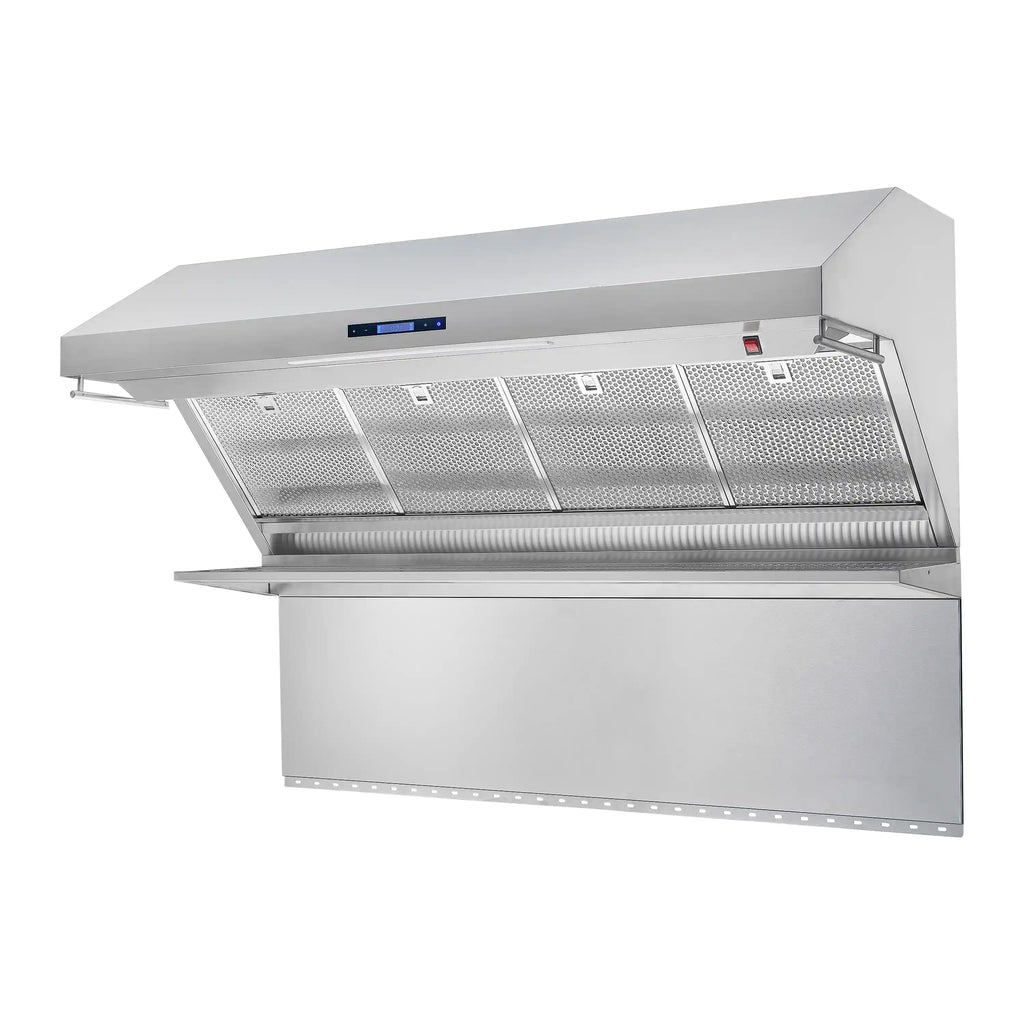

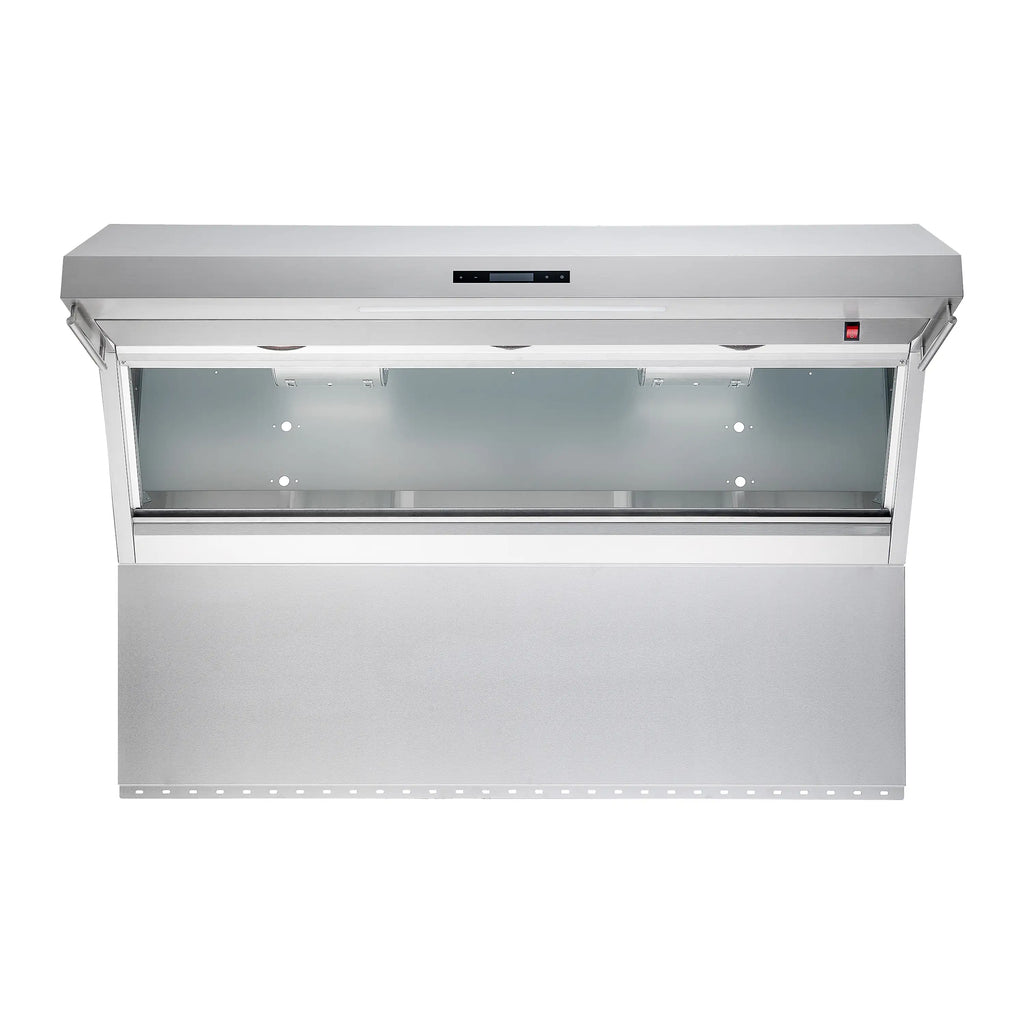

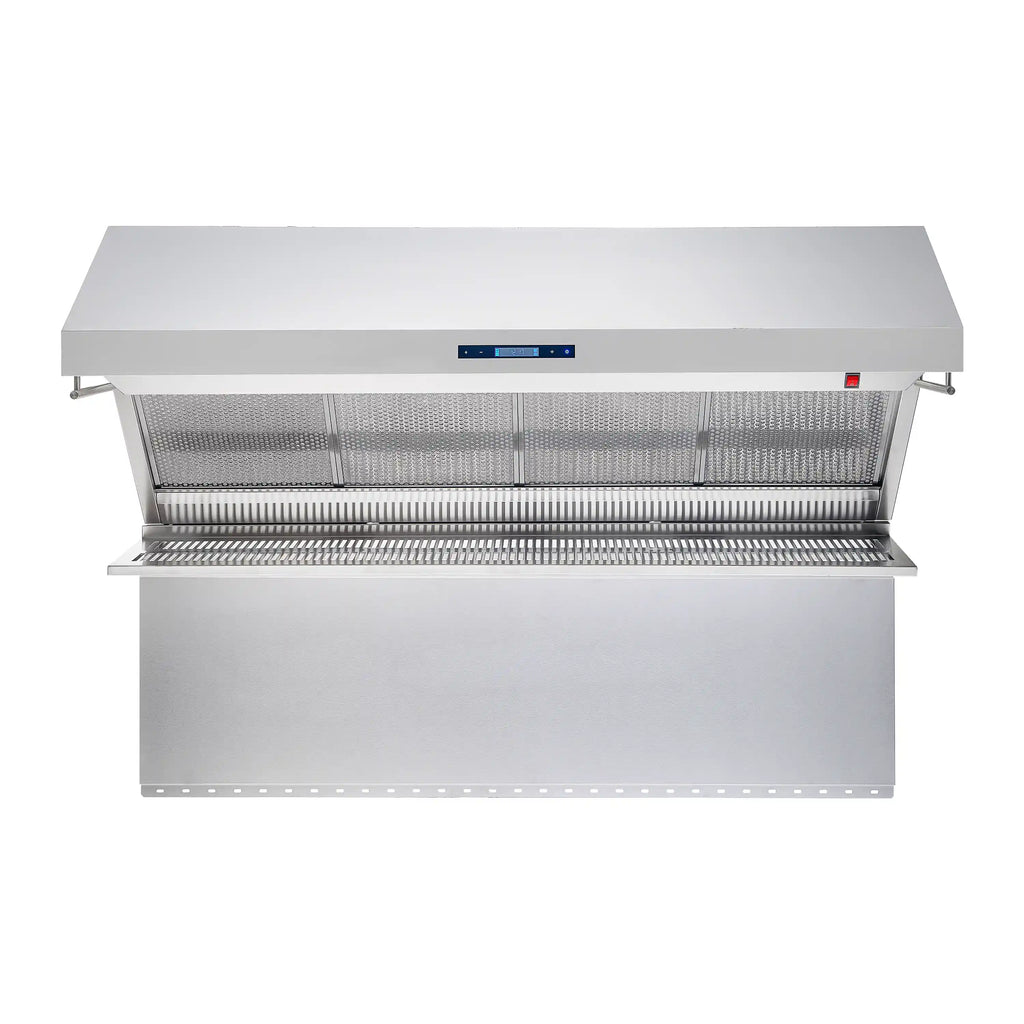

The Forno Savona 60-Inch Wall Mount Range Hood, embody lasting durability in an all-stainless steel design. Experience potent ventilation power of its dual 600 CFM motors (1200 CFM total). Equipped with hybrid filters, it efficiently reduces odors and ensures maximum filtration effectiveness, easily removable and dishwasher-safe for effortless cleaning. Adjust the fan speed to suit your cooking needs with versatile settings. Enjoy the convenience of an upper-level warming shelf, heated by three warming lights, to keep your dishes warm. The included backsplash not only adds a touch of elegance but also provides added protection for your kitchen walls. Dual utensil hangers offer easy access to your cooking tools or a stylish display option for your pans. Elevate your kitchen experience with the Savona 60-inch by Forno – where durability, efficiency, and convenience meet without hefty price tag. Lower the cost of living with Forno.
| Overall Product Width (IN) |
59.06''W x 25''D x 39.49''H |
| Adjustable Height |
Yes |
| Minimum Product Height (IN) |
"22.64 (Without warming shelf & backsplash)" |
| Minimum Height from Cooktop |
30 |
| Maximum CFM |
1200 |
| Minimum CFM |
550 |
| CFM speed 1 |
550 |
| CFM speed 2 |
750 |
| CFM speed 3 |
950 |
| CFM speed 4 |
1200 |
|
Air Flow Speed 1(m3/hour) |
935 |
|
Air Flow Speed 2(m3/hour) |
27-Jun |
|
Air Flow Speed 3 (m3/hour) |
1614 |
|
Air Flow Speed 4 |
|
| Mount Type |
Wall |
| Color/Finish |
Stainless Steel |

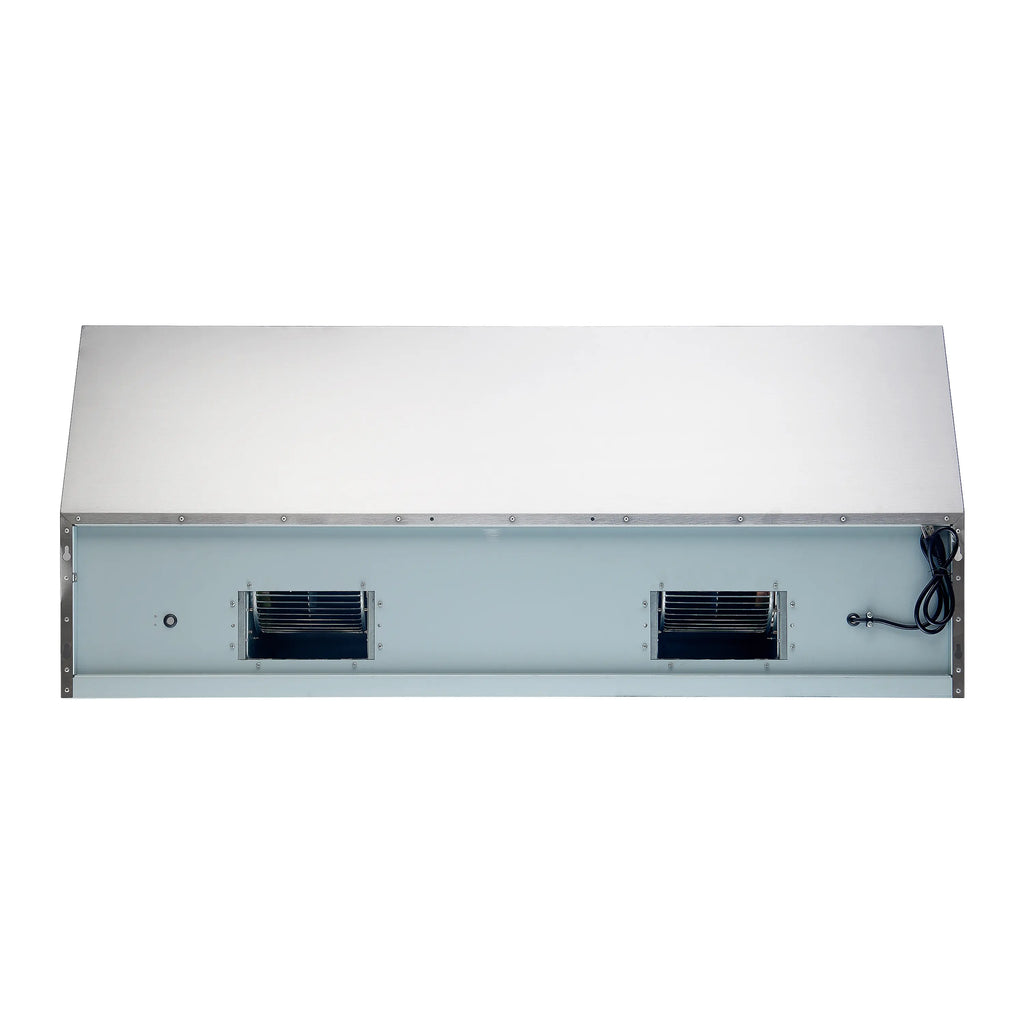

| Number of Blower(s) |
2 |
| Blower Material |
Metal |
| Number of exhaust Vent |
2 |
| Exhaust Vent Location |
Top |
| Vent Type |
Ducted |
| Charcoal Filters |
No |
| Vent Style |
External |
| Air Discharge Direction |
Vertically Upward |

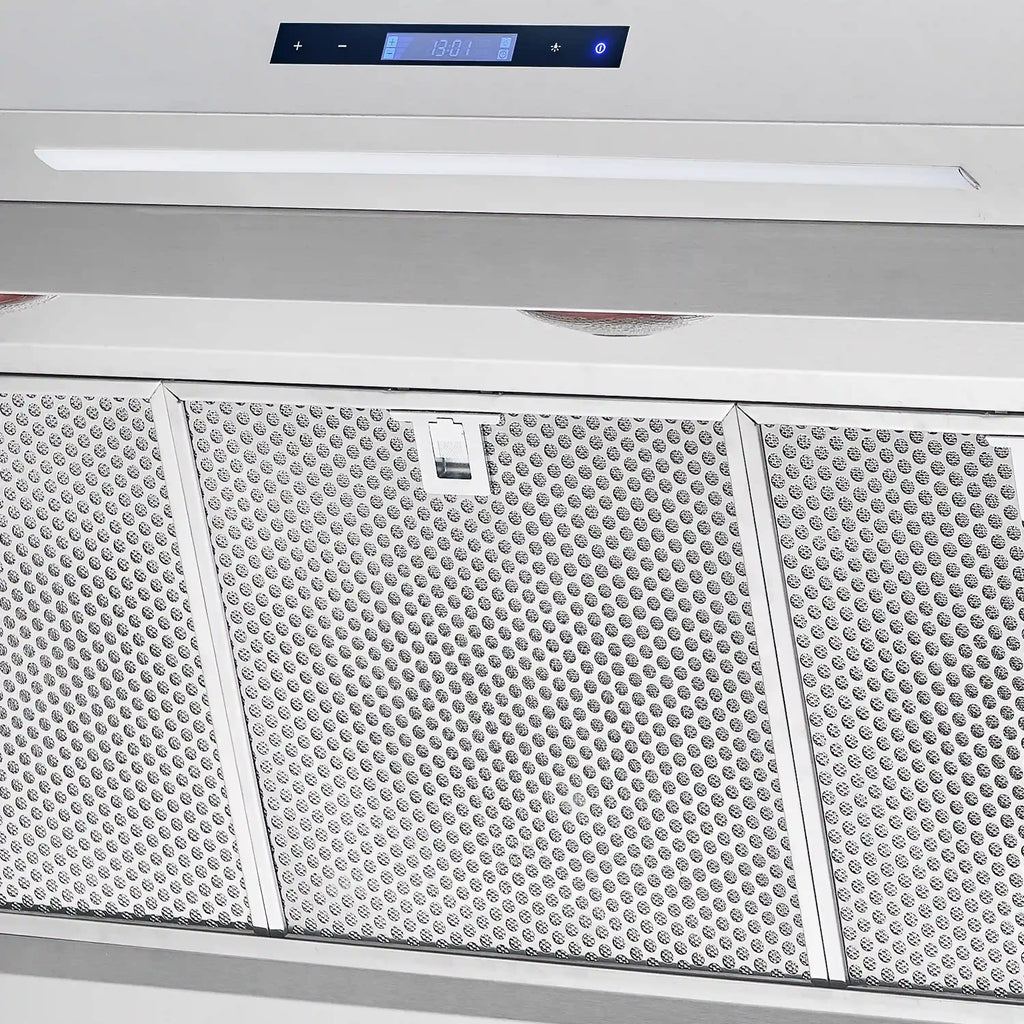

| Filter Type |
Hybrid |
| Filter Material |
Stainless Steel and Aluminum Mesh |
| Removable Grease Filter |
Yes |
| Washable Filter |
Yes |
| Dishwasher Safe Filters |
Yes |
| Damper |
Yes |
| Damper Type |
6-in Round |
| Duct Type |
6-in Round |
| Speed Control |
4 |

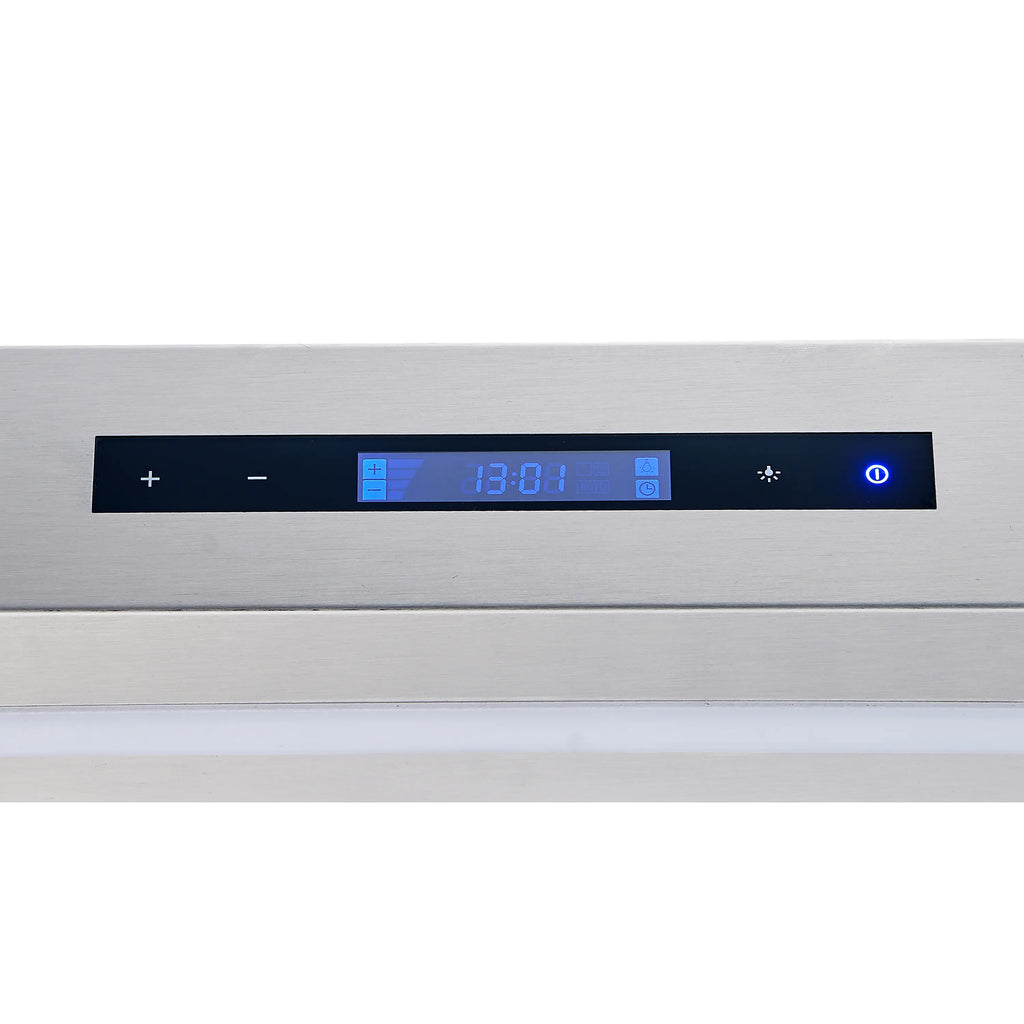

| Speed Control Type |
Touch |
| Heating Lamp Included |
Yes |
| Number of Heating Lamp |
3 |
| Warming selve included |
Yes |
| Backsplash Included |
Yes |
| Hardware Finish |
Stainless Steel |
| Primary Material |
Stainless Steel |
| Rangehood Chimney |
No |
| Chimney Extension Kit |
No |
| Chimney Short Kit |
No |
| Chimney Short Kit |
No |
| Crown Molding |
No |
| Reversible Blower |
No |
| Finger print Resistant |
No |
| Heat Sensors |
No |
| Power off Function |
Yes |
| Power-off Information |
15 Minutes |
| Remote Control |
No |
| Timer |
No |
| Clock |
Yes |
| Number of light settings |
1 |
| Number of Lights |
1 |
| Clean Filter Alert |
No |
| Range Hood Shape |
Square |
| Supplier Intended and Approved Use |
Residential Use |
| Maximum Sones |
16 |
| Minimum Sones |
2 |
| Sones Speed 1 |
2 |
| Sones Speed 2 |
6 |
| Sones Speed 3 |
11 |
| Sones Speed 4 |
16 |
| Maximum Decibel (dB) |
68 |
| Minimum Decibel (dB) |
48 |
