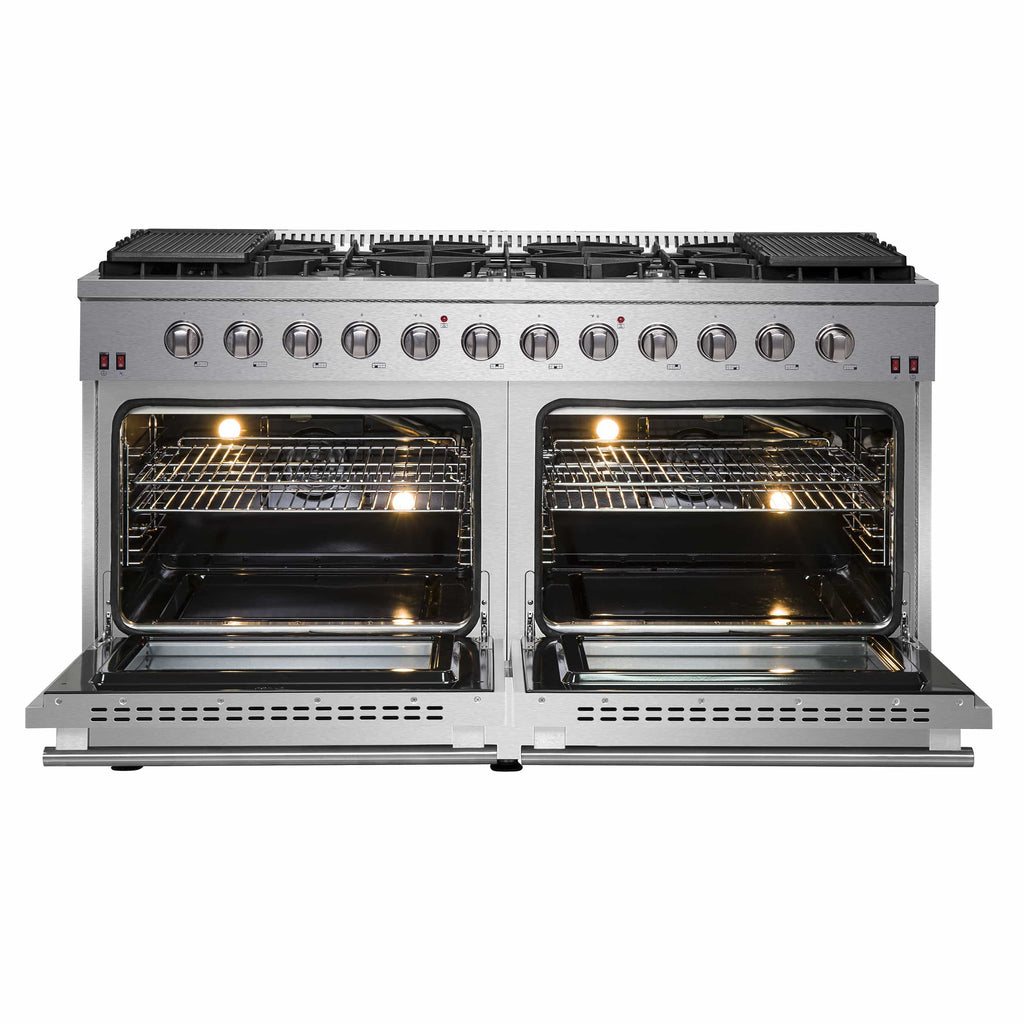

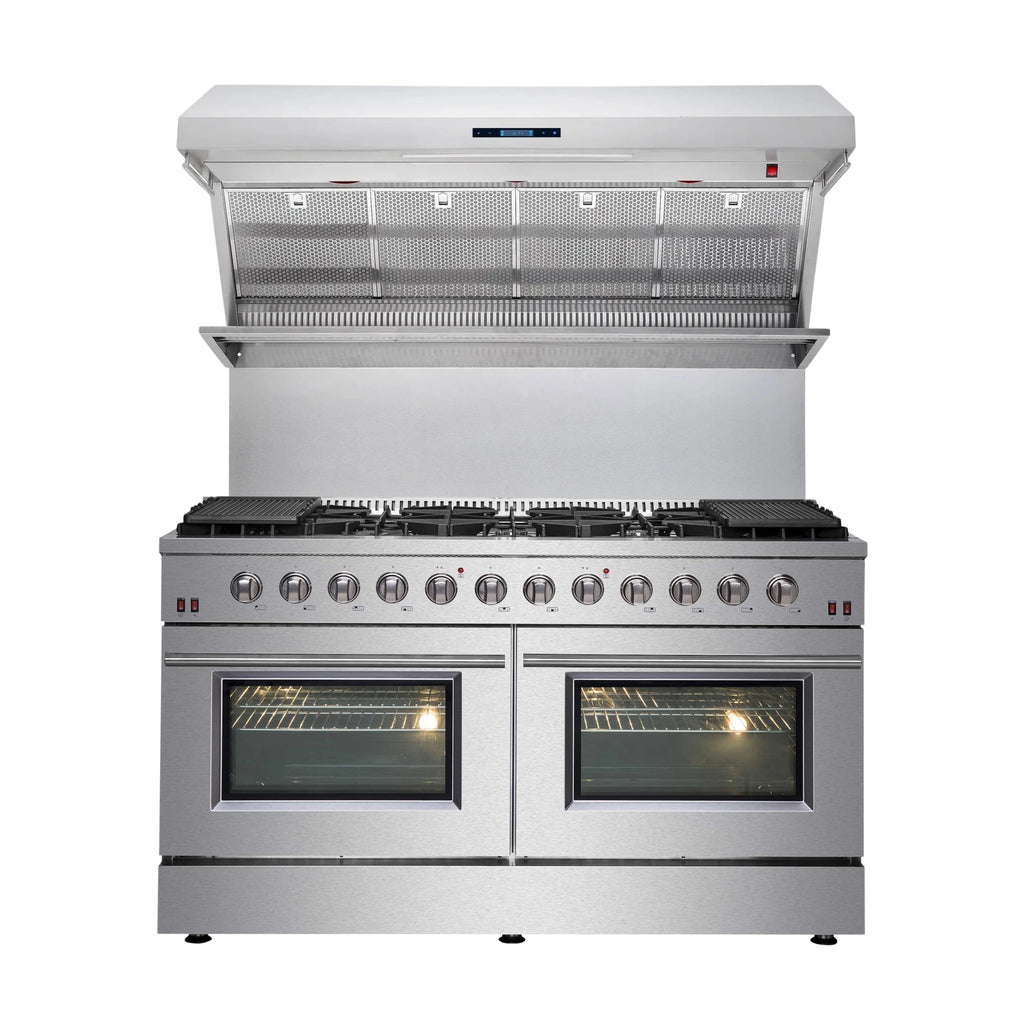

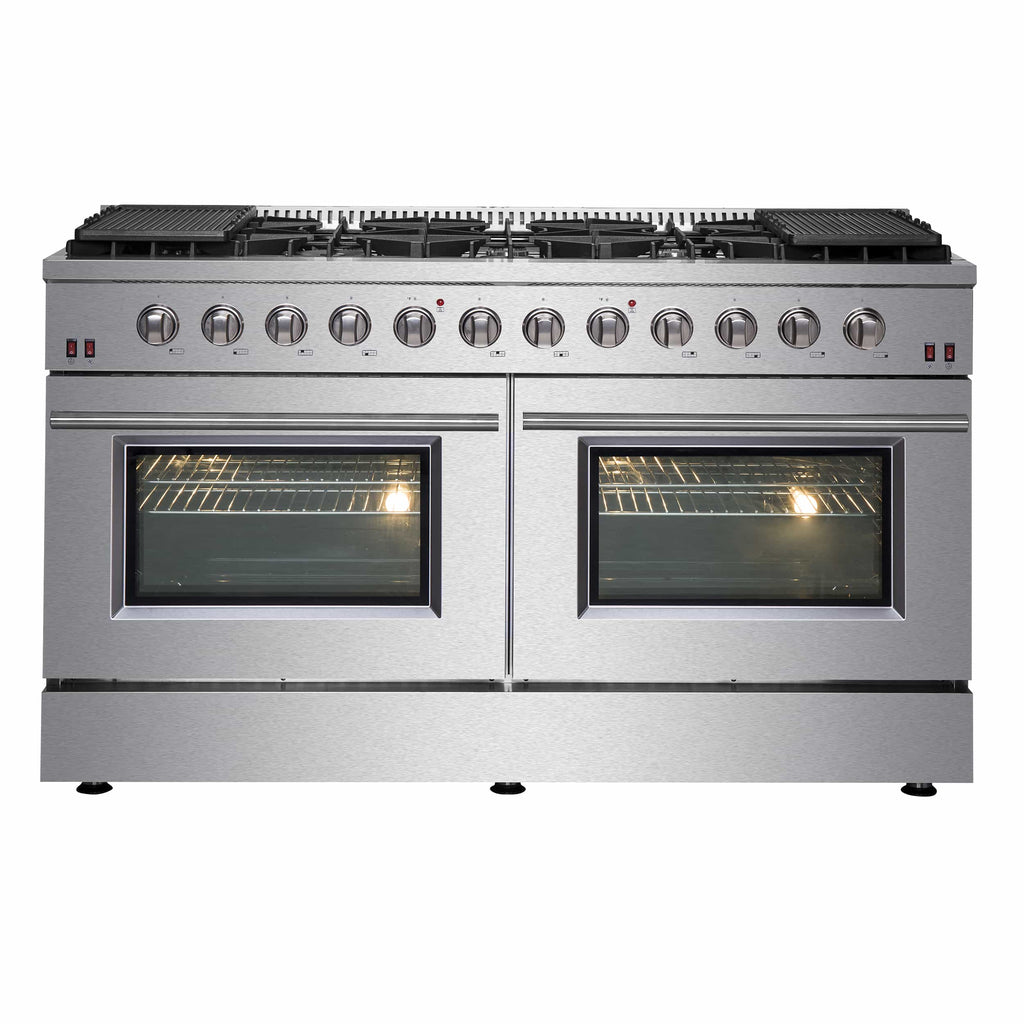

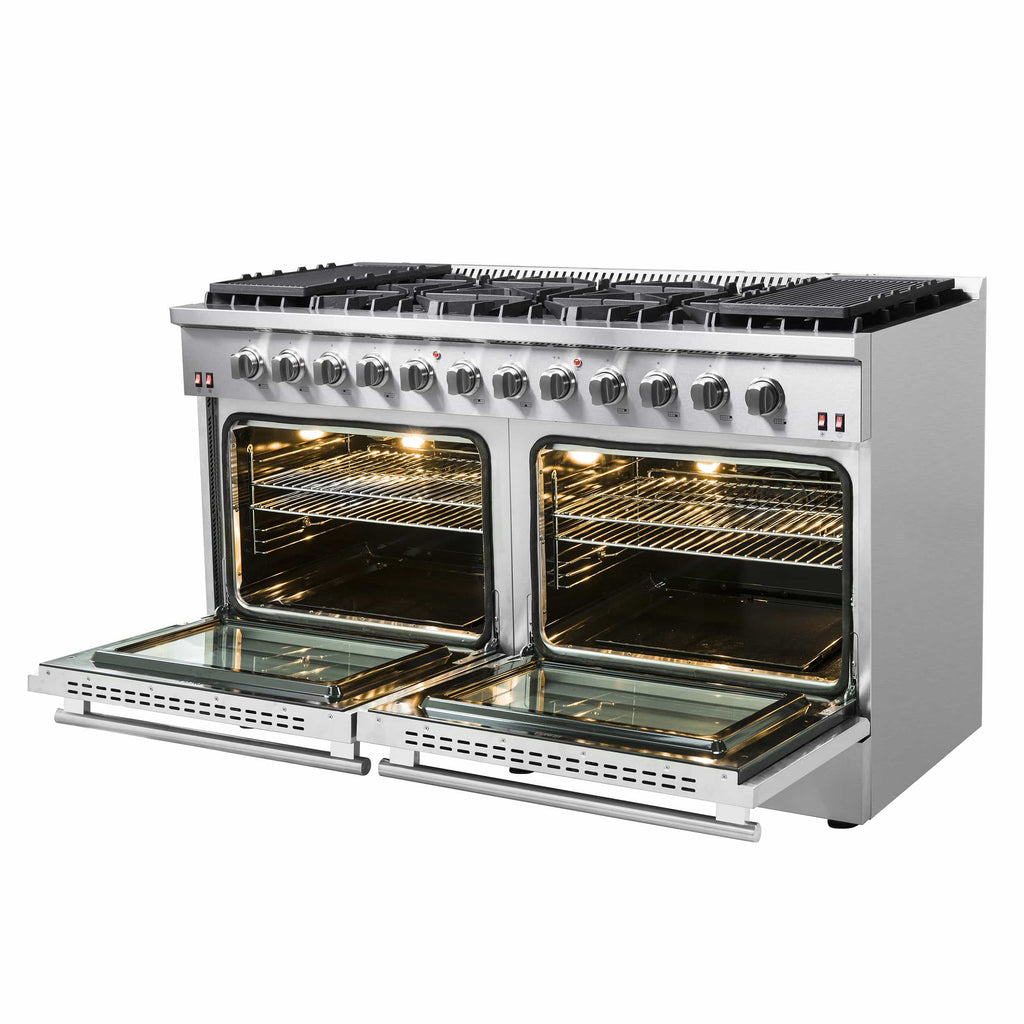

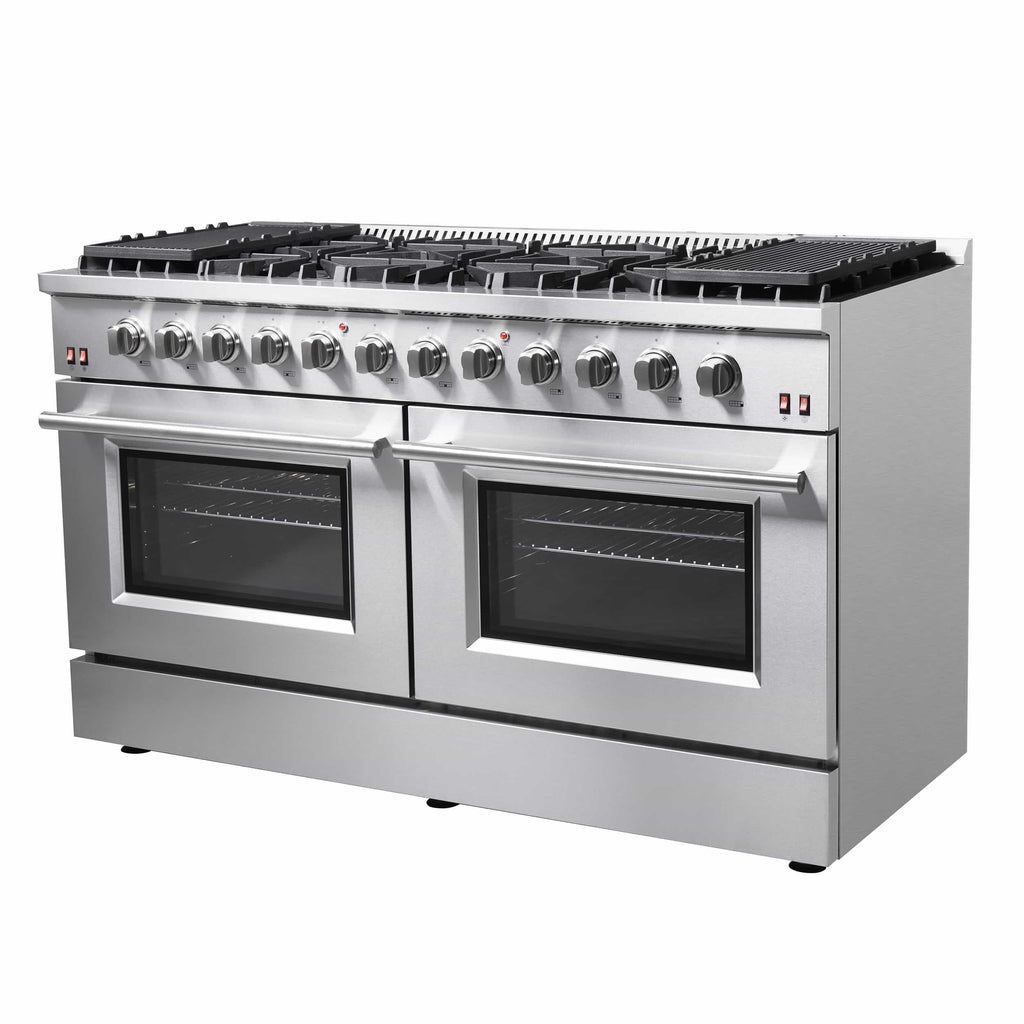

The 60” Galiano Gas Range brings professional styling and quality into your home kitchen with its durable stainless-steel design. The total stove top output of 142,000 BTU, the rangetop has 10 sealed burners including 2 sealed dual-ring burners for simmering delicate tasks like melting chocolate or cooking sauces, giving you the ability to cook up whatever delicious meals you desire. The continuous cast iron grates allow for even heat distribution and maximum stability of cookware mobility over a recessed enamel cooktop cavity which keeps spills and splashes contained and easy to clean. The cumulative capacity 8.64 cu. ft. double gas ovens with a total broil and bake output of 64,000 BTU, encased in black enamel interiors and tempered 3-layer glass oven door windows. . Included are 4 electroplated oven racks, 2 reversible griddles, concave wok-ring and LP conversion kit. Housed in a high-grade stainless steel body and zinc knobs, this unit sports a stylish look that is built to last. All Forno products are backed by an iron clad 2-year warranty for your satisfaction. Skip the high price tags without sacrificing quality and performance. Lower the cost of living with Forno.
|
Weight & Dimensions |
|
| Overall Weight | 592 lbs |
| Overall Dimensions | 60”W x 37.4”H x 28”D |
| Cutout Dimensions | 60.25”W x 28”D |
| Oven Door Open 90º | 28” |
| Right Oven Interior Dimensions | 24.92”W x 16″H x 18.7”D |
| Left Oven Interior Dimensions | 24.92”W x 16″H x 18.7”D |
|
Electrical |
|
| Volts/Amperage | 120V / 15A |
| Power Cord Length | 5′ |
| Receptacle Type | 3-prong grounding-type |
|
Certifications |
|
|
ETL Listed |
Yes |
|
Title 20 – California Regulation |
Yes |
|

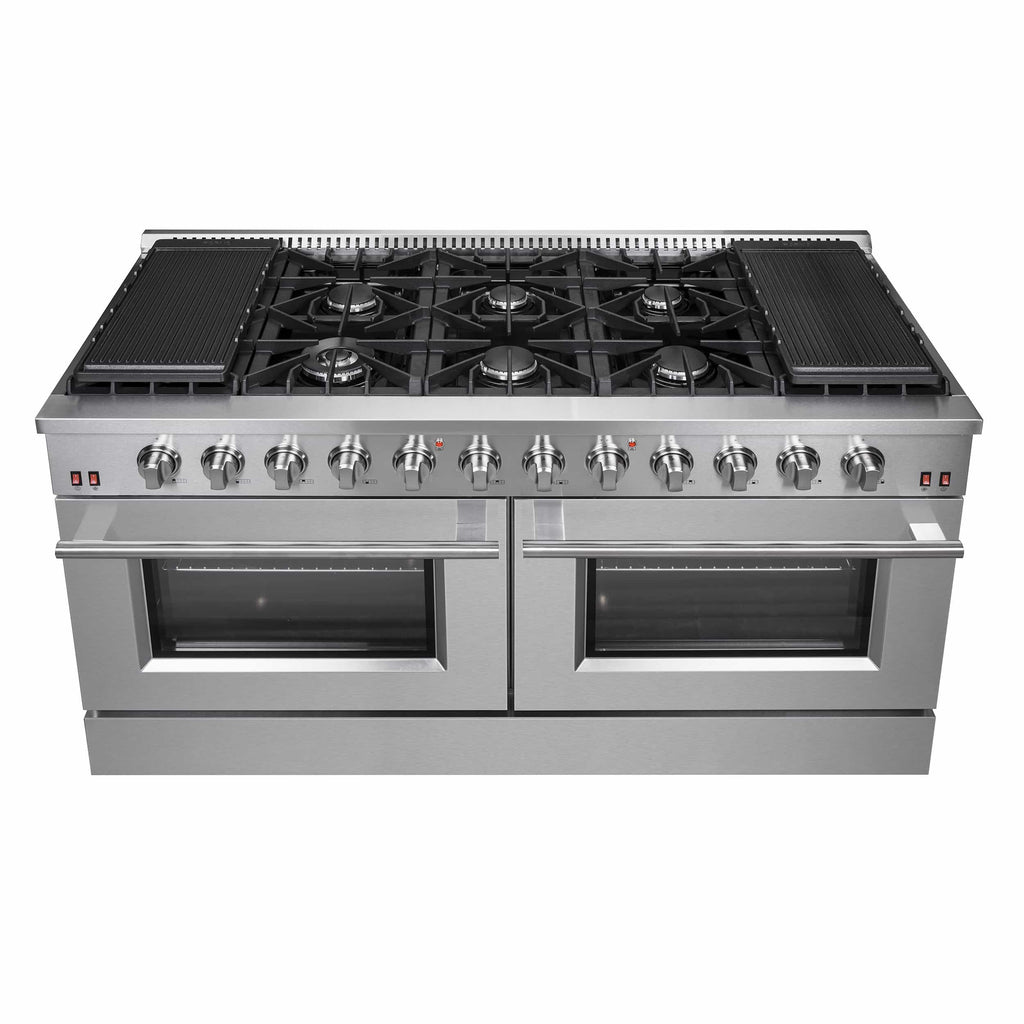

Cooktop |
|
| Overall Burners BTU | 142,000 |
| Front Right Burner BTU | 1,000 to 20,000 |
| Front Right Center Burner BTU | 15,000 |
| Front Center Burner BTU | 15,000 |
| Front Left Center Burner BTU | 15,000 |
| Front Left Burner BTU | 20,000 |
| Rear Right Burner BTU | 9,000 |
| Rear Right Center Burner BTU | 15,000 |
| Front Center Burner BTU | 9,000 |
| Rear Left Center Burner BTU | 15,000 |
| Rear Left Burner BTU | 9,000 |
| Number of Knob | 12 |
| Switches |
2 + 2 |
|
Oven |
|
| Overall Oven Capacity | 8.64 Cubic Feet |
| Overall Broil Top BTU | 20,000 |
| Overall Bottom BTU | 40,000 |
| Right Oven Capacity | 4.32 Cubic Feet |
| Right Broil Top BTU | 10,000 |
| Right Bottom BTU | 20,000 |
| Left Oven Capacity | 4.32 Cubic Feet |
| Left Broil Top BTU | 10,000 |
| Left Bottom BTU | 20,000 |
| Convection Fan | Yes |
|
Details |
|
|
Product Type
|
Freestanding Range
|
|
Color/Finish
|
Stainless Steel
|
|
Fuel Type
|
Gas
|
|
Gas Type
|
Natural Gas
|
| Gas Heat Configuration | Sealed Burners |
| Number of Burners | 10 |
| Cooktop Surface | Continuous Cast Iron Grates |
| Cooktop Cavity | Recessed Enamel |
| Number of Ovens | 2 |
| Number of Racks | 4 |
| Number of Rack Positions | 2 x 6 |
| Broiler | Gas |
| Bake Element | Gas |
| Cleaning Type | Manual |
| Cooking Process | Convection |
| Interior Light | 2 |
| Control Type | Knob |
| Control Location | Front |
| LP Gas Convertible | Yes |
| Temperature Gauge | No |
| Timer | No |
| Clock | No |
| Primary Material | Metal |
| Door Panel Material | Stainless Steel |
| Control Panel Material | Stainless Steel |
| Kick Plate Material | Stainless Steel |
| Side Panel Material | Stainless Steel |
| Supplier Intended and Approved Use | Residential Use |
| Country of Origin | China |
| Instruction Manual |
| Cutout Dimension |
| Catalog Sheet |

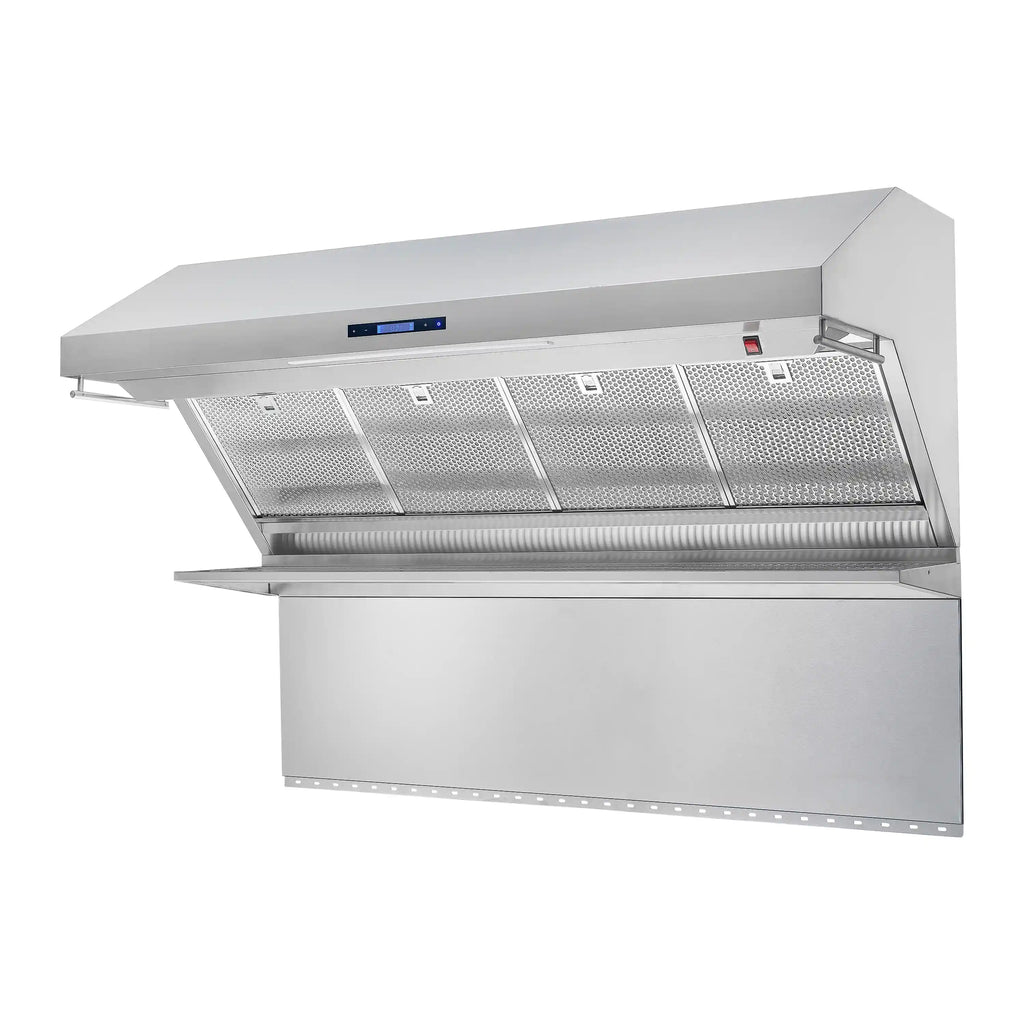

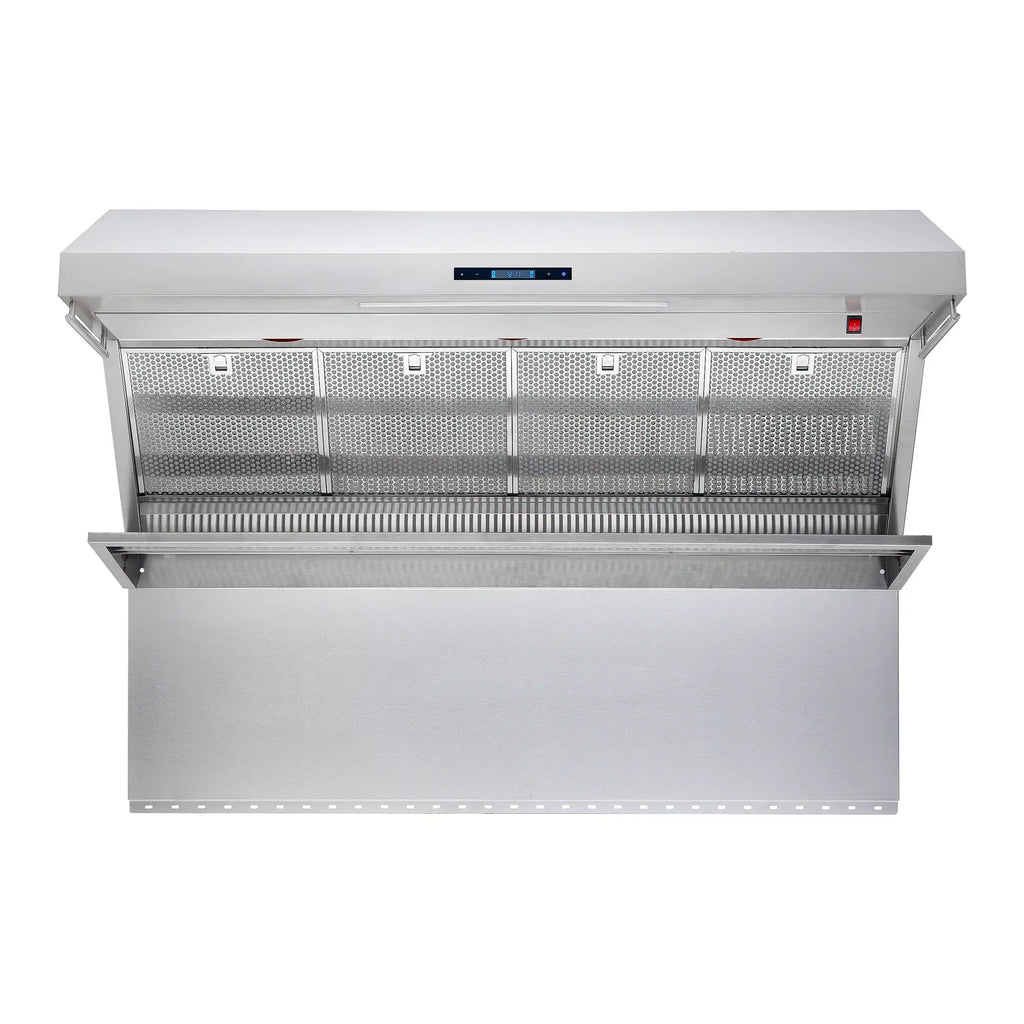

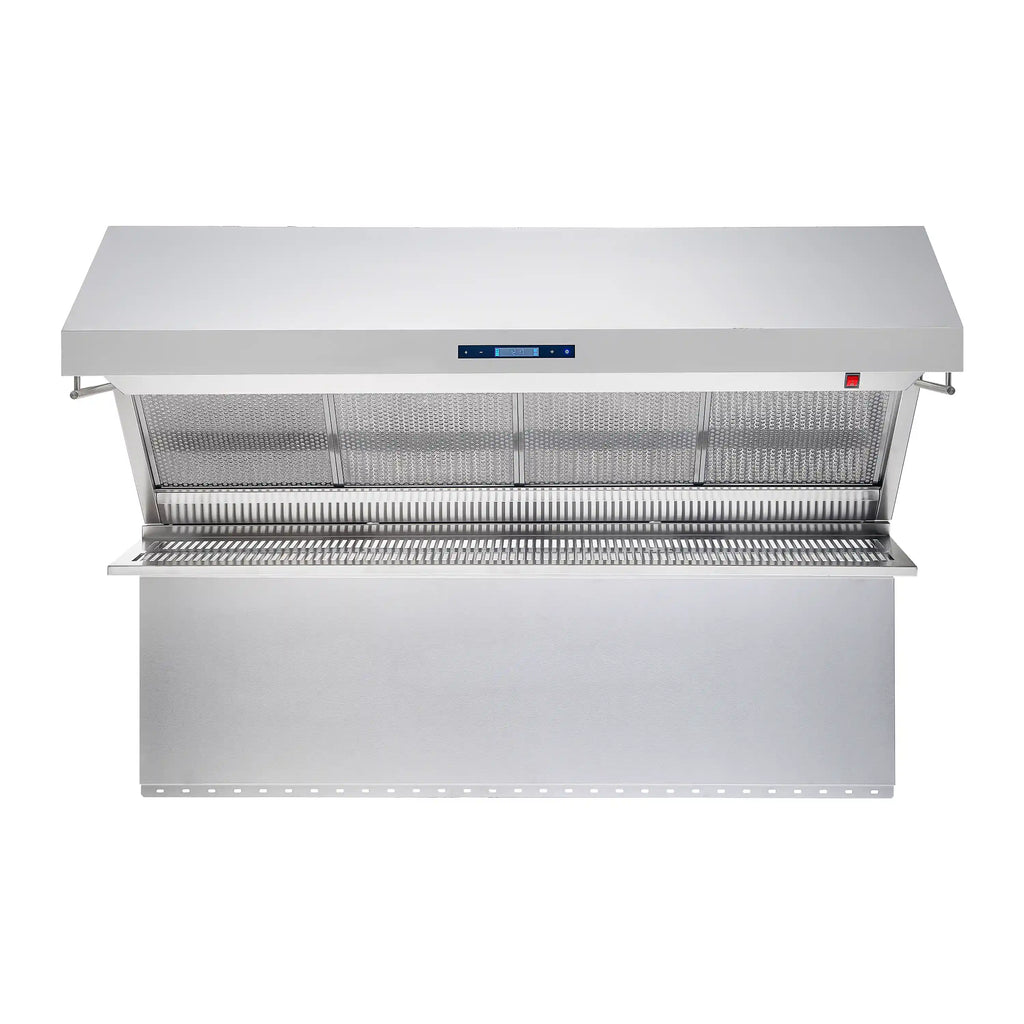

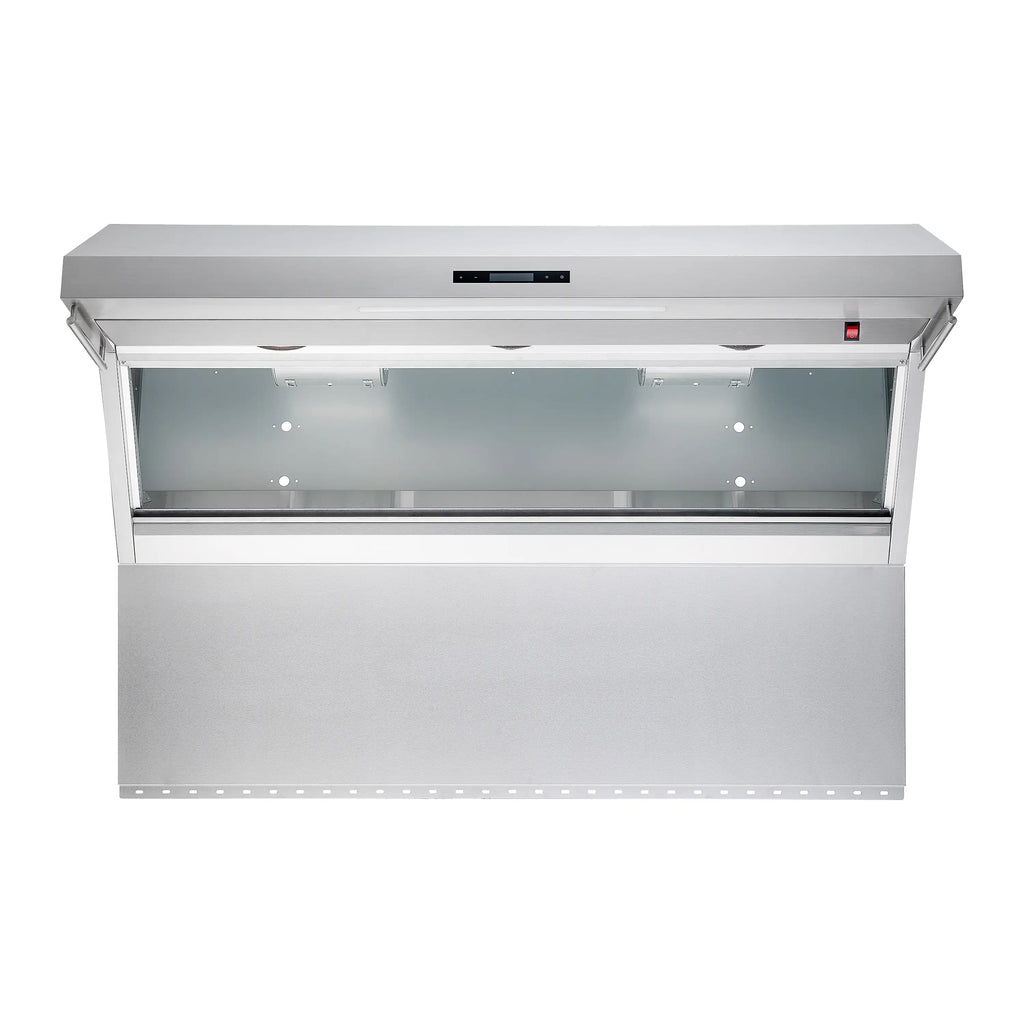

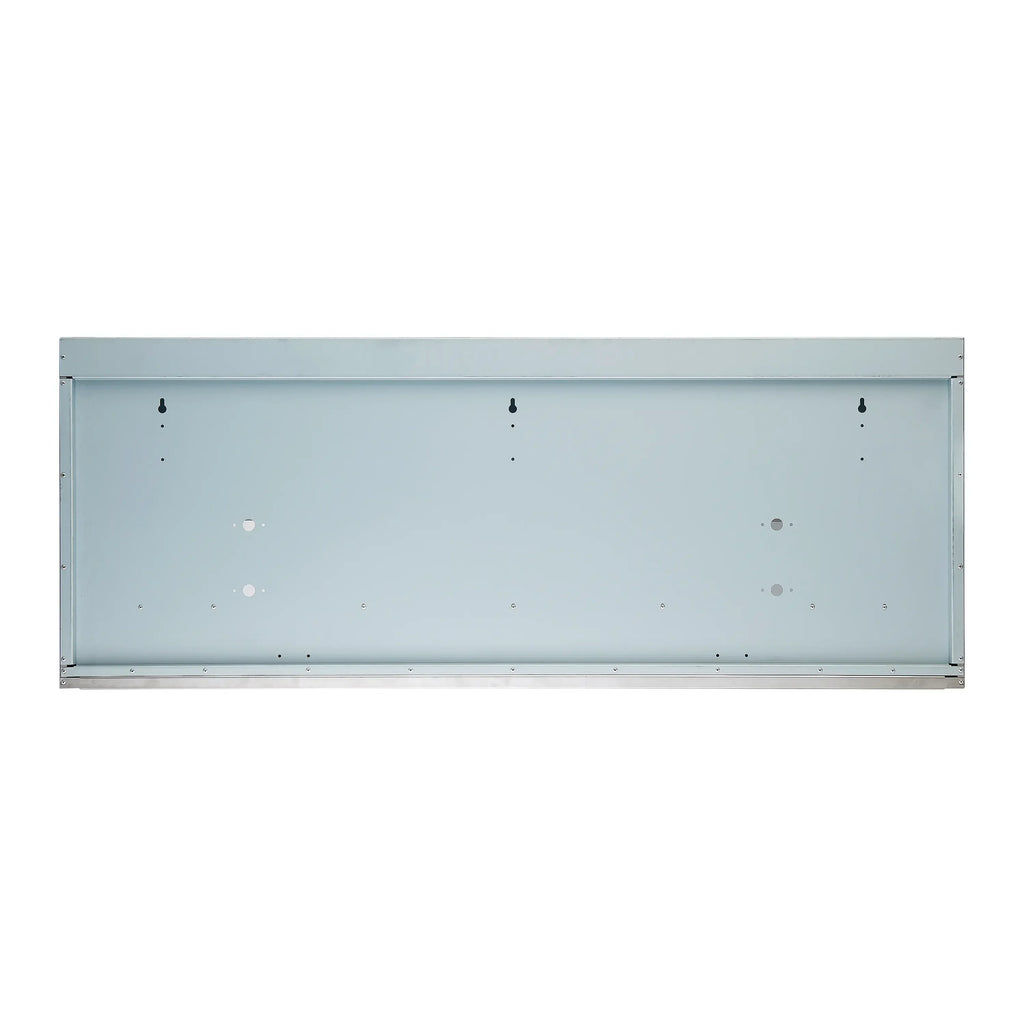

The Forno Savona 60-Inch Wall Mount Range Hood, embody lasting durability in an all-stainless steel design. Experience potent ventilation power of its dual 600 CFM motors (1200 CFM total). Equipped with hybrid filters, it efficiently reduces odors and ensures maximum filtration effectiveness, easily removable and dishwasher-safe for effortless cleaning. Adjust the fan speed to suit your cooking needs with versatile settings. Enjoy the convenience of an upper-level warming shelf, heated by three warming lights, to keep your dishes warm. The included backsplash not only adds a touch of elegance but also provides added protection for your kitchen walls. Dual utensil hangers offer easy access to your cooking tools or a stylish display option for your pans. Elevate your kitchen experience with the Savona 60-inch by Forno – where durability, efficiency, and convenience meet without hefty price tag. Lower the cost of living with Forno.
| Overall Product Width (IN) |
59.06''W x 25''D x 39.49''H |
| Adjustable Height |
Yes |
| Minimum Product Height (IN) |
"22.64 (Without warming shelf & backsplash)" |
| Minimum Height from Cooktop |
30 |
| Maximum CFM |
1200 |
| Minimum CFM |
550 |
| CFM speed 1 |
550 |
| CFM speed 2 |
750 |
| CFM speed 3 |
950 |
| CFM speed 4 |
1200 |
|
Air Flow Speed 1(m3/hour) |
935 |
|
Air Flow Speed 2(m3/hour) |
27-Jun |
|
Air Flow Speed 3 (m3/hour) |
1614 |
|
Air Flow Speed 4 |
|
| Mount Type |
Wall |
| Color/Finish |
Stainless Steel |
| Number of Blower(s) |
2 |
| Blower Material |
Metal |

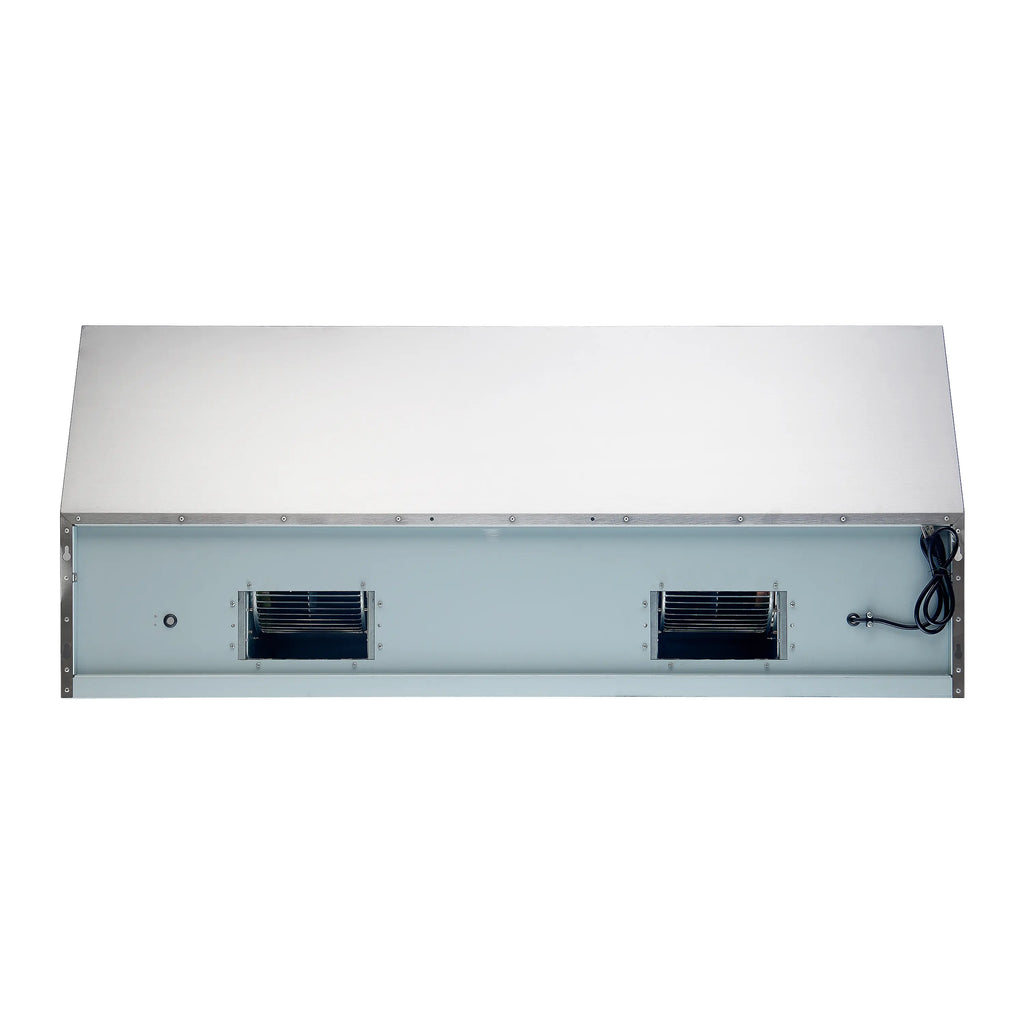

| Number of exhaust Vent |
2 |
| Exhaust Vent Location |
Top |
| Vent Type |
Ducted |
| Charcoal Filters |
No |
| Vent Style |
External |
| Air Discharge Direction |
Vertically Upward |

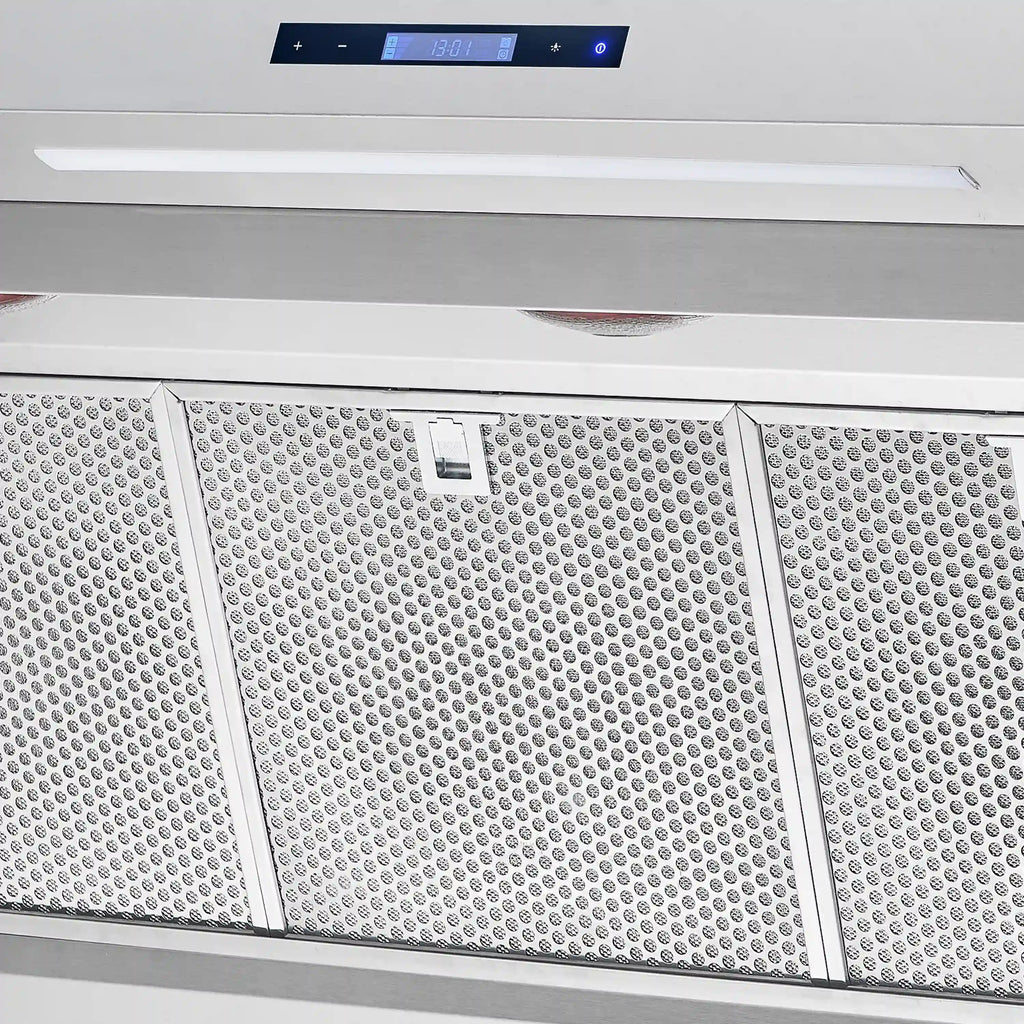

| Filter Type |
Hybrid |
| Filter Material |
Stainless Steel and Aluminum Mesh |
| Removable Grease Filter |
Yes |
| Washable Filter |
Yes |
| Dishwasher Safe Filters |
Yes |
| Damper |
Yes |
| Damper Type |
6-in Round |
| Duct Type |
6-in Round |

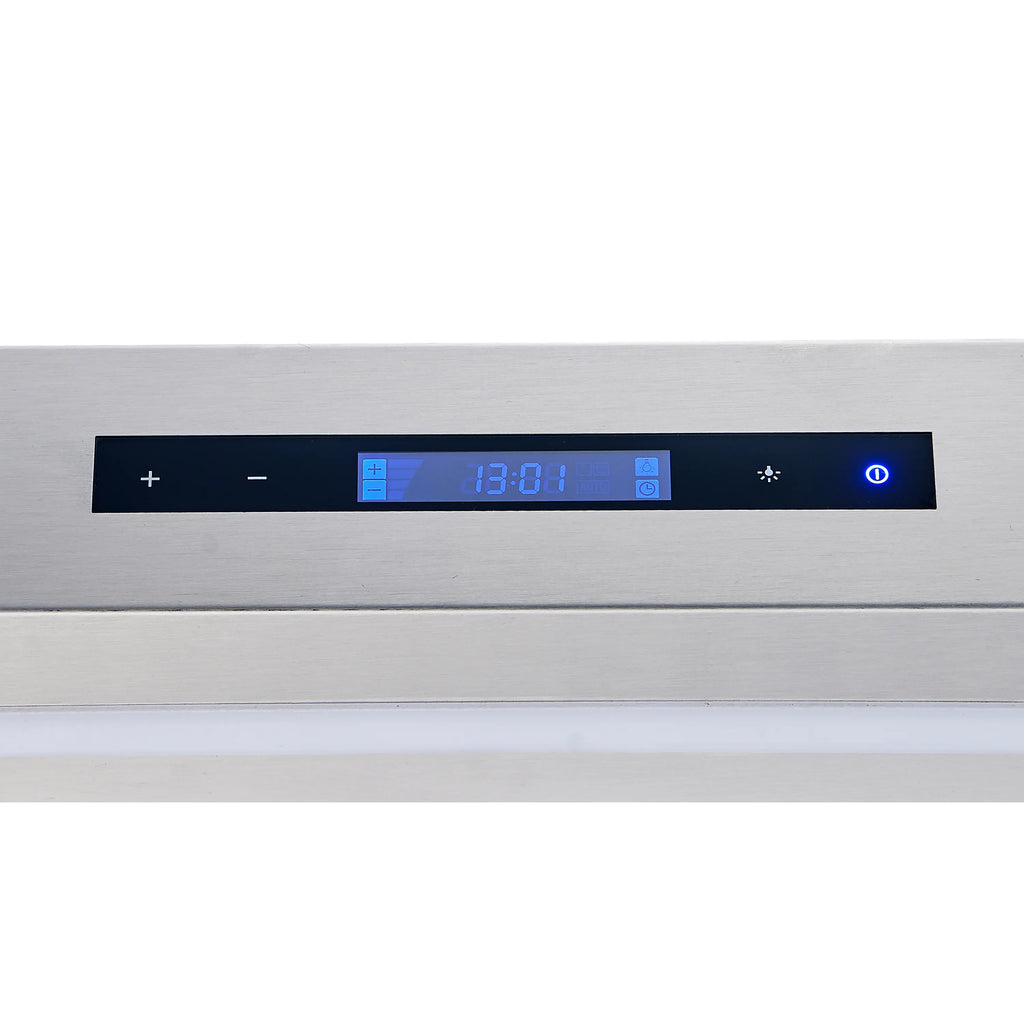

| Speed Control |
4 |
| Speed Control Type |
Touch |
| Heating Lamp Included |
Yes |
| Number of Heating Lamp |
3 |
| Warming selve included |
Yes |
| Backsplash Included |
Yes |
| Hardware Finish |
Stainless Steel |
| Primary Material |
Stainless Steel |
| Rangehood Chimney |
No |
| Chimney Extension Kit |
No |
| Chimney Short Kit |
No |
| Chimney Short Kit |
No |
| Crown Molding |
No |
| Reversible Blower |
No |
| Finger print Resistant |
No |
| Heat Sensors |
No |
| Power off Function |
Yes |
| Power-off Information |
15 Minutes |
| Remote Control |
No |
| Timer |
No |
| Clock |
Yes |
| Number of light settings |
1 |
| Number of Lights |
1 |
| Clean Filter Alert |
No |
| Range Hood Shape |
Square |
| Supplier Intended and Approved Use |
Residential Use |
| Maximum Sones |
16 |
| Minimum Sones |
2 |
| Sones Speed 1 |
2 |
| Sones Speed 2 |
6 |
| Sones Speed 3 |
11 |
| Sones Speed 4 |
16 |
| Maximum Decibel (dB) |
68 |
| Minimum Decibel (dB) |
48 |
