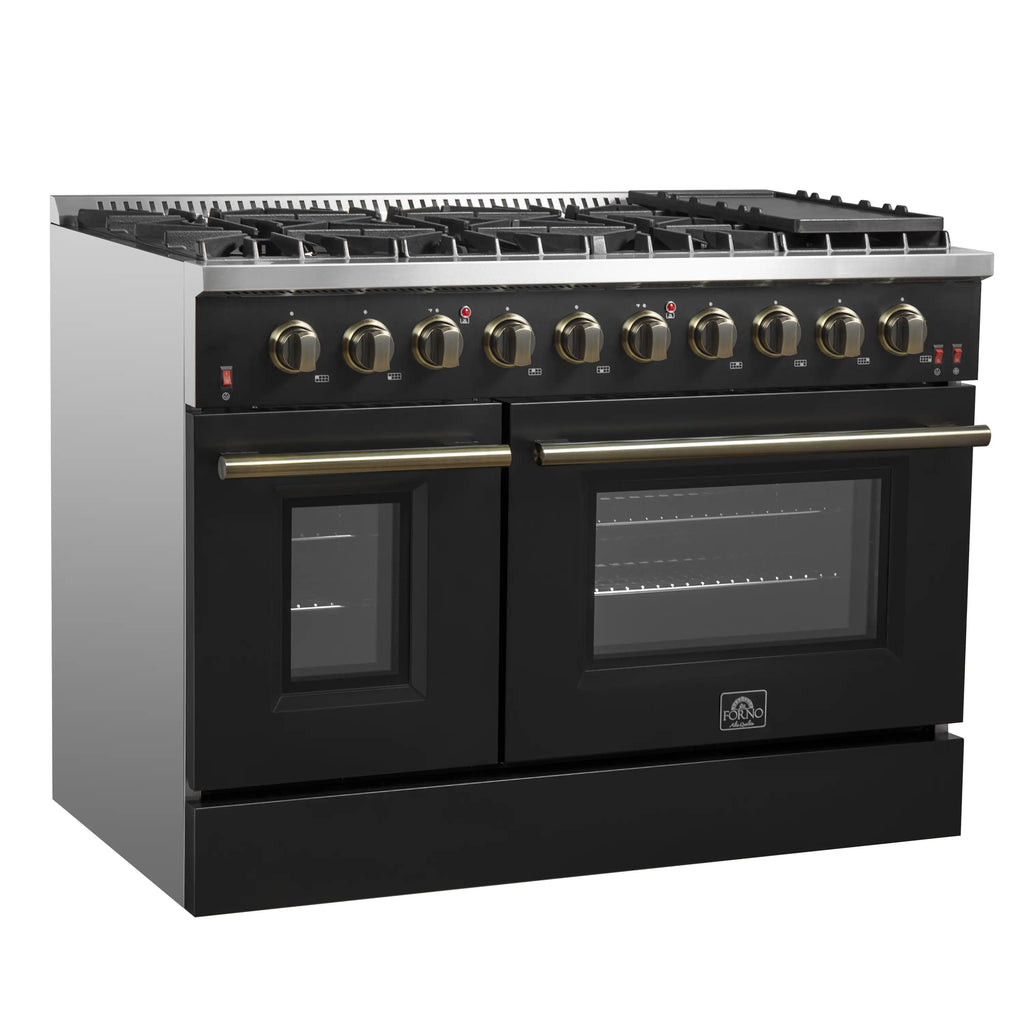

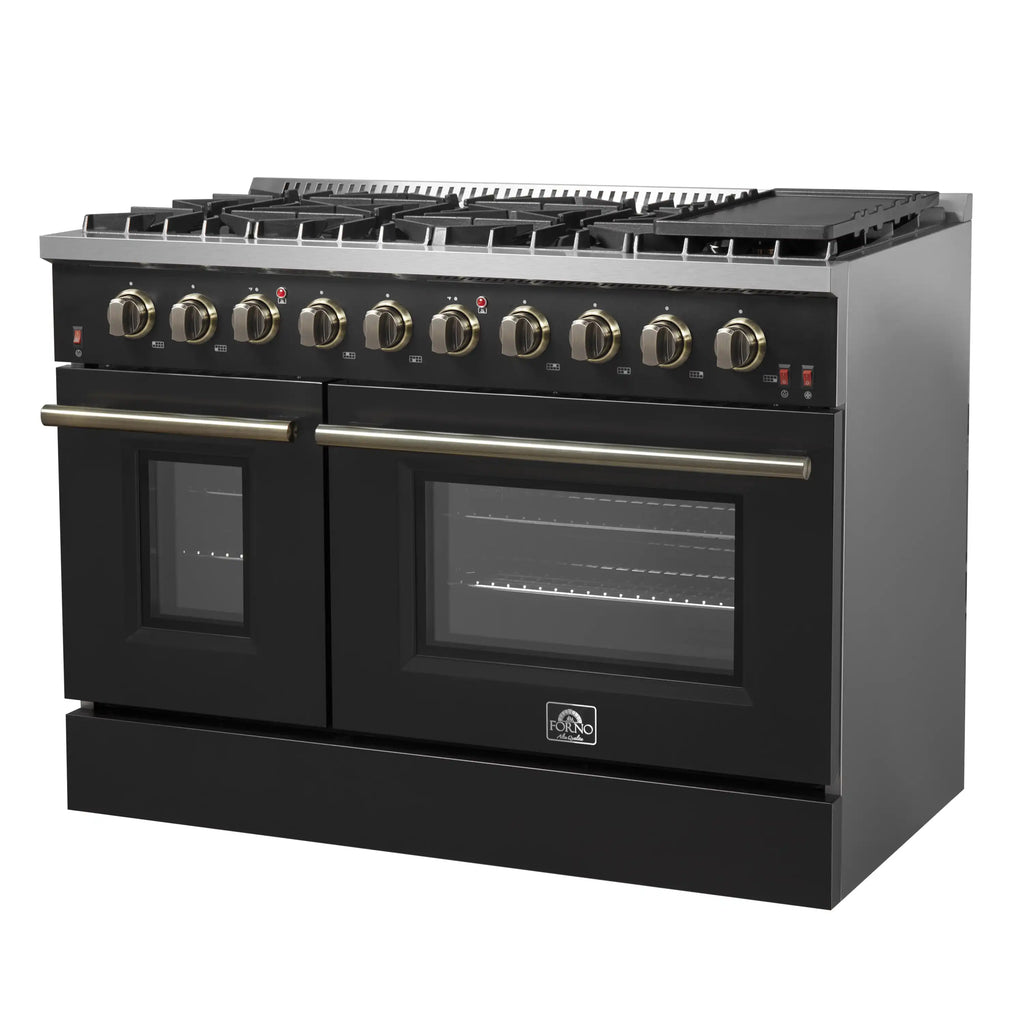

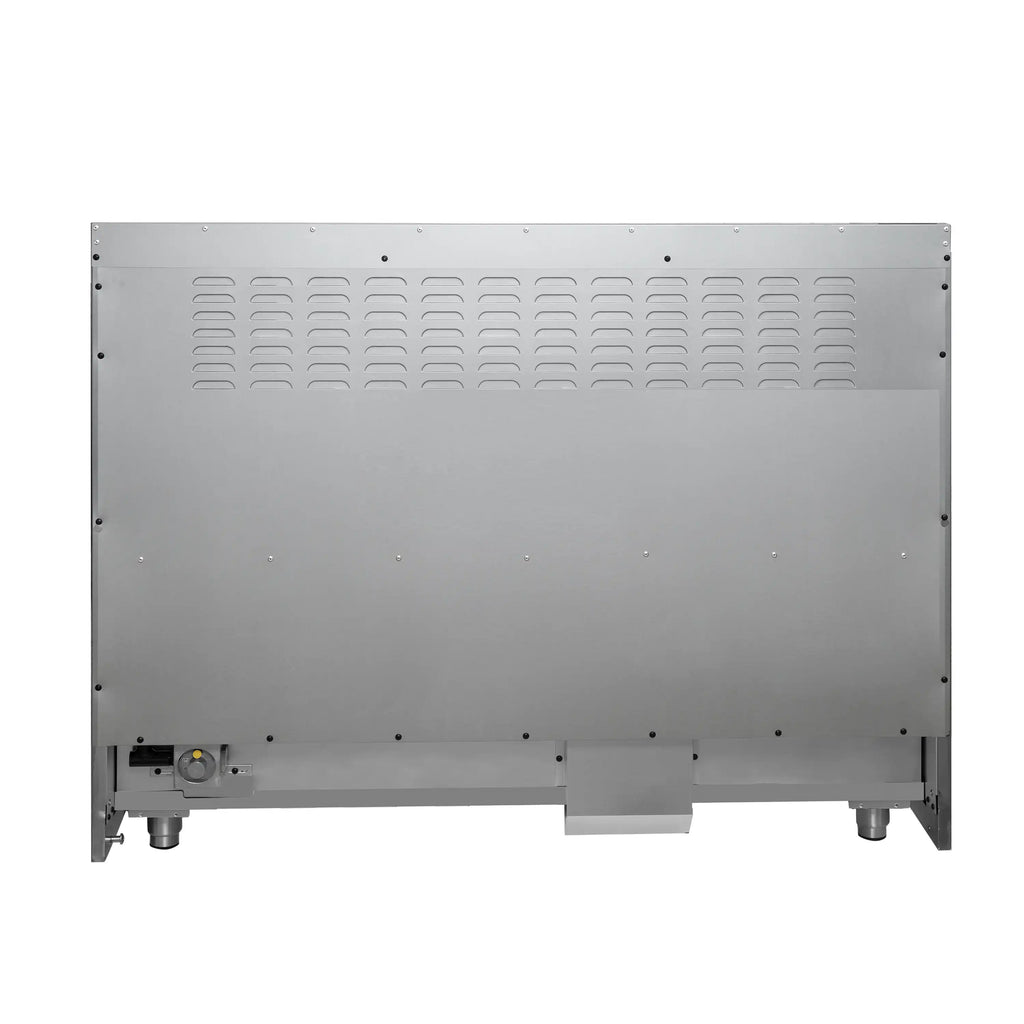

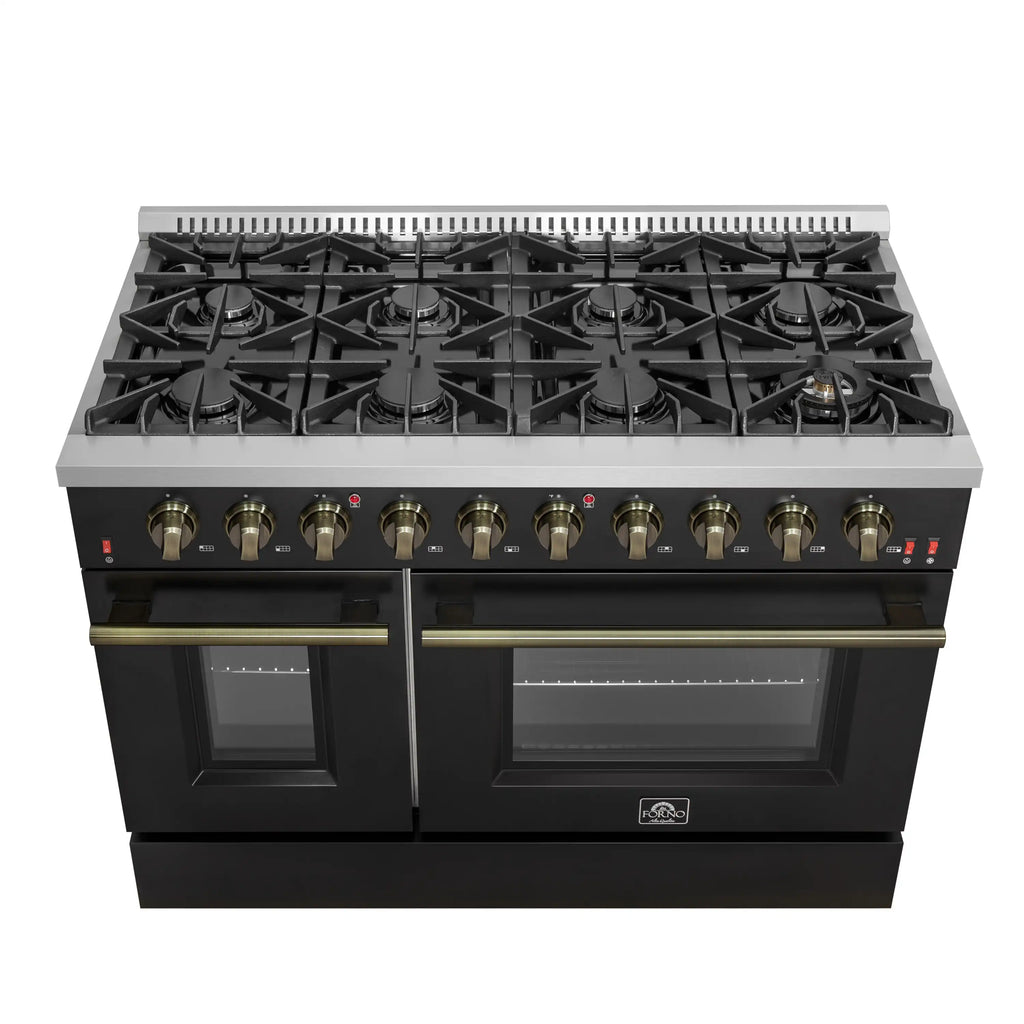

The 48-Inch Forno Galiano Gas Range combines professional-grade performance with bold elegance. Featuring a sleek black finish accented by antique brass hardware, it brings a statement of style and durability to your kitchen. With 8 sealed burners delivering a total output of 107,000 BTU, including a 20,000 BTU dual-ring burner capable of simmering at 1,000 BTU, this range provides the versatility to handle any culinary challenge. Continuous cast iron grates ensure stability and effortless cookware movement on the durable enamel cooktop. Bake, roast, or broil with precision using the 4.32 cu.ft. convection main oven with 30,000 BTU total output for even heat distribution. The 2.26 cu.ft. secondary oven, featuring a 14,000 BTU bake output, allows you to prepare multiple dishes at once. Both ovens boast enamel interiors for effortless cleaning and three-layer glass doors for superior heat retention and visibility. Convenience meets functionality with two racks per oven, a reversible griddle, and an LP conversion kit for flexible installation. Backed by Forno's 2-year warranty, this gas range delivers powerful performance, enduring style, and complete peace of mind. Forno, Lower the cost of living.
| Product Dimensions W x D x H (inches) | 48 x 28.94 x 37.7 |
| Cutout dimensions W x D x H (inch) | 48 x 25 x 36 |
|
|
339.51 |
| Color/Finish | Black |
| Fuel Type | Gas |
| Burner Fuel | Gas |
| Gas Type | Natural Gas |
| LP gas convertible | Yes |
| Gas Heat Configuration (cooktop) | Sealed Burner |
| Total Cooktop BTU Output | 107,000 |
| Number of Burners/Cooking Zones | 8 |
| Cooking Surface Control Type | Push & Turn/Knobs |
| Cooking Surface Ignition Type | Electronic |
| Simmer Burner | Yes |
| Number of Simmer Burner | 1 |
| Oval Burner | No |
| Cooktop Surface Structure | Grate; Deep Recessed |
| Diswasher-Safe Grates | No |
| Number of Ovens | 2 |
| Overall Oven Capacity (Cubic Feet) | 6.58 |
| Overall Oven BTU | 44000 |
| Oven Control Type | Manual/Knob |
| Auto Re-Ignition | Yes |
| Automatic Shut-Off | No |
| Number of Knobs | 10 |
| Double Oven Structure | Side-by-Side |
| Glide/Rollout Racks | No |
| Number of Racks | 4 |
| Racks Material | Electroplated |
| Number of Rack Positions | 6 |
| Oven Ignition Type | Automatic Ignition |
| Broiler | Gas |
| Broiler Location | Oven |
| Overall Broil BTU | 10000 |
| Bake Element | Yes |
| Overall Bake Element BTU | 34000 |
| Automatic Convection Conversion | No |
| Interior Light | Yes |
| Control Location | Front |
| Oven Preheating Indicator | Yes |
| Cooktop Hot Surface Indicator | No |
| Storage Drawer | No |
| Warmer Drawer | No |
| Temperature Gauge | No |
| Timer | No |
| Clock | No |
| Primary Material | Metal |
| Oven Fuel | Gas |
| Interior Light(s) Type | Halogen |
| Handle Color/Finish | Antique Brass |
| Antique Brass | Not Rated |
| Power Cord Location | Back |
| Bulb Type | G9 |
| Bulb Type | 3 |
| Fingerprint-Resistant | No |
This 48 Inch Wall-Mounted Range Hood in black is designed for high-performance kitchen ventilation. With a powerful 1200 CFM motor and 4-speed fan control, it removes smoke, grease, and cooking odors. Choose between external venting or ductless recirculating installation to suit your kitchen layout. The vertical upward air discharge ensures efficient airflow, while features like automatic shut-off, a built-in timer, and removable charcoal filters make it convenient to use and maintain. The included chimney extension kit and decorative crown molding allow for a custom, built-in look. Quiet operation at just 68 dB with built-in lighting for better visibility while cooking.
| Size | 48" |
| Dimensions |
47.2" W x 23.6" D x 44.5" H |
| Cutout dimensions W x D x H (inch) |
48 x 11.6 x 44.5 |
| Weight | 86 lbs |
| Mount Type | Wall-Mount Hoods |
| Unit Color | Black |
| Mount Type | Wall-Mount Hoods |
| Ventilation Type | Ducted |
| Electrical supply | 120V/60Hz |
| Circuit Breaker | 15 |
| Power connection | NEMA 5-15P Power Cord |
| Power Cord Length (in) | 47.24" |
| Power Cord Location | Top Right |
| Running Amp | 2.5 Amps |
| Certification | ETL Listed |
| Number of Blower(s) | 2 |
| Blower Material | Metal |
| Filter Type | Baffle |
| Filter Material | Stainless Steel |
| Number of Filters | 6 |
| Dishwasher Safe Filters | Yes |
| Control Type | Push Button |
| Number of Speed Levels | 4 |
| Warming selve | No |
| Heat Lamp | No |
| Handle | Yes 1x |
| Backsplash | No |
| Charcoal Filters | Yes |
| Light Type | LED GU10 |
| Rangehood Chimney | Yes |
| Chimney Extension Kit /Chimney Short Kit | Yes |
| Finger print Resistant | No |
| Heat Sensors | No |
| Automatic shut-off | Yes |
| Remote Control | No. |
| Delay Shut-Off | No |
| Auto Shut-Off Timer | Yes |
| Clock | No |
|
CFM (cutbic feet per minute ) |
Level 1 550 CFM Level 2 750 CFM Level 3 950 CFM Level 4 1200 CFM |
|
Air flow |
Level 1 935 m3/hr Level 2 1274 m3/hr Level 3 1614 m3/hr Level 4 2039 m3/hr |
|
RPM (Revolutions Per Minute on one motor only) |
Level 1 880 RMP Level 2 1050 RMP Level 3 1350 RMP Level 4 1510 RMP |
|
Noise Level at each speed |
Level 1 48 dB Level 2 53 dB Level 3 60 dB Level 4 68 dB |
| Duct Shape | Round |
| Duct Size | 10" |
| Air Discharge Direction | Vertically Upward |
| Number of exhaust Vent | 2 |

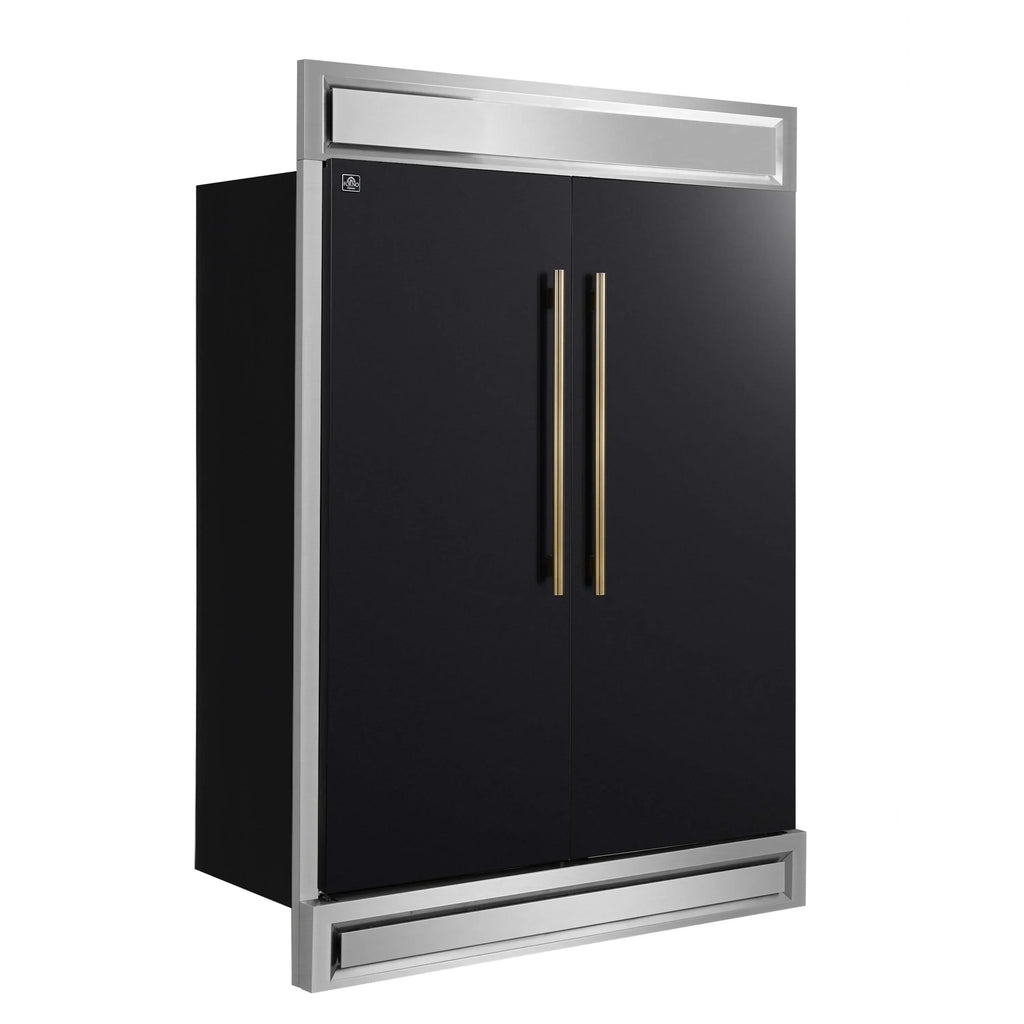

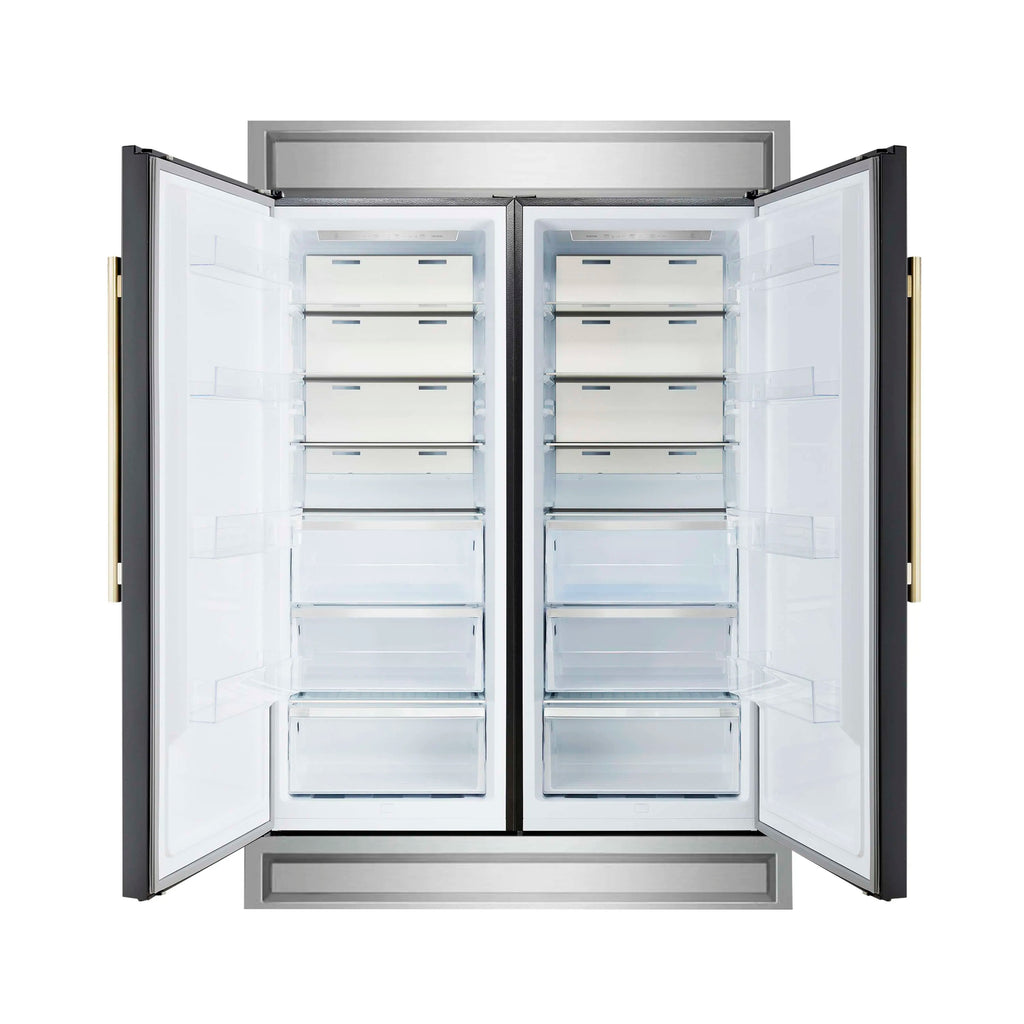

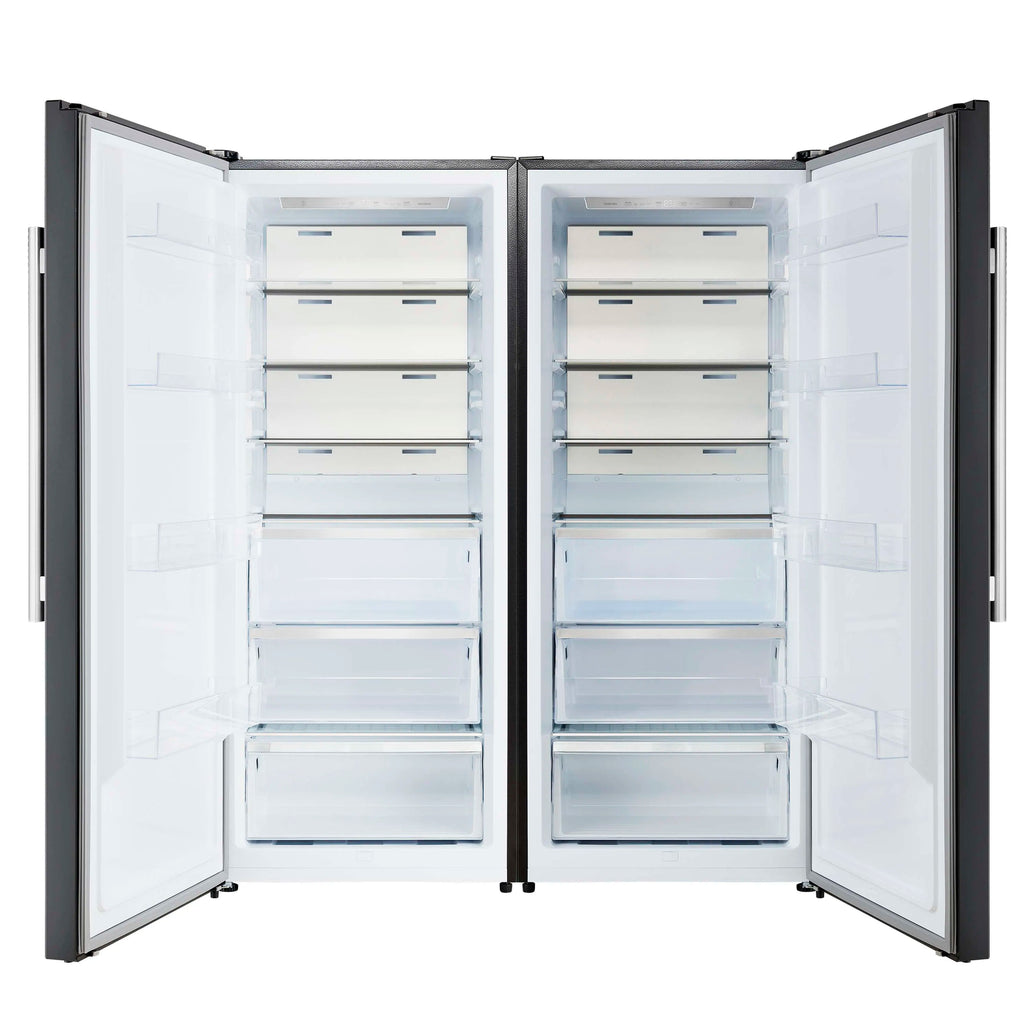

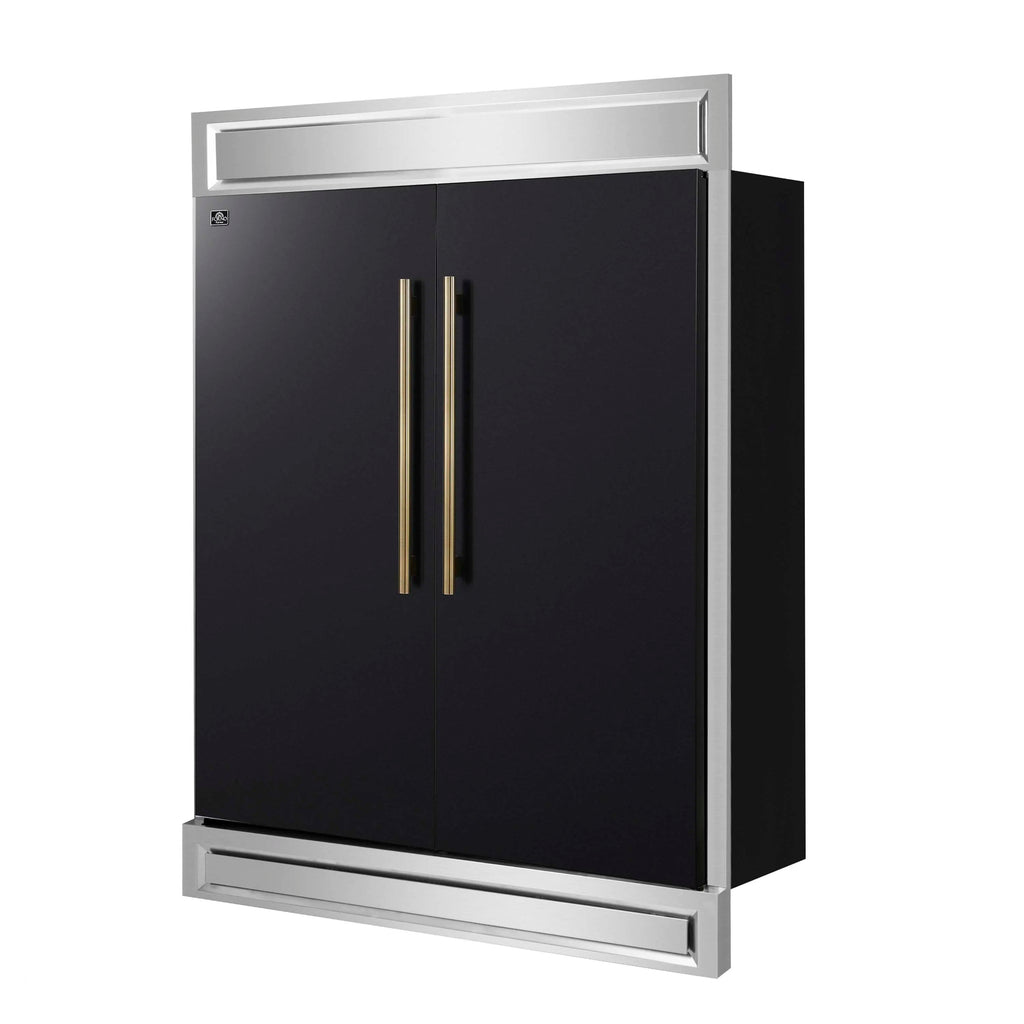

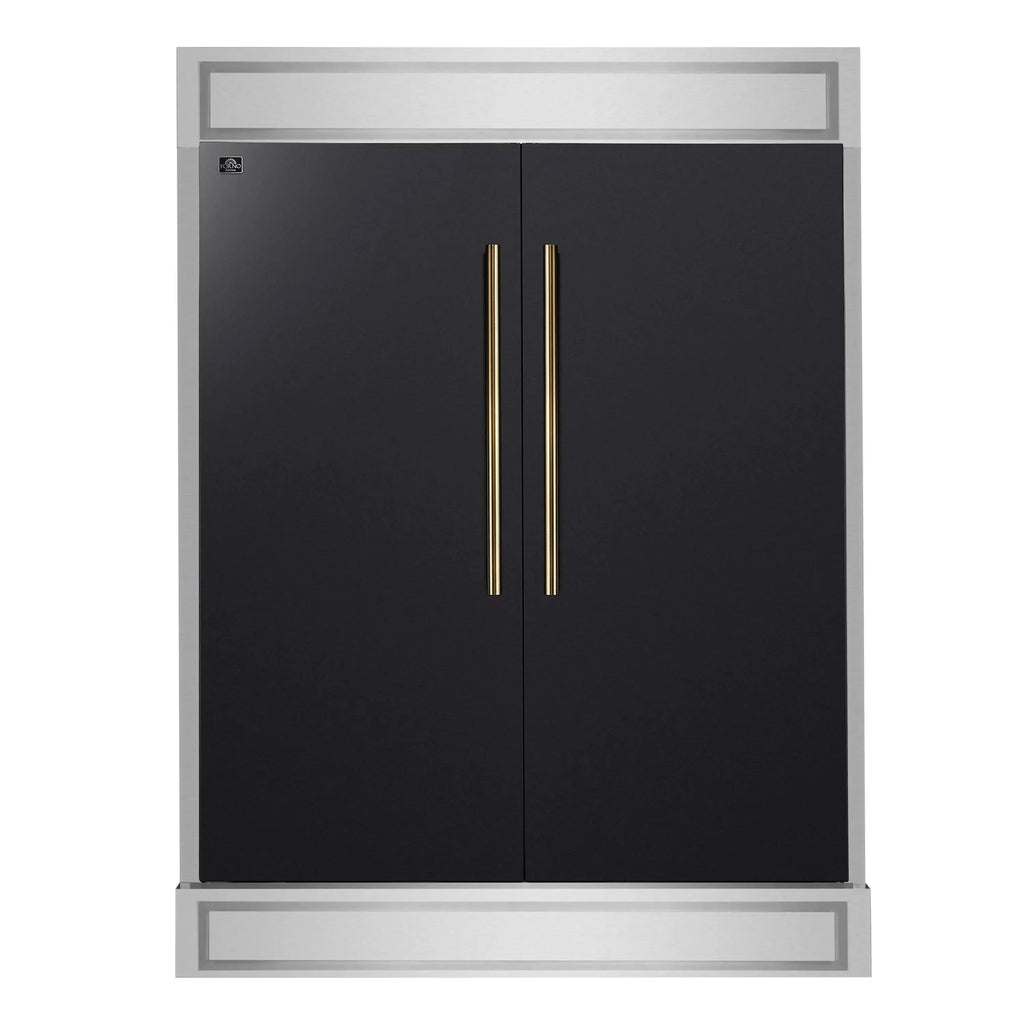

The Forno Maderno provides a premium 60 inch built-in refrigerator look by combining two 28 inch units with a trim kit for seamless side-by-side installation. This fridge freezer combo comes in a black finish with antique brass handles as part of our Espresso line, adding a boldness to any modern kitchen. With a total capacity of 27.2 cu.ft., it's ideal for large households or serious entertainers. Inside, you’ll find Convertible Cooling Zones that let you switch between refrigerator and freezer mode, Total No-Frost technology to prevent icy build-up, and a sleek digital control panel for easy adjustments. The Maderno includes six tempered glass shelves with silver trim, six storage drawers, and bright LED lighting to help keep everything organized and easy to find. VCM-coated doors and a durable metal back panel add strength and a fingerprint-resistant finish. Energy Star certification ensures this side-by-side built-in refrigerator is energy efficient.
| Weight & Dimensions | |
| Overall Weight (Lbs) | 330 |
| Product Dimensions W x D x H (inches) |
55.2 x 26.9 x 67.1 |
| Cutout dimensions W x D x H (inch) |
55.9 x 28.94 x 69.06 |
| Interior Freezer Dimensions W x D x H (in) |
21.58 X 19.96 X 59.84 |
| Technical Information | |
| Color/Finish |
Black |
| Interior Light |
Yes |
| Control Location |
Internal |
| Primary Material |
Steel |
| Interior Light(s) Type |
LED |
| CEE Tier Qualified |
Not Rated |
| Energy Star Most Efficient |
No |
| Minimum Back Clearance (IN) |
2.00 |
| Minimum Top Clearance (IN) |
4.00 |
| Height Top of the Cabinet/Case (inches) |
75.30 |
| Height Top of the Door (inches) |
75.90 |
| Sides Clearance - On Each Sides (IN) |
4.00 |
| Power Cord Location |
Lower Back |
| Height Top of Door Hinge (inches) |
75.90 |
| Energy Consumption (kWh/yr) |
647 |
| Number of Power Cord |
2 |
| Temperature Range Freezer (°F) |
- 11°F to 7°F |
| Estimated Annual Operating Cost (USD) |
110 |
| Freezer door storage |
Yes |
| Temperature Range Freezer (°C) |
-23°C to -13°C |

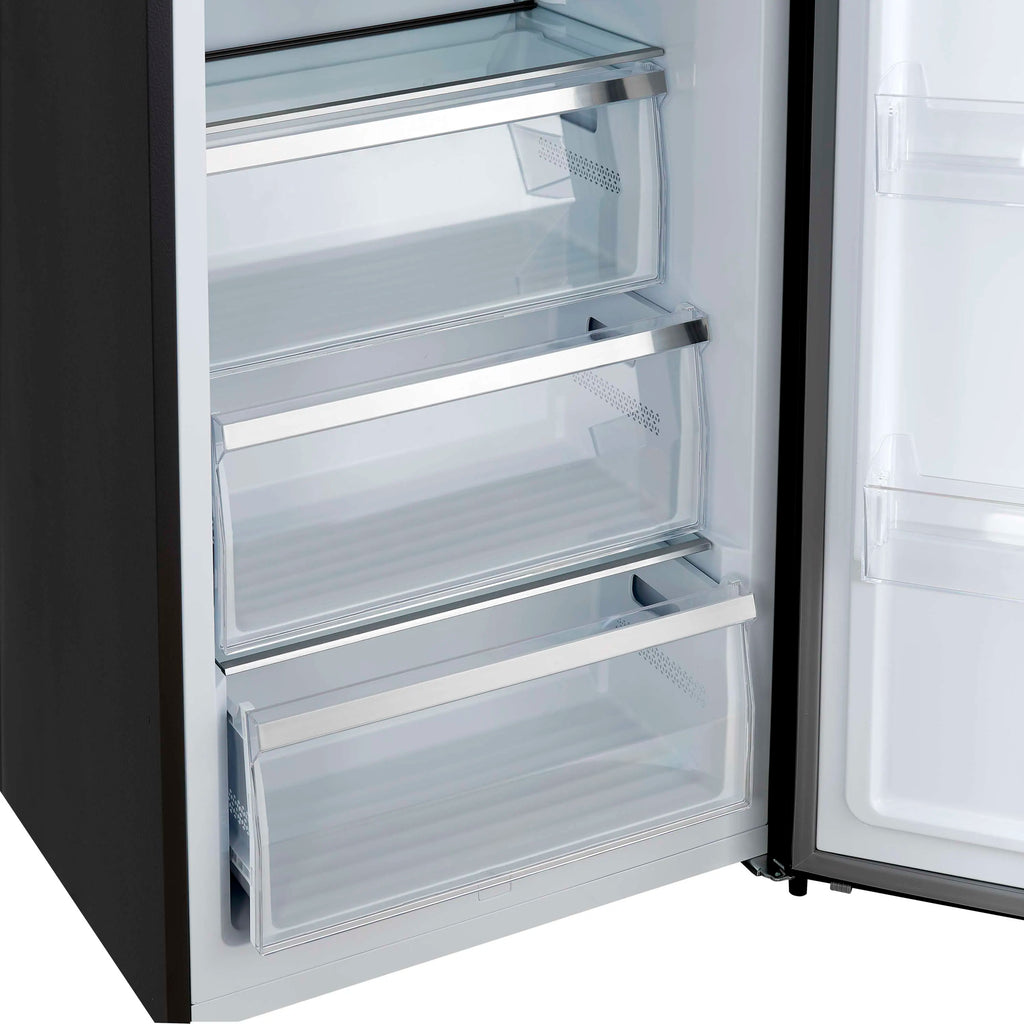

| Number of Freezer Adjustable Shelves |
3 |
| Number of Freezer Door Bins |
4 |
| Freezer Section Layout |
Adjustable Racks,In-Door Storage,Freezer Drawers,Full Width |
| Freezer Shelf Material |
Glass With Silver Trim |
| Adjustable Freezer Shelves |
Yes |
| Interior Freezer Dimensions Height |
59.84 |

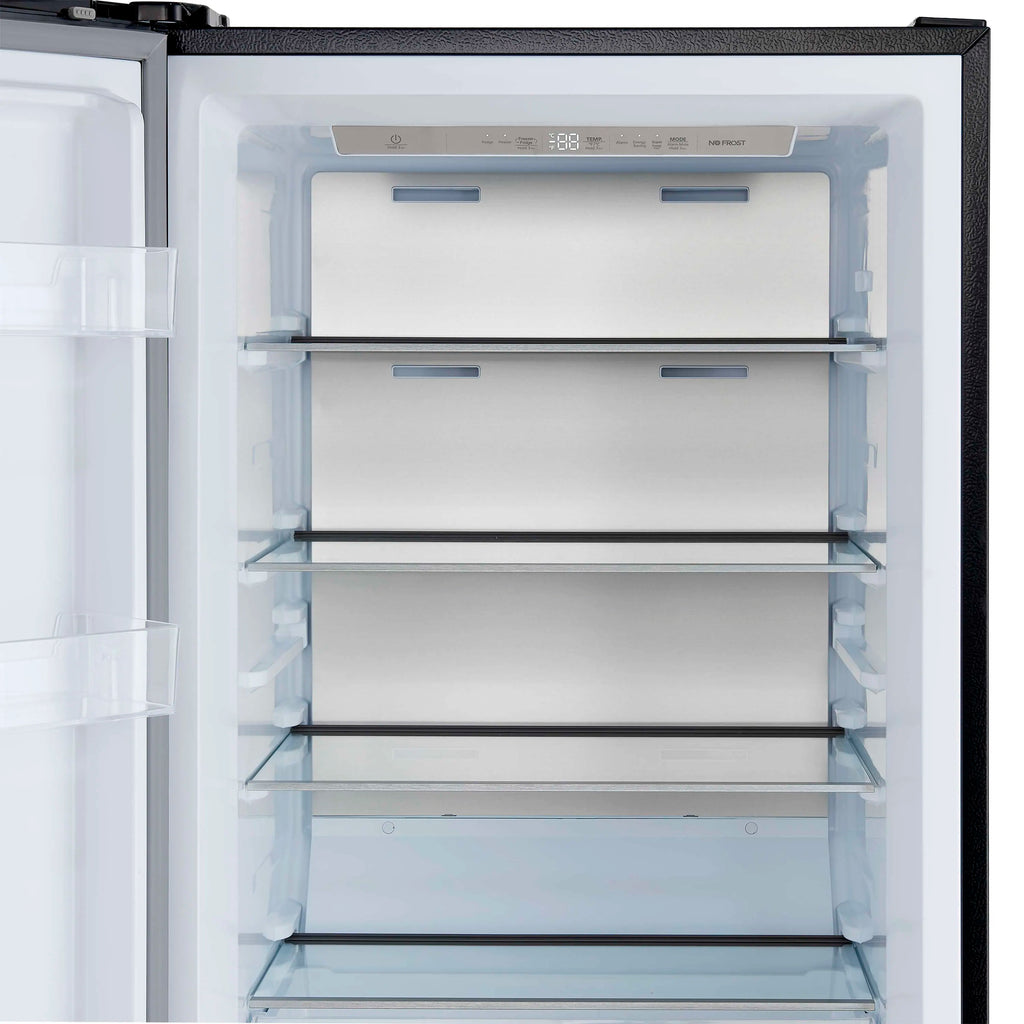

| Number of Freezer Shelves |
4 |
| Interior Freezer Dimensions Width |
21.58 |

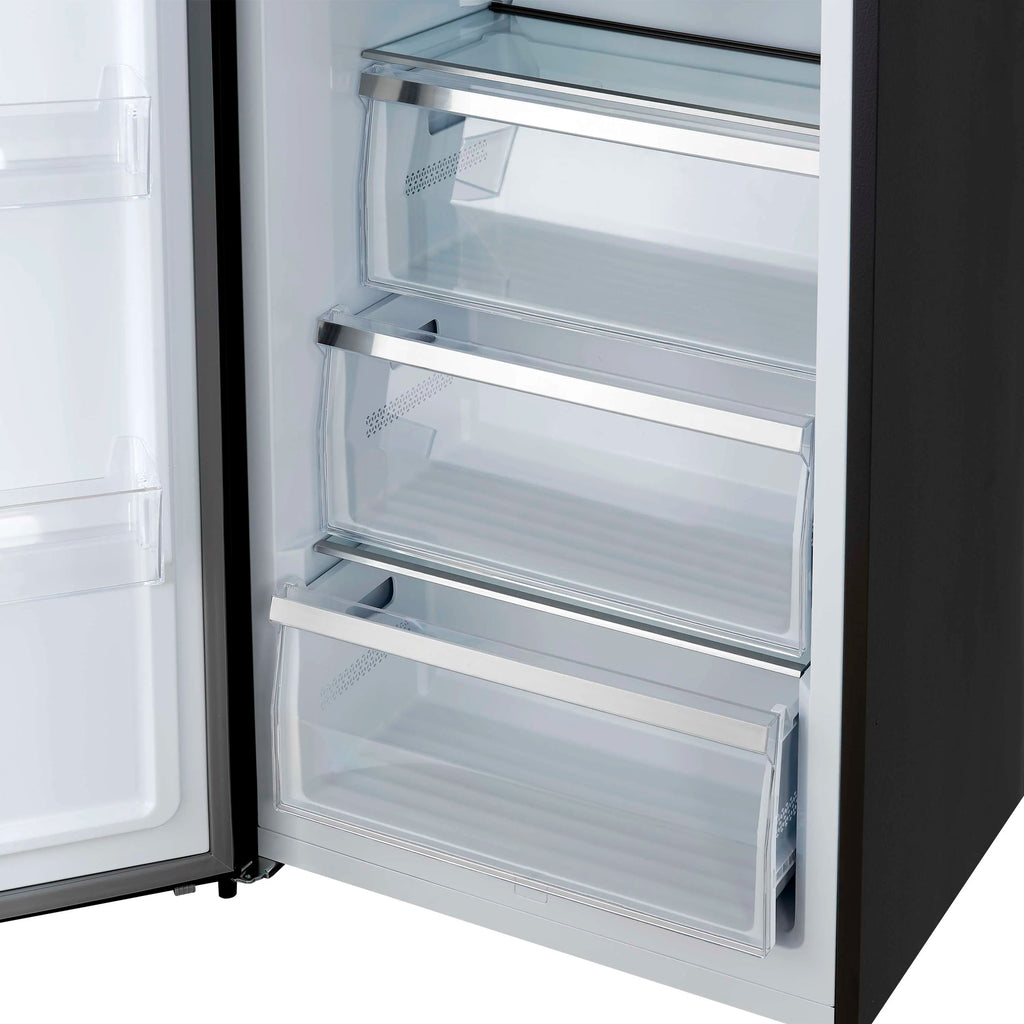

| Number of Freezer Drawers |
3 |
| Freezer Light |
Yes |
| Interior Freezer Dimensions Depth |
19.96 |
| Freezer Capacity |
13.60 |
| Interior Freezer Dimensions W x D x H (in) | 21.58X19.96X59.84 |
| Temperature Range Refrigerator (°F) |
36°F to 46°F |
| Freezer Door Style |
Swing Door |
| Door Bins Color |
Transparent |
| Temperature Range Refrigerator (°C) |
2°C to 8°C |
| Number of Standard Door Bins |
4 |
| Door Bins Material |
Plastic |
| Door Storage |
Yes |
| Adjustable Door Storage |
No |
| Adjustable Fresh Food Shelves |
Yes |
| Fresh Food Door Type |
Swing Door |
| Number of Fresh Food Shelves |
4 |
| Number of Adjustable Shelves |
3 |
| Humidity Controleld Drawer(s) |
Yes |

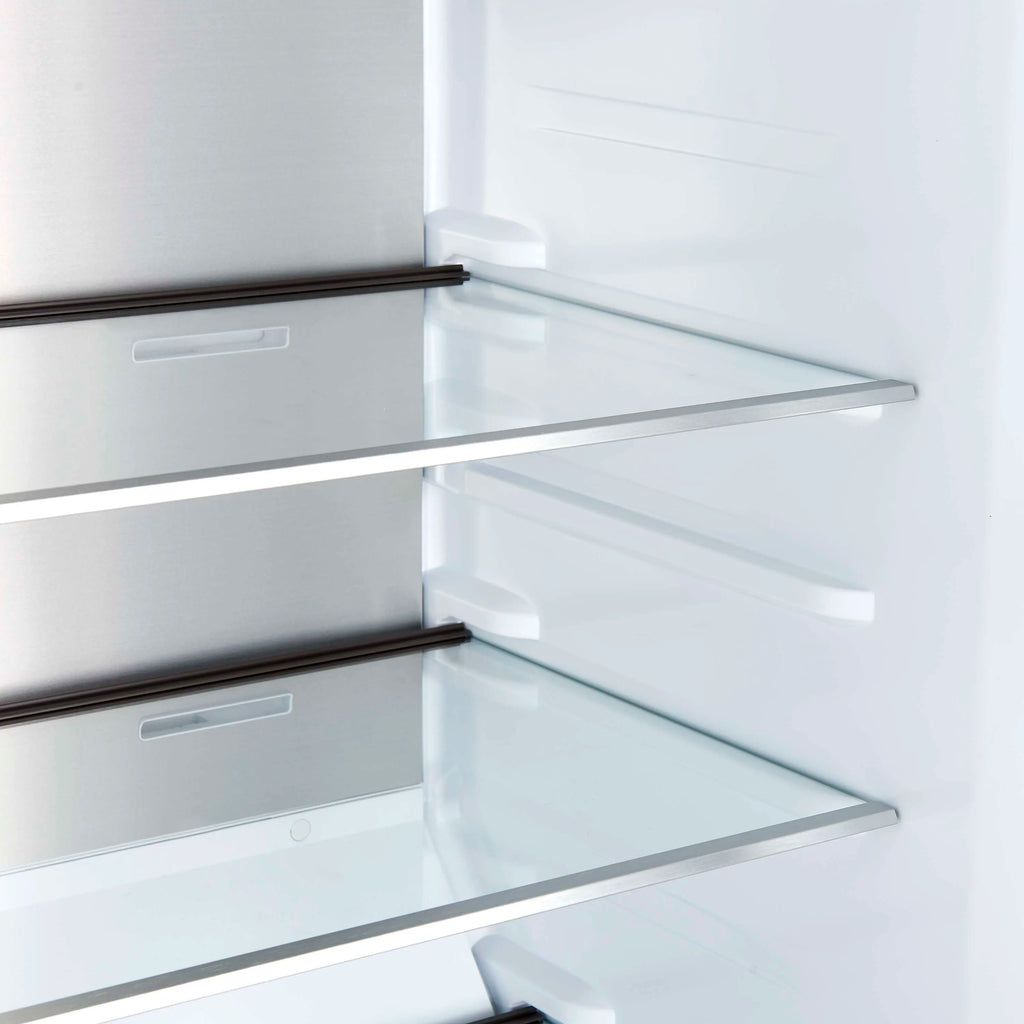

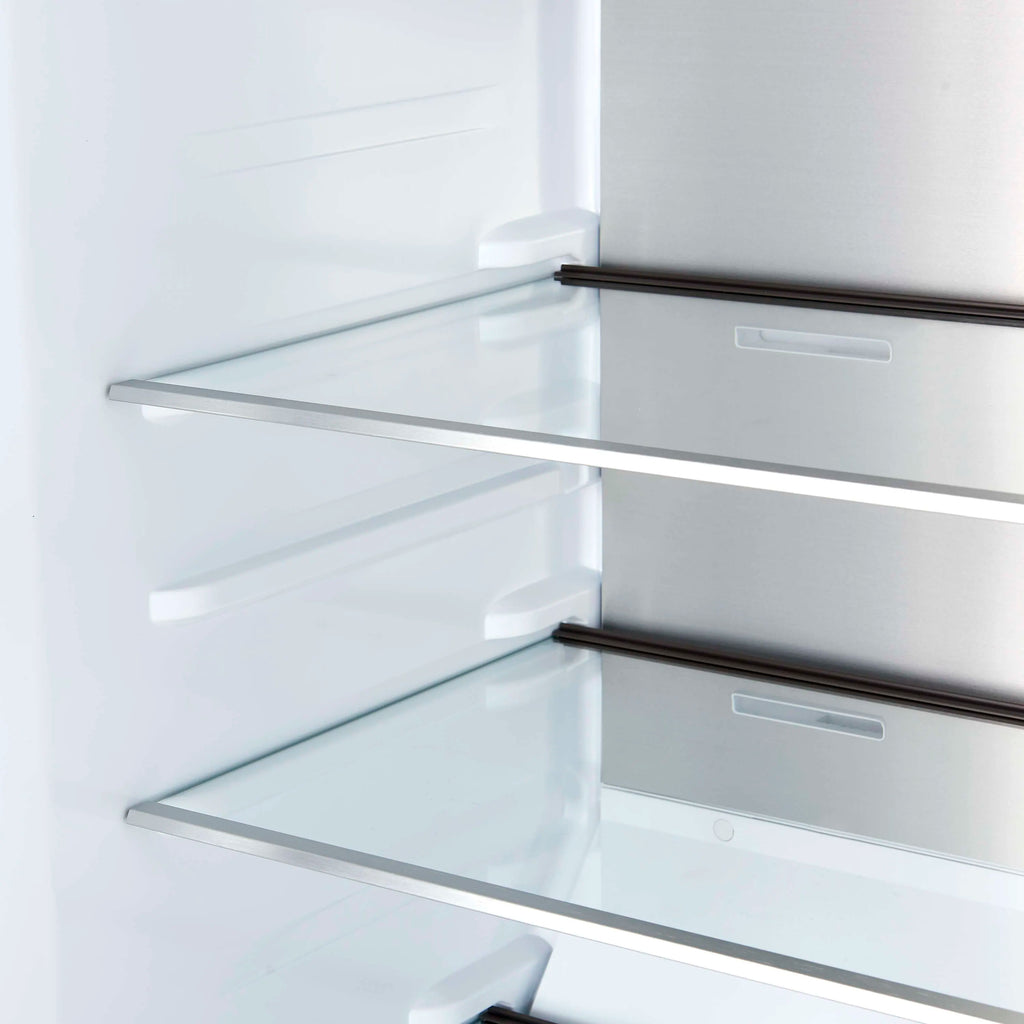

| Fresh Food Shelves Material |
Glass With Silver Trim |
| Number of Fresh Food drawers |
3 |
| Temperature Controlled Drawer(s) |
No |
|
|
21.58 x 19.96 x 59.84 |
|
Fresh Food Capacity Cu. Ft.
|
13.60 |
|
Dual Evaporator Cooling System
|
Yes |
|
Fresh Food Capacity Cu. Ft.
|
13.60 |
|
Toe Grille Color
|
Stainless Steel |
|
Cooling Type
|
Multi Air Flow |
|
Water Pipe Included
|
No |
|
Extra Water Filter
|
No |
|
See-Thru Door
|
No |
|
Fast Cool Function
|
Yes |
|
Fast Freeze Function
|
Yes |
|
Energy Saver Mode
|
Yes |
|
Air Filtration
|
No |
|
Cabinet Color
|
White |
|
Cabinet Material
|
Embossed Galvanized Steel |
|
Door Liner Color
|
White |
|
Door Liner Material
|
High Impact Polystyrene |
|
Door Texture
|
Smooth |
|
Door Style
|
Contoured |
|
Pantry Drawer
|
No |
|
Spill-Proof Shelves
|
No |
|

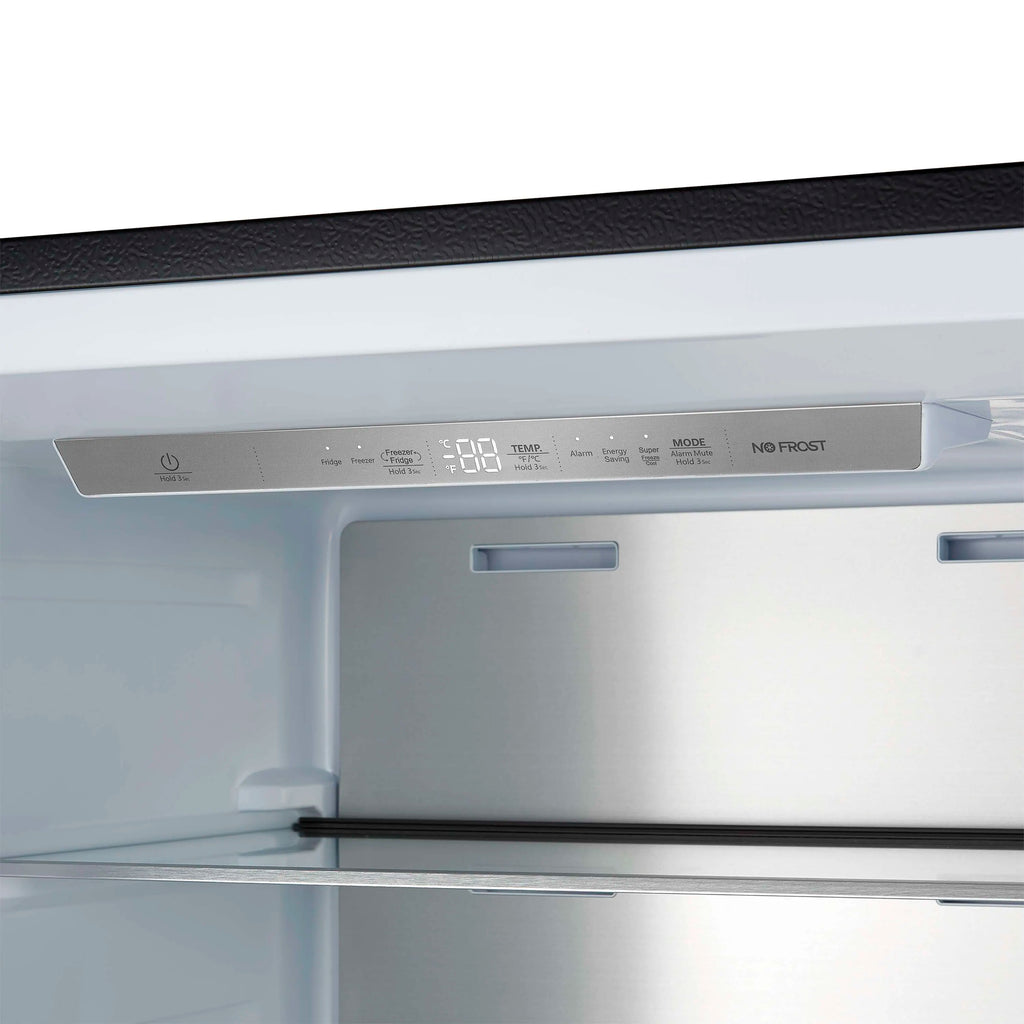

Electronic Temperature Control
|
Yes |
|
Temperature Memory Function
|
Yes |
|
External Dispenser
|
No |
|
Water Dispenser
|
No |
|
Overall Capacity Cu. Ft.
|
27.20 |
|
Number of Lights
|
2 |
|
Handle Color/Finish
|
Stainless Steel,Antique Brass |
|
Fingerprint-Resistant
|
No |
|
Certification
|
|
|
Safety Listing
|
cULus safety listing |
|
Enegy Star Certified
|
Yes |
|
Energy Policy Act 1992 Compliant
|
Yes |
|
ISTA 6A
|
Yes |
|
|
Yes |
|
Warranty
|
|
|
Commercial Warranty
|
No |
|
Warranty on Parts
|
2 Years |
|
Warranty Type
|
Limited |
|
Warranty on Labor
|
2 Years |
|
Warranty Length (Years)
|
2 Years |

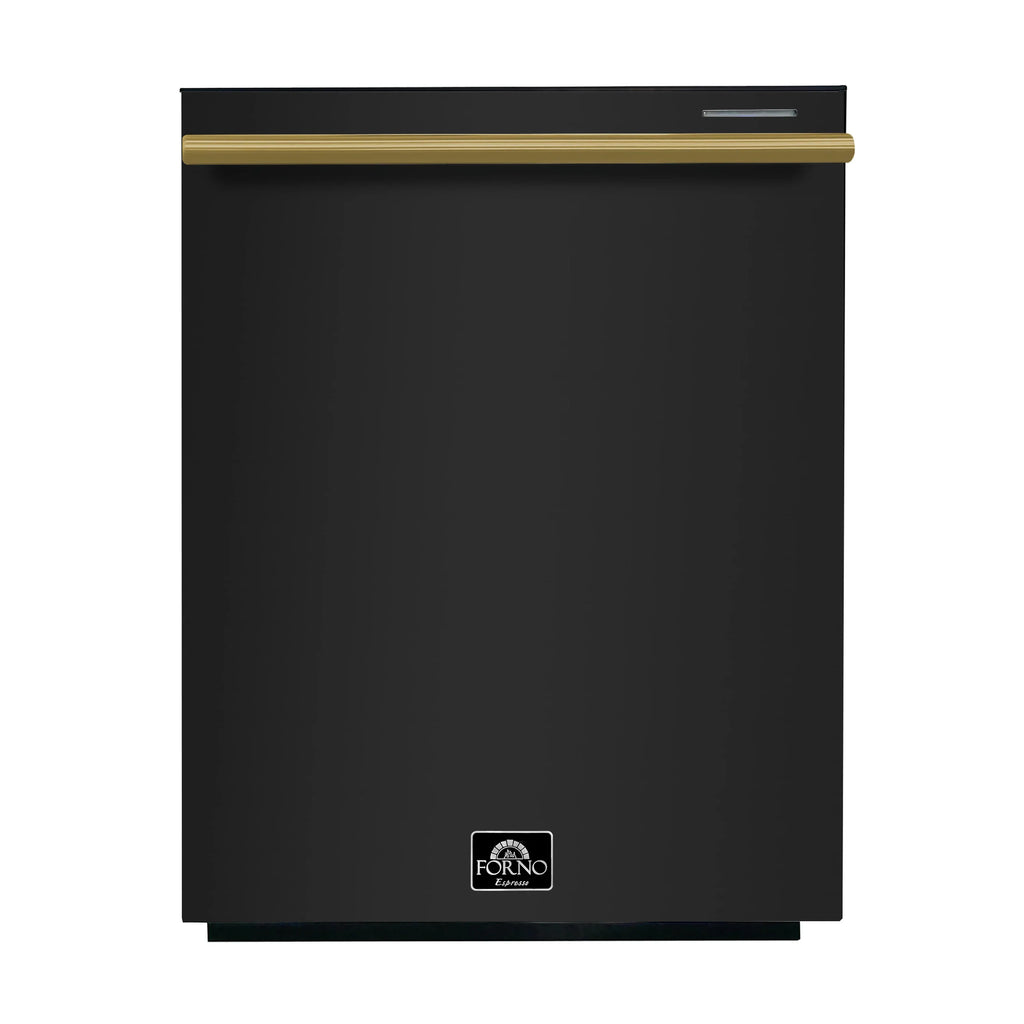

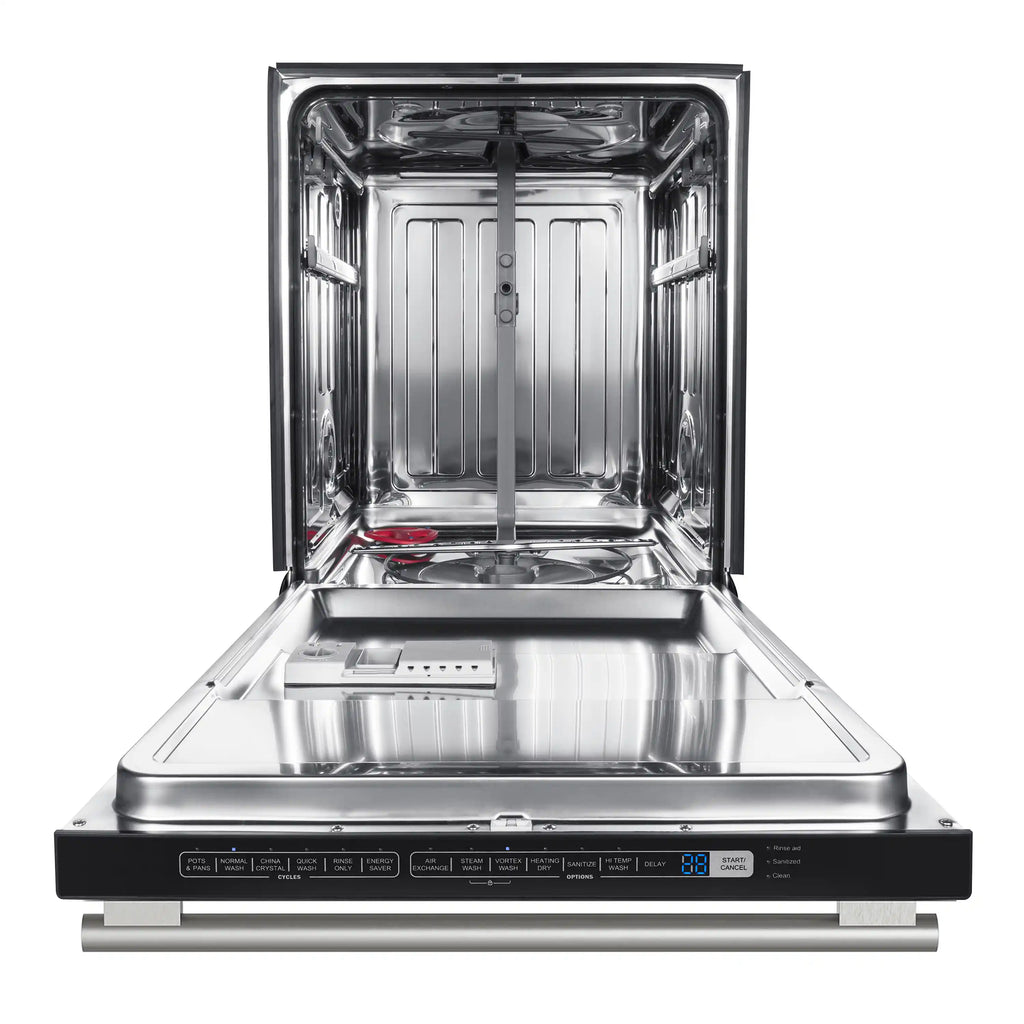

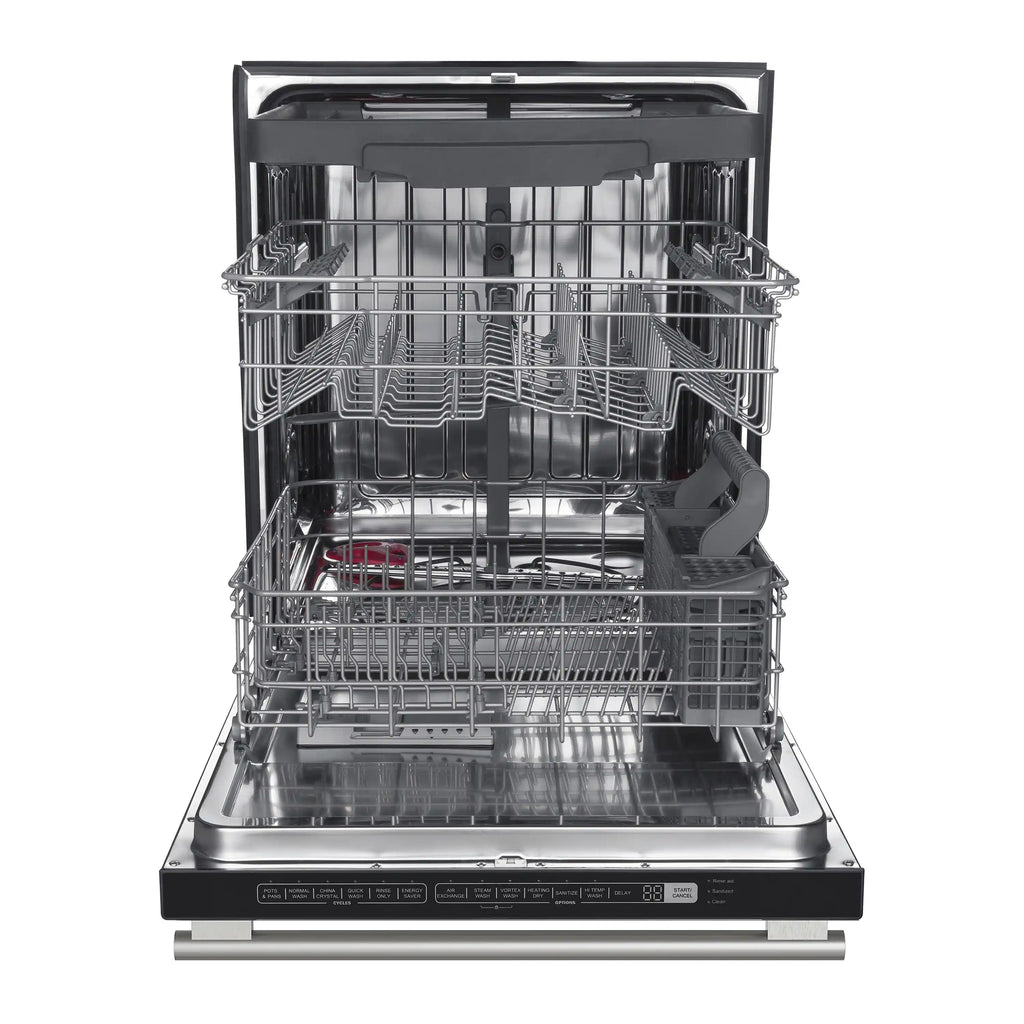

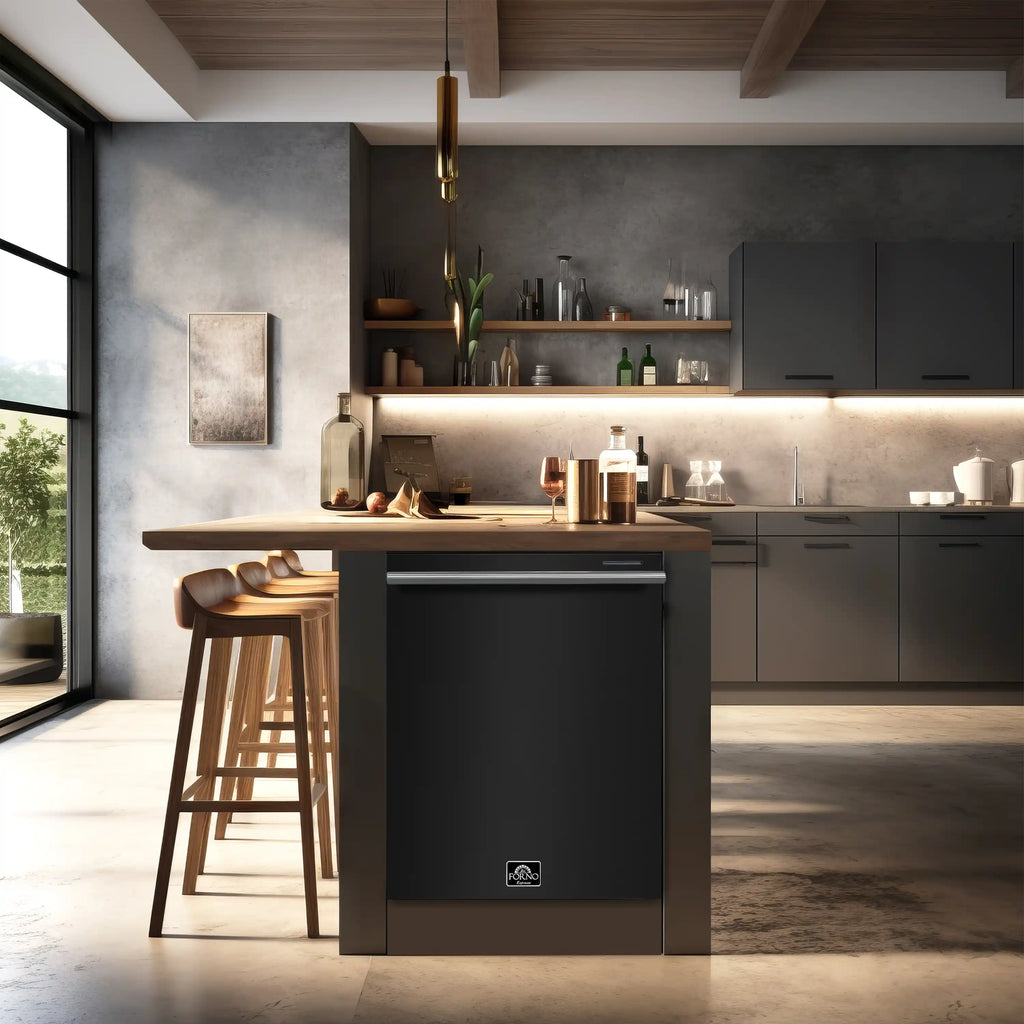

Pozzo 24 in. Built-In Tall Tub, Top Control, Dishwasher, 49 dBA, Soil-Sensing Capable, ENERGY STAR Certified
The Forno Pozzo 24-Inch tall-tub dishwasher, operating at a low noise level of 49 decibels for peaceful cleaning. Its black front and pro-style handle offer durability and style. Customize your look effortlessly with two sets of interchangeable handles, switching between antique brass for a traditional touch or stainless steel for modern flair. The dishwasher features a spacious stainless-steel tub with 3 baskets, providing ample loading flexibility for large dish capacity and utensils, with 3 racks and an additional silverware basket. With six wash programs and electronic controls featuring a sleek LED display, it offers efficient and customizable cleaning options. Energy Star certified for eco-friendly operation.
Please Note: This appliance includes both brass and stainless steel handles. Some assembly is required to install your desired finish.
| Weight and Dimensions | |
| Product Dimensions |
23.85" W x 26" D x 33.74" H |
| Depth Excluding Handle (in) | 24" |
| Depth Including Handle (in) |
26" |
| Product Height Maximum |
35" |
| Depth Door Open 90º (back to front door open) |
50" |
| Cutout W x D X H |
24''W x 24''D x 34''H to 35''H |
| Overall Weight | 93.2 lbs |
| Certifications & Safety | |
| Safety Listing | cULus |
| File/Control Number Number |
E219644 |
| Energy Star Certified |
Yes |
| ENERGY STAR Unique ID |
2485657 |
| Energy Policy Act 1992 Compliant |
Yes |
| ADA Compliant |
No |
| ISTA 1A Certified |
Yes |
| ISTA 6A Certified |
Yes |
| Details | |
|
Sound Rating (dB) |
49 |
|
Water Inlet Location |
Left Bottom Front |
|
Water Inlet Connection Size (inches) |
8-Mar |
|
Water use (gallons/cycle) |
3.2 |
|
Water Pressure (PSI) |
20 - 120 |
|
Estimated Yearly Electricity Use (kWh) |
240 |
|
Estimated Yearly Operating Cost (USD) |
USD 24.00 |
|
Dedicated Circuit Breaker |
15 |
|
Power Supply Connection Location |
Right Bottom Front |
|
Total AMPS Usage |
8.4 |
|
Volts |
120 |
|
Frequency (Hz) |
60 |
|
Total Power Consumption (Wattage) |
1008 |
|
Motor Power Consumption (Wattage) |
120 |
|
Heater Power consumption (wattage) |
888 |
|
Standby Power (wattage) |
0.39 |
|
Power cord Included |
No |
| Product Type | Built-In |
| Panel Ready | No |
| Color/Finish | Black |
| Handle Type | Bar Handle |
| Handle Color/Finish | Stainless-Steel" |
| Primary Material | Steel |
| Leveling Legs | Yes |
| Number of Leveling legs | 4 |

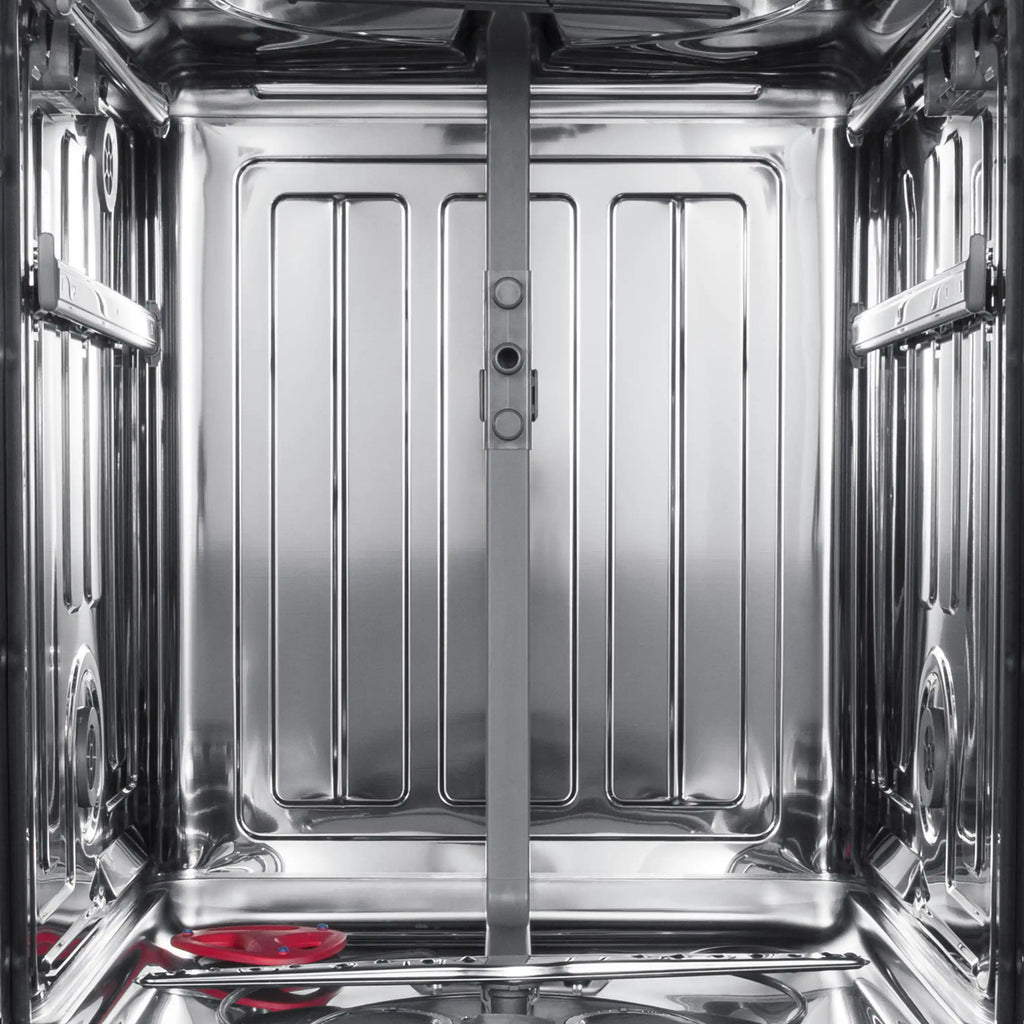

| Tub Material | Stainless Steel |
| Tub Height | Tub Height |
| Number of Cycles | 6 |
| Type of Cycles |
Pots & Pans; China & Crystal; Quick Wash; Energy Saver; Normal Wash; Rinse Only |
| Types of Options | Air Exchnage; Steam Wash: Vortex Wash; Heating Dry; Sanitize; High Temp Wash; Delay |
| Number of Wash Level(s) | 3 |
| Number of Drying Cycles | 2 |
| Fan Assisted Dry | Yes |
| Heated Dry Option | Yes |
| Concealed heating element | No |
| 1/2-Rack Wash Option | No |
| Delay Wash | Yes |
| Delay Start Information | 1-24 Hours |
| Steam Wash | Yes |
| Sensor Wash Cycle | No |
| Pre-Soak Cycle | No |
|
Quick Rinse Cycle |
Yes |
|
Rinse & Hold Cycle |
No |
| NSF Certified Sanitization Option |
Yes |
|
Mineral Assisted Dry |
No |
| Soil-Sensing Capability |
Yes |
|
Cycle Status Indicator Light |
Yes |
| Low Rinse Aid Indicator |
|
| Number of Place Settings |
14 |

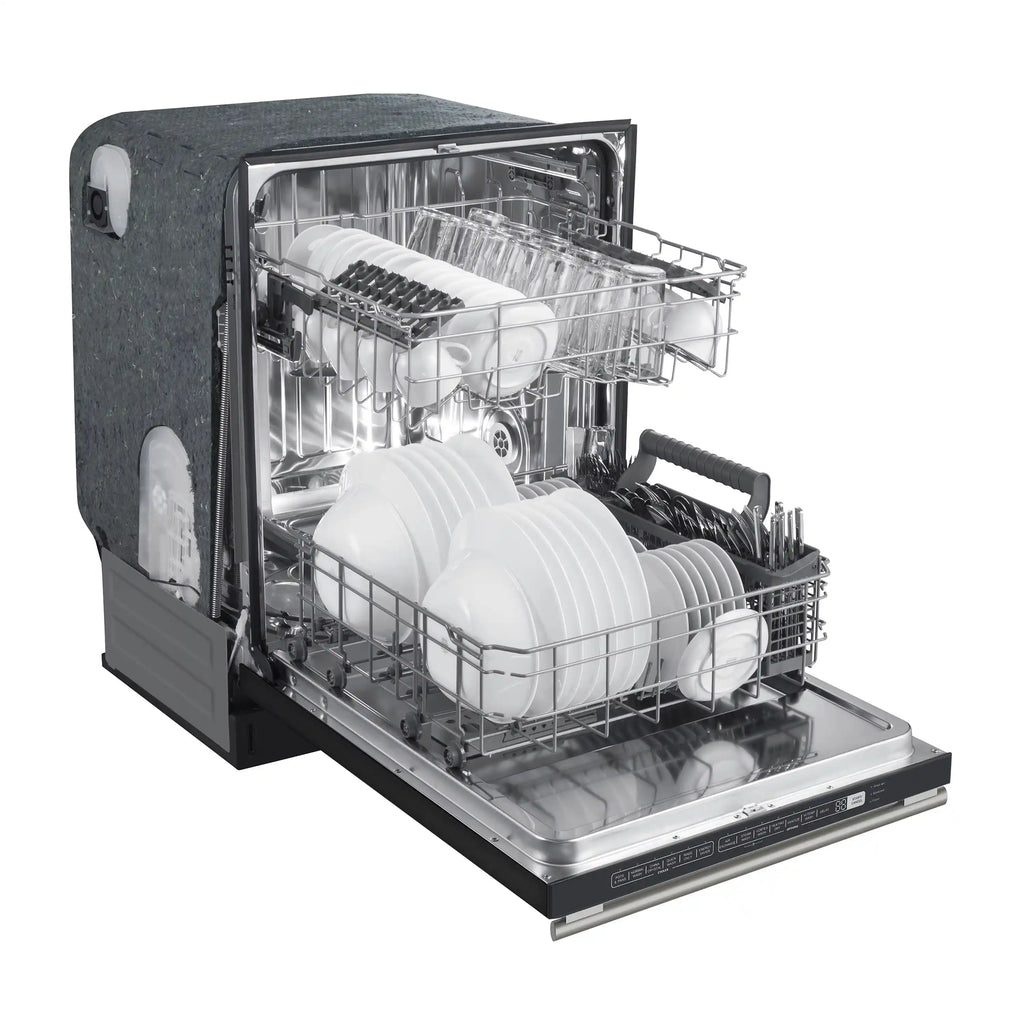

| Number of Racks | 3 |
| Folded-Down Tines | Upper & Lower Racks |
| Rack Material |
Nylon Coated Steel |
|
Adjustable Rack |
Yes |
|
Silverware Basket |
Yes |
| Splitable Silverware Basket |
3 Piece Splittable |
|
Silverware Basket Location |
Bottom |
|
Removable Silverware Basket |
Yes |
|
Stemware Glass Holder |
Yes |
|
Third Rack |
Yes |
|
Number of Wash Arms |
3 |
|
Child Control Safety Lock |
Yes |
|
Filter Material |
Stainless-Steel |
|
Filter Trap |
Removable |
|
Self-Cleaning Filter |
Yes |
|
Hard Food Dispenser |
No |
|
Water Filtration |
No |
|
Wash System |
Smart Wash System |
|
Wash System Type |
Direct Feed |
|
Automatic Temperature Control |
No |
|
Plug-in |
No |
|
Custom Door Panel Included |
No |
|
Supplier Intended and Approved Use |
Residential Use |
| Warranty | |
| Commercial Warranty |
No |
| Warranty Type |
Limited |
|
Warranty Length |
2 Years |
| Warranty on Parts | 2 Years |
Shipping
Returns
