Senville 36K BTU Central Split System with 15.8 SEER2 Heat Pump Condenser and Evaporator A-Coil (SENDC-36CO)

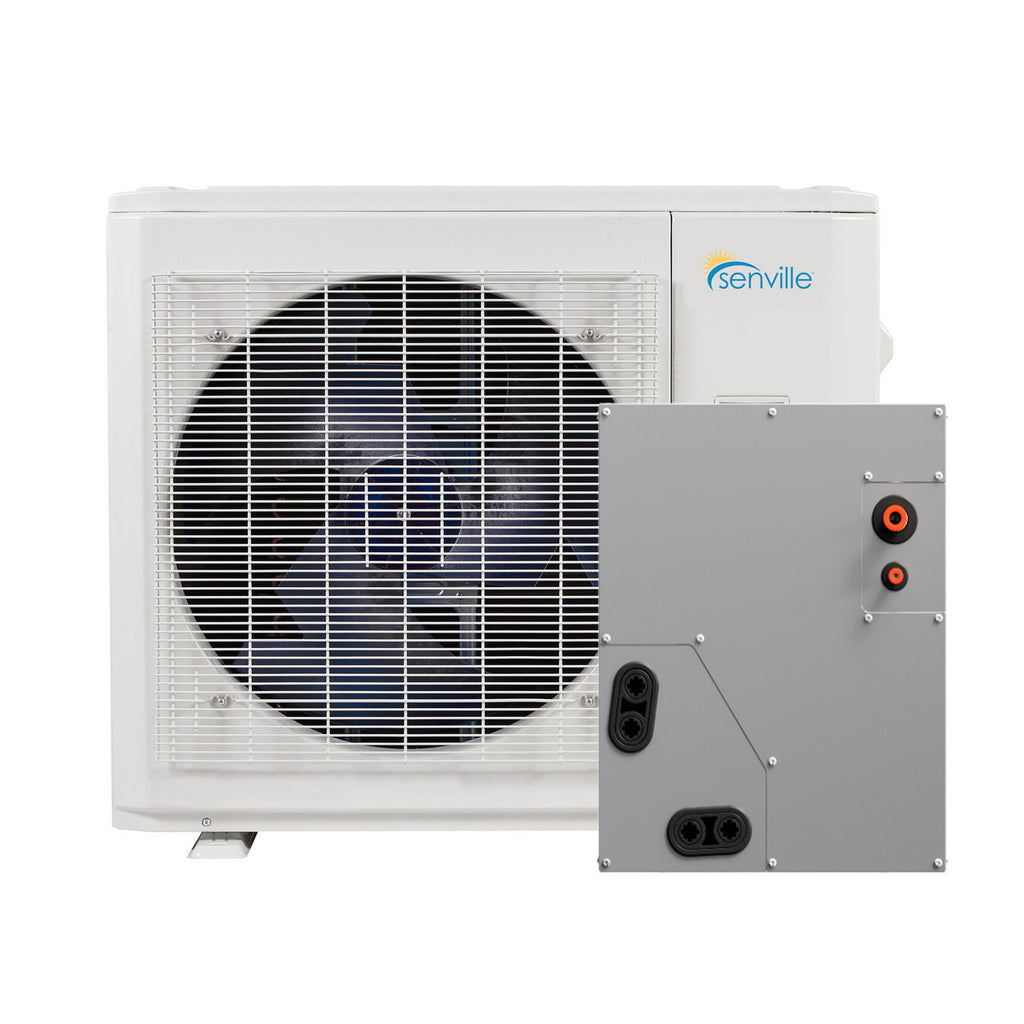

The Senville SENDC-36CO is a 3-ton central split heat pump system built for homes that already have a furnace. It pairs a 36,000 BTU Senville inverter heat pump condenser with the SENDC-36CO-B evaporator A-coil, so your existing furnace blower moves the air while the heat pump handles cooling and heating. There is no air handler in this package; the A-coil mounts on your furnace and uses its blower.

The matched condenser and coil are rated at 15.8 SEER2, 10.7 EER2 and 9.4 HSPF2-4 and run on R454B refrigerant. The coil installs horizontally or vertically, uses a durable aluminum coil with a built-in R454B refrigerant sensor, and works with a WiFi-enabled wired controller or a third-party 24V thermostat.

Features

• Matched Condenser and A-Coil - A 36,000 BTU heat pump condenser paired with the SENDC-36CO-B evaporator coil for installation on an existing furnace.
• Inverter Variable-Speed Compressor - The twin rotary inverter compressor modulates output across a 13000~47400 cooling range and an 11000~57200 heating range (BTU).
• Heat Pump Heating and Cooling - Provides year-round comfort, with heat pump operation rated down to -22°F (-30°C).
• Multi-Position Coil - The A-coil installs in a horizontal or vertical position to fit your furnace layout.
• Durable Aluminum Coil - Aluminum coil construction built for long service life and easy maintenance.
• R454B Refrigerant Sensor - The coil includes an advanced R454B refrigerant sensor.
• Flexible Controls - Supports a WiFi-enabled wired controller or a compatible third-party 24V thermostat.
• AHRI Certified - The matched system carries an AHRI certificate and EnergyGuide label.
• Quiet Outdoor Operation - The condenser is rated at 64 dBA.
• Warranty - Backed by a 10-year compressor and 5-year parts warranty.

Please Note

• Professional installation is required.
• This package includes the heat pump condenser and the SENDC-36CO-B evaporator A-coil only. It does not include an air handler or blower; a working furnace or blower unit is required to move air through the coil.
• Line Set Length option: choose a 16 Ft., 25 Ft. or 50 Ft. line set installation kit. The No Line Set option ships the condenser and coil without a line set, for installers supplying their own.
• The condenser requires 208/230V, 1Ph, 60Hz power with a 41 A minimum circuit ampacity and 50 A maximum fuse. The coil uses 24V control power.
• The condenser refrigerant pre-charge covers 25 Ft. of line; longer runs may require additional refrigerant at installation.
• Efficiency ratings listed are for the condenser matched with the SENDC-36CO-B coil. Supplemental heat is provided by your furnace; no electric heat kit applies to this package.
• Thermostat or controller requirements should be confirmed with your installer.
