Senville 36K BTU Top Discharge Central Split System with 18.6 SEER2 Hyper Heat Pump Condenser and Air Handler (SENTC-36TD)

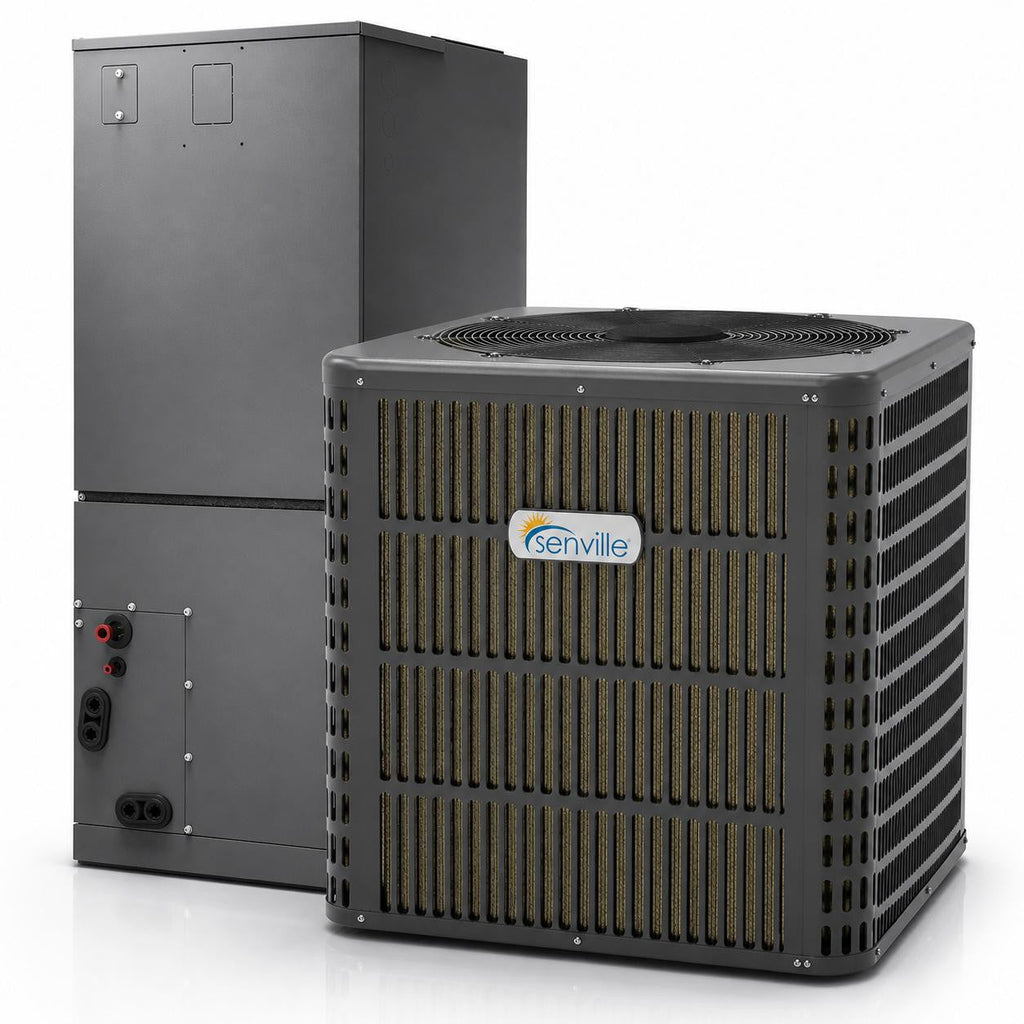

The Senville SENTC-36TD is a 3 ton (36,000 BTU) central heat pump split system that pairs a top discharge outdoor condenser with a ducted indoor air handler. Rated at 18.6 SEER2 and 9.0 HSPF2 (Region 4), it heats and cools medium-sized homes through ductwork while helping reduce energy costs. The top discharge configuration suits tighter installations, and the Hyper Heat inverter design keeps heating in outdoor temperatures down to –4°F.

The system runs on 208/230V single-phase power and uses R-32 refrigerant with flared connections. Choose a 16 Ft. or 50 Ft. line set and, if needed, an auxiliary electric heat kit (5K, 10K, 15K or 20K) to match the installation.

Features

• 3 Ton Hyper Heat System - Rated for 34,000 BTU/h of cooling and 36,000 BTU/h of heating, with a heating capacity range of 11,000 – 39,000 BTU/h.
• 18.6 SEER2 Efficiency - 18.6 SEER2, 11.7 EER2 and 9.0 HSPF2 (Region 4) ratings help lower operating costs year-round.
• Cold-Climate Heating - Delivers 27,000 BTU/h at 5°F and 25,000 BTU/h at –4°F outdoor, with a heating operating range of –4°F to 75°F.
• Wide Cooling Range - Cools in outdoor temperatures from 5°F to 131°F and holds 32,000 BTU/h at 109°F.
• Twin-Rotary DC Inverter Compressor - The variable-speed GMCC compressor modulates cooling output between 13,000 and 38,000 BTU/h for steady, even comfort.

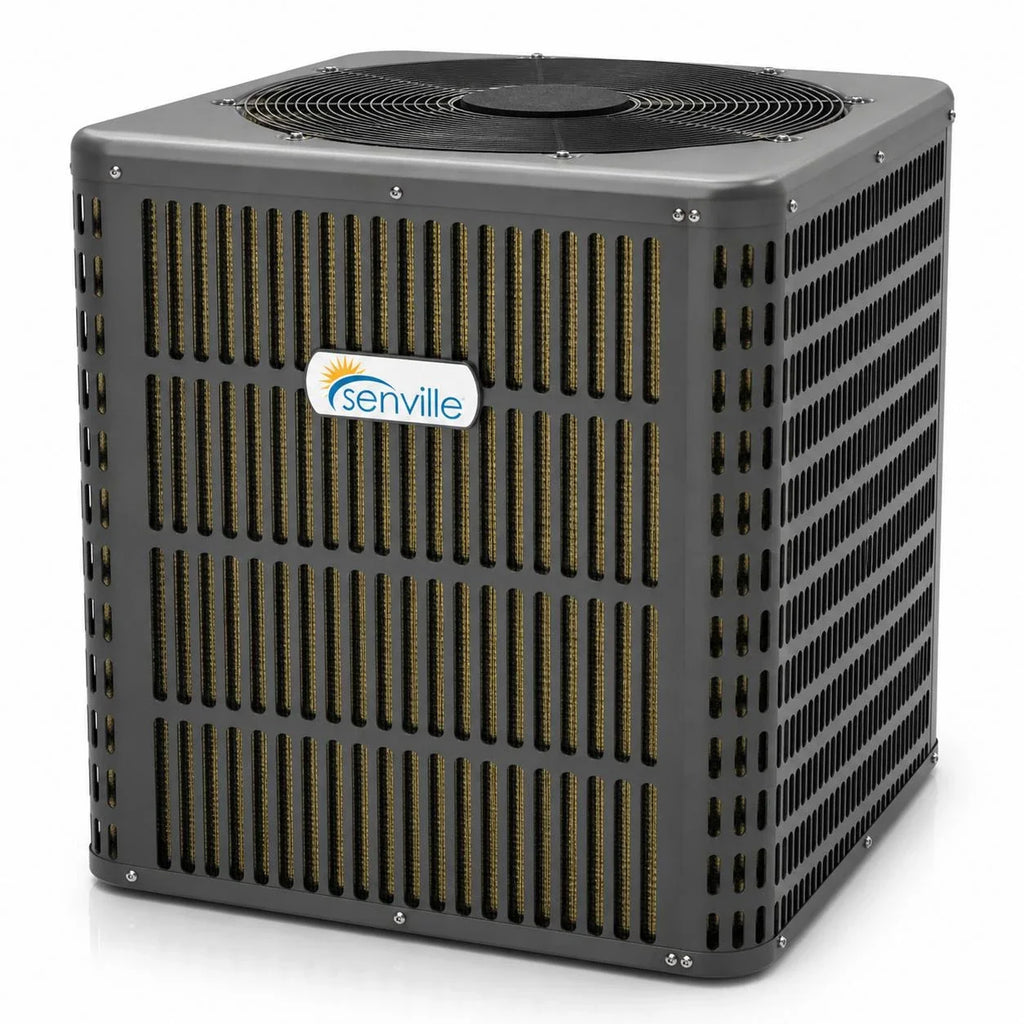

• Top Discharge Condenser - Vertical airflow fits tighter outdoor placements; the 29-9/64" × 29-9/64" × 25" cabinet weighs 143 lbs.

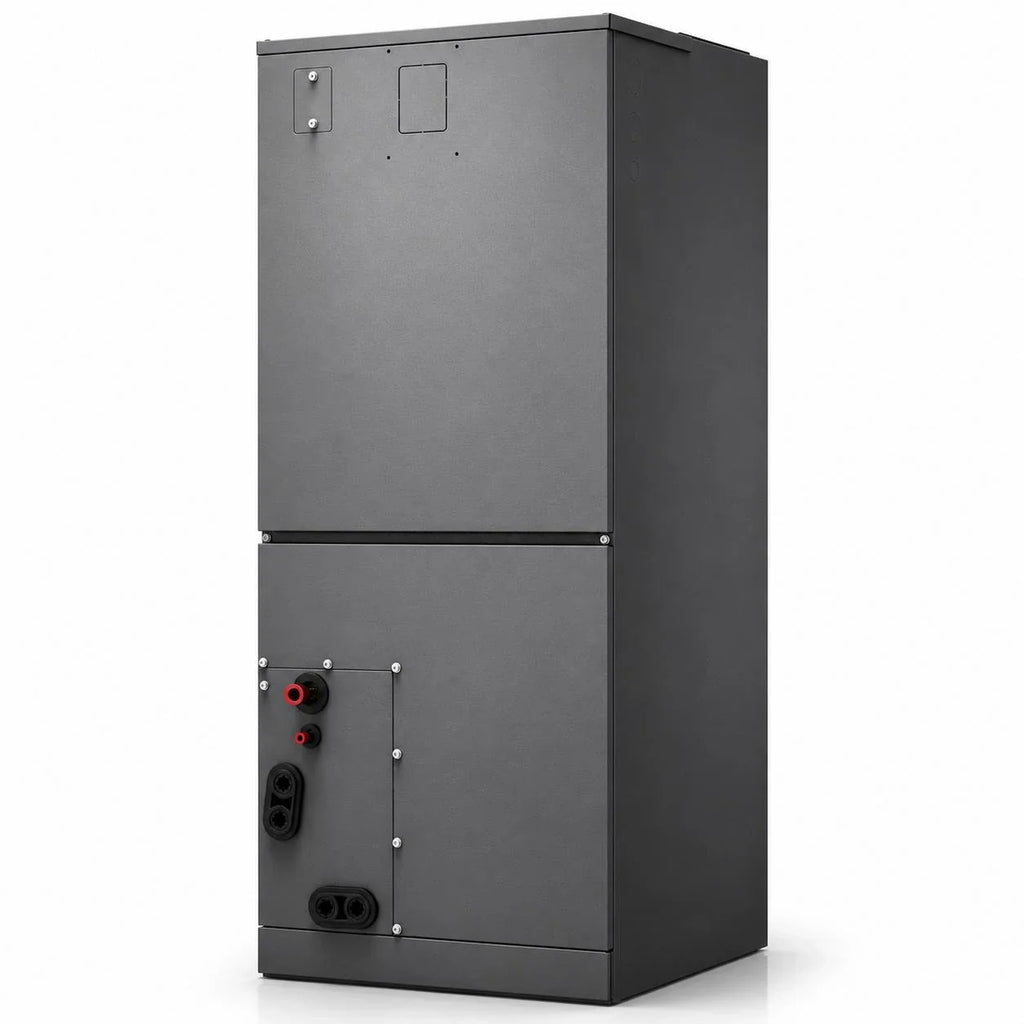

• Ducted Air Handler - The indoor unit moves 1,110 / 520 CFM (high / low) at 50 / 38 dB(A) and measures 21-1/32" × 21-1/32" × 49-7/32".
• Quiet Outdoor Operation - Outdoor unit rated at 58 dB(A) with 2,800 CFM of maximum airflow.
• Long Line Set Capability - Supports up to 246 ft (75 m) of piping and 98.4 ft (30 m) of height difference with 3/8 in liquid and 3/4 in gas lines.
• AHRI Certified - Listed in the AHRI directory with an EnergyGuide label.

Please Note

• Professional installation by a licensed HVAC technician is required.
• Package includes the outdoor heat pump condenser and the indoor ducted air handler.
• Line Set Length selects the installation kit length (16 Ft. or 50 Ft.) supplied with the system. Additional refrigerant may be needed on longer runs at 0.52 oz/ft (48 g/m).
• Heat Kit selects an optional auxiliary electric heater (5K, 10K, 15K or 20K) for the air handler to provide supplemental heat; choose None if not required. Electrical requirements for the air handler increase when a heat kit is installed, so have your installer size the circuit accordingly.
• Requires a 208/230V, 60 Hz, single-phase power supply. Outdoor unit MCA / MOP is 24 A / 30 A; indoor unit MCA / MOP is 5 A / 15 A.
• Factory charged with 2.9 kg (102.3 oz) of R-32 refrigerant.
• Indoor and outdoor installation manuals and a service manual are available from the manufacturer.
