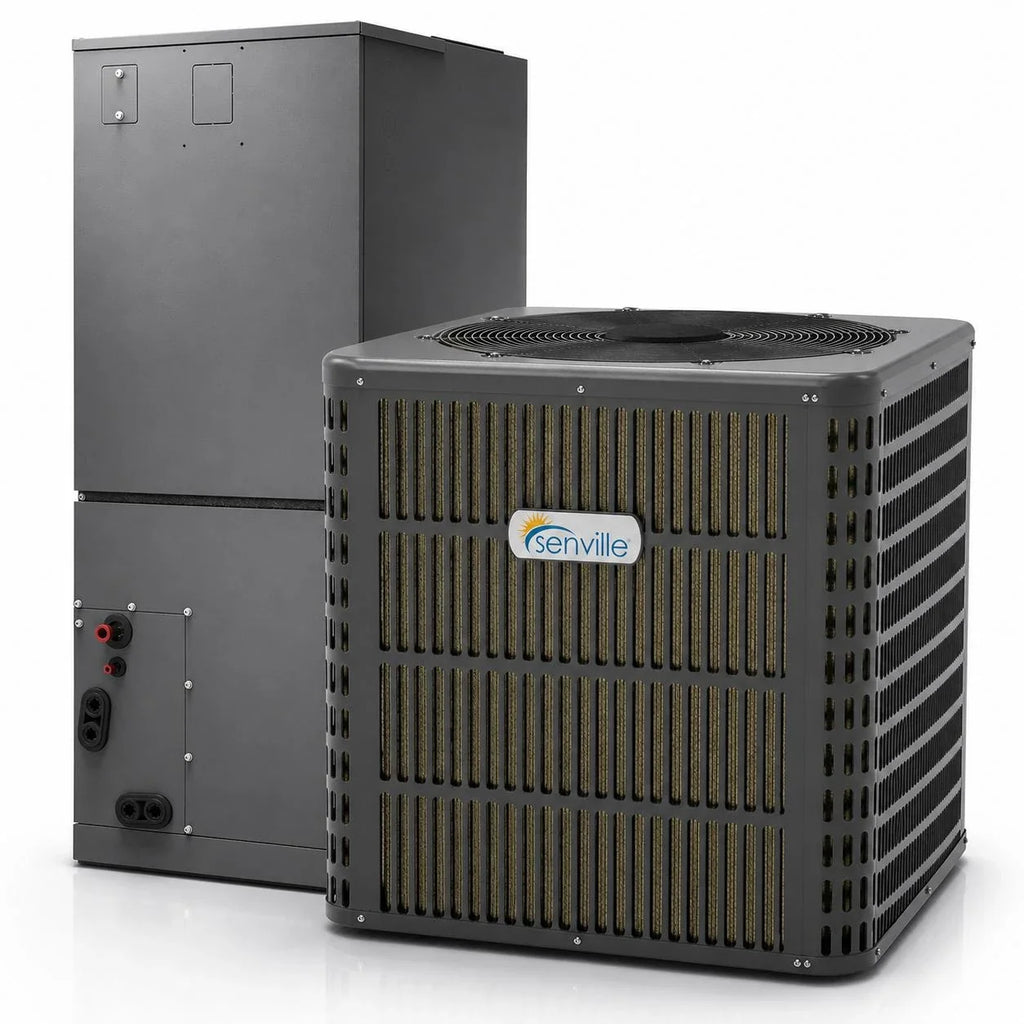

Senville 48K BTU Top Discharge Central Split System with 17.6 SEER2 Hyper Heat Pump Condenser and Ducted Air Handler (SENTC-48TD)

The Senville SENTC-48TD is a 4 ton (48,000 BTU) top discharge central heat pump system engineered for larger residential spaces. The outdoor condenser pairs with a ducted indoor air handler to deliver strong, consistent airflow and efficient temperature control through your home's duct system, with the capacity to keep up during peak seasonal demand. A Twin-Rotary DC Inverter compressor matches output to the load, and the Hyper Heat design keeps heating down to -4°F outdoor.

Rated at 17.6 SEER2, 11.3 EER2 and 9.1 HSPF2 (Region 4), the system runs on 208/230V single-phase power and uses R-32 refrigerant. Select the line set length (16 Ft. or 50 Ft.) and an optional auxiliary electric heat kit (5K, 10K, 15K or 20K) to fit the installation.

Features

• 4 Ton Capacity - Rated for 47,000 BTU/h cooling and 50,000 BTU/h heating, with a cooling range of 15,000 – 49,000 BTU/h and a heating range of 11,000 – 52,000 BTU/h.
• Hyper Heat Cold-Climate Heating - Heats in outdoor temperatures down to -4°F, delivering 36,000 BTU/h at 5°F and 32,000 BTU/h at -4°F.
• 17.6 SEER2 Efficiency - Rated 17.6 SEER2, 11.3 EER2 and 9.1 HSPF2 (Region 4) with a heating COP of 3.39 W/W.
• Twin-Rotary DC Inverter Compressor - GMCC inverter compressor varies its output to match the load for steady temperatures and efficient operation.

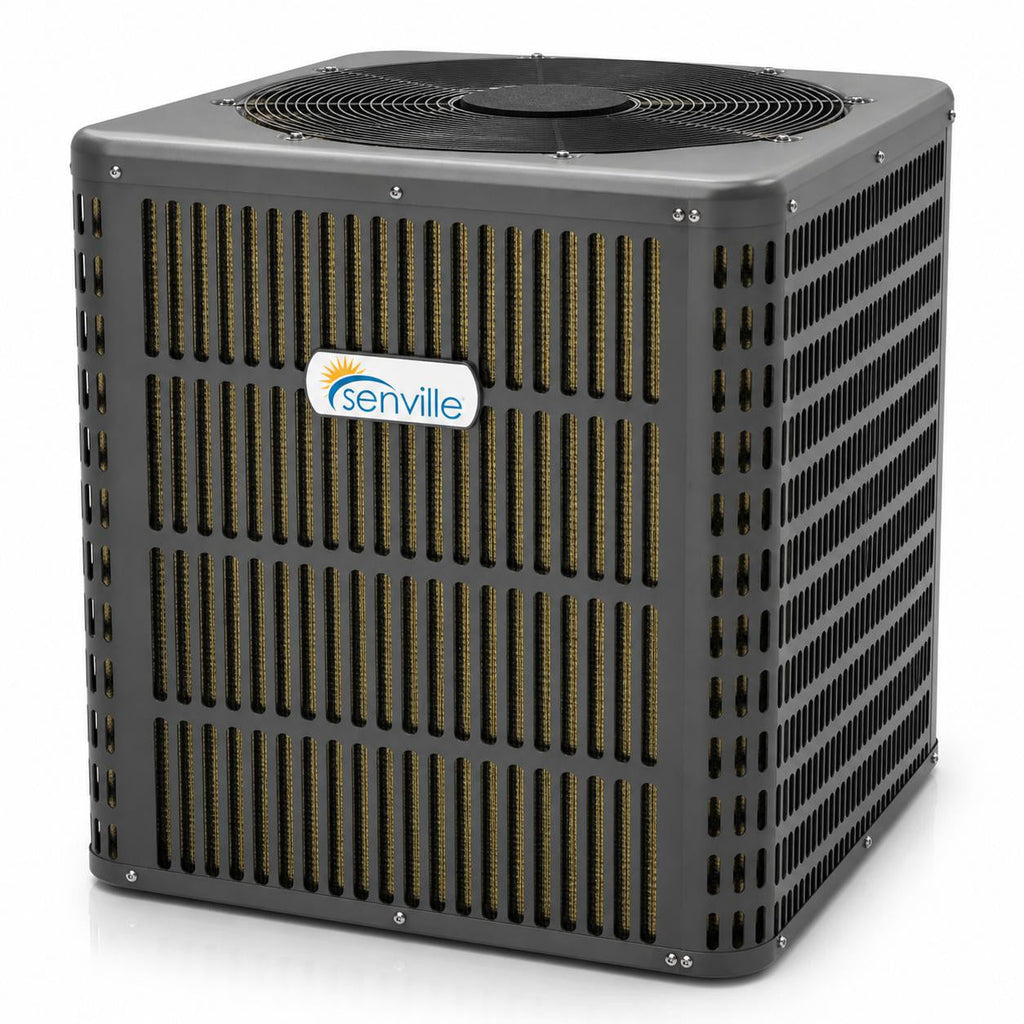

• Top Discharge Condenser - Outdoor unit discharges air upward and moves up to 3,050 CFM at 60 dB(A).

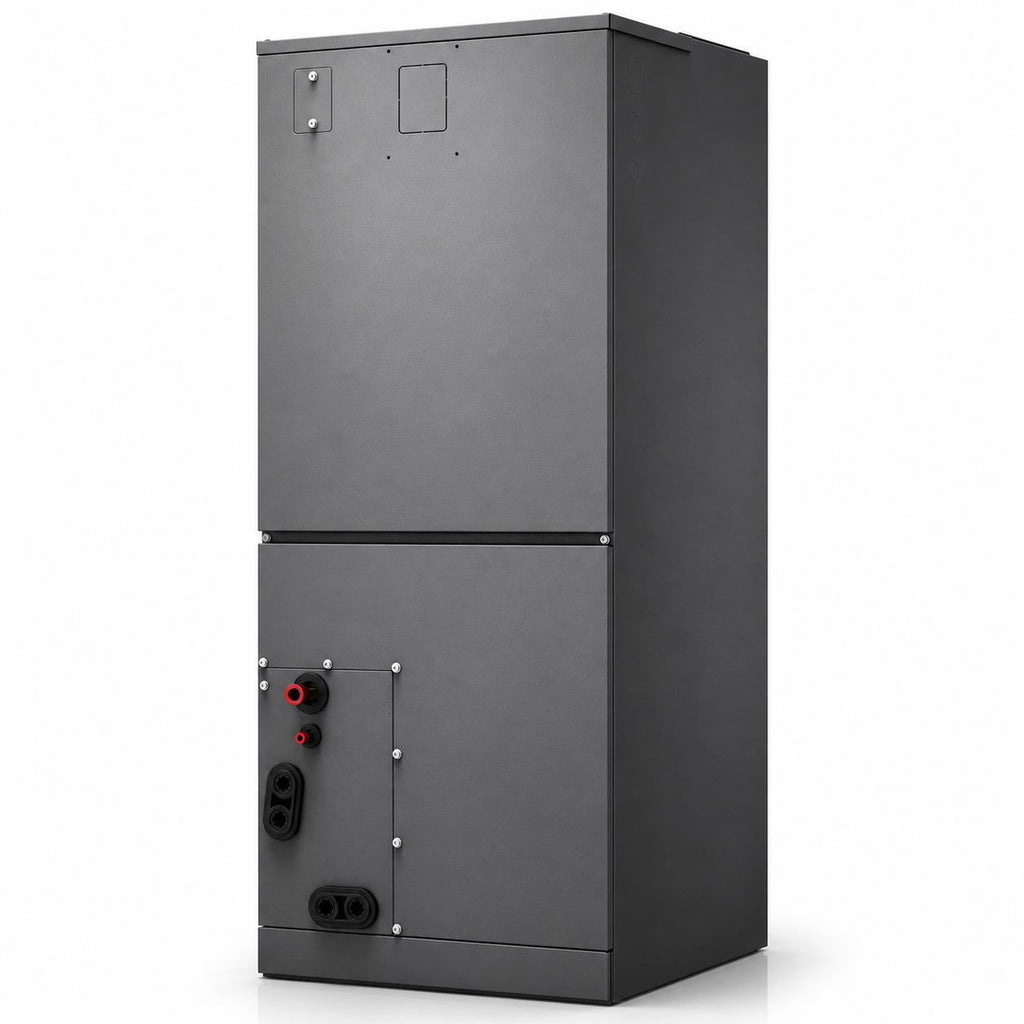

• Ducted Air Handler - Indoor unit delivers 1,690 / 750 CFM on high / low at 51 / 44 dB(A) for whole-home duct systems.
• Wide Cooling Range - Cools in outdoor temperatures from 5°F to 131°F and still delivers 40,000 BTU/h at 109°F.
• R-32 Refrigerant - Factory charged with 3.4 kg (119.9 oz) of R-32; supports pipe runs up to 246 ft (75 m) and a 98.4 ft (30 m) height difference with flared connections.
• AHRI Certified - AHRI certificate and EnergyGuide label are available for the matched system.

Please Note

• Professional installation by a licensed HVAC technician is required.
• Package includes the outdoor heat pump condenser and the indoor ducted air handler. The Line Set Length option selects the installation kit (16 Ft. or 50 Ft.) shipped with the system.
• The Heat Kit option adds an auxiliary electric heater for supplemental heat: choose None, 5K (5 kW), 10K (10 kW), 15K (15 kW) or 20K (20 kW).
• Requires 208/230V, 60 Hz, single-phase power. Outdoor unit MCA / MOP is 36 A / 40 A; indoor unit MCA / MOP is 7 A / 15 A. An auxiliary heat kit adds to the indoor electrical requirement; consult the installation manual.
• Indoor and outdoor units connect with AWG 25×3 shielded communication wiring. Liquid / gas line sizes are 3/8 in / 3/4 in.
• Rated capacities are nominal; actual output varies with outdoor temperature as listed in the specifications.
