Senville® Build Your Own mini-split system allows you to mix and match multi-zone outdoor units with various styles and combinations. Choose from wall-mounted, ceiling cassette, duct, or ceiling mounts.
Verify indoor/outdoor compatibility by viewing our Multi-Zone Combinations Specifications Sheet (PDF) for a complete list of styles and size combinations.
| Dimensions & Weight | |
|---|---|
| Dimensions (WxDxH) (in.) | 50.31 x 13.19 x 8.98 |
| General Information | |
| Brand | Senville |
| Model Number | SENA-06HFMO-1WC |

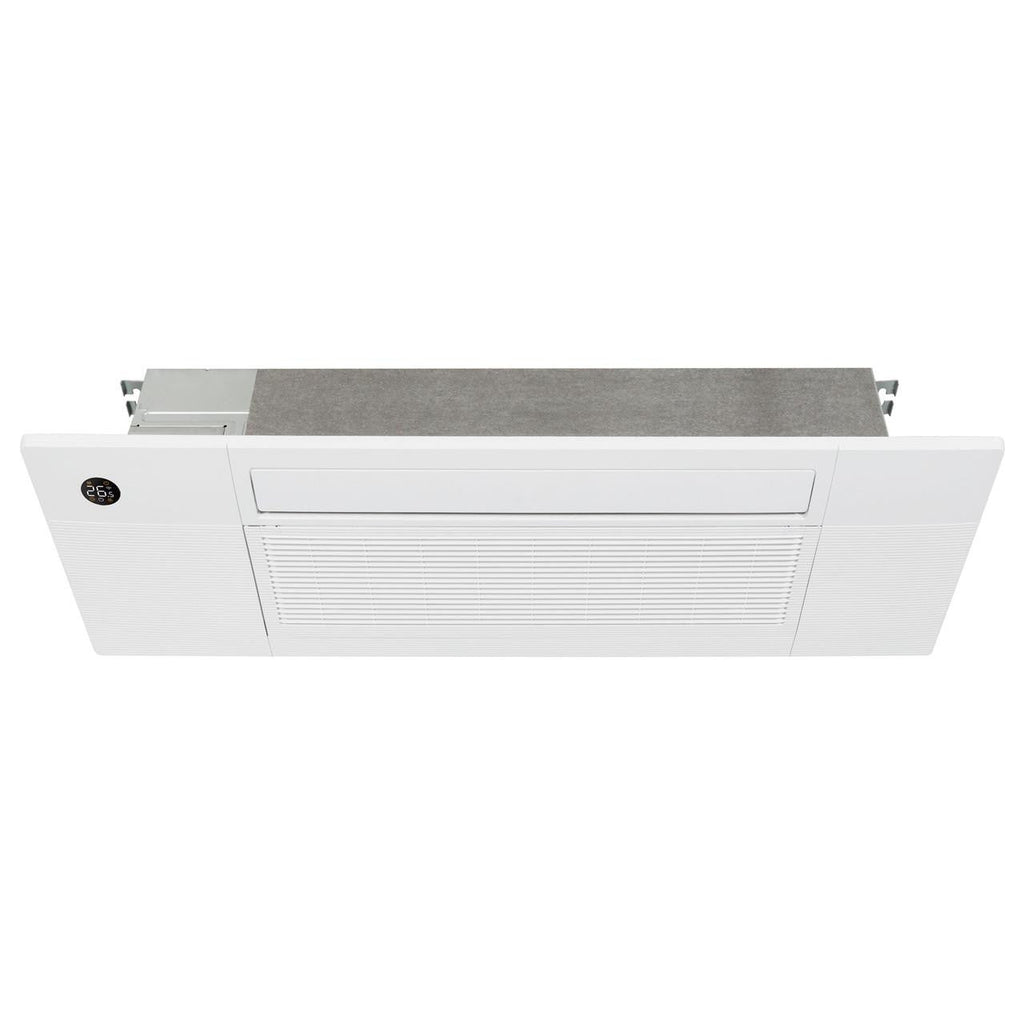

| Style | One-Way Ceiling Cassette Multi-Zone Indoor Air Handler |
| Features | Elevation Panel (motorized panel lowers for filter access) |
| Capacity & Performance | |
| Cooling Capacity (BTU) | 6000 |
| Electrical Requirements | |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Minimum Circuit Ampacity (A) | 3 |
| Max. Fuse (A) | 15 |
| Refrigerant & Piping | |
| Refrigerant Type | R454B |
| Liquid Line (inch) | 1/4" |
| Gas Line (inch) | 3/8" |
| Connection Method | Flared |
| Compatibility | |
| Compatible Outdoor Units | SENA-18HF-MOA (2-3 zones), SENA-28HF-MOA (2-4 zones), SENA-36HF-MOA (2-5 zones), SENA-48HF-MOA (2-6 zones) |
| Controls & Connectivity | |
| Thermostat Type | Infrared Remote Control (Included) |
| Warranty | |
| Warranty | Manufacturer Warranty (Labor Not Included) |
