Senville ELITE 24K BTU Mini Split Air Conditioner and Heat Pump Condenser with Wall Mount Air Handler (SENE-24EL)

SenvilleSKU: SENE-24EL-16
4 reviews

Price:
Sale price$2,699.99 Regular price$3,509.99SAVE 23%
Backorder
Estimated restock: 2-4 Weeks
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.

Description

The 30-second rundown
24,000 BTUHeating + Cooling
Professional RequiredInstallation
24 SEER2Efficiency
1,500 Sq. Ft.Coverage (estimate)
1-Zone
240VPower
Energy Star Certified

SENE-24EL Mini Split Air Conditioner and Heat Pump

24,000 BTU of high-efficiency, cold-climate comfort. ENERGY STAR certified cooling, heating, dehumidification and fan operation for larger rooms. The cold-climate heat pump is designed to provide heating down to -30 °C.

Highlights

  • Down to -30 °C - Cold-weather heating
  • 24,000 BTU - System capacity
  • 1,000-1,500 sq. ft. - Recommended coverage
  • 25.0 SEER2 - Certified efficiency
  • 11.0 EER2 - Cooling efficiency rating
  • 15 HSPF2-4 - Heating efficiency rating
  • As low as 30 dB - Low indoor setting
  • R454B - Refrigerant

Features

  • Cold-climate heating: Designed to provide heating at -30 °C (-22 °F) with up to 75% efficiency while also cooling, dehumidifying and circulating air.
  • ENERGY STAR efficiency: The 25.0 SEER2 system is ENERGY STAR certified and can reduce annual energy costs by up to 56%.
  • Smart control and diagnostics: Use the included remote, voice control or Alexa app with the included USB kit. Built-in self-diagnostics and refrigerant leak detection assist with system monitoring.

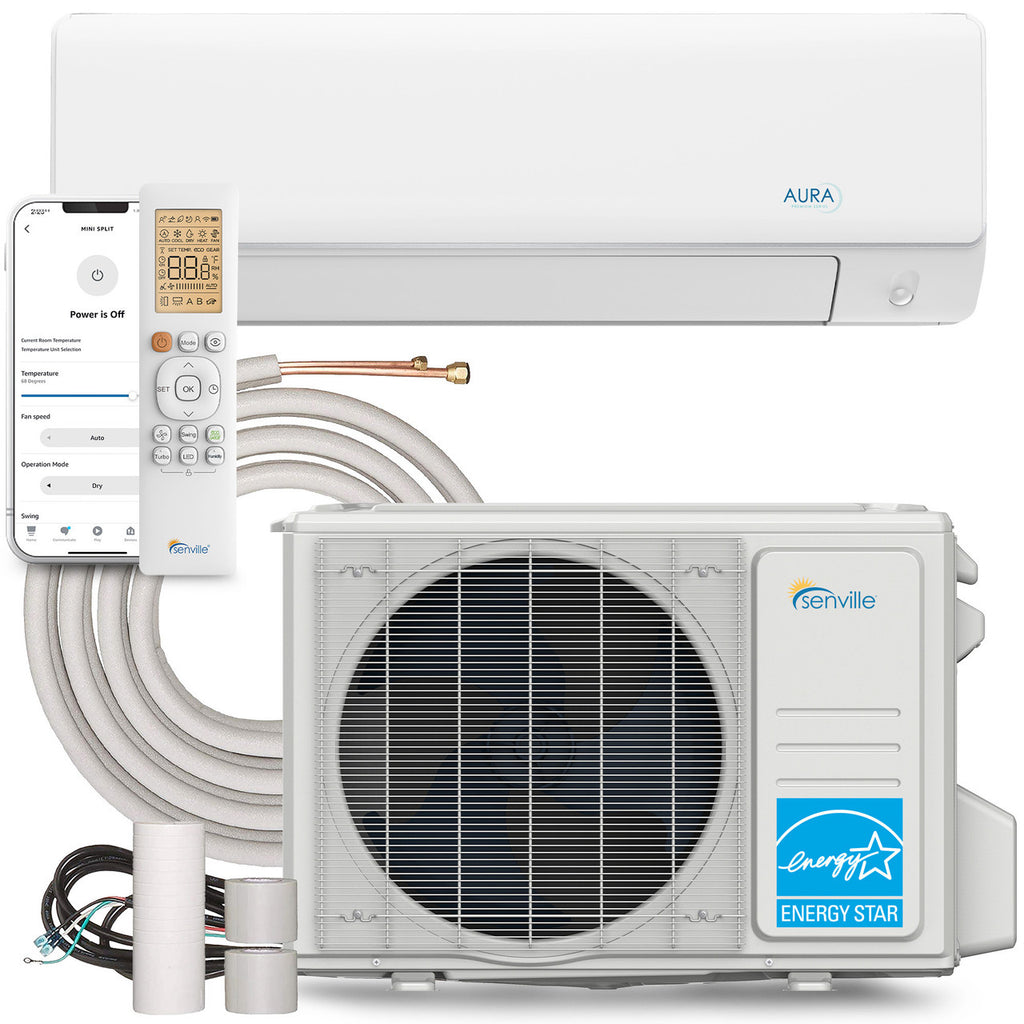

What's Included

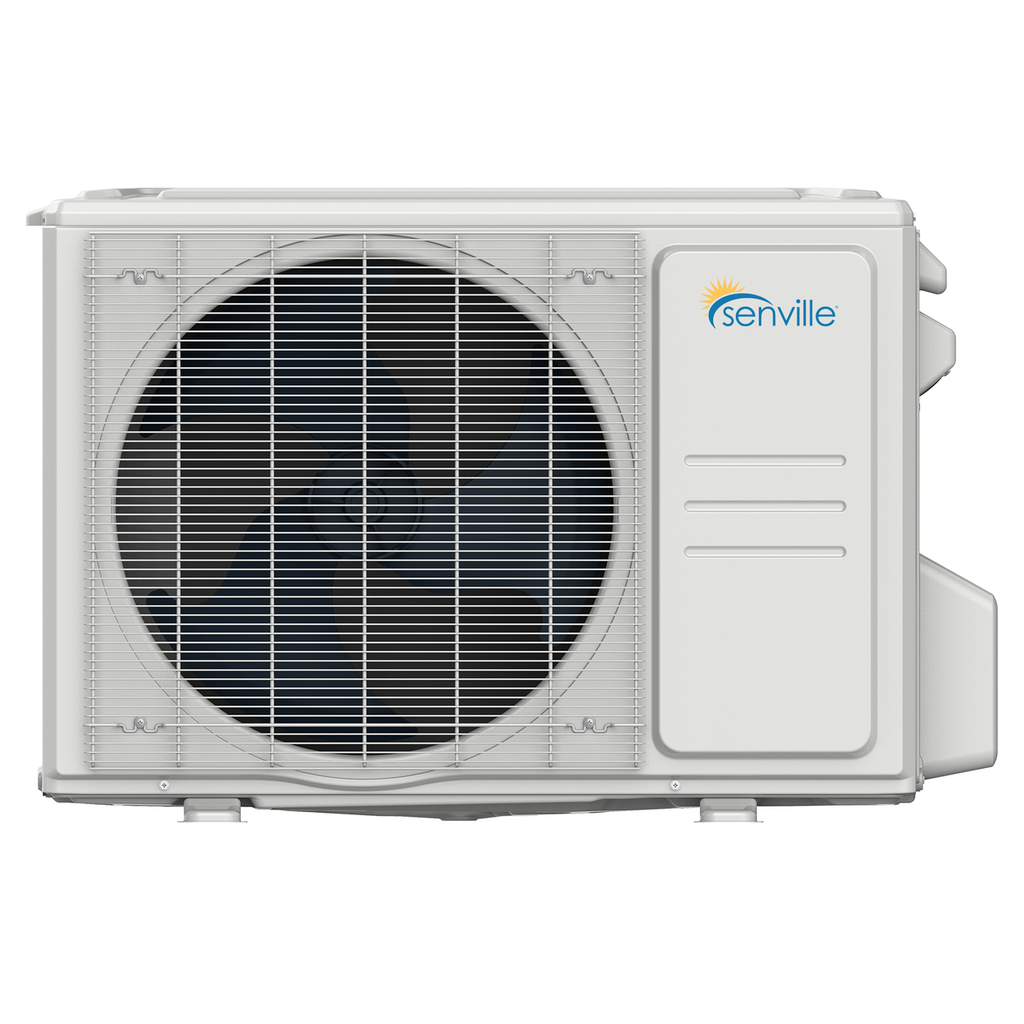

  • Outdoor unit - Cold-climate inverter

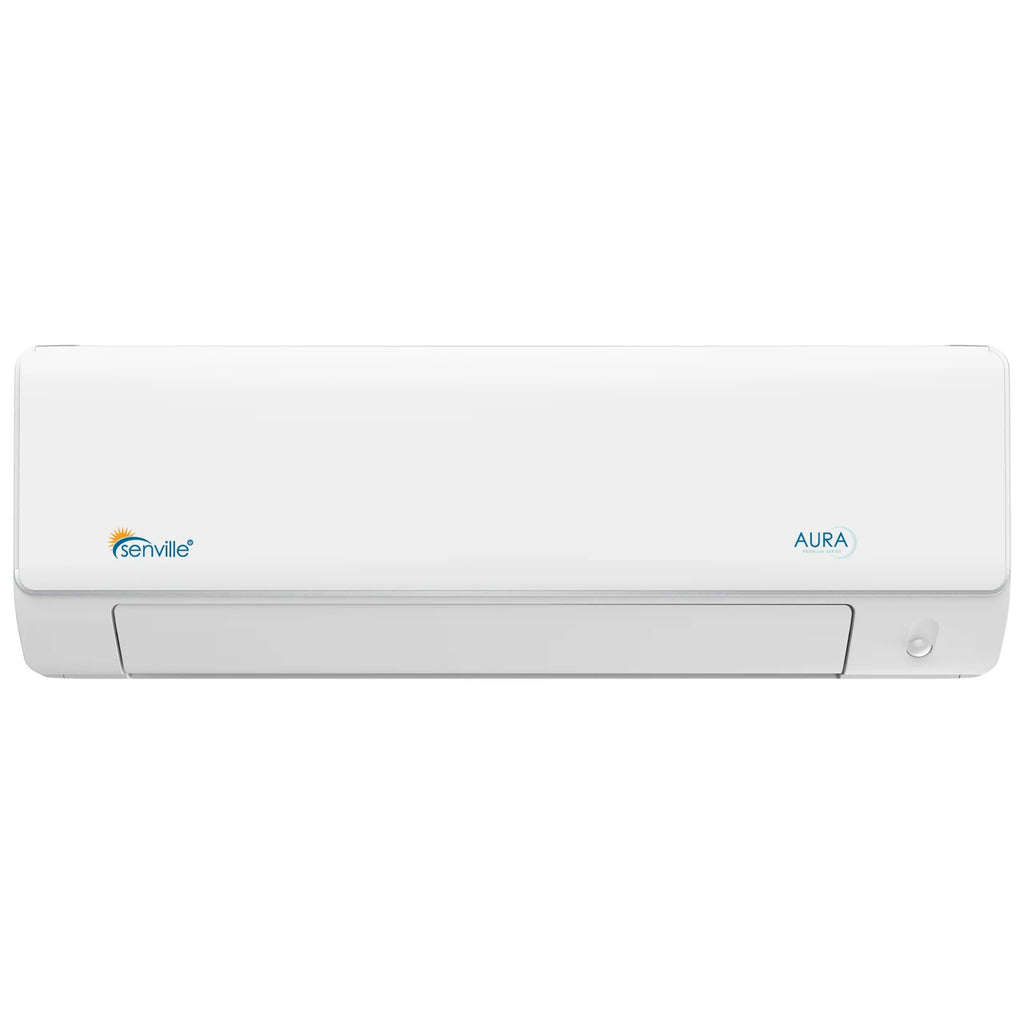

  • Indoor unit - Wall-mounted

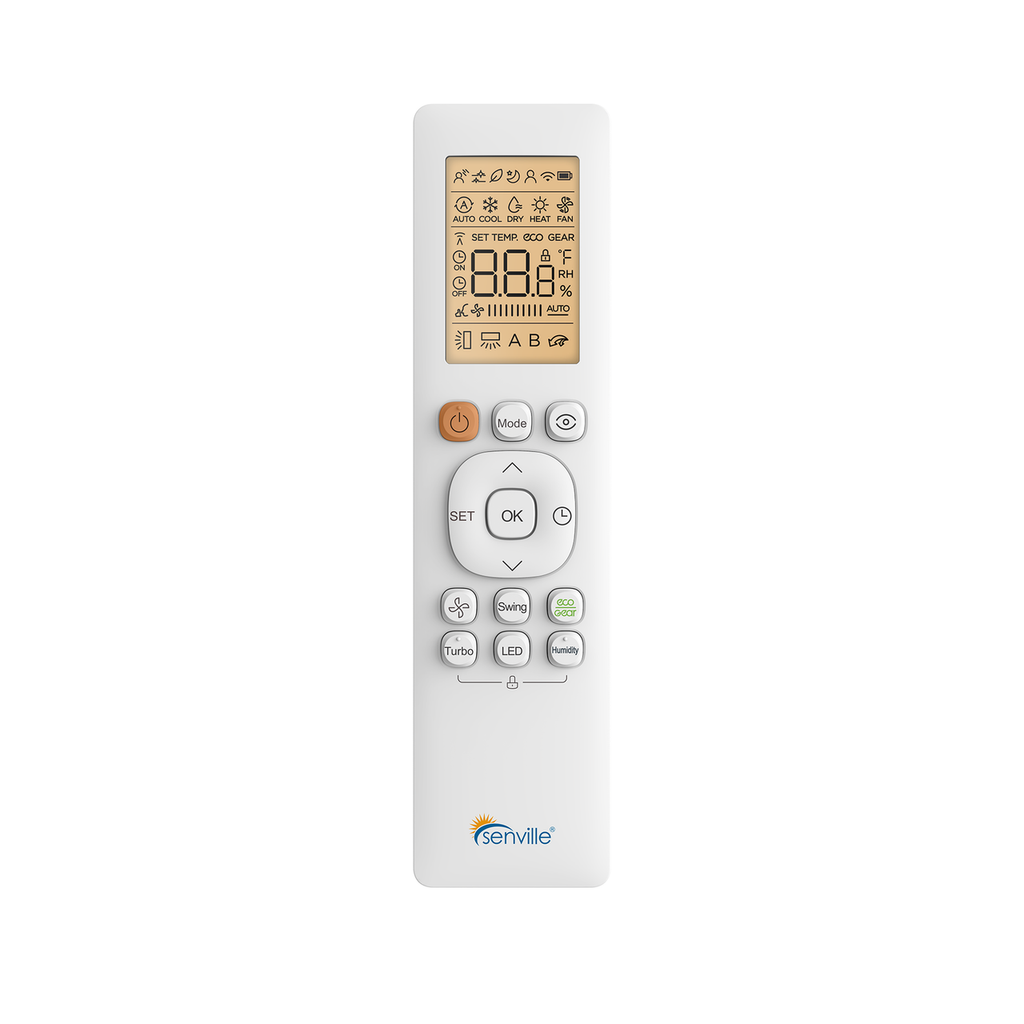

  • Remote and Alexa kit - Wireless remote plus USB kit

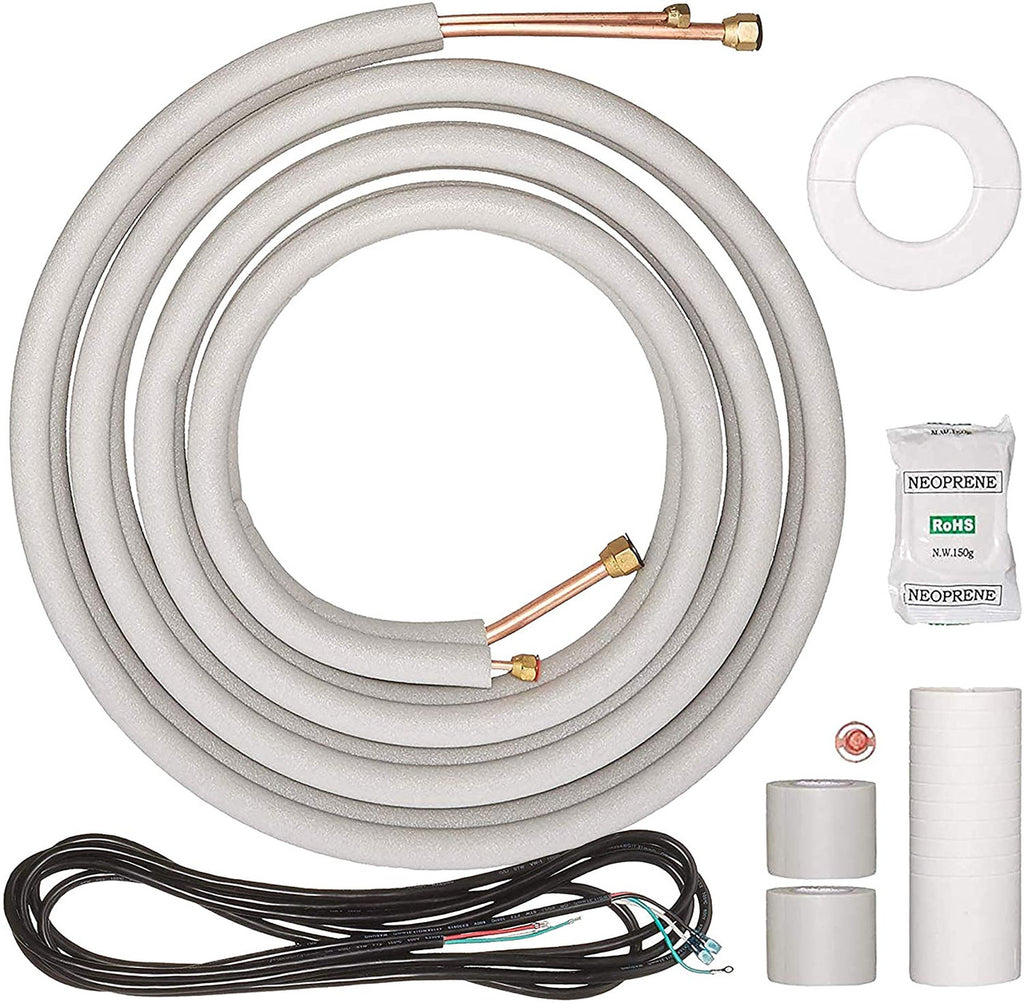

  • Selected installation kit - 16, 25 or 50 ft.
  • Wiring harness - Indoor-to-outdoor connection

Note: The outdoor unit contains an R454B refrigerant pre-charge for an installation length of up to 25 ft. If the "None" option is selected, no installation kit is included; the 50 ft. kit requires additional refrigerant to be added on-site by the installer. Professional installation is required — the R454B system must be installed and commissioned by a qualified professional. Warranty: 10 years on the compressor, 10 years on parts.

GENERAL INFORMATION
Brand
Senville
Model Number
SENE-24EL
Style
Ductless Mini Split AC With Heat Pump
ELECTRICAL
Power Supply (V-Ph-Hz)
208/230V, 1Ph, 60Hz
Voltage Range
187–253
EFFICIENCY
SEER2
24.0
EER2
11.0
HSPF2-4
15
HSPF2-5
12.4
COP W/W
4.10
COOLING
Cooling Capacity (BTU)
24,000
Cooling Range (BTU)
7,300~26,000
Cooling Input Range (W)
140~2,100
Cooling Current Range (A)
1.1~9.5
HEATING
Heating Capacity (BTU)
24,000
Heating Range (BTU)
7,300~25,000
Heating Input Range (W)
380~1,980
Heating Current Range (A)
2.1~8.8
Minimum Outdoor Heating Temperature
-22°F / -30°C
ELECTRICAL REQUIREMENTS
Minimum Circuit Ampacity (A)
24.0
Max. Fuse (A)
25
INDOOR UNIT
Indoor Air Flow (Turbo/H/M/L) CFM
912.3 / 618.0 / 412.0 / 317.8
Indoor Noise Level (Turbo/H/M/L) dB
56 / 47 / 41 / 33 / 30
Indoor Dimensions (WxDxH)
46.85 x 11.20 x 14.59 in
Indoor Weight
64.2 lbs
Moisture Removal (L/H)
1.2
OUTDOOR UNIT
Outdoor Air Flow (Max) CFM
2,235
Outdoor Noise Level dB
62.0
Outdoor Dimensions (WxDxH)
37.24 x 16.14 x 31.89 in
Outdoor Weight
130.29 lbs
REFRIGERANT
Refrigerant Type / Charge
R454B / 63.49 oz
Refrigerant Pre-charge
30 ft
CONNECTIONS
Connection Wiring
14*4 AWG
Thermostat Type
Remote Control
SMART FEATURES
Alexa
Enabled
WARRANTY
Warranty
10 Years Compressor / 10 Years Parts
