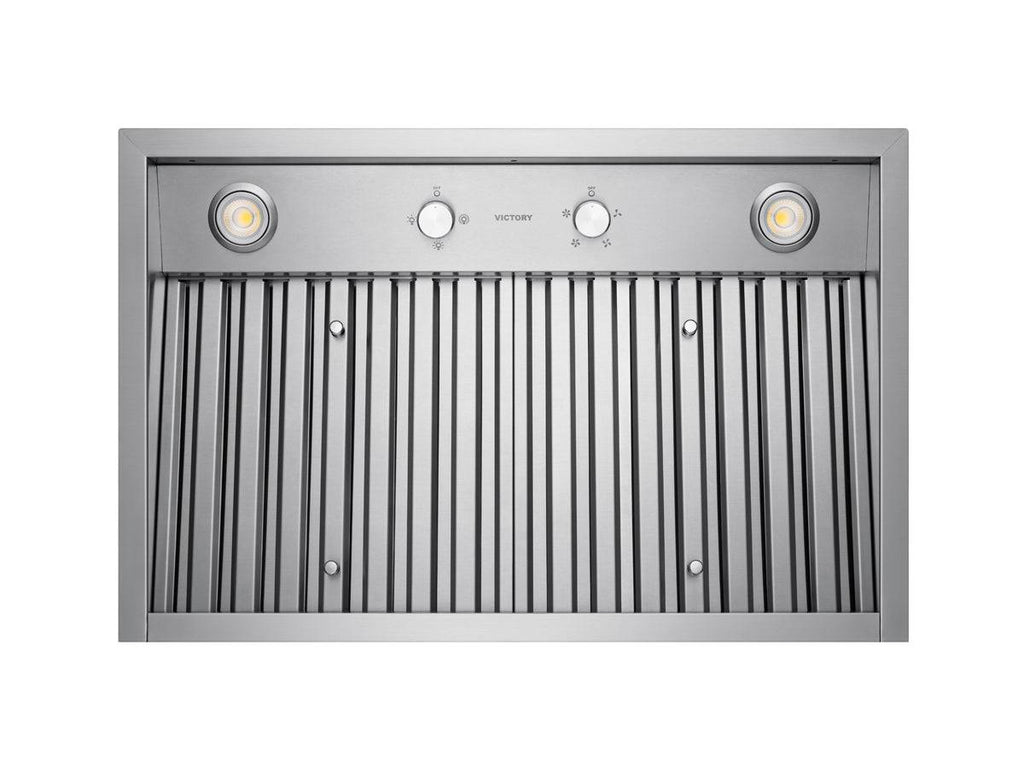

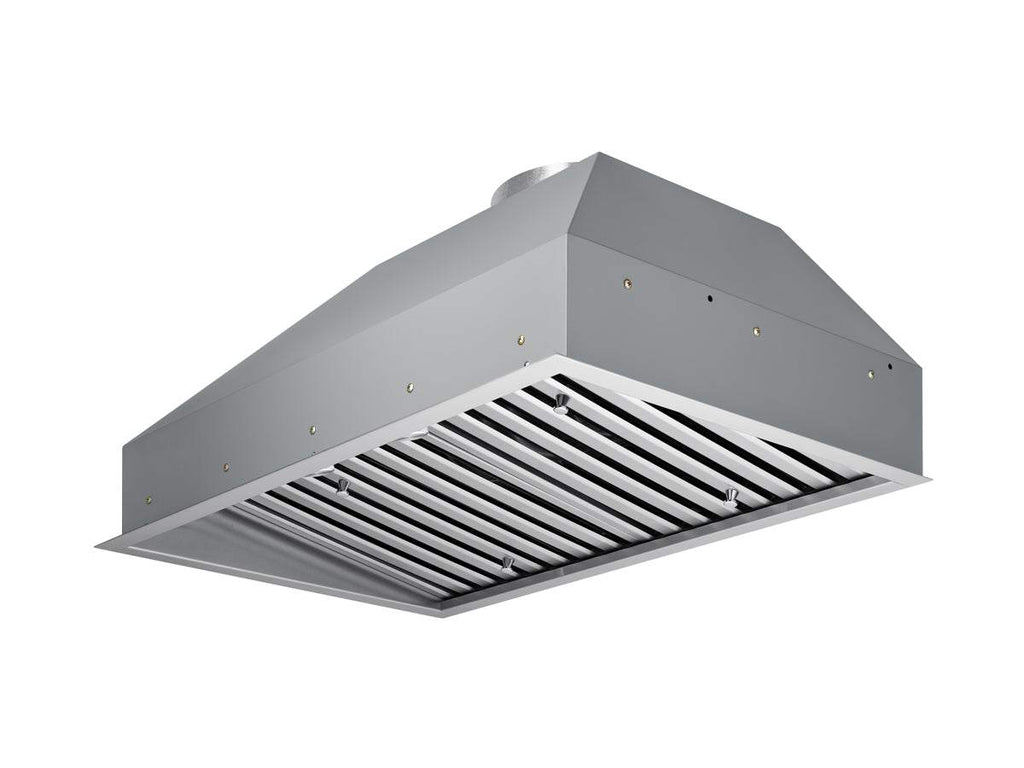

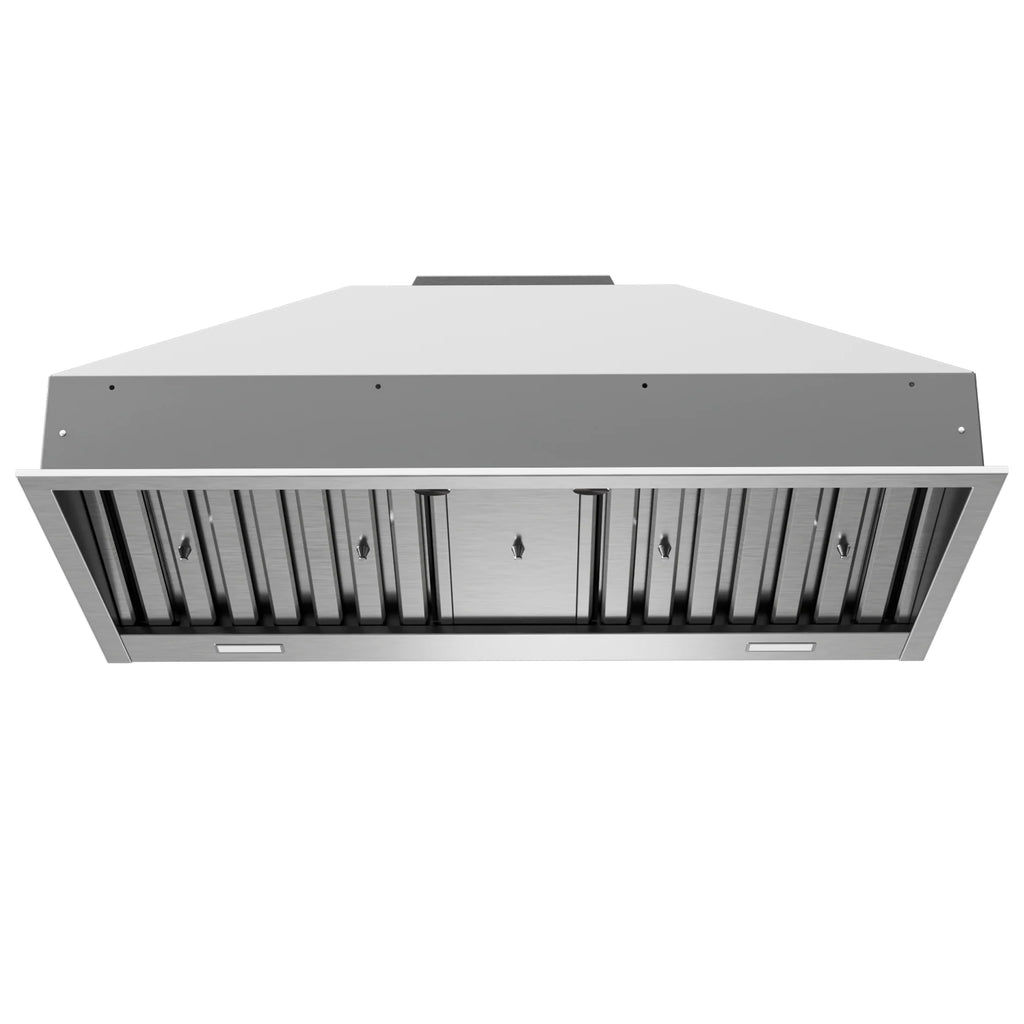

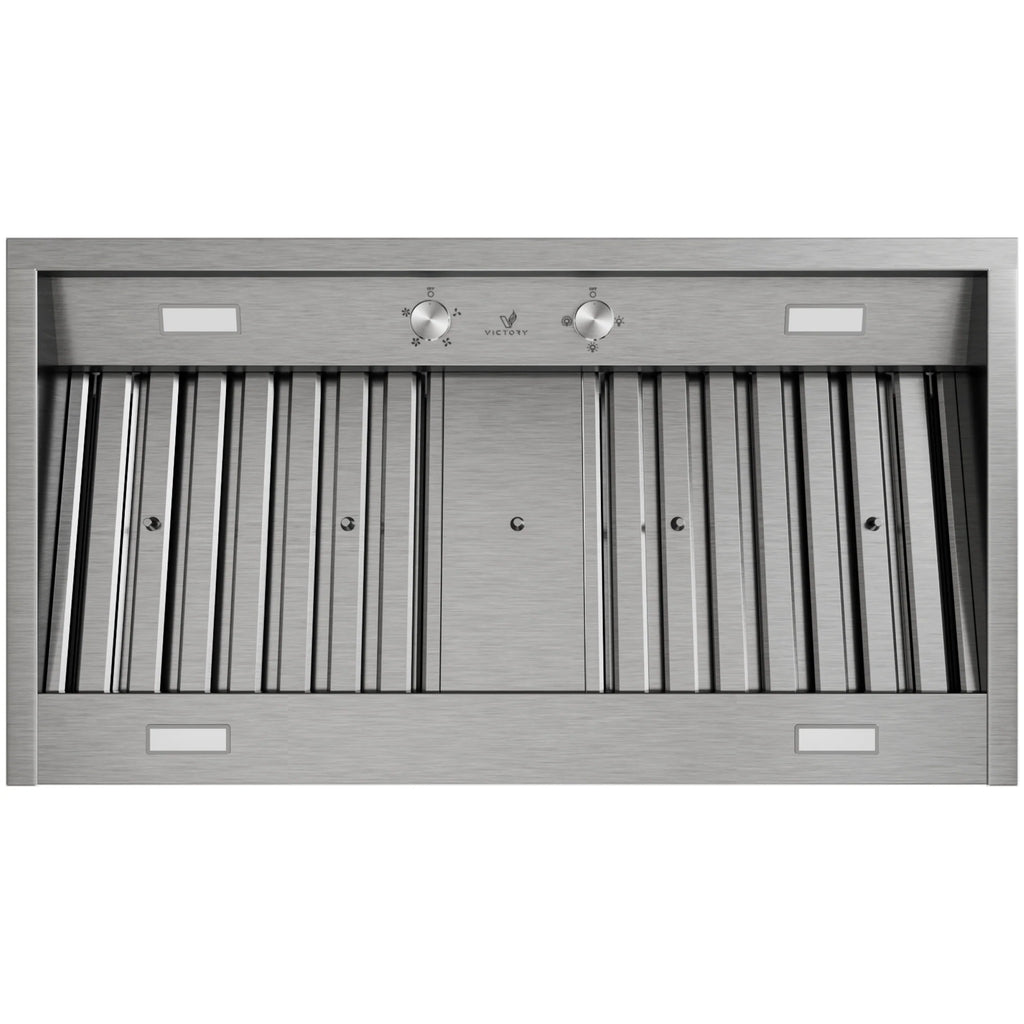

The Q5 range hood insert is designed and assembled in Canada, this range hood insert is made with high quality mechanical switches, an all metal blower and stainless steel filters making it efficient, easy to use and easy to clean.
Our range hood insert can be used with a standard 8" round duct for better performance and a quieter experience. The incredible 19" depth provides better coverage over your cooktop making this range hood insert more efficient at removing harmful odors and smoke to prevent your cabinets from discoloring. This range hood insert is also equipped with warm dimmable LED lights to provide great visibility while cooking. For the best range hood insert on the market, choose VICTORY.

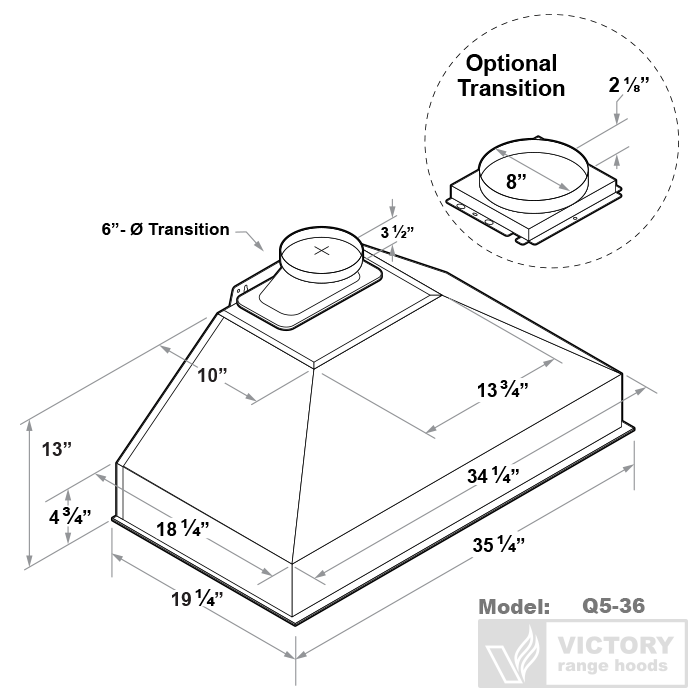

| DIMENSIONS | |
|---|---|
| Body Width | 35 1/2" |
| Cutout / Opening Width | 34 1/4" |
| Depth | 19 1/4" |
| Weight | 45 lbs |
| GENERAL INFORMATION | |
| Brand | Victory |
| Model | Q5 |
| Product Type | Range Hood Insert |
| Size | 36" |

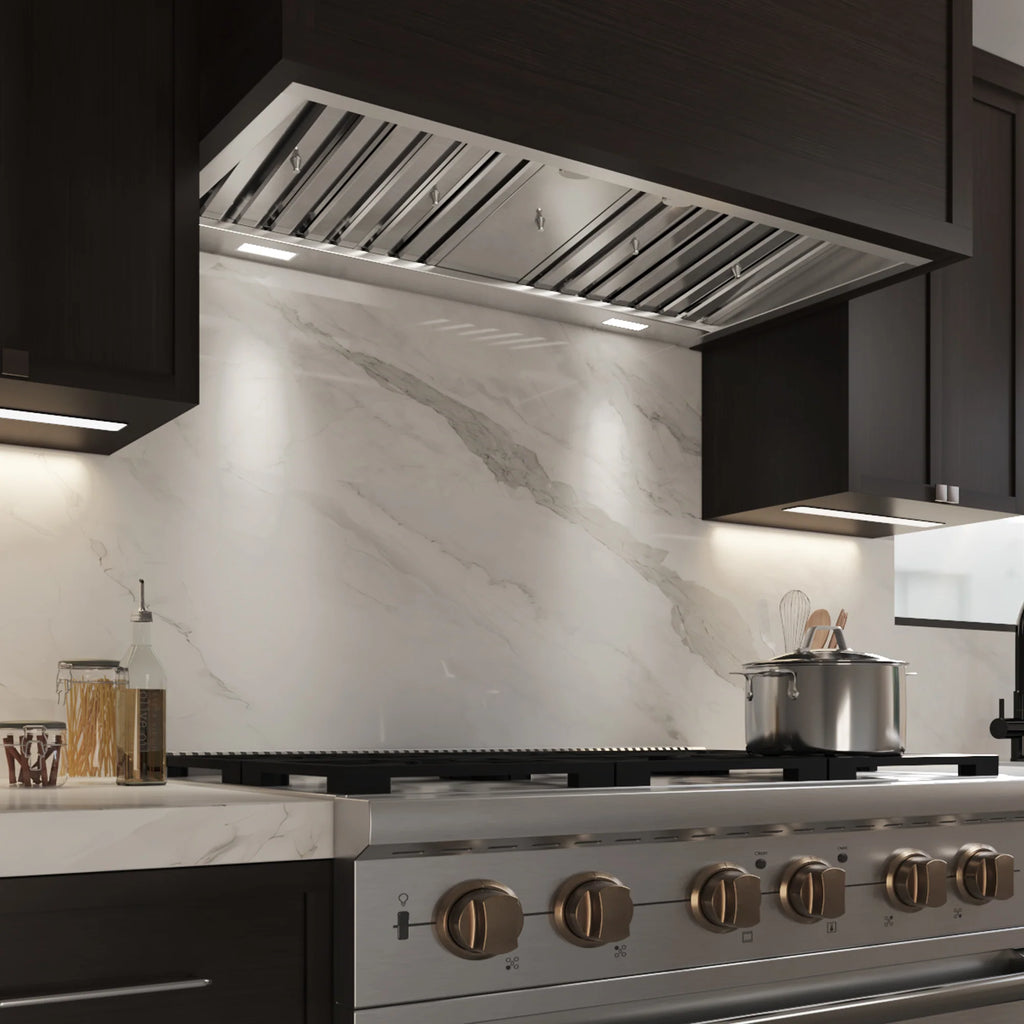

| Installation | Insert / Built-In (custom hood or cabinetry) |
| Electrical Connection | Plug-In |
| Country of Origin | Made in Canada |

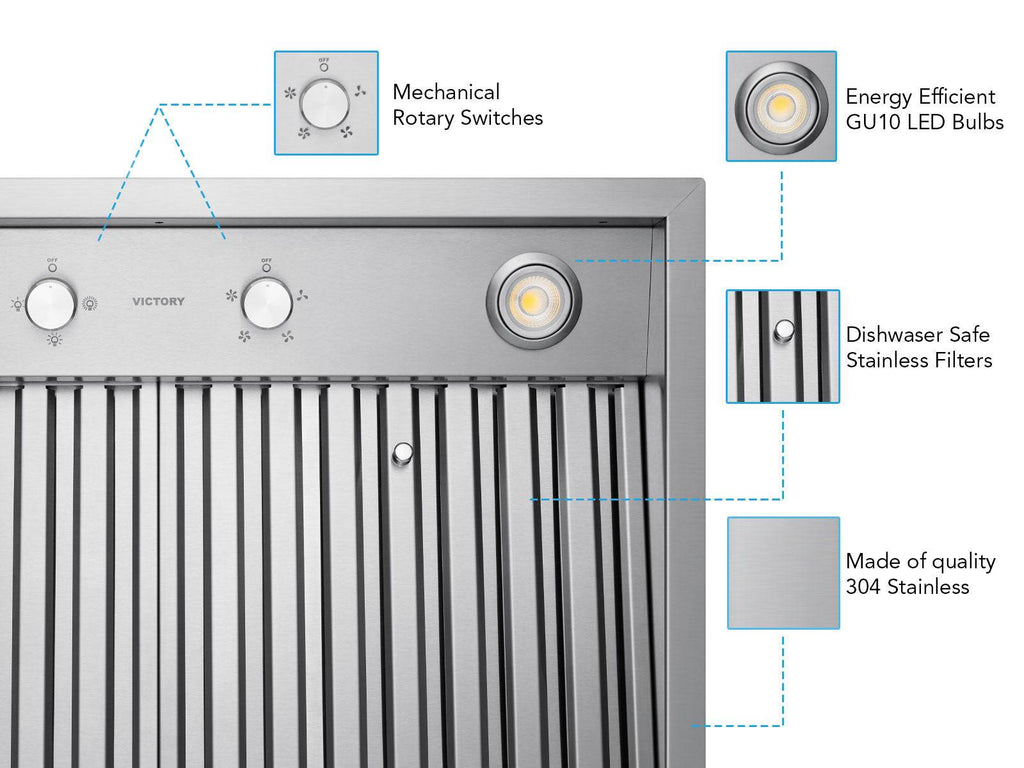

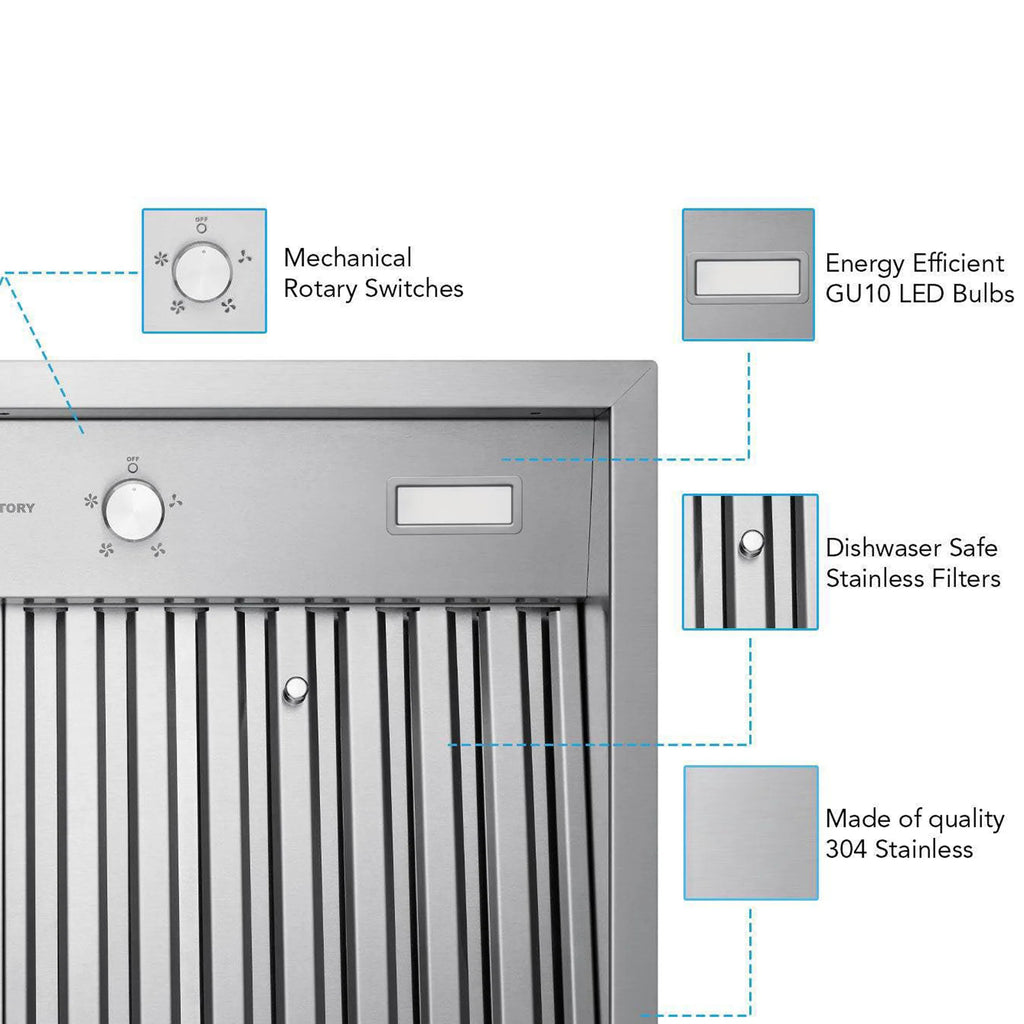

| DESIGN & FINISH | |
| Finish | Stainless Steel |
| Body Construction | 304 Stainless Steel (1mm) |
| Blower Construction | All-Metal Blower (no plastic parts) |
| Filters | Stainless Steel, dishwasher-safe + grease trap |
| Lighting | Integrated LED |
| Controls | Mechanical Rotary Controls (blower + dimmable lights) |
| TECHNICAL DETAILS | |
| Power Rating | 120V / 60Hz |
| General Input Power | 190W (180W motor + 5W x2 lights) |
| Motor Input Power | 180W |
| Motor Revolution | 800 – 1300 RPM (±10%) |
| Blower Speeds | 4 Levels |
| Airflow (6" Ø duct) |
|
| Airflow (8" Ø duct) |
|
| Noise Level | 1.0 – 5.5 Sones |

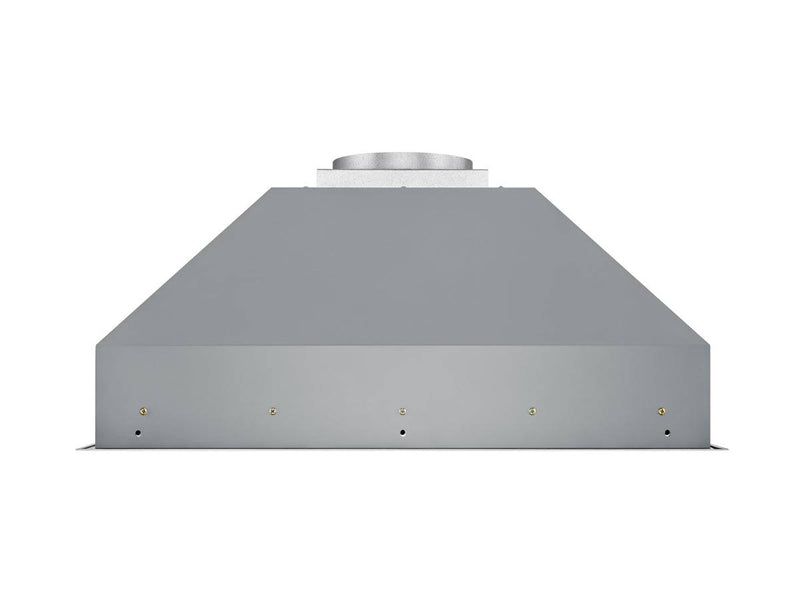

| Exhaust | 6" or 8" Ø — Top or Back Vent |
| VENTILATION FEATURES | |
| Max Airflow | Up to 750 CFM (8" duct) |
| Blower | All-Metal Blower, no loss of suction |
| Fan Speeds | 4-Speed |
| Filters | 304 Stainless Steel baffle filters (dishwasher-safe) + grease trap |
| Lighting | Integrated LED |
| Controls | Mechanical Rotary Knobs |
| WARRANTY & CERTIFICATIONS | |
| Warranty |
|
| Certifications |
|
